华为设备配置静态路由与静态BFD联动

1. 配置各接口所属的VLAN
   [LSW1]vlan batch 10
   [LSW1-GigabitEthernet0/0/2]port link-type trunk
   [LSW1-GigabitEthernet0/0/2]port trunk allow-pass vlan 10
   [LSW2]vlan batch 10 20
   [LSW2-GigabitEthernet0/0/1]port link-type trunk
   [LSW2-GigabitEthernet0/0/1]port trunk allow-pass vlan 10
   [LSW2-GigabitEthernet0/0/2]port link-type access
   [LSW2-GigabitEthernet0/0/2]port default vlan 20

2. 配置各VLANIF接口的IP地址
   [LSW1-Vlanif10]ip add 10.1.1.1 24
   [LSW2-Vlanif10]ip add 10.1.1.2 24
   [LSW2-Vlanif20]ip add 10.1.2.2 24

3. 配置LSW1和LSW2间的BFD会话
   [LSW1]bfd
   [LSW1]bfd a1 bind peer-ip 10.1.1.2
   [LSW1-bfd-session-a1]discriminator local 10
   [LSW1-bfd-session-a1]discriminator remote 20
   [LSW1-bfd-session-a1]commit
   [LSW2]bfd
   [LSW2]bfd b1 bind peer-ip 10.1.1.1
   [LSW2-bfd-session-b1]discriminator local 20
   [LSW2-bfd-session-b1]discriminator remote 10
   [LSW2-bfd-session-b1]commit

4. 配置静态路由并绑定BFD会话
   [LSW1]ip route-static 10.1.2.0 24 10.1.1.2 track bfd-session a1

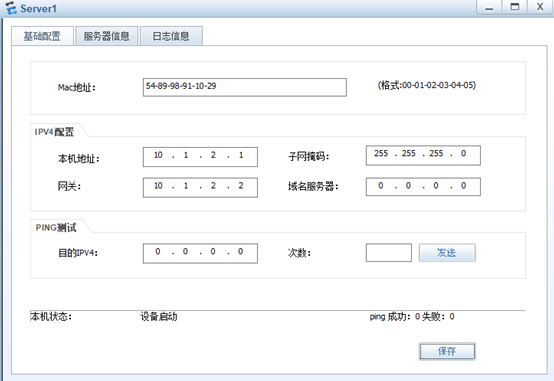

5. 配置Server

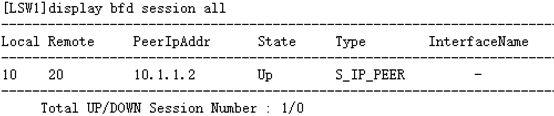

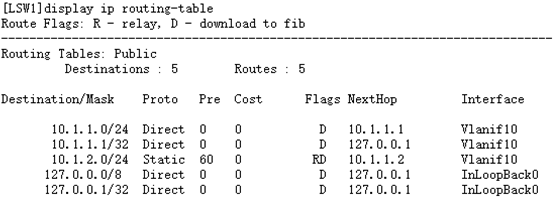

6. 验证配置

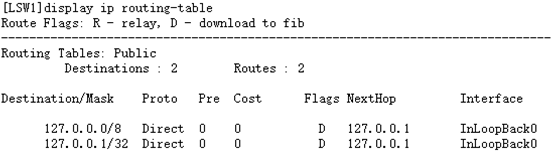

Shutdown LSW2的G0/0/1口

Undo Shutdown LSW2的G0/0/1口
