ROS1云课→30导航仿真演示

ROS1云课→29如何借助导航实现走迷宫机器人

先一键配置吧，否则很多内容无法展开讲。

echo "-----BEGIN PGP PUBLIC KEY BLOCK-----
Version: GnuPG v1

mQINBFzvJpYBEADY8l1YvO7iYW5gUESyzsTGnMvVUmlV3XarBaJz9bGRmgPXh7jc
VFrQhE0L/HV7LOfoLI9H2GWYyHBqN5ERBlcA8XxG3ZvX7t9nAZPQT2Xxe3GT3tro
u5oCR+SyHN9xPnUwDuqUSvJ2eqMYb9B/Hph3OmtjG30jSNq9kOF5bBTk1hOTGPH4
K/AY0jzT6OpHfXU6ytlFsI47ZKsnTUhipGsKucQ1CXlyirndZ3V3k70YaooZ55rG
aIoAWlx2H0J7sAHmqS29N9jV9mo135d+d+TdLBXI0PXtiHzE9IPaX+ctdSUrPnp+
TwR99lxglpIG6hLuvOMAaxiqFBB/Jf3XJ8OBakfS6nHrWH2WqQxRbiITl0irkQoz
pwNEF2Bv0+Jvs1UFEdVGz5a8xexQHst/RmKrtHLct3iOCvBNqoAQRbvWvBhPjO/p
V5cYeUljZ5wpHyFkaEViClaVWqa6PIsyLqmyjsruPCWlURLsQoQxABcL8bwxX7UT
hM6CtH6tGlYZ85RIzRifIm2oudzV5l+8oRgFr9yVcwyOFT6JCioqkwldW52P1pk/
/SnuexC6LYqqDuHUs5NnokzzpfS6QaWfTY5P5tz4KHJfsjDIktly3mKVfY0fSPVV
okdGpcUzvz2hq1fqjxB6MlB/1vtk0bImfcsoxBmF7H+4E9ZN1sX/tSb0KQARAQAB
tCZPcGVuIFJvYm90aWNzIDxpbmZvQG9zcmZvdW5kYXRpb24ub3JnPokCVAQTAQgA
PgIbAwULCQgHAgYVCgkICwIEFgIDAQIeAQIXgBYhBMHPbjHmut6IaLFytPQu1vur
F8ZUBQJgsdhRBQkLTMW7AAoJEPQu1vurF8ZUTMwP/3f7EkOPIFjUdRmpNJ2db4iB
RQu5b2SJRG+KIdbvQBzKUBMV6/RUhEDPjhXZI3zDevzBewvAMKkqs2Q1cWo9WV7Z
PyTkvSyey/Tjn+PozcdvzkvrEjDMftIk8E1WzLGq7vnPLZ1q/b6Vq4H373Z+EDWa
DaDwW72CbCBLWAVtqff80CwlI2x8fYHKr3VBUnwcXNHR4+nRABfAWnaU4k+oTshC
Qucsd8vitNfsSXrKuKyz91IRHRPnJjx8UvGU4tRGfrHkw1505EZvgP02vXeRyWBR
fKiL1vGy4tCSRDdZO3ms2J2m08VPv65HsHaWYMnO+rNJmMZj9d9JdL/9GRf5F6U0
quoIFL39BhUEvBynuqlrqistnyOhw8W/IQy/ymNzBMcMz6rcMjMwhkgm/LNXoSD1
1OrJu4ktQwRhwvGVarnB8ihwjsTxZFylaLmFSfaA+OAlOqCLS1OkIVMzjW+Ul6A6
qjiCEUOsnlf4CGlhzNMZOx3low6ixzEqKOcfECpeIj80a2fBDmWkcAAjlHu6VBhA
TUDG9e2xKLzV2Z/DLYsb3+n9QW7KO0yZKfiuUo6AYboAioQKn5jh3iRvjGh2Ujpo
22G+oae3PcCc7G+z12j6xIY709FQuA49dA2YpzMda0/OX4LP56STEveDRrO+CnV6
WE+F5FaIKwb72PL4rLi4
=i0tj
-----END PGP PUBLIC KEY BLOCK-----" >> ~/ros.asc

sudo apt-key add ros.asc

sudo sh -c '. /etc/lsb-release && echo "deb http://mirrors.tuna.tsinghua.edu.cn/ros/ubuntu/ `lsb_release -cs` main" > /etc/apt/sources.list.d/ros-latest.list'

sudo apt update

sudo apt install ros-kinetic-turtlebot-simulator -y

roslaunch turtlebot_stdr turtlebot_in_stdr.launch

保存为initnav.sh。

    1  gedit initnav.sh
    2  chmod +x initnav.sh
    3  ./initnav.sh
    4  ls
    5  gedit initnav.sh
    6  ./initnav.sh


需要源码下载：

git clone https://gitcode.net/ZhangRelay/ros_book.git

/opt/ros/kinetic/share/turtlebot_stdr/maps

改环境，同样一键配置

export TURTLEBOT_STDR_MAP_FILE=/opt/ros/kinetic/share/turtlebot_stdr/maps/simple_rooms.yaml

roslaunch turtlebot_stdr turtlebot_in_stdr.launch

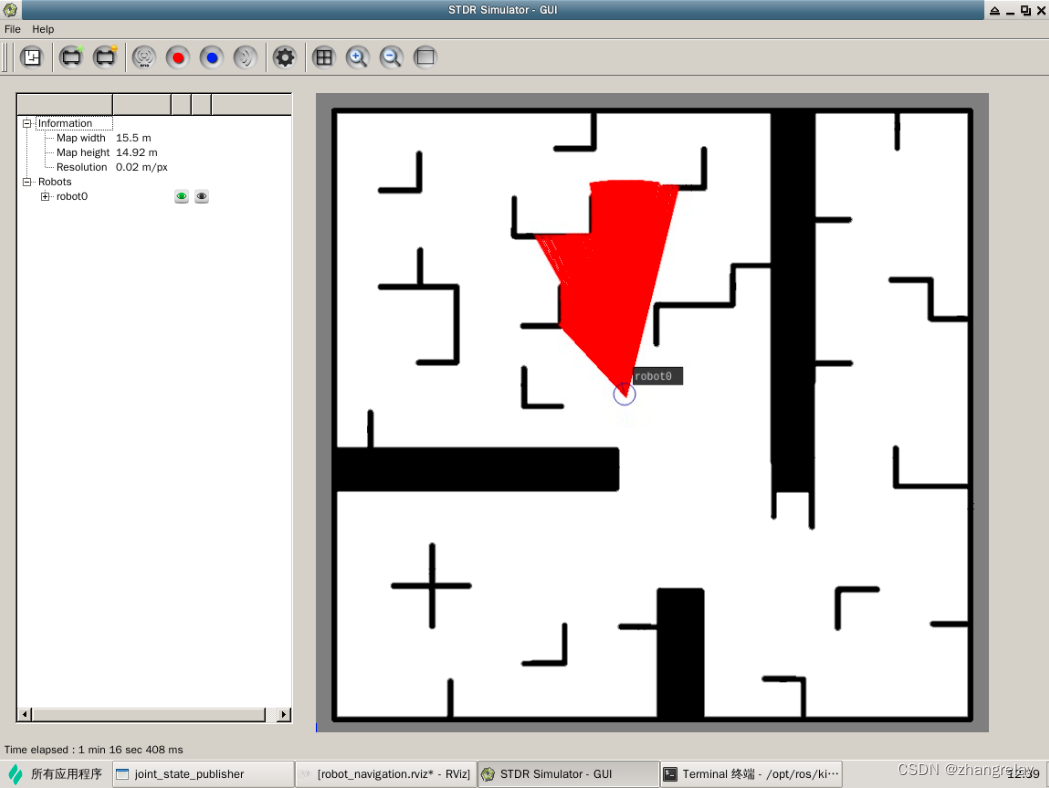

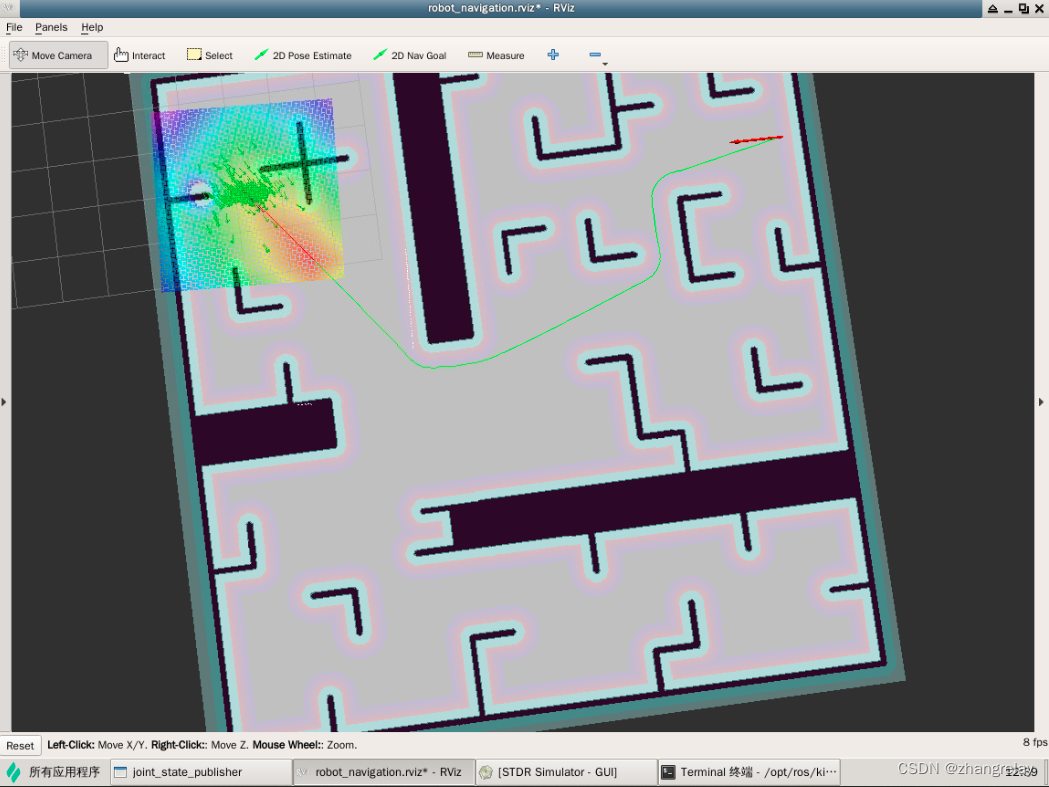

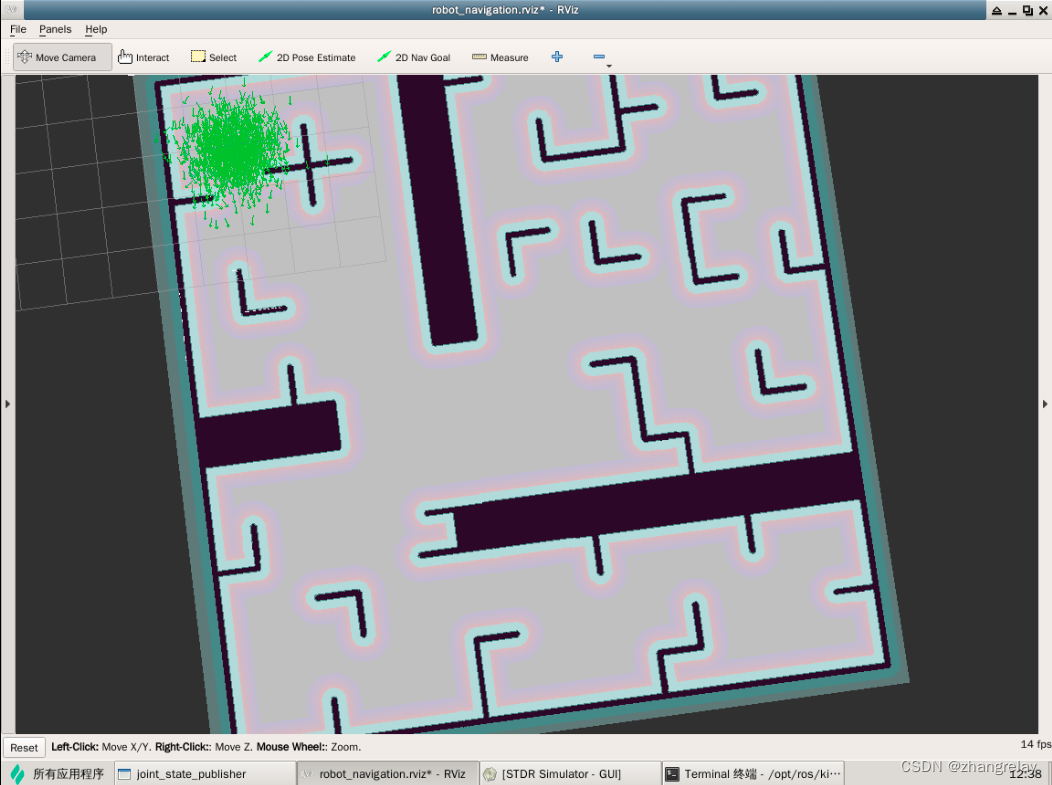

效果如下：

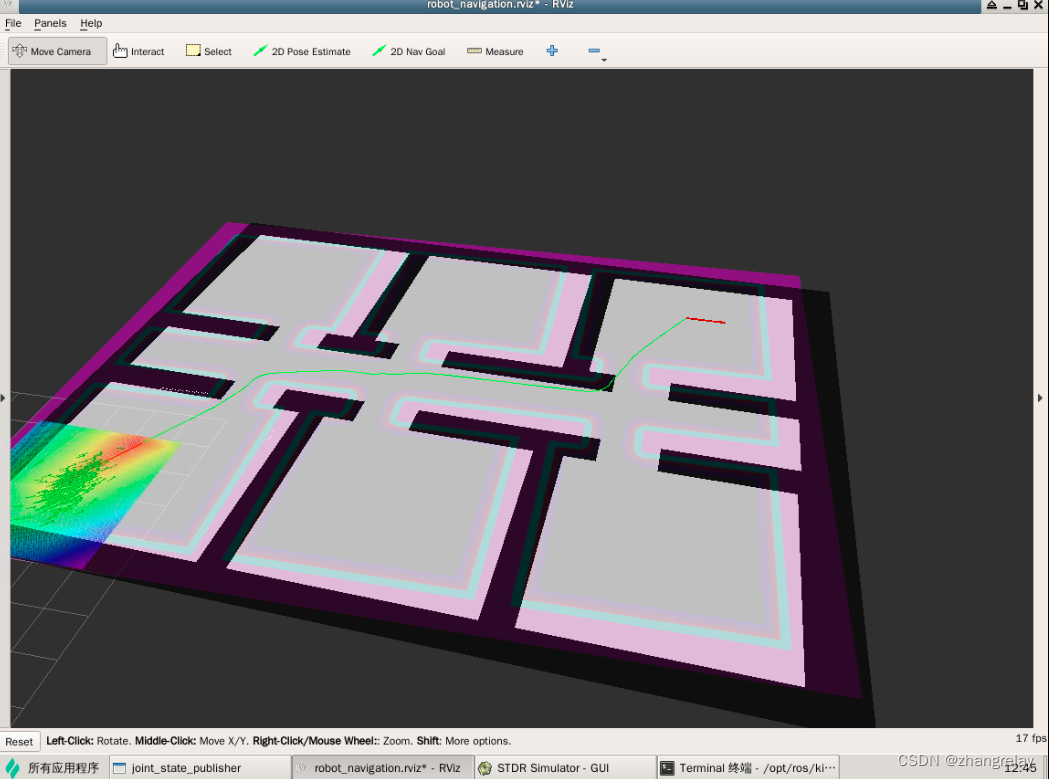

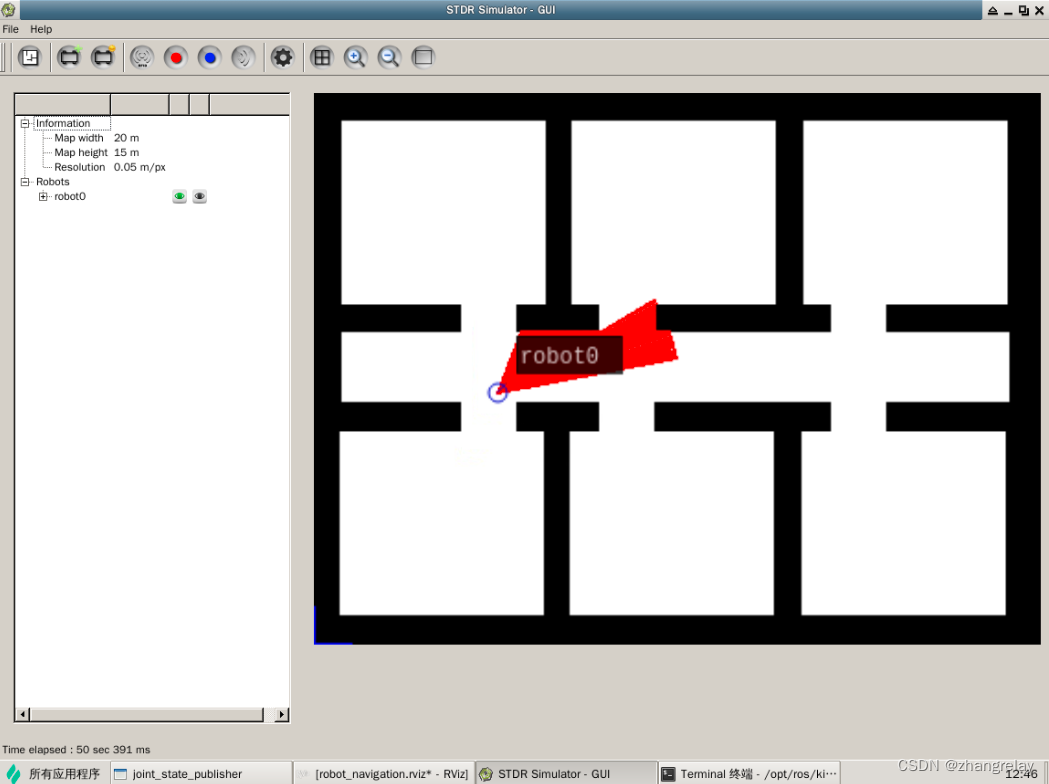

更通用案例：

export TURTLEBOT_STDR_MAP_FILE=/opt/ros/kinetic/share/turtlebot_stdr/maps/mines.yaml

echo "<!--
  Turtlebot navigation simulation:
  - stdr
  - move_base
  - amcl
  - map_server
  - rviz view
 -->
<launch>
  <arg name="base"       default="$(optenv TURTLEBOT_BASE kobuki)"/>  <!-- create, rhoomba -->
  <arg name="stacks"     default="$(optenv TURTLEBOT_STACKS hexagons)"/>  <!-- circles, hexagons -->
  <arg name="3d_sensor"  default="$(optenv TURTLEBOT_3D_SENSOR kinect)"/>  <!-- kinect, asus_xtion_pro -->
  <arg name="laser_topic" default="robot0/laser_0"/> <!-- default laser topic in stdr for 1 robot -->
  <arg name="odom_topic" default="robot0/odom"/>
  <arg name="odom_frame_id" default="map"/>
  <arg name="base_frame_id" default="robot0"/>
  <arg name="global_frame_id" default="world"/>
  <!-- Name of the map to use (without path nor extension) and initial position -->
  <arg name="map_file"       default="$(env TURTLEBOT_STDR_MAP_FILE)"/>
  <arg name="initial_pose_x" default="1.5"/>
  <arg name="initial_pose_y" default="1.5"/>
  <arg name="initial_pose_a" default="0.0"/>
  <arg name="min_obstacle_height" default="0.0"/>
  <arg name="max_obstacle_height" default="5.0"/>

  <!--  ******************** Stdr********************  -->
  <include file="$(find stdr_robot)/launch/robot_manager.launch" />
  <!-- Run STDR server with a prefedined map-->
  <node pkg="stdr_server" type="stdr_server_node" name="stdr_server" output="screen" args="$(arg map_file)"/>
  <!--Spawn new robot at init position 2 2 0-->
  <node pkg="stdr_robot" type="robot_handler" name="$(anon robot_spawn)" args="add $(find turtlebot_stdr)/robot/turtlebot.yaml $(arg initial_pose_x) $(arg initial_pose_y) 0"/>
  <!-- Run Gui  -->
  <include file="$(find stdr_gui)/launch/stdr_gui.launch"/>
  <!-- Run the relay to remap topics -->
  <include file="$(find turtlebot_stdr)/launch/includes/relays.launch.xml"/>

  <!--  ***************** Robot Model *****************  -->
  <include file="$(find turtlebot_bringup)/launch/includes/robot.launch.xml">
    <arg name="base" value="$(arg base)" />
    <arg name="stacks" value="$(arg stacks)" />
    <arg name="3d_sensor" value="$(arg 3d_sensor)" />
  </include>
  <node name="joint_state_publisher" pkg="joint_state_publisher" type="joint_state_publisher">
    <param name="use_gui" value="true"/>
  </node>

  <!-- Command Velocity multiplexer -->
  <node pkg="nodelet" type="nodelet" name="mobile_base_nodelet_manager" args="manager"/>
  <node pkg="nodelet" type="nodelet" name="cmd_vel_mux" args="load yocs_cmd_vel_mux/CmdVelMuxNodelet mobile_base_nodelet_manager">
    <param name="yaml_cfg_file" value="$(find turtlebot_bringup)/param/mux.yaml"/>
    <remap from="cmd_vel_mux/output" to="mobile_base/commands/velocity"/>
  </node>

  <!-- ****** Maps ***** -->
  <node name="map_server" pkg="map_server" type="map_server" args="$(arg map_file)">
   <param name="frame_id" value="$(arg global_frame_id)"/>
  </node>


  <!--  ************** Navigation  ***************  -->
  <include file="$(find turtlebot_navigation)/launch/includes/move_base.launch.xml">
   <arg name="odom_topic" value="$(arg odom_topic)"/>
   <arg name="laser_topic" value="$(arg laser_topic)"/>
   <arg name="odom_frame_id"   value="$(arg odom_frame_id)"/>
   <arg name="base_frame_id"   value="$(arg base_frame_id)"/>
   <arg name="global_frame_id" value="$(arg global_frame_id)"/>
  </include>

  <!-- ***************** Manually setting some parameters ************************* -->
    <param name="move_base/local_costmap/obstacle_layer/scan/min_obstacle_height" value="$(arg min_obstacle_height)"/>
    <param name="move_base/local_costmap/obstacle_layer/scan/max_obstacle_height" value="$(arg max_obstacle_height)"/>
    <param name="move_base/global_costmap/obstacle_layer/scan/min_obstacle_height" value="$(arg min_obstacle_height)"/>
    <param name="move_base/global_costmap/obstacle_layer/scan/max_obstacle_height" value="$(arg max_obstacle_height)"/>

  <!--  ************** AMCL ************** -->
  <include file="$(find turtlebot_navigation)/launch/includes/amcl/amcl.launch.xml">
    <arg name="scan_topic" value="$(arg laser_topic)"/>
    <arg name="use_map_topic" value="true"/>
    <arg name="odom_frame_id" value="$(arg odom_frame_id)"/>
    <arg name="base_frame_id" value="$(arg base_frame_id)"/>
    <arg name="global_frame_id" value="$(arg global_frame_id)"/>
    <arg name="initial_pose_x" value="$(arg initial_pose_x)"/>
    <arg name="initial_pose_y" value="$(arg initial_pose_y)"/>
    <arg name="initial_pose_a" value="$(arg initial_pose_a)"/>
  </include>

 <!-- ********** Small tf tree connector between robot0 and base_footprint********* -->
  <node name="tf_connector" pkg="turtlebot_stdr" type="tf_connector.py" output="screen"/>

  <!--  **************** Visualisation ****************  -->
  <node name="rviz" pkg="rviz" type="rviz" args="-d $(find turtlebot_stdr)/rviz/robot_navigation.rviz"/>




</launch>" >> ~/mines.launch

roslaunch mines.launch

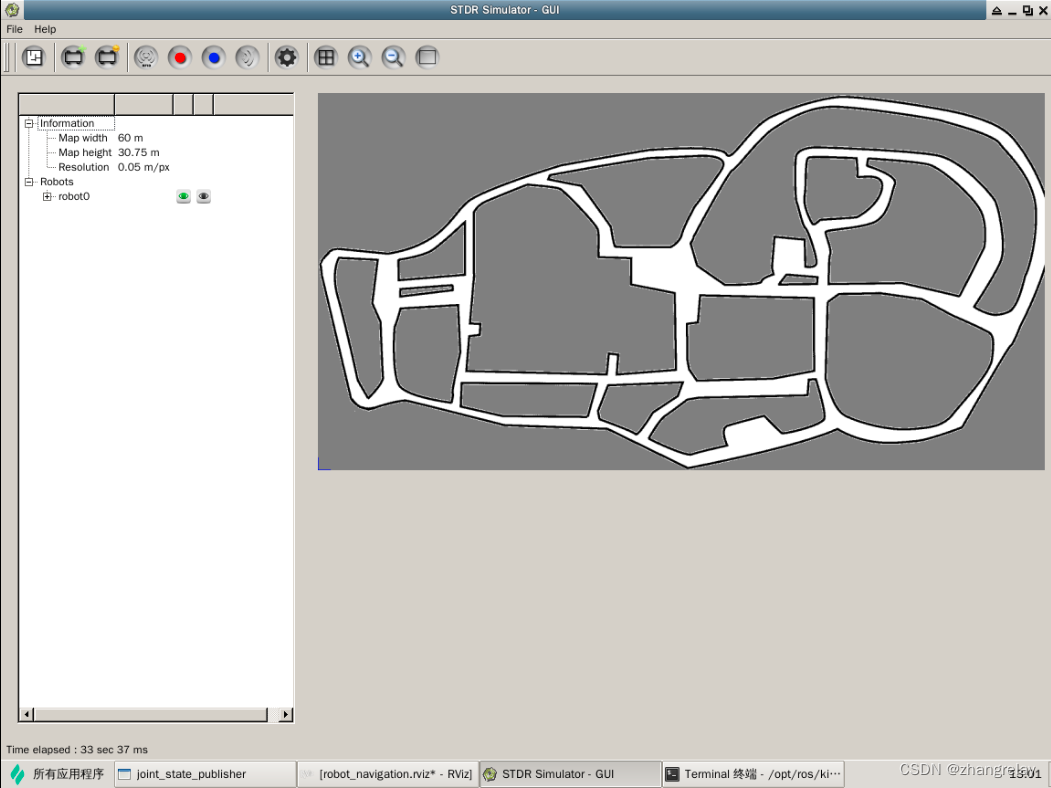

 或者：

export TURTLEBOT_STDR_MAP_FILE=/opt/ros/kinetic/share/turtlebot_stdr/maps/mines.yaml

roslaunch turtlebot_stdr turtlebot_in_stdr.launch

需要修改机器人初始坐标到合适的位置。

课堂中教室建图和导航案例需补充。

然后将其导入的ROS云实践镜像中。

注意一些参数配置，例如机器人和坐标位置等。

  <arg name="initial_pose_x" default="1.5"/>
  <arg name="initial_pose_y" default="1.5"/>
  <arg name="initial_pose_a" default="0.0"/>

坐标要对应地图参数进行调整。

设置地图：

export TURTLEBOT_STDR_MAP_FILE=/opt/ros/kinetic/share/turtlebot_stdr/maps/***.yaml

其中，***对应具体地图名称。

launch文件简单介绍：

<!--
  Turtlebot navigation simulation:
  - stdr
  - move_base
  - amcl
  - map_server
  - rviz view
 -->

包含功能如上。

<launch>
  <arg name="base"       default="$(optenv TURTLEBOT_BASE kobuki)"/>  <!-- create, rhoomba -->
  <arg name="stacks"     default="$(optenv TURTLEBOT_STACKS hexagons)"/>  <!-- circles, hexagons -->
  <arg name="3d_sensor"  default="$(optenv TURTLEBOT_3D_SENSOR kinect)"/>  <!-- kinect, asus_xtion_pro -->
  <arg name="laser_topic" default="robot0/laser_0"/> <!-- default laser topic in stdr for 1 robot -->
  <arg name="odom_topic" default="robot0/odom"/>
  <arg name="odom_frame_id" default="map"/>
  <arg name="base_frame_id" default="robot0"/>
  <arg name="global_frame_id" default="world"/>

基本主题和坐标

  <!-- Name of the map to use (without path nor extension) and initial position -->
  <arg name="map_file"       default="$(env TURTLEBOT_STDR_MAP_FILE)"/>
  <arg name="initial_pose_x" default="1.5"/>
  <arg name="initial_pose_y" default="1.5"/>
  <arg name="initial_pose_a" default="0.0"/>
  <arg name="min_obstacle_height" default="0.0"/>
  <arg name="max_obstacle_height" default="5.0"/>

初始位置参数和障碍物

  <!--  ******************** Stdr********************  -->
  <include file="$(find stdr_robot)/launch/robot_manager.launch" />
  <!-- Run STDR server with a prefedined map-->
  <node pkg="stdr_server" type="stdr_server_node" name="stdr_server" output="screen" args="$(arg map_file)"/>
  <!--Spawn new robot at init position 2 2 0-->
  <node pkg="stdr_robot" type="robot_handler" name="$(anon robot_spawn)" args="add $(find turtlebot_stdr)/robot/turtlebot.yaml $(arg initial_pose_x) $(arg initial_pose_y) 0"/>
  <!-- Run Gui  -->
  <include file="$(find stdr_gui)/launch/stdr_gui.launch"/>
  <!-- Run the relay to remap topics -->
  <include file="$(find turtlebot_stdr)/launch/includes/relays.launch.xml"/>

  <!--  ***************** Robot Model *****************  -->
  <include file="$(find turtlebot_bringup)/launch/includes/robot.launch.xml">
    <arg name="base" value="$(arg base)" />
    <arg name="stacks" value="$(arg stacks)" />
    <arg name="3d_sensor" value="$(arg 3d_sensor)" />
  </include>
  <node name="joint_state_publisher" pkg="joint_state_publisher" type="joint_state_publisher">
    <param name="use_gui" value="true"/>
  </node>

机器人模型详细参数

  <!-- Command Velocity multiplexer -->
  <node pkg="nodelet" type="nodelet" name="mobile_base_nodelet_manager" args="manager"/>
  <node pkg="nodelet" type="nodelet" name="cmd_vel_mux" args="load yocs_cmd_vel_mux/CmdVelMuxNodelet mobile_base_nodelet_manager">
    <param name="yaml_cfg_file" value="$(find turtlebot_bringup)/param/mux.yaml"/>
    <remap from="cmd_vel_mux/output" to="mobile_base/commands/velocity"/>
  </node>

速度

  <!-- ****** Maps ***** -->
  <node name="map_server" pkg="map_server" type="map_server" args="$(arg map_file)">
   <param name="frame_id" value="$(arg global_frame_id)"/>
  </node>
 地图

  <!--  ************** Navigation  ***************  -->
  <include file="$(find turtlebot_navigation)/launch/includes/move_base.launch.xml">
   <arg name="odom_topic" value="$(arg odom_topic)"/>
   <arg name="laser_topic" value="$(arg laser_topic)"/>
   <arg name="odom_frame_id"   value="$(arg odom_frame_id)"/>
   <arg name="base_frame_id"   value="$(arg base_frame_id)"/>
   <arg name="global_frame_id" value="$(arg global_frame_id)"/>
  </include>

导航

  <!-- ***************** Manually setting some parameters ************************* -->
    <param name="move_base/local_costmap/obstacle_layer/scan/min_obstacle_height" value="$(arg min_obstacle_height)"/>
    <param name="move_base/local_costmap/obstacle_layer/scan/max_obstacle_height" value="$(arg max_obstacle_height)"/>
    <param name="move_base/global_costmap/obstacle_layer/scan/min_obstacle_height" value="$(arg min_obstacle_height)"/>
    <param name="move_base/global_costmap/obstacle_layer/scan/max_obstacle_height" value="$(arg max_obstacle_height)"/>

自定义参数

  <!--  ************** AMCL ************** -->
  <include file="$(find turtlebot_navigation)/launch/includes/amcl/amcl.launch.xml">
    <arg name="scan_topic" value="$(arg laser_topic)"/>
    <arg name="use_map_topic" value="true"/>
    <arg name="odom_frame_id" value="$(arg odom_frame_id)"/>
    <arg name="base_frame_id" value="$(arg base_frame_id)"/>
    <arg name="global_frame_id" value="$(arg global_frame_id)"/>
    <arg name="initial_pose_x" value="$(arg initial_pose_x)"/>
    <arg name="initial_pose_y" value="$(arg initial_pose_y)"/>
    <arg name="initial_pose_a" value="$(arg initial_pose_a)"/>
  </include>

自适应蒙特卡罗定位

 <!-- ********** Small tf tree connector between robot0 and base_footprint********* -->
  <node name="tf_connector" pkg="turtlebot_stdr" type="tf_connector.py" output="screen"/>

坐标

  <!--  **************** Visualisation ****************  -->
  <node name="rviz" pkg="rviz" type="rviz" args="-d $(find turtlebot_stdr)/rviz/robot_navigation.rviz"/>

可视化

</launch>

坐标：

#!/usr/bin/env python
__author__ = 'mehdi tlili'
import rospy
from tf2_msgs.msg import TFMessage
import tf

class Remapper(object):

    def __init__(self):
        self.br = tf.TransformBroadcaster()
        rospy.Subscriber("/tf", TFMessage, self.tf_remapper)

    def tf_remapper(self, msg):

        if msg.transforms[0].header.frame_id == "/robot0":
            self.br.sendTransform((0, 0, 0),
                                  tf.transformations.quaternion_from_euler(0, 0, 0),
                                  rospy.Time.now(),
                                  "base_footprint",
                                  "robot0")


if __name__ == '__main__':
    rospy.init_node('remapper_nav')
    remapper = Remapper()
    rospy.spin()

最后

以上就是娇气自行车为你收集整理的ROS1云课→30导航仿真演示的全部内容，希望文章能够帮你解决ROS1云课→30导航仿真演示所遇到的程序开发问题。

如果觉得靠谱客网站的内容还不错，欢迎将靠谱客网站推荐给程序员好友。
