[case32]alibaba限流组件Sentinel实战

序

本文主要研究一下如何使用alibaba开源的限流组件Sentinel

maven

        <dependency>
            <groupId>org.springframework.cloud</groupId>
            <artifactId>spring-cloud-starter-sentinel</artifactId>
            <version>0.2.0.BUILD-SNAPSHOT</version>
        </dependency>
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter</artifactId>
        </dependency>
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-actuator</artifactId>
        </dependency>
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-web</artifactId>
        </dependency>

• spring-cloud-starter-sentinel在maven仓库没有的话自己本地install一下

配置

server.port=8080
spring.application.name=sentinel-demo
spring.cloud.sentinel.port=7080
spring.cloud.sentinel.dashboard=localhost:9999
management.endpoints.web.exposure.include=*

• 这里指定应用的端口为8080，与sentinel server通信端口为7080，sentinel server的地址为localhost:9999

启动dashboard

java -Dserver.port=9999
-Dcsp.sentinel.dashboard.server=localhost:9999
-Dproject.name=sentinel-dashboard
-jar sentinel-dashboard.jar

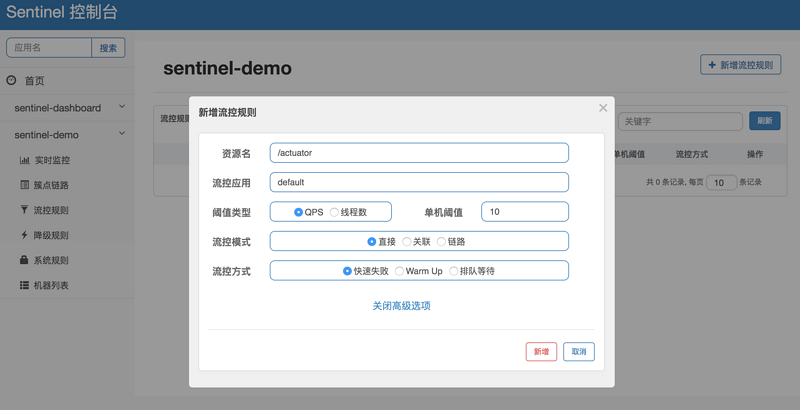

增加限流规则

访问应用的sentinel端点：http://localhost:8080/actuator/sentinel，返回如下：

{
  "DegradeRules": [],
  "SystemRules": [],
  "FlowRules": [
    {
      "resource": "/actuator",
      "limitApp": "default",
      "grade": 1,
      "count": 10,
      "strategy": 0,
      "refResource": null,
      "controlBehavior": 0,
      "warmUpPeriodSec": 10,
      "maxQueueingTimeMs": 500
    }
  ],
  "properties": {
    "enabled": true,
    "port": "7080",
    "dashboard": "localhost:9999",
    "filter": {
      "order": -2147483648,
      "urlPatterns": [
        "/*"
      ]
    }
  }
}

限流验证

wrk -t12 -c1000 -d10s -T30s  --latency http://localhost:8080/actuator

访问dashboard

可以看到每分钟的拒绝次数，另外也可以通过实时监控来看图形化曲线

蓝色的曲线为b_qps，即被blocked的请求的qps

被流控之后，接口返回

curl -i http://localhost:8080/actuator
HTTP/1.1 200
Transfer-Encoding: chunked
Date: Sun, 12 Aug 2018 13:41:15 GMT

Blocked by Sentinel (flow limiting)

小结

这里使用的是spring-cloud-alibaba的组件，跟spring-cloud-netlfix类似，是alibaba的开源组件融入spring cloud的部分，现在提供了对sentinel的集成，非常方便。

doc

• sentinel-example
• sentinel-dashboard
• Sentinel: 分布式系统的流量防卫兵
