Spring Cloud Alibaba Sentinel 服务熔断

100 阅读 0 评论
我是靠谱客的博主 柔弱菠萝，这篇文章主要介绍Spring Cloud Alibaba Sentinel 服务熔断，现在分享给大家，希望可以做个参考。

文章目录

      • 1 摘要
      • 2 核心 Maven 依赖
      • 3 核心代码
        • 3.1 application 配置文件
        • 3.2 Service 层 - 核心Feign服务调用与熔断
        • 3.3 熔断回调方法
        • 3.4 熔断回调工厂
        • 3.5 Controller 控制层
        • 3.6 SpringBoot 启动类
        • 3.7 其他相关类
        • 3.8 手动标记 Sentinel 资源
      • 4 熔断测试
        • 4.1 准备工作
        • 4.2 正常接口请求
        • 4.3 接口限流，熔断测试
      • 5 推荐参考资料
      • 6 Github 源码

​
​

1 摘要

微服务之间相互调用，如果有一个服务出现故障，无法对外提供服务，那么调用该服务的应用也会跟着陷入无线的等待，直至客户端出现链接超时，这种客户体验及其不好，而且严重影响系统的效率。熔断机制的出现，就是为了解决这个问题。微服务的熔断机制基本原理为当一个服务(A)调用另一个服务(B)的时候，如果后一个服务(B)出现故障，则不影响前一个服务(A)，同时前者能够及时提供反馈到客户端，避免用户长久等待。

Spring Cloud 中的Hystrix 就是一个著名的微服务熔断组件，Sentinel 对其进行了适配，写法上与 Hystrix 保持基本一致，从而让开发者的迁移更加方便。

本文将介绍基于 Spring Cloud Alibaba 2.2 使用 Sentinel 实现服务熔断。

准备工作:

安装 Alibaba Sentinel

了解 Spring Cloud Alibaba Sentinel 流量限制控制台

Sentinel Gtihub: https://github.com/alibaba/Sentinel

Spring Cloud Alibaba Github: https://github.com/alibaba/spring-cloud-alibaba

​

2 核心 Maven 依赖

复制代码
1
2
./cloud-alibaba-consumer-sentinel/pom.xml
复制代码
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
    <dependencies>
        <!-- cloud alibaba -->
        <dependency>
            <groupId>com.alibaba.cloud</groupId>
            <artifactId>spring-cloud-starter-alibaba-nacos-discovery</artifactId>
            <version>${spring-cloud-alibaba.version}</version>
        </dependency>
        <dependency>
            <groupId>com.alibaba.cloud</groupId>
            <artifactId>spring-cloud-starter-alibaba-sentinel</artifactId>
            <version>${spring-cloud-alibaba.version}</version>
        </dependency>
        <!-- cloud feign -->
        <dependency>
            <groupId>org.springframework.cloud</groupId>
            <artifactId>spring-cloud-starter-openfeign</artifactId>
            <version>${spring-cloud-openfeign.version}</version>
        </dependency>


        <!-- 省略其他依赖 -->

    </dependencies>

    <dependencyManagement>
        <dependencies>
            <dependency>
                <groupId>com.alibaba.cloud</groupId>
                <artifactId>spring-cloud-alibaba-dependencies</artifactId>
                <version>${spring-cloud-alibaba.version}</version>
                <type>pom</type>
                <scope>import</scope>
            </dependency>
        </dependencies>
    </dependencyManagement>

其中 ${spring-cloud-alibaba.version} 的版本为 2.2.3.RELEASE , ${spring-cloud-openfeign.version} 的版本为 2.2.5.RELEASE

注意事项: Spring Cloud Alibaba 2.2.3.RELEASE 版本支持的 Spring Boot 版本为 2.3.1.RELEASE ，建议在搭建项目时要保持版本的一致性，Spring Boot 版本过高或过低都可能导致不兼容问题

​

3 核心代码

3.1 application 配置文件

复制代码
1
2
./cloud-alibaba-consumer-sentinel/src/main/resources/application.yml
复制代码
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
## config

## server
server:
  port: 8608

## spring
spring:
  application:
    name: cloud-alibaba-consumer-sentinel
  cloud:
    nacos:
      discovery:
        server-addr: 172.16.140.10:8688
    sentinel:
      transport:
        dashboard: 172.16.140.10:8666
        port: 8720


## feign
feign:
  sentinel:
    enabled: true

## endpoint
management:
  endpoints:
    web:
      exposure:
        include: "*"

配置简要说明:

spring.application.name: 应用名称， Nacos 服务名称

spring.cloud.nacos.discovery.server-addr: Nacos 服务注册中心地址

spring.cloud.sentinel.transport.dashboard: Sentinel 控制台地址，包括 ip 和端口

spring.cloud.sentinel.transport.port: 客户端与 Sentinel 控制台的通讯端口，是项目所在服务器的端口，不是 Sentinel 控制台所在服务器的端口

feign.sentinel.enabled: 这里需要手动开启 Sentinel 对 Feign 的支持

3.2 Service 层 - 核心Feign服务调用与熔断

复制代码
1
2
./cloud-alibaba-consumer-sentinel/src/main/java/com/ljq/demo/springboot/alibaba/consumer/sentinel/service/NacosConsumerService.java
复制代码
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
package com.ljq.demo.springboot.alibaba.consumer.sentinel.service;

import com.ljq.demo.springboot.alibaba.consumer.sentinel.common.constant.NacosConst;
import com.ljq.demo.springboot.alibaba.consumer.sentinel.model.param.HelloParam;
import com.ljq.demo.springboot.alibaba.consumer.sentinel.service.fallback.ConsumerFallBackFactory;
import org.springframework.cloud.openfeign.FeignClient;
import org.springframework.cloud.openfeign.SpringQueryMap;
import org.springframework.http.MediaType;
import org.springframework.http.ResponseEntity;
import org.springframework.web.bind.annotation.GetMapping;
import org.springframework.web.bind.annotation.PostMapping;
import org.springframework.web.bind.annotation.RequestBody;


/**
 * @Description: Nacos 服务消费者业务层
 * @Author: junqiang.lu
 * @Date: 2020/12/2
 */
@FeignClient(name = NacosConst.CLOUD_ALIBABA_SENTINEL_DASHBOARD, fallbackFactory = ConsumerFallBackFactory.class)
public interface NacosConsumerService {

    /**
     * hello
     * @param helloParam
     * @return
     */
    @GetMapping(value = "/api/cloud/alibaba/sentinel/dashboard/hello", produces = {MediaType.APPLICATION_JSON_VALUE})
    ResponseEntity<String> hello(@SpringQueryMap HelloParam helloParam);

    /**
     *
     * @param helloParam
     * @return
     */
    @PostMapping(value = "/api/cloud/alibaba/sentinel/dashboard/replay", produces = {MediaType.APPLICATION_JSON_VALUE})
    ResponseEntity<String> replay(@RequestBody HelloParam helloParam);


}

3.3 熔断回调方法

复制代码
1
2
./cloud-alibaba-consumer-sentinel/src/main/java/com/ljq/demo/springboot/alibaba/consumer/sentinel/service/fallback/ConsumerFallBack.java
复制代码
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
package com.ljq.demo.springboot.alibaba.consumer.sentinel.service.fallback;

import com.ljq.demo.springboot.alibaba.consumer.sentinel.model.param.HelloParam;
import com.ljq.demo.springboot.alibaba.consumer.sentinel.service.NacosConsumerService;
import lombok.extern.slf4j.Slf4j;
import org.springframework.http.ResponseEntity;

/**
 * @Description: 熔断回调方法
 * @Author: junqiang.lu
 * @Date: 2020/12/2
 */
@Slf4j
public class ConsumerFallBack implements NacosConsumerService {

    private Throwable throwable;

    public ConsumerFallBack(Throwable throwable) {
        this.throwable = throwable;
    }

    /**
     * hello
     * @param helloParam
     * @return
     */
    @Override
    public ResponseEntity<String> hello(HelloParam helloParam) {
        String result = "Sorry," + helloParam.getName() + ",网络拥堵,稍后重试";
        log.info("call back result: {}", result);
        log.error("{}", throwable.getMessage());
        return ResponseEntity.ok(result);
    }

    /**
     * 回复
     *
     * @param helloParam
     * @return
     */
    @Override
    public ResponseEntity<String> replay(HelloParam helloParam) {
        String result = "Sorry," + helloParam.getName() + ",网络拥堵,稍后重试";
        log.info("call back result: {}", result);
        log.error("{}", throwable.getMessage());
        return ResponseEntity.ok(result);
    }


}

3.4 熔断回调工厂

复制代码
1
2
./cloud-alibaba-consumer-sentinel/src/main/java/com/ljq/demo/springboot/alibaba/consumer/sentinel/service/fallback/ConsumerFallBackFactory.java
复制代码
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
package com.ljq.demo.springboot.alibaba.consumer.sentinel.service.fallback;

import feign.hystrix.FallbackFactory;
import org.springframework.stereotype.Component;

/**
 * @Description: Nacos 熔断工厂
 * @Author: junqiang.lu
 * @Date: 2020/12/3
 */
@Component
public class ConsumerFallBackFactory implements FallbackFactory<ConsumerFallBack> {

    @Override
    public ConsumerFallBack create(Throwable cause) {
        return new ConsumerFallBack(cause);
    }
}

3.5 Controller 控制层

复制代码
1
2
./cloud-alibaba-consumer-sentinel/src/main/java/com/ljq/demo/springboot/alibaba/consumer/sentinel/controller/NacosConsumerController.java
复制代码
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
package com.ljq.demo.springboot.alibaba.consumer.sentinel.controller;

import com.ljq.demo.springboot.alibaba.consumer.sentinel.model.param.HelloParam;
import com.ljq.demo.springboot.alibaba.consumer.sentinel.service.NacosConsumerService;
import lombok.extern.slf4j.Slf4j;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.http.MediaType;
import org.springframework.http.ResponseEntity;
import org.springframework.web.bind.annotation.*;

/**
 * @Description: nacos 服务消费者控制层
 * @Author: junqiang.lu
 * @Date: 2020/12/2
 */
@Slf4j
@RestController
@RequestMapping("/api/nacos/consumer")
public class NacosConsumerController {

    @Autowired
    private NacosConsumerService consumerService;

    @GetMapping(value = "/hello", produces = {MediaType.APPLICATION_JSON_VALUE})
    public ResponseEntity<String> hello(HelloParam helloParam) {
        ResponseEntity<String> response = consumerService.hello(helloParam);
        log.info("response: {}", response.getBody());
        return response;
    }

    @PostMapping(value = "/replay", produces = {MediaType.APPLICATION_JSON_VALUE})
    public ResponseEntity<String> replay(@RequestBody HelloParam helloParam) {
        ResponseEntity<String> response = consumerService.replay(helloParam);
        log.info("response: {}", response.getBody());
        return response;
    }


}

3.6 SpringBoot 启动类

复制代码
1
2
./cloud-alibaba-consumer-sentinel/src/main/java/com/ljq/demo/springboot/alibaba/consumer/sentinel/CloudAlibabaConsumerSentinelApplication.java
复制代码
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
package com.ljq.demo.springboot.alibaba.consumer.sentinel;

import org.springframework.boot.SpringApplication;
import org.springframework.boot.autoconfigure.SpringBootApplication;
import org.springframework.cloud.client.discovery.EnableDiscoveryClient;
import org.springframework.cloud.openfeign.EnableFeignClients;

/**
 * @author junqiang.lu
 */
@EnableDiscoveryClient
@EnableFeignClients
@SpringBootApplication
public class CloudAlibabaConsumerSentinelApplication {

    public static void main(String[] args) {
        SpringApplication.run(CloudAlibabaConsumerSentinelApplication.class, args);
    }

}

@EnableDiscoveryClient: spring cloud 服务发现注解，使用该注解可以在服务注册中心发现、管理该服务

@EnableFeignClients ：启用 Feign 的注解

3.7 其他相关类

请求参数类

复制代码
1
2
./cloud-alibaba-consumer-sentinel/src/main/java/com/ljq/demo/springboot/alibaba/consumer/sentinel/model/param/HelloParam.java
复制代码
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
package com.ljq.demo.springboot.alibaba.consumer.sentinel.model.param;

import lombok.Data;

import java.io.Serializable;

/**
 * @Description: 用户实体类
 * @Author: junqiang.lu
 * @Date: 2020/12/2
 */
@Data
public class HelloParam implements Serializable {

    private static final long serialVersionUID = -686738885661126900L;

    /**
     * 用户名
     */
    private String name;
}

常量类

复制代码
1
2
./cloud-alibaba-consumer-sentinel/src/main/java/com/ljq/demo/springboot/alibaba/consumer/sentinel/common/constant/NacosConst.java
复制代码
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
package com.ljq.demo.springboot.alibaba.consumer.sentinel.common.constant;

/**
 * @Description: Nacos 相关常量
 * @Author: junqiang.lu
 * @Date: 2020/12/2
 */
public class NacosConst {

    private NacosConst() {
    }

    public static final String CLOUD_ALIBABA_SENTINEL_DASHBOARD = "cloud-alibaba-sentinel-dashboard";
}

3.8 手动标记 Sentinel 资源

Sentinel 提供的注解 @SentinelResource 用于标记资源，其 value 属性即为资源识别编号，被标记后可以在 Sentinel 控制台对其进行流量监控和限制等操作，该注解不仅可以用在服务调用者上，还可以用在服务提供者上。本文主要介绍了 Sentinel 和 Feign 结合使用的示例，因此并没有用到该注解。在本示例中 @SentinelResource 可以再添加到 cloud-alibaba-sentinel-dashboard 项目 Controller 里提供的两个接口上。这样就可以做到更好地服务熔断。

更多信息可参考: 官方文档: Spring Cloud Alibaba Sentinel

​

4 熔断测试

4.1 准备工作

依次启动 Sentinel 控制台项目、待调用服务 cloud-alibaba-sentinel-dashboard 、当前项目服务 cloud-alibaba-consumer-sentinel

请求当前项目的两个接口(可暂不传参数，主要为了让 Sentinel 控制台显示当前服务)

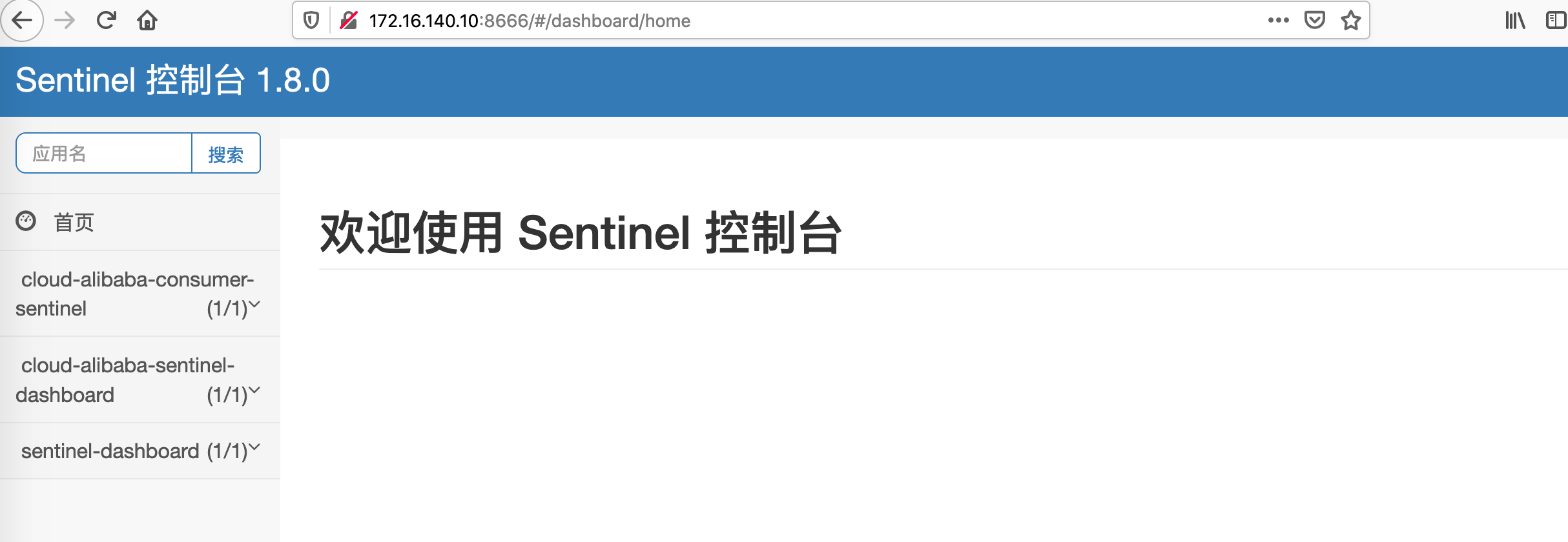

打开 Sentinel 控制台

image-20201216195825289

​

4.2 正常接口请求

接口一:

接口地址与请求参数:

复制代码
1
2
http://127.0.0.1:8608/api/nacos/consumer/hello?name=%E8%92%99%E5%A8%9C%E4%B8%BD%E8%8E%8E

请求方式: GET

返回结果:

复制代码
1
2
Hello,蒙娜丽莎

服务消费者(cloud-alibaba-consumer-sentinel)日志:

复制代码
1
2
2020-12-17 13:34:31.130  INFO 7339 --- [nio-8608-exec-1] c.l.d.s.a.c.s.c.NacosConsumerController  : response: Hello,蒙娜丽莎

服务提供者(cloud-alibaba-sentinel-dashboard)日志:

复制代码
1
2
3
2020-12-17 13:34:31.014  INFO 7346 --- [nio-8606-exec-1] .d.s.a.s.d.c.SentinelDashboardController : serverPort: 8606
2020-12-17 13:34:31.015  INFO 7346 --- [nio-8606-exec-1] .d.s.a.s.d.c.SentinelDashboardController : result: Hello,蒙娜丽莎

接口二:

接口地址:

复制代码
1
2
http://127.0.0.1:8608/api/nacos/consumer/replay

请求参数:

复制代码
1
2
3
4
{
    "name": "马保国"
}

请求方式: POST

返回结果:

复制代码
1
2
Hi,马保国,I'm fine,Thank you.

服务消费者(cloud-alibaba-consumer-sentinel)日志:

复制代码
1
2
2020-12-17 13:34:35.425  INFO 7339 --- [nio-8608-exec-2] c.l.d.s.a.c.s.c.NacosConsumerController  : response: Hi,马保国,I'm fine,Thank you.

服务提供者(cloud-alibaba-sentinel-dashboard)日志:

复制代码
1
2
2020-12-17 13:34:35.422  INFO 7346 --- [nio-8606-exec-2] .d.s.a.s.d.c.SentinelDashboardController : result: Hi,马保国,I'm fine,Thank you.

Sentinel 控制台界面

Sentinel 控制台

​

4.3 接口限流，熔断测试

对服务提供者的接口进行限流，QPS 上限为 5

操作步骤：

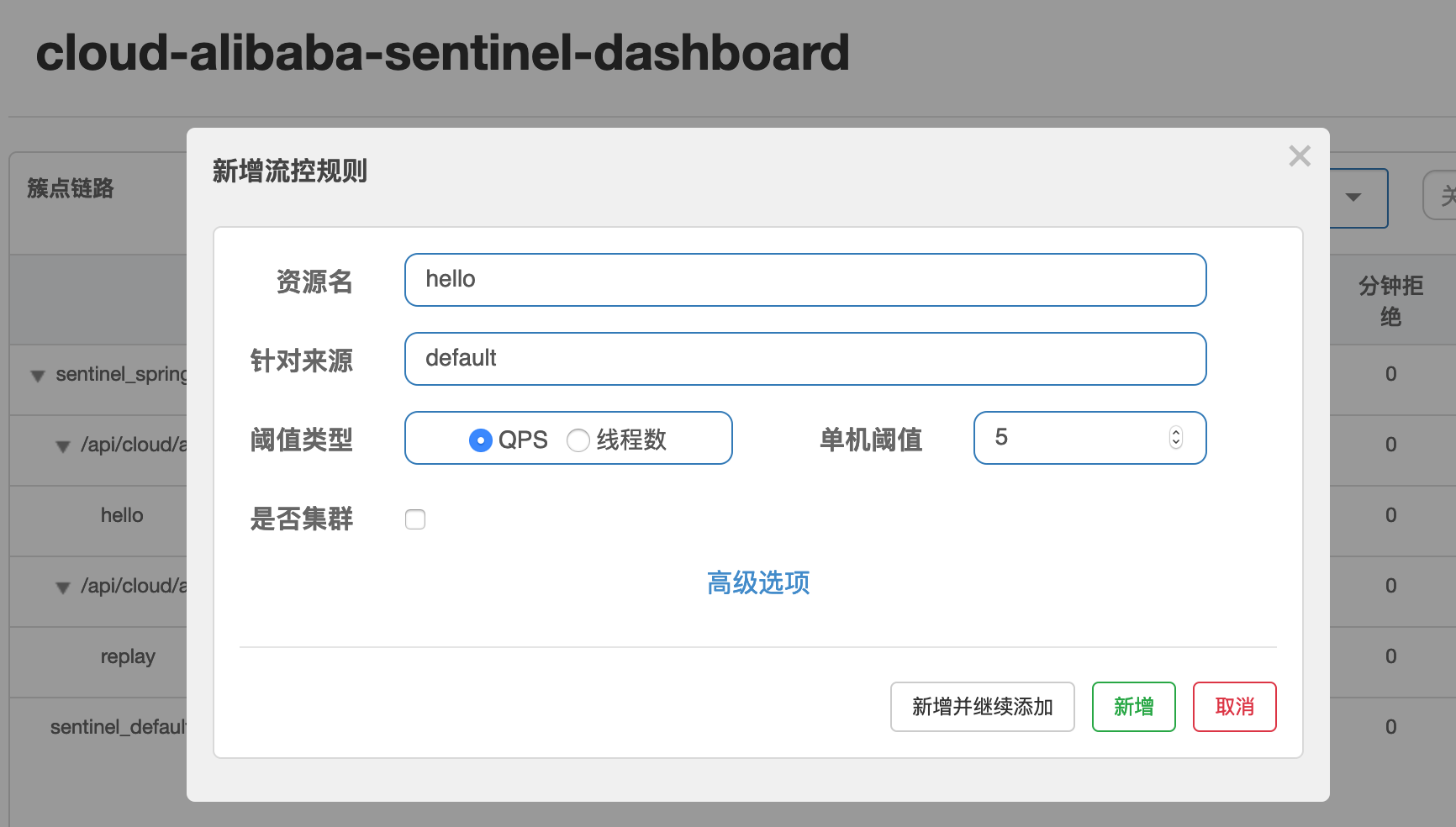

点击左侧「cloud-alibaba-sentinel-dashboard」,点击「簇点链路」，在hello 和 replay 接口右侧点击「流控」按钮，将 QPS 设置为 5

添加流量控制

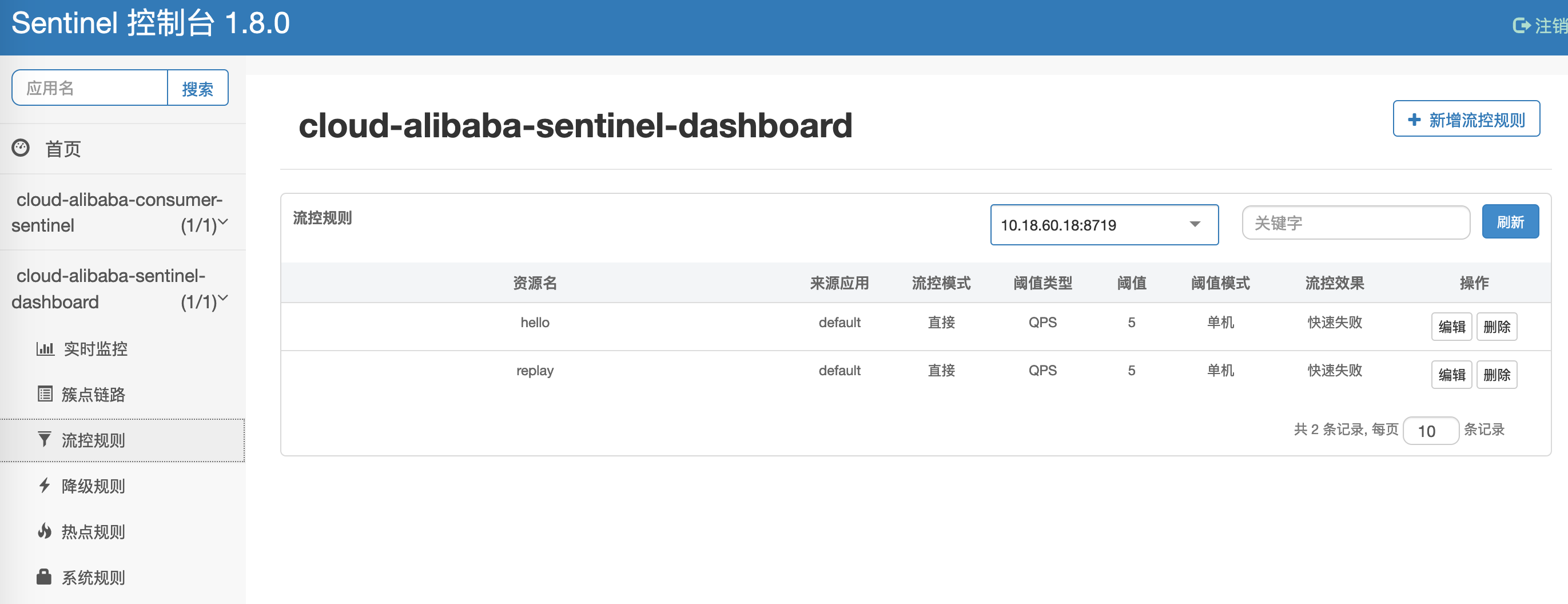

添加成功后，点击左侧「流控规则」，展示设置的限流信息

流控规则列表

使用测试工具对接口进行测试

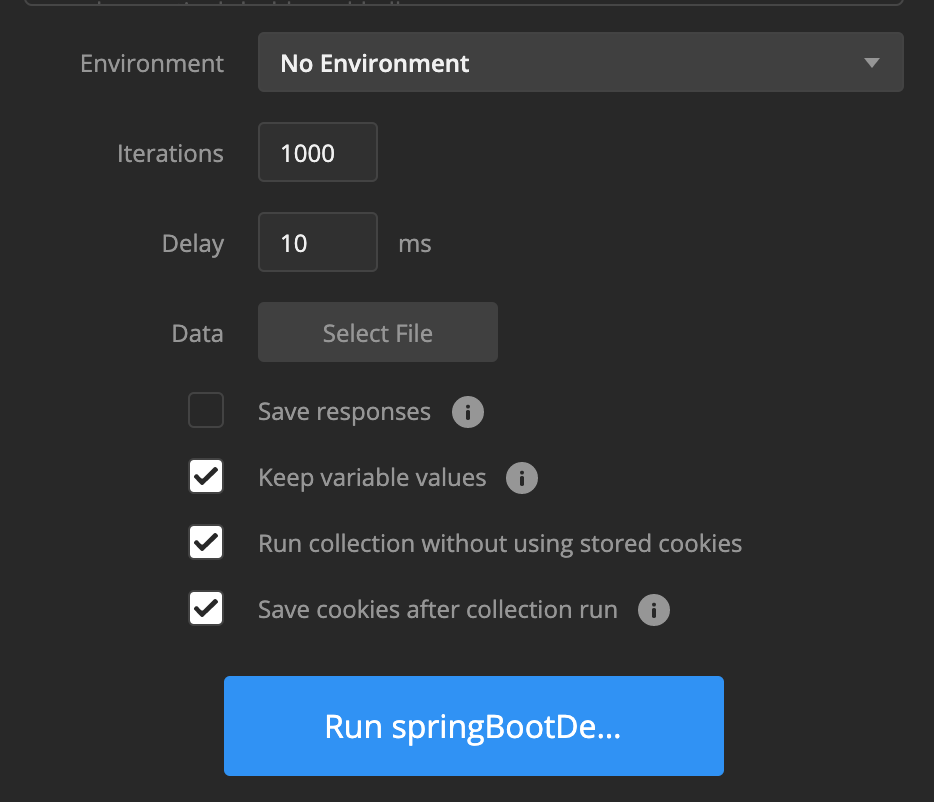

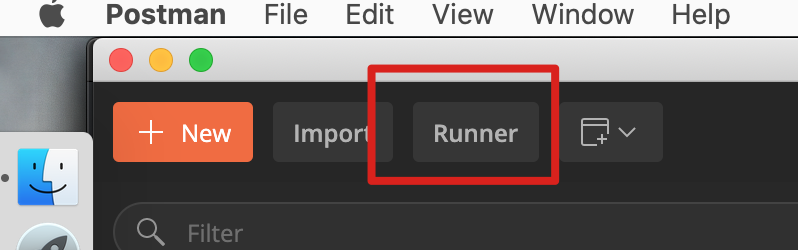

这里以 Postman 的 Runner 功能为例

image-20201217135727892

image-20201217140825715

请求的接口为服务消费者(cloud-alibaba-consumer-sentinel) 的两个接口

总共请求 1000 次，每间隔 10 毫秒请求一次，理论 QPS 为 100/2 = 50（Runner 是单线程串行请求接口的）

启动 Runner

Sentinel 控制台

image-20201217141156685

image-20201217141247365

服务消费者部分后台日志:

复制代码
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
2020-12-17 14:12:02.061  INFO 7339 --- [nio-8608-exec-8] c.l.d.s.a.c.s.c.NacosConsumerController  : response: Hello,蒙娜丽莎
2020-12-17 14:12:02.103  INFO 7339 --- [nio-8608-exec-9] c.l.d.s.a.c.s.c.NacosConsumerController  : response: Hi,马保国,I'm fine,Thank you.
2020-12-17 14:12:02.144  INFO 7339 --- [io-8608-exec-10] c.l.d.s.a.c.s.c.NacosConsumerController  : response: Hello,蒙娜丽莎
2020-12-17 14:12:02.190  INFO 7339 --- [nio-8608-exec-1] c.l.d.s.a.c.s.s.f.ConsumerFallBack       : call back result: Sorry,马保国,网络拥堵,稍后重试
2020-12-17 14:12:02.190 ERROR 7339 --- [nio-8608-exec-1] c.l.d.s.a.c.s.s.f.ConsumerFallBack       : [429] during [POST] to [http://cloud-alibaba-sentinel-dashboard/api/cloud/alibaba/sentinel/dashboard/replay] [NacosConsumerService#replay(HelloParam)]: [Blocked by Sentinel (flow limiting)]
2020-12-17 14:12:02.190  INFO 7339 --- [nio-8608-exec-1] c.l.d.s.a.c.s.c.NacosConsumerController  : response: Sorry,马保国,网络拥堵,稍后重试
2020-12-17 14:12:02.227  INFO 7339 --- [nio-8608-exec-2] c.l.d.s.a.c.s.s.f.ConsumerFallBack       : call back result: Sorry,蒙娜丽莎,网络拥堵,稍后重试
2020-12-17 14:12:02.227 ERROR 7339 --- [nio-8608-exec-2] c.l.d.s.a.c.s.s.f.ConsumerFallBack       : [429] during [GET] to [http://cloud-alibaba-sentinel-dashboard/api/cloud/alibaba/sentinel/dashboard/hello?serialVersionUID=-686738885661126900&name=%E8%92%99%E5%A8%9C%E4%B8%BD%E8%8E%8E] [NacosConsumerService#hello(HelloParam)]: [Blocked by Sentinel (flow limiting)]
2020-12-17 14:12:02.227  INFO 7339 --- [nio-8608-exec-2] c.l.d.s.a.c.s.c.NacosConsumerController  : response: Sorry,蒙娜丽莎,网络拥堵,稍后重试
2020-12-17 14:12:02.276  INFO 7339 --- [nio-8608-exec-3] c.l.d.s.a.c.s.s.f.ConsumerFallBack       : call back result: Sorry,马保国,网络拥堵,稍后重试
2020-12-17 14:12:02.276 ERROR 7339 --- [nio-8608-exec-3] c.l.d.s.a.c.s.s.f.ConsumerFallBack       : [429] during [POST] to [http://cloud-alibaba-sentinel-dashboard/api/cloud/alibaba/sentinel/dashboard/replay] [NacosConsumerService#replay(HelloParam)]: [Blocked by Sentinel (flow limiting)]
2020-12-17 14:12:02.276  INFO 7339 --- [nio-8608-exec-3] c.l.d.s.a.c.s.c.NacosConsumerController  : response: Sorry,马保国,网络拥堵,稍后重试
2020-12-17 14:12:02.324  INFO 7339 --- [nio-8608-exec-4] c.l.d.s.a.c.s.s.f.ConsumerFallBack       : call back result: Sorry,蒙娜丽莎,网络拥堵,稍后重试
2020-12-17 14:12:02.324 ERROR 7339 --- [nio-8608-exec-4] c.l.d.s.a.c.s.s.f.ConsumerFallBack       : [429] during [GET] to [http://cloud-alibaba-sentinel-dashboard/api/cloud/alibaba/sentinel/dashboard/hello?serialVersionUID=-686738885661126900&name=%E8%92%99%E5%A8%9C%E4%B8%BD%E8%8E%8E] [NacosConsumerService#hello(HelloParam)]: [Blocked by Sentinel (flow limiting)]
2020-12-17 14:12:02.324  INFO 7339 --- [nio-8608-exec-4] c.l.d.s.a.c.s.c.NacosConsumerController  : response: Sorry,蒙娜丽莎,网络拥堵,稍后重试
2020-12-17 14:12:02.374  INFO 7339 --- [nio-8608-exec-5] c.l.d.s.a.c.s.s.f.ConsumerFallBack       : call back result: Sorry,马保国,网络拥堵,稍后重试
2020-12-17 14:12:02.374 ERROR 7339 --- [nio-8608-exec-5] c.l.d.s.a.c.s.s.f.ConsumerFallBack       : [429] during [POST] to [http://cloud-alibaba-sentinel-dashboard/api/cloud/alibaba/sentinel/dashboard/replay] [NacosConsumerService#replay(HelloParam)]: [Blocked by Sentinel (flow limiting)]
2020-12-17 14:12:02.374  INFO 7339 --- [nio-8608-exec-5] c.l.d.s.a.c.s.c.NacosConsumerController  : response: Sorry,马保国,网络拥堵,稍后重试
2020-12-17 14:12:02.411  INFO 7339 --- [nio-8608-exec-6] c.l.d.s.a.c.s.s.f.ConsumerFallBack       : call back result: Sorry,蒙娜丽莎,网络拥堵,稍后重试
2020-12-17 14:12:02.411 ERROR 7339 --- [nio-8608-exec-6] c.l.d.s.a.c.s.s.f.ConsumerFallBack       : [429] during [GET] to [http://cloud-alibaba-sentinel-dashboard/api/cloud/alibaba/sentinel/dashboard/hello?serialVersionUID=-686738885661126900&name=%E8%92%99%E5%A8%9C%E4%B8%BD%E8%8E%8E] [NacosConsumerService#hello(HelloParam)]: [Blocked by Sentinel (flow limiting)]
2020-12-17 14:12:02.411  INFO 7339 --- [nio-8608-exec-6] c.l.d.s.a.c.s.c.NacosConsumerController  : response: Sorry,蒙娜丽莎,网络拥堵,稍后重试
2020-12-17 14:12:02.454  INFO 7339 --- [nio-8608-exec-7] c.l.d.s.a.c.s.s.f.ConsumerFallBack       : call back result: Sorry,马保国,网络拥堵,稍后重试
2020-12-17 14:12:02.454 ERROR 7339 --- [nio-8608-exec-7] c.l.d.s.a.c.s.s.f.ConsumerFallBack       : [429] during [POST] to [http://cloud-alibaba-sentinel-dashboard/api/cloud/alibaba/sentinel/dashboard/replay] [NacosConsumerService#replay(HelloParam)]: [Blocked by Sentinel (flow limiting)]
2020-12-17 14:12:02.454  INFO 7339 --- [nio-8608-exec-7] c.l.d.s.a.c.s.c.NacosConsumerController  : response: Sorry,马保国,网络拥堵,稍后重试
2020-12-17 14:12:02.505  INFO 7339 --- [nio-8608-exec-8] c.l.d.s.a.c.s.c.NacosConsumerController  : response: Hello,蒙娜丽莎
2020-12-17 14:12:02.557  INFO 7339 --- [nio-8608-exec-9] c.l.d.s.a.c.s.c.NacosConsumerController  : response: Hi,马保国,I'm fine,Thank you.
2020-12-17 14:12:02.619  INFO 7339 --- [io-8608-exec-10] c.l.d.s.a.c.s.c.NacosConsumerController  : response: Hello,蒙娜丽莎
2020-12-17 14:12:02.678  INFO 7339 --- [nio-8608-exec-1] c.l.d.s.a.c.s.c.NacosConsumerController  : response: Hi,马保国,I'm fine,Thank you.
2020-12-17 14:12:02.759  INFO 7339 --- [nio-8608-exec-2] c.l.d.s.a.c.s.c.NacosConsumerController  : response: Hello,蒙娜丽莎
2020-12-17 14:12:02.846  INFO 7339 --- [nio-8608-exec-3] c.l.d.s.a.c.s.c.NacosConsumerController  : response: Hi,马保国,I'm fine,Thank you.

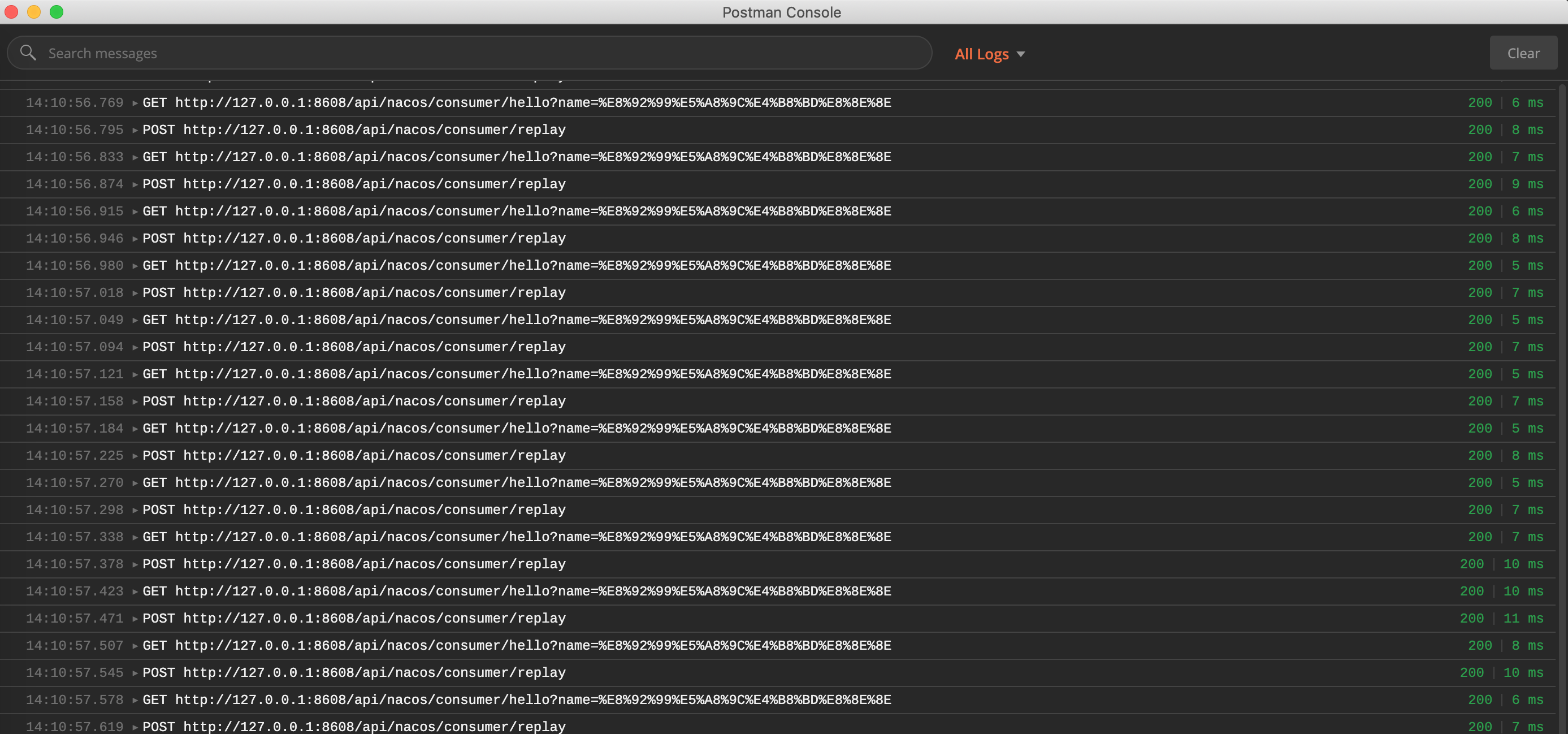

Postman 部分日志:

image-20201217141554548

测试结果可以看出服务提供者端的QPS 在限流之后最高只能达到5，超过的部分请求均被拒绝。在后台日志中可以看出请求被拒绝之后走了熔断方法。从Postman日志中可以看出一个完整请求的时间很短(50毫秒以内)，并没有处于长时间的等待，从而提升了用户体验。

至此，已经实现了使用 Sentinel 对服务进行限流，以及集成 Feign 对服务进行熔断控制的功能。

​

5 推荐参考资料

官方文档: Spring Cloud Alibaba Sentinel

Spring Cloud Alibaba系列教程 - Spring Cloud Alibaba 熔断(Sentinel)

​

6 Github 源码

Gtihub 源码地址 : https://github.com/Flying9001/springBootDemo

个人公众号:404Code,分享半个互联网人的技术与思考，感兴趣的可以关注.
404Code

最后

以上就是柔弱菠萝最近收集整理的关于Spring Cloud Alibaba Sentinel 服务熔断的全部内容，更多相关Spring内容请搜索靠谱客的其他文章。

本图文内容来源于网友提供，作为学习参考使用，或来自网络收集整理，版权属于原作者所有。
点赞(66)

相关文章

图像算法-膨胀 腐蚀 开操作 闭操作
图像算法-膨胀 腐蚀 开操作 闭操作
SpringCloud-Sentinel的服务熔断(Day15)无任何配置时只配置fallback时只配置blockHandlerfallback和blockHandler都配置配置exceptionsToIgnore
SpringCloud-Sentinel的服务熔断(Day15)无任何配置时只配置fallback时只配置blockHandlerfallback和blockHandler都配置配置exceptionsToIgnore
Redis Sentinel机制与用法[转]
Redis Sentinel机制与用法[转]
Sentinel入门（干货版）一、Sentinel简介二、Sentinel入门
Sentinel入门（干货版）一、Sentinel简介二、Sentinel入门
Spring Cloud Alibaba Sentinel 服务熔断
Spring Cloud Alibaba Sentinel 服务熔断
SpringCloud实战十二：Gateway之 Spring Cloud Gateway 熔断、降级、限流
SpringCloud实战十二：Gateway之 Spring Cloud Gateway 熔断、降级、限流
Feign、Sentinel和Hystrix源码解读
Feign、Sentinel和Hystrix源码解读
SpringCloud（十）——Spring Cloud Alibaba组件SpringCloud（十）——Spring Cloud Alibaba组件
SpringCloud（十）——Spring Cloud Alibaba组件SpringCloud（十）——Spring Cloud Alibaba组件

评论列表共有 0 条评论

立即
投稿
返回
顶部
