OLED显示图片

今天一个朋友问我取字模相关的问题，我之前也没怎么接触取字模的软件，今天顺便试了试用imag2lcd取出bmp文件，然后通过stm32和oled来显示图片。

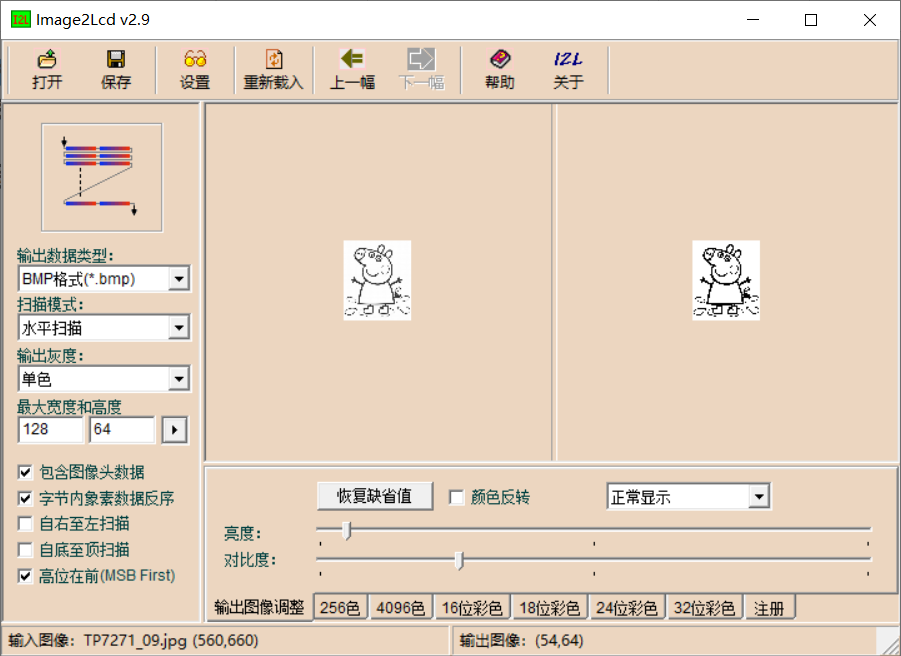

首先点击打开，打开一张你要显示的图片（有些图片格式不支持），最大宽度和高度要用128*64，按照下图配置好后，记得调节亮度和对比度，使其更加清晰，然后将其保存。

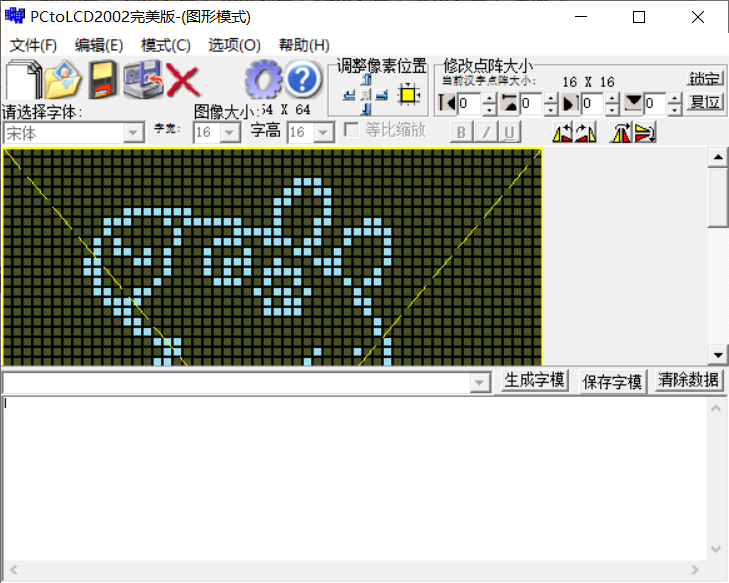

打开pctolcd2002，模式中选择图形模式，点击软件中文件夹一样的图形用pctolcd2002打开保存好的bmp文件，(记住选项，帮助栏下面的图像大小)，我这儿是（54*64）——软件问题看不清还可以在前面的imag2lcd软件下方的输出图像查看。

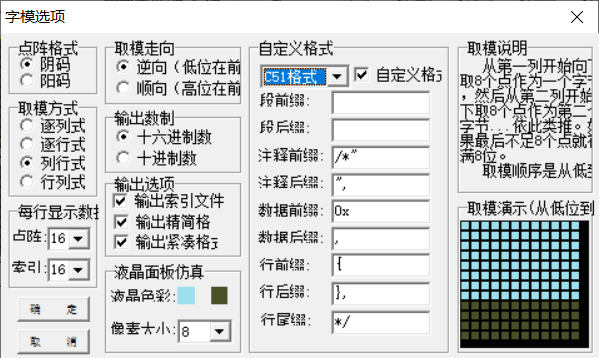

然后是字模的配置，按照代码要求如图配置

然后点击生成字模并将其放入准备好的数组里，下面是我取出的小猪佩奇

unsigned char nao1[]=
{
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x80,0x80,0xC0,0x40,0x40,0x40,
0xC0,0x40,0xC0,0x80,0x80,0x80,0x80,0x80,0x00,0x00,0x00,0xE0,0x30,0x18,0x08,0x98,
0xF0,0x00,0x00,0x00,0x80,0x80,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x18,0x7E,
0xC1,0x86,0x86,0xCC,0x4C,0x20,0x1C,0x03,0x00,0x00,0x1C,0x2A,0x3E,0x2B,0x1D,0xE1,
0x53,0xF3,0x52,0xA4,0x46,0x0B,0x18,0x1C,0x23,0xC1,0xA1,0x31,0x0F,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x01,0x03,0x06,0x04,0xE8,0x38,0x18,0x80,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x01,0x01,0x01,0x00,0xC0,0x20,0x10,0x10,0x10,0x20,
0xC1,0x06,0xF8,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x80,0x80,0xE0,0xC0,0x00,0x00,0x00,0x00,
0x00,0x3F,0x60,0xC0,0x83,0x04,0x08,0x18,0x10,0x10,0x10,0x18,0x08,0x04,0x00,0x00,
0x01,0x02,0x04,0x04,0x04,0x82,0xC1,0x38,0x0F,0x00,0x00,0x00,0x00,0xC0,0xE0,0x80,
0x80,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x03,
0x01,0x01,0x03,0x03,0x06,0x84,0xFC,0x1C,0x06,0x01,0x01,0x03,0x02,0x06,0x04,0x04,
0x04,0x0C,0x0C,0x0C,0x0C,0x0C,0x04,0x04,0x06,0x02,0x03,0x03,0x0E,0x78,0xCC,0x06,
0x86,0x43,0x43,0x81,0x03,0x03,0x80,0x60,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x40,0xA0,0x20,0x20,0x20,0x20,0x40,0xC0,0x00,0x00,0xF8,0x1F,0x01,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x03,0xFE,0xE1,0x22,0x22,0x12,0x0B,0x0F,0xC0,0x60,0x10,0x10,
0x10,0x90,0x60,0x00,0x00,0x00,0x80,0x40,0x41,0x42,0x42,0x42,0x42,0x43,0xC0,0x06,
0x07,0x04,0x04,0x04,0xC4,0x44,0x44,0x74,0x14,0x1C,0x1C,0xF4,0x04,0x04,0x04,0x04,
0x84,0x44,0x44,0x74,0x14,0x1C,0x1C,0xF4,0x04,0x04,0x04,0x04,0x07,0x00,0x02,0x60,
0x60,0xA0,0x21,0x21,0x21,0x21,0x21,0x20,0xC0,0x00,0x00,0x07,0x08,0x08,0x08,0x08,
0x08,0x04,0x02,0x01,0x00,0x00,0x00,0x00,0x00,0x00,0x03,0x04,0x04,0x04,0x04,0x04,
0x04,0x07,0x00,0x00,0x00,0x00,0x03,0x04,0x04,0x04,0x04,0x04,0x04,0x07,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x01,0x02,0x04,0x04,0x04,0x04,0x03,0x00,
};

这是朋友发来的工程文件，商家已经写好的代码，真香

/***********功能描述：显示显示BMP图片128×64起始点坐标(x,y),x的范围0～127，y为页的范围0～7*****************/
void OLED_DrawBMP(unsigned char x0, unsigned char y0,unsigned char x1, unsigned char y1,unsigned char BMP[])
{
 unsigned int j=0;
 unsigned char x,y;

  if(y1%8==0) y=y1/8;
  else y=y1/8+1;
	for(y=y0;y<y1;y++)
	{
		OLED_Set_Pos(x0,y);
    for(x=x0;x<x1;x++)
	    {
	    	OLED_WR_Byte(BMP[j++],OLED_DATA);
	    }
	}
}

函数有四个形参，x和y可以理解为行和列，x0是要显示的开始列，x1为结束列，y0 为起始行,y1为结束行（这里的行是8的倍数），如果上方的输出图像大小为（54，64），那么起始列和结束列的差必须为54，也就是x1-x0=54，同理(y1-y0)*8=64。最后主函数调用OLED_DrawBMP();函数，即可显示啦。

 OLED_DrawBMP(73,0,127,8,nao1);	//靠右显示
 OLED_DrawBMP(0,0,54,8,nao1);//靠左显示

以上就是全部的过程了，如果有错误还请大神指出，哪里不清晰可以直接评论交流，需要相关软件或程序可以直接评论哦！
