swagger2 集成无效_Spring Boot 整合Spring Security 和Swagger2 遇到的问题小结-阿里云开发者社区...

How to configure Spring Security to allow Swagger URL to be accessed without authentication

@Configurationpublic class WebSecurityConfiguration extendsWebSecurityConfigurerAdapter {

@Overridepublic void configure(WebSecurity web) throwsException {

web.ignoring().antMatchers("/v2/api-docs", "/configuration/ui", "/swagger-resources", "/configuration/security", "/swagger-ui.html", "/webjars/**");

}

}

springfox 2.5及以上，要使用：

@Overridepublic void configure(WebSecurity web) throwsException {//allow Swagger URL to be accessed without authentication

web.ignoring().antMatchers("/v2/api-docs",//swagger api json

"/swagger-resources/configuration/ui",//用来获取支持的动作

"/swagger-resources",//用来获取api-docs的URI

"/swagger-resources/configuration/security",//安全选项

"/swagger-ui.html");

}

https://springfox.github.io/springfox/docs/current/

http://stackoverflow.com/questions/37671125/how-to-configure-spring-security-to-allow-swagger-url-to-be-accessed-without-aut

遇到的问题：

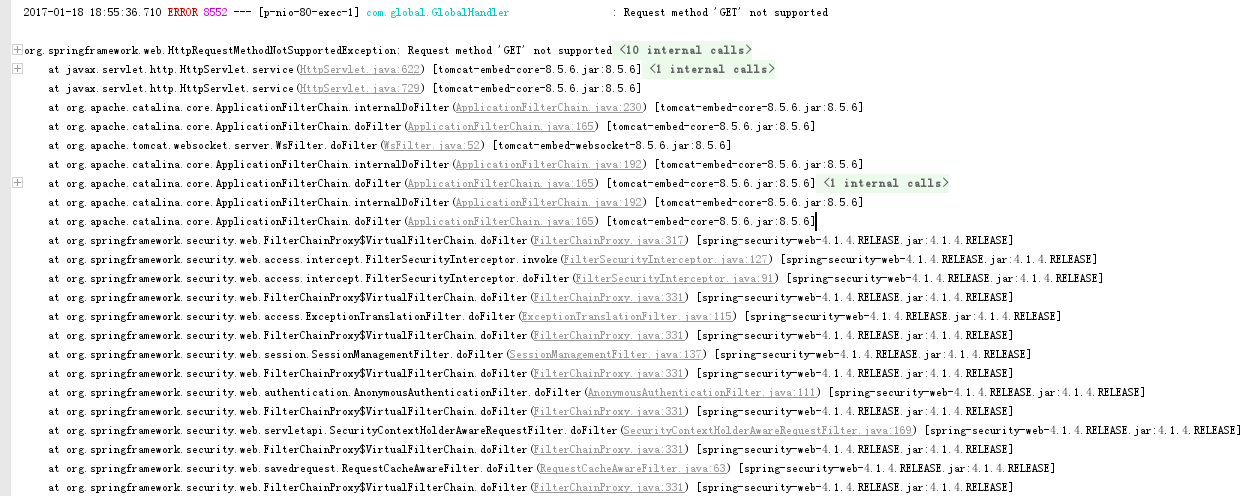

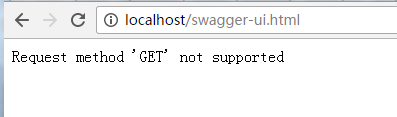

在浏览器中打开http://localhost:8080/swagger-ui.html时，后台报错：

org.springframework.web.HttpRequestMethodNotSupportedException: Request method 'GET'not supported

at org.springframework.web.servlet.mvc.method.RequestMappingInfoHandlerMapping.handleNoMatch(RequestMappingInfoHandlerMapping.java:207) ~[spring-webmvc-4.3.5.RELEASE.jar:4.3.5.RELEASE]

at org.springframework.web.servlet.handler.AbstractHandlerMethodMapping.lookupHandlerMethod(AbstractHandlerMethodMapping.java:374) ~[spring-webmvc-4.3.5.RELEASE.jar:4.3.5.RELEASE]

at org.springframework.web.servlet.handler.AbstractHandlerMethodMapping.getHandlerInternal(AbstractHandlerMethodMapping.java:314) ~[spring-webmvc-4.3.5.RELEASE.jar:4.3.5.RELEASE]

at org.springframework.web.servlet.handler.AbstractHandlerMethodMapping.getHandlerInternal(AbstractHandlerMethodMapping.java:61) ~[spring-webmvc-4.3.5.RELEASE.jar:4.3.5.RELEASE]

at org.springframework.web.servlet.handler.AbstractHandlerMapping.getHandler(AbstractHandlerMapping.java:352) ~[spring-webmvc-4.3.5.RELEASE.jar:4.3.5.RELEASE]

at org.springframework.web.servlet.DispatcherServlet.getHandler(DispatcherServlet.java:1131) ~[spring-webmvc-4.3.5.RELEASE.jar:4.3.5.RELEASE]

at org.springframework.web.servlet.DispatcherServlet.doDispatch(DispatcherServlet.java:936) ~[spring-webmvc-4.3.5.RELEASE.jar:4.3.5.RELEASE]

at org.springframework.web.servlet.DispatcherServlet.doService(DispatcherServlet.java:897) ~[spring-webmvc-4.3.5.RELEASE.jar:4.3.5.RELEASE]

at org.springframework.web.servlet.FrameworkServlet.processRequest(FrameworkServlet.java:970) [spring-webmvc-4.3.5.RELEASE.jar:4.3.5.RELEASE]

at org.springframework.web.servlet.FrameworkServlet.doGet(FrameworkServlet.java:861) [spring-webmvc-4.3.5.RELEASE.jar:4.3.5.RELEASE]

at javax.servlet.http.HttpServlet.service(HttpServlet.java:622) [tomcat-embed-core-8.5.6.jar:8.5.6]

at org.springframework.web.servlet.FrameworkServlet.service(FrameworkServlet.java:846) [spring-webmvc-4.3.5.RELEASE.jar:4.3.5.RELEASE]

at javax.servlet.http.HttpServlet.service(HttpServlet.java:729) [tomcat-embed-core-8.5.6.jar:8.5.6]

at org.apache.catalina.core.ApplicationFilterChain.internalDoFilter(ApplicationFilterChain.java:230) [tomcat-embed-core-8.5.6.jar:8.5.6]

at org.apache.catalina.core.ApplicationFilterChain.doFilter(ApplicationFilterChain.java:165) [tomcat-embed-core-8.5.6.jar:8.5.6]

at org.apache.tomcat.websocket.server.WsFilter.doFilter(WsFilter.java:52) [tomcat-embed-websocket-8.5.6.jar:8.5.6]

at org.apache.catalina.core.ApplicationFilterChain.internalDoFilter(ApplicationFilterChain.java:192) [tomcat-embed-core-8.5.6.jar:8.5.6]

at org.apache.catalina.core.ApplicationFilterChain.doFilter(ApplicationFilterChain.java:165) [tomcat-embed-core-8.5.6.jar:8.5.6]

报错的原因：

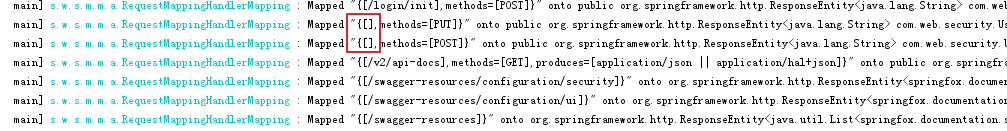

体现在SpringMvc的路由中：没有语法路径

s.w.s.m.m.a.RequestMappingHandlerMapping : Mapped "{[/login/init],methods=[POST]}" onto publicorg.springframework.http.ResponseEntity

s.w.s.m.m.a.RequestMappingHandlerMapping : Mapped"{[],methods=[PUT]}" onto public org.springframework.http.ResponseEntity

s.w.s.m.m.a.RequestMappingHandlerMapping : Mapped"{[],methods=[POST]}" onto public org.springframework.http.ResponseEntity

s.w.s.m.m.a.RequestMappingHandlerMapping : Mapped"{[/v2/api-docs],methods=[GET],produces=[application/json || application/hal+json]}"

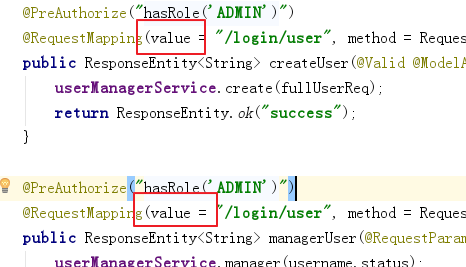

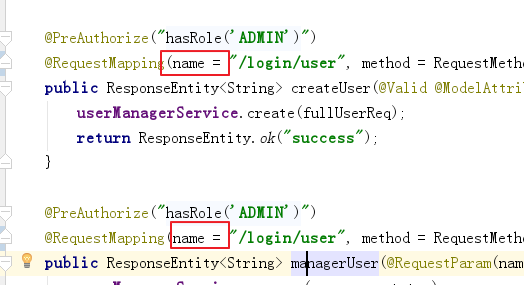

更改上面的错误，http://localhost/swagger-ui.html就可正常打开

http://localhost/swagger-ui.html

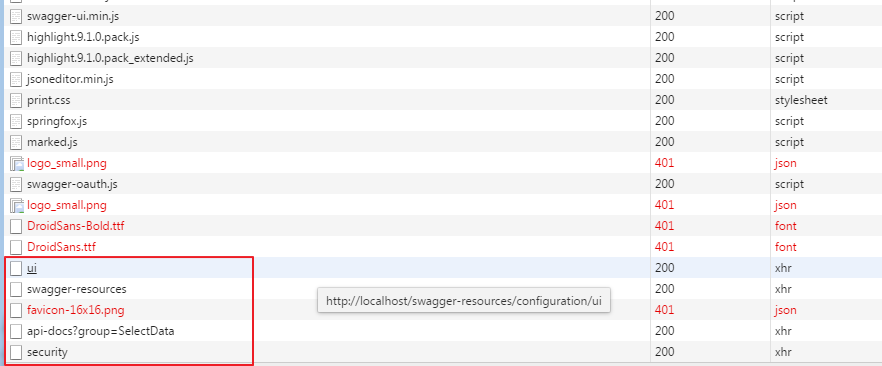

请求时的流程：
