vue3.x 使用jsplumb进行拖拽连线

1
2
3
4
5
<script lang="ts" setup>
  import {ref, reactive,onMounted} from 'vue'
  import jsPlumb from 'jsplumb'
</script>

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
<template>

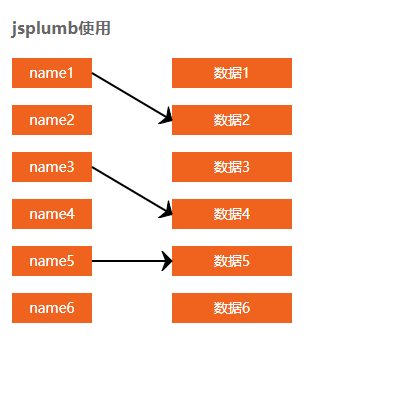

  <h3>jsplumb使用</h3>
  <div id="container">
        <div class="col1">
            <div v-for="item in list1" :key="item.nodeId" :id="item.nodeId" name="joint">{{ item.name }}</div>
        </div>
        <div class="col2">
            <div v-for="item in list2" :key="item.nodeId" :id="item.nodeId" name="data">{{ item.name }}</div>
        </div>
    </div>
</template>
<script lang="ts" setup>
  import {ref, reactive,onMounted} from 'vue'
  import jsPlumb from 'jsplumb'
    //jsplumb使用
    let $jsPlumb = jsPlumb.jsPlumb;
    let jsPlumb_instance = null; // 缓存实例化的jsplumb对象
    //模型轴
    const list1 = reactive([
        {name: "name1", nodeId: "name1", axis: '', type:''},
        {name: "name2", nodeId: "name2", axis: '', type:''},
        {name: "name3", nodeId: "name3", axis: '', type:''},
        {name: "name4", nodeId: "name4", axis: '', type:''},
        {name: "name5", nodeId: "name5", axis: '', type:''},
        {name: "name6", nodeId: "name6", axis: '', type:''}
    ]);
    //接口数据点
    const list2 = reactive([
        {name: '数据1', nodeId: 'data1'},
        {name: '数据2', nodeId: 'data2'},
        {name: '数据3', nodeId: 'data3'},
        {name: '数据4', nodeId: 'data4'},
        {name: '数据5', nodeId: 'data5'},
        {name: '数据6', nodeId: 'data6'}
    ]);

    onMounted(()=>{
        showPlumb();
    })

    const showPlumb = ()=> {
        jsPlumb_instance = $jsPlumb.getInstance({
            Container: 'container', // 选择器id
            EndpointStyle: {radius: 0.11, fill: '#fff'}, // 端点样式
            PaintStyle: {stroke: '#000', strokeWidth: 2}, // 绘画样式，默认8px线宽  #456
            HoverPaintStyle: {stroke: '#1E90FF'}, // 默认悬停样式  默认为null
            ConnectionOverlays: [ // 此处可以设置所有箭头的样式，因为我们要改变连接线的样式，故单独配置
                ['Arrow', { // 设置参数可以参考中文文档
                    location: 1,
                    length: 10,
                    paintStyle: {
                        stroke: '#000',
                        fill: '#000'
                    }
                }]
            ],
            Connector: ['Straight'], // 要使用的默认连接器的类型：直线，折线，曲线等
            DrapOptions: {cursor: 'crosshair', zIndex: 2000}
        },)

        console.log(jsPlumb_instance)

        jsPlumb_instance.batch(() => {

            for (let i = 0; i < list1.length; i++) {
                initLeaf(list1[i].nodeId, 'joint')
            }
            for (let i = 0; i < list2.length; i++) {
                initLeaf(list2[i].nodeId, 'data')
            }
        })

        const joint = document.getElementsByName('joint')
        const data = document.getElementsByName('data')

        jsPlumb_instance.setSourceEnabled(joint, true)
        jsPlumb_instance.setTargetEnabled(data, true)
        jsPlumb_instance.setDraggable(joint, false) // 是否支持拖拽
        jsPlumb_instance.setDraggable(data, false) // 是否支持拖拽

        jsPlumb_instance.bind('click',  (conn, originalEvent) => {
            jsPlumb_instance.deleteConnection(conn)
        })

    }

    // 初始化具体节点
    const initLeaf = (id, type)=> {
        const ins = jsPlumb_instance;
        const elem = document.getElementById(id)
        if (type == 'joint') {
            ins.makeSource(elem, {
                anchor: [1, 0.5, 0, 0], // 左 上 右 下
                allowLoopback: false,
                maxConnections: 1
            })
        } else {
            ins.makeTarget(elem, {
                anchor: [0, 0.5, 0, 0],
                allowLoopback: false,
                maxConnections: 1
            })
        }
    }

</script>

<style scoped lang="less">
 #container {
    position: relative;
      margin-top: 20px;
      width: 100%;
      height: 300px;
  }

  .col2, .col1 {
      float: left;
      text-align: center;
  }

  .col1 {
      width: 80px;
  }

  .col2 {
      width: 120px;
      margin-left: 80px;
  }

  #container > div > div {
      line-height: 30px;
      margin: 0 0 17px 0;
      background: #ef631e;
      color: #fff;
  }
</style>
