概述

jstack的主要作用是生成JVM当前时刻线程的快照（threaddump，即当前进程中所有线程的信息）。可以帮助定位程序中出现的问题，如长时间停顿，CPU占有率过高等问题，也可以看出哪些程序是守护线程，哪些程序是用户线程。

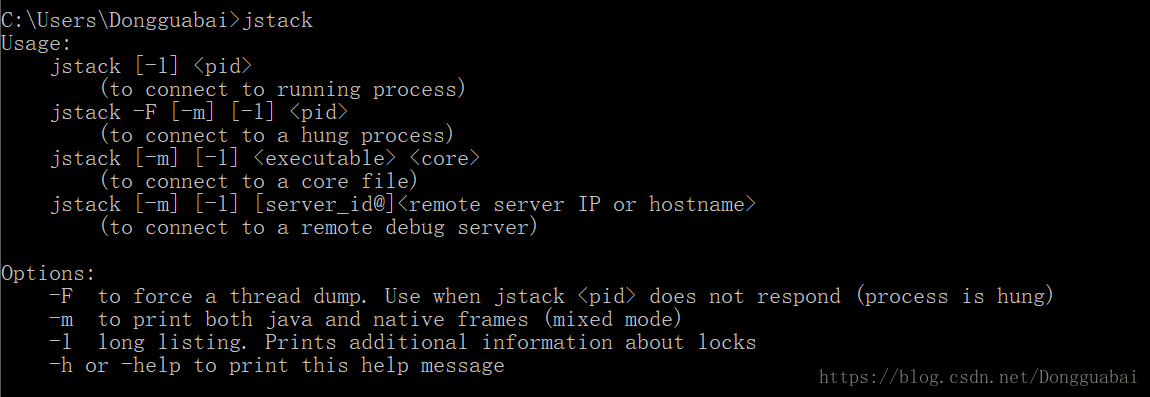

在命令行输出jstack即可看出相关帮助信息：

jstack的基本语法是：jstack [option] <pid>

如果jstack后面加了-l参数，那么就会打印一些关于锁的信息；
pid就是进程的id；

这里运行下面这段代码查看线程快照：

package dgb.test.concurrent;

import java.lang.management.ManagementFactory;

/**
 * @author Dongguabai
 * @date 2018/9/2 19:35
 */
public class SuspendTest {

    public static void main(String[] args) throws InterruptedException {
        ChangeObjectThread c1 = new ChangeObjectThread("thread-1");
        ChangeObjectThread c2 = new ChangeObjectThread("thread-2");

        c1.start();
        c2.start();
       // Thread.sleep(1000);
        c1.resume();
        c2.resume();
    }

    public static class ChangeObjectThread extends Thread {
        public ChangeObjectThread(String name) {
            super(name);
        }

        @Override
        public void run() {
            System.out.println("线程【" + getName() + "】正在执行");
            Thread.currentThread().suspend();
        }
    }
}

查看当前进程的PID（通过Java代码查看pid的方法可以参看：Java程序中获取当前进程的pid，也可以使用 jps 命令）后执行命令：jstack -l <PID>：

C:UsersDongguabai>jstack -l 3572
//当前线程快照生成的时间
2018-09-02 20:11:42
//运行的时候的JRE的版本信息，这里是服务器端版本
Full thread dump Java HotSpot(TM) 64-Bit Server VM (25.65-b01 mixed mode):

"DestroyJavaVM" #13 prio=5 os_prio=0 tid=0x0000000002a49000 nid=0x4828 waiting on condition [0x0000000000000000]
   java.lang.Thread.State: RUNNABLE

   Locked ownable synchronizers:
        - None

//这是是刚刚我们创建的线程,pri=5是线程的优先级（默认为5，数字越大优先级越高）；
//线程类型：线程分为守护线程 (daemon) 和非守护线程 (non-daemon) 两种，通常都是守护线程；
//如果使用 java.lang.Thread 类生成一个线程的时候，线程名称为 Thread-(数字) 的形式；
//tid是JVM线程的id：JVM内部线程的唯一标识，通过 java.lang.Thread.getId()获取，通常用自增的方式实现；
//nid=0x395c系统线程id：对应的系统线程id（Native Thread ID)，可以通过 top 命令进行查看，id是十六进制的形式；结合top H可以快速查看CPU占用过高的线程；
"thread-2" #12 prio=5 os_prio=0 tid=0x0000000019543800 nid=0x395c runnable
//0x000000001a1af000起始栈地址：线程堆栈调用的其实内存地址；
[0x000000001a1af000]
//RUNNABLE实线程的状态；
   java.lang.Thread.State: RUNNABLE
//线程的RUNNABLE状态是由这个导致的；
        at java.lang.Thread.suspend0(Native Method)
        at java.lang.Thread.suspend(Thread.java:1029)
        at dgb.test.concurrent.SuspendTest$ChangeObjectThread.run(SuspendTest.java:32)

//由于加了-l参数，所以会出现下面的消息；当前线程是否处于同步块内；
   Locked ownable synchronizers:
        - None

"thread-1" #11 prio=5 os_prio=0 tid=0x0000000019542800 nid=0xcf0 runnable [0x000000001a0af000]
   java.lang.Thread.State: RUNNABLE
        at java.lang.Thread.suspend0(Native Method)
        at java.lang.Thread.suspend(Thread.java:1029)
        at dgb.test.concurrent.SuspendTest$ChangeObjectThread.run(SuspendTest.java:32)

   Locked ownable synchronizers:
        - None

"Service Thread" #10 daemon prio=9 os_prio=0 tid=0x00000000194e6800 nid=0x471c runnable [0x0000000000000000]
   java.lang.Thread.State: RUNNABLE

   Locked ownable synchronizers:
        - None

"C1 CompilerThread2" #9 daemon prio=9 os_prio=2 tid=0x00000000194cb800 nid=0x4b70 waiting on condition [0x0000000000000000]
   java.lang.Thread.State: RUNNABLE

   Locked ownable synchronizers:
        - None

"C2 CompilerThread1" #8 daemon prio=9 os_prio=2 tid=0x000000001946d000 nid=0x4508 waiting on condition [0x0000000000000000]
   java.lang.Thread.State: RUNNABLE

   Locked ownable synchronizers:
        - None

"C2 CompilerThread0" #7 daemon prio=9 os_prio=2 tid=0x0000000019469000 nid=0x1438 waiting on condition [0x0000000000000000]
   java.lang.Thread.State: RUNNABLE

   Locked ownable synchronizers:
        - None

"Monitor Ctrl-Break" #6 daemon prio=5 os_prio=0 tid=0x00000000193b2000 nid=0x4274 runnable [0x0000000019aae000]
   java.lang.Thread.State: RUNNABLE
        at java.net.SocketInputStream.socketRead0(Native Method)
        at java.net.SocketInputStream.socketRead(SocketInputStream.java:116)
        at java.net.SocketInputStream.read(SocketInputStream.java:170)
        at java.net.SocketInputStream.read(SocketInputStream.java:141)
        at sun.nio.cs.StreamDecoder.readBytes(StreamDecoder.java:284)
        at sun.nio.cs.StreamDecoder.implRead(StreamDecoder.java:326)
        at sun.nio.cs.StreamDecoder.read(StreamDecoder.java:178)
        - locked <0x00000000d650dfa0> (a java.io.InputStreamReader)
        at java.io.InputStreamReader.read(InputStreamReader.java:184)
        at java.io.BufferedReader.fill(BufferedReader.java:161)
        at java.io.BufferedReader.readLine(BufferedReader.java:324)
        - locked <0x00000000d650dfa0> (a java.io.InputStreamReader)
        at java.io.BufferedReader.readLine(BufferedReader.java:389)
        at com.intellij.rt.execution.application.AppMainV2$1.run(AppMainV2.java:64)

   Locked ownable synchronizers:
        - None

"Attach Listener" #5 daemon prio=5 os_prio=2 tid=0x0000000018bf3800 nid=0xe64 waiting on condition [0x0000000000000000]
   java.lang.Thread.State: RUNNABLE

   Locked ownable synchronizers:
        - None

"Signal Dispatcher" #4 daemon prio=9 os_prio=2 tid=0x0000000017850000 nid=0x4a00 runnable [0x0000000000000000]
   java.lang.Thread.State: RUNNABLE

   Locked ownable synchronizers:
        - None

"Finalizer" #3 daemon prio=8 os_prio=1 tid=0x0000000002b39800 nid=0xb94 in Object.wait() [0x0000000018bae000]
   java.lang.Thread.State: WAITING (on object monitor)
        at java.lang.Object.wait(Native Method)
        - waiting on <0x00000000d5f870b8> (a java.lang.ref.ReferenceQueue$Lock)
        at java.lang.ref.ReferenceQueue.remove(ReferenceQueue.java:143)
        - locked <0x00000000d5f870b8> (a java.lang.ref.ReferenceQueue$Lock)
        at java.lang.ref.ReferenceQueue.remove(ReferenceQueue.java:164)
        at java.lang.ref.Finalizer$FinalizerThread.run(Finalizer.java:209)

   Locked ownable synchronizers:
        - None

"Reference Handler" #2 daemon prio=10 os_prio=2 tid=0x0000000017819000 nid=0x3734 in Object.wait() [0x0000000018aaf000]
   java.lang.Thread.State: WAITING (on object monitor)
        at java.lang.Object.wait(Native Method)
        - waiting on <0x00000000d5f86af8> (a java.lang.ref.Reference$Lock)
        at java.lang.Object.wait(Object.java:502)
        at java.lang.ref.Reference$ReferenceHandler.run(Reference.java:157)
        - locked <0x00000000d5f86af8> (a java.lang.ref.Reference$Lock)

   Locked ownable synchronizers:
        - None

"VM Thread" os_prio=2 tid=0x0000000017817800 nid=0x4c8 runnable

"GC task thread#0 (ParallelGC)" os_prio=0 tid=0x0000000002a5e800 nid=0x3860 runnable

"GC task thread#1 (ParallelGC)" os_prio=0 tid=0x0000000002a60000 nid=0x4548 runnable

"GC task thread#2 (ParallelGC)" os_prio=0 tid=0x0000000002a62000 nid=0x45d0 runnable

"GC task thread#3 (ParallelGC)" os_prio=0 tid=0x0000000002a63800 nid=0x2d1c runnable

"VM Periodic Task Thread" os_prio=2 tid=0x000000001959e800 nid=0xaec waiting on condition

JNI global references: 19

也可以使用：
