SpringBoot集成Swagger

Swagger-UI

简介

Swagger-UI是HTML, Javascript, CSS的一个集合，可以动态地根据注解生成在线API文档。

常用注解

• @Api：用于修饰Controller类，生成Controller相关文档信息
• @ApiOperation：用于修饰Controller类中的方法，生成接口方法相关文档信息
• @ApiParam：用于修饰接口中的参数，生成接口参数相关文档信息
• @ApiModelProperty：用于修饰实体类的属性，当实体类是请求参数或返回结果时，直接生成相关文档信息

整合Swagger

添加项目依赖

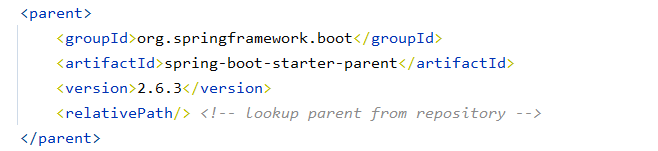

SpringBoot版本选择的是2.6.x， 在pom.xml中新增Swagger依赖

        <!--Swagger3 API文档生产工具-->
        <dependency>
            <groupId>io.springfox</groupId>
            <artifactId>springfox-boot-starter</artifactId>
            <version>3.0.0</version>
        </dependency>

路径匹配处理

Springfox使用的路径匹配基于AntPathMatcher，而Spring Boot 2.6.x 使用的是PathPatternMatcher

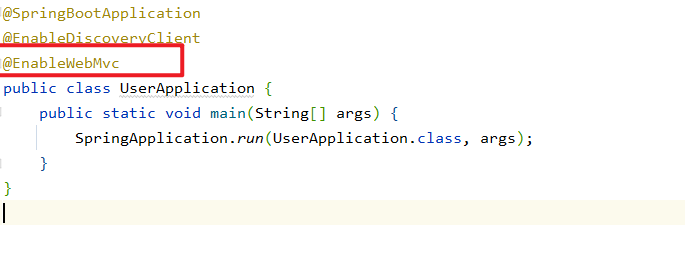

方法一：启动类添加注解@EnableWebMvc

方法二：配置文件中添加mvc默认的路径匹配策略

mvc: # mvc默认的路径匹配策略：ANT_PATH_MATCHER
  pathmatch:
    matching-strategy: ANT_PATH_MATCHER

添加Swagger配置

注意：Swagger对生成API文档的范围有三种不同的选择

• 生成指定包下面的类的API文档
• 生成存在@Api注解的类的API文档
• 生成存在@ApiOperation指定注解的方法的API文档

package com.test.config;

import org.springframework.beans.BeansException;
import org.springframework.beans.factory.config.BeanPostProcessor;
import org.springframework.context.annotation.Bean;
import org.springframework.context.annotation.Configuration;
import org.springframework.util.ReflectionUtils;
import org.springframework.web.servlet.mvc.method.RequestMappingInfoHandlerMapping;
import springfox.documentation.builders.ApiInfoBuilder;
import springfox.documentation.builders.PathSelectors;
import springfox.documentation.builders.RequestHandlerSelectors;
import springfox.documentation.oas.annotations.EnableOpenApi;
import springfox.documentation.service.*;
import springfox.documentation.spi.DocumentationType;
import springfox.documentation.spring.web.plugins.Docket;
import springfox.documentation.spring.web.plugins.WebFluxRequestHandlerProvider;
import springfox.documentation.spring.web.plugins.WebMvcRequestHandlerProvider;

import java.lang.reflect.Field;
import java.util.List;
import java.util.stream.Collectors;

/**
 * Swagger2API接口文档配置
 * Created by YuanJW on 2022/8/1.
 */
@Configuration
@EnableOpenApi
public class SwaggerConfig {
    /**
     * 创建API
     * @return
     */
    @Bean
    public Docket createRestApi() {
        return new Docket(DocumentationType.SWAGGER_2)
                // 是否启用Swagger
                .enable(true)
                // 创建API基本信息
                .apiInfo(apiInfo())
                // 设置Swagger暴露接口
                .select()
                // 为指定包下Controller类生成API文档
                .apis(RequestHandlerSelectors.basePackage("com.test.controller"))
                // 为存在@Api注解的Controller生成API文档
//                .apis(RequestHandlerSelectors.withClassAnnotation(Api.class))
                // 为存在@ApiOperation注解的方法生成API文档
//                .apis(RequestHandlerSelectors.withMethodAnnotation(ApiOperation.class))
                // 指定处理路径 PathSelectors.any()：代表所有路径
                .paths(PathSelectors.any())
                .build();
    }

    /**
     * 自定义展示的信息
     * @return
     */
    private ApiInfo apiInfo() {
        return new ApiInfoBuilder()
                // 标题
                .title("SwaggerUI For borrow")
                // 描述
                .description("cloud-borrow")
                // 联系
                .contact(new Contact("XiaoYuanJW", "https://xiaoyuanjw.github.io/", "xxx@qq.com"))
                // 版本
                .version("1.0")
                .build();
    }

    /**
     * 解决Springboot2.6和Springfox不兼容问题
     * @return
     */
    @Bean
    public static BeanPostProcessor springfoxHandlerProviderBeanPostProcessor() {
        return new BeanPostProcessor() {
            @Override
            public Object postProcessAfterInitialization(Object bean, String beanName) throws BeansException {
                if (bean instanceof WebMvcRequestHandlerProvider || bean instanceof WebFluxRequestHandlerProvider) {
                    customizeSpringfoxHandlerMappings(getHandlerMappings(bean));
                }
                return bean;
            }

            private <T extends RequestMappingInfoHandlerMapping> void customizeSpringfoxHandlerMappings(List<T> mappings) {
                List<T> copy = mappings.stream()
                        .filter(mapping -> mapping.getPatternParser() == null)
                        .collect(Collectors.toList());
                mappings.clear();
                mappings.addAll(copy);
            }

            @SuppressWarnings("unchecked")
            private List<RequestMappingInfoHandlerMapping> getHandlerMappings(Object bean) {
                try {
                    Field field = ReflectionUtils.findField(bean.getClass(), "handlerMappings");
                    field.setAccessible(true);
                    return (List<RequestMappingInfoHandlerMapping>) field.get(bean);
                } catch (IllegalArgumentException | IllegalAccessException e) {
                    throw new IllegalStateException(e);
                }
            }
        };
    }
}

实体类添加Swagger注解

package com.test.entity;

import io.swagger.annotations.ApiModelProperty;
import lombok.AllArgsConstructor;
import lombok.Data;

/**
 * Created by YuanJW on 2022/5/29.
 */
@Data
@AllArgsConstructor
public class Borrow {
    @ApiModelProperty(value = "借阅id")
    Long id;
    @ApiModelProperty(value = "用户id")
    Long uid;
    @ApiModelProperty(value = "图书id")
    Long bid;
}

Controller添加Swagger注解

package com.test.controller;

import com.alibaba.csp.sentinel.annotation.SentinelResource;
import com.alibaba.fastjson.JSONObject;
import com.test.entity.*;
import com.test.service.BorrowService;
import io.swagger.annotations.Api;
import io.swagger.annotations.ApiOperation;
import io.swagger.annotations.ApiParam;
import lombok.extern.slf4j.Slf4j;
import org.springframework.web.bind.annotation.*;

import javax.annotation.Resource;

/**
 * Created by YuanJW on 2022/5/29.
 */
@Api(tags = "BorrowController", description = "借阅信息管理")
@RestController
@RequestMapping("/borrow")
@Slf4j
public class BorrowController {
    @Resource
    BorrowService borrowService;

    @ApiOperation("根据用户id获取借阅信息")
    @GetMapping(value = "/user/{uid}", produces = "application/json;charset=UTF-8")
    public UserBorrowDetail getBorrowByUser(@PathVariable("uid") @ApiParam("用户id")  Long uid){
        return borrowService.getBorrowByUser(uid);
    }

    @ApiOperation("根据图书id获取借阅信息")
    @GetMapping(value = "/book/{bid}", produces = "application/json;charset=UTF-8")
    public BookBorrowDetail getBorrowByBook(@PathVariable("bid") @ApiParam("图书id") Long bid){
        return borrowService.getBorrowByBook(bid);
    }

    @ApiOperation("根据用户id和图书id获取借阅信息")
    @GetMapping(value = "/getborrow", produces = "application/json;charset=UTF-8")
    public BorrowDetail getBorrow(@RequestParam(value = "uid", required = true) @ApiParam("用户id") Long uid,
                                  @RequestParam(value = "bid", required = true) @ApiParam("图书id") Long bid){
        return borrowService.getBorrow(uid, bid);
    }

    @ApiOperation("图书借阅")
    @PostMapping(value = "/{uid}/{bid}", produces = "application/json;charset=UTF-8")
    public JSONObject borrow(@PathVariable("uid") @ApiParam("用户id") Long uid,
                             @PathVariable("bid") @ApiParam("图书id") Long bid) {
        // 添加借阅信息
        boolean result = borrowService.borrow(uid, bid);
        // 创建JSON对象并返回
        JSONObject jsonObject = new JSONObject();
        if (result) {
            jsonObject.put("code", 200);
            jsonObject.put("success", true);
            jsonObject.put("message", "借阅成功");
            return jsonObject;
        }
        jsonObject.put("code", 100);
        jsonObject.put("success", false);
        jsonObject.put("message", "借阅失败");
        return jsonObject;
    }
}

运行测试

运行服务并访问：http://localhost:8301/swagger-ui/index.html#/
