docker-compose实现nginx负载均衡

1
2
3
mv docker-compose-Linux-x86_64-1.22.0.sh /usr/local/bin/docker-compose
chmod +x /usr/local/bin/docker-compose

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
mkdir -p /tmp/docker/compose
cd /tmp/docker/compose
vim docker-compose.yml



web1:
        image: nginx
        expose:
                - 80
        volumes:
                - ./web1:/usr/share/nginx/html

web2:
        image: nginx
        expose:
                - 80
        volumes:
                - ./web2:/usr/share/nginx/html

haproxy:
        image: haproxy
        volumes:
                - ./haproxy/haproxy.cfg:/usr/local/etc/haproxy/haproxy.cfg:ro
        links:
                - web1
                - web2
        ports:
                - "80:80"
        expose:
                - "80"

1
2
3
4
mkdir web1 web2
echo we1 > web1/index.html
echo we2 > web2/index.html

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
mkdir haproxy
vim haproxy/haproxy.cfg



global
	log 127.0.0.1 local0
	log 127.0.0.1 local1 notice

defaults
	log global
	mode http
	option httplog
	option dontlognull
	timeout connect 5000ms
	timeout client 50000ms
	timeout server 50000ms

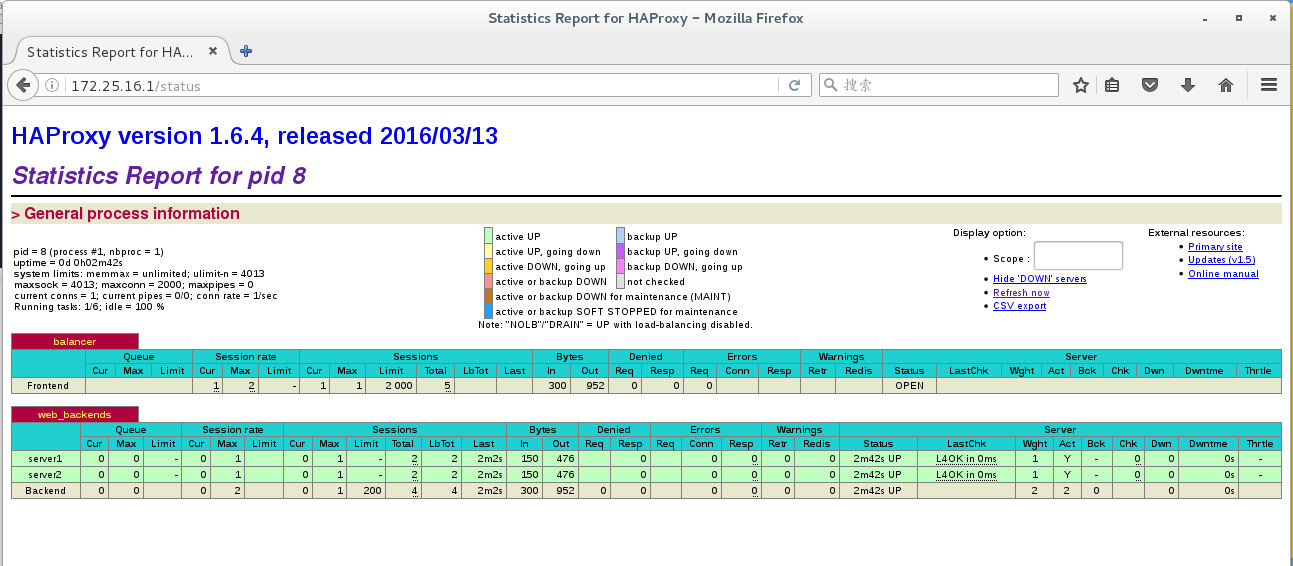

	stats uri /status

frontend balancer
	bind 0.0.0.0:80
	default_backend web_backends

backend web_backends
	balance roundrobin
	server server1 web1:80 check
	server server2 web2:80 check

1
2
3
4

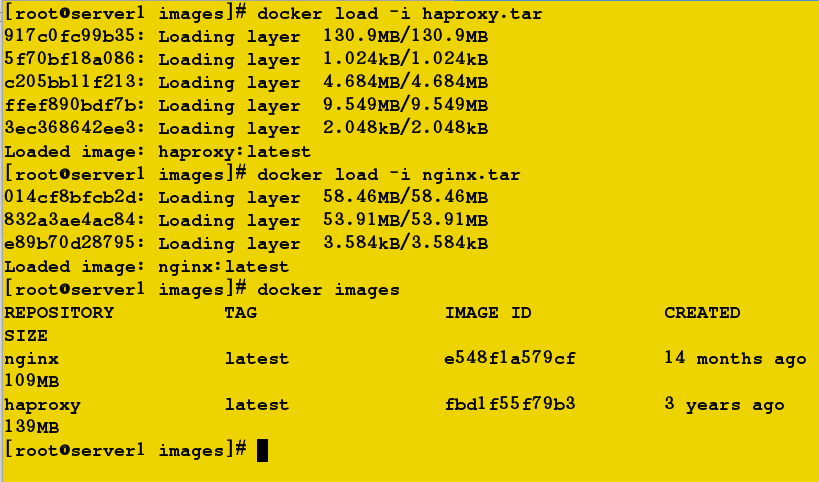

cd ~/images
docker load -i haproxy.tar
docker load -i nginx.tar

1
2
3

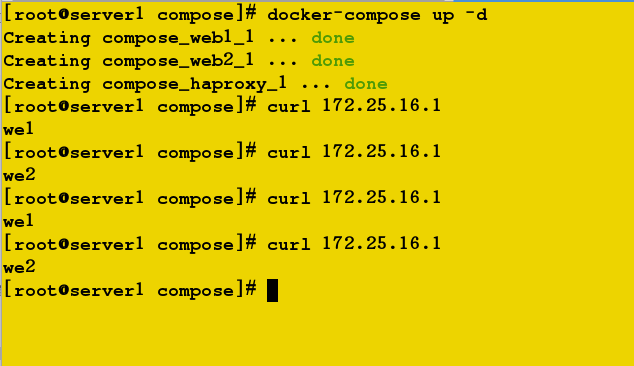

cd /tmp/docker/compose/
docker-compose up -d
