docker-compose部署haproxy对nginx、http的负载均衡

113 阅读 0 评论 75 点赞

我是靠谱客的博主高挑铅笔，这篇文章主要介绍docker-compose部署haproxy对nginx、http的负载均衡，现在分享给大家，希望可以做个参考。

安装docker-compose

官网上下载docker-compose-Linux-x86_64-1.22.0

复制代码

1
2
chmod +x docker-compose-Linux-x86_64-1.22.0
ln -s docker-compose-Linux-x86_64-1.22.0 docker-compose  # 以便实现后续更新

书写docker-compose文件

复制代码

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
mkdir compose
cd compose/
[root@foundation11 compose]# cat docker-compose.yml
apache:
    image: rhel7:v1
    expose:
        - 80
    volumes:
        - ./web:/var/www/html  # 首页文件

nginx:
    image: nginx
    expose:
        - 80

haproxy:
    image: haproxy
    volumes:
        - ./haproxy:/usr/local/etc/haproxy # haproxy的配置文件路径
    links:
        - apache
        - nginx
    ports:
        - "8080:80"  # 端口转换
    expose:
        - 80   # haproxy对外暴露的端口

编写haproxy的配置文件

复制代码

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
[root@foundation11 compose]# cd haproxy/
[root@foundation11 haproxy]# cat haproxy.cfg
global
    log 127.0.0.1 local0
    log 127.0.0.1 local1 notice
defaults
    log global
    mode http
    option httplog
    option dontlognull
    timeout connect 5000ms
    timeout client 50000ms
    timeout server 50000ms

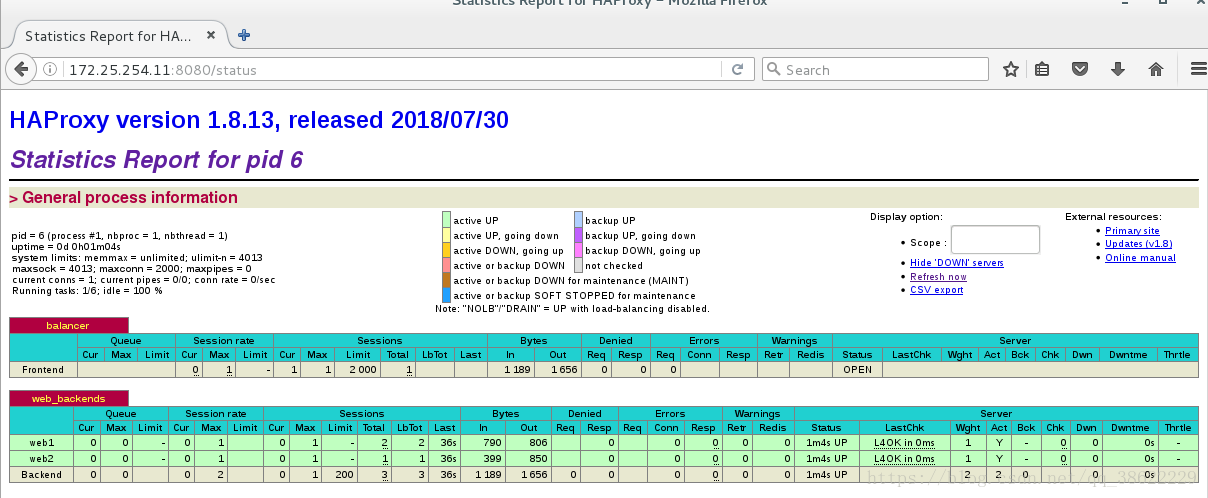

    stats uri /status
frontend balancer
    bind 0.0.0.0:80
    default_backend web_backends
backend web_backends
    balance roundrobin
    server web1 apache:80 check
    server web2 nginx:80 check

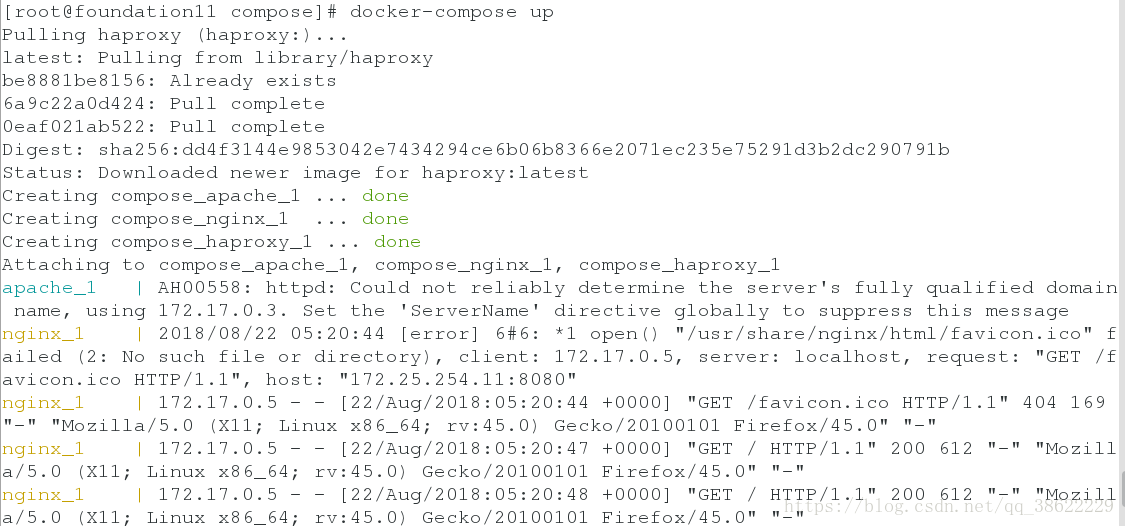

[root@foundation11 compose]# docker-compose up # 只能在此路径下执行，需要读取docker-compose.yml文件
