- 思路
配置MHA基本环境——配置主从——配置MHA——测试
一、MHA配置环境

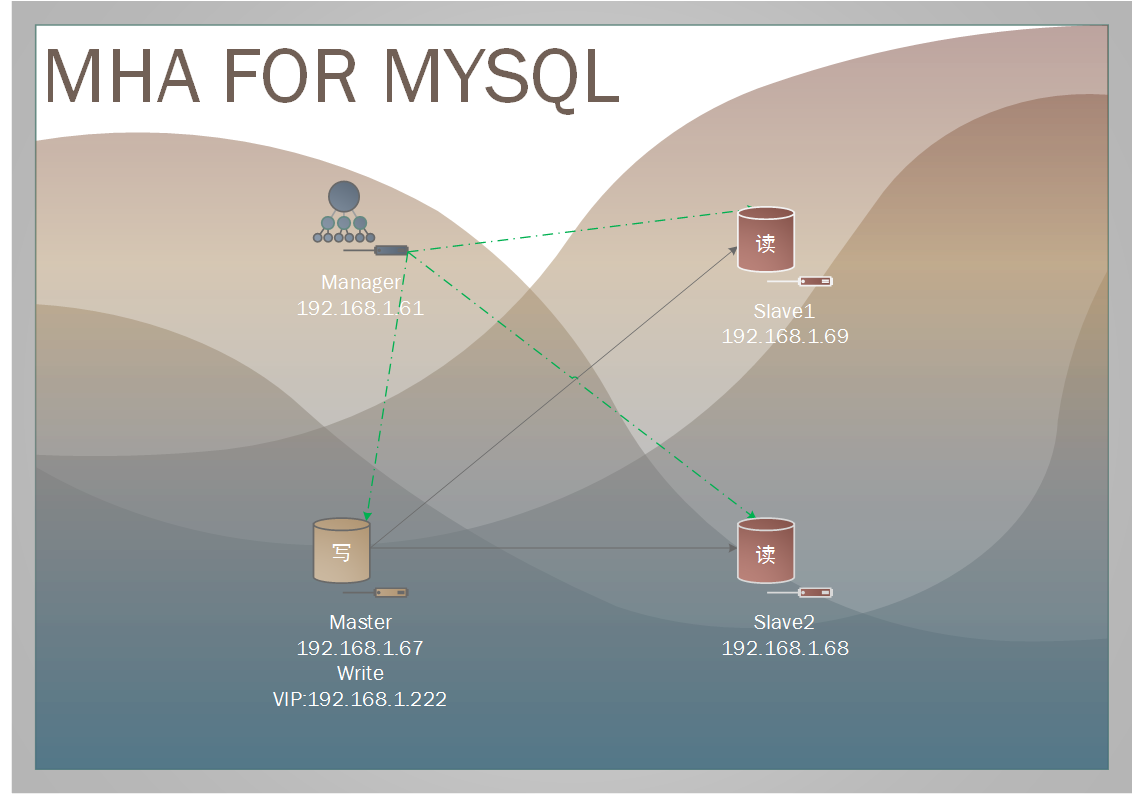

1、主机角色
| 主 机 名 | 角 色 | IP地址 | 软 件 |
| Shenxiang61 | Manager | 192.168.1.61 | Mha4mysql-Manager
Mha4mysql-node |
| Shenxiang67 | Master | 192.168.1.67 | Mha4mysql-node |
| Shenxiang68 | Slave1 | 192.168.1.68 | Mha4mysql-node |
| Shenxiang69 | Slave2 | 192.168.1.69 | Mha4mysql-node |
2、系统配置
| 系 统 | 内 核 | Mysql版本 | 内 存 |
| CentOS 6.7 | Linux version 2.6.32-573.el6.x86_64 | mysql Ver 14.14 Distrib 5.6.26 | 1G |
3、生成SSH无密钥证书
1) 分别在主机shenxiang61/67/68/69生成密钥，并把公钥写入authorized_keys文件
复制代码
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29[root@shenxiang61 ~]# ssh-keygen Generating public/private rsa key pair. Enter file in which to save the key (/root/.ssh/id_rsa): Created directory '/root/.ssh'. Enter passphrase (empty for no passphrase): Enter same passphrase again: Your identification has been saved in /root/.ssh/id_rsa. Your public key has been saved in /root/.ssh/id_rsa.pub. The key fingerprint is: 5f:f3:11:6b:ad:b0:d0:e2:37:18:99:02:a3:8e:b8:f4 root@shenxiang61 The key's randomart image is: +--[ RSA 2048]----+ | | | | | o . | | . o + + | | . S * = + .| | . o + * * o | |... . + + o | |... . . | |. E | +-----------------+ [root@shenxiang61 ~]# cd ./.ssh/ [root@shenxiang61 .ssh]# ls id_rsa id_rsa.pub [root@shenxiang61 .ssh]# cat id_rsa.pub > authorized_keys [root@shenxiang61 .ssh]# ls authorized_keys id_rsa id_rsa.pub
2) 构造4个通用的authorized_keys
- 在主机shenxiang61上把 主机shenxiang67/68/69的公钥Copy过来
复制代码
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23[root@shenxiang61 .ssh]# scp 192.168.1.67:~/.ssh/id_rsa.pub ./id_rsa.pub.67 The authenticity of host '192.168.1.67 (192.168.1.67)' can't be established. RSA key fingerprint is ed:0a:c4:cd:d3:04:54:44:a0:6f:cd:35:64:94:89:53. Are you sure you want to continue connecting (yes/no)? yes Warning: Permanently added '192.168.1.67' (RSA) to the list of known hosts. root@192.168.1.67's password: id_rsa.pub 100% 398 0.4KB/s 00:00 [root@shenxiang61 .ssh]# scp 192.168.1.68:~/.ssh/id_rsa.pub ./id_rsa.pub.68 The authenticity of host '192.168.1.68 (192.168.1.68)' can't be established. RSA key fingerprint is ed:0a:c4:cd:d3:04:54:44:a0:6f:cd:35:64:94:89:53. Are you sure you want to continue connecting (yes/no)? yes Warning: Permanently added '192.168.1.68' (RSA) to the list of known hosts. root@192.168.1.68's password: id_rsa.pub 100% 398 0.4KB/s 00:00 [root@shenxiang61 .ssh]# scp 192.168.1.69:~/.ssh/id_rsa.pub ./id_rsa.pub.69 The authenticity of host '192.168.1.69 (192.168.1.69)' can't be established. RSA key fingerprint is ed:0a:c4:cd:d3:04:54:44:a0:6f:cd:35:64:94:89:53. Are you sure you want to continue connecting (yes/no)? yes Warning: Permanently added '192.168.1.69' (RSA) to the list of known hosts. root@192.168.1.69's password: id_rsa.pub 100% 398 0.4KB/s 00:00
- 将Copy过来的公钥写入authorized_keys中
复制代码
1
2
3
4
5[root@shenxiang61 .ssh]# ls authorized_keys id_rsa id_rsa.pub id_rsa.pub.67 id_rsa.pub.68 id_rsa.pub.69 known_hosts [root@shenxiang61 .ssh]# cat id_rsa.pub.67 >> authorized_keys [root@shenxiang61 .ssh]# cat id_rsa.pub.68 >> authorized_keys [root@shenxiang61 .ssh]# cat id_rsa.pub.69 >> authorized_keys
- 查看生成的通用密钥
复制代码
1
2
3
4
5[root@shenxiang61 .ssh]# cat authorized_keys ssh-rsa AAAAB3NzaC1yc2EAAAABIwAAAQEA+JwgX9/jn5IJOQ8aWLY+3vV8UdJ4GMbhinjV4ePdGhwM+C/W9vqWsz9tCsDmf23pPjF45puM8FmfILaetld15fGc/AmmaCpb6ezKlFKgSecohK2XNhArNCMKwnLMDsQb+4QaEQPNXsZXThazUO7OgWlj7gODtiuPSYNlyQYd6PZreFPlz4WWj+zHQAuTptiNpXS1ZgITqH8EHOZmU4rEiFds/7hpwjdyCQOPMHT0DxN/ux6Ki8xhBGkBSovxtA+18jw4fUv2ETPq7bXy/wVhUjD4dcW3ebgCrFZmvS5PzNEGnGGa9swVWWad7TEt2PD1l2XpFW/VRx+TA/pHG2vzLw== root@shenxiang61 ssh-rsa AAAAB3NzaC1yc2EAAAABIwAAAQEAqiuEsTh6rNcuwGvujR48mRnB+mQXWghkQm0f7y5UXOqxO9B9oRzR66J4sBx8R3tdFwfMYZOWawGj0Uup7rvluoQhChK/lfge6zzMnjQXSTXwm0tqeuJhLHuK/NhZr7ikEjzUPKb/5Sh5fH0rODm+xMqRp8HN547+bsMA3aO3L8YizN2HQtGSb9DkedoJWJJ+6KwziZnkClO9bvwbpugbBRSaleV1dQByg/2eU/Dl82c0kMDxK6jny2tpwLWARt31W/1qui3ojXBxYJVkT9fgv2ON9JVZlKuWgHq8PIRkpVUPp78A+sXet5Lx0r2iF7AFLuowmCa87uIq9viAguYIUQ== root@shenxiang67 ssh-rsa AAAAB3NzaC1yc2EAAAABIwAAAQEAyiAMRZ6bV+TdtKn3JaQU1gVL+uRZOzw5PjUY/Xs30YZytj0SF6aYzg/rxzajrQcRA3pS0l2mle95POICzY8ohyzAokjNuKJQKvGlPwYuRCsHoqwACwDFGPB87TvSyqeX6OlpnxHxpdBCuKyVZd8BPvH6+HBqF7E/UtNAMWpwfIyZKcnV8hLxdSnMYRSmo1J/Y5HaO5CgVFhgYJHqaGs8MziEPSCjp53H39K6F1dqKVlq1zrp0E03YiX6Y9509uftSN0JgWdKK1KIKXkYjPj/RHAOTNld7GH4H01N9eUDEmcdX7ob/FX9XPSLhDgwYQV9kb64mrj9o/K1bwoakyNpNQ== root@shenxiang68 ssh-rsa AAAAB3NzaC1yc2EAAAABIwAAAQEAzup8f0SW49hBfQbeZ0jfrpMlxFPhV62ztEJkkn59E1RT5QS8aSjFvZuV47J4riTWxhfKzWfW0ZhrF/jibWb3hmc+pfj+F8a05NBVCmYNxt8M9MEKLdiQJgo6eHwHP8LkAIS937om1/pSpSviVJNakfDS3QliccNDntiWq3fWpZxpb3CV8DBy1VEBlf4bt6GWCNaWx9Sh+3gA7BqVMUQ5SQYgTdcUOf7Xf0LXbbgvKbEZZI6/6o8up2YWANf9q6Jrdyi3RPcs5HExgcWEnXsv9B8ViHF6TWXawcZ1buywbxPCk1OI73AR2RJIkuiKFpk6vNJ/KyyYMYVMaKH/e7slqw== root@shenxiang69
- 看到authorized_keys文件里面有4行记录，分别代表了访问主机shenxiang61/67/68/69的公用密钥。然后把这个authorized_keys公钥文件copy到主机shenxiang67/68/69上面同一个目录下。
复制代码
1
2
3
4
5
6
7
8
9[root@shenxiang61 .ssh]# scp authorized_keys 192.168.1.67:~/.ssh/ root@192.168.1.67's password: authorized_keys 100% 1592 1.6KB/s 00:00 [root@shenxiang61 .ssh]# scp authorized_keys 192.168.1.68:~/.ssh/ root@192.168.1.68's password: authorized_keys 100% 1592 1.6KB/s 00:00 [root@shenxiang61 .ssh]# scp authorized_keys 192.168.1.69:~/.ssh/ root@192.168.1.69's password: authorized_keys 100% 1592 1.6KB/s 00:00
3) 开始check验证如下
- 主机shenxiang67
复制代码
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16[root@shenxiang61 ~]# ssh 192.168.1.67 Last login: Tue Feb 14 09:43:29 2017 from 192.168.1.69 [root@shenxiang67 ~]# exit logout Connection to 192.168.1.67 closed. [root@shenxiang61 ~]# ssh 192.168.1.68 Last login: Tue Feb 14 09:45:32 2017 from 192.168.1.69 [root@shenxiang68 ~]# exit logout Connection to 192.168.1.68 closed. [root@shenxiang61 ~]# ssh 192.168.1.69 Last login: Tue Feb 14 09:45:41 2017 from 192.168.1.68 [root@shenxiang69 ~]# exit logout Connection to 192.168.1.69 closed. [root@shenxiang61 ~]#
- 主机shenxiang67
复制代码
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16[root@shenxiang67 ~]# ssh 192.168.1.61 Last login: Tue Feb 14 07:52:35 2017 from 192.168.1.33 [root@shenxiang61 ~]# exit logout Connection to 192.168.1.61 closed. [root@shenxiang67 ~]# ssh 192.168.1.68 Last login: Tue Feb 14 09:46:36 2017 from 192.168.1.61 [root@shenxiang68 ~]# exit logout Connection to 192.168.1.68 closed. [root@shenxiang67 ~]# ssh 192.168.1.69 Last login: Tue Feb 14 09:46:37 2017 from 192.168.1.61 [root@shenxiang69 ~]# exit logout Connection to 192.168.1.69 closed. [root@shenxiang67 ~]#
- 主机shenxiang68
复制代码
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16[root@shenxiang68 ~]# ssh 192.168.1.61 Last login: Tue Feb 14 07:53:21 2017 from 192.168.1.67 [root@shenxiang61 ~]# exit logout Connection to 192.168.1.61 closed. [root@shenxiang68 ~]# ssh 192.168.1.67 Last login: Tue Feb 14 09:44:53 2017 from 192.168.1.61 [root@shenxiang67 ~]# exit logout Connection to 192.168.1.67 closed. [root@shenxiang68 ~]# ssh 192.168.1.69 Last login: Tue Feb 14 09:47:15 2017 from 192.168.1.67 [root@shenxiang69 ~]# exit logout Connection to 192.168.1.69 closed. [root@shenxiang68 ~]#
- 主机shenxiang69
复制代码
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16[root@shenxiang69 ~]# ssh 192.168.1.61 Last login: Tue Feb 14 07:53:52 2017 from 192.168.1.68 [root@shenxiang61 ~]# exit logout Connection to 192.168.1.61 closed. [root@shenxiang69 ~]# ssh 192.168.1.67 Last login: Tue Feb 14 09:46:07 2017 from 192.168.1.68 [root@shenxiang67 ~]# exit logout Connection to 192.168.1.67 closed. [root@shenxiang69 ~]# ssh 192.168.1.68 Last login: Tue Feb 14 09:47:14 2017 from 192.168.1.67 [root@shenxiang68 ~]# exit logout Connection to 192.168.1.68 closed. [root@shenxiang69 ~]#
- OK，4台服务器已经能实现两两互相ssh通了，不需要输入密码即可。
- PS：如果不能实现任何两台主机互相之间可以无密码登录，后面的环节可能会有问题。
4、/etc/Hosts文件配置
复制代码
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27[root@shenxiang61 ~]# vim /etc/hosts [root@shenxiang61 ~]# cat !$ cat /etc/hosts 127.0.0.1 localhost localhost.localdomain localhost4 localhost4.localdomain4 ::1 localhost localhost.localdomain localhost6 localhost6.localdomain6 192.168.1.61 manager 192.168.1.67 master 192.168.1.68 slave1 192.168.1.69 slave2 [root@shenxiang61 ~]# scp /etc/hosts master:/etc/ The authenticity of host 'master (192.168.1.67)' can't be established. RSA key fingerprint is ed:0a:c4:cd:d3:04:54:44:a0:6f:cd:35:64:94:89:53. Are you sure you want to continue connecting (yes/no)? yes Warning: Permanently added 'master' (RSA) to the list of known hosts. hosts 100% 239 0.2KB/s 00:00 [root@shenxiang61 ~]# scp /etc/hosts slave1:/etc/ The authenticity of host 'slave1 (192.168.1.68)' can't be established. RSA key fingerprint is ed:0a:c4:cd:d3:04:54:44:a0:6f:cd:35:64:94:89:53. Are you sure you want to continue connecting (yes/no)? yes Warning: Permanently added 'slave1' (RSA) to the list of known hosts. hosts 100% 239 0.2KB/s 00:00 [root@shenxiang61 ~]# scp /etc/hosts slave2:/etc/ The authenticity of host 'slave2 (192.168.1.69)' can't be established. RSA key fingerprint is ed:0a:c4:cd:d3:04:54:44:a0:6f:cd:35:64:94:89:53. Are you sure you want to continue connecting (yes/no)? yes Warning: Permanently added 'slave2' (RSA) to the list of known hosts. hosts 100% 239 0.2KB/s 00:00
二、Mysql5.6.26源码编译安装
详情查看此文章：
https://my.oschina.net/u/3409834/blog/1548979
三、Mysql主从配置
1、mysql主配置
1) 修改配置文件my.cnf
- 在[mysqld]下面添加如下内容
复制代码
1
2
3[mysqld] log-bin=mysql-bin-master server-id = 1
2) 授权slave用户并重启服务
- 授权slave用户
复制代码
1
2[root@shenxiang67 ~]# mysql -uroot -p -e "grant replication slave,replication client on *.* to 'slave'@'%' identified by '123456'" Enter password:********
- 验证授权用户
复制代码
1
2
3
4
5
6
7
8
9
10
11
12
13[root@shenxiang68 ~]# mysql -uslave -p123456 -hmaster Warning: Using a password on the command line interface can be insecure. Welcome to the MySQL monitor. Commands end with ; or g. Your MySQL connection id is 2 Server version: 5.6.26-log Source distribution Copyright (c) 2000, 2015, Oracle and/or its affiliates. All rights reserved. Oracle is a registered trademark of Oracle Corporation and/or its affiliates. Other names may be trademarks of their respective owners. Type 'help;' or 'h' for help. Type 'c' to clear the current input statement. mysql>
- 重启Mysql服务
复制代码
1
2
3[root@shenxiang67 ~]# /etc/init.d/mysqld restart Shutting down MySQL. SUCCESS! Starting MySQL. SUCCESS!
3) 查看主机状态
- 要求记录file文件名称和position
复制代码
1
2
3
4
5
6
7
8[root@shenxiang67 ~]# mysql -uroot -p -e "show master statusG" Enter password: *************************** 1. row *************************** File: mysql-bin-master.000005 Position: 120 Binlog_Do_DB: Binlog_Ignore_DB: Executed_Gtid_Set:
2、mysql从配置
1) 修改配置文件my.cnf
- 在[mysqld]下面添加如下红色内容
复制代码
1
2
3
4
5[mysqld] log-bin=mysql-bin-master server-id = 2 log_slave_updates = 1 read_only= 1
2) 授权slave用户并重启服务（MHA主从切换时会用到）
复制代码
1
2mysql> grant replication slave,replication client on *.* to 'slave'@'%' identified by '123456'; Query OK, 0 rows affected (0.00 sec)
3) 重启服务并添加Master信息
- Slave1配置过程
复制代码
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33[root@shenxiang68 ~]# mysql -uroot -p Enter password: Welcome to the MySQL monitor. Commands end with ; or g. Your MySQL connection id is 3 Server version: 5.6.26-log Source distribution Copyright (c) 2000, 2015, Oracle and/or its affiliates. All rights reserved. Oracle is a registered trademark of Oracle Corporation and/or its affiliates. Other names may be trademarks of their respective owners. Type 'help;' or 'h' for help. Type 'c' to clear the current input statement. mysql> stop slave; change master to master_host='master',master_port=3306,master_user='slave',master_password='123456',master_log_file='mysql-bin-master.000005',master_log_pos=120; Query OK, 0 rows affected (0.01 sec) Query OK, 0 rows affected, 2 warnings (0.01 sec) mysql> start slave; Query OK, 0 rows affected (0.01 sec) mysql> show slave statusG *************************** 1. row *************************** Slave_IO_State: Waiting for master to send event Master_Host: master Master_User: slave Master_Port: 3306 Connect_Retry: 60 Master_Log_File: mysql-bin-master.000005 Read_Master_Log_Pos: 120 Relay_Log_File: shenxiang68-relay-bin.000002 Relay_Log_Pos: 290 Relay_Master_Log_File: mysql-bin-master.000005 Slave_IO_Running: Yes Slave_SQL_Running: Yes
- Slave2中进行相同操作，过程略！
3、赋权MHA远程登录帐号
- 然后再就是赋权了，之前的一步赋权操作是权限是只有replication,MHA会在配置文件里要求能远程登录到数据库，所以要进行必要的赋权。
在三台机器中都做如下操作：
复制代码
1
2mysql> grant all privileges on *.* to 'sxooky'@'%' identified by '123456'; mysql> flush privileges;
四、安装MHA
1、安装依赖包
复制代码
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33[root@shenxiang61 mysql]# yum -y install perl-DBD-MySQL perl-Config-Tiny perl-Log-Dispatch perl-Parallel-ForkManager --skip-broken Loaded plugins: fastestmirror, security Setting up Install Process Loading mirror speeds from cached hostfile * base: mirrors.aliyun.com * epel: mirrors.aliyun.com * extras: mirrors.aliyun.com * updates: mirrors.aliyun.com base | 3.7 kB 00:00 epel | 4.3 kB 00:00 extras | 3.4 kB 00:00 updates | 3.4 kB 00:00 Resolving Dependencies --> Running transaction check ---> Package perl-Config-Tiny.noarch 0:2.12-7.1.el6 will be installed Installed: perl-Config-Tiny.noarch 0:2.12-7.1.el6 perl-DBD-MySQL.x86_64 0:4.013-3.el6 perl-Log-Dispatch.noarch 0:2.27-1.el6 perl-Parallel-ForkManager.noarch 0:0.7.9-1.el6 Dependency Installed: perl-DBI.x86_64 0:1.609-4.el6 perl-Email-Date-Format.noarch 0:1.002-5.el6 perl-MIME-Lite.noarch 0:3.027-2.el6 perl-MIME-Types.noarch 0:1.28-2.el6 perl-Mail-Sender.noarch 0:0.8.16-3.el6 perl-Mail-Sendmail.noarch 0:0.79-12.el6 perl-MailTools.noarch 0:2.04-4.el6 perl-Params-Validate.x86_64 0:0.92-3.el6 perl-TimeDate.noarch 1:1.16-13.el6 Complete!
2、安装mha4mysql-node
- 上传node数据节点包，并传输至其他Mysql server
复制代码
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20[root@shenxiang61 MHA]# scp mha4mysql-node-0.53-0.el6.noarch.rpm slave1:~ The authenticity of host 'slave1 (192.168.1.68)' can't be established. RSA key fingerprint is ed:0a:c4:cd:d3:04:54:44:a0:6f:cd:35:64:94:89:53. Are you sure you want to continue connecting (yes/no)? yes Warning: Permanently added 'slave1' (RSA) to the list of known hosts. mha4mysql-node-0.53-0.el6.noarch.rpm 100% 33KB 32.9KB/s 00:00 [root@shenxiang61 MHA]# scp mha4mysql-node-0.53-0.el6.noarch.rpm slave1:~ The authenticity of host 'slave1 (192.168.1.68)' can't be established. RSA key fingerprint is ed:0a:c4:cd:d3:04:54:44:a0:6f:cd:35:64:94:89:53. Are you sure you want to continue connecting (yes/no)? yes Warning: Permanently added 'slave1' (RSA) to the list of known hosts. mha4mysql-node-0.53-0.el6.noarch.rpm 100% 33KB 32.9KB/s 00:00 [root@shenxiang61 MHA]# scp mha4mysql-node-0.53-0.el6.noarch.rpm slave2:~ The authenticity of host 'slave2 (192.168.1.69)' can't be established. RSA key fingerprint is ed:0a:c4:cd:d3:04:54:44:a0:6f:cd:35:64:94:89:53. Are you sure you want to continue connecting (yes/no)? yes Warning: Permanently added 'slave2' (RSA) to the list of known hosts. mha4mysql-node-0.53-0.el6.noarch.rpm 100% 33KB 32.9KB/s 00:00
- 分别在master,slave1,slave2上安装数据节点包
复制代码
1
2
3
4
5
6
7
8
9
10
11
12[root@shenxiang61 ~]# rpm -ivh mha4mysql-node-0.53-0.el6.noarch.rpm Preparing... ########################################### [100%] 1:mha4mysql-node ########################################### [100%] [root@shenxiang67 MHA]# rpm -ivh mha4mysql-node-0.53-0.el6.noarch.rpm Preparing... ########################################### [100%] 1:mha4mysql-node ########################################### [100%] [root@shenxiang68 ~]# rpm -ivh mha4mysql-node-0.53-0.el6.noarch.rpm Preparing... ########################################### [100%] 1:mha4mysql-node ########################################### [100%] [root@shenxiang69 ~]# rpm -ivh mha4mysql-node-0.53-0.el6.noarch.rpm Preparing... ########################################### [100%] 1:mha4mysql-node ########################################### [100%]
3、安装mha4mysql-manager
复制代码
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38[root@shenxiang61 MHA]# rpm -ivh mha4mysql-manager-0.53-0.el6.noarch.rpm error: Failed dependencies: perl(Time::HiRes) is needed by mha4mysql-manager-0.53-0.el6.noarch [root@shenxiang61 MHA]# yum install -y perl-Time-HiRes Downloading Packages: (1/11): perl-5.10.1-141.el6_7.1.x86_64.rpm | 10 MB 00:10 (2/11): perl-Compress-Raw-Zlib-2.021-141.el6_7.1.x86_64.rpm | 70 kB 00:00 (3/11): perl-Compress-Zlib-2.021-141.el6_7.1.x86_64.rpm | 46 kB 00:00 (4/11): perl-IO-Compress-Base-2.021-141.el6_7.1.x86_64.rpm | 70 kB 00:00 (5/11): perl-IO-Compress-Zlib-2.021-141.el6_7.1.x86_64.rpm | 136 kB 00:00 (6/11): perl-Module-Pluggable-3.90-141.el6_7.1.x86_64.rpm | 40 kB 00:00 (7/11): perl-Pod-Escapes-1.04-141.el6_7.1.x86_64.rpm | 33 kB 00:00 (8/11): perl-Pod-Simple-3.13-141.el6_7.1.x86_64.rpm | 213 kB 00:00 (9/11): perl-Time-HiRes-1.9721-141.el6_7.1.x86_64.rpm | 49 kB 00:00 (10/11): perl-libs-5.10.1-141.el6_7.1.x86_64.rpm | 579 kB 00:00 (11/11): perl-version-0.77-141.el6_7.1.x86_64.rpm | 52 kB 00:00 --------------------------------------------------------------------------------- Total 987 kB/s | 11 MB 00:11 Running rpm_check_debug Running Transaction Test Installed: perl-Time-HiRes.x86_64 4:1.9721-141.el6_7.1 Dependency Updated: perl.x86_64 4:5.10.1-141.el6_7.1 perl-Compress-Raw-Zlib.x86_64 1:2.021-141.el6_7.1 perl-Compress-Zlib.x86_64 0:2.021-141.el6_7.1 perl-IO-Compress-Base.x86_64 0:2.021-141.el6_7.1 perl-IO-Compress-Zlib.x86_64 0:2.021-141.el6_7.1 perl-Module-Pluggable.x86_64 1:3.90-141.el6_7.1 perl-Pod-Escapes.x86_64 1:1.04-141.el6_7.1 perl-Pod-Simple.x86_64 1:3.13-141.el6_7.1 perl-libs.x86_64 4:5.10.1-141.el6_7.1 perl-version.x86_64 3:0.77-141.el6_7.1 [root@shenxiang61 MHA]# rpm -ivh mha4mysql-manager-0.53-0.el6.noarch.rpm Preparing... ########################################### [100%] 1:mha4mysql-manager ########################################### [100%]
五、配置MHA并测试
1、配置
复制代码
1
2
3[root@shenxiang61 MHA]# mkdir -p /etc/masterha/app1 [root@shenxiang61 MHA]# cd [root@shenxiang61 ~]# touch /etc/masterha/app1/manager.log
- MHA配置文件cnf
复制代码
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55[root@shenxiang61 ~]# vim /etc/masterha/app1.cnf [root@shenxiang61 ~]# cat !$ cat /etc/masterha/app1.cnf [server default] manager_workdir=/etc/masterha/app1 #设置manager的工作目录 manager_log=/etc/masterha/app1/manager.log #日志文件路径 master_binlog_dir=/data #设置master 保存binlog的位置，以便MHA可以找到master的日志 user=sxooky password=123456 #之前数据库远程登录授权的MHA用户 ssh_user=root #用于测试ssh登录的 repl_user=slave repl_password=123456 #主从配置授权用户slave ping_interval=1 #master_ip_online_change_script="" #report_script="" #shutdown_script="" #设置故障发生后关闭故障主机脚本（该脚本的主要作用是关闭主机防止发生脑裂，这里没有使用） master_ip_failover_script=/usr/bin/masterha_ip_failover #设置自动failover时候的切换脚本 [server1] hostname=192.168.1.67 port=3306 master_binlog_dir=/data candidate_master=1 check_repl_delay=0 [server2] hostname=192.168.1.68 port=3306 master_binlog_dir=/var/lib/mysql candidate_master=1 check_repl_delay=0 [server3] hostname=192.168.1.69 port=3306 master_binlog_dir=/var/lib/mysql ignore_fail=1 no_master=1
2、Mysql write VIP配置(192.168.1.222)
- Mysql-master server 网卡eth0绑定write VIP : 192.168.1.222
复制代码
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21[root@shenxiang67 ~]# ifconfig eth0:1 192.168.1.222/24 [root@shenxiang67 ~]# ifconfig eth0 Link encap:Ethernet HWaddr 00:0C:29:5E:02:B6 inet addr:192.168.1.67 Bcast:192.168.1.255 Mask:255.255.255.0 inet6 addr: fe80::20c:29ff:fe5e:2b6/64 Scope:Link UP BROADCAST RUNNING MULTICAST MTU:1500 Metric:1 RX packets:79190 errors:0 dropped:0 overruns:0 frame:0 TX packets:19751 errors:0 dropped:0 overruns:0 carrier:0 collisions:0 txqueuelen:1000 RX bytes:7314843 (6.9 MiB) TX bytes:5212776 (4.9 MiB) eth0:1 Link encap:Ethernet HWaddr 00:0C:29:5E:02:B6 inet addr:192.168.1.222 Bcast:192.168.1.255 Mask:255.255.255.0 UP BROADCAST RUNNING MULTICAST MTU:1500 Metric:1 lo Link encap:Local Loopback inet addr:127.0.0.1 Mask:255.0.0.0 inet6 addr: ::1/128 Scope:Host UP LOOPBACK RUNNING MTU:65536 Metric:1 RX packets:220 errors:0 dropped:0 overruns:0 frame:0 TX packets:220 errors:0 dropped:0 overruns:0 carrier:0 collisions:0 txqueuelen:0 RX bytes:18681 (18.2 KiB) TX bytes:18681 (18.2 KiB)
- Manager上配置WriteVIP切换脚本masterha_ip_failover
复制代码
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80[root@shenxiang61 ~]# cat /usr/bin/masterha_ip_failover #!/usr/bin/env perl use strict; use warnings FATAL => 'all'; use Getopt::Long; my ( $command,$ssh_user,$orig_master_host,$orig_master_ip, $orig_master_port,$new_master_host,$new_master_ip,$new_master_port ); my $vip = '192.168.1.222/24'; my $key = '1'; my $ssh_start_vip = "/sbin/ifconfig eth0:$key $vip"; my $ssh_stop_vip = "/sbin/ifconfig eth0:$key down"; GetOptions( 'command=s' => $command, 'ssh_user=s' => $ssh_user, 'orig_master_host=s' => $orig_master_host, 'orig_master_ip=s' => $orig_master_ip, 'orig_master_port=i' => $orig_master_port, 'new_master_host=s' => $new_master_host, 'new_master_ip=s' => $new_master_ip, 'new_master_port=i' => $new_master_port, ); exit &main(); sub main { print "nnIN SCRIPT TEST====$ssh_stop_vip==$ssh_start_vip===nn"; if ( $command eq "stop" || $command eq "stopssh" ) { my $exit_code = 1; eval { print "Disabling the VIP on old master: $orig_master_host n"; &stop_vip(); $exit_code = 0; }; if ($@) { warn "Got Error: $@n"; exit $exit_code; } exit $exit_code; } elsif ( $command eq "start" ) { my $exit_code = 10; eval { print "Enabling the VIP - $vip on the new master - $new_master_host n"; &start_vip(); $exit_code = 0; }; if ($@) { warn $@; exit $exit_code; } exit $exit_code; } elsif ( $command eq "status" ) { print "Checking the Status of the script.. OK n"; exit 0; } else { &usage(); exit 1; } } sub start_vip() { `ssh $ssh_user@$new_master_host " $ssh_start_vip "`; } sub stop_vip() { return 0 unless ($ssh_user); `ssh $ssh_user@$orig_master_host " $ssh_stop_vip "`; } sub usage { print "Usage: master_ip_failover --command=start|stop|stopssh|status --orig_master_host=host --orig_master_ip=ip --orig_master_port=port --new_master_host=host --new_master_ip=ip --new_master_port=portn"; }
3、测试SSH
复制代码
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21[root@shenxiang61 ~]# masterha_check_ssh --conf=/etc/masterha/app1.cnf Tue Feb 14 11:27:35 2017 - [warning] Global configuration file /etc/masterha_default.cnf not found. Skipping. Tue Feb 14 11:27:35 2017 - [info] Reading application default configurations from /etc/masterha/app1.cnf.. Tue Feb 14 11:27:35 2017 - [info] Reading server configurations from /etc/masterha/app1.cnf.. Tue Feb 14 11:27:35 2017 - [info] Starting SSH connection tests.. Tue Feb 14 11:27:36 2017 - [debug] Tue Feb 14 11:27:35 2017 - [debug] Connecting via SSH from root@192.168.1.67(192.168.1.67:22) to root@192.168.1.68(192.168.1.68:22).. Tue Feb 14 11:27:35 2017 - [debug] ok. Tue Feb 14 11:27:35 2017 - [debug] Connecting via SSH from root@192.168.1.67(192.168.1.67:22) to root@192.168.1.69(192.168.1.69:22).. Tue Feb 14 11:27:35 2017 - [debug] ok. Tue Feb 14 11:27:36 2017 - [debug] Tue Feb 14 11:27:36 2017 - [debug] Connecting via SSH from root@192.168.1.68(192.168.1.68:22) to root@192.168.1.67(192.168.1.67:22).. Tue Feb 14 11:27:36 2017 - [debug] ok. Tue Feb 14 11:27:36 2017 - [debug] Connecting via SSH from root@192.168.1.68(192.168.1.68:22) to root@192.168.1.69(192.168.1.69:22).. Tue Feb 14 11:27:36 2017 - [debug] ok. Tue Feb 14 11:27:37 2017 - [debug] Tue Feb 14 11:27:36 2017 - [debug] Connecting via SSH from root@192.168.1.69(192.168.1.69:22) to root@192.168.1.67(192.168.1.67:22).. Tue Feb 14 11:27:36 2017 - [debug] ok. Tue Feb 14 11:27:36 2017 - [debug] Connecting via SSH from root@192.168.1.69(192.168.1.69:22) to root@192.168.1.68(192.168.1.68:22).. Tue Feb 14 11:27:36 2017 - [debug] ok. Tue Feb 14 11:27:37 2017 - [info] All SSH connection tests passed successfully.
4、测试repl
复制代码
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80[root@shenxiang61 ~]# masterha_check_repl --conf=/etc/masterha/app1.cnf Fri Feb 17 20:34:32 2017 - [warning] Global configuration file /etc/masterha_default.cnf not found. Skipping. Fri Feb 17 20:34:32 2017 - [info] Reading application default configurations from /etc/masterha/app1.cnf.. Fri Feb 17 20:34:32 2017 - [info] Reading server configurations from /etc/masterha/app1.cnf.. Fri Feb 17 20:34:32 2017 - [info] MHA::MasterMonitor version 0.53. Fri Feb 17 20:34:32 2017 - [info] Dead Servers: Fri Feb 17 20:34:32 2017 - [info] Alive Servers: Fri Feb 17 20:34:32 2017 - [info] 192.168.1.67(192.168.1.67:3306) Fri Feb 17 20:34:32 2017 - [info] 192.168.1.68(192.168.1.68:3306) Fri Feb 17 20:34:32 2017 - [info] 192.168.1.69(192.168.1.69:3306) Fri Feb 17 20:34:32 2017 - [info] Alive Slaves: Fri Feb 17 20:34:32 2017 - [info] 192.168.1.68(192.168.1.68:3306) Version=5.6.26-log (oldest major version between slaves) log-bin:enabled Fri Feb 17 20:34:32 2017 - [info] Replicating from 192.168.1.67(192.168.1.67:3306) Fri Feb 17 20:34:32 2017 - [info] Primary candidate for the new Master (candidate_master is set) Fri Feb 17 20:34:32 2017 - [info] 192.168.1.69(192.168.1.69:3306) Version=5.6.26-log (oldest major version between slaves) log-bin:enabled Fri Feb 17 20:34:32 2017 - [info] Replicating from 192.168.1.67(192.168.1.67:3306) Fri Feb 17 20:34:32 2017 - [info] Not candidate for the new Master (no_master is set) Fri Feb 17 20:34:32 2017 - [info] Current Alive Master: 192.168.1.67(192.168.1.67:3306) Fri Feb 17 20:34:32 2017 - [info] Checking slave configurations.. Fri Feb 17 20:34:32 2017 - [warning] relay_log_purge=0 is not set on slave 192.168.1.68(192.168.1.68:3306). Fri Feb 17 20:34:32 2017 - [warning] relay_log_purge=0 is not set on slave 192.168.1.69(192.168.1.69:3306). Fri Feb 17 20:34:32 2017 - [info] Checking replication filtering settings.. Fri Feb 17 20:34:32 2017 - [info] binlog_do_db= , binlog_ignore_db= Fri Feb 17 20:34:32 2017 - [info] Replication filtering check ok. Fri Feb 17 20:34:32 2017 - [info] Starting SSH connection tests.. Fri Feb 17 20:34:34 2017 - [info] All SSH connection tests passed successfully. Fri Feb 17 20:34:34 2017 - [info] Checking MHA Node version.. Fri Feb 17 20:34:34 2017 - [info] Version check ok. Fri Feb 17 20:34:34 2017 - [info] Checking SSH publickey authentication settings on the current master.. Fri Feb 17 20:34:34 2017 - [info] HealthCheck: SSH to 192.168.1.67 is reachable. Fri Feb 17 20:34:34 2017 - [info] Master MHA Node version is 0.53. Fri Feb 17 20:34:34 2017 - [info] Checking recovery script configurations on the current master.. Fri Feb 17 20:34:34 2017 - [info] Executing command: save_binary_logs --command=test --start_pos=4 --binlog_dir=/data --output_file=/var/tmp/save_binary_logs_test --manager_version=0.53 --start_file=mysql-bin-master.000010 Fri Feb 17 20:34:34 2017 - [info] Connecting to root@192.168.1.67(192.168.1.67).. Creating /var/tmp if not exists.. ok. Checking output directory is accessible or not.. ok. Binlog found at /data, up to mysql-bin-master.000010 Fri Feb 17 20:34:34 2017 - [info] Master setting check done. Fri Feb 17 20:34:34 2017 - [info] Checking SSH publickey authentication and checking recovery script configurations on all alive slave servers.. Fri Feb 17 20:34:34 2017 - [info] Executing command : apply_diff_relay_logs --command=test --slave_user=sxooky --slave_host=192.168.1.68 --slave_ip=192.168.1.68 --slave_port=3306 --workdir=/var/tmp --target_version=5.6.26-log --manager_version=0.53 --relay_log_info=/data/relay-log.info --relay_dir=/data/ --slave_pass=xxx Fri Feb 17 20:34:34 2017 - [info] Connecting to root@192.168.1.68(192.168.1.68:22).. Checking slave recovery environment settings.. Opening /data/relay-log.info ... ok. Relay log found at /data, up to shenxiang68-relay-bin.000002 Temporary relay log file is /data/shenxiang68-relay-bin.000002 Testing mysql connection and privileges..Warning: Using a password on the command line interface can be insecure. done. Testing mysqlbinlog output.. done. Cleaning up test file(s).. done. Fri Feb 17 20:34:35 2017 - [info] Executing command : apply_diff_relay_logs --command=test --slave_user=sxooky --slave_host=192.168.1.69 --slave_ip=192.168.1.69 --slave_port=3306 --workdir=/var/tmp --target_version=5.6.26-log --manager_version=0.53 --relay_log_info=/data/relay-log.info --relay_dir=/data/ --slave_pass=xxx Fri Feb 17 20:34:35 2017 - [info] Connecting to root@192.168.1.69(192.168.1.69:22).. Checking slave recovery environment settings.. Opening /data/relay-log.info ... ok. Relay log found at /data, up to shenxiang69-relay-bin.000002 Temporary relay log file is /data/shenxiang69-relay-bin.000002 Testing mysql connection and privileges..Warning: Using a password on the command line interface can be insecure. done. Testing mysqlbinlog output.. done. Cleaning up test file(s).. done. Fri Feb 17 20:34:35 2017 - [info] Slaves settings check done. Fri Feb 17 20:34:35 2017 - [info] 192.168.1.67 (current master) +--192.168.1.68 +--192.168.1.69 Fri Feb 17 20:34:35 2017 - [info] Checking replication health on 192.168.1.68.. Fri Feb 17 20:34:35 2017 - [info] ok. Fri Feb 17 20:34:35 2017 - [info] Checking replication health on 192.168.1.69.. Fri Feb 17 20:34:35 2017 - [info] ok. Fri Feb 17 20:34:35 2017 - [info] Checking master_ip_failover_script status: Fri Feb 17 20:34:35 2017 - [info] /usr/bin/masterha_ip_failover --command=status --ssh_user=root --orig_master_host=192.168.1.67 --orig_master_ip=192.168.1.67 --orig_master_port=3306 IN SCRIPT TEST====/sbin/ifconfig eth0:1 down==/sbin/ifconfig eth0:1 192.168.1.222/24=== Checking the Status of the script.. OK Fri Feb 17 20:34:35 2017 - [info] OK. Fri Feb 17 20:34:35 2017 - [warning] shutdown_script is not defined. Fri Feb 17 20:34:35 2017 - [info] Got exit code 0 (Not master dead). MySQL Replication Health is OK.
5、数据库宕机测试
1)启动MHA
- 后面重新开一个窗口，用于监控日志，因为这个是打开前台的进程，运行的时候光标会卡住
复制代码
1
2
3[root@shenxiang61 ~]# >/etc/masterha/app1/manager.log [root@shenxiang61 ~]# nohup masterha_manager --conf=/etc/masterha/app1.cnf > /tmp/mha_manager.log 2>&1 & [1] 32432
2) 监控日志
- 新建监控日志的窗口，查看
复制代码
1
2
3
4
5
6
7
8
9
10
11[root@shenxiang61 ~]# tailf /etc/masterha/app1/manager.log IN SCRIPT TEST====/sbin/ifconfig eth0:1 down==/sbin/ifconfig eth0:1 192.168.1.222/24=== Checking the Status of the script.. OK Fri Feb 17 21:23:33 2017 - [info] OK. Fri Feb 17 21:23:33 2017 - [warning] shutdown_script is not defined. Fri Feb 17 21:23:33 2017 - [info] Set master ping interval 1 seconds. Fri Feb 17 21:23:33 2017 - [warning] secondary_check_script is not defined. It is highly recommended setting it to check master reachability from two or more routes. Fri Feb 17 21:23:33 2017 - [info] Starting ping health check on 192.168.1.67(192.168.1.67:3306).. Fri Feb 17 21:23:33 2017 - [info] Ping(SELECT) succeeded, waiting until MySQL doesn't respond..
- 正如黄底红字所示，一切准备就绪！就等着MYSQL无响应呢
3) 主服务器宕机
- 手动暂停主数据库服务器
复制代码
1
2[root@shenxiang67 ~]# /etc/init.d/mysqld stop Shutting down MySQL...... SUCCESS!
4) 再次查看日志与结果
- 日志
复制代码
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140
141
142
143
144
145
146
147
148
149
150
151
152
153
154
155
156
157
158
159
160
161
162
163
164
165
166
167
168
169
170
171
172
173
174
175
176
177
178
179
180
181
182
183
184
185
186
187
188
189
190
191
192
193
194
195
196
197
198
199
200
201
202
203
204
205
206
207
208
209
210
211
212
213
214
215
216
217
218
219
220
221
222
223
224
225
226
227
228
229
230
231
232
233
234
235
236
237
238
239
240
241
242
243
244
245
246
247
248
249
250[root@shenxiang61 ~]# tailf /etc/masterha/app1/manager.log IN SCRIPT TEST====/sbin/ifconfig eth0:1 down==/sbin/ifconfig eth0:1 192.168.1.222/24=== Checking the Status of the script.. OK Fri Feb 17 21:23:33 2017 - [info] OK. Fri Feb 17 21:23:33 2017 - [warning] shutdown_script is not defined. Fri Feb 17 21:23:33 2017 - [info] Set master ping interval 1 seconds. Fri Feb 17 21:23:33 2017 - [warning] secondary_check_script is not defined. It is highly recommended setting it to check master reachability from two or more routes. Fri Feb 17 21:23:33 2017 - [info] Starting ping health check on 192.168.1.67(192.168.1.67:3306).. Fri Feb 17 21:23:33 2017 - [info] Ping(SELECT) succeeded, waiting until MySQL doesn't respond.. Fri Feb 17 21:28:38 2017 - [warning] Got error on MySQL select ping: 2006 (MySQL server has gone away) Fri Feb 17 21:28:38 2017 - [info] Executing SSH check script: save_binary_logs --command=test --start_pos=4 --binlog_dir=/data --output_file=/var/tmp/save_binary_logs_test --manager_version=0.53 --binlog_prefix=mysql-bin-master Fri Feb 17 21:28:38 2017 - [info] HealthCheck: SSH to 192.168.1.67 is reachable. Fri Feb 17 21:28:39 2017 - [warning] Got error on MySQL connect: 2013 (Lost connection to MySQL server at 'reading initial communication packet', system error: 111) Fri Feb 17 21:28:39 2017 - [warning] Connection failed 1 time(s).. Fri Feb 17 21:28:40 2017 - [warning] Got error on MySQL connect: 2013 (Lost connection to MySQL server at 'reading initial communication packet', system error: 111) Fri Feb 17 21:28:40 2017 - [warning] Connection failed 2 time(s).. Fri Feb 17 21:28:41 2017 - [warning] Got error on MySQL connect: 2013 (Lost connection to MySQL server at 'reading initial communication packet', system error: 111) Fri Feb 17 21:28:41 2017 - [warning] Connection failed 3 time(s).. Fri Feb 17 21:28:41 2017 - [warning] Master is not reachable from health checker! Fri Feb 17 21:28:41 2017 - [warning] Master 192.168.1.67(192.168.1.67:3306) is not reachable! Fri Feb 17 21:28:41 2017 - [warning] SSH is reachable. Fri Feb 17 21:28:41 2017 - [info] Connecting to a master server failed. Reading configuration file /etc/masterha_default.cnf and /etc/masterha/app1.cnf again, and trying to connect to all servers to check server status.. Fri Feb 17 21:28:41 2017 - [warning] Global configuration file /etc/masterha_default.cnf not found. Skipping. Fri Feb 17 21:28:41 2017 - [info] Reading application default configurations from /etc/masterha/app1.cnf.. Fri Feb 17 21:28:41 2017 - [info] Reading server configurations from /etc/masterha/app1.cnf.. Fri Feb 17 21:28:41 2017 - [info] Dead Servers: Fri Feb 17 21:28:41 2017 - [info] 192.168.1.67(192.168.1.67:3306) Fri Feb 17 21:28:41 2017 - [info] Alive Servers: Fri Feb 17 21:28:41 2017 - [info] 192.168.1.68(192.168.1.68:3306) Fri Feb 17 21:28:41 2017 - [info] 192.168.1.69(192.168.1.69:3306) Fri Feb 17 21:28:41 2017 - [info] Alive Slaves: Fri Feb 17 21:28:41 2017 - [info] 192.168.1.68(192.168.1.68:3306) Version=5.6.26-log (oldest major version between slaves) log-bin:enabled Fri Feb 17 21:28:41 2017 - [info] Replicating from 192.168.1.67(192.168.1.67:3306) Fri Feb 17 21:28:41 2017 - [info] Primary candidate for the new Master (candidate_master is set) Fri Feb 17 21:28:41 2017 - [info] 192.168.1.69(192.168.1.69:3306) Version=5.6.26-log (oldest major version between slaves) log-bin:enabled Fri Feb 17 21:28:41 2017 - [info] Replicating from 192.168.1.67(192.168.1.67:3306) Fri Feb 17 21:28:41 2017 - [info] Not candidate for the new Master (no_master is set) Fri Feb 17 21:28:41 2017 - [info] Checking slave configurations.. Fri Feb 17 21:28:41 2017 - [warning] relay_log_purge=0 is not set on slave 192.168.1.68(192.168.1.68:3306). Fri Feb 17 21:28:41 2017 - [warning] relay_log_purge=0 is not set on slave 192.168.1.69(192.168.1.69:3306). Fri Feb 17 21:28:41 2017 - [info] Checking replication filtering settings.. Fri Feb 17 21:28:41 2017 - [info] Replication filtering check ok. Fri Feb 17 21:28:41 2017 - [info] Master is down! Fri Feb 17 21:28:41 2017 - [info] Terminating monitoring script. Fri Feb 17 21:28:41 2017 - [info] Got exit code 20 (Master dead). Fri Feb 17 21:28:41 2017 - [info] MHA::MasterFailover version 0.53. Fri Feb 17 21:28:41 2017 - [info] Starting master failover. Fri Feb 17 21:28:41 2017 - [info] Fri Feb 17 21:28:41 2017 - [info] * Phase 1: Configuration Check Phase.. Fri Feb 17 21:28:41 2017 - [info] Fri Feb 17 21:28:41 2017 - [info] Dead Servers: Fri Feb 17 21:28:41 2017 - [info] 192.168.1.67(192.168.1.67:3306) Fri Feb 17 21:28:41 2017 - [info] Checking master reachability via mysql(double check).. Fri Feb 17 21:28:41 2017 - [info] ok. Fri Feb 17 21:28:41 2017 - [info] Alive Servers: Fri Feb 17 21:28:41 2017 - [info] 192.168.1.68(192.168.1.68:3306) Fri Feb 17 21:28:41 2017 - [info] 192.168.1.68(192.168.1.68:3306) Fri Feb 17 21:28:41 2017 - [info] 192.168.1.69(192.168.1.69:3306) Fri Feb 17 21:28:41 2017 - [info] Alive Slaves: Fri Feb 17 21:28:41 2017 - [info] 192.168.1.68(192.168.1.68:3306) Version=5.6.26-log (oldest major version between slaves) log-bin:enabled Fri Feb 17 21:28:41 2017 - [info] Replicating from 192.168.1.67(192.168.1.67:3306) Fri Feb 17 21:28:41 2017 - [info] Primary candidate for the new Master (candidate_master is set) Fri Feb 17 21:28:41 2017 - [info] 192.168.1.69(192.168.1.69:3306) Version=5.6.26-log (oldest major version between slaves) log-bin:enabled Fri Feb 17 21:28:41 2017 - [info] Replicating from 192.168.1.67(192.168.1.67:3306) Fri Feb 17 21:28:41 2017 - [info] Not candidate for the new Master (no_master is set) Fri Feb 17 21:28:41 2017 - [info] ** Phase 1: Configuration Check Phase completed. Fri Feb 17 21:28:41 2017 - [info] Fri Feb 17 21:28:41 2017 - [info] * Phase 2: Dead Master Shutdown Phase.. Fri Feb 17 21:28:41 2017 - [info] Fri Feb 17 21:28:41 2017 - [info] Forcing shutdown so that applications never connect to the current master.. Fri Feb 17 21:28:41 2017 - [info] Executing master IP deactivatation script: Fri Feb 17 21:28:41 2017 - [info] /usr/bin/masterha_ip_failover --orig_master_host=192.168.1.67 --orig_master_ip=192.168.1.67 --orig_master_port=3306 --command=stopssh --ssh_user=root IN SCRIPT TEST====/sbin/ifconfig eth0:1 down==/sbin/ifconfig eth0:1 192.168.1.222/24=== Disabling the VIP on old master: 192.168.1.67 Fri Feb 17 21:28:41 2017 - [info] done. Fri Feb 17 21:28:41 2017 - [warning] shutdown_script is not set. Skipping explicit shutting down of the dead master. Fri Feb 17 21:28:41 2017 - [info] * Phase 2: Dead Master Shutdown Phase completed. Fri Feb 17 21:28:41 2017 - [info] Fri Feb 17 21:28:41 2017 - [info] * Phase 3: Master Recovery Phase.. Fri Feb 17 21:28:41 2017 - [info] Fri Feb 17 21:28:41 2017 - [info] * Phase 3.1: Getting Latest Slaves Phase.. Fri Feb 17 21:28:41 2017 - [info] Fri Feb 17 21:28:41 2017 - [info] The latest binary log file/position on all slaves is mysql-bin-master.000010:120 Fri Feb 17 21:28:41 2017 - [info] Latest slaves (Slaves that received relay log files to the latest): Fri Feb 17 21:28:41 2017 - [info] 192.168.1.68(192.168.1.68:3306) Version=5.6.26-log (oldest major version between slaves) log-bin:enabled Fri Feb 17 21:28:41 2017 - [info] Replicating from 192.168.1.67(192.168.1.67:3306) Fri Feb 17 21:28:41 2017 - [info] Primary candidate for the new Master (candidate_master is set) Fri Feb 17 21:28:41 2017 - [info] 192.168.1.69(192.168.1.69:3306) Version=5.6.26-log (oldest major version between slaves) log-bin:enabled Fri Feb 17 21:28:41 2017 - [info] Replicating from 192.168.1.67(192.168.1.67:3306) Fri Feb 17 21:28:41 2017 - [info] Not candidate for the new Master (no_master is set) Fri Feb 17 21:28:41 2017 - [info] The oldest binary log file/position on all slaves is mysql-bin-master.000010:120 Fri Feb 17 21:28:41 2017 - [info] Oldest slaves: Fri Feb 17 21:28:41 2017 - [info] 192.168.1.68(192.168.1.68:3306) Version=5.6.26-log (oldest major version between slaves) log-bin:enabled Fri Feb 17 21:28:41 2017 - [info] Replicating from 192.168.1.67(192.168.1.67:3306) Fri Feb 17 21:28:41 2017 - [info] Primary candidate for the new Master (candidate_master is set) Fri Feb 17 21:28:41 2017 - [info] 192.168.1.69(192.168.1.69:3306) Version=5.6.26-log (oldest major version between slaves) log-bin:enabled Fri Feb 17 21:28:41 2017 - [info] Replicating from 192.168.1.67(192.168.1.67:3306) Fri Feb 17 21:28:41 2017 - [info] Not candidate for the new Master (no_master is set) Fri Feb 17 21:28:41 2017 - [info] Fri Feb 17 21:28:41 2017 - [info] * Phase 3.2: Saving Dead Master's Binlog Phase.. Fri Feb 17 21:28:41 2017 - [info] Fri Feb 17 21:28:41 2017 - [info] Fetching dead master's binary logs.. Fri Feb 17 21:28:41 2017 - [info] Executing command on the dead master 192.168.1.67(192.168.1.67:3306): save_binary_logs --command=save --start_file=mysql-bin-master.000010 --start_pos=120 --binlog_dir=/data --output_file=/var/tmp/saved_master_binlog_from_192.168.1.67_3306_20170217212841.binlog --handle_raw_binlog=1 --disable_log_bin=0 --manager_version=0.53 Creating /var/tmp if not exists.. ok. Concat binary/relay logs from mysql-bin-master.000010 pos 120 to mysql-bin-master.000010 EOF into /var/tmp/saved_master_binlog_from_192.168.1.67_3306_20170217212841.binlog .. Dumping binlog format description event, from position 0 to 120.. ok. Dumping effective binlog data from /data/mysql-bin-master.000010 position 120 to tail(143).. ok. Concat succeeded. Fri Feb 17 21:28:42 2017 - [info] scp from root@192.168.1.67:/var/tmp/saved_master_binlog_from_192.168.1.67_3306_20170217212841.binlog to local:/etc/masterha/app1/saved_master_binlog_from_192.168.1.67_3306_20170217212841.binlog succeeded. Fri Feb 17 21:28:42 2017 - [info] HealthCheck: SSH to 192.168.1.68 is reachable. Fri Feb 17 21:28:42 2017 - [info] HealthCheck: SSH to 192.168.1.69 is reachable. Fri Feb 17 21:28:42 2017 - [info] Fri Feb 17 21:28:42 2017 - [info] * Phase 3.3: Determining New Master Phase.. Fri Feb 17 21:28:42 2017 - [info] Fri Feb 17 21:28:42 2017 - [info] Finding the latest slave that has all relay logs for recovering other slaves.. Fri Feb 17 21:28:42 2017 - [info] All slaves received relay logs to the same position. No need to resync each other. Fri Feb 17 21:28:42 2017 - [info] Searching new master from slaves.. Fri Feb 17 21:28:42 2017 - [info] Candidate masters from the configuration file: Fri Feb 17 21:28:42 2017 - [info] 192.168.1.68(192.168.1.68:3306) Version=5.6.26-log (oldest major version between slaves) log-bin:enabled Fri Feb 17 21:28:42 2017 - [info] Replicating from 192.168.1.67(192.168.1.67:3306) Fri Feb 17 21:28:42 2017 - [info] Primary candidate for the new Master (candidate_master is set) Fri Feb 17 21:28:42 2017 - [info] Non-candidate masters: Fri Feb 17 21:28:42 2017 - [info] 192.168.1.69(192.168.1.69:3306) Version=5.6.26-log (oldest major version between slaves) log-bin:enabled Fri Feb 17 21:28:42 2017 - [info] Replicating from 192.168.1.67(192.168.1.67:3306) Fri Feb 17 21:28:42 2017 - [info] Not candidate for the new Master (no_master is set) Fri Feb 17 21:28:42 2017 - [info] Searching from candidate_master slaves which have received the latest relay log events.. Fri Feb 17 21:28:42 2017 - [info] New master is 192.168.1.68(192.168.1.68:3306) Fri Feb 17 21:28:42 2017 - [info] Starting master failover.. Fri Feb 17 21:28:42 2017 - [info] From: 192.168.1.67 (current master) +--192.168.1.68 +--192.168.1.69 To: 192.168.1.68 (new master) +--192.168.1.69 Fri Feb 17 21:28:42 2017 - [info] Fri Feb 17 21:28:42 2017 - [info] * Phase 3.3: New Master Diff Log Generation Phase.. Fri Feb 17 21:28:42 2017 - [info] Fri Feb 17 21:28:42 2017 - [info] This server has all relay logs. No need to generate diff files from the latest slave. Fri Feb 17 21:28:42 2017 - [info] Sending binlog.. Fri Feb 17 21:28:42 2017 - [info] scp from local:/etc/masterha/app1/saved_master_binlog_from_192.168.1.67_3306_20170217212841.binlog to root@192.168.1.68:/var/tmp/saved_master_binlog_from_192.168.1.67_3306_20170217212841.binlog succeeded. Fri Feb 17 21:28:42 2017 - [info] Fri Feb 17 21:28:42 2017 - [info] * Phase 3.4: Master Log Apply Phase.. Fri Feb 17 21:28:42 2017 - [info] Fri Feb 17 21:28:42 2017 - [info] *NOTICE: If any error happens from this phase, manual recovery is needed. Fri Feb 17 21:28:42 2017 - [info] Starting recovery on 192.168.1.68(192.168.1.68:3306).. Fri Feb 17 21:28:42 2017 - [info] Generating diffs succeeded. Fri Feb 17 21:28:42 2017 - [info] Waiting until all relay logs are applied. Fri Feb 17 21:28:42 2017 - [info] done. Fri Feb 17 21:28:42 2017 - [info] Getting slave status.. Fri Feb 17 21:28:42 2017 - [info] This slave(192.168.1.68)'s Exec_Master_Log_Pos equals to Read_Master_Log_Pos(mysql-bin-master.000010:120). No need to recover from Exec_Master_Log_Pos. Fri Feb 17 21:28:42 2017 - [info] Connecting to the target slave host 192.168.1.68, running recover script.. Fri Feb 17 21:28:42 2017 - [info] Executing command: apply_diff_relay_logs --command=apply --slave_user=sxooky --slave_host=192.168.1.68 --slave_ip=192.168.1.68 --slave_port=3306 --apply_files=/var/tmp/saved_master_binlog_from_192.168.1.67_3306_20170217212841.binlog --workdir=/var/tmp --target_version=5.6.26-log --timestamp=20170217212841 --handle_raw_binlog=1 --disable_log_bin=0 --manager_version=0.53 --slave_pass=xxx Fri Feb 17 21:28:43 2017 - [info] MySQL client version is 5.6.26. Using --binary-mode. Applying differential binary/relay log files /var/tmp/saved_master_binlog_from_192.168.1.67_3306_20170217212841.binlog on 192.168.1.68:3306. This may take long time... Applying log files succeeded. Fri Feb 17 21:28:43 2017 - [info] All relay logs were successfully applied. Fri Feb 17 21:28:43 2017 - [info] Getting new master's binlog name and position.. Fri Feb 17 21:28:43 2017 - [info] mysql-bin-master.000013:120 Fri Feb 17 21:28:43 2017 - [info] All other slaves should start replication from here. Statement should be: CHANGE MASTER TO MASTER_HOST='192.168.1.68', MASTER_PORT=3306, MASTER_LOG_FILE='mysql-bin-master.000013', MASTER_LOG_POS=120, MASTER_USER='slave', MASTER_PASSWORD='xxx'; Fri Feb 17 21:28:43 2017 - [info] Executing master IP activate script: Fri Feb 17 21:28:43 2017 - [info] /usr/bin/masterha_ip_failover --command=start --ssh_user=root --orig_master_host=192.168.1.67 --orig_master_ip=192.168.1.67 --orig_master_port=3306 --new_master_host=192.168.1.68 --new_master_ip=192.168.1.68 --new_master_port=3306 IN SCRIPT TEST====/sbin/ifconfig eth0:1 down==/sbin/ifconfig eth0:1 192.168.1.222/24=== Enabling the VIP - 192.168.1.222/24 on the new master - 192.168.1.68 Fri Feb 17 21:28:43 2017 - [info] OK. Fri Feb 17 21:28:43 2017 - [info] Setting read_only=0 on 192.168.1.68(192.168.1.68:3306).. Fri Feb 17 21:28:43 2017 - [info] ok. Fri Feb 17 21:28:43 2017 - [info] ** Finished master recovery successfully. Fri Feb 17 21:28:43 2017 - [info] * Phase 3: Master Recovery Phase completed. Fri Feb 17 21:28:43 2017 - [info] Fri Feb 17 21:28:43 2017 - [info] * Phase 4: Slaves Recovery Phase.. Fri Feb 17 21:28:43 2017 - [info] Fri Feb 17 21:28:43 2017 - [info] * Phase 4.1: Starting Parallel Slave Diff Log Generation Phase.. Fri Feb 17 21:28:43 2017 - [info] Fri Feb 17 21:28:43 2017 - [info] Fri Feb 17 21:28:43 2017 - [info] -- Slave diff file generation on host 192.168.1.69(192.168.1.69:3306) started, pid: 16824. Check tmp log /etc/masterha/app1/192.168.1.69_3306_20170217212841.log if it takes time.. Fri Feb 17 21:28:43 2017 - [info] Fri Feb 17 21:28:43 2017 - [info] Log messages from 192.168.1.69 ... Fri Feb 17 21:28:43 2017 - [info] Fri Feb 17 21:28:43 2017 - [info] This server has all relay logs. No need to generate diff files from the latest slave. Fri Feb 17 21:28:43 2017 - [info] End of log messages from 192.168.1.69. Fri Feb 17 21:28:43 2017 - [info] -- 192.168.1.69(192.168.1.69:3306) has the latest relay log events. Fri Feb 17 21:28:43 2017 - [info] Generating relay diff files from the latest slave succeeded. Fri Feb 17 21:28:43 2017 - [info] Fri Feb 17 21:28:43 2017 - [info] * Phase 4.2: Starting Parallel Slave Log Apply Phase.. Fri Feb 17 21:28:43 2017 - [info] Fri Feb 17 21:28:43 2017 - [info] -- Slave recovery on host 192.168.1.69(192.168.1.69:3306) started, pid: 16826. Check tmp log /etc/masterha/app1/192.168.1.69_3306_20170217212841.log if it takes time.. Fri Feb 17 21:28:43 2017 - [info] Fri Feb 17 21:28:43 2017 - [info] Log messages from 192.168.1.69 ... Fri Feb 17 21:28:43 2017 - [info] Fri Feb 17 21:28:43 2017 - [info] Sending binlog.. Fri Feb 17 21:28:43 2017 - [info] scp from local:/etc/masterha/app1/saved_master_binlog_from_192.168.1.67_3306_20170217212841.binlog to root@192.168.1.69:/var/tmp/saved_master_binlog_from_192.168.1.67_3306_20170217212841.binlog succeeded. Fri Feb 17 21:28:43 2017 - [info] Starting recovery on 192.168.1.69(192.168.1.69:3306).. Fri Feb 17 21:28:43 2017 - [info] Generating diffs succeeded. Fri Feb 17 21:28:43 2017 - [info] Waiting until all relay logs are applied. Fri Feb 17 21:28:43 2017 - [info] done. Fri Feb 17 21:28:43 2017 - [info] Getting slave status.. Fri Feb 17 21:28:43 2017 - [info] This slave(192.168.1.69)'s Exec_Master_Log_Pos equals to Read_Master_Log_Pos(mysql-bin-master.000010:120). No need to recover from Exec_Master_Log_Pos. Fri Feb 17 21:28:43 2017 - [info] Connecting to the target slave host 192.168.1.69, running recover script.. Fri Feb 17 21:28:43 2017 - [info] Executing command: apply_diff_relay_logs --command=apply --slave_user=sxooky --slave_host=192.168.1.69 --slave_ip=192.168.1.69 --slave_port=3306 --apply_files=/var/tmp/saved_master_binlog_from_192.168.1.67_3306_20170217212841.binlog --workdir=/var/tmp --target_version=5.6.26-log --timestamp=20170217212841 --handle_raw_binlog=1 --disable_log_bin=0 --manager_version=0.53 --slave_pass=xxx Fri Feb 17 21:28:43 2017 - [info] MySQL client version is 5.6.26. Using --binary-mode. Applying differential binary/relay log files /var/tmp/saved_master_binlog_from_192.168.1.67_3306_20170217212841.binlog on 192.168.1.69:3306. This may take long time... Applying log files succeeded. Fri Feb 17 21:28:43 2017 - [info] All relay logs were successfully applied. Fri Feb 17 21:28:43 2017 - [info] Resetting slave 192.168.1.69(192.168.1.69:3306) and starting replication from the new master 192.168.1.68(192.168.1.68:3306).. Fri Feb 17 21:28:43 2017 - [info] Executed CHANGE MASTER. Fri Feb 17 21:28:43 2017 - [info] Slave started. Fri Feb 17 21:28:43 2017 - [info] End of log messages from 192.168.1.69. Fri Feb 17 21:28:43 2017 - [info] -- Slave recovery on host 192.168.1.69(192.168.1.69:3306) succeeded. Fri Feb 17 21:28:43 2017 - [info] All new slave servers recovered successfully. Fri Feb 17 21:28:43 2017 - [info] Fri Feb 17 21:28:43 2017 - [info] * Phase 5: New master cleanup phease.. Fri Feb 17 21:28:43 2017 - [info] Fri Feb 17 21:28:43 2017 - [info] Resetting slave info on the new master.. Fri Feb 17 21:28:43 2017 - [info] 192.168.1.68: Resetting slave info succeeded. Fri Feb 17 21:28:43 2017 - [info] Master failover to 192.168.1.68(192.168.1.68:3306) completed successfully. Fri Feb 17 21:28:43 2017 - [info] ----- Failover Report ----- app1: MySQL Master failover 192.168.1.67 to 192.168.1.68 succeeded Master 192.168.1.67 is down! Check MHA Manager logs at shenxiang61:/etc/masterha/app1/manager.log for details. Started automated(non-interactive) failover. Invalidated master IP address on 192.168.1.67. The latest slave 192.168.1.68(192.168.1.68:3306) has all relay logs for recovery. Selected 192.168.1.68 as a new master. 192.168.1.68: OK: Applying all logs succeeded. 192.168.1.68: OK: Activated master IP address. 192.168.1.69: This host has the latest relay log events. Generating relay diff files from the latest slave succeeded. 192.168.1.69: OK: Applying all logs succeeded. Slave started, replicating from 192.168.1.68. 192.168.1.68: Resetting slave info succeeded. Master failover to 192.168.1.68(192.168.1.68:3306) completed successfully.
- 再登录slave2服务器，看slave 的状态
复制代码
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57[root@shenxiang69 ~]# mysql -uroot -p123456 -e "show slave statusG" Warning: Using a password on the command line interface can be insecure. *************************** 1. row *************************** Slave_IO_State: Waiting for master to send event Master_Host: 192.168.1.68 Master_User: slave Master_Port: 3306 Connect_Retry: 60 Master_Log_File: mysql-bin-master.000007 Read_Master_Log_Pos: 120 Relay_Log_File: shenxiang69-relay-bin.000002 Relay_Log_Pos: 290 Relay_Master_Log_File: mysql-bin-master.000007 Slave_IO_Running: Yes Slave_SQL_Running: Yes Replicate_Do_DB: Replicate_Ignore_DB: Replicate_Do_Table: Replicate_Ignore_Table: Replicate_Wild_Do_Table: Replicate_Wild_Ignore_Table: Last_Errno: 0 Last_Error: Skip_Counter: 0 Exec_Master_Log_Pos: 120 Relay_Log_Space: 469 Until_Condition: None Until_Log_File: Until_Log_Pos: 0 Master_SSL_Allowed: No Master_SSL_CA_File: Master_SSL_CA_Path: Master_SSL_Cert: Master_SSL_Cipher: Master_SSL_Key: Seconds_Behind_Master: 0 Master_SSL_Verify_Server_Cert: No Last_IO_Errno: 0 Last_IO_Error: Last_SQL_Errno: 0 Last_SQL_Error: Replicate_Ignore_Server_Ids: Master_Server_Id: 2 Master_UUID: a6181d83-f21b-11e6-bd9a-000c29271de5 Master_Info_File: /data/master.info SQL_Delay: 0 SQL_Remaining_Delay: NULL Slave_SQL_Running_State: Slave has read all relay log; waiting for the slave I/O thread to update it Master_Retry_Count: 86400 Master_Bind: Last_IO_Error_Timestamp: Last_SQL_Error_Timestamp: Master_SSL_Crl: Master_SSL_Crlpath: Retrieved_Gtid_Set: Executed_Gtid_Set: Auto_Position: 0
测试成功，如上所示，原67主机MySQL连接失败，68主机当选新的master，61主机记录最近的日志，大功告成。
- 查看Write VIP 192.168.1.222
复制代码
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22[root@shenxiang68 ~]# ifconfig eth0 Link encap:Ethernet HWaddr 00:0C:29:27:1D:E5 inet addr:192.168.1.68 Bcast:192.168.1.255 Mask:255.255.255.0 inet6 addr: fe80::20c:29ff:fe27:1de5/64 Scope:Link UP BROADCAST RUNNING MULTICAST MTU:1500 Metric:1 RX packets:92752 errors:0 dropped:0 overruns:0 frame:0 TX packets:23849 errors:0 dropped:0 overruns:0 carrier:0 collisions:0 txqueuelen:1000 RX bytes:8348697 (7.9 MiB) TX bytes:6319349 (6.0 MiB) eth0:1 Link encap:Ethernet HWaddr 00:0C:29:27:1D:E5 inet addr:192.168.1.222 Bcast:192.168.1.255 Mask:255.255.255.0 UP BROADCAST RUNNING MULTICAST MTU:1500 Metric:1 lo Link encap:Local Loopback inet addr:127.0.0.1 Mask:255.0.0.0 inet6 addr: ::1/128 Scope:Host UP LOOPBACK RUNNING MTU:65536 Metric:1 RX packets:920 errors:0 dropped:0 overruns:0 frame:0 TX packets:920 errors:0 dropped:0 overruns:0 carrier:0 collisions:0 txqueuelen:0 RX bytes:78012 (76.1 KiB) TX bytes:78012 (76.1 KiB)
6、重新把主机shenxiang67加入MHA集群
1) 查看新的Master(shenxiang68主机)状态
复制代码
1
2
3
4
5
6
7
8[root@shenxiang68 ~]# mysql -uroot -p123456 -e "show master statusG" Warning: Using a password on the command line interface can be insecure. *************************** 1. row *************************** File: mysql-bin-master.000007 Position: 120 Binlog_Do_DB: Binlog_Ignore_DB: Executed_Gtid_Set:
2) 配置主从加入集群
复制代码
1
2
3
4
5
6
7mysql> stop slave; CHANGE MASTER TO MASTER_HOST='192.168.1.68',MASTER_PORT=3306,MASTER_LOG_FILE='mysql-bin-master.000013',MASTER_LOG_POS=120,MASTER_USER='slave',MASTER_PASSWORD='123456';start slave; Query OK, 0 rows affected (0.01 sec) Query OK, 0 rows affected, 2 warnings (0.01 sec) Query OK, 0 rows affected (0.01 sec)
- 红色部分可以用manager的日志中截取
复制代码
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60[root@shenxiang61 ~]# grep -i "All other slaves should start" /etc/masterha/app1/manager.log Fri Feb 17 21:28:43 2017 - [info] All other slaves should start replication from here. Statement should be: CHANGE MASTER TO MASTER_HOST='192.168.1.68', MASTER_PORT=3306, MASTER_LOG_FILE='mysql-bin-master.000013', MASTER_LOG_POS=120, MASTER_USER='slave', MASTER_PASSWORD='xxx'; mysql> show slave statusG *************************** 1. row *************************** Slave_IO_State: Waiting for master to send event Master_Host: 192.168.1.68 Master_User: slave Master_Port: 3306 Connect_Retry: 60 Master_Log_File: mysql-bin-master.000013 Read_Master_Log_Pos: 120 Relay_Log_File: shenxiang67-relay-bin.000002 Relay_Log_Pos: 290 Relay_Master_Log_File: mysql-bin-master.000013 Slave_IO_Running: Yes Slave_SQL_Running: Yes Replicate_Do_DB: Replicate_Ignore_DB: Replicate_Do_Table: Replicate_Ignore_Table: Replicate_Wild_Do_Table: Replicate_Wild_Ignore_Table: Last_Errno: 0 Last_Error: Skip_Counter: 0 Exec_Master_Log_Pos: 120 Relay_Log_Space: 469 Until_Condition: None Until_Log_File: Until_Log_Pos: 0 Master_SSL_Allowed: No Master_SSL_CA_File: Master_SSL_CA_Path: Master_SSL_Cert: Master_SSL_Cipher: Master_SSL_Key: Seconds_Behind_Master: 0 Master_SSL_Verify_Server_Cert: No Last_IO_Errno: 0 Last_IO_Error: Last_SQL_Errno: 0 Last_SQL_Error: Replicate_Ignore_Server_Ids: Master_Server_Id: 2 Master_UUID: a6181d83-f21b-11e6-bd9a-000c29271de5 Master_Info_File: /data/master.info SQL_Delay: 0 SQL_Remaining_Delay: NULL Slave_SQL_Running_State: Slave has read all relay log; waiting for the slave I/O thread to update it Master_Retry_Count: 86400 Master_Bind: Last_IO_Error_Timestamp: Last_SQL_Error_Timestamp: Master_SSL_Crl: Master_SSL_Crlpath: Retrieved_Gtid_Set: Executed_Gtid_Set: Auto_Position: 0 1 row in set (0.00 sec)
3) 重新启动MHA
- 清空日志，并启动MHA
复制代码
1
2
3
4
5
6
7[root@shenxiang61 app1]# >/etc/masterha/app1/manager.log [root@shenxiang61 app1]# masterha_check_status --conf=/etc/masterha/app1.cnf app1 is stopped(2:NOT_RUNNING). [root@shenxiang61 app1]# nohup masterha_manager --conf=/etc/masterha/app1.cnf > /tmp/mha_manager.log < /dev/null 2>&1 & [1] 16927 [root@shenxiang61 app1]# masterha_check_status --conf=/etc/masterha/app1.cnf app1 (pid:16927) is running(0:PING_OK), master:192.168.1.68
4) 查看日志
复制代码
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76[root@shenxiang61 ~]# tailf /etc/masterha/app1/manager.log Fri Feb 17 21:49:51 2017 - [info] MHA::MasterMonitor version 0.53. Fri Feb 17 21:49:51 2017 - [info] Dead Servers: Fri Feb 17 21:49:51 2017 - [info] Alive Servers: Fri Feb 17 21:49:51 2017 - [info] 192.168.1.67(192.168.1.67:3306) Fri Feb 17 21:49:51 2017 - [info] 192.168.1.68(192.168.1.68:3306) Fri Feb 17 21:49:51 2017 - [info] 192.168.1.69(192.168.1.69:3306) Fri Feb 17 21:49:51 2017 - [info] Alive Slaves: Fri Feb 17 21:49:51 2017 - [info] 192.168.1.67(192.168.1.67:3306) Version=5.6.26-log (oldest major version between slaves) log-bin:enabled Fri Feb 17 21:49:51 2017 - [info] Replicating from 192.168.1.68(192.168.1.68:3306) Fri Feb 17 21:49:51 2017 - [info] Primary candidate for the new Master (candidate_master is set) Fri Feb 17 21:49:51 2017 - [info] 192.168.1.69(192.168.1.69:3306) Version=5.6.26-log (oldest major version between slaves) log-bin:enabled Fri Feb 17 21:49:51 2017 - [info] Replicating from 192.168.1.68(192.168.1.68:3306) Fri Feb 17 21:49:51 2017 - [info] Not candidate for the new Master (no_master is set) Fri Feb 17 21:49:51 2017 - [info] Current Alive Master: 192.168.1.68(192.168.1.68:3306) Fri Feb 17 21:49:51 2017 - [info] Checking slave configurations.. Fri Feb 17 21:49:51 2017 - [info] read_only=1 is not set on slave 192.168.1.67(192.168.1.67:3306). Fri Feb 17 21:49:51 2017 - [warning] relay_log_purge=0 is not set on slave 192.168.1.67(192.168.1.67:3306). Fri Feb 17 21:49:51 2017 - [warning] relay_log_purge=0 is not set on slave 192.168.1.69(192.168.1.69:3306). Fri Feb 17 21:49:51 2017 - [info] Checking replication filtering settings.. Fri Feb 17 21:49:51 2017 - [info] binlog_do_db= , binlog_ignore_db= Fri Feb 17 21:49:51 2017 - [info] Replication filtering check ok. Fri Feb 17 21:49:51 2017 - [info] Starting SSH connection tests.. Fri Feb 17 21:49:52 2017 - [info] All SSH connection tests passed successfully. Fri Feb 17 21:49:52 2017 - [info] Checking MHA Node version.. Fri Feb 17 21:49:53 2017 - [info] Version check ok. Fri Feb 17 21:49:53 2017 - [info] Checking SSH publickey authentication settings on the current master.. Fri Feb 17 21:49:53 2017 - [info] HealthCheck: SSH to 192.168.1.68 is reachable. Fri Feb 17 21:49:53 2017 - [info] Master MHA Node version is 0.53. Fri Feb 17 21:49:53 2017 - [info] Checking recovery script configurations on the current master.. Fri Feb 17 21:49:53 2017 - [info] Executing command: save_binary_logs --command=test --start_pos=4 --binlog_dir=/data --output_file=/var/tmp/save_binary_logs_test --manager_version=0.53 --start_file=mysql-bin-master.000013 Fri Feb 17 21:49:53 2017 - [info] Connecting to root@192.168.1.68(192.168.1.68).. Creating /var/tmp if not exists.. ok. Checking output directory is accessible or not.. ok. Binlog found at /data, up to mysql-bin-master.000013 Fri Feb 17 21:49:53 2017 - [info] Master setting check done. Fri Feb 17 21:49:53 2017 - [info] Checking SSH publickey authentication and checking recovery script configurations on all alive slave servers.. Fri Feb 17 21:49:53 2017 - [info] Executing command : apply_diff_relay_logs --command=test --slave_user=sxooky --slave_host=192.168.1.67 --slave_ip=192.168.1.67 --slave_port=3306 --workdir=/var/tmp --target_version=5.6.26-log --manager_version=0.53 --relay_log_info=/data/relay-log.info --relay_dir=/data/ --slave_pass=xxx Fri Feb 17 21:49:53 2017 - [info] Connecting to root@192.168.1.67(192.168.1.67:22).. Checking slave recovery environment settings.. Opening /data/relay-log.info ... ok. Relay log found at /data, up to shenxiang67-relay-bin.000002 Temporary relay log file is /data/shenxiang67-relay-bin.000002 Testing mysql connection and privileges..Warning: Using a password on the command line interface can be insecure. done. Testing mysqlbinlog output.. done. Cleaning up test file(s).. done. Fri Feb 17 21:49:53 2017 - [info] Executing command : apply_diff_relay_logs --command=test --slave_user=sxooky --slave_host=192.168.1.69 --slave_ip=192.168.1.69 --slave_port=3306 --workdir=/var/tmp --target_version=5.6.26-log --manager_version=0.53 --relay_log_info=/data/relay-log.info --relay_dir=/data/ --slave_pass=xxx Fri Feb 17 21:49:53 2017 - [info] Connecting to root@192.168.1.69(192.168.1.69:22).. Checking slave recovery environment settings.. Opening /data/relay-log.info ... ok. Relay log found at /data, up to shenxiang69-relay-bin.000002 Temporary relay log file is /data/shenxiang69-relay-bin.000002 Testing mysql connection and privileges..Warning: Using a password on the command line interface can be insecure. done. Testing mysqlbinlog output.. done. Cleaning up test file(s).. done. Fri Feb 17 21:49:53 2017 - [info] Slaves settings check done. Fri Feb 17 21:49:53 2017 - [info] 192.168.1.68 (current master) +--192.168.1.67 +--192.168.1.69 Fri Feb 17 21:49:53 2017 - [info] Checking master_ip_failover_script status: Fri Feb 17 21:49:53 2017 - [info] /usr/bin/masterha_ip_failover --command=status --ssh_user=root --orig_master_host=192.168.1.68 --orig_master_ip=192.168.1.68 --orig_master_port=3306 IN SCRIPT TEST====/sbin/ifconfig eth0:1 down==/sbin/ifconfig eth0:1 192.168.1.222/24=== Checking the Status of the script.. OK Fri Feb 17 21:49:53 2017 - [info] OK. Fri Feb 17 21:49:53 2017 - [warning] shutdown_script is not defined. Fri Feb 17 21:49:53 2017 - [info] Set master ping interval 1 seconds. Fri Feb 17 21:49:53 2017 - [warning] secondary_check_script is not defined. It is highly recommended setting it to check master reachability from two or more routes. Fri Feb 17 21:49:53 2017 - [info] Starting ping health check on 192.168.1.68(192.168.1.68:3306).. Fri Feb 17 21:49:53 2017 - [info] Ping(SELECT) succeeded, waiting until MySQL doesn't respond..
六、mha日常维护命令
1、查看ssh登陆是否成功
复制代码
1masterha_check_ssh --conf=/etc/masterha/app1.cnf
2、查看复制是否建立好
复制代码
1masterha_check_repl --conf=/etc/masterha/app1.cnf
3、启动mha
复制代码
1nohup masterha_manager --conf=/etc/masterha/app1.cnf > /tmp/mha_manager.log < /dev/null 2>&1 &
- 当有slave节点宕掉的情况是启动不了的，加上–ignore_fail_on_start即使有节点宕掉也能启动mha
复制代码
1nohup masterha_manager –conf=/etc/masterha/app1.cnf –ignore_fail_on_start > /tmp/mha_manager.log < /dev/null 2>&1 &
4、检查启动的状态
复制代码
1masterha_check_status --conf=/etc/masterha/app1.cnf
5、停止mha
复制代码
1masterha_stop --conf=/etc/masterha/app1.cnf
6、failover后下次重启
- 每次failover切换后会在管理目录生成文件failover.complete ，下次在切换的时候会发现有这个文件导致切换不成功，需要手动清理掉。
复制代码
1
2rm -rf /masterha/app1/app1.failover.complete 也可以加上参数–ignore_last_failover
7、手工failover
手工failover场景，master死掉，但是masterha_manager没有开启，可以通过手工failover：
复制代码
1masterha_master_switch --conf=/etc/masterha/app1.cnf --dead_master_host=10.50.2.10 --master_state=dead --new_master_host=10.50.2.12 --ignore_last_failover
8、masterha_manager
是一种监视和故障转移的程序。另一方面,masterha_master_switch程序不监控主库。 masterha_master_switch可以用于主库故障转移,也可用于在线总开关。
9、手动在线切换
复制代码
1masterha_master_switch --conf=/etc/app1.cnf --master_state=alive --new_master_host=192.168.119.74 --orig_master_is_new_slave
或者
复制代码
1masterha_master_switch --conf=/etc/app1.cnf --master_state=alive --new_master_host=192.168.119.74 --orig_master_is_new_slave --running_updates_limit=10000
- –orig_master_is_new_slave切换时加上此参数是将原master变为slave节点，如果不加此参数，原来的master将不启动
- –running_updates_limit=10000 切换时候选master如果有延迟的话，mha切换不能成功，加上此参数表示延迟在此时间范围内都可切换（单位为s），但是切换的时间长短是由recover时relay日志的大小决定
- 手动在线切换mha，切换时需要将在运行的mha停掉后才能切换。
在备库先执行DDL，一般先stop slave，一般不记录mysql日志，可以通过set SQL_LOG_BIN = 0实现。然后进行一次主备切换操作，再在原来的主库上执行DDL。这种方法适用于增减索引，如果是增加字段就需要额外注意。
可以通过如下命令停止mha
masterha_stop –conf=/etc/app1.cnf
转载于:https://my.oschina.net/u/3409834/blog/1549160
最后
以上就是落后未来最近收集整理的关于Mysql高可用集群MHA一、MHA配置环境二、Mysql5.6.26源码编译安装三、Mysql主从配置四、安装MHA五、配置MHA并测试六、mha日常维护命令的全部内容，更多相关Mysql高可用集群MHA一、MHA配置环境二、Mysql5内容请搜索靠谱客的其他文章。
本图文内容来源于网友提供，作为学习参考使用，或来自网络收集整理，版权属于原作者所有。
发表评论 取消回复
