概述

驱动程序与应用程序的通信离不开派遣函数，派遣函数是Windows驱动编程中的重要概念，一般情况下驱动程序负责处理I/O特权请求，而大部分IO的处理请求是在派遣函数中处理的，当用户请求数据时，操作系统会提前处理好请求，并将其派遣到指定的内核函数中执行，接下来将详细说明派遣函数的使用并通过派遣函数读取Shadow SSDT中的内容。

先来简单介绍一下 IRP(I/O Request Package) 输入输出请求包，该请求包在Windows内核中是一个非常重要的数据结构，当我们的上层应用与底层的驱动程序通信时，应用程序就会发出I/O请求，操作系统将该请求转化为相应的IRP数据，然后会根据不同的请求数据将请求派遣到相应的驱动函数中执行，这一点有点类似于Windows的消息机制。

创建设备对象： 在使用派遣函数的之前需要创建设备对象，因为后期的读写都要通过设备对象来连接。

#include <ntddk.h>

VOID UnDriver(PDRIVER_OBJECT pDriver)
{
	PDEVICE_OBJECT pDev;         // 用来取得要删除设备对象
	UNICODE_STRING SymLinkName;  // 局部变量symLinkName

	//删掉所有设备
	pDev = pDriver->DeviceObject;
	IoDeleteDevice(pDev);                                       // 调用IoDeleteDevice用于删除设备
	RtlInitUnicodeString(&SymLinkName, L"\??\My_Driver");  	// 初始化字符串将symLinkName定义成需要删除的符号链接名称
	IoDeleteSymbolicLink(&SymLinkName);	                        // 调用IoDeleteSymbolicLink删除符号链接
	DbgPrint("删除设备与符号链接成功...");
}

NTSTATUS CreateDriverObject(IN PDRIVER_OBJECT pDriver)
{
	NTSTATUS Status;               // 接收驱动程序的返回状态
	PDEVICE_OBJECT pDevObj;        // 用于返回创建设备
	UNICODE_STRING DriverName;     // 用于存放设备的名称
	UNICODE_STRING SymLinkName;    // 用于存放符号链接名称

	RtlInitUnicodeString(&DriverName, L"\Device\My_Device");  // 将DrvierName填充为\Device\My_Device

	// 使用命令IoCreateDevice用来创建设备，并将创建后的状态保存在status
	Status = IoCreateDevice(pDriver, 0, &DriverName, FILE_DEVICE_UNKNOWN, 0, TRUE, &pDevObj);
	DbgPrint("当前命令IoCreateDevice状态: %d", Status);
	if (!NT_SUCCESS(Status))
	{
		// 调用IoCreateDevice成功与失败都会返回参数,将返回参数给Status用于判断
		// STATUS_INSUFFICIENT_RESOURCES   资源不足
		// STATUS_OBJECT_NAME_EXISTS       指定对象名存在
		// STATUS_OBJECT_NAME_COLLISION    对象名有冲突
		if (Status == STATUS_OBJECT_NAME_COLLISION)
		{
			DbgPrint("对象名冲突..");
		}
		DbgPrint("创建失败.");
	}

	pDevObj->Flags |= DO_BUFFERED_IO;                            // flags 标识有没有do_buffered_io位标识
	RtlInitUnicodeString(&SymLinkName, L"\??\My_Device");      // 对symLinkName初始化字串为 "\??\My_Device"
	// 创建设备链接,驱动程序虽然有设备名称,但是这种设备名只能在内核态可见
	// 而对于应用程序是不可见的,因此驱动需要要暴露一个符号链接,该链接指向真正的设备名称
	Status = IoCreateSymbolicLink(&SymLinkName, &DriverName);    // 调用命令IoCreateSymbolicLink用于创建符号链接
	DbgPrint("当前命令IoCreateSymbolicLink状态: %d", Status);
	if (!NT_SUCCESS(Status)) // 如果status不等于0 就执行
	{
		IoDeleteDevice(pDevObj);  // 调用命令IoDeleteDevice删除当前pDevObj设备
		DbgPrint("删除设备成功...");
		return Status;
	}
	else
	{
		DbgPrint("创建符号链接成功...");
	}
	return STATUS_SUCCESS;
}

NTSTATUS DriverEntry(PDRIVER_OBJECT pDriver, PUNICODE_STRING RegistryPath)
{
	CreateDriverObject(pDriver);
	pDriver->DriverUnload = UnDriver;
	return STATUS_SUCCESS;
}

简单的驱动通信： 注册两个派遣函数，当设备创建的时候触发，以及关闭时触发。

#include <ntddk.h>

VOID UnDriver(PDRIVER_OBJECT pDriver)
{
	PDEVICE_OBJECT pDev;         // 用来取得要删除设备对象
	UNICODE_STRING SymLinkName;  // 局部变量symLinkName

	pDev = pDriver->DeviceObject;
	IoDeleteDevice(pDev);                                       // 调用IoDeleteDevice用于删除设备
	RtlInitUnicodeString(&SymLinkName, L"\??\My_Driver");  	// 初始化字符串将symLinkName定义成需要删除的符号链接名称
	IoDeleteSymbolicLink(&SymLinkName);	                        // 调用IoDeleteSymbolicLink删除符号链接
	DbgPrint("删除设备与符号链接成功...");
}

NTSTATUS DispatchCreate(PDEVICE_OBJECT pDevObj, PIRP pIrp)
{
	pIrp->IoStatus.Status = STATUS_SUCCESS;          // 返回成功
	DbgPrint("派遣函数 IRP_MJ_CREATE 成功执行 !n");
	IoCompleteRequest(pIrp, IO_NO_INCREMENT);        // 指示完成此IRP
	return STATUS_SUCCESS;                           // 返回成功
}

NTSTATUS DispatchClose(PDEVICE_OBJECT pDevObj, PIRP pIrp)
{
	pIrp->IoStatus.Status = STATUS_SUCCESS;          // 返回成功
	DbgPrint("派遣函数 IRP_MJ_CLOSE 成功执行 !n");
	IoCompleteRequest(pIrp, IO_NO_INCREMENT);        // 指示完成此IRP
	return STATUS_SUCCESS;                           // 返回成功

}

NTSTATUS CreateDriverObject(IN PDRIVER_OBJECT pDriver)
{
	NTSTATUS Status;
	PDEVICE_OBJECT pDevObj;
	UNICODE_STRING DriverName;
	UNICODE_STRING SymLinkName;

	RtlInitUnicodeString(&DriverName, L"\Device\My_Device");
	Status = IoCreateDevice(pDriver, 0, &DriverName, FILE_DEVICE_UNKNOWN, 0, TRUE, &pDevObj);
	DbgPrint("命令 IoCreateDevice 状态: %d", Status);

	// DO_BUFFERED_IO 设置读写方式 Flags的三个不同的值分别为：DO_BUFFERED_IO、DO_DIRECT_IO和0
	pDevObj->Flags |= DO_BUFFERED_IO;
	RtlInitUnicodeString(&SymLinkName, L"\??\My_Device");
	Status = IoCreateSymbolicLink(&SymLinkName, &DriverName);
	DbgPrint("当前命令IoCreateSymbolicLink状态: %d", Status);
	return STATUS_SUCCESS;
}

NTSTATUS DriverEntry(PDRIVER_OBJECT pDriver, PUNICODE_STRING RegistryPath)
{
	CreateDriverObject(pDriver);           // 调用创建设备子过程
	// 注册两个派遣函数,分别对应创建与关闭,派遣函数名可自定义
	pDriver->MajorFunction[IRP_MJ_CREATE] = DispatchCreate;    // 创建成功派遣函数
	pDriver->MajorFunction[IRP_MJ_CLOSE] = DispatchClose;      // 关闭派遣函数

	DbgPrint("驱动加载完成...");
	pDriver->DriverUnload = UnDriver;
	return STATUS_SUCCESS;
}

客户端代码

#include <windows.h>
#include <stdio.h>
#include <winioctl.h>

int main()
{
	HANDLE hDevice = CreateFile(L"\\.\My_Device", GENERIC_READ | GENERIC_WRITE, 0, NULL, OPEN_EXISTING, FILE_ATTRIBUTE_NORMAL, NULL);
	if (hDevice == INVALID_HANDLE_VALUE) //判断hDevice返回值是否为空
	{
		printf("获取驱动句柄失败!错误: %dn", GetLastError());
		getchar();
	}

	getchar();
	CloseHandle(hDevice);
	return 0;
}

读取驱动中的数据： 实现读取内核缓冲区中的数据，并打印出来。

#include <ntddk.h>

VOID UnDriver(PDRIVER_OBJECT pDriver)
{
	PDEVICE_OBJECT pDev;         // 用来取得要删除设备对象
	UNICODE_STRING SymLinkName;  // 局部变量symLinkName
	pDev = pDriver->DeviceObject;
	IoDeleteDevice(pDev);                                       // 调用IoDeleteDevice用于删除设备
	RtlInitUnicodeString(&SymLinkName, L"\??\My_Driver");     // 初始化字符串将symLinkName定义成需要删除的符号链接名称
	IoDeleteSymbolicLink(&SymLinkName);                         // 调用IoDeleteSymbolicLink删除符号链接
	DbgPrint("删除设备与符号链接成功...");
}
NTSTATUS DispatchCreate(PDEVICE_OBJECT pDevObj, PIRP pIrp)
{
	pIrp->IoStatus.Status = STATUS_SUCCESS;          // 返回成功
	DbgPrint("派遣函数 IRP_MJ_CREATE 成功执行 !n");
	IoCompleteRequest(pIrp, IO_NO_INCREMENT);        // 指示完成此IRP
	return STATUS_SUCCESS;                           // 返回成功
}
NTSTATUS DispatchClose(PDEVICE_OBJECT pDevObj, PIRP pIrp)
{
	pIrp->IoStatus.Status = STATUS_SUCCESS;          // 返回成功
	DbgPrint("派遣函数 IRP_MJ_CLOSE 成功执行 !n");
	IoCompleteRequest(pIrp, IO_NO_INCREMENT);        // 指示完成此IRP
	return STATUS_SUCCESS;                           // 返回成功
}

NTSTATUS DispatchRead(PDEVICE_OBJECT pDevObj, PIRP pIrp)
{
	NTSTATUS Status = STATUS_SUCCESS;
	PIO_STACK_LOCATION Stack = IoGetCurrentIrpStackLocation(pIrp);
	ULONG ulReadLength = Stack->Parameters.Read.Length;
	pIrp->IoStatus.Status = Status;
	pIrp->IoStatus.Information = ulReadLength;
	DbgPrint("应用要读取的长度：%dn", ulReadLength);

	// 将内核中的缓冲区全部填充为0x68 方便演示读取的效果
	memset(pIrp->AssociatedIrp.SystemBuffer, 0x68, ulReadLength);
	IoCompleteRequest(pIrp, IO_NO_INCREMENT);
	return Status;
}

NTSTATUS CreateDriverObject(IN PDRIVER_OBJECT pDriver)
{
	NTSTATUS Status;
	PDEVICE_OBJECT pDevObj;
	UNICODE_STRING DriverName;
	UNICODE_STRING SymLinkName;

	RtlInitUnicodeString(&DriverName, L"\Device\My_Device");
	Status = IoCreateDevice(pDriver, 0, &DriverName, FILE_DEVICE_UNKNOWN, 0, TRUE, &pDevObj);
	DbgPrint("命令 IoCreateDevice 状态: %d", Status);
	pDevObj->Flags |= DO_BUFFERED_IO;
	RtlInitUnicodeString(&SymLinkName, L"\??\My_Device");
	Status = IoCreateSymbolicLink(&SymLinkName, &DriverName);
	DbgPrint("当前命令IoCreateSymbolicLink状态: %d", Status);
	return STATUS_SUCCESS;
}

NTSTATUS DriverEntry(PDRIVER_OBJECT pDriver, PUNICODE_STRING RegistryPath)
{
	CreateDriverObject(pDriver);                               // 调用创建设备
	pDriver->MajorFunction[IRP_MJ_CREATE] = DispatchCreate;    // 创建成功派遣函数
	pDriver->MajorFunction[IRP_MJ_CLOSE] = DispatchClose;      // 关闭派遣函数
	pDriver->MajorFunction[IRP_MJ_READ] = DispatchRead;

	DbgPrint("驱动加载完成...");
	pDriver->DriverUnload = UnDriver;
	return STATUS_SUCCESS;
}

客户端代码

#include <windows.h>
#include <stdio.h>
#include <winioctl.h>

int main()
{
	HANDLE hDevice = CreateFile(L"\\.\My_Device", GENERIC_READ | GENERIC_WRITE, 0, NULL, OPEN_EXISTING, FILE_ATTRIBUTE_NORMAL, NULL);
	if (hDevice == INVALID_HANDLE_VALUE)
	{
		printf("获取驱动句柄失败: %dn", GetLastError());
		getchar();
	}

	UCHAR buffer[10];
	ULONG ulRead;

	ReadFile(hDevice, buffer, 10, &ulRead, 0);
	for (int i = 0; i < (int)ulRead; i++)
	{
		printf("%02X", buffer[i]);
	}
	getchar();
	CloseHandle(hDevice);
	return 0;
}

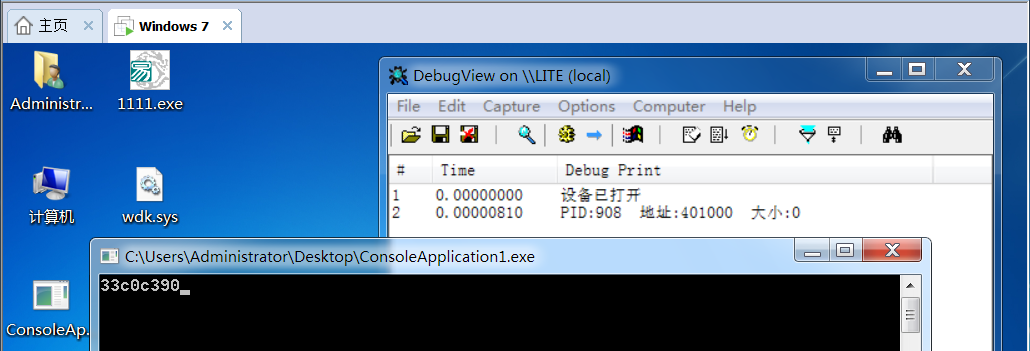

向驱动派发命令： 向驱动程序中发送一个结构，驱动程序内部通过DbgPrint打印出来。

#include <ntddk.h>
#define My_Code CTL_CODE(FILE_DEVICE_UNKNOWN,0x800,METHOD_BUFFERED,FILE_ANY_ACCESS)

typedef struct Hread {
	ULONG Flage;
	ULONG Addr;
	ULONG WriteBufferAddr;
	ULONG Size;
	ULONG Pid;
}_Hread, *PtrHread;

typedef struct _DEVICE_EXTENSION {
	UNICODE_STRING SymLinkName;
} DEVICE_EXTENSION, *PDEVICE_EXTENSION;

VOID DriverUnload(PDRIVER_OBJECT pDriverObject)
{
	PDEVICE_OBJECT pDevObj;
	pDevObj = pDriverObject->DeviceObject;
	PDEVICE_EXTENSION pDevExt = (PDEVICE_EXTENSION)pDevObj->DeviceExtension;
	UNICODE_STRING pLinkName = pDevExt->SymLinkName;
	IoDeleteSymbolicLink(&pLinkName);
	IoDeleteDevice(pDevObj);
}
NTSTATUS DefDispatchRoutine(PDEVICE_OBJECT pDevObj, PIRP pIrp)
{
	NTSTATUS status = STATUS_SUCCESS;
	pIrp->IoStatus.Status = status;
	pIrp->IoStatus.Information = 0;
	IoCompleteRequest(pIrp, IO_NO_INCREMENT);
	return status;
}

NTSTATUS IoctlDispatchRoutine(PDEVICE_OBJECT pDevObj, PIRP pIrp)
{
	NTSTATUS Status = STATUS_UNSUCCESSFUL;
	ULONG_PTR Informaiton = 0;
	PVOID InputData = NULL;
	ULONG InputDataLength = 0;
	PVOID OutputData = NULL;
	ULONG OutputDataLength = 0;
	PIO_STACK_LOCATION  IoStackLocation = IoGetCurrentIrpStackLocation(pIrp);              // Irp堆栈
	InputData = pIrp->AssociatedIrp.SystemBuffer;
	OutputData = pIrp->AssociatedIrp.SystemBuffer;
	InputDataLength = IoStackLocation->Parameters.DeviceIoControl.InputBufferLength;      // 输入数据大小
	OutputDataLength = IoStackLocation->Parameters.DeviceIoControl.OutputBufferLength;    // 输出数据大小
	ULONG Code = IoStackLocation->Parameters.DeviceIoControl.IoControlCode;

	switch (Code)
	{
	case My_Code:
		PtrHread PtrBuff = (PtrHread)InputData;
		ULONG RetFlage = PtrBuff->Flage;
		ULONG RetAddr = PtrBuff->Addr;
		ULONG RetBufferAddr = PtrBuff->WriteBufferAddr;
		ULONG Size = PtrBuff->Size;
		ULONG Pid = PtrBuff->Pid;

		DbgPrint("读取文件标志：%d", RetFlage);
		DbgPrint("读取写入地址：%x", RetAddr);
		DbgPrint("读取缓冲区大小：%d", RetBufferAddr);
		DbgPrint("读取当前大小：%d", Size);
		DbgPrint("要操作进程PID: %d", Pid);

		// 通过内存返回数据.
		char *retBuffer = "hello lyshark";
		memcpy(OutputData, retBuffer , strlen(retBuffer));
		Informaiton = strlen(retBuffer) + 1;
		Status = STATUS_SUCCESS;

		// 通过内存返回数据,另一种通信方式.
		PVOID addr = (PVOID)"ok";
		RtlCopyMemory(OutputData, addr, 4);
		Informaiton = 4;
		Status = STATUS_SUCCESS;
		break;
	}

	pIrp->IoStatus.Status = Status;                   // 设置IRP完成状态，会设置用户模式下的GetLastError
	pIrp->IoStatus.Information = Informaiton;    // 设置操作的字节
	IoCompleteRequest(pIrp, IO_NO_INCREMENT);         // 完成IRP，不增加优先级
	return Status;
}

NTSTATUS DriverEntry(PDRIVER_OBJECT pDriverObject, PUNICODE_STRING pRegistryPath)
{
	pDriverObject->DriverUnload = DriverUnload;//注册驱动卸载函数
	pDriverObject->MajorFunction[IRP_MJ_CREATE] = DefDispatchRoutine;   // 注册派遣函数
	pDriverObject->MajorFunction[IRP_MJ_CLOSE] = DefDispatchRoutine;
	pDriverObject->MajorFunction[IRP_MJ_WRITE] = DefDispatchRoutine;
	pDriverObject->MajorFunction[IRP_MJ_READ] = DefDispatchRoutine;
	pDriverObject->MajorFunction[IRP_MJ_DEVICE_CONTROL] = IoctlDispatchRoutine;

	NTSTATUS status;
	PDEVICE_OBJECT pDevObj;
	PDEVICE_EXTENSION pDevExt;

	//创建设备名称的字符串
	UNICODE_STRING devName;
	RtlInitUnicodeString(&devName, L"\Device\MyDevice");
	//创建设备
	status = IoCreateDevice(pDriverObject, sizeof(DEVICE_EXTENSION), &devName, FILE_DEVICE_UNKNOWN, 0, TRUE, &pDevObj);
	pDevObj->Flags |= DO_BUFFERED_IO;//将设备设置为缓冲I/O设备
	pDevExt = (PDEVICE_EXTENSION)pDevObj->DeviceExtension;//得到设备扩展

	//创建符号链接
	UNICODE_STRING symLinkName;
	RtlInitUnicodeString(&symLinkName, L"\??\MyDevice");
	pDevExt->SymLinkName = symLinkName;
	status = IoCreateSymbolicLink(&symLinkName, &devName);
	return STATUS_SUCCESS;
}

客户端

#include "stdafx.h"
#include<Windows.h>
// 自定义的控制信号
#define My_Code CTL_CODE(FILE_DEVICE_UNKNOWN,0x800,METHOD_BUFFERED,FILE_ANY_ACCESS)

typedef struct Hread {
	ULONG Flage;
	ULONG Addr;
	ULONG WriteBufferAddr;
	ULONG Size;
	ULONG Pid;
}_Hread, *PtrHread;

int _tmain(int argc, _TCHAR* argv[])
{
	HANDLE handle = CreateFileA("\\.\MyDevice", GENERIC_READ | GENERIC_WRITE, 0, NULL, OPEN_EXISTING, FILE_ATTRIBUTE_NORMAL, NULL);

	unsigned char RetBufferData[20] = { 0 };
	DWORD ReturnLength = 4;
	_Hread buf;

	buf.Flage = 2;
	buf.Addr = 0x401234;
	buf.WriteBufferAddr = 1024;
	buf.Size = 100;
	buf.Pid = 2566;

	DeviceIoControl(handle, My_Code, &buf, 20, (LPVOID)RetBufferData, 4, &ReturnLength, 0);
	printf("返回的数据： %s", RetBufferData);

	getchar();
	CloseHandle(handle);
	return 0;
}

驱动读写操作： 网上找到一个驱动读写相关的案例，看着不错这里就转过来啦，我就不自己写了。

这个驱动读写转载于：吾无法无天的博客_CSDN博客-Windows内核研究,好玩的技术,VT(CPU虚拟化技术)领域博主

服务端：

#pragma once
#include<ntifs.h>
#include<windef.h>

#define READCODE CTL_CODE(FILE_DEVICE_UNKNOWN,0x800,METHOD_BUFFERED,FILE_ALL_ACCESS)
#define WRITECODE CTL_CODE(FILE_DEVICE_UNKNOWN,0x801,METHOD_BUFFERED,FILE_ALL_ACCESS)

#define DEVICENAME L"\Device\ReadWriteDevice"
#define SYMBOLNAME L"\??\ReadWriteSymbolName"

typedef struct DATA
{
	DWORD pid;//要读写的进程ID
	unsigned __int64 address;//要读写的地址
	DWORD size;//读写长度
	BYTE* data;//要读写的数据,
}Data;

void DriverUnload(PDRIVER_OBJECT driver)
{

	if (driver->DeviceObject)
	{
		UNICODE_STRING SymbolName;
		RtlInitUnicodeString(&SymbolName, SYMBOLNAME);

		IoDeleteSymbolicLink(&SymbolName);
		IoDeleteDevice(driver->DeviceObject);
	}

	DbgPrint("驱动已卸载");
}

NTSTATUS CreateDevice(PDRIVER_OBJECT driver)
{
	NTSTATUS status = STATUS_SUCCESS;
	PDEVICE_OBJECT device = NULL;
	UNICODE_STRING DeviceName;

	RtlInitUnicodeString(&DeviceName, DEVICENAME);

	status = IoCreateDevice(
		driver,
		sizeof(driver->DriverExtension),
		&DeviceName,
		FILE_DEVICE_UNKNOWN,
		FILE_DEVICE_SECURE_OPEN,
		FALSE,
		&device
		);

	if (status == STATUS_SUCCESS)
	{
		UNICODE_STRING SymbolName;
		RtlInitUnicodeString(&SymbolName, SYMBOLNAME);

		status = IoCreateSymbolicLink(&SymbolName, &DeviceName);

		if (status != STATUS_SUCCESS)
		{
			DbgPrint("创建符号链接失败");
			IoDeleteDevice(device);
		}
	}
	DbgPrint("驱动设备已创建");
	return status;
}


BOOL ReadMemory(Data* data)
{
	BOOL bRet = TRUE;
	PEPROCESS process = NULL;

	PsLookupProcessByProcessId(data->pid, &process);

	if (process == NULL)
	{
		DbgPrint("获取进程对象失败");
		return FALSE;
	}

	BYTE* GetData;
	__try
	{
		GetData = ExAllocatePool(PagedPool, data->size);
	}
	__except (1)
	{
		DbgPrint("内存分配失败");
		return FALSE;
	}

	KAPC_STATE stack = { 0 };
	KeStackAttachProcess(process, &stack);

	__try
	{
		ProbeForRead(data->address, data->size, 1);
		RtlCopyMemory(GetData, data->address, data->size);
	}
	__except (1)
	{
		DbgPrint("读取内存出错");
		bRet = FALSE;
	}

	ObDereferenceObject(process);
	KeUnstackDetachProcess(&stack);
	RtlCopyMemory(data->data, GetData, data->size);
	ExFreePool(GetData);
	return bRet;
}

BOOL WriteMemory(Data* data)
{
	BOOL bRet = TRUE;
	PEPROCESS process = NULL;

	PsLookupProcessByProcessId(data->pid, &process);
	if (process == NULL)
	{
		DbgPrint("获取进程对象失败");
		return FALSE;
	}

	//在进入进程地址空间之前先赋值
	BYTE* GetData;
	__try
	{
		GetData = ExAllocatePool(PagedPool, data->size);
	}
	__except (1)
	{
		DbgPrint("内存分配失败");
		return FALSE;
	}

	for (int i = 0; i < data->size; i++)
	{
		GetData[i] = data->data[i];
	}

	KAPC_STATE stack = { 0 };
	KeStackAttachProcess(process, &stack);

	PMDL mdl = IoAllocateMdl(data->address, data->size, 0, 0, NULL);
	if (mdl == NULL)
	{
		DbgPrint("创建MDL失败");
		return FALSE;
	}

	MmBuildMdlForNonPagedPool(mdl);

	BYTE* ChangeData = NULL;

	__try
	{
		ChangeData = MmMapLockedPages(mdl, KernelMode);
		RtlCopyMemory(ChangeData, GetData, data->size);
	}
	__except (1)
	{
		DbgPrint("内存映射失败,%d", sizeof(ChangeData));
		bRet = FALSE;
		goto END;
	}

END:
	IoFreeMdl(mdl);
	ExFreePool(GetData);
	KeUnstackDetachProcess(&stack);
	ObDereferenceObject(process);

	return bRet;
}

NTSTATUS DriverIrpCtl(PDEVICE_OBJECT device, PIRP pirp)
{
	PIO_STACK_LOCATION stack;
	stack = IoGetCurrentIrpStackLocation(pirp);
	Data* data;

	switch (stack->MajorFunction)
	{

	case IRP_MJ_CREATE:
	{
						  DbgPrint("设备已打开");
						  break;
	}

	case IRP_MJ_CLOSE:
	{
						 DbgPrint("设备已关闭");
						 break;
	}

	case IRP_MJ_DEVICE_CONTROL:
	{
								  data = pirp->AssociatedIrp.SystemBuffer;
								  DbgPrint("PID:%d  地址:%x  大小:%d", data->pid, data->address, data->size);
								  switch (stack->Parameters.DeviceIoControl.IoControlCode)
								  {

								  case READCODE:
								  {
												   ReadMemory(data);
												   break;
								  }

								  case WRITECODE:
								  {
													WriteMemory(data);
													break;
								  }

								  }

								  pirp->IoStatus.Information = sizeof(data);

								  break;
	}

	}

	pirp->IoStatus.Status = STATUS_SUCCESS;
	IoCompleteRequest(pirp, IO_NO_INCREMENT);
	return STATUS_SUCCESS;
}

NTSTATUS DriverEntry(PDRIVER_OBJECT driver, PUNICODE_STRING path)
{
	DbgPrint("驱动已加载,路径:%wZ", path);

	driver->DriverUnload = DriverUnload;

	CreateDevice(driver);

	driver->MajorFunction[IRP_MJ_CREATE] = DriverIrpCtl;
	driver->MajorFunction[IRP_MJ_CLOSE] = DriverIrpCtl;
	driver->MajorFunction[IRP_MJ_DEVICE_CONTROL] = DriverIrpCtl;

	return STATUS_SUCCESS;
}

客户端：

#include "stdafx.h"
#include<Windows.h>
#include <string.h>

#define READCODE CTL_CODE(FILE_DEVICE_UNKNOWN,0x800,METHOD_BUFFERED,FILE_ALL_ACCESS)
#define WRITECODE CTL_CODE(FILE_DEVICE_UNKNOWN,0x801,METHOD_BUFFERED,FILE_ALL_ACCESS)

typedef struct DATA
{
	DWORD pid;//要读写的进程ID
	unsigned __int64 address;//要读写的地址
	DWORD size;//读写长度
	BYTE* data;//要读写的数据,
}Data;

/*  驱动内存写入，如下
Data data;
data.pid = GetDlgItemInt(IDC_EDIT_PID);
data.address = GetDlgItemInt(IDC_EDIT_address);
data.size = GetDlgItemInt(IDC_EDIT_Size);
data.data = new BYTE[data.size];

for (int i = 0; i < data.size; i++)
{
	data.data[i] = 90909090;   // 写入Nop指令
}

DWORD dwSize = 0;
DeviceIoControl(DeviceHandle,WRITECODE,&data,sizeof(data),&data,sizeof(data),&dwSize,NULL);
delete[] data.data;
*/

int _tmain(int argc, _TCHAR* argv[])
{
	HANDLE handle = CreateFileA("\??\ReadWriteSymbolName", GENERIC_READ | GENERIC_WRITE, 0, NULL, OPEN_EXISTING, FILE_ATTRIBUTE_NORMAL, NULL);

	Data data;
	DWORD dwSize = 0;

	data.pid = 908;
	data.address = 4198400;
	data.size = 4;

	data.data = new BYTE[data.size];
	DeviceIoControl(handle, READCODE, &data, sizeof(data), &data, sizeof(data), &dwSize, NULL);
	for (int i = 0; i < data.size; i++)
	{
		printf("%x", data.data[i]);
	}

	getchar();
	CloseHandle(handle);
	return 0;
}

上方的代码，经过修改后可以正常完成编译链接，并读出内存数据。
