概述

开发板:tiny4412SDK + S702 + 4GB Flash
要移植的内核版本:Linux-4.4.0 (支持device tree)
u-boot版本:友善之臂自带的 U-Boot 2010.12
busybox版本:busybox 1.25

目标:
学习设备树中GPIO资源的使用,实现按键中断简单驱动程序。

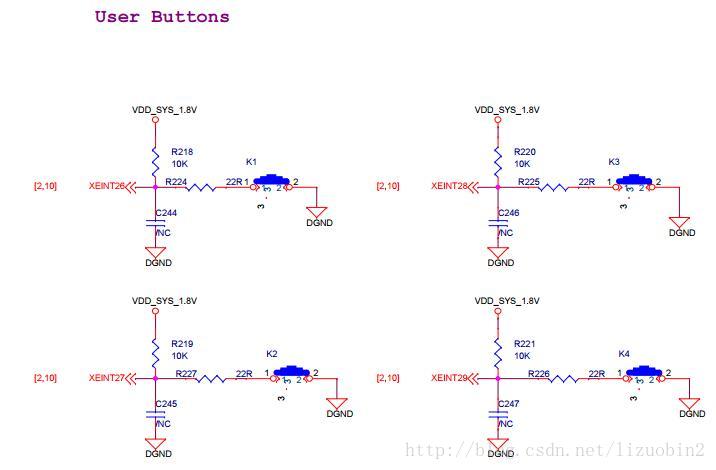

原理图:
这里写图片描述
tiny4412 底板上有4颗按键,分别为连接在 GPX3_2、GPX3_3、GPX3_4、GPX3_5 ,引脚状态常高。

设备树:

    interrupt_demo: interrupt_demo {
            compatible         = "tiny4412,interrupt_demo";
            tiny4412,int_gpio1 = <&gpx3 2 GPIO_ACTIVE_HIGH>;
            tiny4412,int_gpio2 = <&gpx3 3 GPIO_ACTIVE_HIGH>;
            tiny4412,int_gpio3 = <&gpx3 4 GPIO_ACTIVE_HIGH>;
            tiny4412,int_gpio4 = <&gpx3 5 GPIO_ACTIVE_HIGH>;
    };
  • 1
  • 2
  • 3
  • 4
  • 5
  • 6
  • 7
  • 1
  • 2
  • 3
  • 4
  • 5
  • 6
  • 7

<&gpx3 2 GPIO_ACTIVE_HIGHT> 代表什么含义呢?

Eg: <&gpx2 6 0>
  <[phandle of the gpio controller node]
  [pin number within the gpio controller]
  [flags]>
  Values for gpio specifier:
  - Pin number: is a value between 0 to 7.
  - Flags: 0 - Active High 1 - Active Low

  • &gpx3 引用 gpx3 这个节点,代表这个 GPIO 是属于控制器 gpx3
  • 2 则表示gpx3 这组管脚中的哪一个,gpx3_2
  • GPIO_ACTIVE_HIGHT 则表示引脚状态为常高的

驱动程序:

#include <linux/init.h>
#include <linux/module.h>
#include <linux/platform_device.h>
#include <linux/gpio.h>
#include <linux/of.h>
#include <linux/of_gpio.h>
#include <linux/interrupt.h>

typedef struct
{
    int gpio;
    int irq;
    char name[20];
}int_demo_data_t;

static irqreturn_t int_demo_isr(int irq, void *dev_id)
{
    int_demo_data_t *data = dev_id;

    printk("%s enter, %s: gpio:%d, irq: %dn", __func__, data->name, data->gpio, data->irq);

    return IRQ_HANDLED;
}

static int int_demo_probe(struct platform_device *pdev) {
    struct device *dev = &pdev->dev;
    int irq_gpio = -1;
    int irq = -1;
    int ret = 0;
    int i = 0;
    int_demo_data_t *data = NULL;

    printk("%s enter.n", __func__);

    if (!dev->of_node) {
        dev_err(dev, "no platform data.n");
        goto err1;
    }

    data = devm_kmalloc(dev, sizeof(*data)*4, GFP_KERNEL);
    if (!data) {
        dev_err(dev, "no memory.n");
        goto err0;
    }

#if 1
    for (i = 3; i >= 0; i--) {
        sprintf(data[i].name, "tiny4412,int_gpio%d", i+1);//名字是我们自己填充的,并不是获取到的
#else
    for (i = 0; i < 4; i++) {
#endif
        irq_gpio = of_get_named_gpio(dev->of_node, data[i].name, 0);//通过名字获取gpio
        if (irq_gpio < 0) {
            dev_err(dev, "Looking up %s property in node %s failed %dn",
                data[i].name, dev->of_node->full_name, irq_gpio);
            goto err1;
        }

        data[i].gpio = irq_gpio;

        irq = gpio_to_irq(irq_gpio);    //将gpio转换成对应的中断号
        if (irq < 0) {
            dev_err(dev,
                "Unable to get irq number for GPIO %d, error %dn",
                irq_gpio, irq);
            goto err1;
        }

        data[i].irq = irq;

        printk("%s: gpio: %d ---> irq (%d)n", __func__, irq_gpio, irq);
    //注册中断
        ret = devm_request_any_context_irq(dev, irq, int_demo_isr, IRQF_TRIGGER_FALLING, data[i].name, data+i);
        if (ret < 0) {
            dev_err(dev, "Unable to claim irq %d; error %dn",
                irq, ret);
            goto err1;
        }
    }

    return 0;

err1:
    devm_kfree(dev, data);
err0:
    return -EINVAL;
}

static int int_demo_remove(struct platform_device *pdev) {

    printk("%s enter.n", __func__);

    return 0;
}

static const struct of_device_id int_demo_dt_ids[] = {
    { .compatible = "tiny4412,interrupt_demo", },
    {},
};

MODULE_DEVICE_TABLE(of, int_demo_dt_ids);

static struct platform_driver int_demo_driver = {
    .driver        = {
        .name      = "interrupt_demo",
        .of_match_table    = of_match_ptr(int_demo_dt_ids),
    },
    .probe         = int_demo_probe,
    .remove        = int_demo_remove,
};

static int __init int_demo_init(void)
{
    int ret;

    ret = platform_driver_register(&int_demo_driver);
    if (ret)
        printk(KERN_ERR "int demo: probe failed: %dn", ret);

    return ret;
}
module_init(int_demo_init);

static void __exit int_demo_exit(void)
{
    platform_driver_unregister(&int_demo_driver);
}
module_exit(int_demo_exit);

MODULE_LICENSE("GPL");

在M6G2C平台下的应用设备树文件:

/*
 * Copyright (C) 2015 Freescale Semiconductor, Inc.
 *
 * This program is free software; you can redistribute it and/or modify
 * it under the terms of the GNU General Public License version 2 as
 * published by the Free Software Foundation.
 */

/dts-v1/;

#include <dt-bindings/input/input.h>
#include "imx6g2c-base.dtsi"

/ {
    model = "ZLG EPC-M6G2C Board";
    compatible = "fsl,imx6ul-14x14-evk", "fsl,imx6ul";

	chosen {
		stdout-path = &uart1;
	};

	memory {
		reg = <0x80000000 0x10000000>; /* 256M */
	};

    reserved-memory {
        #address-cells = <1>;
        #size-cells = <1>;
        ranges;

        linux,cma {
            compatible = "shared-dma-pool";
            reusable;
            size = <0x2000000>;		/* 32M */
            linux,cma-default;
        };
    };

	watchdog: watchdog {
		compatible = "cat82x-gpio-wdt";
		pinctrl-names = "default";
		pinctrl-0 = <&pinctrl_wdt>;
		gpios = <&gpio5 0 0>;
		hw_margin_ms = <700>;
	};

	backlight {
		compatible = "pwm-backlight";
		pwms = <&pwm5 0 5000000>;
		brightness-levels = <0 4 8 16 32 64 128 255>;
		default-brightness-level = <7>;
		status = "okay";
	};

	beep {
		compatible = "pwm-leds";

		beep-leds {
			label = "beeper-pwm";
			pwms = <&pwm6 0 400000>;
			max-brightness = <127>;
		};
	};

	pxp_v4l2 {
		compatible = "fsl,imx6ul-pxp-v4l2", "fsl,imx6sx-pxp-v4l2", "fsl,imx6sl-pxp-v4l2";
		status = "okay";
	};

	sound-mqs {
		compatible = "fsl,imx-audio-mqs";
		model = "mqs-audio";
		cpu-dai = <&sai1>;
		asrc-controller = <&asrc>;
		audio-codec = <&mqs>;
	};

	leds {
		compatible = "gpio-leds";

		green-led {
			label = "led-run";
			gpios = <&gpio4 16 1>;
			linux,default-trigger = "heartbeat";
		};

		red-led {
			label = "led-err";
			gpios = <&gpio4 14 1>;
			default-state = "keep";
		};
	};

	/* add by Codebreaker */
	regulators {
		compatible = "simple-bus";
		#address-cells = <1>;
		#size-cells = <0>;

		reg_3p3v: 3p3v {
			compatible = "regulator-fixed";
			regulator-name = "3P3V";
			regulator-min-microvolt = <3300000>;
			regulator-max-microvolt = <3300000>;
			regulator-always-on;
		};

		reg_1p8v: 1p8v {
			compatible = "regulator-fixed";
			regulator-name = "1P8V";
			regulator-min-microvolt = <1800000>;
			regulator-max-microvolt = <1800000>;
			regulator-always-on;
		};
	};


	i2c_gpio: analog-i2c {
		compatible = "i2c-gpio";
		gpios = <&gpio5 8 0 /* sda */
				 &gpio5 7 0	/* scl */
			>;
		pinctrl-names = "default";
		pinctrl-0 = <&pinctrl_i2c>;
		i2c-gpio,delay-us = <5>;
		i2c-gpio,timeout-ms = <100>;
		#address-cells = <1>;
		#size-cells = <0>;

		rtc@51 {
			compatible = "nxp,pcf85063";
			reg = <0x51>;
		};

		adv7180: adv7180@20 {
			compatible = "adv,adv7180";
			reg = <0x20>;
			pinctrl-names = "default";
			pinctrl-0 = <&pinctrl_csi0>;
			clocks = <&clks  IMX6UL_CLK_CSI>;
			clock-names = "csi_mclk";
			DOVDD-supply = <&reg_3p3v>;
			AVDD-supply  = <&reg_1p8v>;
			DVDD-supply  = <&reg_1p8v>;
			PVDD-supply  = <&reg_1p8v>;
			pwn-gpios = <&gpio5 6 0>;
			rst-gpios = <&gpio5 5 0>;
			csi_id = <0>;
			mclk = <22000000>;
			mclk_source = <0>;
			cvbs = <1>;
			status = "disabled";
			port {
				adv7180_ep: adv-endpoint {
					remote-endpoint = <&csi1_ep>;
				};
			};
		};
	};
interrupt_demo:interrupt-demo{
            compatible         = "interrupt_demo";
            tiny4412,int_gpio1 = <&gpio3 4 GPIO_ACTIVE_HIGH>;
    };
};

&cpu0 {
	arm-supply = <&reg_arm>;
	soc-supply = <&reg_soc>;
};

&clks {
	assigned-clocks = <&clks IMX6UL_CLK_PLL4_AUDIO_DIV>;
	assigned-clock-rates = <786432000>;
};

&csi {
	status = "disabled";

	port {
		csi1_ep: endpoint {
			remote-endpoint = <&adv7180_ep>;
		};
	};
};

&sai1 {
	assigned-clocks = <&clks IMX6UL_CLK_SAI1_SEL>,
			<&clks IMX6UL_CLK_SAI1>;
	assigned-clock-parents = <&clks IMX6UL_CLK_PLL4_AUDIO_DIV>;
	assigned-clock-rates = <0>, <24576000>;
	status = "okay";
};

&mqs {
	pinctrl-names = "default";
	pinctrl-0 = <&pinctrl_mqs>;
	clocks = <&clks IMX6UL_CLK_SAI1>;
	clock-names = "mclk";
	status = "okay";
};

&fec1 {
	pinctrl-names = "default";
	pinctrl-0 = <&pinctrl_enet1>;
	phy-mode = "rmii";
	phy-handle = <ðphy0>;
	status = "okay";
};

&fec2 {
	pinctrl-names = "default";
	pinctrl-0 = <&pinctrl_enet2>;
	phy-mode = "rmii";
	phy-handle = <ðphy1>;
	status = "okay";

	mdio {
		#address-cells = <1>;
		#size-cells = <0>;

		ethphy0: ethernet-phy@1 {
			compatible = "ethernet-phy-ieee802.3-c22";
			reg = <1>;
		};

		ethphy1: ethernet-phy@5 {
			compatible = "ethernet-phy-ieee802.3-c22";
			reg = <5>;
		};
	};
};

&flexcan1 {
	pinctrl-names = "default";
	pinctrl-0 = <&pinctrl_flexcan1>;
	status = "okay";
};

&flexcan2 {
	pinctrl-names = "default";
	pinctrl-0 = <&pinctrl_flexcan2>;
	status = "okay";
};

&gpc {
	fsl,cpu_pupscr_sw2iso = <0x1>;
	fsl,cpu_pupscr_sw = <0x0>;
	fsl,cpu_pdnscr_iso2sw = <0x1>;
	fsl,cpu_pdnscr_iso = <0x1>;
/*	fsl,wdog-reset = <1>;*/ /* watchdog select of reset source */
	fsl,ldo-bypass = <0>; /* use ldo-bypass, u-boot will check it and configure */
};

&lcdif {
	pinctrl-names = "default";
	pinctrl-0 = <&pinctrl_lcdif_dat
		     &pinctrl_lcdif_ctrl>;
	display = <&display0>;
	status = "okay";

	display0: display {
		bits-per-pixel = <16>;
		bus-width = <16>;

		display-timings {
			native-mode = <&timing0>;
			timing0: timing0 {
			clock-frequency = <9000000>;
			hactive = <480>;
			vactive = <272>;
			hfront-porch = <8>;
			hback-porch = <43>;
			hsync-len = <4>;
			vback-porch = <8>;
			vfront-porch = <8>;
			vsync-len = <6>;

			hsync-active = <0>;
			vsync-active = <0>;
			de-active = <1>;
			pixelclk-active = <0>;
			};
		};
	};
};

&pwm5 {
	pinctrl-names = "default";
	pinctrl-0 = <&pinctrl_pwm5>;
	status = "okay";
};

&pwm6 {
	pinctrl-names = "default";
	pinctrl-0 = <&pinctrl_pwm6>;
	status = "okay";
};

&pxp {
	status = "okay";
};

&tsc {
	pinctrl-names = "default";
	pinctrl-0 = <&pinctrl_tsc>;
	xnur-gpio = <&gpio1 3 GPIO_ACTIVE_LOW>;
	measure_delay_time = <0xffff>;
	pre_charge_time = <0xfff>;
	status = "okay";
};

&uart1 {
	pinctrl-names = "default";
	pinctrl-0 = <&pinctrl_uart1>;
	status = "okay";
};

&uart2 {
	pinctrl-names = "default";
	pinctrl-0 = <&pinctrl_uart2>;
	status = "okay";
};

&uart3 {
	pinctrl-names = "default";
	pinctrl-0 = <&pinctrl_uart3>;
	status = "okay";
};

&uart4 {
	pinctrl-names = "default";
	pinctrl-0 = <&pinctrl_uart4>;
	status = "okay";
};

&uart5 {
	pinctrl-names = "default";
	pinctrl-0 = <&pinctrl_uart5>;
	status = "okay";
};

&uart6 {
	pinctrl-names = "default";
	pinctrl-0 = <&pinctrl_uart6>;
	status = "okay";
};

&uart7 {
	pinctrl-names = "default";
	pinctrl-0 = <&pinctrl_uart7>;
	status = "okay";
};

&uart8 {
	pinctrl-names = "default";
	pinctrl-0 = <&pinctrl_uart8>;
	status = "okay";
};

&usbotg1 {
	pinctrl-names = "default";
	pinctrl-0 = <&pinctrl_usbotg1>;
	dr_mode = "otg";
	hnp-disable;
	srp-disable;
	adp-disable;
	status = "okay";
};

&usbotg2 {
	pinctrl-names = "default";
	pinctrl-0 = <&pinctrl_usbotg2>;
	dr_mode = "host";
	disable-over-current;
	status = "okay";
};

&usbphy1 {
	tx-d-cal = <0x5>;
};

&usbphy2 {
	tx-d-cal = <0x5>;
};

&usdhc1 {
	pinctrl-names = "default";
	pinctrl-0 = <&pinctrl_usdhc1>;
	no-1-8-v;
	cd-gpios = <&gpio1 19 GPIO_ACTIVE_LOW>;
	wp-gpios = <&gpio1 18 GPIO_ACTIVE_HIGH>;
	keep-power-in-suspend;
	enable-sdio-wakeup;
	status = "okay";
};

&usdhc2 {
    pinctrl-names = "default", "state_100mhz", "state_200mhz";
    pinctrl-0 = <&pinctrl_usdhc2>;
    pinctrl-1 = <&pinctrl_usdhc2_100mhz>;
    pinctrl-2 = <&pinctrl_usdhc2_200mhz>;
    keep-power-in-suspend;
    enable-sdio-wakeup;
    wifi-host;
};

&adc1 {
	pinctrl-names = "default";
	pinctrl-0 = <&pinctrl_adc1>;
	num-channels = <10>;
	status = "okay";
};

&gpmi {
	pinctrl-names = "defalut";
	pinctrl-0 = <&pinctrl_gpmi_nand_1>;
	status = "okay";
	nand-on-flash-bbt;

	partition@0 {
		label = "u-boot";
		reg = <0x0000000 0x400000>;	/* 4M */
	};

	partition@400000 {
		label = "dtb";
		reg = <0x400000 0x100000>;	/* 1M */
	};

	partition@500000 {
		label = "kernel-0";
		reg = <0x500000 0x800000>;	/* 8M */
	};

	partition@d00000 {
		label = "kernel-1";
		reg = <0xd00000 0x800000>;	/* 8M */
	};

	partition@1500000 {
		label = "logo";
		reg = <0x1500000 0x400000>; /* 4M */
	};

	partition@1900000 {
		label = "rootfs";
		reg = <0x1900000 0x4900000>; /* 73M */
	};

	partition@5900000 {
		label = "opt";
		reg = <0x6200000 0x9e00000>; /* 158M */
	};
};


/*&qspi {
	pinctrl-names = "default";
	pinctrl-0 = <&pinctrl_qspi>;
	status = "okay";
	ddrsmp=<0>;

	flash0: mr25h256@0 {
		#address-cells = <1>;
		#size-cells = <1>;
		compatible = "everspin,mr25h256", "mr25h256";
		spi-max-frequency = <40000000>;
		reg = <0>;
	};
};  */

&ecspi1 {
	fsl,spi-num-chipselects = <1>;
	cs-gpios = <&gpio4 26 0>;
	pinctrl-names = "default";
	pinctrl-0 = <&pinctrl_ecspi1_1 &pinctrl_ecspi1_cs_1>;
	status = "okay";

	flash: mx25l1653@0 {
		#address-cells = <1>;
		#size-cells = <1>;
		compatible = "rohm,dh2228fv";	/* spidev */
		spi-max-frequency = <2000000>;
		reg = <0>;
	};
};

&iomuxc {
	pinctrl-names = "default";
	pinctrl-0 = <&pinctrl_hog_1>;
	imx6ul-evk {
		pinctrl_hog_1: hoggrp-1 {
			fsl,pins = <
				MX6UL_PAD_NAND_DQS__GPIO4_IO16		0x17059 /* err led */
				MX6UL_PAD_NAND_CE1_B__GPIO4_IO14	0x17059 /* run led */
				MX6UL_PAD_LCD_RESET__GPIO3_IO04		0x17059 /* gpio3_4 */
				MX6UL_PAD_SNVS_TAMPER9__GPIO5_IO09	0x17059 /* gpio5_9 */
				MX6UL_PAD_SNVS_TAMPER1__GPIO5_IO01	0x17059 /* sys mode */
				MX6UL_PAD_SNVS_TAMPER2__GPIO5_IO02	0x17059 /* clr reg  */
				MX6UL_PAD_SNVS_TAMPER3__GPIO5_IO03	0x17059 /* eth1_reset */
				MX6UL_PAD_SNVS_TAMPER4__GPIO5_IO04	0x17059 /* eth2_reset */
			>;
		};

		pinctrl_wdt: wdtgrp {
			fsl,pins = <
				MX6UL_PAD_SNVS_TAMPER0__GPIO5_IO00	0x17059 /* wdog */
			>;
		};

		pinctrl_enet1: enet1grp {
			fsl,pins = <
				MX6UL_PAD_ENET1_RX_EN__ENET1_RX_EN	0x1b0b0
				MX6UL_PAD_ENET1_RX_ER__ENET1_RX_ER	0x1b0b0
				MX6UL_PAD_ENET1_RX_DATA0__ENET1_RDATA00	0x1b0b0
				MX6UL_PAD_ENET1_RX_DATA1__ENET1_RDATA01	0x1b0b0
				MX6UL_PAD_ENET1_TX_EN__ENET1_TX_EN	0x1b0b0
				MX6UL_PAD_ENET1_TX_DATA0__ENET1_TDATA00	0x1b0b0
				MX6UL_PAD_ENET1_TX_DATA1__ENET1_TDATA01	0x1b0b0
				MX6UL_PAD_ENET1_TX_CLK__ENET1_REF_CLK1	0x4001b031
			>;
		};

		pinctrl_enet2: enet2grp {
			fsl,pins = <
				MX6UL_PAD_GPIO1_IO07__ENET2_MDC		0x1b0b0
				MX6UL_PAD_GPIO1_IO06__ENET2_MDIO	0x1b0b0
				MX6UL_PAD_ENET2_RX_EN__ENET2_RX_EN	0x1b0b0
				MX6UL_PAD_ENET2_RX_ER__ENET2_RX_ER	0x1b0b0
				MX6UL_PAD_ENET2_RX_DATA0__ENET2_RDATA00	0x1b0b0
				MX6UL_PAD_ENET2_RX_DATA1__ENET2_RDATA01	0x1b0b0
				MX6UL_PAD_ENET2_TX_EN__ENET2_TX_EN	0x1b0b0
				MX6UL_PAD_ENET2_TX_DATA0__ENET2_TDATA00	0x1b0b0
				MX6UL_PAD_ENET2_TX_DATA1__ENET2_TDATA01	0x1b0b0
				MX6UL_PAD_ENET2_TX_CLK__ENET2_REF_CLK2	0x4001b031
			>;
		};

		pinctrl_flexcan1: flexcan1grp{
			fsl,pins = <
				MX6UL_PAD_UART3_RTS_B__FLEXCAN1_RX	0x1b020
				MX6UL_PAD_UART3_CTS_B__FLEXCAN1_TX	0x1b020
			>;
		};

		pinctrl_flexcan2: flexcan2grp{
			fsl,pins = <
				MX6UL_PAD_UART2_RTS_B__FLEXCAN2_RX	0x1b020
				MX6UL_PAD_UART2_CTS_B__FLEXCAN2_TX	0x1b020
			>;
		};

		pinctrl_lcdif_dat: lcdifdatgrp {
			fsl,pins = <
				MX6UL_PAD_LCD_DATA00__LCDIF_DATA00  0x79
				MX6UL_PAD_LCD_DATA01__LCDIF_DATA01  0x79
				MX6UL_PAD_LCD_DATA02__LCDIF_DATA02  0x79
				MX6UL_PAD_LCD_DATA03__LCDIF_DATA03  0x79
				MX6UL_PAD_LCD_DATA04__LCDIF_DATA04  0x79
				MX6UL_PAD_LCD_DATA05__LCDIF_DATA05  0x79
				MX6UL_PAD_LCD_DATA06__LCDIF_DATA06  0x79
				MX6UL_PAD_LCD_DATA07__LCDIF_DATA07  0x79
				MX6UL_PAD_LCD_DATA08__LCDIF_DATA08  0x79
				MX6UL_PAD_LCD_DATA09__LCDIF_DATA09  0x79
				MX6UL_PAD_LCD_DATA10__LCDIF_DATA10  0x79
				MX6UL_PAD_LCD_DATA11__LCDIF_DATA11  0x79
				MX6UL_PAD_LCD_DATA12__LCDIF_DATA12  0x79
				MX6UL_PAD_LCD_DATA13__LCDIF_DATA13  0x79
				MX6UL_PAD_LCD_DATA14__LCDIF_DATA14  0x79
				MX6UL_PAD_LCD_DATA15__LCDIF_DATA15  0x79
			>;
		};

		pinctrl_lcdif_ctrl: lcdifctrlgrp {
			fsl,pins = <
				MX6UL_PAD_LCD_CLK__LCDIF_CLK	    0x79
				MX6UL_PAD_LCD_ENABLE__LCDIF_ENABLE  0x79
				MX6UL_PAD_LCD_HSYNC__LCDIF_HSYNC    0x79
				MX6UL_PAD_LCD_VSYNC__LCDIF_VSYNC    0x79
			>;
		};

		pinctrl_pwm5: pwm5grp {
			fsl,pins = <
				MX6UL_PAD_LCD_DATA18__PWM5_OUT	0x110b0
			>;
		};

		pinctrl_pwm6: pwm6grp {
			fsl,pins = <
				MX6UL_PAD_LCD_DATA19__PWM6_OUT	0x110b0
			>;
		};

		pinctrl_mqs: mqsgrp {
			fsl,pins = <
				MX6UL_PAD_LCD_DATA22__MQS_RIGHT 0x11088
				MX6UL_PAD_LCD_DATA23__MQS_LEFT  0x11088
			>;
		};

		pinctrl_uart1: uart1grp {
			fsl,pins = <
				MX6UL_PAD_UART1_TX_DATA__UART1_DCE_TX 0x1b0b1
				MX6UL_PAD_UART1_RX_DATA__UART1_DCE_RX 0x1b0b1
			>;
		};

		pinctrl_uart2: uart2grp {
			fsl,pins = <
				MX6UL_PAD_UART2_TX_DATA__UART2_DCE_TX	0x1b0b1
				MX6UL_PAD_UART2_RX_DATA__UART2_DCE_RX	0x1b0b1
			>;
		};

		pinctrl_uart3: uart3grp {
			fsl,pins = <
				MX6UL_PAD_UART3_TX_DATA__UART3_DCE_TX	0x1b0b1
				MX6UL_PAD_UART3_RX_DATA__UART3_DCE_RX	0x1b0b1
			>;
		};

		pinctrl_uart4: uart4grp {
			fsl,pins = <
				MX6UL_PAD_UART4_TX_DATA__UART4_DCE_TX	0x1b0b1
				MX6UL_PAD_UART4_RX_DATA__UART4_DCE_RX	0x1b0b1
			>;
		};

		pinctrl_uart5: uart5grp {
			fsl,pins = <
				MX6UL_PAD_UART5_TX_DATA__UART5_DCE_TX	0x1b0b1
				MX6UL_PAD_UART5_RX_DATA__UART5_DCE_RX	0x1b0b1
			>;
		};

		pinctrl_uart6: uart6grp {
			fsl,pins = <
				MX6UL_PAD_CSI_MCLK__UART6_DCE_TX	0x1b0b1
				MX6UL_PAD_CSI_PIXCLK__UART6_DCE_RX	0x1b0b1
			>;
		};

		pinctrl_uart7: uart7grp {
			fsl,pins = <
				MX6UL_PAD_LCD_DATA16__UART7_DCE_TX	0x1b0b1
				MX6UL_PAD_LCD_DATA17__UART7_DCE_RX	0x1b0b1
			>;
		};

		pinctrl_uart8: uart8grp {
			fsl,pins = <
				MX6UL_PAD_LCD_DATA20__UART8_DCE_TX	0x1b0b1
				MX6UL_PAD_LCD_DATA21__UART8_DCE_RX	0x1b0b1
			>;
		};

		pinctrl_usbotg1: usbotg1grp {
			fsl,pins = <
				MX6UL_PAD_GPIO1_IO00__ANATOP_OTG1_ID 0x17059
			>;
		};

		pinctrl_usbotg2: usbotg2grp {
			fsl,pins = <
				MX6UL_PAD_GPIO1_IO05__ANATOP_OTG2_ID 0x17059
			>;
		};

		pinctrl_usdhc1: usdhc1grp {
			fsl,pins = <
				MX6UL_PAD_SD1_CMD__USDHC1_CMD     0x17059
				MX6UL_PAD_SD1_CLK__USDHC1_CLK     0x10059
				MX6UL_PAD_SD1_DATA0__USDHC1_DATA0 0x17059
				MX6UL_PAD_SD1_DATA1__USDHC1_DATA1 0x17059
				MX6UL_PAD_SD1_DATA2__USDHC1_DATA2 0x17059
				MX6UL_PAD_SD1_DATA3__USDHC1_DATA3 0x17059
				MX6UL_PAD_UART1_RTS_B__GPIO1_IO19	0x17059 /* SD1 CD */
				MX6UL_PAD_UART1_CTS_B__GPIO1_IO18	0x17059 /* SD1 WP */
			>;
		};

        pinctrl_usdhc2: usdhc2grp {
            fsl,pins = <
                MX6UL_PAD_CSI_HSYNC__USDHC2_CMD     0x17059
                MX6UL_PAD_CSI_VSYNC__USDHC2_CLK     0x17059
                MX6UL_PAD_CSI_DATA00__USDHC2_DATA0  0x17059
                MX6UL_PAD_CSI_DATA01__USDHC2_DATA1  0x17059
                MX6UL_PAD_CSI_DATA02__USDHC2_DATA2  0x17059
                MX6UL_PAD_CSI_DATA03__USDHC2_DATA3  0x17059
            >;
        };

        pinctrl_usdhc2_100mhz: usdhc2grp100mhz {
            fsl,pins = <
                MX6UL_PAD_CSI_HSYNC__USDHC2_CMD     0x170b9
                MX6UL_PAD_CSI_VSYNC__USDHC2_CLK     0x170b9
                MX6UL_PAD_CSI_DATA00__USDHC2_DATA0  0x170b9
                MX6UL_PAD_CSI_DATA01__USDHC2_DATA1  0x170b9
                MX6UL_PAD_CSI_DATA02__USDHC2_DATA2  0x170b9
                MX6UL_PAD_CSI_DATA03__USDHC2_DATA3  0x170b9
            >;
        };

        pinctrl_usdhc2_200mhz: usdhc2grp200mhz {
            fsl,pins = <
                MX6UL_PAD_CSI_HSYNC__USDHC2_CMD     0x170f9
                MX6UL_PAD_CSI_VSYNC__USDHC2_CLK     0x170f9
                MX6UL_PAD_CSI_DATA00__USDHC2_DATA0  0x170f9
                MX6UL_PAD_CSI_DATA01__USDHC2_DATA1  0x170f9
                MX6UL_PAD_CSI_DATA02__USDHC2_DATA2  0x170f9
                MX6UL_PAD_CSI_DATA03__USDHC2_DATA3  0x170f9
            >;
        };

		pinctrl_tsc: tscgrp {
			fsl,pins = <
				MX6UL_PAD_GPIO1_IO01__GPIO1_IO01	0xb0
				MX6UL_PAD_GPIO1_IO02__GPIO1_IO02	0xb0
				MX6UL_PAD_GPIO1_IO03__GPIO1_IO03	0xb0
				MX6UL_PAD_GPIO1_IO04__GPIO1_IO04	0xb0
			>;
		};

		pinctrl_adc1: adc1grp {
			fsl,pins = <
				MX6UL_PAD_GPIO1_IO08__GPIO1_IO08	0xb0		/* adc 8 */
				MX6UL_PAD_GPIO1_IO09__GPIO1_IO09	0xb0		/* adc 9 */
			>;
		};

		pinctrl_gpmi_nand_1: gpmi-nand-1 {
			fsl,pins = <
				MX6UL_PAD_NAND_CLE__RAWNAND_CLE			0xb0b1
				MX6UL_PAD_NAND_ALE__RAWNAND_ALE			0xb0b1
				MX6UL_PAD_NAND_WP_B__RAWNAND_WP_B		0xb0b1
				MX6UL_PAD_NAND_READY_B__RAWNAND_READY_B 0xb0b1
				MX6UL_PAD_NAND_CE0_B__RAWNAND_CE0_B		0xb0b1
				MX6UL_PAD_NAND_RE_B__RAWNAND_RE_B		0xb0b1
				MX6UL_PAD_NAND_WE_B__RAWNAND_WE_B		0xb0b1
				MX6UL_PAD_NAND_WP_B__RAWNAND_WP_B		0xb0b1
				MX6UL_PAD_NAND_DATA00__RAWNAND_DATA00	0xb0b1
				MX6UL_PAD_NAND_DATA01__RAWNAND_DATA01	0xb0b1
				MX6UL_PAD_NAND_DATA02__RAWNAND_DATA02	0xb0b1
				MX6UL_PAD_NAND_DATA03__RAWNAND_DATA03	0xb0b1
				MX6UL_PAD_NAND_DATA04__RAWNAND_DATA04	0xb0b1
				MX6UL_PAD_NAND_DATA05__RAWNAND_DATA05	0xb0b1
				MX6UL_PAD_NAND_DATA06__RAWNAND_DATA06	0xb0b1
				MX6UL_PAD_NAND_DATA07__RAWNAND_DATA07	0xb0b1
			>;
		};

		pinctrl_ecspi1_cs_1: ecspi1_cs_grp-1 {
			fsl,pins = <
				MX6UL_PAD_CSI_DATA05__GPIO4_IO26	0x17059
			>;
		};

		pinctrl_ecspi1_1: escpi1grp {
			fsl,pins = <
				MX6UL_PAD_CSI_DATA04__ECSPI1_SCLK	0x100b1
				MX6UL_PAD_CSI_DATA06__ECSPI1_MOSI	0x100b1
				MX6UL_PAD_CSI_DATA07__ECSPI1_MISO	0x100b1
			>;
		};

		pinctrl_csi0: csi0grp {
			fsl,pins = <
				MX6UL_PAD_CSI_MCLK__CSI_MCLK		0x1b088
				MX6UL_PAD_CSI_PIXCLK__CSI_PIXCLK	0x1b088
				MX6UL_PAD_CSI_VSYNC__CSI_VSYNC		0x1b088
				MX6UL_PAD_CSI_HSYNC__CSI_HSYNC		0x1b088
				MX6UL_PAD_CSI_DATA00__CSI_DATA02	0x1b088
				MX6UL_PAD_CSI_DATA01__CSI_DATA03	0x1b088
				MX6UL_PAD_CSI_DATA02__CSI_DATA04	0x1b088
				MX6UL_PAD_CSI_DATA03__CSI_DATA05	0x1b088
				MX6UL_PAD_CSI_DATA04__CSI_DATA06	0x1b088
				MX6UL_PAD_CSI_DATA05__CSI_DATA07	0x1b088
				MX6UL_PAD_CSI_DATA06__CSI_DATA08	0x1b088
				MX6UL_PAD_CSI_DATA07__CSI_DATA09	0x1b088
				MX6UL_PAD_SNVS_TAMPER5__GPIO5_IO05	0x17059 /* csi_reset */
				MX6UL_PAD_SNVS_TAMPER6__GPIO5_IO06	0x17059 /* csi_en */
			>;
		};

		pinctrl_i2c: i2cgrp {
			fsl,pins = <
				MX6UL_PAD_SNVS_TAMPER7__GPIO5_IO07	0x4001b8b0  /*scl */
				MX6UL_PAD_SNVS_TAMPER8__GPIO5_IO08	0x4001b8b0  /*sda */
			>;
		};

		pinctrl_wifi: wifigrp {
			fsl,pins = <
				MX6UL_PAD_SNVS_TAMPER5__GPIO5_IO05	0x17059  /* WL_REG_ON */
				MX6UL_PAD_SNVS_TAMPER6__GPIO5_IO06	0x17059  /* WL_HOST_WK*/
			>;
		};

        pinctrl_blueth: bluethgrp {
            fsl,pins = <
				MX6UL_PAD_UART3_RTS_B__UART3_DCE_RTS	0x1b0b1
				MX6UL_PAD_UART3_CTS_B__UART3_DCE_CTS	0x1b0b1
				MX6UL_PAD_LCD_DATA20__GPIO3_IO25	0x17059  /* BT_WAKE */
				MX6UL_PAD_LCD_DATA21__GPIO3_IO26	0x17059  /* BT_RST_N */
            >;
        };

/*		pinctrl_qspi: qspigrp {
			fsl,pins = <
				MX6UL_PAD_NAND_DATA02__QSPI_B_DATA00 	0x70a1
				MX6UL_PAD_NAND_DATA03__QSPI_B_DATA01	0x70a1
				MX6UL_PAD_NAND_DATA04__QSPI_B_DATA02   	0x70a1
				MX6UL_PAD_NAND_DATA05__QSPI_B_DATA03    0x70a1
				MX6UL_PAD_NAND_RE_B__QSPI_B_SCLK      	0x70a1
				MX6UL_PAD_NAND_WE_B__QSPI_B_SS0_B      	0x70a1
			>;
		}; */

	};
};
驱动文件:
#include <linux/init.h>

#include <linux/module.h>

#include <linux/platform_device.h>

#include <linux/gpio.h>

#include <linux/of.h>

#include <linux/of_gpio.h>

#include <linux/interrupt.h>



typedef struct

{

	int gpio;

	int irq;

	char name[20];

}int_demo_data_t;



static irqreturn_t int_demo_isr(int irq, void *dev_id)

{

    int_demo_data_t *data = dev_id;



    printk("%s enter, %s: gpio:%d, irq: %dn", __func__, data->name, data->gpio, data->irq);



    return IRQ_HANDLED;

}



static int int_demo_probe(struct platform_device *pdev) {

    struct device *dev = &pdev->dev;

    struct device_node *np = pdev->dev.of_node;

    int irq_gpio = -1;

    int irq = -1;

    int ret = 0;

    int i = 0;

    int_demo_data_t *data = NULL;



    printk("%s enter.n", __func__);



    if (!dev->of_node) {

        dev_err(dev, "no platform data.n");

        goto err1;

    }



    data = devm_kmalloc(dev, sizeof(*data)*4, GFP_KERNEL);

    if (!data) {

        dev_err(dev, "no memory.n");

        goto err0;

    }



    for (i = 0; i >= 0; i--) {

        sprintf(data[i].name, "tiny4412,int_gpio%d", i+1);//名字是我们自己填充的,并不是获取到的

        irq_gpio = of_get_named_gpio(np, data[i].name, 0);//通过名字获取gpio

        if (irq_gpio < 0) {

            dev_err(dev, "Looking up %s property in node %s failed %dn",

                data[i].name, dev->of_node->full_name, irq_gpio);

            goto err1;

        }



        data[i].gpio = irq_gpio;



        irq = gpio_to_irq(irq_gpio);    //将gpio转换成对应的中断号

        if (irq < 0) {

            dev_err(dev,

                "Unable to get irq number for GPIO %d, error %dn",

                irq_gpio, irq);

            goto err1;

        }



        data[i].irq = irq;



        printk("%s: gpio: %d ---> irq (%d)n", __func__, irq_gpio, irq);

    //注册中断

        ret = devm_request_any_context_irq(dev, irq, int_demo_isr, IRQF_TRIGGER_FALLING, data[i].name, data+i);

        if (ret < 0) {

            dev_err(dev, "Unable to claim irq %d; error %dn",

                irq, ret);

            goto err1;

        }

    }



    return 0;



err1:

    devm_kfree(dev, data);

err0:

    return -EINVAL;

}



static int int_demo_remove(struct platform_device *pdev) {



    printk("%s enter.n", __func__);



    return 0;

}



static const struct of_device_id int_demo_dt_ids[] = {

    { .compatible = "interrupt_demo", },

    {},

};



MODULE_DEVICE_TABLE(of, int_demo_dt_ids);



static struct platform_driver int_demo_driver = {

    .driver        = {

    .name      = "interrupt_demo",

    .of_match_table    = of_match_ptr(int_demo_dt_ids),

    },

    .probe         = int_demo_probe,

    .remove        = int_demo_remove,

};



static int __init int_demo_init(void)

{

    int ret;



    ret = platform_driver_register(&int_demo_driver);

    if (ret)

        printk(KERN_ERR "int demo: probe failed: %dn", ret);



    return ret;

}

module_init(int_demo_init);



static void __exit int_demo_exit(void)

{

    platform_driver_unregister(&int_demo_driver);

}

module_exit(int_demo_exit);



MODULE_LICENSE("GPL");





结果:


欢迎关注并加入物联网行业联盟,积累行业人脉和资源。

最后

以上就是坦率发夹为你收集整理的设备树学习之(一)GPIO中断在M6G2C平台下的应用设备树文件:的全部内容,希望文章能够帮你解决设备树学习之(一)GPIO中断在M6G2C平台下的应用设备树文件:所遇到的程序开发问题。

如果觉得靠谱客网站的内容还不错,欢迎将靠谱客网站推荐给程序员好友。

本图文内容来源于网友提供,作为学习参考使用,或来自网络收集整理,版权属于原作者所有。
点赞(69)

评论列表共有 0 条评论

立即
投稿
返回
顶部
