1.软件版本
matlab2013b,ISE14.7
2.系统原理
我们把里面的各个模块进行仿真:
模块一的设计:

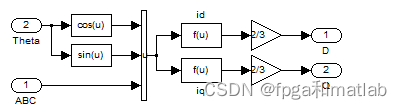

先设计第一级的三个模块:
这里,这三个模块都是一样的,其基本的公式为:

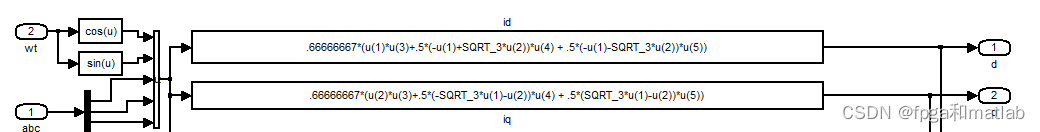

里面的公式是,首先是WT输出cos和sin对应公式中的1和2
然后abc三相输出为3,4,5角。里面的公式为:

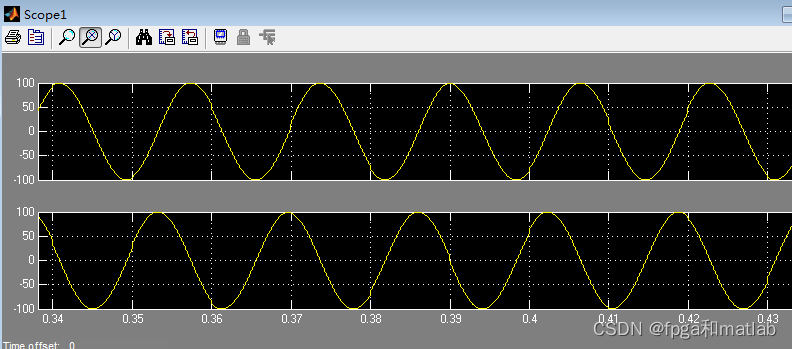

simulink仿真结果如下所示:

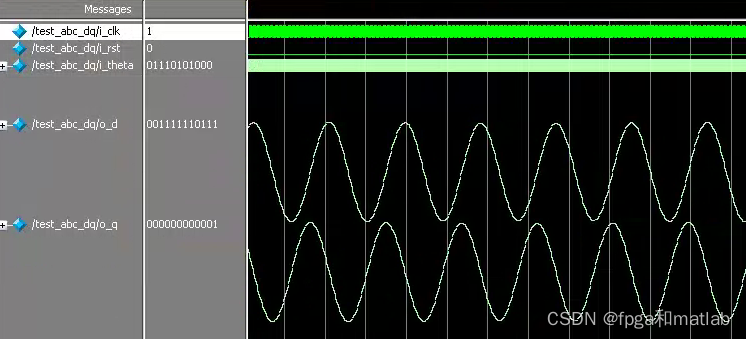

我们设计的FPGA的仿真结果如下所示:
这里,我们主要对多个不同截止频率的低通滤波器进行设计。
这里,主要有截止频率为10,30,100,和8000四种不同的截止频率的低通滤波器

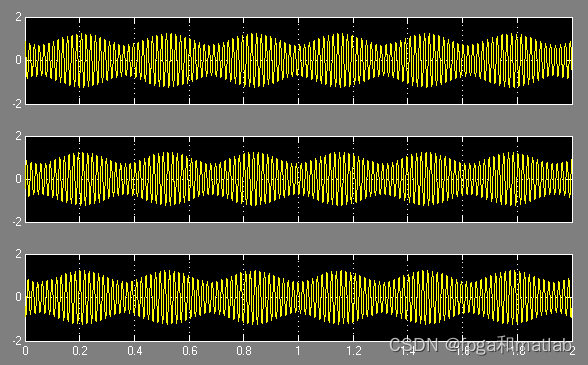

在simulink中仿真结果如下所示:

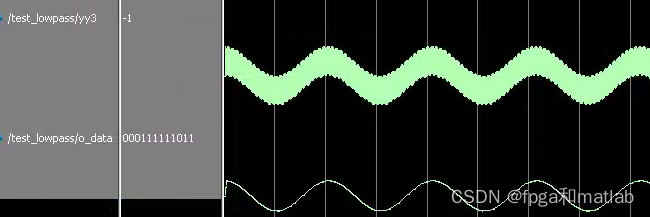

我们设计的fpga仿真结果如下所示:
dq转ABC的模块:
u[1]*u[4] + u[2]*u[3]
.5*(-u(1)+1.732*u(2))*u(4) + .5*(-u(2)-1.732*u(1))*u(3)

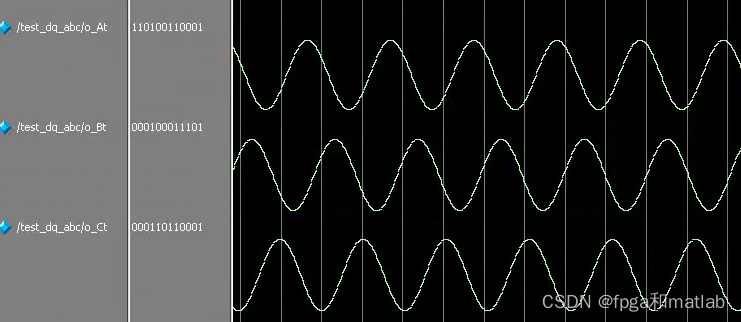

我们再FPGA中进行设计。得到的仿真结果如下所示:
然后进行整个控制器的设计:
我们根据控制器的内部结构进行编程:
整个模块的整体构架如下所示:
整个程序分为两个顶层文件,上面这个是我在FPGA内部模拟的测试调用文件,你不需要看这个,

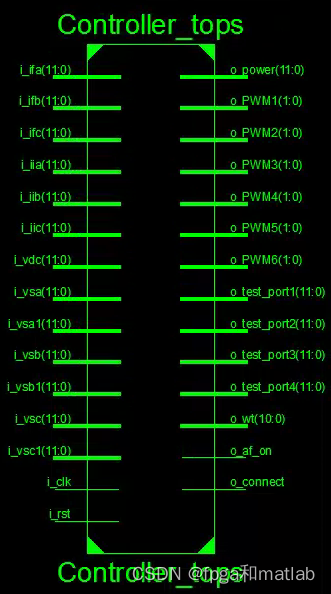

下面这个是根据你的simulink设计的顶层模块,其基本管脚如下所示:
注意,输入的三相电流和电压部分,在FPGA中设计必须分开写,所以输入脚看上去很多,实际就是几个三相变量,另外输入部分的i_clk和i_rst是fpga必须用的脚,一个是时钟变量,一个是复位,正常工作的时候复位为0,如果复位为1,那么系统初始化为0.
再看输出,也是simulink对应的,其中几个test变量,是我在设计过程中保留的测试端口,实际中不使用。

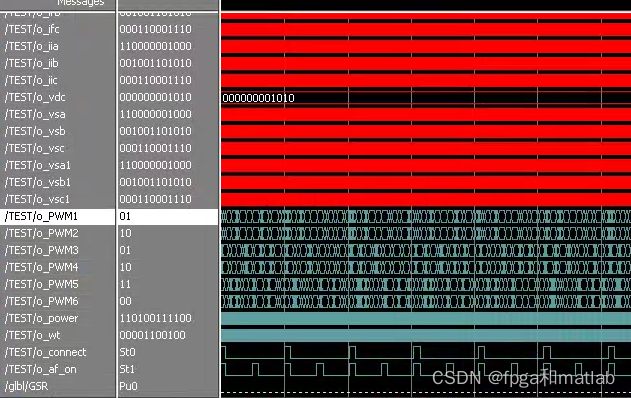

然后我们看整个控制器的测试,将设置为顶层文件,然后进行仿真,仿真结果如下所示:

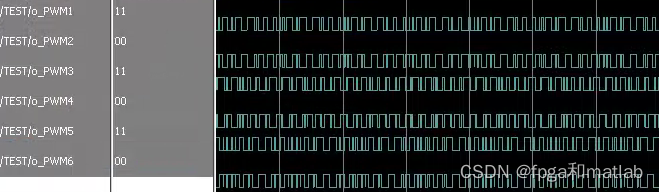

其中六个控制PWM波形如下所示:
3.部分源码
