Linux C/C++ websocket协议与服务器实现

  • 一、websocket
  • 二、握手 handshake
  • 三、传输transmission
  • 四、完整代码

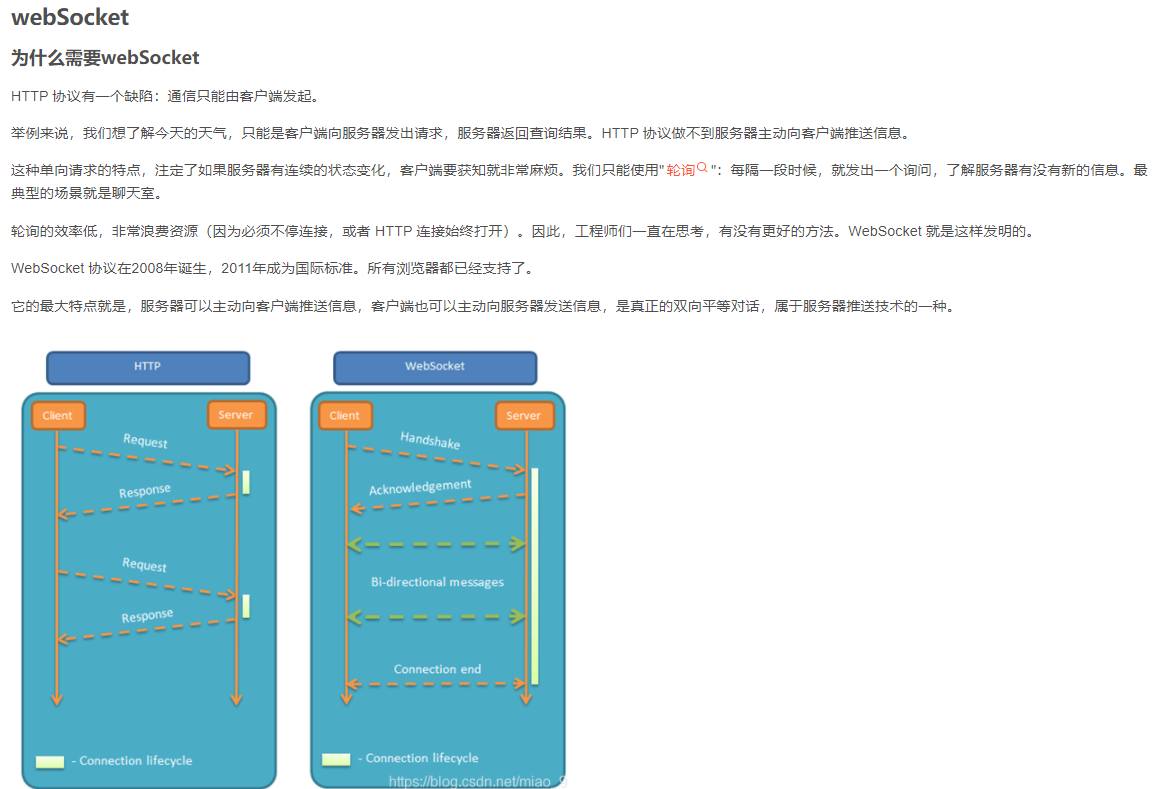

一、websocket

在这里插入图片描述
webService、webSocket、socket、http之间的区别
Http、Socket、WebSocket之间联系与区别
Socket 与 WebSocket

二、握手 handshake

进行TCP三次握手建立连接后
对于 WebSocket 来说，它必须依赖 HTTP 协议进行一次握手 ，握手成功后，数据就直接从 TCP 通道传输，与 HTTP 无关了

1.客户端发送一个请求给服务器
2.websocket把从中的key（websocketkey）解析出来,解析出来之后，与GUID(固定值,客户端和服务端都率先知道)做一个连接, 对结果做一个哈希，再做一个base64 编码给 客户端
3.客户端就会验证，如果成功了，就会从握手状态进入 Transmission状态

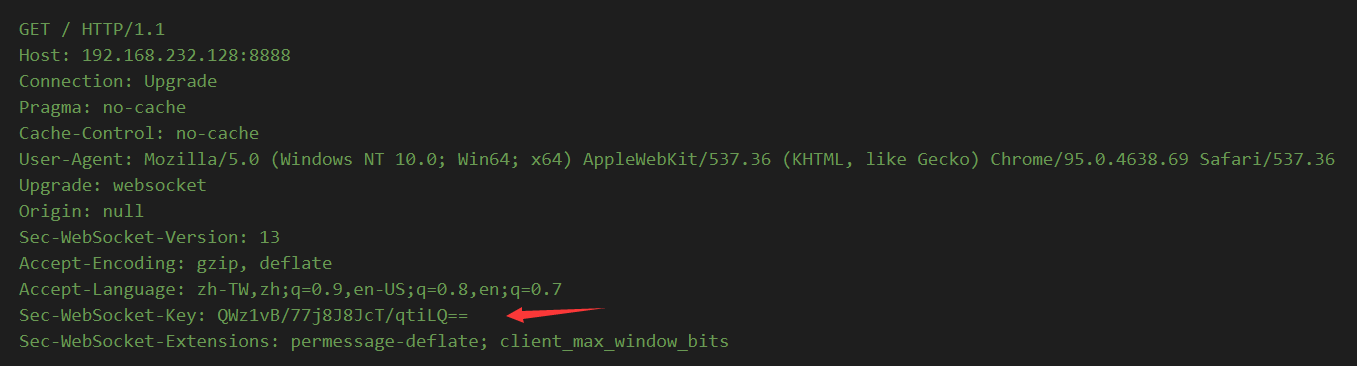

服务端先要把下面的 请求中的 websocketkey给解析出来
在这里插入图片描述
这是GUID
在这里插入图片描述

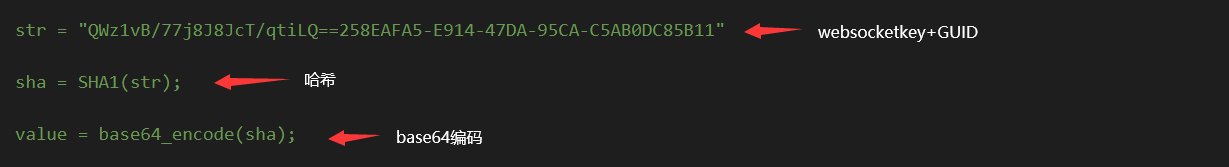

接下来
在这里插入图片描述

三、传输transmission

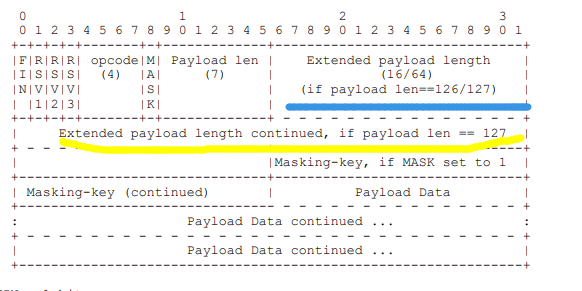

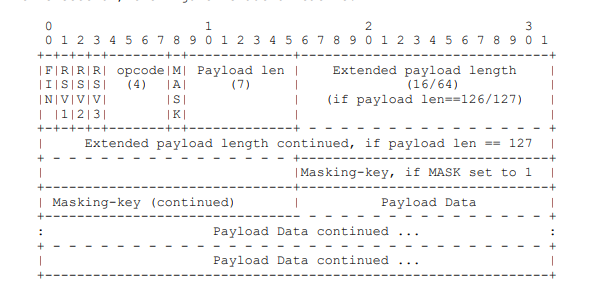

传输的格式
在这里插入图片描述
如果payload len 长度小于126那么只需要用payload len那一段，如果payload len 长度为126，那么就额外要用蓝色那部分,如果payload len长度为127，那么就还要额外用蓝色和黄色那一部分
在这里插入图片描述

1.当长度<126时候
在这里插入图片描述

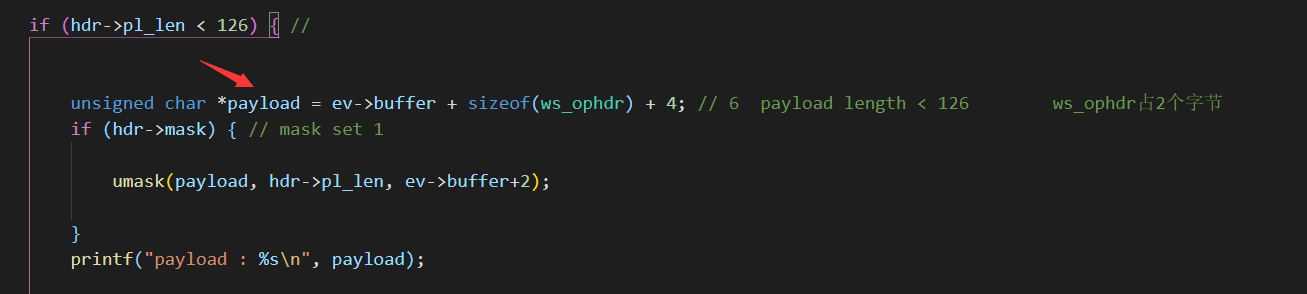

payload Data的位置，要是ev->buffer 多6个字节。
在这里插入图片描述

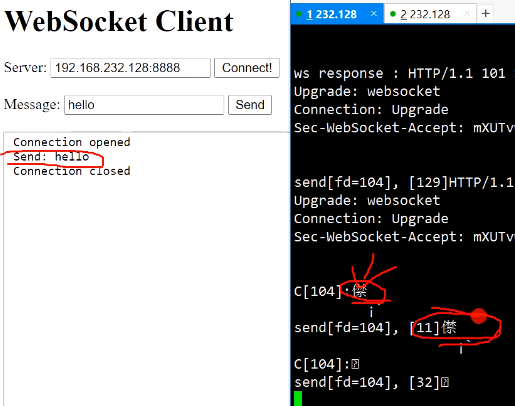

如果不解密的话，直接从客户端发送数据过来，发现是一个密文

在这里插入图片描述

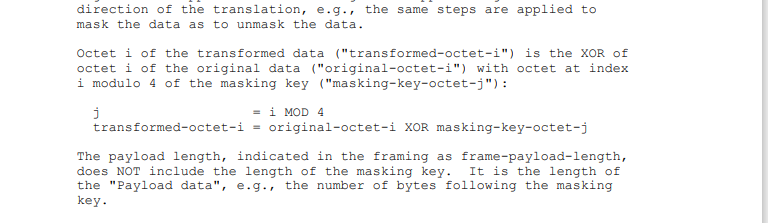

文档中看到，有长度为4的数组 mask_key[4],

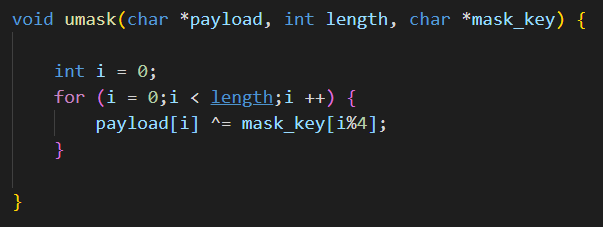

payload[i]=payload[i]^mask_key[i%4]，来进行umask
在这里插入图片描述
在这里插入图片描述
这些MASK标志位是由客户端发送过来的，只要置为1了，就要进行unmask，mask_key也是客户端发过来的

四、完整代码

实现websocket

#include <stdio.h>
#include <stdlib.h>
#include <string.h>
#include <sys/socket.h>
#include <sys/epoll.h>
#include <arpa/inet.h>

#include <fcntl.h>
#include <unistd.h>
#include <errno.h>
#include <time.h>

#include <openssl/sha.h>
#include <openssl/pem.h>
#include <openssl/bio.h>
#include <openssl/evp.h>

#define BUFFER_LENGTH		4096
#define MAX_EPOLL_EVENTS	1024
#define SERVER_PORT			8888
#define PORT_COUNT			100


#define 	GUID	"258EAFA5-E914-47DA-95CA-C5AB0DC85B11"

//定义几种状态(握手、传输、结束)
enum {
	WS_HANDSHARK = 0,
	WS_TRANMISSION = 1,
	WS_END = 2,
};

//定义websocket 头部操作数 (下面利用了结构体的位域  给每个变量分配空间)
typedef struct _ws_ophdr {   //websocket   operator holder 操作符
	//注意opcode对应的是高位，fin是低位。（要根据网络字节序来）
	unsigned char opcode:4,
				  rsv3:1,
				  rsv2:1,
				  rsv1:1,
				  fin:1;
	unsigned char pl_len:7,
				  mask:1;
} ws_ophdr;

typedef struct _ws_head_126 {

	unsigned short payload_length;
	char mask_key[4];

} ws_head_126;

typedef struct _ws_head_127 {

	long long payload_length;
	char mask_key[4];

} ws_head_127;



typedef int NCALLBACK(int ,int, void*);

struct ntyevent {
	int fd;
	int events;
	void *arg;
	int (*callback)(int fd, int events, void *arg);

	int status;
	char buffer[BUFFER_LENGTH];
	int length;
	long last_active;

	int status_machine; //状态
};

struct eventblock {

	struct eventblock *next;
	struct ntyevent *events;

};

struct ntyreactor {
	int epfd;
	int blkcnt;
	struct eventblock *evblk; //fd --> 100w
};


int recv_cb(int fd, int events, void *arg);
int send_cb(int fd, int events, void *arg);
struct ntyevent *ntyreactor_idx(struct ntyreactor *reactor, int sockfd);


void nty_event_set(struct ntyevent *ev, int fd, NCALLBACK callback, void *arg) {

	ev->fd = fd;
	ev->callback = callback;
	ev->events = 0;
	ev->arg = arg;
	ev->last_active = time(NULL);

	return ;

}


int nty_event_add(int epfd, int events, struct ntyevent *ev) {

	struct epoll_event ep_ev = {0, {0}};
	ep_ev.data.ptr = ev;
	ep_ev.events = ev->events = events;

	int op;
	if (ev->status == 1) {
		op = EPOLL_CTL_MOD;
	} else {
		op = EPOLL_CTL_ADD;
		ev->status = 1;
	}

	if (epoll_ctl(epfd, op, ev->fd, &ep_ev) < 0) {
		printf("event add failed [fd=%d], events[%d]n", ev->fd, events);
		return -1;
	}

	return 0;
}

int nty_event_del(int epfd, struct ntyevent *ev) {

	struct epoll_event ep_ev = {0, {0}};

	if (ev->status != 1) {
		return -1;
	}

	ep_ev.data.ptr = ev;
	ev->status = 0;
	epoll_ctl(epfd, EPOLL_CTL_DEL, ev->fd, &ep_ev);

	return 0;
}


//base64_encode（直接用就行了）
int base64_encode(char *in_str, int in_len, char *out_str) {
	BIO *b64, *bio;
	BUF_MEM *bptr = NULL;
	size_t size = 0;

	if (in_str == NULL || out_str == NULL)
		return -1;

	b64 = BIO_new(BIO_f_base64());
	bio = BIO_new(BIO_s_mem());
	bio = BIO_push(b64, bio);

	BIO_write(bio, in_str, in_len);
	BIO_flush(bio);

	BIO_get_mem_ptr(bio, &bptr);
	memcpy(out_str, bptr->data, bptr->length);
	out_str[bptr->length-1] = '';
	size = bptr->length;

	BIO_free_all(bio);
	return size;
}


int readline(char *allbuf, int idx, char *linebuf) {

	int len = strlen(allbuf);

	for(;idx < len;idx ++) {
		if (allbuf[idx] == 'r' && allbuf[idx+1] == 'n') {
			return idx+2;
		} else {
			*(linebuf++) = allbuf[idx];
		}
	}

	return -1;
}

/*

ev->buffer :
ev->length

GET / HTTP/1.1
Host: 192.168.232.128:8888
Connection: Upgrade
Pragma: no-cache
Cache-Control: no-cache
User-Agent: Mozilla/5.0 (Windows NT 10.0; Win64; x64) AppleWebKit/537.36 (KHTML, like Gecko) Chrome/95.0.4638.69 Safari/537.36
Upgrade: websocket
Origin: null
Sec-WebSocket-Version: 13
Accept-Encoding: gzip, deflate
Accept-Language: zh-TW,zh;q=0.9,en-US;q=0.8,en;q=0.7
Sec-WebSocket-Key: QWz1vB/77j8J8JcT/qtiLQ==
Sec-WebSocket-Extensions: permessage-deflate; client_max_window_bits

str = "QWz1vB/77j8J8JcT/qtiLQ==258EAFA5-E914-47DA-95CA-C5AB0DC85B11"

sha = SHA1(str);

value = base64_encode(sha);


*/
// 19 : length of "Sec-WebSocket-Key: "
#define WEBSOCK_KEY_LENGTH	19

int handshark(struct ntyevent *ev) {

	//ev->buffer , ev->length

	char linebuf[1024] = {0};
	int idx = 0;
	char sec_data[128] = {0};
	char sec_accept[32] = {0};

	do {

		memset(linebuf, 0, 1024);
		idx = readline(ev->buffer, idx, linebuf);

		if (strstr(linebuf, "Sec-WebSocket-Key")) {//找到websocketkey这行

			//linebuf: Sec-WebSocket-Key: QWz1vB/77j8J8JcT/qtiLQ==
			strcat(linebuf, GUID);

			//linebuf:
			//Sec-WebSocket-Key: QWz1vB/77j8J8JcT/qtiLQ==258EAFA5-E914-47DA-95CA-C5AB0DC85B11


			SHA1(linebuf + WEBSOCK_KEY_LENGTH, strlen(linebuf + WEBSOCK_KEY_LENGTH), sec_data); // openssl

			base64_encode(sec_data, strlen(sec_data), sec_accept);

			memset(ev->buffer, 0, BUFFER_LENGTH);

			ev->length = sprintf(ev->buffer, "HTTP/1.1 101 Switching Protocolsrn"
					"Upgrade: websocketrn"
					"Connection: Upgradern"
					"Sec-WebSocket-Accept: %srnrn", sec_accept);

			printf("ws response : %sn", ev->buffer);

			break;

		}

	} while((ev->buffer[idx] != 'r' || ev->buffer[idx+1] != 'n') && idx != -1 );

	return 0;
}

void umask(char *payload, int length, char *mask_key) {

	int i = 0;
	for (i = 0;i < length;i ++) {
		payload[i] ^= mask_key[i%4];
	}

}


int transmission(struct ntyevent *ev) {

	//ev->buffer; ev->length

	ws_ophdr *hdr = (ws_ophdr*)ev->buffer;//读出来的数据存在buffer中，只要把前2个字节转为websocket协议的就行了

	printf("length: %dn", hdr->pl_len);

	if (hdr->pl_len < 126) { //


		unsigned char *payload = ev->buffer + sizeof(ws_ophdr) + 4; // 6  payload length < 126        ws_ophdr占2个字节
		if (hdr->mask) { // mask set 1

			umask(payload, hdr->pl_len, ev->buffer+2);

		}
		printf("payload : %sn", payload);


	} else if (hdr->pl_len == 126) {

		ws_head_126 *hdr126 = (ws_head_126*)(ev->buffer + sizeof(ws_ophdr));
		//.....

	} else {

		ws_head_127 *hdr127 = (ws_head_127*)(ev->buffer + sizeof(ws_ophdr));
		//.....

	}

}


int websocket_request(struct ntyevent *ev) {

	if (ev->status_machine == WS_HANDSHARK) {

		ev->status_machine = WS_TRANMISSION;
		handshark(ev);

	} else if (ev->status_machine == WS_TRANMISSION) {

		transmission(ev);

	} else {

	}

	printf("websocket_request --> %dn", ev->status_machine);

}

int recv_cb(int fd, int events, void *arg) {

	struct ntyreactor *reactor = (struct ntyreactor*)arg;
	struct ntyevent *ev = ntyreactor_idx(reactor, fd);

	int len = recv(fd, ev->buffer, BUFFER_LENGTH , 0); //

	if (len > 0) {

		ev->length = len;
		ev->buffer[len] = '';

		printf("C[%d]: machine: %dn", fd, ev->status_machine);

		websocket_request(ev);

		nty_event_del(reactor->epfd, ev);
		nty_event_set(ev, fd, send_cb, reactor);
		nty_event_add(reactor->epfd, EPOLLOUT, ev);


	} else if (len == 0) {

		nty_event_del(reactor->epfd, ev);
		close(ev->fd);

		//printf("[fd=%d] pos[%ld], closedn", fd, ev-reactor->events);

	} else {

		nty_event_del(reactor->epfd, ev);
		close(ev->fd);
		printf("recv[fd=%d] error[%d]:%sn", fd, errno, strerror(errno));

	}

	return len;
}


int send_cb(int fd, int events, void *arg) {

	struct ntyreactor *reactor = (struct ntyreactor*)arg;
	struct ntyevent *ev = ntyreactor_idx(reactor, fd);

	int len = send(fd, ev->buffer, ev->length, 0);
	if (len > 0) {
		printf("send[fd=%d], [%d]%sn", fd, len, ev->buffer);

		nty_event_del(reactor->epfd, ev);
		nty_event_set(ev, fd, recv_cb, reactor);
		nty_event_add(reactor->epfd, EPOLLIN, ev);

	} else {

		close(ev->fd);

		nty_event_del(reactor->epfd, ev);
		printf("send[fd=%d] error %sn", fd, strerror(errno));

	}

	return len;
}

int accept_cb(int fd, int events, void *arg) {

	struct ntyreactor *reactor = (struct ntyreactor*)arg;
	if (reactor == NULL) return -1;

	struct sockaddr_in client_addr;
	socklen_t len = sizeof(client_addr);

	int clientfd;

	if ((clientfd = accept(fd, (struct sockaddr*)&client_addr, &len)) == -1) {
		if (errno != EAGAIN && errno != EINTR) {

		}
		printf("accept: %sn", strerror(errno));
		return -1;
	}



	int flag = 0;
	if ((flag = fcntl(clientfd, F_SETFL, O_NONBLOCK)) < 0) {
		printf("%s: fcntl nonblocking failed, %dn", __func__, MAX_EPOLL_EVENTS);
		return -1;
	}

	struct ntyevent *event = ntyreactor_idx(reactor, clientfd);
	event->status_machine = WS_HANDSHARK;//初始化
	nty_event_set(event, clientfd, recv_cb, reactor);
	nty_event_add(reactor->epfd, EPOLLIN, event);


	printf("new connect [%s:%d], pos[%d]n",
		inet_ntoa(client_addr.sin_addr), ntohs(client_addr.sin_port), clientfd);

	return 0;

}

int init_sock(short port) {

	int fd = socket(AF_INET, SOCK_STREAM, 0);
	fcntl(fd, F_SETFL, O_NONBLOCK);

	struct sockaddr_in server_addr;
	memset(&server_addr, 0, sizeof(server_addr));
	server_addr.sin_family = AF_INET;
	server_addr.sin_addr.s_addr = htonl(INADDR_ANY);
	server_addr.sin_port = htons(port);

	bind(fd, (struct sockaddr*)&server_addr, sizeof(server_addr));

	if (listen(fd, 20) < 0) {
		printf("listen failed : %sn", strerror(errno));
	}

	return fd;
}


int ntyreactor_alloc(struct ntyreactor *reactor) {

	if (reactor == NULL) return -1;
	if (reactor->evblk == NULL) return -1;

	struct eventblock *blk = reactor->evblk;
	while (blk->next != NULL) {
		blk = blk->next;
	}

	struct ntyevent *evs = (struct ntyevent*)malloc((MAX_EPOLL_EVENTS) * sizeof(struct ntyevent));
	if (evs == NULL) {
		printf("ntyreactor_alloc ntyevents failedn");
		return -2;
	}
	memset(evs, 0, (MAX_EPOLL_EVENTS) * sizeof(struct ntyevent));

	struct eventblock *block = (struct eventblock *)malloc(sizeof(struct eventblock));
	if (block == NULL) {
		printf("ntyreactor_alloc eventblock failedn");
		return -2;
	}
	memset(block, 0, sizeof(struct eventblock));

	block->events = evs;
	block->next = NULL;

	blk->next = block;
	reactor->blkcnt ++; //

	return 0;
}

struct ntyevent *ntyreactor_idx(struct ntyreactor *reactor, int sockfd) {

	int blkidx = sockfd / MAX_EPOLL_EVENTS;

	while (blkidx >= reactor->blkcnt) {
		ntyreactor_alloc(reactor);
	}

	int i = 0;
	struct eventblock *blk = reactor->evblk;
	while(i ++ < blkidx && blk != NULL) {
		blk = blk->next;
	}

	return &blk->events[sockfd % MAX_EPOLL_EVENTS];
}


int ntyreactor_init(struct ntyreactor *reactor) {

	if (reactor == NULL) return -1;
	memset(reactor, 0, sizeof(struct ntyreactor));

	reactor->epfd = epoll_create(1);
	if (reactor->epfd <= 0) {
		printf("create epfd in %s err %sn", __func__, strerror(errno));
		return -2;
	}

	struct ntyevent *evs = (struct ntyevent*)malloc((MAX_EPOLL_EVENTS) * sizeof(struct ntyevent));
	if (evs == NULL) {
		printf("ntyreactor_alloc ntyevents failedn");
		return -2;
	}
	memset(evs, 0, (MAX_EPOLL_EVENTS) * sizeof(struct ntyevent));

	struct eventblock *block = (struct eventblock *)malloc(sizeof(struct eventblock));
	if (block == NULL) {
		printf("ntyreactor_alloc eventblock failedn");
		return -2;
	}
	memset(block, 0, sizeof(struct eventblock));

	block->events = evs;
	block->next = NULL;

	reactor->evblk = block;
	reactor->blkcnt = 1;

	return 0;
}

int ntyreactor_destory(struct ntyreactor *reactor) {

	close(reactor->epfd);
	//free(reactor->events);

	struct eventblock *blk = reactor->evblk;
	struct eventblock *blk_next = NULL;

	while (blk != NULL) {

		blk_next = blk->next;

		free(blk->events);
		free(blk);

		blk = blk_next;

	}

	return 0;
}



int ntyreactor_addlistener(struct ntyreactor *reactor, int sockfd, NCALLBACK *acceptor) {

	if (reactor == NULL) return -1;
	if (reactor->evblk == NULL) return -1;

	//reactor->evblk->events[sockfd];
	struct ntyevent *event = ntyreactor_idx(reactor, sockfd);

	nty_event_set(event, sockfd, acceptor, reactor);
	nty_event_add(reactor->epfd, EPOLLIN, event);

	return 0;
}



int ntyreactor_run(struct ntyreactor *reactor) {
	if (reactor == NULL) return -1;
	if (reactor->epfd < 0) return -1;
	if (reactor->evblk == NULL) return -1;

	struct epoll_event events[MAX_EPOLL_EVENTS+1];

	int checkpos = 0, i;

	while (1) {
/*
		long now = time(NULL);
		for (i = 0;i < 100;i ++, checkpos ++) {
			if (checkpos == MAX_EPOLL_EVENTS) {
				checkpos = 0;
			}

			if (reactor->events[checkpos].status != 1) {
				continue;
			}

			long duration = now - reactor->events[checkpos].last_active;

			if (duration >= 60) {
				close(reactor->events[checkpos].fd);
				printf("[fd=%d] timeoutn", reactor->events[checkpos].fd);
				nty_event_del(reactor->epfd, &reactor->events[checkpos]);
			}
		}
*/

		int nready = epoll_wait(reactor->epfd, events, MAX_EPOLL_EVENTS, 1000);
		if (nready < 0) {
			printf("epoll_wait error, exitn");
			continue;
		}

		for (i = 0;i < nready;i ++) {

			struct ntyevent *ev = (struct ntyevent*)events[i].data.ptr;

			if ((events[i].events & EPOLLIN) && (ev->events & EPOLLIN)) {
				ev->callback(ev->fd, events[i].events, ev->arg);
			}
			if ((events[i].events & EPOLLOUT) && (ev->events & EPOLLOUT)) {
				ev->callback(ev->fd, events[i].events, ev->arg);
			}

		}

	}
}

// 3, 6w, 1, 100 ==
// <remoteip, remoteport, localip, localport>
int main(int argc, char *argv[]) {

	unsigned short port = SERVER_PORT; // listen 8888
	if (argc == 2) {
		port = atoi(argv[1]);
	}
	struct ntyreactor *reactor = (struct ntyreactor*)malloc(sizeof(struct ntyreactor));
	ntyreactor_init(reactor);

	int i = 0;
	int sockfds[PORT_COUNT] = {0};
	for (i = 0;i < PORT_COUNT;i ++) {
		sockfds[i] = init_sock(port+i);
		ntyreactor_addlistener(reactor, sockfds[i], accept_cb);
	}


	ntyreactor_run(reactor);

	ntyreactor_destory(reactor);

	for (i = 0;i < PORT_COUNT;i ++) {
		close(sockfds[i]);
	}

	free(reactor);

	return 0;
}

最后

以上就是虚心指甲油为你收集整理的Linux C/C++ websocket协议与服务器实现一、websocket二、握手 handshake三、传输transmission四、完整代码的全部内容，希望文章能够帮你解决Linux C/C++ websocket协议与服务器实现一、websocket二、握手 handshake三、传输transmission四、完整代码所遇到的程序开发问题。

如果觉得靠谱客网站的内容还不错，欢迎将靠谱客网站推荐给程序员好友。

本图文内容来源于网友提供，作为学习参考使用，或来自网络收集整理，版权属于原作者所有。
点赞(49)

相关文章

websocket C/C++服务器应用
websocket C/C++服务器应用
C++搭建websocket服务器并与浏览器js通信
C++搭建websocket服务器并与浏览器js通信
VC++实现的WebSocket服务器端握手协议
VC++实现的WebSocket服务器端握手协议
C++实现WebSocket简单服务器WebSocket简介创建WebSocket服务器的一般步骤WebSocket协议解析
C++实现WebSocket简单服务器WebSocket简介创建WebSocket服务器的一般步骤WebSocket协议解析
Linux C/C++ websocket协议与服务器实现一、websocket二、握手 handshake三、传输transmission四、完整代码
Linux C/C++ websocket协议与服务器实现一、websocket二、握手 handshake三、传输transmission四、完整代码
C++ 实现websocket 简单的服务器
C++ 实现websocket 简单的服务器
服务端使用C++实现非阻塞的websocket
服务端使用C++实现非阻塞的websocket
C++ WebSockSet服务器解决方案1. 准备工作2. 下载uSocket uWebSocket最新版源码3. 创建新控制台项目4. 编写测试代码5. 编译错误处理6.成功编译，执行OK。
C++ WebSockSet服务器解决方案1. 准备工作2. 下载uSocket uWebSocket最新版源码3. 创建新控制台项目4. 编写测试代码5. 编译错误处理6.成功编译，执行OK。

评论列表共有 0 条评论

立即
投稿
返回
顶部
