步进电机S加减速，SPTA结合S加减速

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140
141
142
143
144
145
146
147
148
149
150
151
152
153
154
155
156
157
158
159
160
161
162
163
164
165
166
167
168
169
170
171
172
173
174
175
176
177
178
179
180
181
182
183
184
185
186
187
188
189
190
191
192
193
194
195
196
197
198
199
200
201
202
203
204
205
206
207
208
209
210
211
212
213
214
215
216
217
218
219
220
221
222
223
224
225
226
227
228
229
230
231
232
233
234
235
236
237
238
239
240
241
242
243
244
245
246
247
enum motor_state_t
{
    motor_stop_state_v,
    motor_accelerate_state_v,
    motor_speed_max_state_v,
    motor_decelerate_state_v
};

struct motor_spta_t
{
    int32_t total_step_v;           //设定运行总脉冲数。负数就往复位方向移动
    uint32_t step_counter_v;        //已经运行的脉冲数
    uint16_t speed_v;               //当前速度
    uint32_t speed_max_threshold_v; //最大速度阈值，值越大，速度就能分的越精细，相当于速度百分比。用户设定的最大速度小于等于这个值
    enum motor_state_t state_v;     //运行状态

    bool enable_interrupt_counter_v;                    //定时器中断计数的开关
    uint16_t accelerate_decelerate_action_threshold_v;  //加减速一次的频率阈值，当中断次数达到这个值后就会加减速一次
    uint16_t accelerate_decelerate_interrupt_counter_v; //加减速时的定时器中断次数计数
    uint32_t accelerate_decelerate_speed_counter_v;     //加减速次数计数
    uint32_t accelerate_decelerate_step_v;              //加减速阶段的脉冲数
    uint32_t speed_accumulator_v;                       //速度累加器

    uint8_t motor_id_v;                                                                  //用于查询
    int32_t absolute_position_step_v;                                                    //绝对位置，以步数为单位
    GPIO_TypeDef *step_gpio_array_v, *direction_gpio_array_v; //IO组，脉冲、方向
    uint16_t step_gpio_v, direction_gpio_v;                          //IO号，脉冲、方向
};

#define curve_s_table_total_v 500 //s曲线参数个数
float curve_s_table_v[curve_s_table_total_v];

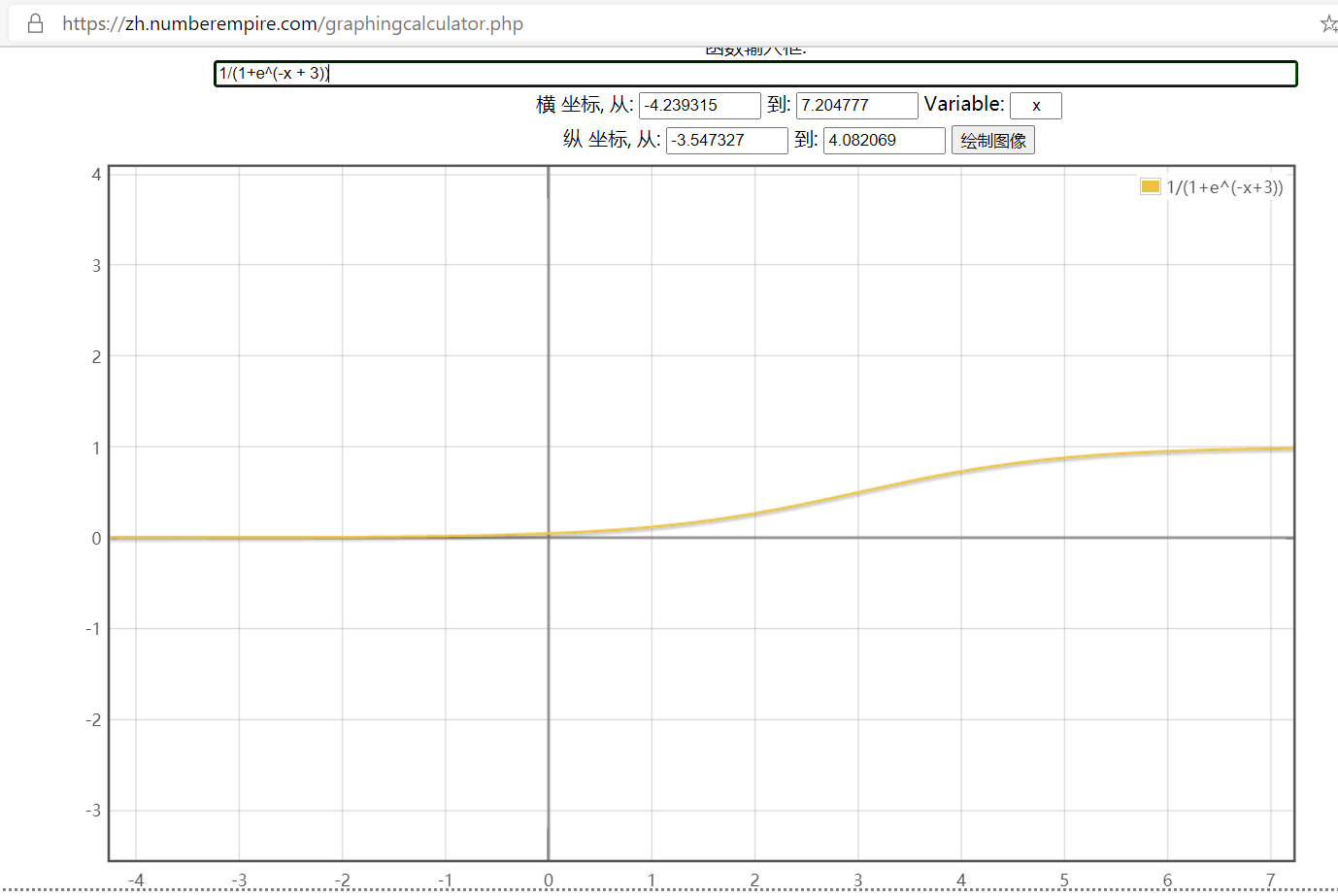

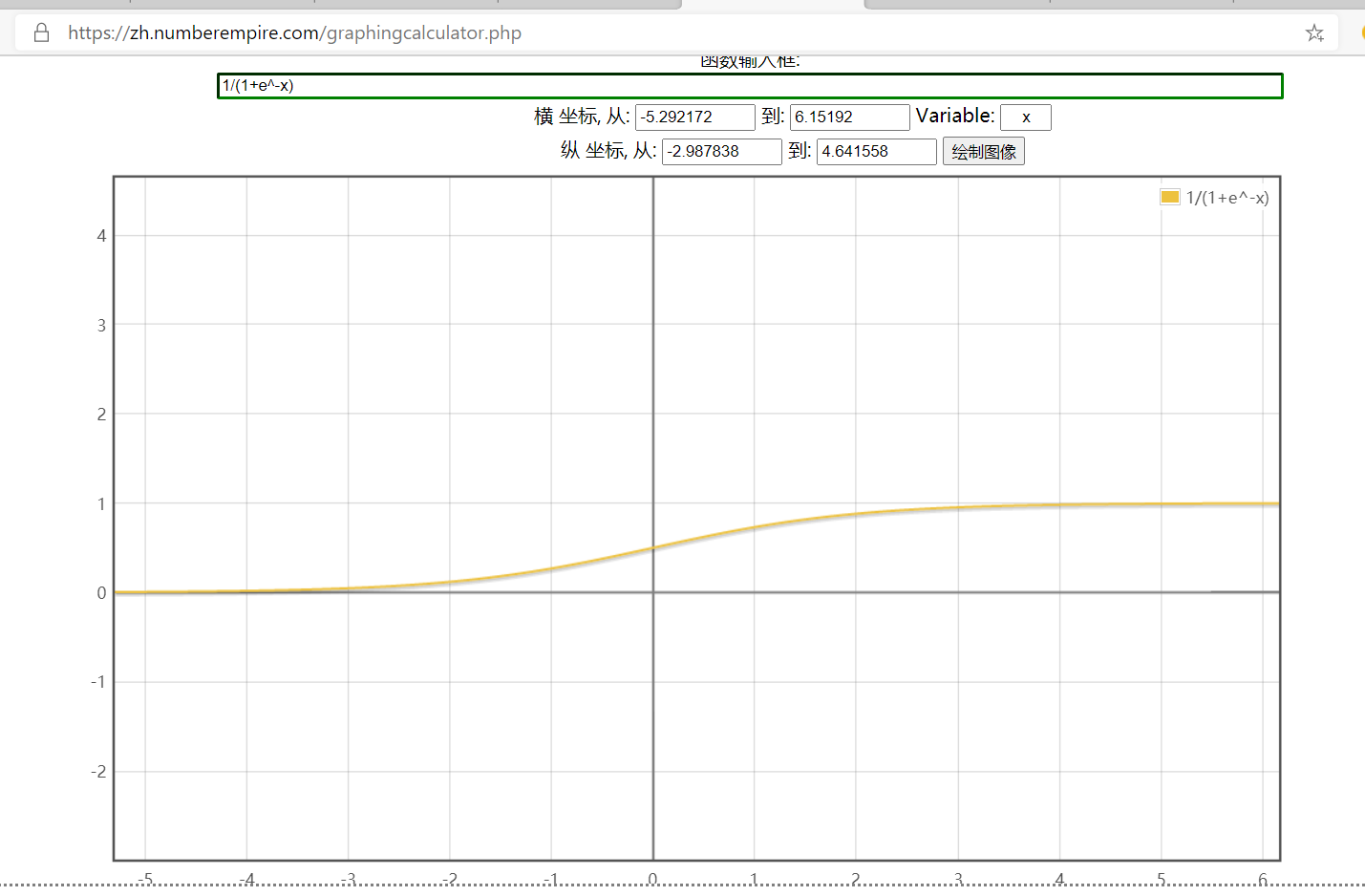

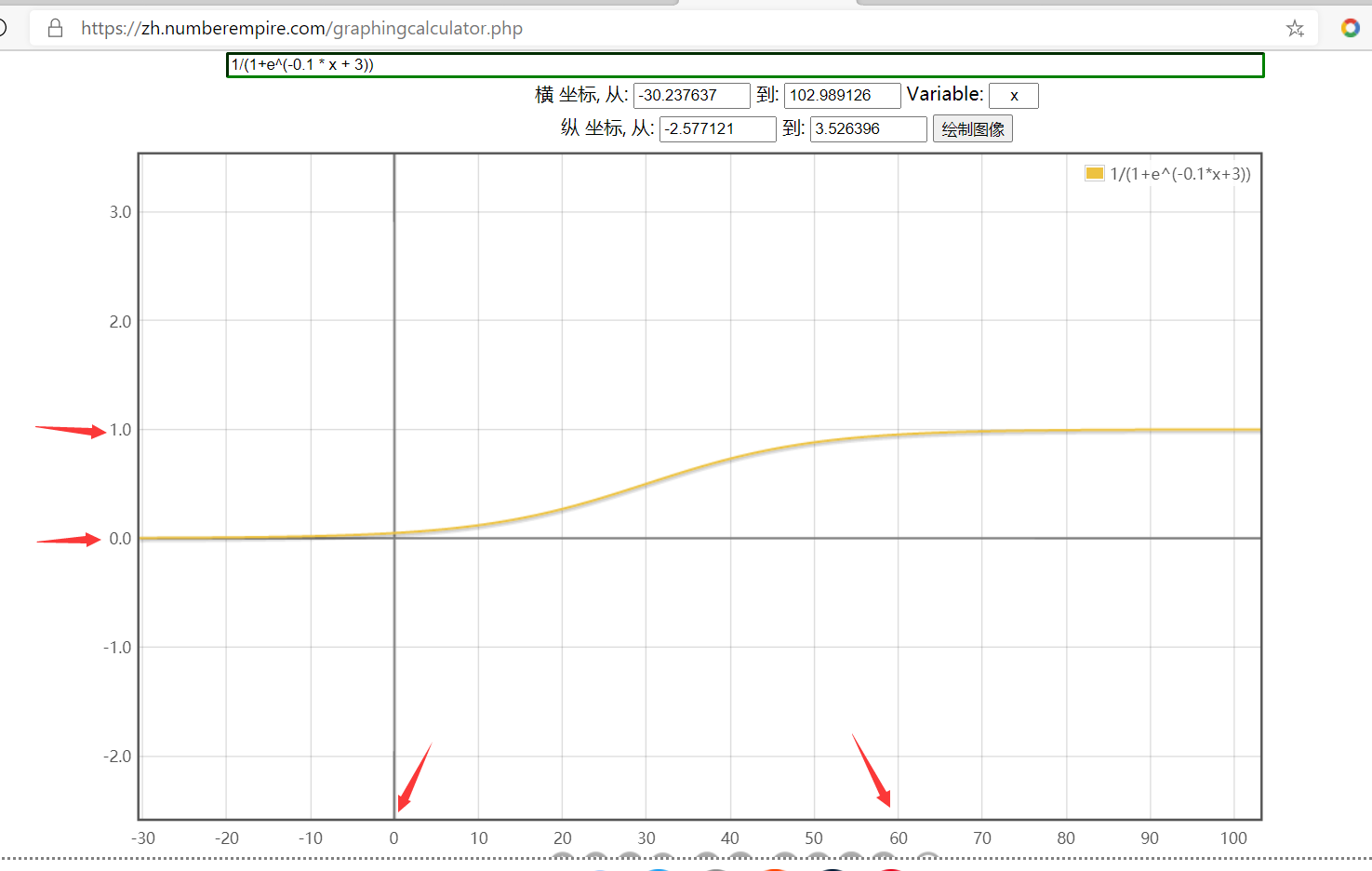

void curve_s_init(float *buff_pa, uint16_t count_va, uint8_t pan_right_va)
{
    for (uint16_t x = 0; x < count_va; x++)
    {
        *buff_pa++ = 1.0 / (1.0 + exp(((float)pan_right_va * 2 / count_va * -x) + pan_right_va));
    }
}

void motor_arg_init(struct motor_spta_t *motor_pa, uint8_t motor_id_va, GPIO_TypeDef *step_gpio_array_va, uint16_t step_gpio_va, GPIO_TypeDef *direction_gpio_array_va, uint16_t direction_gpio_va)
{
    motor_pa->motor_id_v = motor_id_va;
    motor_pa->step_gpio_array_v = step_gpio_array_va;
    motor_pa->step_gpio_v = step_gpio_va;
    motor_pa->direction_gpio_array_v = direction_gpio_array_va;
    motor_pa->direction_gpio_v = direction_gpio_va;

    motor_pa->speed_max_threshold_v = 0xffff;
    motor_pa->absolute_position_step_v = 0;
}

void motor_move(struct motor_spta_t *motor_pa, int32_t total_step_va, uint16_t speed_max_va, uint16_t accelerate_decelerate_action_threshold_va)
{
    if (total_step_va == 0)
        return;

    motor_pa->total_step_v = total_step_va;
    motor_pa->step_counter_v = 0;
    motor_pa->speed_v = 0;
    motor_pa->speed_max_v = speed_max_va > motor_pa->speed_max_threshold_v ? motor_pa->speed_max_threshold_v : speed_max_va;
    motor_pa->enable_interrupt_counter_v = true;
    motor_pa->accelerate_decelerate_interrupt_counter_v = 0;
    motor_pa->accelerate_decelerate_speed_counter_v = 0;
    motor_pa->accelerate_decelerate_step_v = 0;
    motor_pa->accelerate_decelerate_action_threshold_v = accelerate_decelerate_action_threshold_va;
    motor_pa->speed_accumulator_v = 0;

    if (motor_pa->total_step_v > 0)
    {
        if (motor_pa->reset_direction_io_level_v == GPIO_PIN_SET)
            HAL_GPIO_WritePin(motor_pa->direction_gpio_array_v, motor_pa->direction_gpio_v, GPIO_PIN_RESET);
        else
            HAL_GPIO_WritePin(motor_pa->direction_gpio_array_v, motor_pa->direction_gpio_v, GPIO_PIN_SET);
    }
    else
        HAL_GPIO_WritePin(motor_pa->direction_gpio_array_v, motor_pa->direction_gpio_v, motor_pa->reset_direction_io_level_v);
    motor_pa->state_v = motor_accelerate_state_v;
}

void motor_spta_algorithm(struct motor_spta_t *motor_pa)
{
    if (motor_pa->state_v == motor_stop_state_v)
        return;

    bool carry_v = false;

    //拉低脉冲信号
    HAL_GPIO_WritePin(motor_pa->step_gpio_array_v, motor_pa->step_gpio_v, GPIO_PIN_RESET);

    motor_pa->speed_accumulator_v += motor_pa->speed_v;                   //叠加速度
    if (motor_pa->speed_accumulator_v >= motor_pa->speed_max_threshold_v) //阈值，如果当前速度达到阈值，发送脉冲的速度就达到最快了，这个阈值就是算法的最大速度
    {
        carry_v = true;
        motor_pa->speed_accumulator_v -= motor_pa->speed_max_threshold_v;
    }

    if (carry_v == true) //判断是否溢出
    {
        motor_pa->step_counter_v++;
        //拉高脉冲信号产生
        HAL_GPIO_WritePin(motor_pa->step_gpio_array_v, motor_pa->step_gpio_v, GPIO_PIN_SET);

        if (motor_pa->total_step_v > 0)
            motor_pa->absolute_position_step_v++;
        else
            motor_pa->absolute_position_step_v--;
    }

    //根据电机的状态进行工作
    switch (motor_pa->state_v)
    {
    case motor_accelerate_state_v:

        //记录加速的步数
        if (carry_v == true)
            motor_pa->accelerate_decelerate_step_v++;

        if (motor_pa->enable_interrupt_counter_v)
        {
            motor_pa->accelerate_decelerate_interrupt_counter_v++;
            if (motor_pa->accelerate_decelerate_interrupt_counter_v >= motor_pa->accelerate_decelerate_action_threshold_v)
            {
                motor_pa->accelerate_decelerate_interrupt_counter_v = 0;
                motor_pa->accelerate_decelerate_speed_counter_v++; //计录加速的次数

                motor_pa->speed_v = curve_s_table_v[motor_pa->accelerate_decelerate_speed_counter_v] * motor_pa->speed_max_v; //计算当前速度

                //如果加速次数达到最高次数，就停止加速，并让速度等于最大速度，再切换状态
                if (motor_pa->accelerate_decelerate_speed_counter_v >= curve_s_table_total_v)
                {
                    motor_pa->enable_interrupt_counter_v = false;
                    motor_pa->speed_v = motor_pa->speed_max_v;
                    motor_pa->state_v = motor_speed_max_state_v;
                }
            }
        }

        //如果总步数大于1步
        if ((uint32_t)fabs(motor_pa->total_step_v) > 1) //fabs取绝对值的c库函数
        {
            if (motor_pa->step_counter_v >= (uint32_t)fabs(motor_pa->total_step_v) / 2) //如果已走步数大于最大步数的一半
            {
                //加速时中断计数被断，所以要调整，最后一次加速多长时间，减速的第一次的速度就维持多长时间
                motor_pa->accelerate_decelerate_interrupt_counter_v = motor_pa->accelerate_decelerate_action_threshold_v - motor_pa->accelerate_decelerate_interrupt_counter_v;
                motor_pa->state_v = motor_decelerate_state_v;
            }
        }
        else if (motor_pa->step_counter_v > 0) //只有1步也至少走1步
            motor_pa->state_v = motor_decelerate_state_v;

        break;

    case motor_speed_max_state_v:
        if ((uint32_t)fabs(motor_pa->total_step_v) - motor_pa->step_counter_v == motor_pa->accelerate_decelerate_step_v)
        {
            motor_pa->enable_interrupt_counter_v = true;
            //进入减速状态就要切换为减速状态时的最大速度
            motor_pa->accelerate_decelerate_speed_counter_v--;
            motor_pa->speed_v = curve_s_table_v[motor_pa->accelerate_decelerate_speed_counter_v] * motor_pa->speed_max_v; //计算当前速度
            motor_pa->state_v = motor_decelerate_state_v;
        }

        break;

    case motor_decelerate_state_v:

        if (motor_pa->enable_interrupt_counter_v)
        {
            motor_pa->accelerate_decelerate_interrupt_counter_v++;
            if (motor_pa->accelerate_decelerate_interrupt_counter_v >= motor_pa->accelerate_decelerate_action_threshold_v) //如果中断次数达到设定次数
            {
                motor_pa->accelerate_decelerate_interrupt_counter_v = 0;
                motor_pa->accelerate_decelerate_speed_counter_v--;

                motor_pa->speed_v = curve_s_table_v[motor_pa->accelerate_decelerate_speed_counter_v] * motor_pa->speed_max_v; //计算当前速度

                if (motor_pa->speed_v <= motor_pa->speed_min_v)
                {
                    motor_pa->enable_interrupt_counter_v = false;
                }
            }
        }

        if (motor_pa->step_counter_v >= (uint32_t)fabs(motor_pa->total_step_v))
        {
            //设定电机状态
            motor_pa->state_v = motor_stop_state_v;
        }
        break;

    default:
        break;
    }
}

void my_MX_TIM2_Init(void)
{

    /* USER CODE BEGIN TIM2_Init 0 */

    /* USER CODE END TIM2_Init 0 */

    TIM_ClockConfigTypeDef sClockSourceConfig = {0};
    TIM_MasterConfigTypeDef sMasterConfig = {0};

    /* USER CODE BEGIN TIM2_Init 1 */

    /* USER CODE END TIM2_Init 1 */
    htim2.Instance = TIM2;
    htim2.Init.Prescaler = 72 - 1;
    htim2.Init.CounterMode = TIM_COUNTERMODE_UP;
    htim2.Init.Period = 20 - 1;
    htim2.Init.ClockDivision = TIM_CLOCKDIVISION_DIV1;
    htim2.Init.AutoReloadPreload = TIM_AUTORELOAD_PRELOAD_DISABLE;
    if (HAL_TIM_Base_Init(&htim2) != HAL_OK)
    {
        Error_Handler();
    }
    sClockSourceConfig.ClockSource = TIM_CLOCKSOURCE_INTERNAL;
    if (HAL_TIM_ConfigClockSource(&htim2, &sClockSourceConfig) != HAL_OK)
    {
        Error_Handler();
    }
    sMasterConfig.MasterOutputTrigger = TIM_TRGO_RESET;
    sMasterConfig.MasterSlaveMode = TIM_MASTERSLAVEMODE_DISABLE;
    if (HAL_TIMEx_MasterConfigSynchronization(&htim2, &sMasterConfig) != HAL_OK)
    {
        Error_Handler();
    }
    /* USER CODE BEGIN TIM2_Init 2 */

    /* USER CODE END TIM2_Init 2 */
}

void HAL_TIM_PeriodElapsedCallback(TIM_HandleTypeDef *htim)
{
    switch ((uint32_t)htim->Instance)
    {
    case (uint32_t)TIM2:
        motor_spta_algorithm(&motor1_v);
        break;

    default:
        break;
    }
}

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
//示例：
struct motor_spta_t motor1_v;
int main()
{
    curve_s_init(curve_s_table_v, curve_s_table_total_v, 7);

    my_MX_TIM2_Init();
    HAL_TIM_Base_Start_IT(&htim2);

    motor_arg_init(&motor1_v, 1, GPIOA, GPIO_PIN_0, GPIOA, GPIO_PIN_1);
    while(1)
    {
        motor_move(&motor1_v, 5000, 10000, 100);
    }
}

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
#ifndef ivesStepMotorH
#define ivesStepMotorH

#include "main.h"

namespace xiaguangbo
{
    namespace motorNamespace
    {
        namespace ivesStepMotorNamespace
        {
            class ivesStepMotorClass
            {
            private:
                static constexpr float pi = 3.1415926;

                //运行状态
                static const uint8_t motorStopState = 0;
                static const uint8_t motorAccelerateState = 1;
                static const uint8_t motorMaxState = 2;
                static const uint8_t motorDecelerateState = 3;

                //固定参数
                static const uint8_t sCurveExcursion = 3;         //s曲线偏移的量
                static const uint16_t sCurvePointNumber = 200;    //在s曲线上取的点的数量
                static const uint16_t aCircleStep = 3200;         //一圈的步数
                static const uint16_t maxSpeedThreshold = 0xffff; //速度的最大值，因为速度变量是16位的，所以最大就是0xffff

                //s曲线
                static float sCurveTable[sCurvePointNumber]; //放s曲线数值的数组
                static bool sCurveTableFlag;                 //s曲线是否已经计算过了

                //算法核心参数
                int32_t currentAbsolutePosition;    //当前的绝对位置，以步数为单位
                int32_t currentNeedRunStep;         //将要运行的步数。负数就往复位方向移动
                uint32_t temporaryStepCounter;      //临时的步数计数，记录一次算法走了多少步
                uint16_t currentSpeed;              //当前速度
                uint16_t targetSpeed;               //要达到的速度
                uint8_t runState;                   //运行状态
                uint16_t accelerationInterval;      //加减速一次的间隔
                uint16_t interruptCounter;          //加减速时的定时器中断次数计数
                bool interruptCounterFlag;          //中断计数的开关
                uint32_t accelerationNumberCounter; //加减速次数计数
                uint32_t accelerationStep;          //加减速阶段的脉冲数
                uint32_t speedAccumulator;          //速度累加器
                bool overflowFlag;                  //溢出标志

                //定制化功能的参数
                bool resetTimeDirPinLv;                                                              //复位时方向的io电平
                uint16_t oneMmStep;                                                                  //电机走1mm所需的步数
                GPIO_TypeDef *stepGpioHandle, *dirGpioHandle, *enGpioHandle, *resetSensorGpioHandle; //IO组，脉冲、方向、复位限位
                uint16_t stepGpioNumber, dirGpioNumber, enGpioNumber, resetSensorGpioNumber;         //IO号，脉冲、方向、复位限位
                bool resetSensorTriggerLv;                                                           //复位限位开关被触发后的电平
                bool resetFlag;                                                                      //是否处于复位
                bool stopFlag;                                                                       //是否被停止了
                bool keepMoveFlag;                                                                   //是否要一直转
                bool enTimeEnPinSate;

                /*
                初始化s曲线参数表
                */
                static void sCurveTableInit();

                /*
                电机每走一步都会执行的参数。主要用于检测复位开关
                */
                void runTimeImplement();

                void setBeltOneMmStep(uint8_t pitch, uint8_t motorGearTeeth) { oneMmStep = aCircleStep / (pitch * motorGearTeeth); }
                void setGearOneMmStep(uint8_t pitch, uint8_t motorGearTeeth) { setBeltOneMmStep(pitch * pi, motorGearTeeth); }
                void SetEnPinState(bool state) { HAL_GPIO_WritePin(enGpioHandle, enGpioNumber, GPIO_PinState(state)); }

            public:
                ivesStepMotorClass();
                ~ivesStepMotorClass();

                /*
                初始化
                */
                void init(GPIO_TypeDef *stepGpioHandle, uint16_t stepGpioNumber, GPIO_TypeDef *dirGpioHandle, uint16_t dirGpioNumber, GPIO_TypeDef *enGpioHandle, uint16_t enGpioNumber, GPIO_TypeDef *resetSensorGpioHandle, uint16_t resetSensorGpioNumber, bool resetSensorTriggerLv, bool resetTimeDirPinLv, bool enTimeEnPinSate);

                /*
                移动相应的步数
                need_run_step：步数。负值是向复位方向移动
                acc_dec_interval：加速度
                */
                void move(int32_t currentNeedRunStep, uint16_t targetSpeed, uint16_t accelerationInterval);

                /*
                移动到绝对位置。单位为mm
                */
                void moveToAbsolutePosition(uint16_t absolutePosition, uint16_t targetSpeed, uint16_t accelerationInterval); //在没有使用set_mm_step设置mm_step之前，不要用

                /*
                移动到相对位置
                */
                void moveToRelativePosition(int16_t relativePosition, uint16_t targetSpeed, uint16_t accelerationInterval);

                /*
                算法的循环。放在一个定时器里进行定时执行，调用的速度就是电机的最大速度
                */
                void loop();

                /*
                根据参数计算并设置每走1mm需要的步数
                beltOrGear：false：同步带。true：齿条
                pitch：同步带的型号或齿条的模数
                gear_teeth：电机上的齿轮的齿数
                */
                void setOneMmStep(bool beltOrGear, uint8_t pitch, uint8_t motorGearTeeth)
                {
                    if (beltOrGear == 0)
                        setBeltOneMmStep(pitch, motorGearTeeth);
                    else
                        setGearOneMmStep(pitch, motorGearTeeth);
                }

                /*
                复位
                */
                void reset(uint16_t targetSpeed = 5000, uint16_t accelerationInterval = 100);

                /*
                停止
                */
                void stop();

                /*
                一直转
                */
                void keepMove(bool dir, uint16_t targetSpeed, uint16_t accelerationInterval = 100);
                bool getStopFlag() { return stopFlag; }
                void resetStopFlag() { stopFlag = false; }
                int32_t getCurrentAbsolutePosition() { return currentAbsolutePosition; }
            };
        } // namespace ivesStepMotorNamespace
    }     // namespace motorNamespace
} // namespace xiaguangbo
#endif

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140
141
142
143
144
145
146
147
148
149
150
151
152
153
154
155
156
157
158
159
160
161
162
163
164
165
166
167
168
169
170
171
172
173
174
175
176
177
178
179
180
181
182
183
184
185
186
187
188
189
190
191
192
193
194
195
196
197
198
199
200
201
202
203
204
205
206
207
208
209
210
211
212
213
214
215
216
217
218
219
220
221
222
223
224
225
226
227
228
229
230
231
232
233
234
235
236
237
238
239
240
241
242
#include "ivesStepMotor.hpp"
#include <math.h>

namespace xiaguangbo
{
    namespace motorNamespace
    {
        namespace ivesStepMotorNamespace
        {
            float ivesStepMotorClass::sCurveTable[sCurvePointNumber];
            bool ivesStepMotorClass::sCurveTableFlag;

            ivesStepMotorClass::ivesStepMotorClass()
            {
            }

            ivesStepMotorClass::~ivesStepMotorClass()
            {
            }

            void ivesStepMotorClass::sCurveTableInit()
            {
                for (uint16_t x = 0; x < sCurvePointNumber; x++)
                    sCurveTable[x] = 1.0 / (1.0 + exp((sCurveExcursion * 2.0 / sCurvePointNumber * -x) + sCurveExcursion));

                sCurveTableFlag = true;
            }

            void ivesStepMotorClass::init(GPIO_TypeDef *stepGpioHandle, uint16_t stepGpioNumber, GPIO_TypeDef *dirGpioHandle, uint16_t dirGpioNumber, GPIO_TypeDef *enGpioHandle, uint16_t enGpioNumber, GPIO_TypeDef *resetSensorGpioHandle, uint16_t resetSensorGpioNumber, bool resetSensorTriggerLv, bool resetTimeDirPinLv, bool enTimeEnPinSate)
            {
                if (sCurveTableFlag == false)
                {
                    sCurveTableInit();
                    sCurveTableFlag = true;
                }

                this->stepGpioHandle = stepGpioHandle;
                this->stepGpioNumber = stepGpioNumber;

                this->dirGpioHandle = dirGpioHandle;
                this->dirGpioNumber = dirGpioNumber;

                this->enGpioHandle = enGpioHandle;
                this->enGpioNumber = enGpioNumber;

                this->resetSensorGpioHandle = resetSensorGpioHandle;
                this->resetSensorGpioNumber = resetSensorGpioNumber;
                this->resetSensorTriggerLv = resetSensorTriggerLv;
                this->resetTimeDirPinLv = resetTimeDirPinLv;

                stop();
                SetEnPinState(enTimeEnPinSate);
            }

            void ivesStepMotorClass::move(int32_t currentNeedRunStep, uint16_t targetSpeed, uint16_t accelerationInterval)
            {
                if (currentNeedRunStep == 0)
                {
                    stop();
                    return;
                }

                this->currentNeedRunStep = currentNeedRunStep;
                temporaryStepCounter = 0;
                currentSpeed = 0;
                this->targetSpeed = targetSpeed > maxSpeedThreshold - 100 ? maxSpeedThreshold : targetSpeed + 100; //防止速度为0
                interruptCounterFlag = true;
                interruptCounter = 0;
                accelerationNumberCounter = 0;
                accelerationStep = 0;
                this->accelerationInterval = accelerationInterval;
                speedAccumulator = 0;

                if (currentNeedRunStep > 0)
                    HAL_GPIO_WritePin(dirGpioHandle, dirGpioNumber, (GPIO_PinState)(!resetTimeDirPinLv));
                else
                    HAL_GPIO_WritePin(dirGpioHandle, dirGpioNumber, (GPIO_PinState)resetTimeDirPinLv);
                runState = motorAccelerateState;
            }

            void ivesStepMotorClass::moveToAbsolutePosition(uint16_t absolutePosition, uint16_t targetSpeed, uint16_t accelerationInterval)
            {
                move(absolutePosition * oneMmStep - this->currentAbsolutePosition, targetSpeed, accelerationInterval);
            }

            void ivesStepMotorClass::moveToRelativePosition(int16_t relativePosition, uint16_t targetSpeed, uint16_t accelerationInterval)
            {
                move(relativePosition * oneMmStep, targetSpeed, accelerationInterval);
            }

            void ivesStepMotorClass::runTimeImplement()
            {
                if (resetSensorGpioHandle == nullptr)
                    return;

                if (HAL_GPIO_ReadPin(resetSensorGpioHandle, resetSensorGpioNumber) == resetSensorTriggerLv) //检查复位开关
                {
                    if (resetFlag == true)
                    {
                        stop();
                        currentAbsolutePosition = 0; //绝对位置置0
                    }
                    else if (currentNeedRunStep < 0) //不能继续向复位的方向走，但可以向复位的反方向走
                        stop();
                }
            }

            void ivesStepMotorClass::loop()
            {
                if (runState == motorStopState)
                    return;

                if (overflowFlag)                                                      //如果产生了高电平
                    HAL_GPIO_WritePin(stepGpioHandle, stepGpioNumber, GPIO_PIN_RESET); //拉低脉冲信号

                overflowFlag = false;
                speedAccumulator += currentSpeed;          //叠加速度
                if (speedAccumulator >= maxSpeedThreshold) //阈值，如果当前速度达到阈值，发送脉冲的速度就达到最快了，这个阈值就是算法的最大速度
                {
                    overflowFlag = true;
                    speedAccumulator -= maxSpeedThreshold;
                }

                if (overflowFlag) //如果溢出
                {
                    temporaryStepCounter++;
                    HAL_GPIO_WritePin(stepGpioHandle, stepGpioNumber, GPIO_PIN_SET); //拉高脉冲信号产生

                    if (currentNeedRunStep > 0)
                        currentAbsolutePosition < 0x7fffffff ? currentAbsolutePosition++ : currentAbsolutePosition;
                    else
                        currentAbsolutePosition > (int32_t)0x80000000 ? currentAbsolutePosition-- : currentAbsolutePosition;

                    runTimeImplement(); //额外的操作，比如检测复位开关
                }

                //根据电机的状态进行工作
                switch (runState)
                {
                case motorAccelerateState:

                    //记录加速的步数
                    if (overflowFlag)
                        accelerationStep++;

                    if (interruptCounterFlag)
                    {
                        interruptCounter++;
                        if (interruptCounter >= accelerationInterval)
                        {
                            interruptCounter = 0;
                            accelerationNumberCounter++; //计录加速的次数

                            currentSpeed = sCurveTable[accelerationNumberCounter] * targetSpeed; //计算当前速度

                            //如果加速次数达到最高次数，就停止加速，并让速度等于最大速度，再切换状态
                            if (accelerationNumberCounter >= sCurvePointNumber)
                            {
                                interruptCounterFlag = false;
                                currentSpeed = targetSpeed;
                                runState = motorMaxState;
                            }
                        }
                    }

                    //如果总步数大于1步
                    if ((uint32_t)fabs(currentNeedRunStep) > 1)
                    {
                        if (temporaryStepCounter >= (uint32_t)fabs(currentNeedRunStep) / 2) //如果已走步数大于最大步数的一半
                        {
                            //加速时中断计数被断，所以要调整，最后一次加速多长时间，减速的第一次的速度就维持多长时间
                            interruptCounter = accelerationInterval - interruptCounter;
                            runState = motorDecelerateState;
                        }
                    }
                    else if (temporaryStepCounter > 0) //只有1步就至少走1步
                        runState = motorDecelerateState;

                    break;

                case motorMaxState:
                    if (keepMoveFlag && overflowFlag == true) //当处于保持转动的状态时
                        temporaryStepCounter--;               //加一次就减一次，防止步数达到进入减速的要求

                    if ((uint32_t)fabs(currentNeedRunStep) - temporaryStepCounter <= accelerationStep)
                    {
                        interruptCounterFlag = true;
                        //进入减速状态就要切换为减速状态时的最大速度
                        accelerationNumberCounter--;
                        currentSpeed = sCurveTable[accelerationNumberCounter] * targetSpeed; //计算当前速度
                        runState = motorDecelerateState;
                    }

                    break;

                case motorDecelerateState:
                    if (interruptCounterFlag)
                    {
                        interruptCounter++;
                        if (interruptCounter >= accelerationInterval) //如果中断次数达到设定次数
                        {
                            interruptCounter = 0;
                            accelerationNumberCounter--;

                            currentSpeed = sCurveTable[accelerationNumberCounter] * targetSpeed; //计算当前速度

                            if (accelerationNumberCounter <= 1)
                                interruptCounterFlag = false;
                        }
                    }

                    if (temporaryStepCounter >= (uint32_t)fabs(currentNeedRunStep))
                        stop();
                    break;

                default:
                    break;
                }
            }

            void ivesStepMotorClass::reset(uint16_t targetSpeed, uint16_t accelerationInterval)
            {
                resetFlag = true;
                keepMove(false, targetSpeed, accelerationInterval); //向复位方向一直走
            }

            void ivesStepMotorClass::stop()
            {
                runState = motorStopState;
                stopFlag = true;
                keepMoveFlag = false;
                resetFlag = false;
            }

            void ivesStepMotorClass::keepMove(bool dir, uint16_t targetSpeed, uint16_t accelerationInterval)
            {
                keepMoveFlag = true;
                move(aCircleStep * 100 * (dir == false ? -1 : 1), targetSpeed, accelerationInterval); //步数至少让加速能加满
            }
        } // namespace ivesStepMotorNamespace
    }     // namespace motorNamespace
} // namespace xiaguangbo
