Configuration

device/mediatekprojects/“ProjectName”/ ProjectConfig.mk

复制代码

1
2
3
4
5
...
CUSTOM_HAL_LENS = AK7371AF
CUSTOM_KERNEL_LENS = AK7371AF
...

Kernel

kernel-4.14driversmiscmediatekdwsmt6853k6853v1_64.dws

复制代码

1
2
3
4
5
6
7
8
...
<device26>
    <varName>CAMERA_MAIN_AF</varName>
    <channel>I2C_CHANNEL_8</channel>
    <address>0x72</address>
</device26>
...

kernel-4.14archarm64bootdtsmediatekmt6359.dtsi

复制代码

1
2
3
4
5
6
7
mt_pmic_vtp_ldo_reg: ldo2 {
	regulator-compatible = "LDO2";
	regulator-name = "VTP";
	regulator-min-microvolt = <1200000>;
	regulator-max-microvolt = <3600000>;
};

kernel-4.14archarm64bootdtsmediatekcust_mt6853_camera.dtsi

复制代码

1
2
3
4
...
vcamaf-supply = <&mt_pmic_vtp_ldo_reg>
...

kernel-4.14driversmiscmediateklensmaincommonak7371af

复制代码

1
2
添加驱动ak7371af

kernel-4.14driversmiscmediateklensKconfig

复制代码

1
2
3
4
5
6
7
8
9
10
11
...
config MTK_LENS_AK7371AF_SUPPORT
	bool "AK7371AF Lens Driver"
	default n
	help
	  AK7371AF Lens Driver
	  This config is used to enable the corresponding
	  lens driver for the camera sensor module
	  Set as y if the driver is used in this project
...

kernel-4.14driversmiscmediateklensmainMakefile

复制代码

1
2
3
4
5
6
...
MAIN_CFILES  += common/ak7371af/AK7371AF.c
...
obj-y  += common/ak7371af/
...

kernel-4.14driversmiscmediateklensmaininclens_list.h

复制代码

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
//define 用于区分不同camera模组使用相同af driver
#define AK7371AF_SetI2Cclient AK7371AF_SetI2Cclient_Main
#define AK7371AF_Ioctl AK7371AF_Ioctl_Main
#define AK7371AF_Release AK7371AF_Release_Main
#define AK7371AF_PowerDown AK7371AF_PowerDown_Main
#define AK7371AF_GetFileName AK7371AF_GetFileName_Main
//添加af driver的函数接口
extern int AK7371AF_SetI2Cclient(struct i2c_client *pstAF_I2Cclient,
				 spinlock_t *pAF_SpinLock, int *pAF_Opened);
extern long AK7371AF_Ioctl(struct file *a_pstFile, unsigned int a_u4Command,
			   unsigned long a_u4Param);
extern int AK7371AF_Release(struct inode *a_pstInode, struct file *a_pstFile);
extern int AK7371AF_PowerDown(struct i2c_client *pstAF_I2Cclient,
				int *pAF_Opened);
extern int AK7371AF_GetFileName(unsigned char *pFileName);

kernel-4.14driversmiscmediateklensmaininclens_info.h

复制代码

1
2
3
/* AFDRV_XXXX be the same as AF_DRVNAME in (*af).c */
#define AFDRV_AK7371AF "AK7371AF"

af上电有两种方式，一种是在camera sensor上电时在sensor上电时序中加上af上电，还有一种就是下面这种在af字符设备驱动中上电
kernel-4.14driversmiscmediateklensmainmain_lens.c

复制代码

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
static struct stAF_DrvList g_stAF_DrvList[MAX_NUM_OF_LENS] = {
	...
	{1, AFDRV_AK7371AF, AK7371AF_SetI2Cclient, AK7371AF_Ioctl,
	 AK7371AF_Release, AK7371AF_GetFileName, NULL},
	...
};
...
void AFRegulatorCtrl(int Stage)
{
    ....
    if (Stage == 0) {
        ...
        regVCAMAF = regulator_get_regVCAMAF();
        ...
    } else if (Stage == 1/*上电*/) {
        ...
        Status = regulator_set_voltage(regVCAMAF, 2800000, 2800000);
        ...
    }
    ...
}
...
void AF_PowerDown(void) {
   ...
   AK7371AF_PowerDown(g_pstAF_I2Cclient, &g_s4AF_Opened);
   ...
}

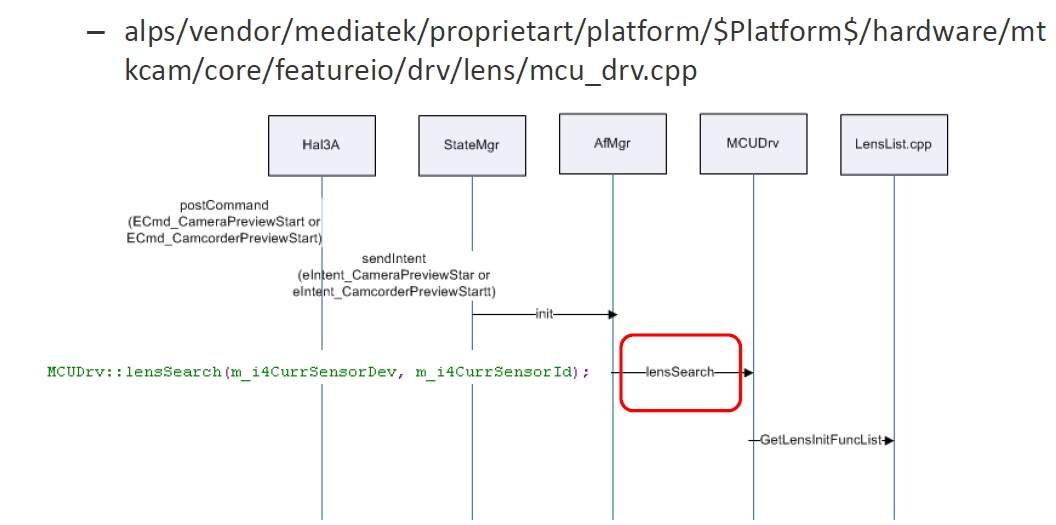

HAL

alps/vendor/mediatek/proprietary/custom/[$Platform]/hal/inc/camera_custom_lens.h

复制代码

1
2
3
4
...
#define AK7371AF_LENS_ID        0x7371
...

alps/vendor/mediatek/proprietary/custom/[$Platform]/hal/lens/src/lenslist.cpp

复制代码

1
2
3
4
5
6
7
8
9
10
...
MSDK_LENS_INIT_FUNCTION_STRUCT LensList_main[MAX_NUM_OF_SUPPORT_LENS] =
{
    ...
    #ifdefined(AK7371AF)
        {S5KGM1ST_SENSOR_ID, AK7371AF_LENS_ID, "AK7371AF", pAK7371AF_getDefaultData},
    ...
}
...
