OK,继续上篇的内容. 配置好外部中断源以后, 就得使能外部中断线了.

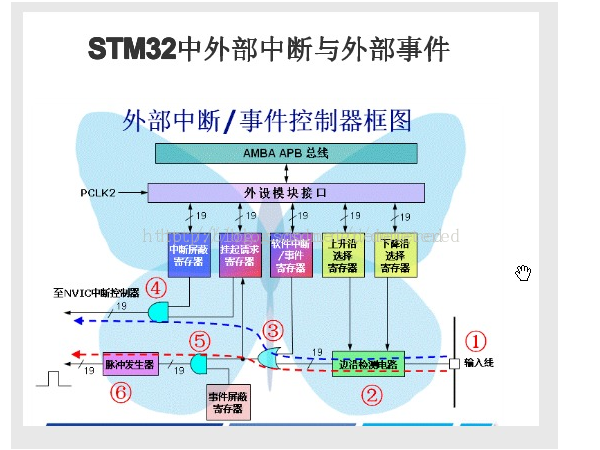

为了方便看再借下这个图：

对外部中断的使能其实就是配置上面这些寄存器.即使能哪EXIT线,选择上面模式,是中断还是事件,选择下降沿还是上升沿.

具体怎么写寄存器这就不研究了, = = 太麻烦了.. 直接用STM32的库就行了,来看看它的代码吧

这是EXTI结构体的初始化函数,

复制代码

1
2
3
4
5
6
7
void EXTI_StructInit(EXTI_InitTypeDef* EXTI_InitStruct)
{
  EXTI_InitStruct->EXTI_Line = EXTI_LINENONE;
  EXTI_InitStruct->EXTI_Mode = EXTI_Mode_Interrupt; //中断模式
  EXTI_InitStruct->EXTI_Trigger = EXTI_Trigger_Falling;  //下降沿触发
  EXTI_InitStruct->EXTI_LineCmd = DISABLE;
}

#define EXTI_LINENONE ((uint32_t)0x00000) /* No interrupt selected */

从这里我们就可以知道我们要给它的结构体弄哪些东西了,例子：

复制代码

1
2
3
4
5
EXTI_InitStructure.EXTI_Line = EXTI_Line2;
EXTI_InitStructure.EXTI_Mode = EXTI_Mode_Interrupt;
EXTI_InitStructure.EXTI_Trigger = EXTI_Trigger_Falling;
EXTI_InitStructure.EXTI_LineCmd = ENABLE;
EXTI_Init(&EXTI_InitStructure);

看看EXTI_Init（）

复制代码

void EXTI_Init(EXTI_InitTypeDef* EXTI_InitStruct)
{
  uint32_t tmp = 0;

/* Check the parameters */
  assert_param(IS_EXTI_MODE(EXTI_InitStruct->EXTI_Mode));
  assert_param(IS_EXTI_TRIGGER(EXTI_InitStruct->EXTI_Trigger));
  assert_param(IS_EXTI_LINE(EXTI_InitStruct->EXTI_Line));
  assert_param(IS_FUNCTIONAL_STATE(EXTI_InitStruct->EXTI_LineCmd));

tmp = (uint32_t)EXTI_BASE;

  if (EXTI_InitStruct->EXTI_LineCmd != DISABLE)
  {
    /* Clear EXTI line configuration */
    EXTI->IMR &= ~EXTI_InitStruct->EXTI_Line;
    EXTI->EMR &= ~EXTI_InitStruct->EXTI_Line;

    tmp += EXTI_InitStruct->EXTI_Mode;

*(__IO uint32_t *) tmp |= EXTI_InitStruct->EXTI_Line;

/* Clear Rising Falling edge configuration */
    EXTI->RTSR &= ~EXTI_InitStruct->EXTI_Line;
    EXTI->FTSR &= ~EXTI_InitStruct->EXTI_Line;

    /* Select the trigger for the selected external interrupts */
    if (EXTI_InitStruct->EXTI_Trigger == EXTI_Trigger_Rising_Falling)
    {
      /* Rising Falling edge */
      EXTI->RTSR |= EXTI_InitStruct->EXTI_Line;
      EXTI->FTSR |= EXTI_InitStruct->EXTI_Line;
    }
    else
    {
      tmp = (uint32_t)EXTI_BASE;
      tmp += EXTI_InitStruct->EXTI_Trigger;

*(__IO uint32_t *) tmp |= EXTI_InitStruct->EXTI_Line;
    }
  }
  else
  {
    tmp += EXTI_InitStruct->EXTI_Mode;

/* Disable the selected external lines */
    *(__IO uint32_t *) tmp &= ~EXTI_InitStruct->EXTI_Line;
  }
}

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
void EXTI_Init(EXTI_InitTypeDef* EXTI_InitStruct)
{
  uint32_t tmp = 0;

  /* Check the parameters */
  assert_param(IS_EXTI_MODE(EXTI_InitStruct->EXTI_Mode));
  assert_param(IS_EXTI_TRIGGER(EXTI_InitStruct->EXTI_Trigger));
  assert_param(IS_EXTI_LINE(EXTI_InitStruct->EXTI_Line));
  assert_param(IS_FUNCTIONAL_STATE(EXTI_InitStruct->EXTI_LineCmd));

  tmp = (uint32_t)EXTI_BASE;

  if (EXTI_InitStruct->EXTI_LineCmd != DISABLE)
  {
    /* Clear EXTI line configuration */
    EXTI->IMR &= ~EXTI_InitStruct->EXTI_Line;
    EXTI->EMR &= ~EXTI_InitStruct->EXTI_Line;

    tmp += EXTI_InitStruct->EXTI_Mode;

    *(__IO uint32_t *) tmp |= EXTI_InitStruct->EXTI_Line;

    /* Clear Rising Falling edge configuration */
    EXTI->RTSR &= ~EXTI_InitStruct->EXTI_Line;
    EXTI->FTSR &= ~EXTI_InitStruct->EXTI_Line;

    /* Select the trigger for the selected external interrupts */
    if (EXTI_InitStruct->EXTI_Trigger == EXTI_Trigger_Rising_Falling)
    {
      /* Rising Falling edge */
      EXTI->RTSR |= EXTI_InitStruct->EXTI_Line;
      EXTI->FTSR |= EXTI_InitStruct->EXTI_Line;
    }
    else
    {
      tmp = (uint32_t)EXTI_BASE;
      tmp += EXTI_InitStruct->EXTI_Trigger;

      *(__IO uint32_t *) tmp |= EXTI_InitStruct->EXTI_Line;
    }
  }
  else
  {
    tmp += EXTI_InitStruct->EXTI_Mode;

    /* Disable the selected external lines */
    *(__IO uint32_t *) tmp &= ~EXTI_InitStruct->EXTI_Line;
  }
}
