netty是由jboss提供的一款开源框架,常用于搭建RPC中的TCP服务器、websocket服务器,甚至是类似tomcat的web服务器,反正就是各种网络服务器,在处理高并发的项目中,有奇用!功能丰富且性能良好,基于java中NIO的二次封装,具有比原生NIO更好更稳健的体验。
netty的核心架构

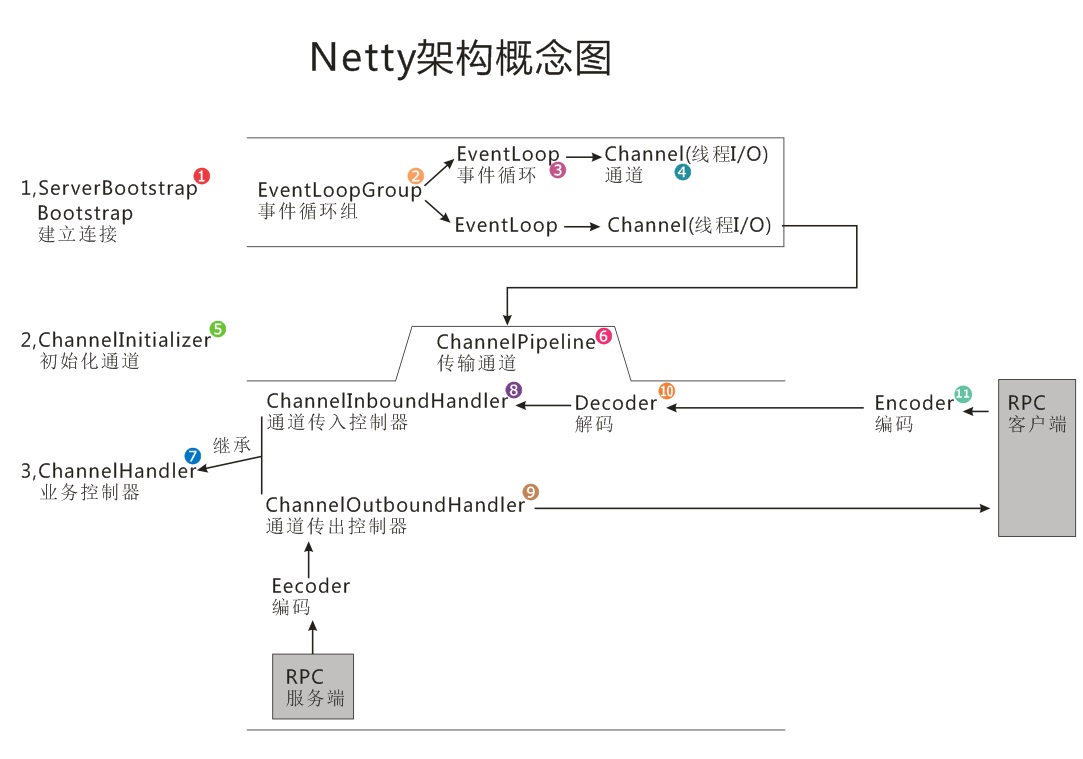

官网给出的底层示意图:

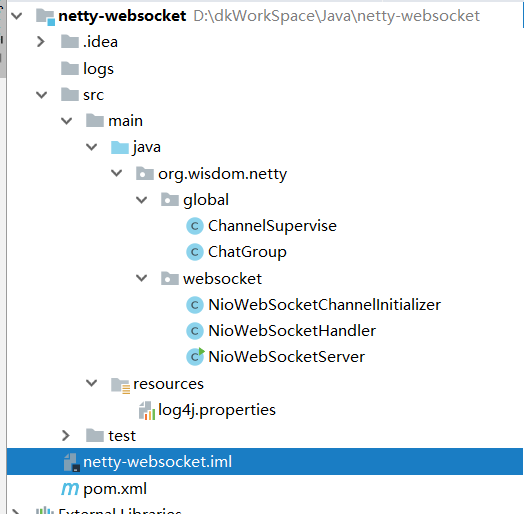

1.项目结构
一个普通的maven项目即可
- 核心依赖:
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21<dependencies> <!--netty的依赖集合,都整合在一个依赖里面了--> <dependency> <groupId>io.netty</groupId> <artifactId>netty-all</artifactId> <version>4.1.6.Final</version> </dependency> <!--这里使用jackson反序列字节码--> <dependency> <groupId>com.fasterxml.jackson.core</groupId> <artifactId>jackson-databind</artifactId> <version>2.9.7</version> </dependency> <!--加入log4j 便于深入学习整合运行过程的一些细节--> <dependency> <groupId>log4j</groupId> <artifactId>log4j</artifactId> <version>1.2.17</version> </dependency> </dependencies>
代码
1.启动类
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30public class NioWebSocketServer { private final Logger logger=Logger.getLogger(this.getClass()); private void init(){ logger.info("正在启动websocket服务器"); NioEventLoopGroup boss=new NioEventLoopGroup(); NioEventLoopGroup work=new NioEventLoopGroup(); try { ServerBootstrap bootstrap=new ServerBootstrap(); bootstrap.group(boss,work); bootstrap.channel(NioServerSocketChannel.class); bootstrap.childHandler(new NioWebSocketChannelInitializer()); Channel channel = bootstrap.bind(8081).sync().channel(); logger.info("webSocket服务器启动成功:"+channel); channel.closeFuture().sync(); } catch (InterruptedException e) { e.printStackTrace(); logger.info("运行出错:"+e); }finally { boss.shutdownGracefully(); work.shutdownGracefully(); logger.info("websocket服务器已关闭"); } } public static void main(String[] args) { new NioWebSocketServer().init(); } }
netty搭建的服务器基本上都是差不多的写法:
-
绑定主线程组和工作线程组,这部分对应架构图中的事件循环组
-
只有服务器才需要绑定端口,客户端是绑定一个地址
-
配置channel(数据通道)参数,重点就是
ChannelInitializer
的配置 -
以异步的方式启动,最后是结束关闭两个线程组
2.ChannelInitializer写法
1
2
3
4
5
6
7
8
9
10
11public class NioWebSocketChannelInitializer extends ChannelInitializer<SocketChannel> { @Override protected void initChannel(SocketChannel ch) { ch.pipeline().addLast("logging",new LoggingHandler("DEBUG"));//设置log监听器,并且日志级别为debug,方便观察运行流程 ch.pipeline().addLast("http-codec",new HttpServerCodec());//设置解码器 ch.pipeline().addLast("aggregator",new HttpObjectAggregator(65536));//聚合器,使用websocket会用到 ch.pipeline().addLast("http-chunked",new ChunkedWriteHandler());//用于大数据的分区传输 ch.pipeline().addLast("handler",new NioWebSocketHandler());//自定义的业务handler } }
3.自定义的处理器NioWebSocketHandler
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107public class NioWebSocketHandler extends SimpleChannelInboundHandler<Object> { private final Logger logger=Logger.getLogger(this.getClass()); private WebSocketServerHandshaker handshaker; @Override protected void channelRead0(ChannelHandlerContext ctx, Object msg) throws Exception { logger.debug("收到消息:"+msg); if (msg instanceof FullHttpRequest){ //以http请求形式接入,但是走的是websocket handleHttpRequest(ctx, (FullHttpRequest) msg); }else if (msg instanceof WebSocketFrame){ //处理websocket客户端的消息 handlerWebSocketFrame(ctx, (WebSocketFrame) msg); } } @Override public void channelActive(ChannelHandlerContext ctx) throws Exception { //添加连接 logger.debug("客户端加入连接:"+ctx.channel()); ChannelSupervise.addChannel(ctx.channel()); } @Override public void channelInactive(ChannelHandlerContext ctx) throws Exception { //断开连接 logger.debug("客户端断开连接:"+ctx.channel()); ChannelSupervise.removeChannel(ctx.channel()); } @Override public void channelReadComplete(ChannelHandlerContext ctx) throws Exception { ctx.flush(); } private void handlerWebSocketFrame(ChannelHandlerContext ctx, WebSocketFrame frame){ // 判断是否关闭链路的指令 if (frame instanceof CloseWebSocketFrame) { handshaker.close(ctx.channel(), (CloseWebSocketFrame) frame.retain()); return; } // 判断是否ping消息 if (frame instanceof PingWebSocketFrame) { ctx.channel().write( new PongWebSocketFrame(frame.content().retain())); return; } // 本例程仅支持文本消息,不支持二进制消息 if (!(frame instanceof TextWebSocketFrame)) { logger.debug("本例程仅支持文本消息,不支持二进制消息"); throw new UnsupportedOperationException(String.format( "%s frame types not supported", frame.getClass().getName())); } // 返回应答消息 String request = ((TextWebSocketFrame) frame).text(); logger.debug("服务端收到:" + request); TextWebSocketFrame tws = new TextWebSocketFrame(new Date().toString() + ctx.channel().id() + ":" + request); // 群发 ChannelSupervise.send2All(tws); // 返回【谁发的发给谁】 // ctx.channel().writeAndFlush(tws); } /** * 唯一的一次http请求,用于创建websocket * */ private void handleHttpRequest(ChannelHandlerContext ctx, FullHttpRequest req) { //要求Upgrade为websocket,过滤掉get/Post if (!req.decoderResult().isSuccess() || (!"websocket".equals(req.headers().get("Upgrade")))) { //若不是websocket方式,则创建BAD_REQUEST的req,返回给客户端 sendHttpResponse(ctx, req, new DefaultFullHttpResponse( HttpVersion.HTTP_1_1, HttpResponseStatus.BAD_REQUEST)); return; } WebSocketServerHandshakerFactory wsFactory = new WebSocketServerHandshakerFactory( "ws://localhost:8081/websocket", null, false); handshaker = wsFactory.newHandshaker(req); if (handshaker == null) { WebSocketServerHandshakerFactory .sendUnsupportedVersionResponse(ctx.channel()); } else { handshaker.handshake(ctx.channel(), req); } } /** * 拒绝不合法的请求,并返回错误信息 * */ private static void sendHttpResponse(ChannelHandlerContext ctx, FullHttpRequest req, DefaultFullHttpResponse res) { // 返回应答给客户端 if (res.status().code() != 200) { ByteBuf buf = Unpooled.copiedBuffer(res.status().toString(), CharsetUtil.UTF_8); res.content().writeBytes(buf); buf.release(); } ChannelFuture f = ctx.channel().writeAndFlush(res); // 如果是非Keep-Alive,关闭连接 if (!isKeepAlive(req) || res.status().code() != 200) { f.addListener(ChannelFutureListener.CLOSE); } } }
执行流程是:
- web发起一次类似是http的请求,并在
channelRead0
方法中进行处理,并通过instanceof去判断帧对象是FullHttpRequest
还是WebSocketFrame
,建立连接是时候会是FullHttpRequest
- 在
handleHttpRequest
方法中去创建websocket,首先是判断Upgrade
是不是websocket协议,若不是则通过sendHttpResponse
将错误信息返回给客户端,紧接着通过WebSocketServerHandshakerFactory
创建socket对象并通过handshaker握手创建连接 - 在连接创建好后的所以消息流动都是以
WebSocketFrame
来体现 - 在
handlerWebSocketFrame
去处理消息,也可能是客户端发起的关闭指令,ping指令等等
4.保存客户端的信息
当有客户端连接时候会被channelActive
监听到,当断开时会被channelInactive
监听到,一般在这两个方法中去保存/移除客户端的通道信息,而通道信息保存在ChannelSupervise
中:
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19public class ChannelSupervise { private static ChannelGroup GlobalGroup=new DefaultChannelGroup(GlobalEventExecutor.INSTANCE); private static ConcurrentMap<String, ChannelId> ChannelMap=new ConcurrentHashMap(); public static void addChannel(Channel channel){ GlobalGroup.add(channel); ChannelMap.put(channel.id().asShortText(),channel.id()); } public static void removeChannel(Channel channel){ GlobalGroup.remove(channel); ChannelMap.remove(channel.id().asShortText()); } public static Channel findChannel(String id){ return GlobalGroup.find(ChannelMap.get(id)); } public static void send2All(TextWebSocketFrame tws){ GlobalGroup.writeAndFlush(tws); } }
ChannelGroup是netty提供用于管理web于服务器建立的通道channel的,其本质是一个高度封装的set集合,在服务器广播消息时,可以直接通过它的writeAndFlush将消息发送给集合中的所有通道中去。但在查找某一个客户端的通道时候比较坑爹,必须通过channelId对象去查找,而channelId不能人为创建,所有必须通过map将channelId的字符串和channel保存起来。
为什么不能人为创建channelId:
1.channelId是实现类DefaultChannelId

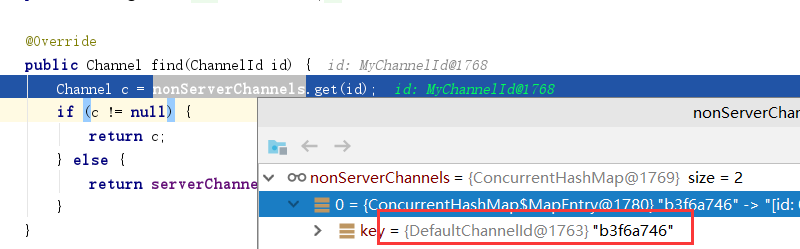

这一点可以通过debug它的find发现:

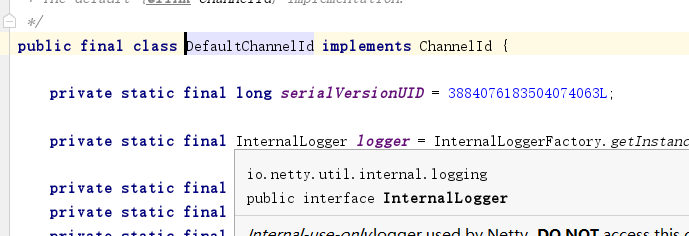

而DefaultChannelId中不提供任何修改channelId的操作,并且由final修飾不能被继承:
而我们获取的字符串形式的channelId实际上是它创建时候通过一定的算法生成的。
想要获取channel信息还是老老实实的封装一个map去维护字符串形式的id于channel的对应关系吧。
测试运行
客户端代码,只需要javascript的内置对象websocket即可:
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44var socket; if(!window.WebSocket){ window.WebSocket = window.MozWebSocket; } if(window.WebSocket){ socket = new WebSocket("ws://localhost:8081/websocket"); socket.onmessage = function(event){ var ta = document.getElementById('responseText'); ta.value += event.data+"rn"; }; socket.onopen = function(event){ var ta = document.getElementById('responseText'); ta.value = "打开WebSoket 服务正常,浏览器支持WebSoket!"+"rn"; }; socket.onclose = function(event){ var ta = document.getElementById('responseText'); ta.value = ""; ta.value = "WebSocket 关闭"+"rn"; }; }else{ alert("您的浏览器不支持WebSocket协议!"); } function send(message){ if(!window.WebSocket){return;} if(socket.readyState == WebSocket.OPEN){ socket.send(message); }else{ alert("WebSocket 连接没有建立成功!"); } }
给出一个websocket的参考API地址:https://developer.mozilla.org/zh-CN/docs/Web/API/WebSocket/WebSocket
当web通过websocket对象连接成功后后台代码:
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15GET /websocket HTTP/1.1 Host: localhost:8081 Connection: Upgrade Pragma: no-cache Cache-Control: no-cache Upgrade: websocket Origin: file:// Sec-WebSocket-Version: 13 User-Agent: Mozilla/5.0 (Windows NT 10.0; Win64; x64) AppleWebKit/537.36 (KHTML, like Gecko) Chrome/72.0.3626.109 Safari/537.36 Accept-Encoding: gzip, deflate, br Accept-Language: zh-CN,zh;q=0.9 Sec-WebSocket-Key: nJizI32hwlBOiORpLJUTDA== Sec-WebSocket-Extensions: permessage-deflate; client_max_window_bits content-length: 0
主要是Upgrade: websocket
。如果直接在浏览器输入http://localhost:8081/websocket
后台输出:
1
2
3
4
5
6
7
8
9
10
11GET /favicon.ico HTTP/1.1 Host: localhost:8081 Connection: keep-alive User-Agent: Mozilla/5.0 (Windows NT 10.0; Win64; x64) AppleWebKit/537.36 (KHTML, like Gecko) Chrome/72.0.3626.109 Safari/537.36 Accept: image/webp,image/apng,image/*,*/*;q=0.8 Referer: http://localhost:8081/websocket Accept-Encoding: gzip, deflate, br Accept-Language: zh-CN,zh;q=0.9 Cookie: Idea-8e0020a7=5b26e4b3-9f9e-43e0-9a47-308f93716d8a; Webstorm-c460d780=4381b95f-1a24-483f-a5cf-902eec88b795 content-length: 0
对比可以发现请求头中缺少很多websocket的内容

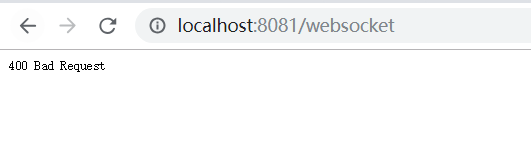

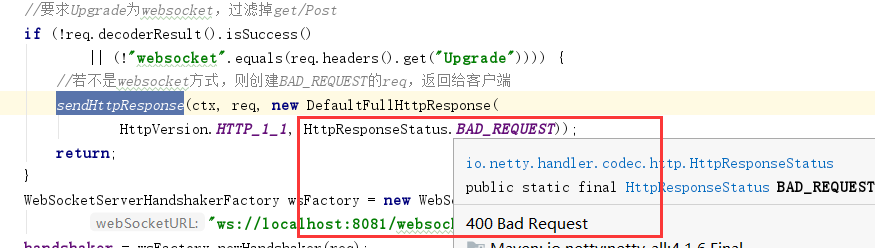

而浏览器相应到的bad reques对应NioWebSocketHandler
的sendHttpResponse
的最后一个参数:

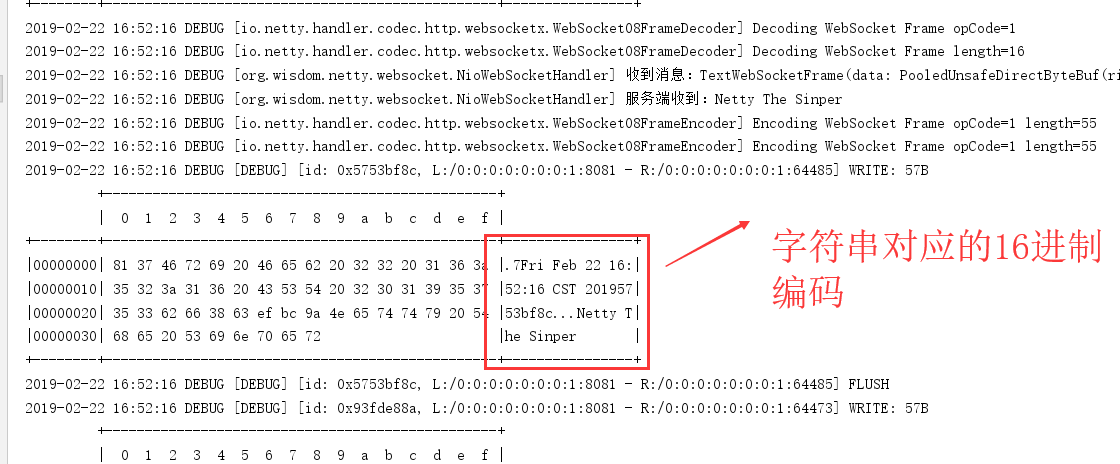

发送消息后:

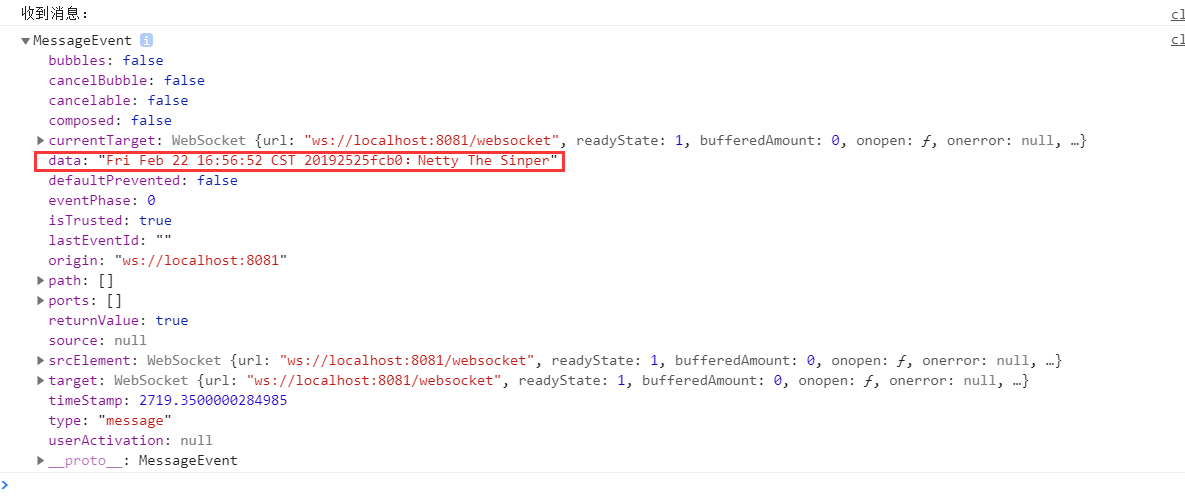

前端收到服务端推送的消息后:
前端需要在方法websocket.onmessage=function(messageEvent){}
通过messageEvent.data捕获消息
代码下载地址:https://github.com/Siwash/websocketWithNetty
