在原文基础上，增加5.10.13内核源码相关内容。

全局部变量
-------------------------------------------------------
1. jiffies = jiffies_64;
2. u64 jiffies_64;
3. struct clocksource clocksource_jiffies = {.name		= "jiffies", ...};
4. static struct clocksource refined_jiffies;
函数调用关系
1. 初始化
------------------------------------------------------- x86_64_start_kernel() x86_64_start_reservations() ... x86_intel_mid_early_setup() ...
      x86_init.timers.wallclock_init = intel_mid_rtc_init;
      ... start_kernel() ...
      setup_arch() ...
        x86_init.timers.wallclock_init() = intel_mid_rtc_init()
        ...
        register_refined_jiffies(CLOCK_TICK_RATE) __clocksource_register()
2. 使用
------------------------------------------------------- get_jiffies_64() `human` time units.
    1. To get one second	jiffies / HZ
    2. /* Thirty seconds from now */
		jiffies + 30*HZ
		/* Two minutes from now */
		jiffies + 120*HZ
		/* One millisecond from now */
		jiffies + HZ / 1000

1. Introduction

This is yet another post that opens a new chapter in the linux-insides book. The previous part described system call concepts, and now it’s time to start new chapter. As one might understand from the title, this chapter will be devoted to the timers and time management in the Linux kernel. The choice of topic for the current chapter is not accidental. Timers (and generally, time management) are very important and widely used in the Linux kernel. The Linux kernel uses timers for various tasks, for example different timeouts in the TCP implementation, the kernel knowing current time, scheduling asynchronous functions, next event interrupt scheduling and many many more.

So, we will start to learn implementation of the different time management related stuff in this part. We will see different types of timers and how different Linux kernel subsystems use them. As always, we will start from the earliest part of the Linux kernel and go through the initialization process of the Linux kernel. We already did it in the special chapter which describes the initialization process of the Linux kernel, but as you may remember we missed some things there. And one of them is the initialization of timers.

Let’s start.

2. Initialization of non-standard PC hardware clock

After the Linux kernel was decompressed (more about this you can read in the Kernel decompression part) the architecture non-specific code starts to work in the init/main.c source code file. After initialization of the lock validator, initialization of cgroups and setting canary value we can see the call of the setup_arch function.

  start_kernel() ...
    setup_arch()
    ...
    sched_init()
    ...
    init_IRQ()
    ...
    init_timers()
    ...
    arch_call_rest_init() rest_init() kernel_thread() kernel_init() => PID=1
          kernel_init()
   			->kernel_init_freeable()
	   			  ->do_basic_setup()
	   				->do_initcalls()
	   				  ->do_initcall_level()
	   					->do_one_initcall()
	   					  ->xxx__initcall()
        kernel_thread() kthreadd() => PID=2 cpu_startup_entry() while (1) do_idle(); prevent_tail_call_optimization()

As you may remember, this function (defined in the arch/x86/kernel/setup.c) prepares/initializes architecture-specific stuff (for example it reserves a place for bss section, reserves a place for initrd, parses kernel command line, and many, many other things). Besides this, we can find some time management related functions there.

The first is:

x86_init.timers.wallclock_init();

We already saw x86_init structure in the chapter that describes initialization of the Linux kernel. This structure contains pointers to the default setup functions for the different platforms like Intel MID, Intel CE4100, etc. The x86_init structure is defined in the arch/x86/kernel/x86_init.c, and as you can see it determines standard PC hardware by default.

As we can see, the x86_init structure has the x86_init_ops type that provides a set of functions for platform specific setup like reserving standard resources, platform specific memory setup, initialization of interrupt handlers, etc. This structure looks like:

struct x86_init_ops {
	struct x86_init_resources       resources;
    struct x86_init_mpparse         mpparse;
    struct x86_init_irqs            irqs;
    struct x86_init_oem             oem;
    struct x86_init_paging          paging;
    struct x86_init_timers          timers;
    struct x86_init_iommu           iommu;
    struct x86_init_pci             pci;
};

Note the timers field that has the x86_init_timers type. We can understand by its name that this field is related to time management and timers. x86_init_timers contains four fields which are all functions that returns pointer on void:

• setup_percpu_clockev - set up the per cpu clock event device for the boot cpu;
• tsc_pre_init - platform function called before TSC init;
• timer_init - initialize the platform timer;
• wallclock_init - initialize the wallclock device.

5.10.13中已经没有了tsc_pre_init。

So, as we already know, in our case the wallclock_init executes initialization of the wallclock device. If we look on the x86_init structure, we see that wallclock_init points to the x86_init_noop:

struct x86_init_ops x86_init __initdata = {
	...
	.timers = {
		.wallclock_init		    = x86_init_noop,
	},
	...
}

Where the x86_init_noop is just a function that does nothing:

void __cpuinit x86_init_noop(void) { }

但是在5.10.13中该函数指针是指向函数x86_wallclock_init的，如下定义：

/*
 * Allow devicetree configured systems to disable the RTC by setting the
 * corresponding DT node's status property to disabled. Code is optimized
 * out for CONFIG_OF=n builds.
 */
static __init void x86_wallclock_init(void)
{
	struct device_node *node = of_find_matching_node(NULL, of_cmos_match);

	if (node && !of_device_is_available(node)) {
		x86_platform.get_wallclock = get_rtc_noop;
		x86_platform.set_wallclock = set_rtc_noop;
	}
}

for the standard PC hardware. Actually, the wallclock_init function is used in the Intel MID platform. Initialization of the x86_init.timers.wallclock_init is located in the arch/x86/platform/intel-mid/intel-mid.c source code file in the x86_intel_mid_early_setup function:

void __init x86_intel_mid_early_setup(void)
{
	...
	x86_init.timers.wallclock_init = intel_mid_rtc_init;
	...
}

Implementation of the intel_mid_rtc_init function is in the arch/x86/platform/intel-mid/intel_mid_vrtc.c source code file and looks pretty simple. First of all, this function parses Simple Firmware Interface M-Real-Time-Clock table for getting such devices to the sfi_mrtc_array array and initialization of the set_time and get_time functions:

void __init intel_mid_rtc_init(void)
{
	unsigned long vrtc_paddr;

	sfi_table_parse(SFI_SIG_MRTC, NULL, NULL, sfi_parse_mrtc);

	vrtc_paddr = sfi_mrtc_array[0].phys_addr;
	if (!sfi_mrtc_num || !vrtc_paddr)
		return;

	vrtc_virt_base = (void __iomem *)set_fixmap_offset_nocache(FIX_LNW_VRTC,
								vrtc_paddr);

    x86_platform.get_wallclock = vrtc_get_time;
	x86_platform.set_wallclock = vrtc_set_mmss;
}

That’s all, after this a device based on Intel MID will be able to get time from the hardware clock. As I already wrote, the standard PC x86_64 architecture does not support x86_init_noop and just do nothing during call of this function. We just saw initialization of the real time clock for the Intel MID architecture, now it’s time to return to the general x86_64 architecture and will look on the time management related stuff there.

3. Acquainted with jiffies

If we return to the setup_arch function (which is located, as you remember, in the arch/x86/kernel/setup.c source code file), we see the next call of the time management related function:

register_refined_jiffies(CLOCK_TICK_RATE);

Before we look at the implementation of this function, we must know about jiffy. As we can read on wikipedia:

Jiffy is an informal term for any unspecified short period of time

This definition is very similar to the jiffy in the Linux kernel. There is global variable with the jiffies which holds the number of ticks that have occurred since the system booted. The Linux kernel sets this variable to zero:

extern unsigned long volatile __jiffy_data jiffies;

during initialization process. This global variable will be increased each time during timer interrupt. Besides this, near the jiffies variable we can see the definition of the similar variable

extern u64 jiffies_64;

在5.10.13中是这样的：

/*
 * Have the 32 bit jiffies value wrap 5 minutes after boot
 * so jiffies wrap bugs show up earlier.
 */
#define INITIAL_JIFFIES ((unsigned long)(unsigned int) (-300*HZ))

__visible u64 __cacheline_aligned_in_smp jiffies_64  = INITIAL_JIFFIES;

EXPORT_SYMBOL(jiffies_64);

Actually, only one of these variables is in use in the Linux kernel, and it depends on the processor type. For the x86_64 it will be u64 use and for the x86 it’s unsigned long. We see this looking at the arch/x86/kernel/vmlinux.lds.S linker script:

#ifdef CONFIG_X86_32
...
jiffies = jiffies_64;
...
#else
...
jiffies_64 = jiffies;
...
#endif

In the case of x86_32 the jiffies will be the lower 32 bits of the jiffies_64 variable. Schematically, we can imagine it as follows

                    jiffies_64
+-----------------------------------------------------+
|                       |                             |
|                       |                             |
|                       |       jiffies on `x86_32`   |
|                       |                             |
|                       |                             |
+-----------------------------------------------------+
63                     31                             0

Now we know a little theory about jiffies and can return to our function. There is no architecture-specific implementation for our function - the register_refined_jiffies. This function is located in the generic kernel code - kernel/time/jiffies.c source code file. Main point of the register_refined_jiffies is registration of the jiffy clocksource. Before we look on the implementation of the register_refined_jiffies function, we must know what clocksource is. As we can read in the comments:

The `clocksource` is hardware abstraction for a free-running counter.

I’m not sure about you, but that description didn’t give a good understanding about the clocksource concept. Let’s try to understand what is it, but we will not go deeper because this topic will be described in a separate part in much more detail. The main point of the clocksource is timekeeping abstraction or in very simple words - it provides a time value to the kernel. We already know about the jiffies interface that represents number of ticks that have occurred since the system booted. It is represented by a global variable in the Linux kernel and increases each timer interrupt. The Linux kernel can use jiffies for time measurement. So why do we need in separate context like the clocksource? Actually, different hardware devices provide different clock sources that are varied in their capabilities. The availability of more precise techniques for time intervals measurement is hardware-dependent.

For example **x86 has on-chip a 64-bit counter **that is called Time Stamp Counter and its frequency can be equal to processor frequency. Or for example the High Precision Event Timer, that consists of a 64-bit counter of at least 10 MHz frequency. Two different timers and they are both for x86. If we will add timers from other architectures, this only makes this problem more complex. The Linux kernel provides the clocksource concept to solve the problem.

The clocksource concept is represented by the clocksource structure in the Linux kernel. This structure is defined in the include/linux/clocksource.h header file and contains a couple of fields that describe a time counter. For example, it contains - name field which is the name of a counter, flags field that describes different properties of a counter, pointers to the suspend and resume functions, and many more.

Let’s look at the clocksource structure for jiffies that is defined in the kernel/time/jiffies.c source code file:

static struct clocksource clocksource_jiffies = {
	.name		= "jiffies",
	.rating		= 1,
	.read		= jiffies_read,
	.mask		= 0xffffffff,
	.mult		= NSEC_PER_JIFFY << JIFFIES_SHIFT,
	.shift		= JIFFIES_SHIFT,
	.max_cycles	= 10,
};

We can see the definition of the default name here - jiffies. The next is the rating field, which allows the best registered clock source to be chosen by the clock source management code available for the specified hardware. The rating may have following value:

• 1-99 - Only available for bootup and testing purposes;
• 100-199 - Functional for real use, but not desired.
• 200-299 - A correct and usable clocksource.
• 300-399 - A reasonably fast and accurate clocksource.
• 400-499 - The ideal clocksource. A must-use where available;

For example, rating of the time stamp counter is 300, but rating of the high precision event timer is 250. The next field is read - it is pointer to the function that allows it to read clocksource’s cycle value; or in other words, it just returns jiffies variable with cycle_t type:

static cycle_t jiffies_read(struct clocksource *cs)
{
        return (cycle_t) jiffies;
}

that is just 64-bit unsigned type:

typedef u64 cycle_t;

The next field is the mask value, which ensures that subtraction between counters values from non 64 bit counters do not need special overflow logic. In our case the mask is 0xffffffff and it is 32 bits. This means that jiffy wraps around to zero after 42 seconds:

>>> 0xffffffff
4294967295
# 42 nanoseconds
>>> 42 * pow(10, -9)
4.2000000000000006e-08
# 43 nanoseconds
>>> 43 * pow(10, -9)
4.3e-08

The next two fields mult and shift are used to convert the clocksource’s period to nanoseconds per cycle. When the kernel calls the clocksource.read function, this function returns a value in machine time units represented with cycle_t data type that we saw just now. To convert this return value to nanoseconds we need these two fields: mult and shift. The clocksource provides the clocksource_cyc2ns function that will do it for us with the following expression:

((u64) cycles * mult) >> shift;

As we can see the mult field is equal:

NSEC_PER_JIFFY << JIFFIES_SHIFT

#define NSEC_PER_JIFFY  ((NSEC_PER_SEC+HZ/2)/HZ)
#define NSEC_PER_SEC    1000000000L

by default, and the shift is

#if HZ < 34
  #define JIFFIES_SHIFT   6
#elif HZ < 67
  #define JIFFIES_SHIFT   7
#else
  #define JIFFIES_SHIFT   8
#endif

The jiffies clock source uses the NSEC_PER_JIFFY multiplier conversion to specify the nanosecond over cycle ratio. Note that values of the JIFFIES_SHIFT and NSEC_PER_JIFFY depend on HZ value. The HZ represents the frequency of the system timer. This macro defined in the include/asm-generic/param.h and depends on the CONFIG_HZ kernel configuration option. The value of HZ differs for each supported architecture, but for x86 it’s defined like:

#define HZ		CONFIG_HZ

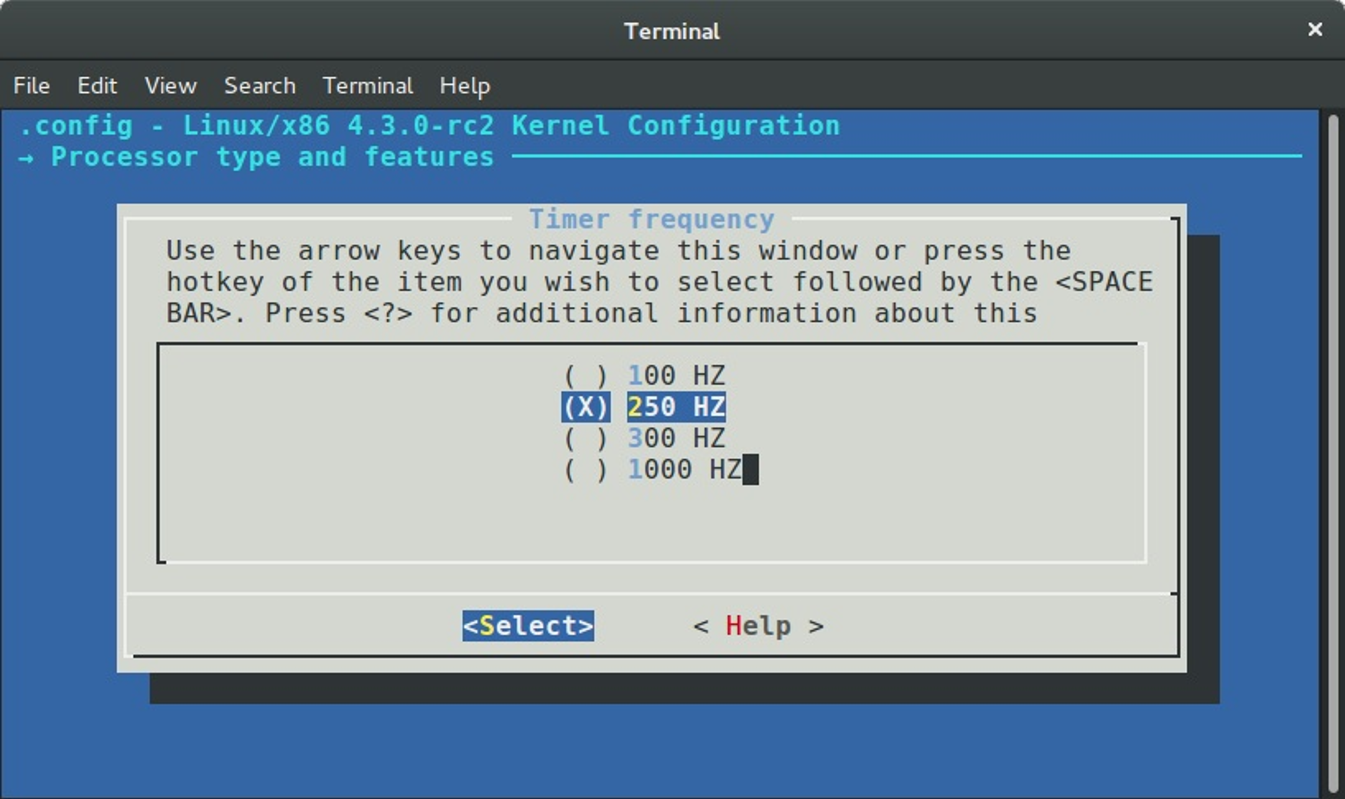

Where CONFIG_HZ can be one of the following values:

This means that in our case the timer interrupt frequency is 250 HZ or occurs 250 times per second or one timer interrupt each 4ms.

The last field that we can see in the definition of the clocksource_jiffies structure is the - max_cycles that holds the maximum cycle value that can safely be multiplied without potentially causing an overflow.

Ok, we just saw definition of the clocksource_jiffies structure, also we know a little about jiffies and clocksource, now it is time to get back to the implementation of the our function. In the beginning of this part we have stopped on the call of the:

register_refined_jiffies(CLOCK_TICK_RATE);

function from the arch/x86/kernel/setup.c source code file.

As I already wrote, the main purpose of the register_refined_jiffies function is to register refined_jiffies clocksource. We already saw the clocksource_jiffies structure represents standard jiffies clock source. Now, if you look in the kernel/time/jiffies.c source code file, you will find yet another clock source definition:

struct clocksource refined_jiffies;

There is one difference between refined_jiffies and clocksource_jiffies: The standard jiffies based clock source is the lowest common denominator clock source which should function on all systems. As we already know, the jiffies global variable will be increased during each timer interrupt. This means the that standard jiffies based clock source has the same resolution as the timer interrupt frequency. From this we can understand that standard jiffies based clock source may suffer from inaccuracies. The refined_jiffies uses CLOCK_TICK_RATE as the base of jiffies shift.

Let’s look at the implementation of this function. First of all, we can see that the refined_jiffies clock source based on the clocksource_jiffies structure:

static struct clocksource clocksource_jiffies = {
	.name		= "jiffies",
	.rating		= 1, /* lowest valid rating*/
	.read		= jiffies_read,
	.mask		= CLOCKSOURCE_MASK(32),

    // `mult` and `shift` are used to convert the clocksource's period to nanoseconds per cycle
    //  clocksource_cyc2ns()
	.mult		= TICK_NSEC << JIFFIES_SHIFT, /* details above */
	.shift		= JIFFIES_SHIFT,
	.max_cycles	= 10,
};

static struct clocksource refined_jiffies;

int register_refined_jiffies(long cycles_per_second)
{
	u64 nsec_per_tick, shift_hz;
	long cycles_per_tick;

	refined_jiffies = clocksource_jiffies;
	refined_jiffies.name = "refined-jiffies";
	refined_jiffies.rating++;
	...
	...
	...

Here we can see that we update the name of the refined_jiffies to refined-jiffies and increase the rating of this structure. As you remember, the clocksource_jiffies has rating - 1, so our refined_jiffies clocksource will have rating - 2. This means that the refined_jiffies will be the best selection for clock source management code.

In the next step we need to calculate number of cycles per one tick:

cycles_per_tick = (cycles_per_second + HZ/2)/HZ;

Note that we have used NSEC_PER_SEC macro as the base of the standard jiffies multiplier. Here we are using the cycles_per_second which is the first parameter of the register_refined_jiffies function. We’ve passed the CLOCK_TICK_RATE macro to the register_refined_jiffies function. This macro is defined in the arch/x86/include/asm/timex.h header file and expands to the:

#define CLOCK_TICK_RATE         PIT_TICK_RATE

where the PIT_TICK_RATE macro expands to the frequency of the [Intel 8253](Programmable interval timer):

#define PIT_TICK_RATE 1193182ul

After this we calculate shift_hz for the register_refined_jiffies that will store hz << 8 or in other words frequency of the system timer. We shift left the cycles_per_second or frequency of the programmable interval timer on 8 in order to get extra accuracy:

shift_hz = (u64)cycles_per_second << 8;
shift_hz += cycles_per_tick/2;
do_div(shift_hz, cycles_per_tick);

In the next step we calculate the number of seconds per one tick by shifting left the NSEC_PER_SEC on 8 too as we did it with the shift_hz and do the same calculation as before:

nsec_per_tick = (u64)NSEC_PER_SEC << 8;
nsec_per_tick += (u32)shift_hz/2;
do_div(nsec_per_tick, (u32)shift_hz);

refined_jiffies.mult = ((u32)nsec_per_tick) << JIFFIES_SHIFT;

In the end of the register_refined_jiffies function we register new clock source with the __clocksource_register function that is defined in the include/linux/clocksource.h header file and return:

__clocksource_register(&refined_jiffies);
return 0;

该函数最终会将该结构写入一个双向链表中：

/*
 * Enqueue the clocksource sorted by rating
 */
static void clocksource_enqueue(struct clocksource *cs)
{
	struct list_head *entry = &clocksource_list;
	struct clocksource *tmp;

	list_for_each_entry(tmp, &clocksource_list, list) {
		/* Keep track of the place, where to insert */
		if (tmp->rating < cs->rating)
			break;
		entry = &tmp->list;
	}
	list_add(&cs->list, entry);
}

The clock source management code provides the API for clock source registration and selection. As we can see, clock sources are registered by calling the __clocksource_register function during kernel initialization or from a kernel module. During registration, the clock source management code will choose the best clock source available in the system using the clocksource.rating field which we already saw when we initialized clocksource structure for jiffies.

4. Using the jiffies

We just saw initialization of two jiffies based clock sources in the previous paragraph:

• standard jiffies based clock source;
• refined jiffies based clock source;

Don’t worry if you don’t understand the calculations here. They look frightening at first. Soon, step by step we will learn these things. So, we just saw initialization of jiffies based clock sources and also we know that the Linux kernel has the global variable jiffies that holds the number of ticks that have occurred since the kernel started to work. Now, let’s look how to use it. To use jiffies we just can use the jiffies global variable by its name or with the call of the get_jiffies_64 function. This function defined in the kernel/time/jiffies.c source code file and just returns full 64-bit value of the jiffies:

u64 get_jiffies_64(void)
{
	unsigned long seq;
	u64 ret;

	do {
		seq = read_seqbegin(&jiffies_lock);
		ret = jiffies_64;
	} while (read_seqretry(&jiffies_lock, seq));
	return ret;
}
EXPORT_SYMBOL(get_jiffies_64);

Note that the get_jiffies_64 function does not implemented as jiffies_read for example:

static cycle_t jiffies_read(struct clocksource *cs)
{
	return (cycle_t) jiffies;
}

We can see that implementation of the get_jiffies_64 is more complex. The reading of the jiffies_64 variable is implemented using seqlocks. Actually this is done for machines that cannot atomically read the full 64-bit values.

If we can access the jiffies or the jiffies_64 variable we can convert it to human time units. To get one second we can use following expression:

jiffies / HZ

So, if we know this, we can get any time units. For example:

/* Thirty seconds from now */
jiffies + 30*HZ

/* Two minutes from now */
jiffies + 120*HZ

/* One millisecond from now */
jiffies + HZ / 1000

That’s all.

5. Conclusion

This concludes the first part covering time and time management related concepts in the Linux kernel. We first met two concepts and their initialization: jiffies and clocksource. In the next part we will continue to dive into this interesting theme, and as I already wrote in this part, we will try to understand the insides of these and other time management concepts in the Linux kernel.

If you have questions or suggestions, feel free to ping me in twitter 0xAX, drop me email or just create issue.

Please note that English is not my first language and I am really sorry for any inconvenience. If you found any mistakes please send me PR to linux-insides.

6. Links

• system call
• TCP
• lock validator
• cgroups
• bss
• initrd
• Intel MID
• TSC
• void
• Simple Firmware Interface
• x86_64
• real time clock
• Jiffy
• high precision event timer
• nanoseconds
• Intel 8253
• seqlocks
• cloksource documentation
• Previous chapter
