概述

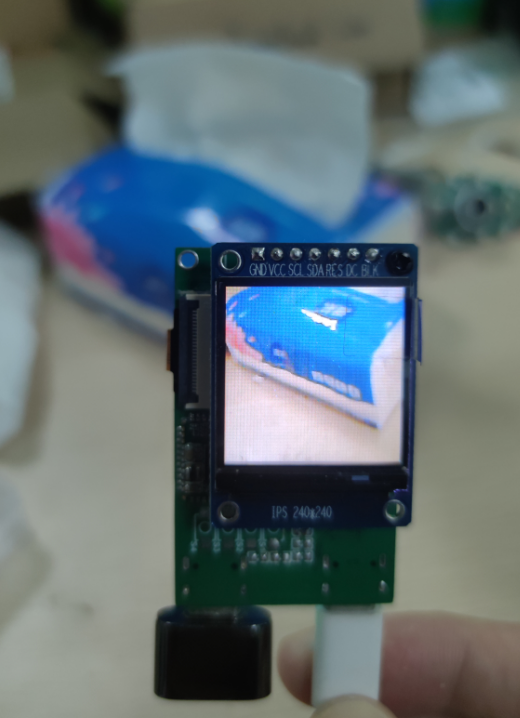

全志V3S 驱动OV2640 OV7725把图像显示到LCD屏上
文章目录
- 全志V3S 驱动OV2640 OV7725把图像显示到LCD屏上
- 一、设备树添加摄像头驱动
- 二、摄像头编译到内核
- 三、编译重启查看启动log是否正常
- 1.OV7725启动
- 2.OV2640启动
- 四、C实现摄像头捕获图像显示到fb

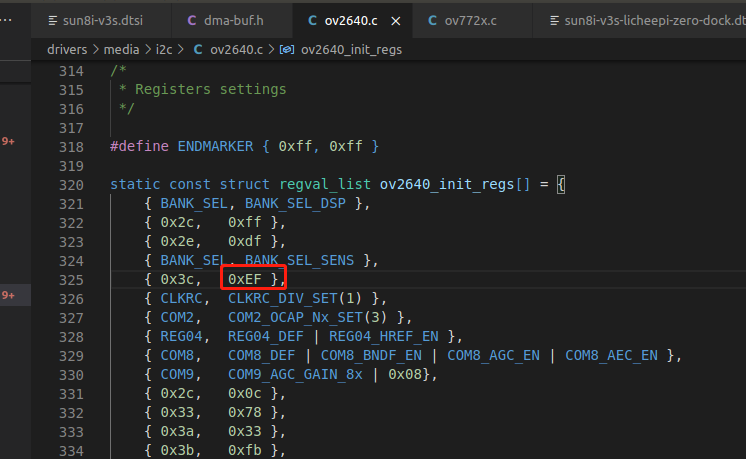

- 五、OV2640注意
一、设备树添加摄像头驱动
我使用的内核是最新的主线5.10内核，在sun8i_v3s.dtsi中修改如下：
pio: pinctrl@1c20800 {
compatible = "allwinner,sun8i-v3s-pinctrl";
reg = <0x01c20800 0x400>;
interrupts = <GIC_SPI 15 IRQ_TYPE_LEVEL_HIGH>,
<GIC_SPI 17 IRQ_TYPE_LEVEL_HIGH>;
clocks = <&ccu CLK_BUS_PIO>, <&osc24M>, <&rtc 0>;
clock-names = "apb", "hosc", "losc";
gpio-controller;
#gpio-cells = <3>;
interrupt-controller;
#interrupt-cells = <3>;
/omit-if-no-ref/
csi1_8bit_pins: csi1-8bit-pins {
pins = "PE0", "PE2", "PE3", "PE8", "PE9",
"PE10", "PE11", "PE12", "PE13", "PE14",
"PE15";
function = "csi";
};
/omit-if-no-ref/
csi1_mclk_pin: csi1-mclk-pin {
pins = "PE1";
function = "csi";
};
csi1_clk: csi1-clk@0 {
pins = "PE0","PE2","PE3";
bias-disable;
function = "csi";
};
csi1_8bit: csi1-8bit@0 {
pins = "PE6","PE7","PE8","PE9","PE10","PE11","PE12","PE13","PE14","PE15";
bias-disable;
function = "csi";
};
csi1_mclk: csi1-mclk@0 {
pins = "PE1";
bias-disable;
function = "csi";
};
i2c0_pins: i2c0-pins {
pins = "PB6", "PB7";
function = "i2c0";
};
/omit-if-no-ref/
i2c1_pe_pins: i2c1-pe-pins {
pins = "PE21", "PE22";
function = "i2c1";
};
i2c1_pins: i2c1-pins {
pins = "PE21", "PE22";
function = "i2c1";
};
uart0_pb_pins: uart0-pb-pins {
pins = "PB8", "PB9";
function = "uart0";
};
uart2_pins: uart2-pins {
pins = "PB0", "PB1";
function = "uart2";
};
mmc0_pins: mmc0-pins {
pins = "PF0", "PF1", "PF2", "PF3",
"PF4", "PF5";
function = "mmc0";
drive-strength = <30>;
bias-pull-up;
};
mmc1_pins: mmc1-pins {
pins = "PG0", "PG1", "PG2", "PG3",
"PG4", "PG5";
function = "mmc1";
drive-strength = <30>;
bias-pull-up;
};
spi0_pins: spi0-pins {
pins = "PC0", "PC1", "PC2", "PC3";
function = "spi0";
};
};
csi1: csi@1cb4000 {
compatible = "allwinner,sun8i-v3s-csi";
reg = <0x01cb4000 0x3000>;
interrupts = <GIC_SPI 84 IRQ_TYPE_LEVEL_HIGH>;
clocks = <&ccu CLK_BUS_CSI>,
<&ccu CLK_CSI1_SCLK>,
<&ccu CLK_DRAM_CSI>;
clock-names = "bus", "mod", "ram";
resets = <&ccu RST_BUS_CSI>;
status = "okay";
};
最新的内核没有codec声卡，需要的话添加：
dma: dma-controller@01c02000 {
compatible = "allwinner,sun8i-v3s-dma";
reg = <0x01c02000 0x1000>;
interrupts = <GIC_SPI 50 IRQ_TYPE_LEVEL_HIGH>;
clocks = <&ccu CLK_BUS_DMA>;
resets = <&ccu RST_BUS_DMA>;
#dma-cells = <1>;
};
codec_analog: codec-analog@01c23000 {
compatible = "allwinner,sun8i-v3s-codec-analog";
reg = <0x01c23000 0x4>;
};
codec: codec@01c22c00 {
#sound-dai-cells = <0>;
compatible = "allwinner,sun8i-v3s-codec";
reg = <0x01c22c00 0x400>;
interrupts = <GIC_SPI 29 IRQ_TYPE_LEVEL_HIGH>;
clocks = <&ccu CLK_BUS_CODEC>, <&ccu CLK_AC_DIG>;
clock-names = "apb", "codec";
resets = <&ccu RST_BUS_CODEC>;
dmas = <&dma 15>, <&dma 15>;
dma-names = "rx", "tx";
allwinner,codec-analog-controls = <&codec_analog>;
status = "disabled";
};
最后在sun8i-v3s-licheepi-zero-dock.dts中添加如下，需要哪个摄像头就取消注释即可：
&csi1 {
status = "okay";
pinctrl-names = "default";
pinctrl-0 = <&csi1_clk &csi1_8bit>;
port {
// csi1_ep: endpoint {
// remote-endpoint = <&ov2640_0>;
// hsync-active = <0>;
// vsync-active = <0>;
// bus-width = <10>;
// pclk-sample = <1>;
// };
csi1_ep: endpoint {
remote-endpoint = <&ov7725_0>;
hsync-active = <0>;
vsync-active = <1>;
bus-width = <8>;
pclk-sample = <1>;
};
};
};
&i2c1 {
pinctrl-0 = <&i2c1_pins>;
pinctrl-names = "default";
clock-frequency = <400000>;
status = "okay";
ov7725: camera@21 {
compatible = "ovti,ov7725";
reg = <0x21>;
pinctrl-names = "default";
pinctrl-0 = <&csi1_mclk_pin>;
clocks = <&ccu CLK_CSI1_MCLK>;
clock-names = "xclk";
assigned-clocks = <&ccu CLK_CSI1_MCLK>;
assigned-clock-rates = <24000000>;
port {
ov7725_0: endpoint {
remote-endpoint = <&csi1_ep>;
//bus-width = <10>;
};
};
};
// ov2640: camera@30 {
// compatible = "ovti,ov2640";
// reg = <0x30>;
// pinctrl-names = "default";
// pinctrl-0 = <&csi1_mclk_pin>;
// clocks = <&ccu CLK_CSI1_MCLK>;
// clock-names = "xvclk";
// assigned-clocks = <&ccu CLK_CSI1_MCLK>;
// assigned-clock-rates = <24000000>;
// port {
// ov2640_0: endpoint {
// remote-endpoint = <&csi1_ep>;
// bus-width = <10>;
// };
// };
// };
};
&codec {
allwinner,audio-routing =
"Headphone", "HP",
"Headphone", "HPCOM",
"MIC1", "Mic",
"Mic", "HBIAS";
status = "okay";
};
&ohci0 {
status = "okay";
};
&ehci0 {
status = "okay";
};
二、摄像头编译到内核

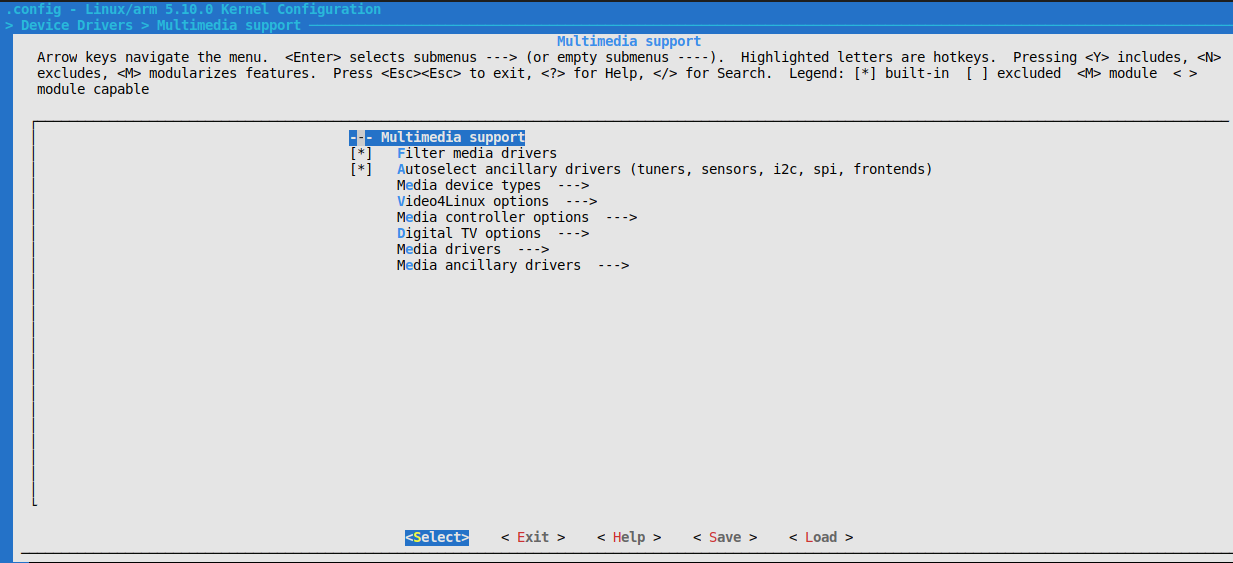

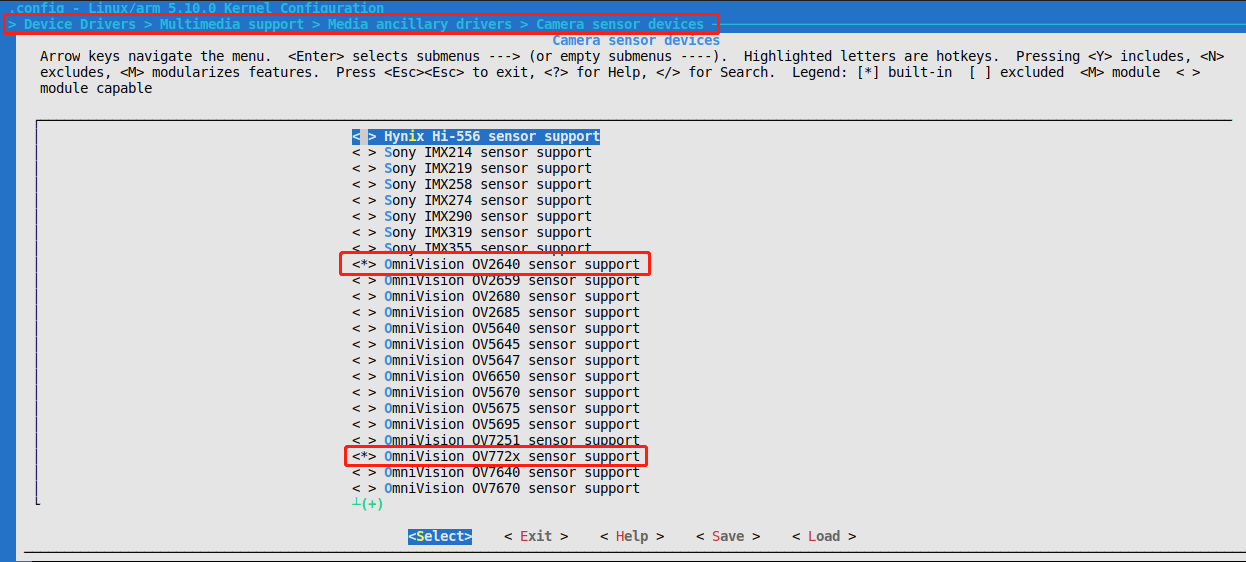

把需要的摄像头编译到内核，这里使用的是OV7725和OV2640，同时把videobuf2编译到内核才会有video0节点。

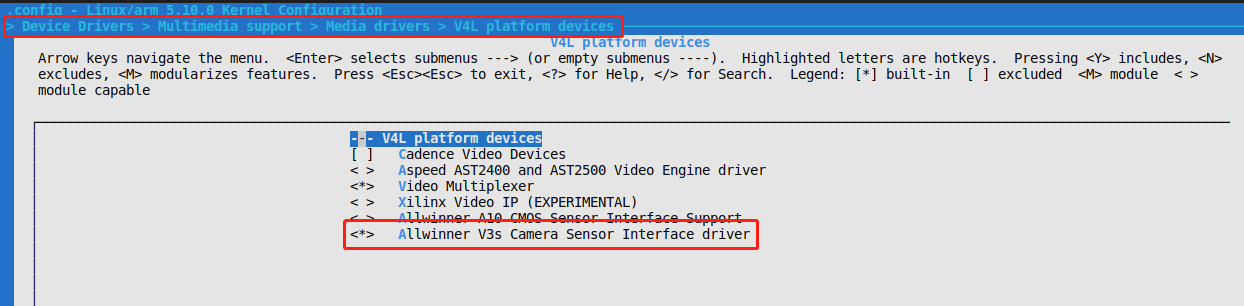

编译到内核后要拍照还要打开video0节点，也就是把video-buff2编译到内核：
三、编译重启查看启动log是否正常

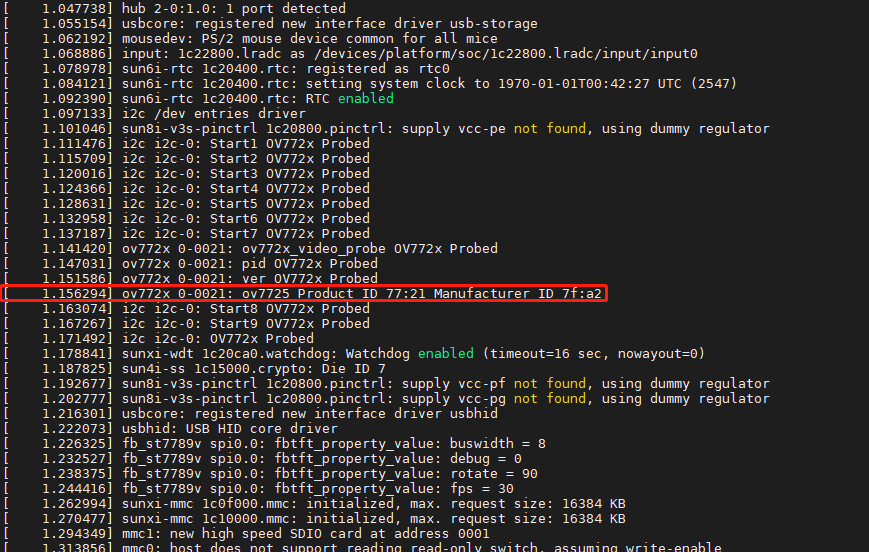

1.OV7725启动

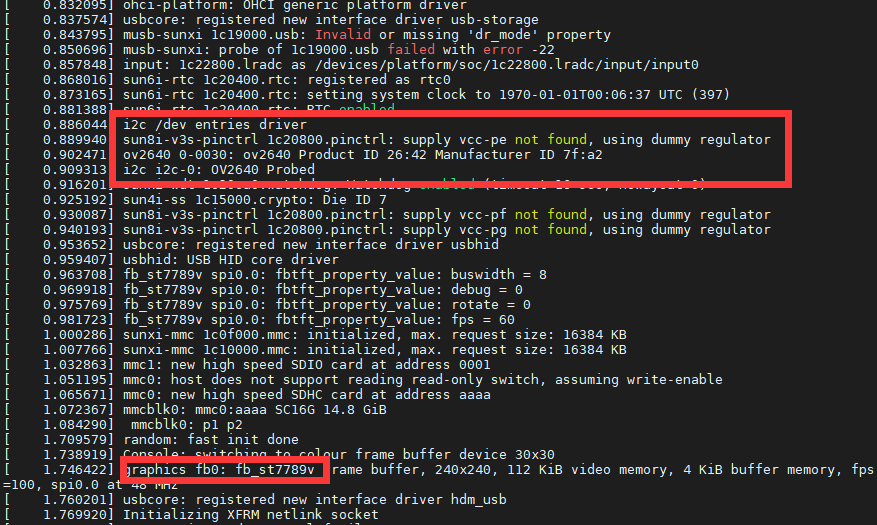

2.OV2640启动

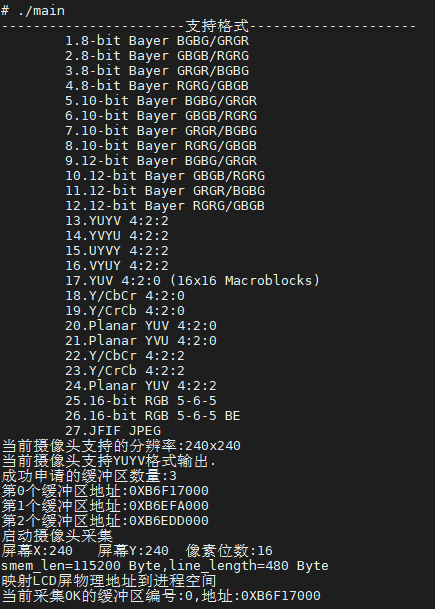

四、C实现摄像头捕获图像显示到fb
首先需要安装arm-linux-gcc交叉编译工具链，
工作流程如下：
1、打开video0和fb0
2、初始化v4l2的格式为YUYV和画面大小为240x240（我的摄像头改了驱动为240*240为了适配ST7789V屏幕尺寸），申请buff用于捕获缓冲，打开mmap把图像复制到fb
3、初始化fb的参数，获取系统参数
4、开始捕获，获取YUYV，转换为YUV，然后转为RGB，显示到fb
使用以下代码：
#include <stdio.h>
#include <string.h>
#include <stdlib.h>
#include <fcntl.h>
#include <unistd.h>
#include <ctype.h>
#include <errno.h>
#include <sys/mman.h>
#include <sys/time.h>
#include <asm/types.h>
#include <linux/videodev2.h>
#include <linux/fb.h>
#include <sys/stat.h>
#include <sys/ioctl.h>
#include <poll.h>
#include <math.h>
#include <wchar.h>
#include <time.h>
#include <stdbool.h>
#define CAM_WIDTH 240
#define CAM_HEIGHT 240
static char *dev_video;
static char *dev_fb0;
static char *yuv_buffer;
static char *rgb_buffer;
typedef unsigned int u32;
typedef unsigned short u16;
typedef unsigned char u8;
#define YUVToRGB(Y)
((u16)((((u8)(Y) >> 3) << 11) | (((u8)(Y) >> 2) << 5) | ((u8)(Y) >> 3)))
struct v4l2_buffer video_buffer;
/*全局变量*/
int lcd_fd;
int video_fd;
unsigned char *lcd_mem_p = NULL; //保存LCD屏映射到进程空间的首地址
struct fb_var_screeninfo vinfo;
struct fb_fix_screeninfo finfo;
char *video_buff_buff[4]; /*保存摄像头缓冲区的地址*/
int video_height = 0;
int video_width = 0;
unsigned char *lcd_display_buff; //LCD显存空间
unsigned char *lcd_display_buff2; //LCD显存空间
static void errno_exit(const char *s)
{
fprintf(stderr, "%s error %d, %sn", s, errno, strerror(errno));
exit(EXIT_FAILURE);
}
static int xioctl(int fh, int request, void *arg)
{
int r;
do {
r = ioctl(fh, request, arg);
} while (-1 == r && EINTR == errno);
return r;
}
static int video_init(void)
{
struct v4l2_capability cap;
ioctl(video_fd, VIDIOC_QUERYCAP, &cap);
struct v4l2_fmtdesc dis_fmtdesc;
dis_fmtdesc.index = 0;
dis_fmtdesc.type = V4L2_BUF_TYPE_VIDEO_CAPTURE;
// printf("-----------------------支持格式---------------------n");
// while (ioctl(video_fd, VIDIOC_ENUM_FMT, &dis_fmtdesc) != -1) {
// printf("t%d.%sn", dis_fmtdesc.index + 1,
// dis_fmtdesc.description);
// dis_fmtdesc.index++;
// }
struct v4l2_format video_format;
video_format.type = V4L2_BUF_TYPE_VIDEO_CAPTURE;
video_format.fmt.pix.width = CAM_WIDTH;
video_format.fmt.pix.height = CAM_HEIGHT;
video_format.fmt.pix.pixelformat =
V4L2_PIX_FMT_YUYV; //使用JPEG格式帧，用于静态图像采集
ioctl(video_fd, VIDIOC_S_FMT, &video_format);
printf("当前摄像头支持的分辨率:%dx%dn", video_format.fmt.pix.width,
video_format.fmt.pix.height);
if (video_format.fmt.pix.pixelformat != V4L2_PIX_FMT_YUYV) {
printf("当前摄像头不支持YUYV格式输出.n");
video_height = video_format.fmt.pix.height;
video_width = video_format.fmt.pix.width;
//return -3;
} else {
video_height = video_format.fmt.pix.height;
video_width = video_format.fmt.pix.width;
printf("当前摄像头支持YUYV格式输出.width %d height %dn",
video_height, video_height);
}
/*3. 申请缓冲区*/
struct v4l2_requestbuffers video_requestbuffers;
memset(&video_requestbuffers, 0, sizeof(struct v4l2_requestbuffers));
video_requestbuffers.type = V4L2_BUF_TYPE_VIDEO_CAPTURE;
video_requestbuffers.count = 4;
video_requestbuffers.memory = V4L2_MEMORY_MMAP;
if (ioctl(video_fd, VIDIOC_REQBUFS, &video_requestbuffers))
return -4;
printf("成功申请的缓冲区数量:%dn", video_requestbuffers.count);
/*4. 得到每个缓冲区的地址: 将申请的缓冲区映射到进程空间*/
struct v4l2_buffer video_buffer;
memset(&video_buffer, 0, sizeof(struct v4l2_buffer));
int i;
for (i = 0; i < video_requestbuffers.count; i++) {
video_buffer.type = V4L2_BUF_TYPE_VIDEO_CAPTURE;
video_buffer.index = i;
video_buffer.memory = V4L2_MEMORY_MMAP;
if (ioctl(video_fd, VIDIOC_QUERYBUF, &video_buffer))
return -5;
/*映射缓冲区的地址到进程空间*/
video_buff_buff[i] =
mmap(NULL, video_buffer.length, PROT_READ | PROT_WRITE,
MAP_SHARED, video_fd, video_buffer.m.offset);
printf("第%d个缓冲区地址:%#Xn", i, video_buff_buff[i]);
}
/*5. 将缓冲区放入到采集队列*/
memset(&video_buffer, 0, sizeof(struct v4l2_buffer));
for (i = 0; i < video_requestbuffers.count; i++) {
video_buffer.type = V4L2_BUF_TYPE_VIDEO_CAPTURE;
video_buffer.index = i;
video_buffer.memory = V4L2_MEMORY_MMAP;
if (ioctl(video_fd, VIDIOC_QBUF, &video_buffer)) {
printf("VIDIOC_QBUF errorn");
return -6;
}
}
printf("启动摄像头采集n");
/*6. 启动摄像头采集*/
int opt_type = V4L2_BUF_TYPE_VIDEO_CAPTURE;
if (ioctl(video_fd, VIDIOC_STREAMON, &opt_type)) {
printf("VIDIOC_STREAMON errorn");
return -7;
}
return 0;
}
int lcd_init(void)
{
/*2. 获取可变参数*/
if (ioctl(lcd_fd, FBIOGET_VSCREENINFO, &vinfo))
return -2;
printf("屏幕X:%d 屏幕Y:%d 像素位数:%dn", vinfo.xres, vinfo.yres,
vinfo.bits_per_pixel);
//分配显存空间,完成图像显示
lcd_display_buff =
malloc(vinfo.xres * vinfo.yres * vinfo.bits_per_pixel / 8);
/*3. 获取固定参数*/
if (ioctl(lcd_fd, FBIOGET_FSCREENINFO, &finfo))
return -3;
printf("smem_len=%d Byte,line_length=%d Byten", finfo.smem_len,
finfo.line_length);
/*4. 映射LCD屏物理地址到进程空间*/
lcd_mem_p = (unsigned char *)mmap(0, finfo.smem_len,
PROT_READ | PROT_WRITE, MAP_SHARED,
lcd_fd, 0); //从文件的那个地方开始映射
memset(lcd_mem_p, 0xFFFFFFFF, finfo.smem_len);
printf("映射LCD屏物理地址到进程空间n");
return 0;
}
static void close_device(void)
{
if (-1 == close(video_fd))
errno_exit("close");
video_fd = -1;
if (-1 == close(lcd_fd))
errno_exit("close");
lcd_fd = -1;
}
static void open_device(void)
{
video_fd = open(dev_video, O_RDWR /* required */ | O_NONBLOCK, 0);
if (-1 == video_fd) {
fprintf(stderr, "Cannot open '%s': %d, %sn", dev_video, errno,
strerror(errno));
exit(EXIT_FAILURE);
}
lcd_fd = open(dev_fb0, O_RDWR, 0);
if (-1 == lcd_fd) {
fprintf(stderr, "Cannot open '%s': %d, %sn", dev_fb0, errno,
strerror(errno));
exit(EXIT_FAILURE);
}
}
/*
将YUV格式数据转为RGB
*/
void yuv_to_rgb(unsigned char *yuv_buffer, unsigned char *rgb_buffer,
int iWidth, int iHeight)
{
int x;
int z = 0;
unsigned char *ptr = rgb_buffer;
unsigned char *yuyv = yuv_buffer;
for (x = 0; x < iWidth * iHeight; x++) {
int r, g, b;
int y, u, v;
if (!z)
y = yuyv[0] << 8;
else
y = yuyv[2] << 8;
u = yuyv[1] - 128;
v = yuyv[3] - 128;
r = (y + (359 * v)) >> 8;
g = (y - (88 * u) - (183 * v)) >> 8;
b = (y + (454 * u)) >> 8;
*(ptr++) = (b > 255) ? 255 : ((b < 0) ? 0 : b);
*(ptr++) = (g > 255) ? 255 : ((g < 0) ? 0 : g);
*(ptr++) = (r > 255) ? 255 : ((r < 0) ? 0 : r);
if (z++) {
z = 0;
yuyv += 4;
}
}
}
void rgb24_to_rgb565(char *rgb24, char *rgb16)
{
int i = 0, j = 0;
for (i = 0; i < 240 * 240 * 3; i += 3) {
rgb16[j] = rgb24[i] >> 3; // B
rgb16[j] |= ((rgb24[i + 1] & 0x1C) << 3); // G
rgb16[j + 1] = rgb24[i + 2] & 0xF8; // R
rgb16[j + 1] |= (rgb24[i + 1] >> 5); // G
j += 2;
}
}
int main(int argc, char **argv)
{
dev_video = "/dev/video0";
dev_fb0 = "/dev/fb0";
open_device();
video_init();
lcd_init();
/*3. 读取摄像头的数据*/
struct pollfd video_fds;
video_fds.events = POLLIN;
video_fds.fd = video_fd;
memset(&video_buffer, 0, sizeof(struct v4l2_buffer));
rgb_buffer = malloc(CAM_WIDTH * CAM_HEIGHT * 3);
yuv_buffer = malloc(CAM_WIDTH * CAM_HEIGHT * 3);
unsigned char *rgb_p;
int w, h, i, j;
unsigned char r, g, b;
unsigned int c;
while (1) {
/*等待摄像头采集数据*/
poll(&video_fds, 1, -1);
/*得到缓冲区的编号*/
video_buffer.type = V4L2_BUF_TYPE_VIDEO_CAPTURE;
video_buffer.memory = V4L2_MEMORY_MMAP;
ioctl(video_fd, VIDIOC_DQBUF, &video_buffer);
printf("当前采集OK的缓冲区编号:%d,地址:%#X num:%dn",
video_buffer.index, video_buff_buff[video_buffer.index],
strlen(video_buff_buff[video_buffer.index]));
/*对缓冲区数据进行处理*/
yuv_to_rgb(video_buff_buff[video_buffer.index], yuv_buffer,
video_height, video_width);
rgb24_to_rgb565(yuv_buffer, rgb_buffer);
printf("显示屏进行显示n");
//显示屏进行显示: 将显存空间的数据拷贝到LCD屏进行显示
memcpy(lcd_mem_p, rgb_buffer,
vinfo.xres * vinfo.yres * vinfo.bits_per_pixel / 8);
/*将缓冲区放入采集队列*/
ioctl(video_fd, VIDIOC_QBUF, &video_buffer);
printf("将缓冲区放入采集队列n");
}
/*4. 关闭视频设备*/
close(video_fd);
return 0;
}
Makefile:
CROSS_COMPILE = /home/kevin/v3s/opt/arm-linux-gcc/gcc-4.6.4/bin/
CC = $(CROSS_COMPILE)arm-none-linux-gnueabi-gcc
main: main.c
$(CC) -o main main.c -static
执行make编译后拷贝到TF卡的BOOT分区，然后开机挂载TF卡的BOOT分区
mount /dev/mmcblk0p1 /mnt/ && cd /mnt
运行
./main
五、OV2640注意
当使用OV2640时，原驱动拍出来的照片很暗，需要调整0x3c寄存器的值为0xEF：
最后
以上就是魁梧眼神为你收集整理的全志V3S 驱动OV2640 OV7725把图像显示到ST7789V LCD屏上全志V3S 驱动OV2640 OV7725把图像显示到LCD屏上一、设备树添加摄像头驱动二、摄像头编译到内核三、编译重启查看启动log是否正常四、C实现摄像头捕获图像显示到fb五、OV2640注意的全部内容，希望文章能够帮你解决全志V3S 驱动OV2640 OV7725把图像显示到ST7789V LCD屏上全志V3S 驱动OV2640 OV7725把图像显示到LCD屏上一、设备树添加摄像头驱动二、摄像头编译到内核三、编译重启查看启动log是否正常四、C实现摄像头捕获图像显示到fb五、OV2640注意所遇到的程序开发问题。
如果觉得靠谱客网站的内容还不错，欢迎将靠谱客网站推荐给程序员好友。
本图文内容来源于网友提供，作为学习参考使用，或来自网络收集整理，版权属于原作者所有。
发表评论 取消回复
