【汇编语言】实验二

109 阅读 0 评论 72 点赞

我是靠谱客的博主老迟到黑夜，这篇文章主要介绍【汇编语言】实验二，现在分享给大家，希望可以做个参考。

X、Y、Z、V均为字变量，在X、Y、Z、V字单元中存放是16位带符号数。试编写汇编语言程序完成以下功能：
计算表达式值（V–（X*Y+Z-720））/X，将运算结果整数放在SUM1单元，余数放在SUM2单元。

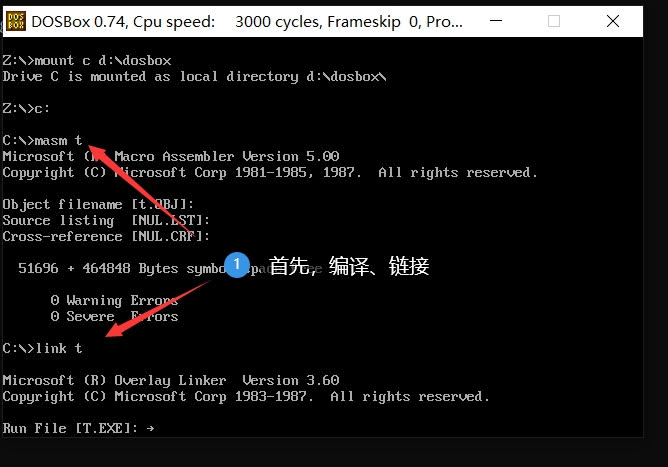

（1）在DOSBOX编译链接成可执行文件后，使用Debug装入内存。

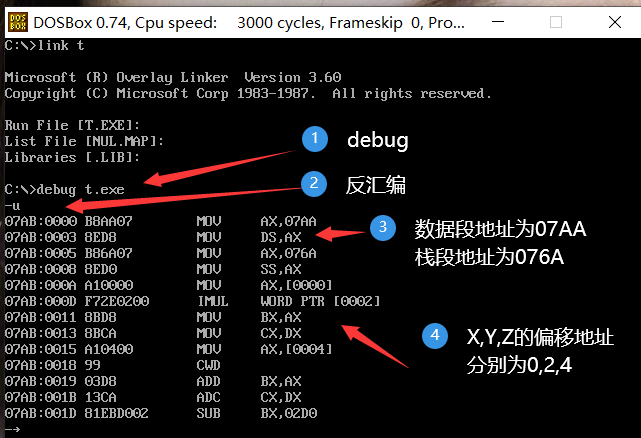

（2）使用U命令反汇编代码，并与源文件比对，需要注意数据段名、变量转入内存后的形式。

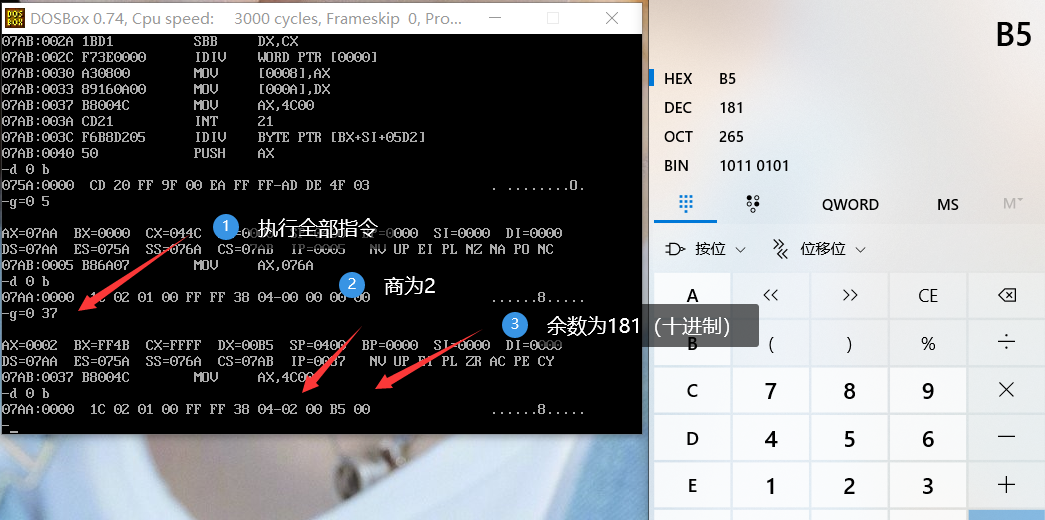

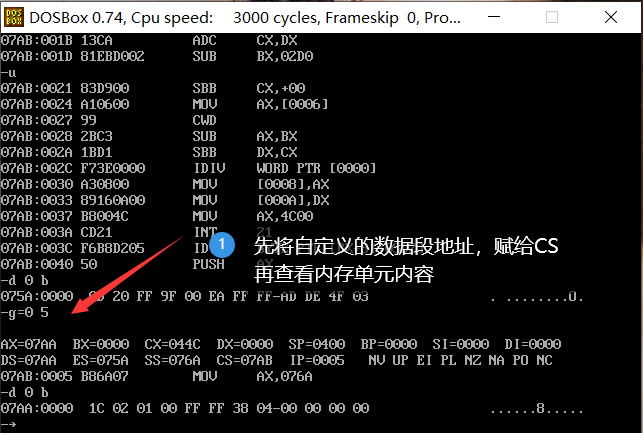

（3）分别在G命令执行前后，使用D命令查看各个变量的值。

复制代码

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
assume cs:code,ds:data,ss:stack
stack segment stack
db 1024 dup(?)
stack ends
data segment
X dw 540
Y dw 1
Z dw -1
V dw 1080
SUM1 dw ?
SUM2 dw ?
data ends
code segment
start:
	mov ax,data
	mov ds,ax
	mov ax,stack
	mov ss,ax
	mov ax,word ptr X
	imul word ptr Y
	mov bx,ax
	mov cx,dx
	mov ax,word ptr Z
	cwd
	add bx,ax
	adc cx,dx
	sub bx,720
	sbb cx,0
	mov ax,word ptr V
	cwd
	sub ax,bx
	sbb dx,cx
	idiv x
	mov word ptr SUM1,ax
	mov word ptr SUM2,dx
	mov ax,4c00h
	int 21h


code ends
end start

在这里插入图片描述

2、BL中的只有一位为0，编写程序测试0所在的位数（从左编号，最左边为第0位），并输出提示信息“The X Bit is 0”（X为0、1、2、3…7），要求使用地址表方法实现。

首先，没有用地址表的方法。

复制代码

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
assume cs:code,ds:data,ss:stack
stack segment stack
db 1024 dup(?)
stack ends
data segment
str1 db "The $"
str2 db " Bit is 0$"
data ends
code segment
printstr macro str	;宏--用于输出字符串
push ax
push dx
lea dx,str
mov ah,09h
int 21h
pop dx
pop ax
endm
printnum macro num	;宏--用于输出一个十进制的数
push ax
push dx
xor dx,dx
mov dx,30h
add dx,num
mov ah,02h
int 21h
pop dx
pop ax
endm
start:
	mov ax,data
	mov ds,ax
	mov ax,stack
	mov ss,ax
	mov bl,11011111b
	xor ax,ax			;记录位数
	xor dx,dx			;判断是否为0
	mov cx,8
again:	sar bl,1
	adc dx,0
	cmp dx,0
	jz done
	inc ax
	xor dx,dx
	loop again
done:	printstr str1
	printnum ax
	printstr str2
	mov ax,4c00h
	int 21h


code ends
end start

复制代码

assume cs:code,ds:data,ss:stack
stack segment stack
db 1024 dup(?)
stack ends
data segment
table dw l0,l1,l2,l3,l4,l5,l6,l7
str0 db 'The 0 Bit is 0$'
str1 db 'The 1 Bit is 0$'
str2 db 'The 2 Bit is 0$'
str3 db 'The 3 Bit is 0$'
str4 db 'The 4 Bit is 0$'
str5 db 'The 5 Bit is 0$'
str6 db 'The 6 Bit is 0$'
str7 db 'The 7 Bit is 0$'
str db 'bl = $'
data ends
code segment
printstr macro str	;宏--用于输出字符串
push ax
push dx
lea dx,str
mov ah,09h
int 21h
pop dx
pop ax
endm
printnum macro num	;宏--用于输出二进制字符
push ax
push cx
push dx
mov cx,8
mov al,num
xor dx,dx
again1:sar al,1
adc dx,30h
push dx
xor dx,dx
loop again1
mov cx,8
continue:pop dx
mov ah,02h
int 21h
loop continue
mov dl,62h
int 21h
mov dl,0dh
int 21h
mov dl,0ah
int 21h
pop dx
pop cx
pop ax
endm
start:
	mov ax,data
	mov ds,ax
	mov ax,stack
	mov ss,ax
	mov bl,11011111b
	printstr str
	printnum bl
	xor si,si
again:	sar bl,1
	inc si
	jc again
	dec si
	shl si,1
	jmp table[si]
l0:	mov dx,offset str0
	mov ah,09h
	int 21h
	jmp done
l1:	mov dx,offset str1
	mov ah,09h
	int 21h
	jmp done
l2:	mov dx,offset str2
	mov ah,09h
	int 21h
	jmp done
l3:	mov dx,offset str3
	mov ah,09h
	int 21h
	jmp done
l4:	mov dx,offset str4
	mov ah,09h
	int 21h
	jmp done
l5:	mov dx,offset str5
	mov ah,09h
	int 21h
	jmp done
l6:	mov dx,offset str6
	mov ah,09h
	int 21h
	jmp done
l7:	mov dx,offset str7
	mov ah,09h
	int 21h
done:	mov ax,4c00h
	int 21h

code ends
end start

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
assume cs:code,ds:data,ss:stack
stack segment stack
db 1024 dup(?)
stack ends
data segment
table dw l0,l1,l2,l3,l4,l5,l6,l7
str0 db 'The 0 Bit is 0$'
str1 db 'The 1 Bit is 0$'
str2 db 'The 2 Bit is 0$'
str3 db 'The 3 Bit is 0$'
str4 db 'The 4 Bit is 0$'
str5 db 'The 5 Bit is 0$'
str6 db 'The 6 Bit is 0$'
str7 db 'The 7 Bit is 0$'
str db 'bl = $'
data ends
code segment
printstr macro str	;宏--用于输出字符串
push ax
push dx
lea dx,str
mov ah,09h
int 21h
pop dx
pop ax
endm
printnum macro num	;宏--用于输出二进制字符
push ax
push cx
push dx
mov cx,8
mov al,num
xor dx,dx
again1:sar al,1
adc dx,30h
push dx
xor dx,dx
loop again1
mov cx,8
continue:pop dx
mov ah,02h
int 21h
loop continue
mov dl,62h
int 21h
mov dl,0dh
int 21h
mov dl,0ah
int 21h
pop dx
pop cx
pop ax
endm
start:
	mov ax,data
	mov ds,ax
	mov ax,stack
	mov ss,ax
	mov bl,11011111b
	printstr str
	printnum bl
	xor si,si
again:	sar bl,1
	inc si
	jc again
	dec si
	shl si,1
	jmp table[si]
l0:	mov dx,offset str0
	mov ah,09h
	int 21h
	jmp done
l1:	mov dx,offset str1
	mov ah,09h
	int 21h
	jmp done
l2:	mov dx,offset str2
	mov ah,09h
	int 21h
	jmp done
l3:	mov dx,offset str3
	mov ah,09h
	int 21h
	jmp done
l4:	mov dx,offset str4
	mov ah,09h
	int 21h
	jmp done
l5:	mov dx,offset str5
	mov ah,09h
	int 21h
	jmp done
l6:	mov dx,offset str6
	mov ah,09h
	int 21h
	jmp done
l7:	mov dx,offset str7
	mov ah,09h
	int 21h
done:	mov ax,4c00h
	int 21h


code ends
end start

在这里插入图片描述

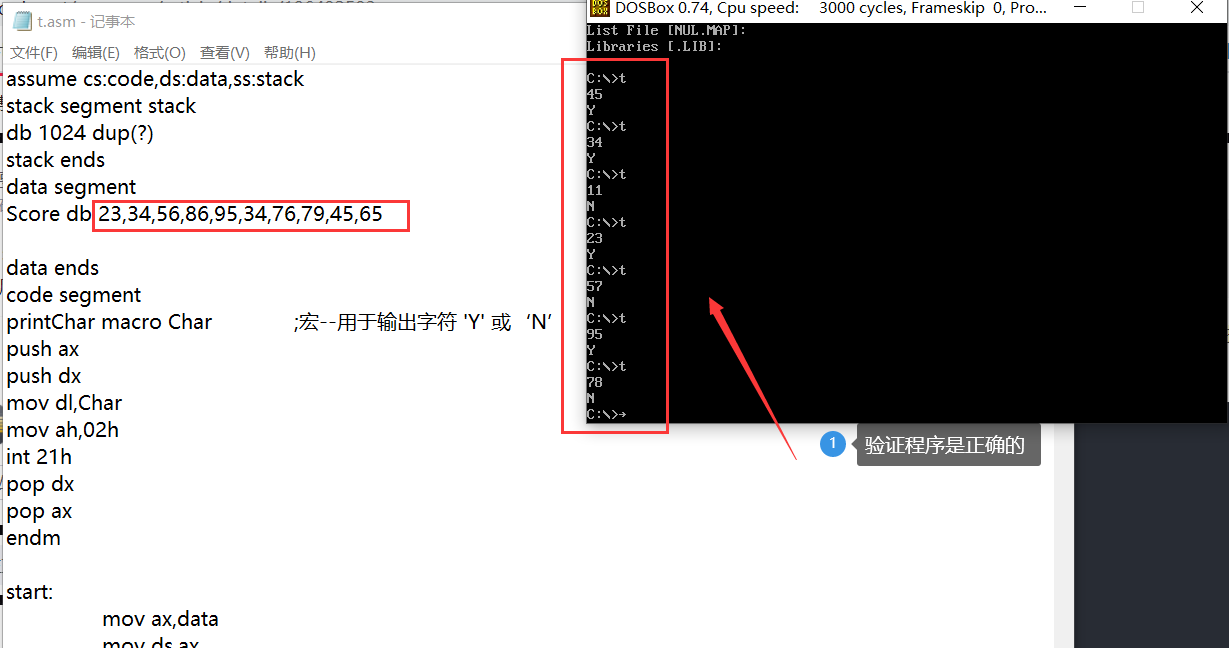

3、在内存Score缓冲区中存放有100个学生的成绩数据，为无符号字节数。设计程序完成如下功能：根据用户输入的一个2位十进制数，作为查找对象，在该数组中查找，若找到则显示“Y”，若没找到则显示“N” 。

复制代码

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
assume cs:code,ds:data,ss:stack
stack segment stack
db 1024 dup(?)
stack ends
data segment
Score db 23,34,56,86,95,34,76,79,45,65

data ends
code segment
printChar macro Char	;宏--用于输出字符 'Y' 或‘N’
push ax
push dx
mov dl,Char
mov ah,02h
int 21h
pop dx
pop ax
endm

start:
	mov ax,data
	mov ds,ax
	mov ax,stack
	mov ss,ax
	sub sp,2
	call input
	pop ax
	mov cx,10
	mov si,offset Score
continue:	cmp byte ptr [si],al
	je l
	inc si
	loop continue
	printChar 'N'
	jmp done
l:	printChar 'Y'

done:	mov ax,4c00h
	int 21h

input proc	;从键盘输入一个数，0~65535
push bp
mov bp,sp
push ax
push bx
push cx
mov bx,10
mov word ptr[bp+4],0
again:mov ah,01h
int 21h
cmp al,0dh
je next
xor cx,cx
add cl,al
sub cl,30h
mov ax,word ptr [bp+4]
mul bx
add ax,cx
mov word ptr[bp+4],ax
jmp again
next:pop cx
pop bx
pop ax
pop bp
ret
input endp

code ends
end start

在这里插入图片描述

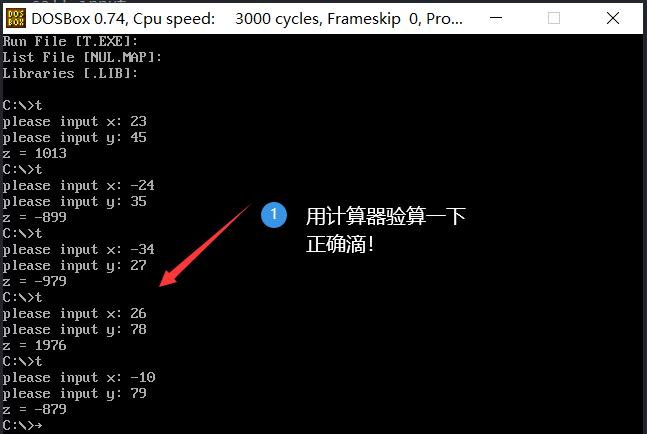

4. 编写一个子程序计算z=f(x,y)=x*y+x-y（x,y,z有符号数字操作数，假设计算结果为16位，可以放在z中）。要求：（1）通过堆栈传送参数x和y；（2）将计算结果按照10进制输出到屏幕上。

复制代码

assume cs:code,ds:data,ss:stack
stack segment stack
db 1024 dup(?)
stack ends
data segment
str1 db 'please input x: $'
str2 db 'please input y: $'
str3 db 'z = $'
x dw ?
y dw ?
z dw ?
data ends
code segment
newline macro	;宏--用于输出回车换行
push ax
push dx
mov dl,0dh
mov ah,02h
int 21h
mov dl,0ah
mov ah,02h
int 21h
pop dx
pop ax
endm
printstr macro str	;宏--用于输出字符串
push ax
push dx
lea dx,str
mov ah,09h
int 21h
pop dx
pop ax
endm
start:
	mov ax,data
	mov ds,ax
	mov ax,stack
	mov ss,ax
	;用来输入x,y
	printstr str1
	sub sp,2
	call input
	pop word ptr x
	printstr str2
	sub sp,2
	call input
	pop word ptr y

	;执行函数fun
	sub sp,2
	push word ptr x
	push word ptr y
	call fun
	pop word ptr z

	;输出z
	printstr str3
	push word ptr z
	call output

	mov ax,4c00h
	int 21h

fun proc		;实现x*y+x-y
push bp
mov bp,sp
push ax
mov ax,word ptr[bp+4]
imul word ptr[bp+6]
add ax,word ptr[bp+6]
sub ax,word ptr[bp+4]
mov word ptr[bp+8],ax
pop ax
pop bp
ret 4
fun endp
input proc	;从键盘输入一个数，(-32768~32767)
push bp
mov bp,sp
push ax
push bx
push cx
push si
mov bx,10
mov word ptr[bp+4],0
mov si,1
again:mov ah,01h
int 21h
cmp al,45
jnz f1
mov si,-1
jmp again
f1:cmp al,0dh
je next
xor cx,cx
add cl,al
sub cl,30h
mov ax,word ptr [bp+4]
mul bx
add ax,cx
mov word ptr[bp+4],ax
jmp again
next:mov ax,word ptr[bp+4]
imul si
mov word ptr[bp+4],ax
pop si
pop cx
pop bx
pop ax
pop bp
ret
input endp

output proc	;将数输出到屏幕(-32768~32767)
push bp
mov bp,sp
push ax
push bx
push dx
mov bx,-1
push bx
mov bx,10
mov ax,word ptr [bp+4]
add ax,0
jns l1
mov dl,45
mov ah,02h
int 21h
mov ax,word ptr [bp+4]
neg ax
l1: cmp ax,0
jz l2
xor dx,dx
div bx
add dl,30h
push dx
jmp l1
l2:pop dx
cmp dx,-1
jz done
mov ah,02h
int 21h
jmp l2
done:pop dx
pop bx
pop ax
pop bp
ret 2
output endp

code ends
end start

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140
141
142
143
144
145
146
147
148
149
150
151
152
153
154
155
assume cs:code,ds:data,ss:stack
stack segment stack
db 1024 dup(?)
stack ends
data segment
str1 db 'please input x: $'
str2 db 'please input y: $'
str3 db 'z = $'
x dw ?
y dw ?
z dw ?
data ends
code segment
newline macro	;宏--用于输出回车换行
push ax
push dx
mov dl,0dh
mov ah,02h
int 21h
mov dl,0ah
mov ah,02h
int 21h
pop dx
pop ax
endm
printstr macro str	;宏--用于输出字符串
push ax
push dx
lea dx,str
mov ah,09h
int 21h
pop dx
pop ax
endm
start:
	mov ax,data
	mov ds,ax
	mov ax,stack
	mov ss,ax
	;用来输入x,y
	printstr str1
	sub sp,2
	call input
	pop word ptr x
	printstr str2
	sub sp,2
	call input
	pop word ptr y

	;执行函数fun
	sub sp,2
	push word ptr x
	push word ptr y
	call fun
	pop word ptr z

	;输出z
	printstr str3
	push word ptr z
	call output

	mov ax,4c00h
	int 21h

fun proc		;实现x*y+x-y
push bp
mov bp,sp
push ax
mov ax,word ptr[bp+4]
imul word ptr[bp+6]
add ax,word ptr[bp+6]
sub ax,word ptr[bp+4]
mov word ptr[bp+8],ax
pop ax
pop bp
ret 4
fun endp
input proc	;从键盘输入一个数，(-32768~32767)
push bp
mov bp,sp
push ax
push bx
push cx
push si
mov bx,10
mov word ptr[bp+4],0
mov si,1
again:mov ah,01h
int 21h
cmp al,45
jnz f1
mov si,-1
jmp again
f1:cmp al,0dh
je next
xor cx,cx
add cl,al
sub cl,30h
mov ax,word ptr [bp+4]
mul bx
add ax,cx
mov word ptr[bp+4],ax
jmp again
next:mov ax,word ptr[bp+4]
imul si
mov word ptr[bp+4],ax
pop si
pop cx
pop bx
pop ax
pop bp
ret
input endp

output proc	;将数输出到屏幕(-32768~32767)
push bp
mov bp,sp
push ax
push bx
push dx
mov bx,-1
push bx
mov bx,10
mov ax,word ptr [bp+4]
add ax,0
jns l1
mov dl,45
mov ah,02h
int 21h
mov ax,word ptr [bp+4]
neg ax
l1: cmp ax,0
jz l2
xor dx,dx
div bx
add dl,30h
push dx
jmp l1
l2:pop dx
cmp dx,-1
jz done
mov ah,02h
int 21h
jmp l2
done:pop dx
pop bx
pop ax
pop bp
ret 2
output endp


code ends
end start
