dubbo环境搭建

60 阅读 0 评论
我是靠谱客的博主 腼腆草莓，最近开发中收集的这篇文章主要介绍dubbo环境搭建，觉得挺不错的，现在分享给大家，希望可以做个参考。

概述

Dubbo环境搭建

Windows-安装zookeeper

1、下载zookeeper：https://archive.apache.org/dist/zookeeper/zookeeper-3.4.13/

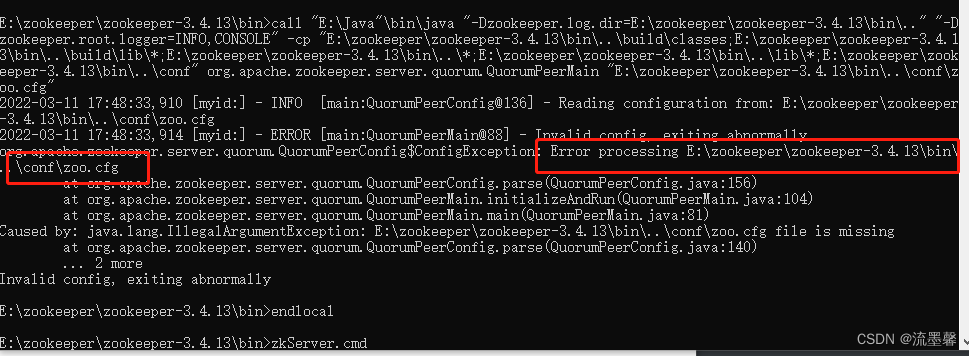

2、解压zookeeper，运行bin/zkServer.cmd，初次运行会报错，没有zoo.cfg配置文件

[外链图片转存失败,源站可能有防盗链机制,建议将图片保存下来直接上传(img-aQ202Sr6-1651215484622)(assets/dubbo环境搭建/image-20220311175253920.png)]

3、修改conf/zoo.cfg配置文件：将conf下的zoo_sample.cfg复制一份改名为zoo.cfg，注意几个重要位置：

​ dataDir=./ 临时数据存储的目录

​ clietPort=2181 zookeeper的端口号

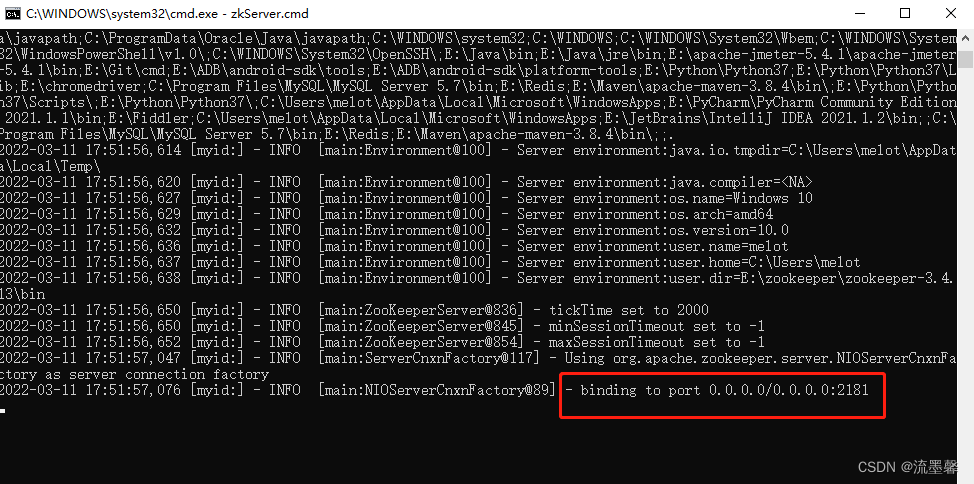

修改完成后再次启动zookeeper

在这里插入图片描述

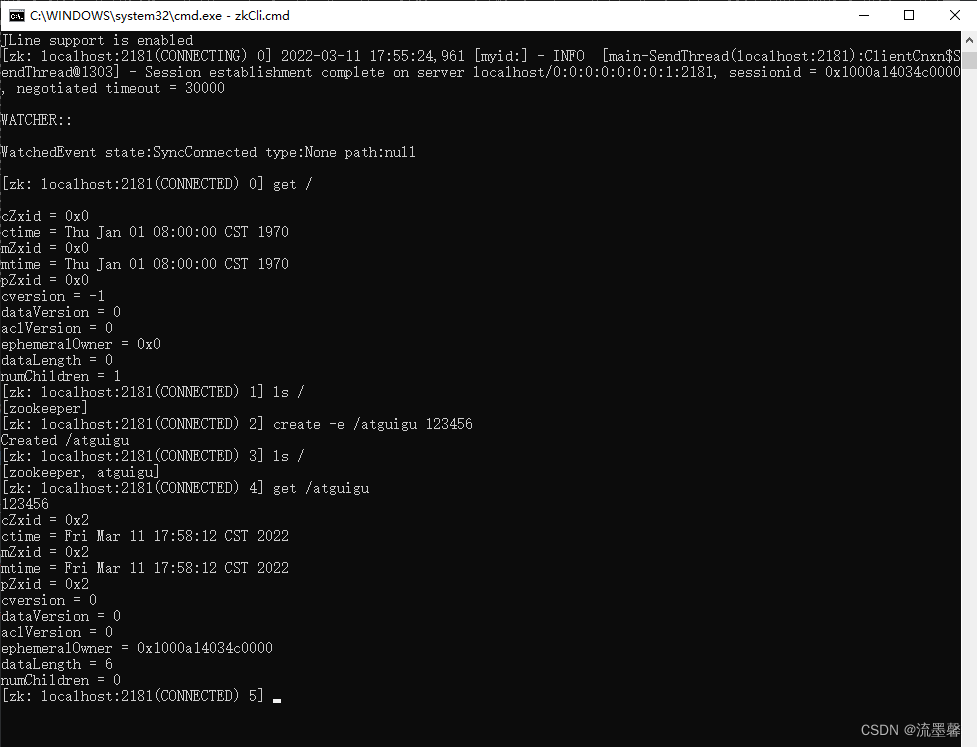

4、使用bin/zkcli.cmd测试，另起一个cmd运行

​ get / 获取根节点的值

​ ls / 列出zookeeper根下保存的所有节点

​ create -e /atguigu 123 创建一个atguigu节点，值为123

​ get /atguigu 获取/atguigu节点的值
在这里插入图片描述

搭建监控中心

https://github.com/apache/incubator-dubbo

1、修改 dubbo-admin/src/main/resources/application.properties

​ dubbo.registry.address=zookeeper://127.0.0.1:2181

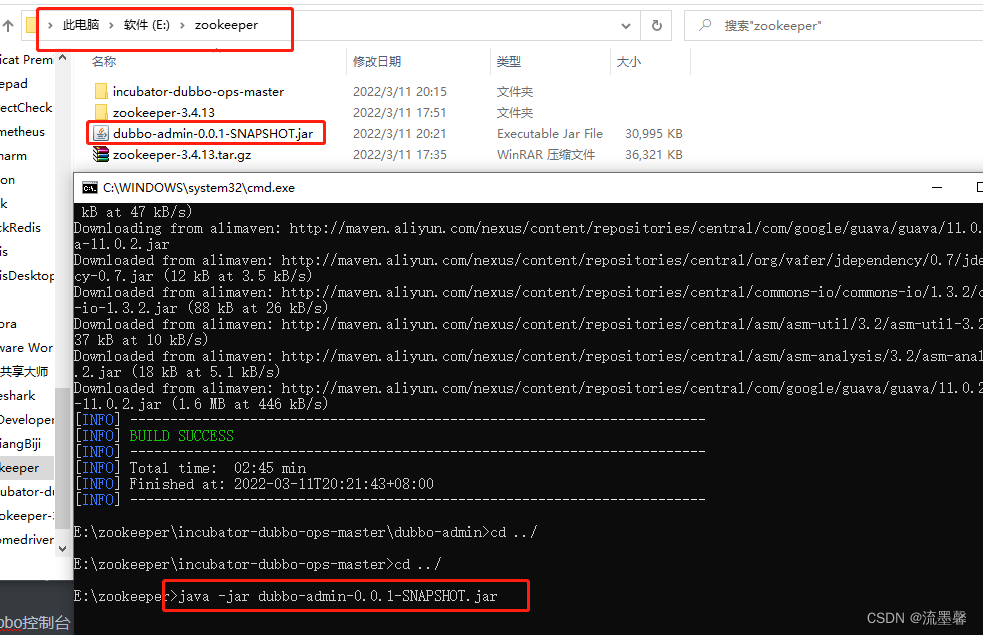

2、进入dubbo-admin，cmd执行 mvn clean package 进行构建打包 ，打包成功后会在target中出现相应jar包

​ 将jar包放置根目录，然后cmd执行命令运行jar包 java -jar dubbo-admin-0.0.1-SNAPSHOT.jar

在这里插入图片描述

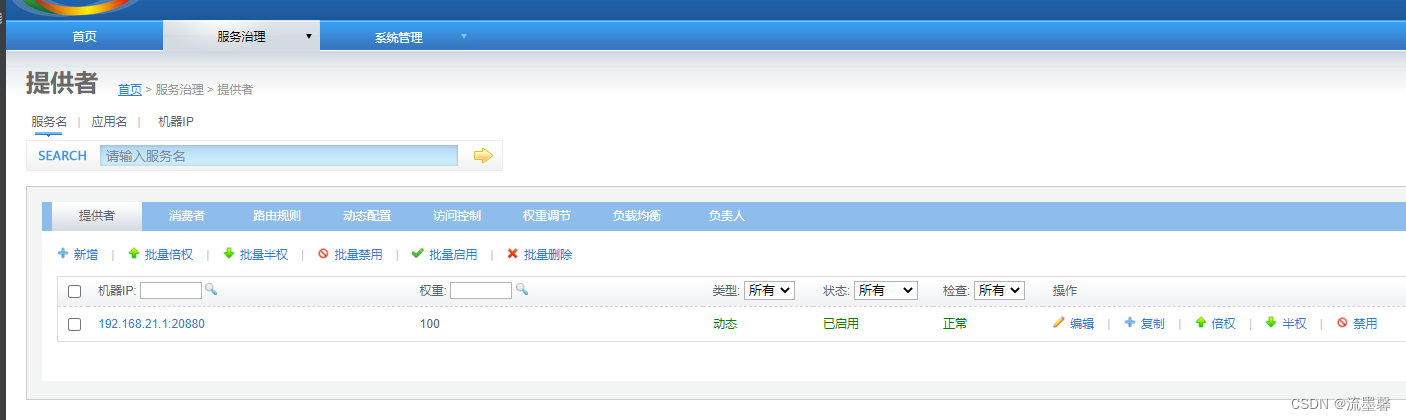

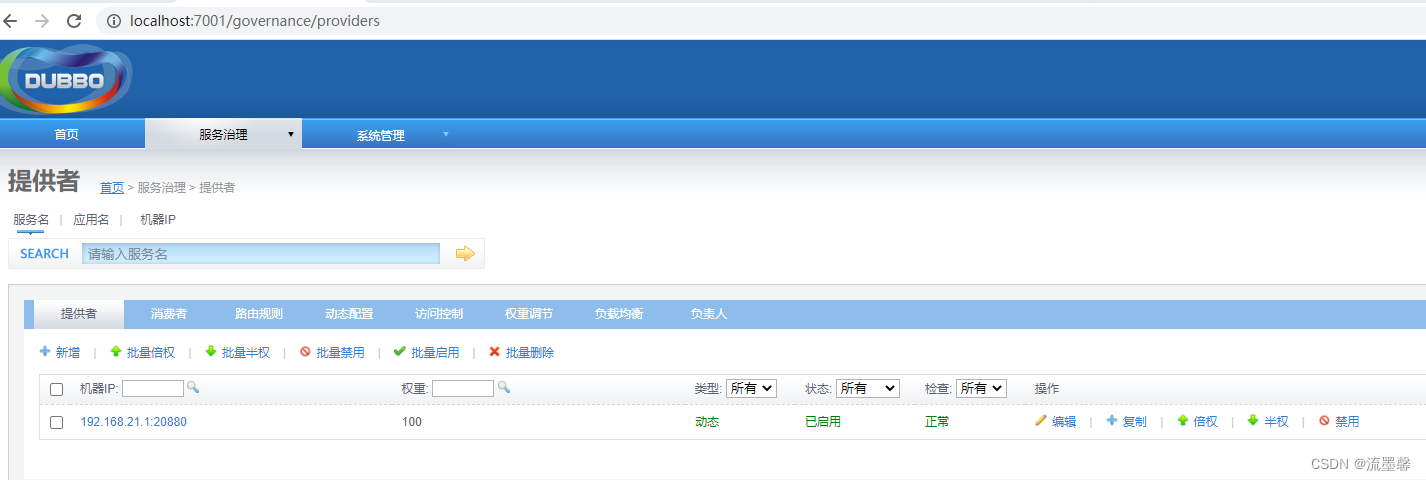

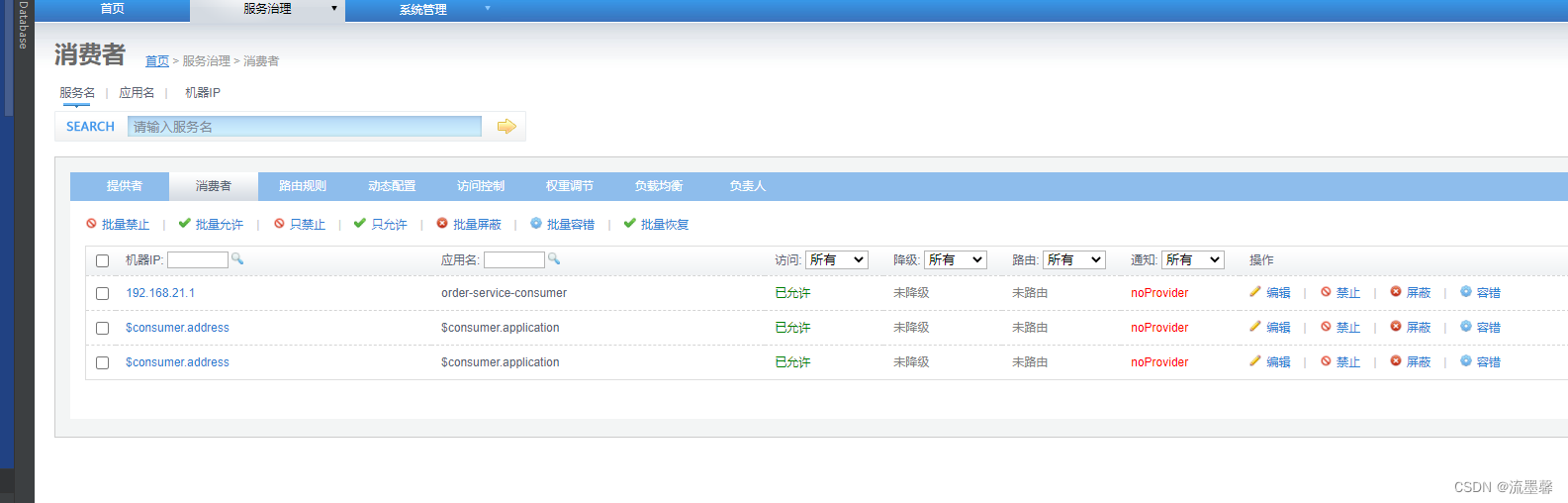

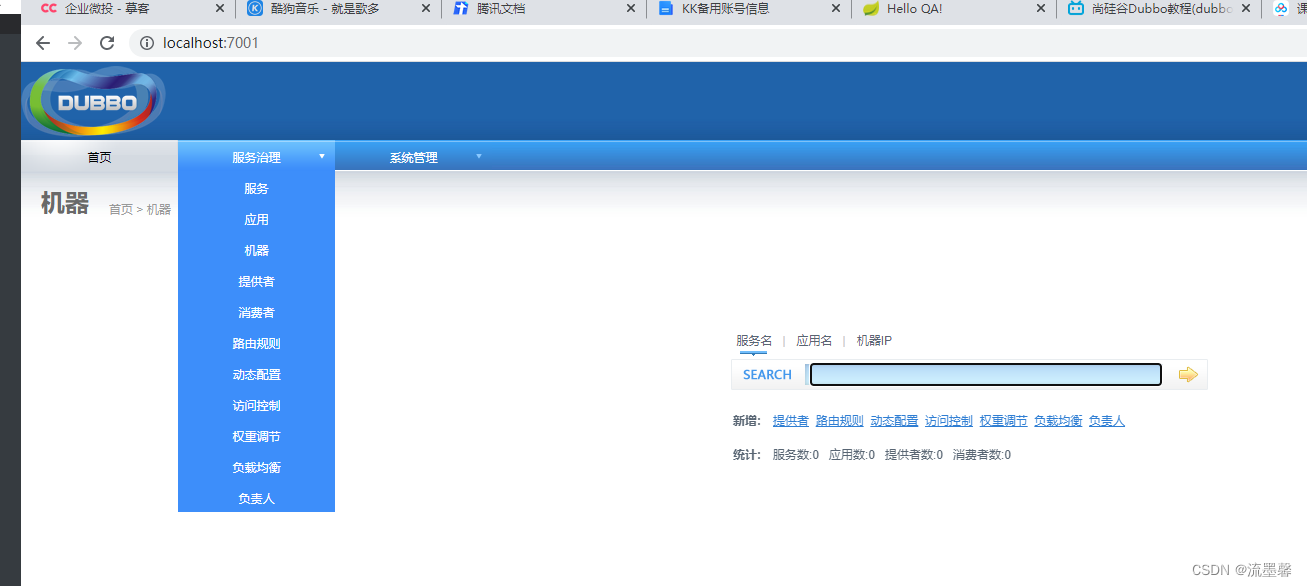

​ 浏览器输入：localhost:7001 访问dubbo控制台 密码root 账号root （注意，控制台启动前一定要保持zookeeper也在启动状态）

在这里插入图片描述

3、IDEA中编写相关代码

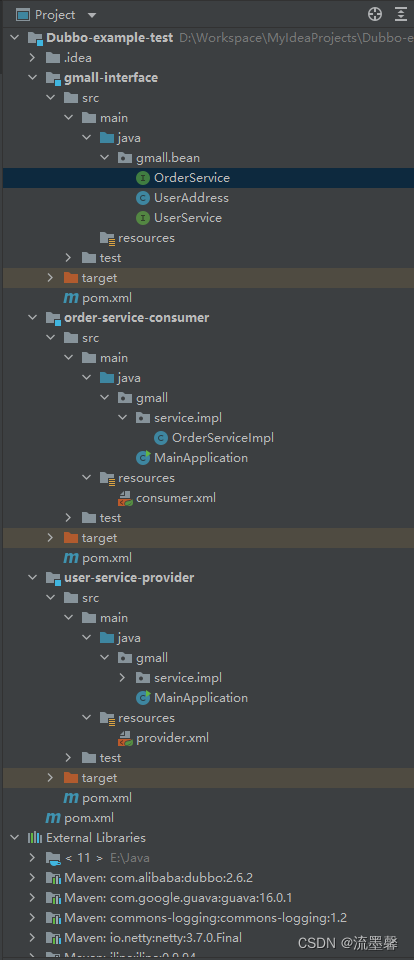

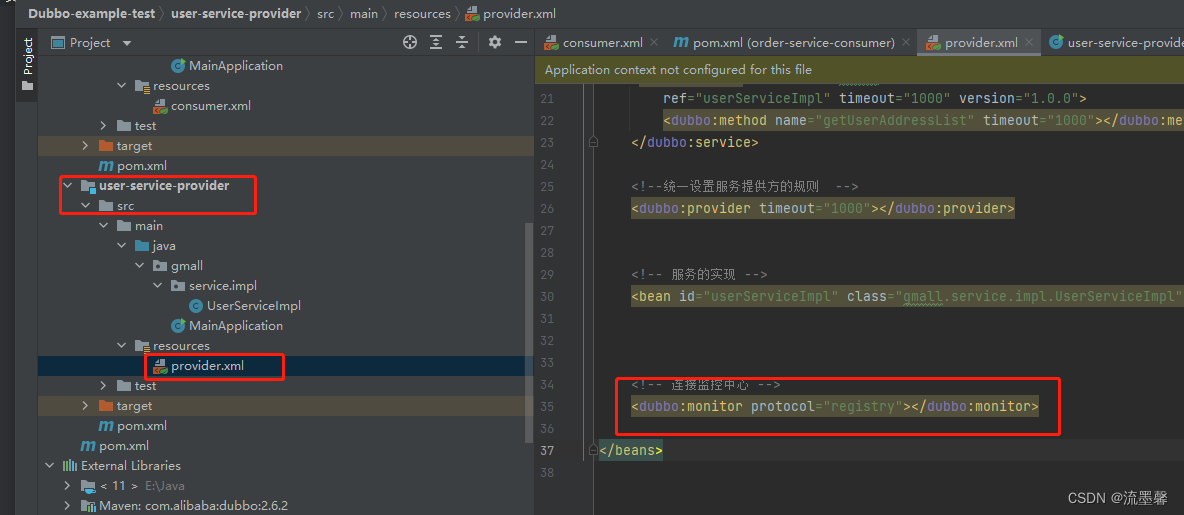

代码结构：

在这里插入图片描述

gmall-interface/src/main/java/gmall/bean/OrderService.java

package gmall.bean;

import gmall.bean.UserAddress;

import java.util.List;

public interface OrderService {

   /**
    * 初始化订单
    * @param userId
    */
   public List<UserAddress> initOrder(String userId);

}

gmall-interface/src/main/java/gmall/bean/UserAddress.java

package gmall.bean;

import java.io.Serializable;

/**
 * 用户地址
 * @author lfy
 *
 */
public class UserAddress implements Serializable {

   private Integer id;
    private String userAddress; //用户地址
    private String userId; //用户id
    private String consignee; //收货人
    private String phoneNum; //电话号码
    private String isDefault; //是否为默认地址    Y-是     N-否

    public UserAddress() {
      super();
      // TODO Auto-generated constructor stub
   }

   public UserAddress(Integer id, String userAddress, String userId, String consignee, String phoneNum,
         String isDefault) {
      super();
      this.id = id;
      this.userAddress = userAddress;
      this.userId = userId;
      this.consignee = consignee;
      this.phoneNum = phoneNum;
      this.isDefault = isDefault;
   }

   public Integer getId() {
      return id;
   }
   public void setId(Integer id) {
      this.id = id;
   }
   public String getUserAddress() {
      return userAddress;
   }
   public void setUserAddress(String userAddress) {
      this.userAddress = userAddress;
   }
   public String getUserId() {
      return userId;
   }
   public void setUserId(String userId) {
      this.userId = userId;
   }
   public String getConsignee() {
      return consignee;
   }
   public void setConsignee(String consignee) {
      this.consignee = consignee;
   }
   public String getPhoneNum() {
      return phoneNum;
   }
   public void setPhoneNum(String phoneNum) {
      this.phoneNum = phoneNum;
   }
   public String getIsDefault() {
      return isDefault;
   }
   public void setIsDefault(String isDefault) {
      this.isDefault = isDefault;
   }
}

gmall-interface/src/main/java/gmall/bean/UserService.java

package gmall.bean;

import gmall.bean.UserAddress;

import java.util.List;

/**
 * 用户服务
 * @author lfy
 *
 */
public interface UserService {

   /**
    * 按照用户id返回所有的收货地址
    * @param userId
    * @return
    */
   public List<UserAddress> getUserAddressList(String userId);

}

user-service-provider/src/main/java/gmall/service/impl/UserServiceImpl.java

package gmall.service.impl;

import gmall.bean.UserAddress;
import gmall.bean.UserService;

import java.util.Arrays;
import java.util.List;


public class UserServiceImpl implements UserService {

   @Override
   public List<UserAddress> getUserAddressList(String userId) {
      System.out.println("UserServiceImpl.....old...");
      // TODO Auto-generated method stub
      UserAddress address1 = new UserAddress(1, "北京市昌平区宏福科技园综合楼3层", "1", "李老师", "010-56253825", "Y");
      UserAddress address2 = new UserAddress(2, "深圳市宝安区西部硅谷大厦B座3层（深圳分校）", "1", "王老师", "010-56253825", "N");
      /*try {
         Thread.sleep(4000);
      } catch (InterruptedException e) {
         // TODO Auto-generated catch block
         e.printStackTrace();
      }*/
      return Arrays.asList(address1,address2);
   }

}

user-service-provider/src/main/java/gmall/MainApplication.java

package gmall;

import java.io.IOException;

import org.springframework.context.ApplicationContext;
import org.springframework.context.support.ClassPathXmlApplicationContext;

public class MainApplication {

   public static void main(String[] args) throws IOException {
      ClassPathXmlApplicationContext ioc = new ClassPathXmlApplicationContext("provider.xml");
      ioc.start();

      System.in.read();
   }

}

user-service-provider/src/main/resources/provider.xml

<?xml version="1.0" encoding="UTF-8"?>
<beans xmlns="http://www.springframework.org/schema/beans"
   xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
   xmlns:dubbo="http://code.alibabatech.com/schema/dubbo"
   xsi:schemaLocation="http://www.springframework.org/schema/beans http://www.springframework.org/schema/beans/spring-beans.xsd
      http://dubbo.apache.org/schema/dubbo http://dubbo.apache.org/schema/dubbo/dubbo.xsd
      http://code.alibabatech.com/schema/dubbo http://code.alibabatech.com/schema/dubbo/dubbo.xsd">

   <!-- 1、指定当前服务/应用的名字（同样的服务名字相同，不要和别的服务同名） -->
   <dubbo:application name="user-service-provider"></dubbo:application>

   <!-- 2、指定注册中心的位置 -->
   <!-- <dubbo:registry address="zookeeper://127.0.0.1:2181"></dubbo:registry> -->
   <dubbo:registry protocol="zookeeper" address="127.0.0.1:2181"></dubbo:registry>

   <!-- 3、指定通信规则（通信协议？通信端口） -->
   <dubbo:protocol name="dubbo" port="20880"></dubbo:protocol>

   <!-- 4、暴露服务   ref：指向服务的真正的实现对象 -->
   <dubbo:service interface="gmall.bean.UserService"
      ref="userServiceImpl" timeout="1000" version="1.0.0">
      <dubbo:method name="getUserAddressList" timeout="1000"></dubbo:method>
   </dubbo:service>

   <!--统一设置服务提供方的规则  -->
   <dubbo:provider timeout="1000"></dubbo:provider>


   <!-- 服务的实现 -->
   <bean id="userServiceImpl" class="gmall.service.impl.UserServiceImpl"></bean>



   <!-- 连接监控中心 -->
   <dubbo:monitor protocol="registry"></dubbo:monitor>

</beans>

user-service-provider/pom.xml

<?xml version="1.0" encoding="UTF-8"?>
<project xmlns="http://maven.apache.org/POM/4.0.0"
         xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
         xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd">
    <parent>
        <artifactId>Dubbo-example-test</artifactId>
        <groupId>org.example</groupId>
        <version>1.0-SNAPSHOT</version>
    </parent>
    <modelVersion>4.0.0</modelVersion>

    <artifactId>user-service-provider</artifactId>
    <dependencies>
        <dependency>
            <groupId>org.example</groupId>
            <artifactId>gmall-interface</artifactId>
            <version>1.0-SNAPSHOT</version>
            <scope>compile</scope>
        </dependency>
        <dependency>
            <groupId>com.alibaba</groupId>
            <artifactId>dubbo</artifactId>
            <version>2.6.2</version>
        </dependency>
        <dependency>
            <groupId>org.apache.curator</groupId>
            <artifactId>curator-framework</artifactId>
            <version>2.8.0</version>
        </dependency>
        <dependency>
            <groupId>org.apache.curator</groupId>
            <artifactId>curator-recipes</artifactId>
            <version>2.8.0</version>
        </dependency>
        <dependency>
            <groupId>commons-logging</groupId>
            <artifactId>commons-logging</artifactId>
            <version>1.2</version>
        </dependency>
        <dependency>
            <groupId>org.apache.logging.log4j</groupId>
            <artifactId>log4j-api</artifactId>
            <version>2.11.0</version>
        </dependency>
        <dependency>
            <groupId>org.apache.logging.log4j</groupId>
            <artifactId>log4j-core</artifactId>
            <version>2.11.0</version>
        </dependency>
        <dependency>
            <groupId>org.slf4j</groupId>
            <artifactId>slf4j-log4j12</artifactId>
            <version>1.7.25</version>
        </dependency>
        <dependency>
            <groupId>org.javassist</groupId>
            <artifactId>javassist</artifactId>
            <version>3.20.0-GA</version>
        </dependency>
    </dependencies>

    <properties>
        <maven.compiler.source>11</maven.compiler.source>
        <maven.compiler.target>11</maven.compiler.target>
    </properties>

</project>

order-service-consumer/src/main/java/gmall/service/impl/OrderServiceImpl.java

package gmall.service.impl;

import java.util.List;

import gmall.bean.OrderService;
import gmall.bean.UserAddress;
import gmall.bean.UserService;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.stereotype.Service;


/**
 * 1、将服务提供者注册到注册中心（暴露服务）
 *        1）、导入dubbo依赖（2.6.2）操作zookeeper的客户端(curator)
 *        2）、配置服务提供者
 *
 * 2、让服务消费者去注册中心订阅服务提供者的服务地址
 * @author lfy
 *
 */
@Service
public class OrderServiceImpl implements OrderService {

   @Autowired
   UserService userService;
   @Override
   public List<UserAddress> initOrder(String userId) {
      // TODO Auto-generated method stub
      System.out.println("用户id："+userId);
      //1、查询用户的收货地址
      List<UserAddress> addressList = userService.getUserAddressList(userId);
      for (UserAddress userAddress : addressList) {
         System.out.println(userAddress.getUserAddress());
      }
      return addressList;
   }



}

order-service-consumer/src/main/java/gmall/MainApplication.java

package gmall;

import gmall.bean.OrderService;
import org.springframework.context.support.ClassPathXmlApplicationContext;

import java.io.IOException;



public class MainApplication {

   @SuppressWarnings("resource")
   public static void main(String[] args) throws IOException {
      ClassPathXmlApplicationContext applicationContext = new ClassPathXmlApplicationContext("consumer.xml");

      OrderService orderService = applicationContext.getBean(OrderService.class);

      orderService.initOrder("1");
      System.out.println("调用完成....");
      System.in.read();
   }

}

order-service-consumer/src/main/resources/consumer.xml

<?xml version="1.0" encoding="UTF-8"?>
<beans xmlns="http://www.springframework.org/schema/beans"
   xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
   xmlns:dubbo="http://dubbo.apache.org/schema/dubbo"
   xmlns:context="http://www.springframework.org/schema/context"
   xsi:schemaLocation="http://www.springframework.org/schema/beans http://www.springframework.org/schema/beans/spring-beans.xsd
      http://www.springframework.org/schema/context http://www.springframework.org/schema/context/spring-context-4.3.xsd
      http://dubbo.apache.org/schema/dubbo http://dubbo.apache.org/schema/dubbo/dubbo.xsd
      http://code.alibabatech.com/schema/dubbo http://code.alibabatech.com/schema/dubbo/dubbo.xsd">
   <context:component-scan base-package="gmall.service.impl"></context:component-scan>


   <dubbo:application name="order-service-consumer"></dubbo:application>

   <dubbo:registry address="zookeeper://127.0.0.1:2181"></dubbo:registry>

   <!--  配置本地存根-->

   <!--声明需要调用的远程服务的接口；生成远程服务代理  -->
   <!--
      1）、精确优先 (方法级优先，接口级次之，全局配置再次之)
      2）、消费者设置优先(如果级别一样，则消费方优先，提供方次之)
   -->
   <!-- timeout="0" 默认是1000ms-->
   <!-- retries="":重试次数，不包含第一次调用，0代表不重试-->
   <!-- 幂等（设置重试次数）【查询、删除、修改】、非幂等（不能设置重试次数）【新增】 -->
   <dubbo:reference interface="gmall.bean.UserService"
      id="userService" timeout="5000" retries="3" version="*">
      <!-- <dubbo:method name="getUserAddressList" timeout="1000"></dubbo:method> -->
   </dubbo:reference>

   <!-- 配置当前消费者的统一规则：所有的服务都不检查 -->
   <dubbo:consumer check="false" timeout="5000"></dubbo:consumer>

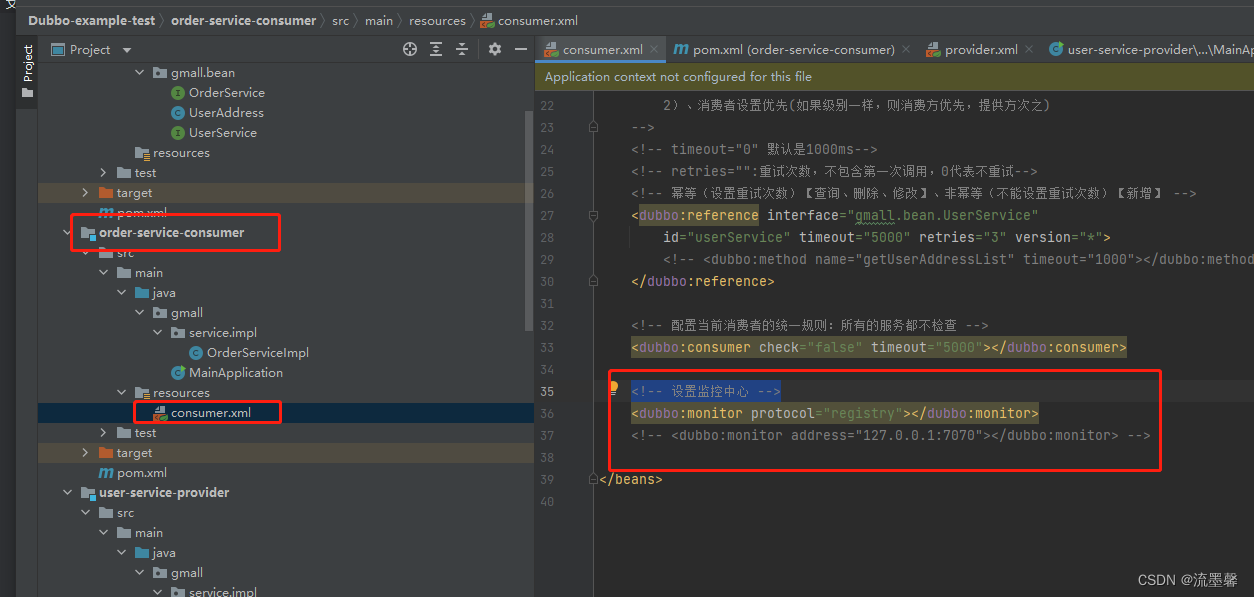

   <dubbo:monitor protocol="registry"></dubbo:monitor>
   <!-- <dubbo:monitor address="127.0.0.1:7070"></dubbo:monitor> -->

</beans>

order-service-consumer/pom.xml

<?xml version="1.0" encoding="UTF-8"?>
<project xmlns="http://maven.apache.org/POM/4.0.0"
         xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
         xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd">
    <parent>
        <artifactId>Dubbo-example-test</artifactId>
        <groupId>org.example</groupId>
        <version>1.0-SNAPSHOT</version>
    </parent>
    <modelVersion>4.0.0</modelVersion>

    <artifactId>order-service-consumer</artifactId>
    <dependencies>
        <dependency>
            <groupId>org.example</groupId>
            <artifactId>user-service-provider</artifactId>
            <version>1.0-SNAPSHOT</version>
            <scope>compile</scope>
        </dependency>

        <dependency>
            <groupId>org.springframework</groupId>
            <artifactId>spring-context</artifactId>
            <version>5.3.16</version>
        </dependency>
        <dependency>
            <groupId>com.alibaba</groupId>
            <artifactId>dubbo</artifactId>
            <version>2.6.2</version>
        </dependency>
        <dependency>
            <groupId>org.apache.curator</groupId>
            <artifactId>curator-framework</artifactId>
            <version>2.8.0</version>
        </dependency>
        <dependency>
            <groupId>org.apache.curator</groupId>
            <artifactId>curator-recipes</artifactId>
            <version>2.8.0</version>
        </dependency>
        <dependency>
            <groupId>commons-logging</groupId>
            <artifactId>commons-logging</artifactId>
            <version>1.2</version>
        </dependency>
        <dependency>
            <groupId>org.apache.logging.log4j</groupId>
            <artifactId>log4j-api</artifactId>
            <version>2.11.0</version>
        </dependency>
        <dependency>
            <groupId>org.apache.logging.log4j</groupId>
            <artifactId>log4j-core</artifactId>
            <version>2.11.0</version>
        </dependency>
        <dependency>
            <groupId>org.slf4j</groupId>
            <artifactId>slf4j-log4j12</artifactId>
            <version>1.7.25</version>
        </dependency>
        <dependency>
            <groupId>org.javassist</groupId>
            <artifactId>javassist</artifactId>
            <version>3.20.0-GA</version>
        </dependency>
    </dependencies>

    <properties>
        <maven.compiler.source>11</maven.compiler.source>
        <maven.compiler.target>11</maven.compiler.target>
    </properties>

</project>

运行 user-service-provider/src/main/java/gmall/MainApplication.java，查看管理控制台–>服务治理–>提供者：

在这里插入图片描述

运行 order-service-consumer/src/main/java/gmall/MainApplication.java，查看管理控制台–>服务治理–>消费者：

在这里插入图片描述

4、搭建监控中心

进入E:zookeeperincubator-dubbo-ops-masterdubbo-monitor-simple，执行：mvn clean package 进行打包

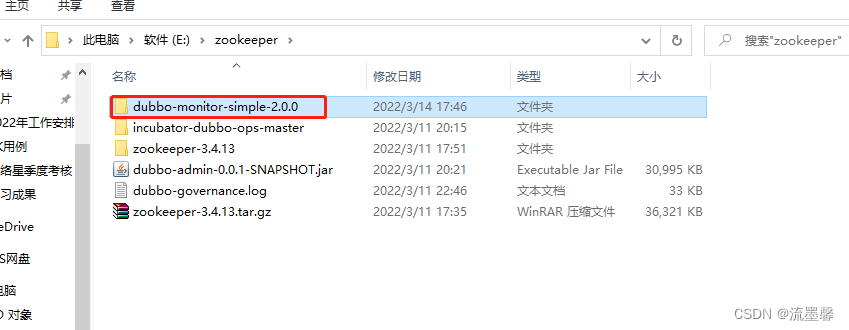

解压 dubbo-monitor-simple-2.0.0-assembly.tar.gz ，将解压后的 dubbo-monitor-simple-2.0.0 复制出来

在这里插入图片描述

修改配置文件 dubbo-monitor-simple-2.0.0confdubbo.properties：

在这里插入图片描述

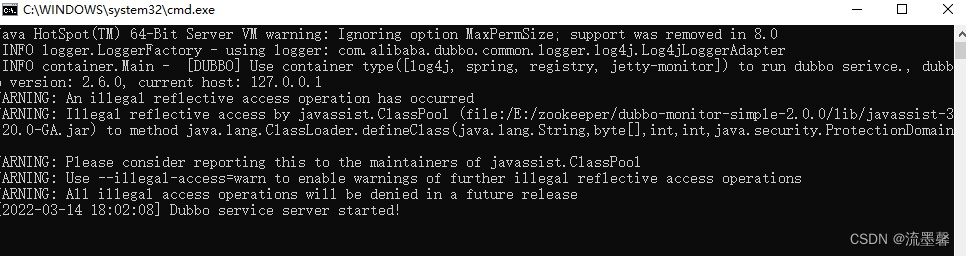

启动 dubbo-monitor-simple-2.0.0assembly.binstart.bat

在这里插入图片描述

配置监控

在这里插入图片描述

在这里插入图片描述

重新启动 user-service-provider/src/main/java/gmall/MainApplication.java 和 order-service-consumer/src/main/java/gmall/MainApplication.java

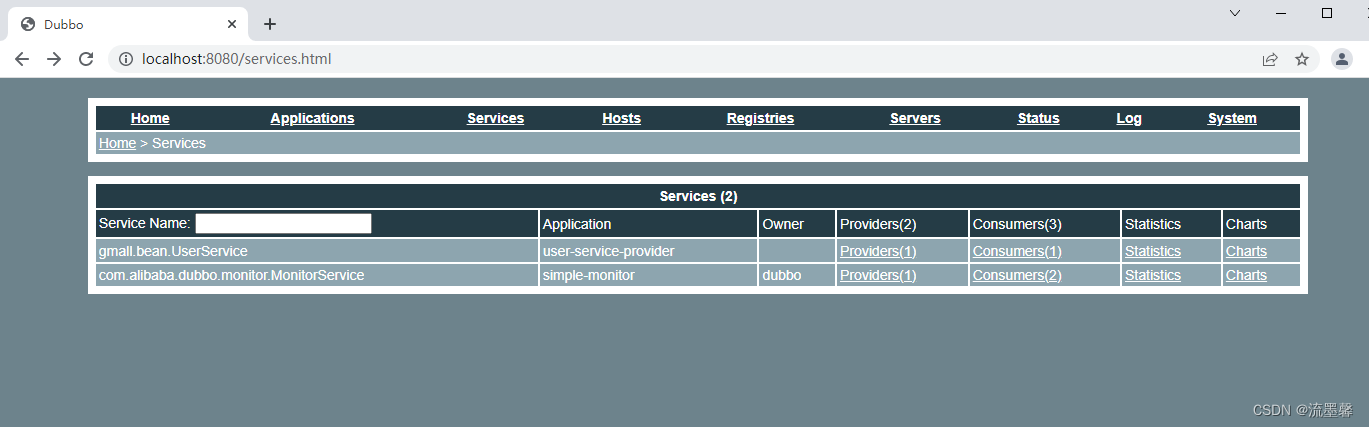

访问：localhost:8080/services.html

在这里插入图片描述

整合SpringBoot

方法一

导入dubbo-start,在application.properties配置属性，使用@Service[暴露服务]，使用Reference[引用服务]

代码编写：

springboot-user-service-provider/src/main/java/com/gmall/impl/UserServiceImpl.java

package com.gmall.impl;

import com.alibaba.dubbo.config.annotation.Service;
import gmall.bean.UserAddress;
import gmall.bean.UserService;
import org.springframework.stereotype.Component;

import java.util.Arrays;
import java.util.List;

@Service  //暴露服务
@Component
public class UserServiceImpl implements UserService {

   @Override
   public List<UserAddress> getUserAddressList(String userId) {
      System.out.println("UserServiceImpl.....old...");
      // TODO Auto-generated method stub
      UserAddress address1 = new UserAddress(1, "北京市昌平区宏福科技园综合楼3层", "1", "李老师", "010-56253825", "Y");
      UserAddress address2 = new UserAddress(2, "深圳市宝安区西部硅谷大厦B座3层（深圳分校）", "1", "王老师", "010-56253825", "N");
      /*try {
         Thread.sleep(4000);
      } catch (InterruptedException e) {
         // TODO Auto-generated catch block
         e.printStackTrace();
      }*/
      return Arrays.asList(address1,address2);
   }

}

springboot-user-service-provider/src/main/java/com/gmall/SpringbootUserServiceProviderApplication.java

package com.gmall;

import com.alibaba.dubbo.config.spring.context.annotation.EnableDubbo;
import org.springframework.boot.SpringApplication;
import org.springframework.boot.autoconfigure.SpringBootApplication;
import org.springframework.cloud.netflix.hystrix.EnableHystrix;


/**
 *  1、导入依赖
 *      1)、导入dubbo-starter
 *      2)、导入dubbo的其他依赖
 */

@EnableDubbo  // 开启基于注解的dubbo功能
@SpringBootApplication
public class SpringbootUserServiceProviderApplication {

    public static void main(String[] args) {
        SpringApplication.run(SpringbootUserServiceProviderApplication.class, args);
    }

}

springboot-user-service-provider/application.properties

dubbo.application.name=user-service-provider
dubbo.registry.address=zookeeper://127.0.0.1:2181

dubbo.protocol.name=dubbo
dubbo.protocol.port=20880

dubbo.monitor.protocol=registry

springboot-user-service-provider/pom.xml

<?xml version="1.0" encoding="UTF-8"?>
<project xmlns="http://maven.apache.org/POM/4.0.0" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
         xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd">
    <modelVersion>4.0.0</modelVersion>
    <parent>
        <groupId>org.springframework.boot</groupId>
        <artifactId>spring-boot-starter-parent</artifactId>
        <version>2.0.4.RELEASE</version>
        <relativePath/> <!-- lookup parent from repository -->
    </parent>
    <groupId>com.atguigu</groupId>
    <artifactId>springboot-user-service-provider</artifactId>
    <version>0.0.1-SNAPSHOT</version>
    <name>springboot-user-service-provider</name>
    <description>springboot-user-service-provider</description>
    <properties>
        <java.version>11</java.version>
    </properties>

    <dependencies>
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-web</artifactId>
        </dependency>

        <dependency>
            <groupId>com.alibaba.boot</groupId>
            <artifactId>dubbo-spring-boot-starter</artifactId>
            <version>0.2.0</version>
        </dependency>


        <dependency>
            <groupId>org.example</groupId>
            <artifactId>gmall-interface</artifactId>
            <version>1.0-SNAPSHOT</version>
        </dependency>

        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-test</artifactId>
            <scope>test</scope>
        </dependency>

        <dependency>
            <groupId>org.springframework.cloud</groupId>
            <artifactId>
                spring-cloud-starter-netflix-hystrix
            </artifactId>
        </dependency>
        <dependency>
            <groupId>com.alibaba</groupId>
            <artifactId>dubbo</artifactId>
            <version>2.6.2</version>
            <scope>compile</scope>
        </dependency>
        <dependency>
            <groupId>org.junit.jupiter</groupId>
            <artifactId>junit-jupiter-api</artifactId>
            <version>5.8.2</version>
            <scope>test</scope>
        </dependency>
    </dependencies>

    <build>
        <plugins>
            <plugin>
                <groupId>org.springframework.boot</groupId>
                <artifactId>spring-boot-maven-plugin</artifactId>
            </plugin>
        </plugins>
    </build>


    <dependencyManagement>
        <dependencies>
            <dependency>
                <groupId>org.springframework.cloud</groupId>
                <artifactId>spring-cloud-dependencies</artifactId>
                <version>Finchley.SR1</version>
                <type>pom</type>
                <scope>import</scope>
            </dependency>
        </dependencies>
    </dependencyManagement>

</project>

springboot-order-service-consumer/src/main/java/com/gmall/controller/OrderController.java

package com.gmall.controller;

import gmall.bean.OrderService;
import gmall.bean.UserAddress;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.stereotype.Controller;
import org.springframework.web.bind.annotation.RequestMapping;
import org.springframework.web.bind.annotation.RequestParam;
import org.springframework.web.bind.annotation.ResponseBody;

import java.util.List;

@Controller
public class OrderController {

    @Autowired
    OrderService orderService;

    @ResponseBody
    @RequestMapping("/initOrder")
    public List<UserAddress> initOrder(@RequestParam("uid") String userId){
        return orderService.initOrder(userId);
    }
}

springboot-order-service-consumer/src/main/java/com/gmall/impl/OrderServiceImpl.java

package com.gmall.impl;

import com.alibaba.dubbo.config.annotation.Reference;
import gmall.bean.OrderService;
import gmall.bean.UserAddress;

import gmall.bean.UserService;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.stereotype.Service;

import java.util.List;


/**
 * 1、将服务提供者注册到注册中心（暴露服务）
 *        1）、导入dubbo依赖（2.6.2）操作zookeeper的客户端(curator)
 *        2）、配置服务提供者
 *
 * 2、让服务消费者去注册中心订阅服务提供者的服务地址
 * @author lfy
 *
 */
@Service
public class OrderServiceImpl implements OrderService {

   // @Autowired
   @Reference
   UserService UserService;

   @Override
   public List<UserAddress> initOrder(String userId) {
      // TODO Auto-generated method stub
      System.out.println("用户id："+userId);
      //1、查询用户的收货地址
      List<UserAddress> addressList = UserService.getUserAddressList(userId);
      for (UserAddress userAddress : addressList) {
         System.out.println(userAddress.getUserAddress());
      }
      return addressList;
   }



}

springboot-order-service-consumer/src/main/java/com/gmall/SpringbootOrderServiceConsumerApplication.java

package com.gmall;

import com.alibaba.dubbo.config.spring.context.annotation.EnableDubbo;
import org.springframework.boot.SpringApplication;
import org.springframework.boot.autoconfigure.SpringBootApplication;

@EnableDubbo
@SpringBootApplication
public class SpringbootOrderServiceConsumerApplication {

    public static void main(String[] args) {
        SpringApplication.run(SpringbootOrderServiceConsumerApplication.class, args);
    }

}

springboot-order-service-consumer/src/main/resources/application.properties

server.port=8081

dubbo.application.name=boot-order-service-consumer
dubbo.registry.address=zookeeper://127.0.0.1:2181
dubbo.monitor.protocol=registry

springboot-order-service-consumer/pom.xml

<?xml version="1.0" encoding="UTF-8"?>
<project xmlns="http://maven.apache.org/POM/4.0.0" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
         xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 https://maven.apache.org/xsd/maven-4.0.0.xsd">
    <modelVersion>4.0.0</modelVersion>
    <parent>
        <groupId>org.springframework.boot</groupId>
        <artifactId>spring-boot-starter-parent</artifactId>
        <version>2.0.4.RELEASE</version>
        <relativePath/> <!-- lookup parent from repository -->
    </parent>
    <groupId>com.atguigu</groupId>
    <artifactId>springboot-order-service-consumer</artifactId>
    <version>0.0.1-SNAPSHOT</version>
    <name>springboot-order-service-consumer</name>
    <description>springboot-order-service-consumer</description>
    <properties>
        <java.version>11</java.version>
    </properties>
    <dependencies>
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-web</artifactId>
        </dependency>

        <dependency>
            <groupId>com.alibaba.boot</groupId>
            <artifactId>dubbo-spring-boot-starter</artifactId>
            <version>0.2.0</version>
        </dependency>


        <dependency>
            <groupId>org.example</groupId>
            <artifactId>gmall-interface</artifactId>
            <version>1.0-SNAPSHOT</version>
        </dependency>

        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-test</artifactId>
            <scope>test</scope>
        </dependency>

        <dependency>
            <groupId>org.springframework.cloud</groupId>
            <artifactId>
                spring-cloud-starter-netflix-hystrix
            </artifactId>
        </dependency>
        <dependency>
            <groupId>com.alibaba</groupId>
            <artifactId>dubbo</artifactId>
            <version>2.6.2</version>
            <scope>compile</scope>
        </dependency>
        <dependency>
            <groupId>org.junit.jupiter</groupId>
            <artifactId>junit-jupiter-api</artifactId>
            <version>5.8.2</version>
            <scope>test</scope>
        </dependency>
    </dependencies>

    <build>
        <plugins>
            <plugin>
                <groupId>org.springframework.boot</groupId>
                <artifactId>spring-boot-maven-plugin</artifactId>
            </plugin>
        </plugins>
    </build>


    <dependencyManagement>
        <dependencies>
            <dependency>
                <groupId>org.springframework.cloud</groupId>
                <artifactId>spring-cloud-dependencies</artifactId>
                <version>Finchley.SR1</version>
                <type>pom</type>
                <scope>import</scope>
            </dependency>
        </dependencies>
    </dependencyManagement>

</project>

运行 SpringbootUserServiceProviderApplication.java 和 SpringbootOrderServiceConsumerApplication.java

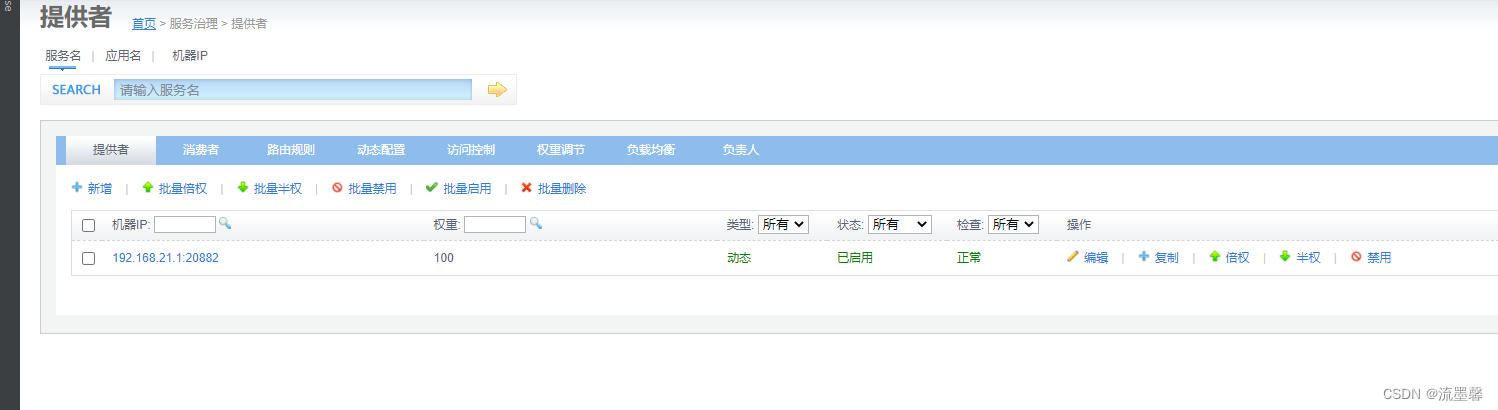

访问：http://localhost:7001/governance/providers 和 http://localhost:7001/governance/consumers

在这里插入图片描述

在这里插入图片描述

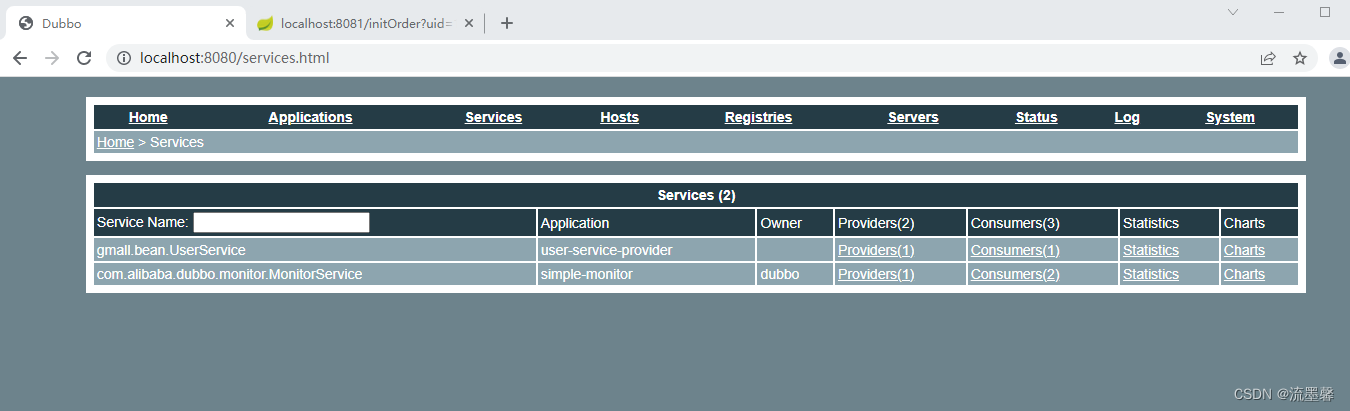

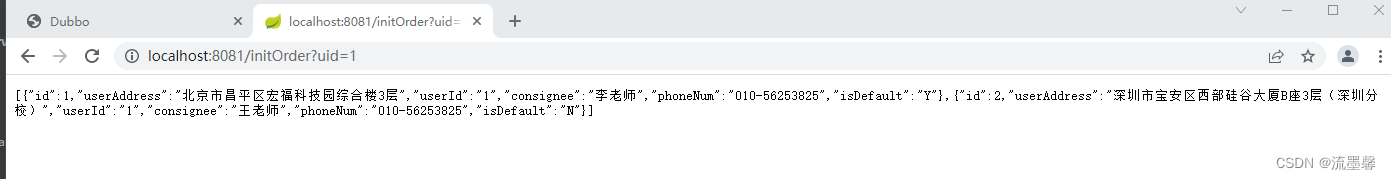

访问：http://localhost:8080/services.html 和 http://localhost:8081/initOrder?uid=1

在这里插入图片描述

在这里插入图片描述

方法二

保留dubbo xml配置文件：导入subbo-start，使用@ImportResource导入dubbo的配置文件即可

代码编写（上述代码中修改以下文件）：

springboot-user-service-provider/src/main/java/com/gmall/SpringbootUserServiceProviderApplication.java

package com.gmall;

import org.springframework.boot.SpringApplication;
import org.springframework.boot.autoconfigure.SpringBootApplication;
import org.springframework.context.annotation.ImportResource;

@ImportResource(locations = "classpath:provider.xml" )
@SpringBootApplication
public class SpringbootUserServiceProviderApplication {

    public static void main(String[] args) {
        SpringApplication.run(SpringbootUserServiceProviderApplication.class, args);
    }

}

springboot-user-service-provider/src/main/java/com/gmall/impl/UserServiceImpl.java

package com.gmall.impl;

import com.alibaba.dubbo.config.annotation.Service;
import gmall.bean.UserAddress;
import gmall.bean.UserService;
import org.springframework.stereotype.Component;

import java.util.Arrays;
import java.util.List;

@Component
public class UserServiceImpl implements UserService {

   @Override
   public List<UserAddress> getUserAddressList(String userId) {
      System.out.println("UserServiceImpl.....old...");
      // TODO Auto-generated method stub
      UserAddress address1 = new UserAddress(1, "北京市昌平区宏福科技园综合楼3层", "1", "李老师", "010-56253825", "Y");
      UserAddress address2 = new UserAddress(2, "深圳市宝安区西部硅谷大厦B座3层（深圳分校）", "1", "王老师", "010-56253825", "N");
      /*try {
         Thread.sleep(4000);
      } catch (InterruptedException e) {
         // TODO Auto-generated catch block
         e.printStackTrace();
      }*/
      return Arrays.asList(address1,address2);
   }

}

springboot-user-service-provider/src/main/resources/provider.xml

<?xml version="1.0" encoding="UTF-8"?>
<beans xmlns="http://www.springframework.org/schema/beans"
   xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
   xmlns:dubbo="http://code.alibabatech.com/schema/dubbo"
   xsi:schemaLocation="http://www.springframework.org/schema/beans http://www.springframework.org/schema/beans/spring-beans.xsd
      http://dubbo.apache.org/schema/dubbo http://dubbo.apache.org/schema/dubbo/dubbo.xsd
      http://code.alibabatech.com/schema/dubbo http://code.alibabatech.com/schema/dubbo/dubbo.xsd">

   <!-- 1、指定当前服务/应用的名字（同样的服务名字相同，不要和别的服务同名） -->
   <dubbo:application name="springboot-user-service-provider"></dubbo:application>

   <!-- 2、指定注册中心的位置 -->
   <!-- <dubbo:registry address="zookeeper://127.0.0.1:2181"></dubbo:registry> -->
   <dubbo:registry protocol="zookeeper" address="127.0.0.1:2181"></dubbo:registry>

   <!-- 3、指定通信规则（通信协议？通信端口） -->
   <dubbo:protocol name="dubbo" port="20880"></dubbo:protocol>

   <!-- 4、暴露服务   ref：指向服务的真正的实现对象 -->
   <dubbo:service interface="gmall.bean.UserService"
      ref="userServiceImpl01" timeout="1000" version="1.0.0">
      <dubbo:method name="getUserAddressList" timeout="1000"></dubbo:method>
   </dubbo:service>

   <!--统一设置服务提供方的规则  -->
   <dubbo:provider timeout="1000"></dubbo:provider>


   <!-- 服务的实现 -->
   <bean id="userServiceImpl01" class="com.gmall.impl.UserServiceImpl"></bean>



   <!-- 连接监控中心 -->
   <dubbo:monitor protocol="registry"></dubbo:monitor>

</beans>

运行 springboot-user-service-provider/src/main/java/com/gmall/SpringbootUserServiceProviderApplication.java

访问 http://localhost:7001/governance/providers

在这里插入图片描述

方法三

使用注解API方式：将每一个组件手动创建到容器中,让dubbo扫描每一个组件

代码编写：

springboot-user-service-provider/src/main/java/com/gmall/config/MyDubboConfig.java

package com.gmall.config;

import com.alibaba.dubbo.config.*;
import gmall.bean.UserService;
import org.springframework.context.annotation.Bean;
import org.springframework.context.annotation.Configuration;

import java.util.ArrayList;
import java.util.List;

@Configuration
public class MyDubboConfig {
    //<dubbo:application name="springboot-user-service-provider"></dubbo:application>
    @Bean
    public ApplicationConfig applicationConfig(){
        ApplicationConfig applicationConfig = new ApplicationConfig();
        applicationConfig.setName("springboot-user-service-provider");
        return applicationConfig;
    }

    //<dubbo:registry protocol="zookeeper" address="127.0.0.1:2181"></dubbo:registry>
    @Bean
    public RegistryConfig registryConfig(){
        RegistryConfig registryConfig = new RegistryConfig();
        registryConfig.setProtocol("zookeeper");
        registryConfig.setAddress("127.0.0.1:2181");
        return registryConfig;
    }

    //<dubbo:protocol name="dubbo" port="20880"></dubbo:protocol>
    @Bean
    public ProtocolConfig protocolConfig(){
        ProtocolConfig protocolConfig = new ProtocolConfig();
        protocolConfig.setName("dubbo");
        protocolConfig.setPort(20882);
        return protocolConfig;
    }

    /*
    <dubbo:service interface="gmall.bean.UserService"
    ref="userServiceImpl01" timeout="1000" version="1.0.0">
      <dubbo:method name="getUserAddressList" timeout="1000"></dubbo:method>
   </dubbo:service>
     */

    @Bean
    public ServiceConfig<UserService> userServiceServiceConfig(UserService userService){
        ServiceConfig<UserService> serviceConfig = new ServiceConfig<>();
        serviceConfig.setInterface(UserService.class);
        serviceConfig.setRef(userService);
        serviceConfig.setVersion("1.0.0");

        //配置每一个method的信息
        MethodConfig methodConfig = new MethodConfig();
        methodConfig.setName("getUserAddressList");
        methodConfig.setTimeout(1000);

        //将method的设置关联到service配置中
        List<MethodConfig> methods = new ArrayList<>();
        methods.add(methodConfig);
        serviceConfig.setMethods(methods);

        return serviceConfig;


    }

    //<dubbo:provider timeout="1000"></dubbo:provider>
    @Bean
    public ProviderConfig providerConfig(){
        ProviderConfig providerConfig = new ProviderConfig();
        providerConfig.setTimeout(1000);
        return providerConfig;
    }

    //<dubbo:monitor protocol="registry"></dubbo:monitor>
    @Bean
    public MonitorConfig monitorConfig(){
        MonitorConfig monitorConfig = new MonitorConfig();
        monitorConfig.setProtocol("registry");
        return monitorConfig;
    }


}

springboot-user-service-provider/src/main/java/com/gmall/impl/UserServiceImpl.java

package com.gmall.impl;

import com.alibaba.dubbo.config.annotation.Service;
import gmall.bean.UserAddress;
import gmall.bean.UserService;
import org.springframework.stereotype.Component;

import java.util.Arrays;
import java.util.List;

@Service  //暴露服务
@Component
public class UserServiceImpl implements UserService {

   @Override
   public List<UserAddress> getUserAddressList(String userId) {
      System.out.println("UserServiceImpl.....old...");
      // TODO Auto-generated method stub
      UserAddress address1 = new UserAddress(1, "北京市昌平区宏福科技园综合楼3层", "1", "李老师", "010-56253825", "Y");
      UserAddress address2 = new UserAddress(2, "深圳市宝安区西部硅谷大厦B座3层（深圳分校）", "1", "王老师", "010-56253825", "N");
      /*try {
         Thread.sleep(4000);
      } catch (InterruptedException e) {
         // TODO Auto-generated catch block
         e.printStackTrace();
      }*/
      return Arrays.asList(address1,address2);
   }

}

springboot-user-service-provider/src/main/java/com/gmall/SpringbootUserServiceProviderApplication.java

package com.gmall;

import com.alibaba.dubbo.config.spring.context.annotation.DubboComponentScan;
import com.alibaba.dubbo.config.spring.context.annotation.EnableDubbo;
import org.springframework.boot.SpringApplication;
import org.springframework.boot.autoconfigure.SpringBootApplication;
import org.springframework.cloud.netflix.hystrix.EnableHystrix;
import org.springframework.context.annotation.ImportResource;

@EnableDubbo(scanBasePackages = "com.gmall")
@SpringBootApplication
public class SpringbootUserServiceProviderApplication {

    public static void main(String[] args) {
        SpringApplication.run(SpringbootUserServiceProviderApplication.class, args);
    }

}

运行 springboot-user-service-provider/src/main/java/com/gmall/SpringbootUserServiceProviderApplication.java

访问 http://localhost:7001/governance/providers

在这里插入图片描述

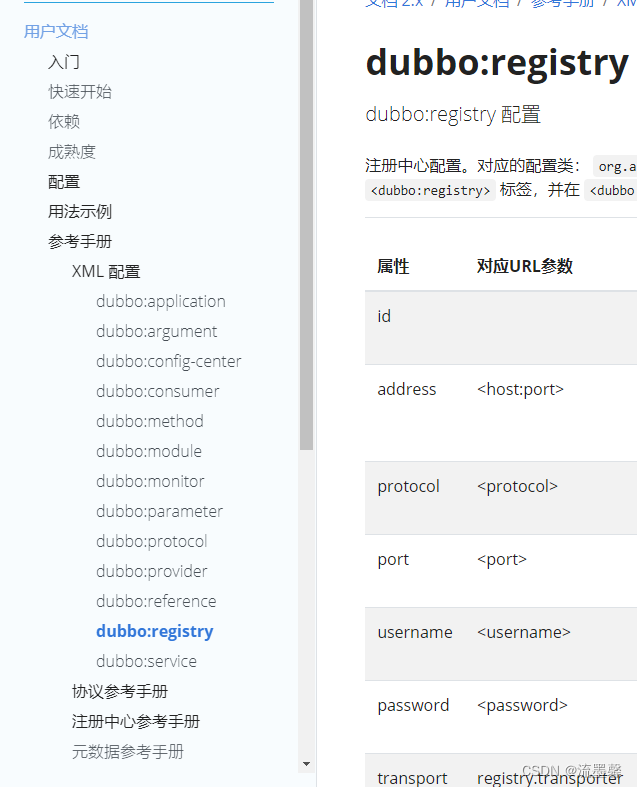

xml相关配置

参考：https://dubbo.apache.org/zh/docsv2.7/user/references/xml/

在这里插入图片描述

高可用

1、zookeeper宕机可与dubbo直连

现象：zookeeper注册中心当即，还可以消费暴露的服务

实现：

springboot-order-service-consumer/src/main/java/com/gmall/impl/OrderServiceImpl.java

// 直接加url 直连
@Reference(url="127.0.0.1:20882")

原因：

  • 监控中心当即不影响使用，只是丢失部分采样数据
  • 数据库宕机后，注册中心仍能通过缓存提供服务列表查询，但不能注册新服务
  • 注册中心对等集群，任意一台宕掉后，将自动切换到另一台
  • 注册中心全部宕机后，服务提供者和服务消费者仍能通过本地缓存通讯
  • 服务提供者无状态，任意一台宕机后，不影响使用
  • 服务提供者全部宕机后，服务消费者应用将无法使用，并无限次重连等待服务提供者恢复

2、集群下dubbo负载均衡配置

在集群负载均衡时，Dubbo提供了多种负载均衡策略，缺省为random随机调用

负载均衡策略：默认使用Random LoadBalance

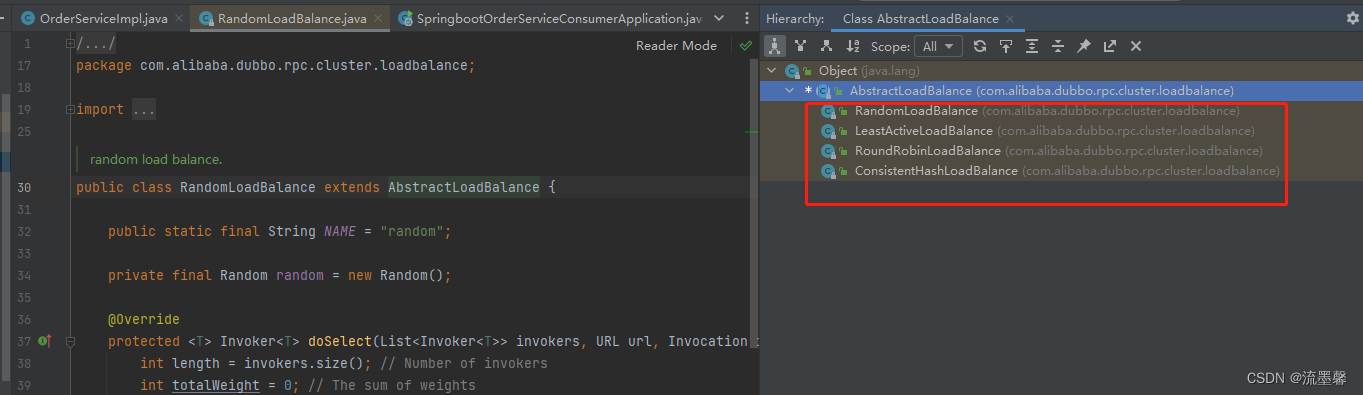

可在全局搜索RandomLoadBalance.class，鼠标移至AbstractLoadBalance，快捷键CTRL+H查看继承树：

在这里插入图片描述

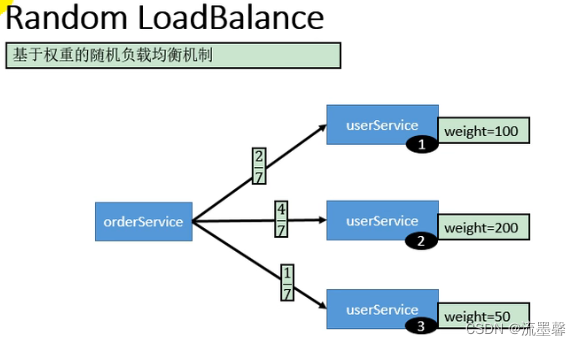

  • Random LoadBalance

    随机，按权重设置随机概率。在一个截面上碰撞的概率高，但调用量越大分布越均匀，而且按概率使用权重后也比较均匀，有利于动态调整提供者权重

在这里插入图片描述

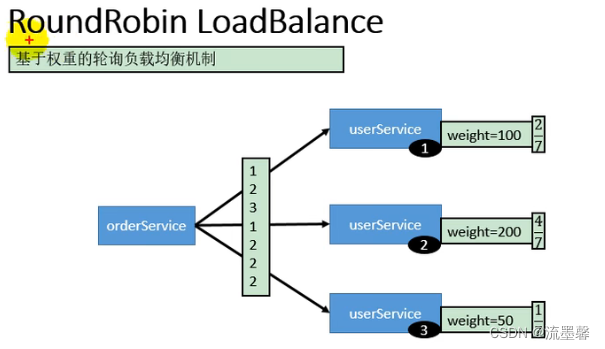

  • RoundRobin LoadBalance

    轮询，按公约后的权重设置轮询比率。存在慢的提供者累积请求的问题，比如：第二台机器很慢，但没挂，当请求调用到第二台时就卡在那，久而久之，所有请求都卡在调用的第二台上了

在这里插入图片描述

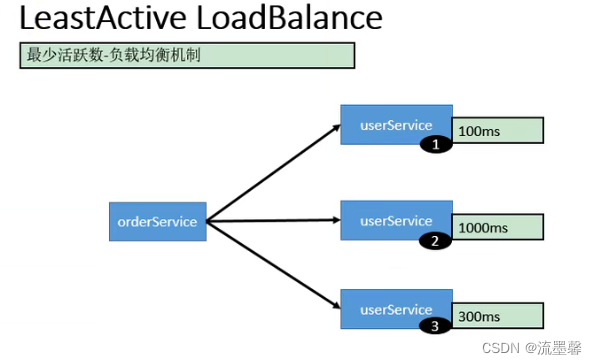

  • LeastActive LoadBalance

    最少活跃调用数，相同活跃数的随机，活跃数指调用前后计数差。使慢的提供者收到更少的请求，因为慢的提供者的调用前后计数差会越大

在这里插入图片描述

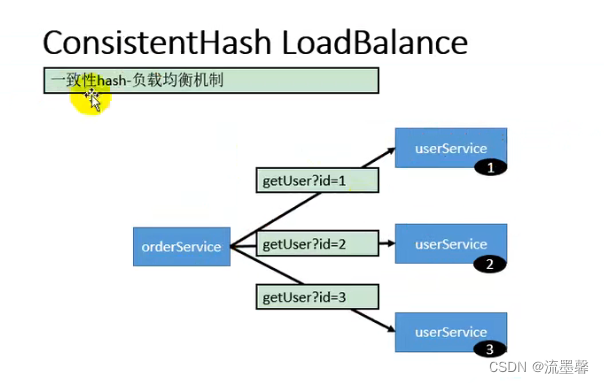

  • ConslstentHash LoadBalance

    一致性Hash，相同参数的请求总是发送到同一提供者。当某一台提供者挂掉时，原本发往该提供者的请求，基于虚拟节点，平摊到其他提供者，不会引起剧烈变动

在这里插入图片描述

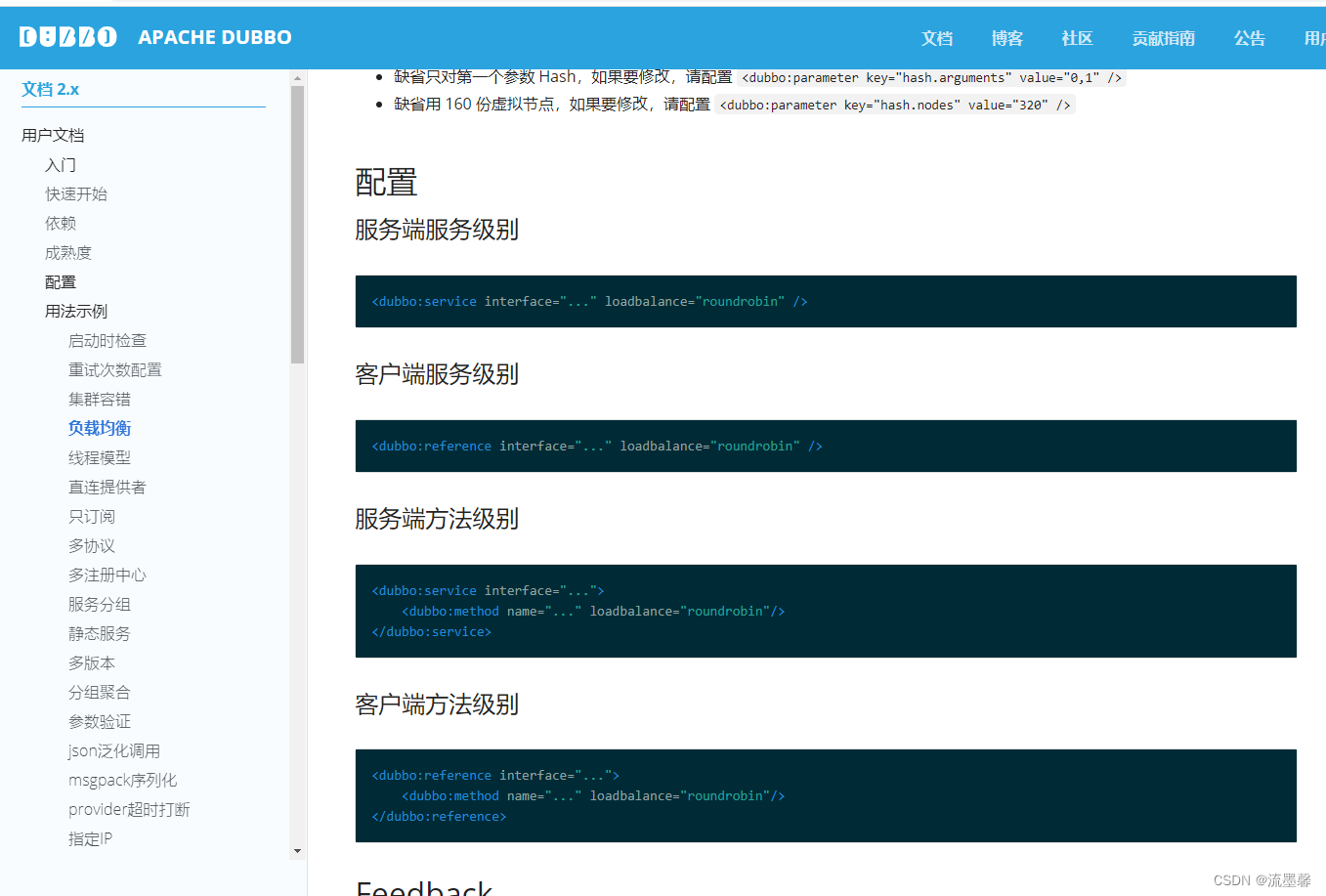

参照更改负载均衡配置：https://dubbo.apache.org/zh/docsv2.7/user/examples/loadbalance/

在这里插入图片描述

3、服务降级

当服务器压力剧增的情况下，根据实际业务情况及流量，对一些服务和页面有策略的不处理或换种简单的方式处理。从而释放服务器资源以保证核心交易正常运作或高效运作。

实现：通过服务降级功能临时频闭某个出错的非关键服务，并定义降级后的返回策略。像注册中心写入动态配置覆盖规则

RegistryFactory registryFactory = ExtensionLoader.getExtensionLoader(RegistryFactory.class).getAdaptiveExtension();
Registry registry = registryFactory.getRegistry(URL.valueOf("zookeeper://10.20.153.10:2181"));
registry.register(URL.valueOf("override://0.0.0.0/com.foo.BarService?category=configurators&dynamic=false&application=foo&mock=force:return+null"));
  • mock=force:return+null 表示消费方对该服务的方法调用都直接返回null值，不发起远程调用，用来屏蔽不重要服务不可用时对调用方的影响
  • mock=fail:return+null 表示消费方对该服务的方法调用在失败后，再返回 null 值，不抛异常。用来容忍不重要服务不稳定时对调用方的影响

4、集群容错

在集群调用失败时，Dubbo 提供了多种容错方案，缺省为 failover 重试

集群容错模式及实现：

  • Failover Cluster

    失败自动切换，当出现失败，重试其它服务器。通常用于读操作，但重试会带来更长延迟。可通过 retries=“2” 来设置重试次数(不含第一次)

    重试次数配置如下：
<dubbo:service retries="2" />
或
<dubbo:reference retries="2" />
或
<dubbo:reference>
    <dubbo:method name="findFoo" retries="2" />
</dubbo:reference>

  • Failfast Cluster

    快速失败，只发起一次调用，失败立即报错。通常用于非幂等性的写操作，比如新增记录

  • Failsafe Cluster

    失败安全，出现异常时，直接忽略。通常用于写入审计日志等操作

  • Failback Cluster

    失败自动恢复，后台记录失败请求，定时重发。通常用于消息通知操作

  • Forking Cluster

    并行调用多个服务器，只要一个成功即返回。通常用于实时性要求较高的读操作，但需要浪费更多服务资源。可通过 forks=“2” 来设置最大并行数

  • Broadcast Cluster

    广播调用所有提供者，逐个调用，任意一台报错则报错 [2]。通常用于通知所有提供者更新缓存或日志等本地资源信息

  • 集群模式配置

    <dubbo:service cluster="failsafe" />
或
<dubbo:reference cluster="failsafe" />

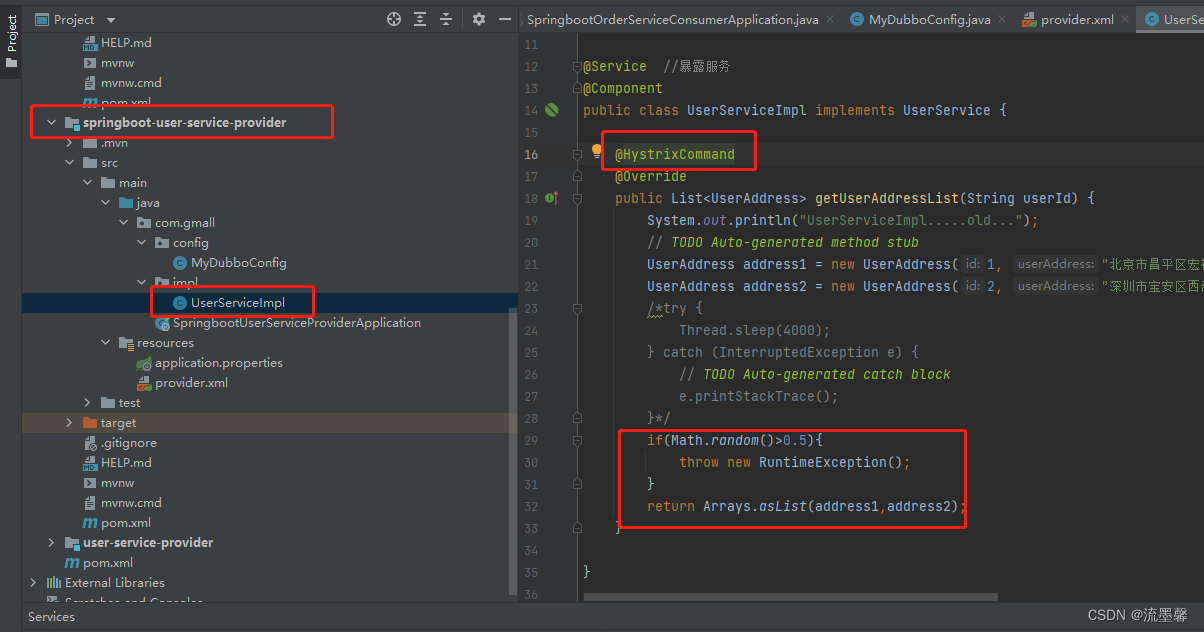

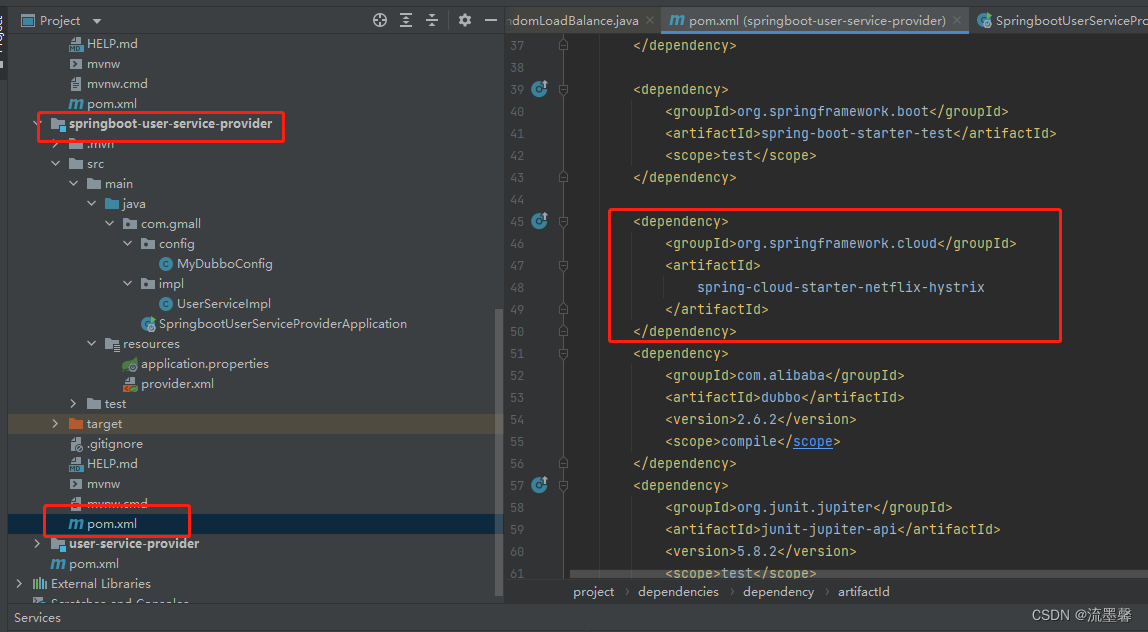

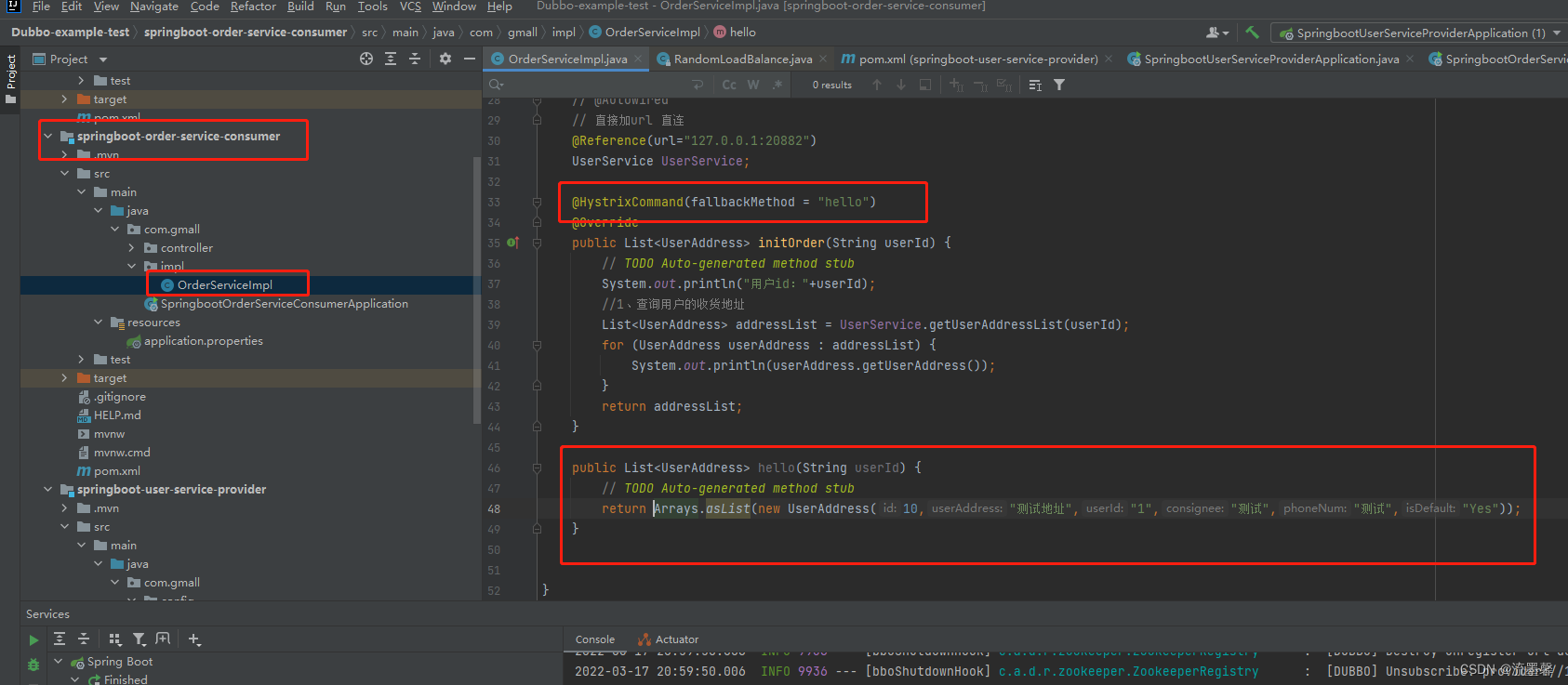

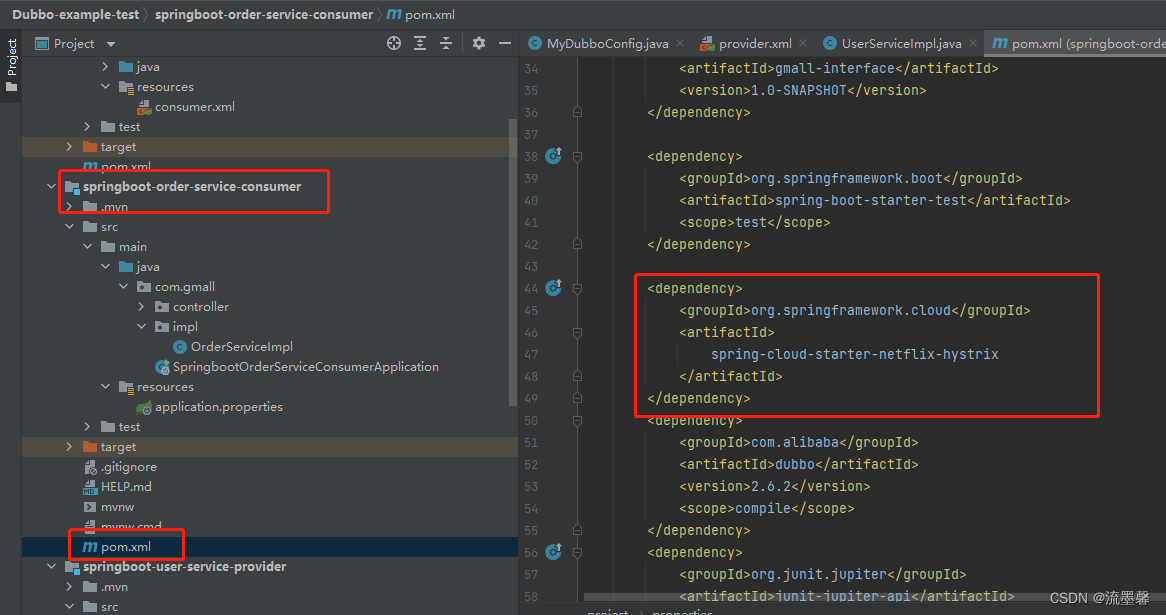

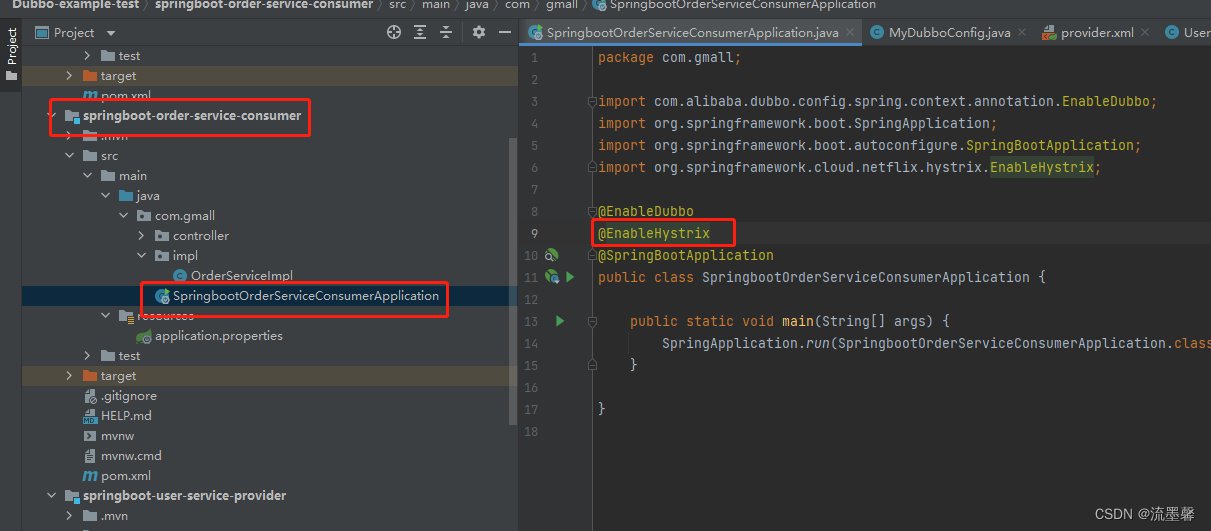

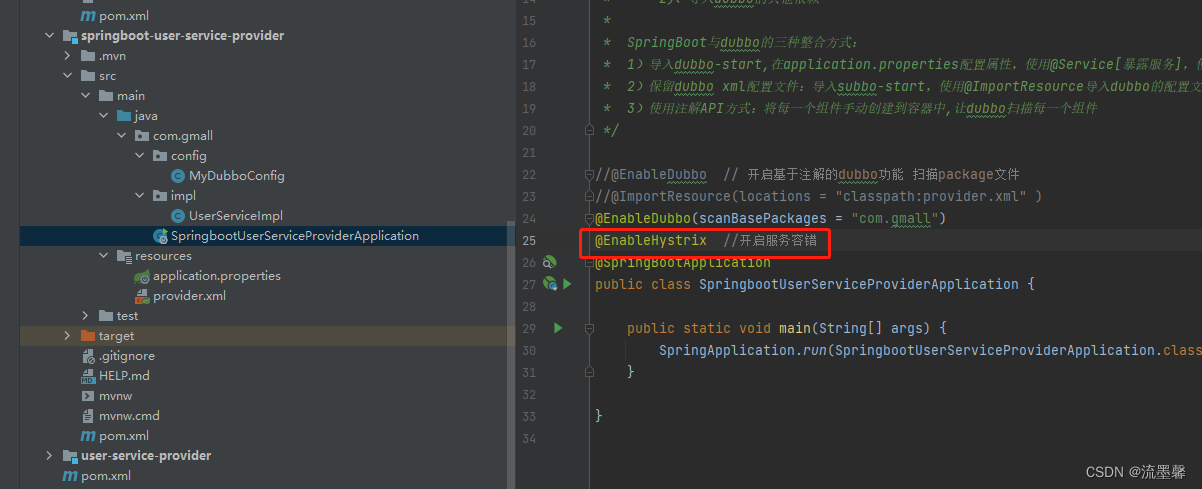

4、整合

在这里插入图片描述
在这里插入图片描述
在这里插入图片描述
在这里插入图片描述
在这里插入图片描述
在这里插入图片描述

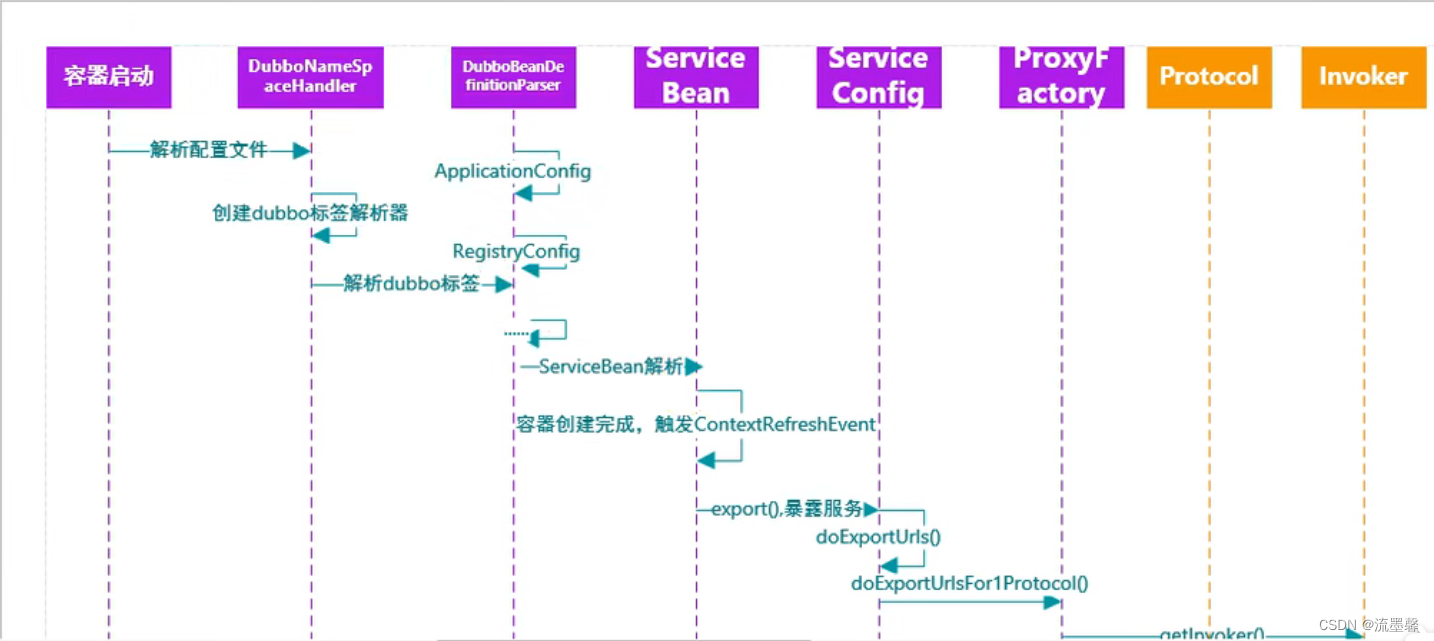

其它原理

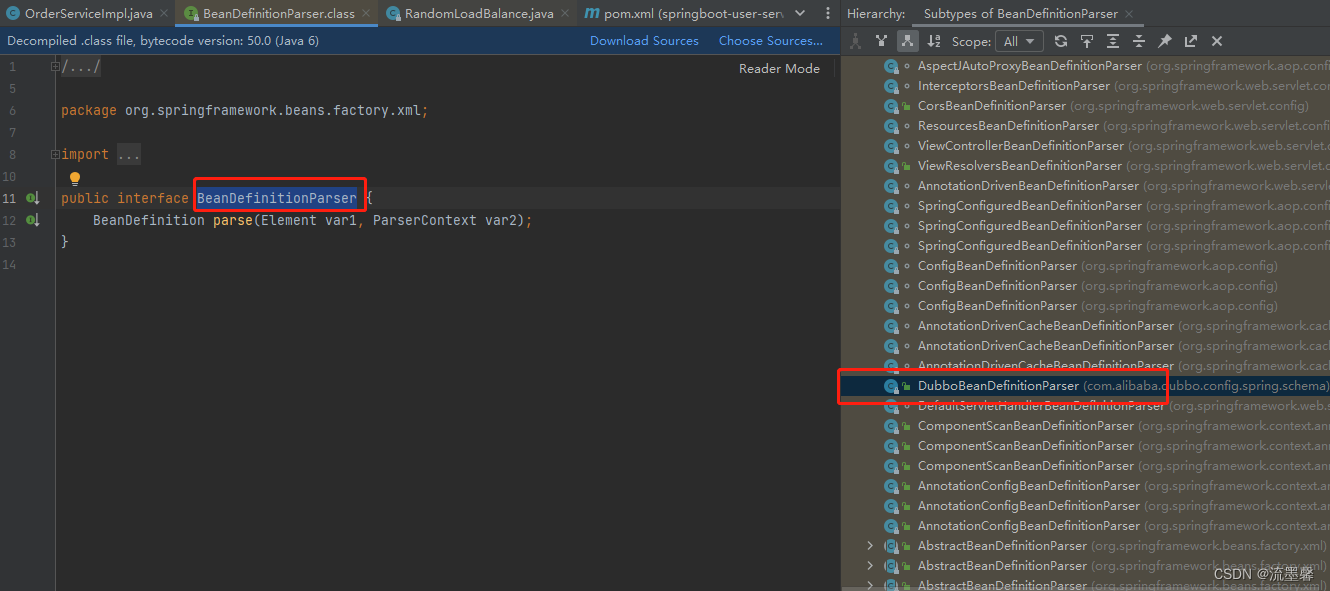

标签解析：BeanDefinitionParser ctrl+H DubboBeanDefinitionParser

获取xml中的配置信息，并封装起来：

在这里插入图片描述

在这里插入图片描述

在这里插入图片描述

将之前的配置信息保存起来：

在这里插入图片描述

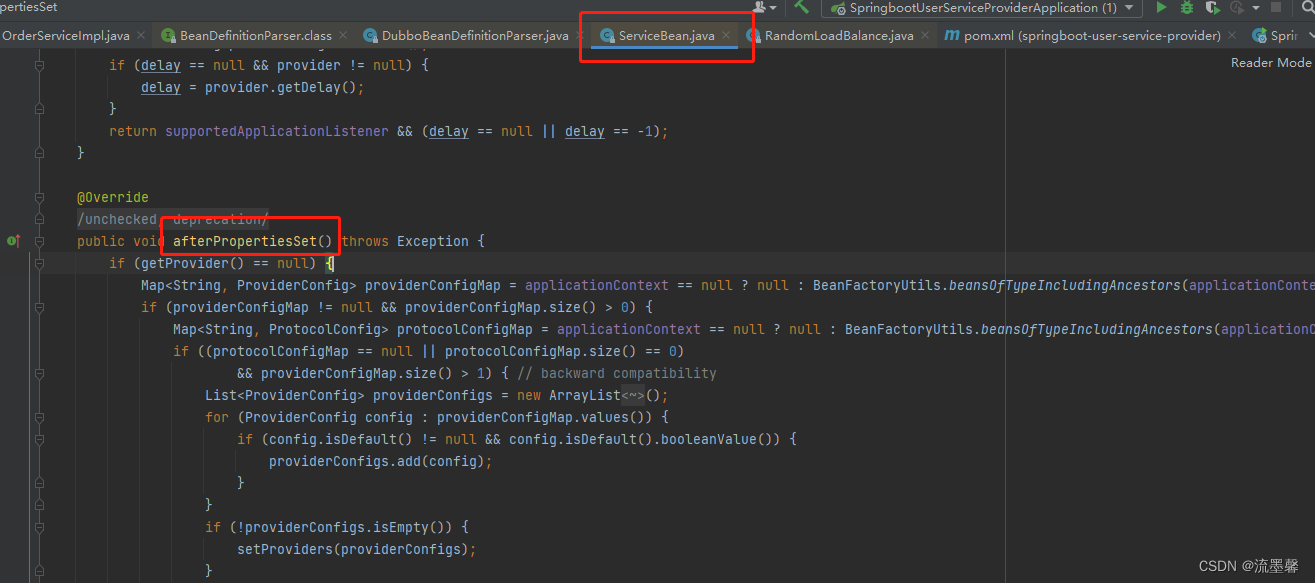

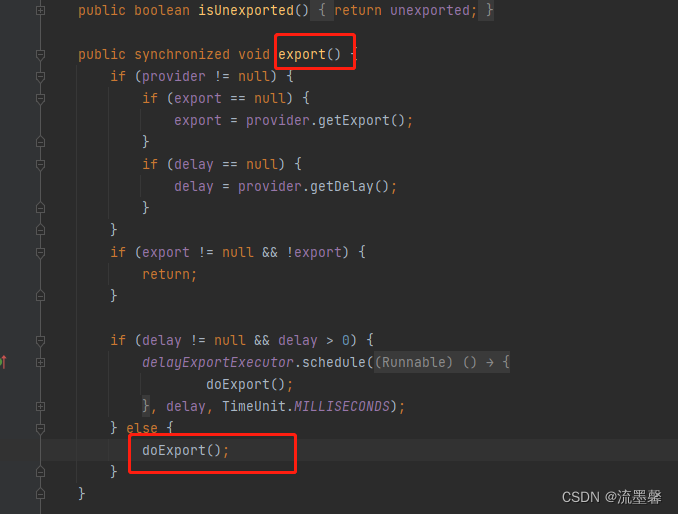

监听暴露服务:

在这里插入图片描述

在这里插入图片描述

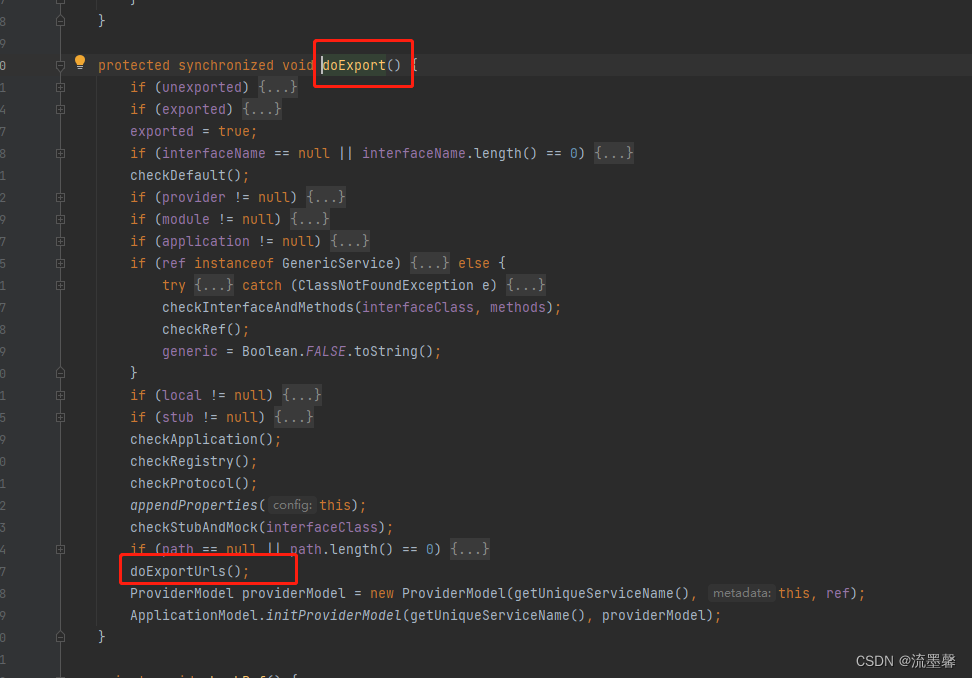

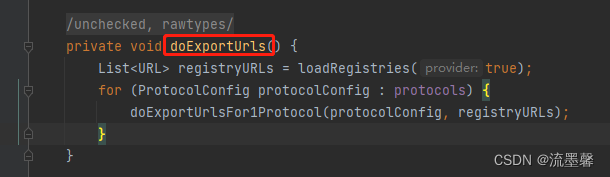

暴露url地址：

在这里插入图片描述

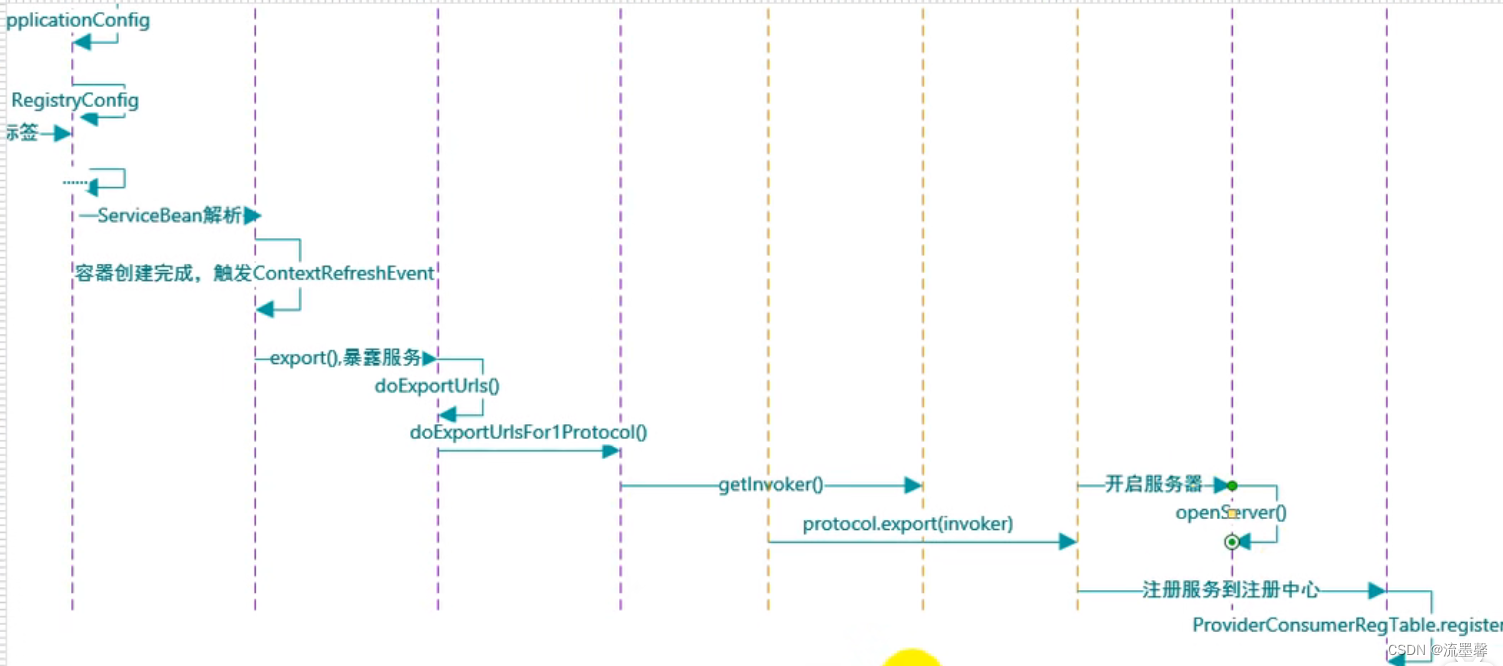

拉取注册中心列表，加载协议地址端口：

在这里插入图片描述

最后

以上就是腼腆草莓为你收集整理的dubbo环境搭建的全部内容，希望文章能够帮你解决dubbo环境搭建所遇到的程序开发问题。

如果觉得靠谱客网站的内容还不错，欢迎将靠谱客网站推荐给程序员好友。

本图文内容来源于网友提供，作为学习参考使用，或来自网络收集整理，版权属于原作者所有。
点赞(40)

相关文章

手动调用指定Dubbo接口（三）----GenericService篇
手动调用指定Dubbo接口（三）----GenericService篇
CentOS7安装部署Dubbo+Zookeeper集群创建虚拟机网络配置单节点Dubbo的安装部署Dubbo+zookeeper集群的部署克隆虚拟机
CentOS7安装部署Dubbo+Zookeeper集群创建虚拟机网络配置单节点Dubbo的安装部署Dubbo+zookeeper集群的部署克隆虚拟机
dubbo之集群配置
dubbo之集群配置
Dubbo集群和负载均衡策略精讲一、负载均衡算法二、选举算法三、数据同步四、健康检查
Dubbo集群和负载均衡策略精讲一、负载均衡算法二、选举算法三、数据同步四、健康检查
dubbo环境搭建
dubbo环境搭建
互联网架构的演变过程
互联网架构的演变过程
基于dubbo实现两个项目之间的相互通信
基于dubbo实现两个项目之间的相互通信
解决dubbo注册zookepper服务IP乱入问题的三种方式
解决dubbo注册zookepper服务IP乱入问题的三种方式

评论列表共有 0 条评论

立即
投稿
返回
顶部
