概述

Java SPI(Service Provider Interface)

(1)接口

public interface SPIService {
    public void printService();
}

(2)接口实现1

public class SPIServiceImpl implements SPIService {
    public void printService() {
        System.out.println("Hello World");
    }
}

(3)接口实现2

public class SPIServiceImpl2  implements SPIService {
    public void printService() {
        System.out.println("Hello World2");
    }
}

(4)接口实现2

public class SPIServiceImpl3 implements SPIService {
    public void printService() {
        System.out.println("Hello World3");
    }
}

(5)在resource目录下建立META-INF/services目录，建立接口的全路径名文件(这里是gdut.ff.spi.SPIService)，在文件里以分行符分隔接口实现类的全路径名。

(6)Main方法

import java.util.ServiceLoader;

public class SPIServiceMain {
    public static void main(String[] args) {
        ServiceLoader<SPIService> serviceLoader = ServiceLoader.load(SPIService.class);
        for (SPIService spiService:serviceLoader) {
            spiService.printService();
        }
    }
}

java.util.ServiceLoader可以获取接口的全部实现，具体调用哪个实现是用户在META-INF/services中配置。

Dubbo SPI

(1)在接口上添加注解@SPI

import org.apache.dubbo.common.extension.SPI;

@SPI("spiServiceImpl")
public interface SPIService {
    public void printService();
}

(2)在META-INF/dubbo/internal文件夹下建立全路径名配置文件，内容如下

spiServiceImpl=gdut.ff.spi.SPIServiceImpl

(3)Main方法:通过ExtensionLoader获取接口SPIService.class的默认实现

public class SPIServiceMain {
    public static void main(String[] args) {
        SPIService defaultExtension = ExtensionLoader.getExtensionLoader(SPIService.class).getDefaultExtension();
        defaultExtension.printService();
    }
}

Java SPI 和 Dubbo SPI 对比

(1) Java SPI会一次性实例化所有拓展点的实现，而Dubbo SPI并不会立即全部初始化。
(2) Dubbo SPI实现了IoC和AOP机制。
(3) Dubbo SPI兼容Java SPI的配置方式和配置内容，在Dubbo启动的时候，会扫描META-INF/services/,META-INF/dubbo/,META-INF/dubbo/internal/三个目录

拓展点注解 @SPI

(1)@SPI可以使用在类、接口和枚举类上。
(2)标志这是Dubbo SPI接口。
(3)SPI注解有一个value属性，可以通过这个属性设置这个接口的默认实现类。

@Documented
@Retention(RetentionPolicy.RUNTIME)
@Target({ElementType.TYPE})
public @interface SPI {
    /**
     * 默认实现类名称
     */
    String value() default "";
}

拓展点自适应注解 @Adaptive

(1)@Adaptive注解可以标记在类、接口、枚举和方法上。
(2)使用@Adaptive注解，可以动态地通过URL中的参数来确定具体使用的实现类，从而解决了自动加载中的实例注入问题。
(3)当传递的参数URL没有参数key可以匹配@Adaptive的value数组的某一个值，就会使用@SPI("XXX")默认实现。
(4)当传递的参数URL有参数key可以匹配@Adaptive的value数组的某一个值(顺序是key依次匹配)，就使用该key对应的value值。查找该value值在配置文件(META-INF/dubbo/internal/目录下)对应的实现类。
(5)当在某个实现类上加了@Adaptive注解，优先级最高，无论默认实现@SPI的值是什么和URL传递了什么参数，都会直接调用带有@Adaptive注解的类。
(6)方法级别注解会生成和编译动态实现类，而类级别的注解不会生成动态类。
(7)会缓存两个与@Adaptive有关的对象，Adaptive具体实现类的Class类型缓存在cachedAdaptiveClass中；Class的具体实例化对象缓存在cachedAdaptiveInstance中。

@SPI("spiServiceImpl")
public interface SPIService {
    @Adaptive({"test"})
    public void printService(URL url);
}

spiServiceImpl=gdut.ff.spi.SPIServiceImpl
spiServiceImpl2=gdut.ff.spi.SPIServiceImpl2
spiServiceImpl3=gdut.ff.spi.SPIServiceImpl3

public class SPIServiceMain {
    public static void main(String[] args) {
        SPIService defaultExtension = ExtensionLoader.getExtensionLoader(SPIService.class).getAdaptiveExtension();
        //这里设置@Adaptive的参数test的值是spiServiceImpl2，表示调用gdut.ff.spi.SPIServiceImpl2
        URL url = URL.valueOf("file://localhost/hello?test=spiServiceImpl2");
        defaultExtension.printService(url);
    }
}
输出是：Hello World2

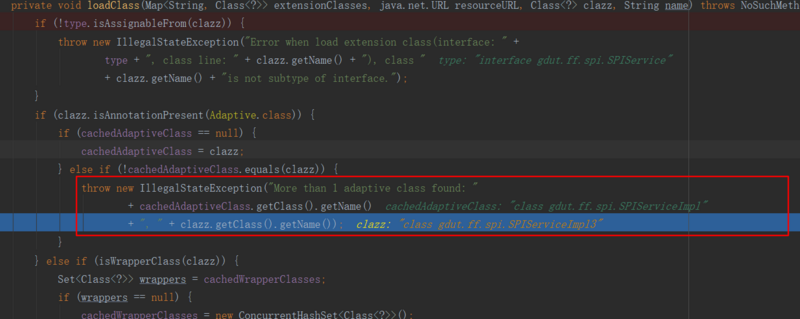

(8)如果在多个实现类上面都加了@Adaptive注解，会抛出“发现多于一个Adaptive类”错误。

拓展点自适应激活注解 @Activate

(1)可以标记在类、枚举、接口和方法上。主要使用在有多个拓展点，需要根据不同的应用场景激活。

ExtensionLoader工作原理

public class SPIServiceMain {
    public static void main(String[] args) {
        URL url = URL.valueOf("file://localhost/hello");
        SPIService defaultService = ExtensionLoader.getExtensionLoader(SPIService.class).getExtension("true");
        defaultService.printService(url);
    }
}

(1)getExtension

private final ConcurrentMap<String, Holder<Object>> cachedInstances = new ConcurrentHashMap<String, Holder<Object>>();

public T getExtension(String name) {
    if (name == null || name.length() == 0)
        throw new IllegalArgumentException("Extension name == null");
    if ("true".equals(name)) {
        //加载返回默认拓展类
        return getDefaultExtension();
    }
    //先在缓存实例中获取
    Holder<Object> holder = cachedInstances.get(name);
    if (holder == null) {
        cachedInstances.putIfAbsent(name, new Holder<Object>());
        holder = cachedInstances.get(name);
    }
    Object instance = holder.get();
    if (instance == null) {
        synchronized (holder) {
            instance = holder.get();
            if (instance == null) {
                //缓存中没有再创建
                instance = createExtension(name);
                holder.set(instance);
            }
        }
    }
    return (T) instance;
}

private T createExtension(String name) {
    Class<?> clazz = getExtensionClasses().get(name);
    if (clazz == null) {
        throw findException(name);
    }
    try {
        T instance = (T) EXTENSION_INSTANCES.get(clazz);
        if (instance == null) {
            EXTENSION_INSTANCES.putIfAbsent(clazz, clazz.newInstance());
            instance = (T) EXTENSION_INSTANCES.get(clazz);
        }
        injectExtension(instance);
        Set<Class<?>> wrapperClasses = cachedWrapperClasses;
        if (wrapperClasses != null && !wrapperClasses.isEmpty()) {
            for (Class<?> wrapperClass : wrapperClasses) {
                instance = injectExtension((T) wrapperClass.getConstructor(type).newInstance(instance));
            }
        }
        return instance;
    } catch (Throwable t) {
        throw new IllegalStateException("Extension instance(name: " + name + ", class: " +
                type + ")  could not be instantiated: " + t.getMessage(), t);
    }
}

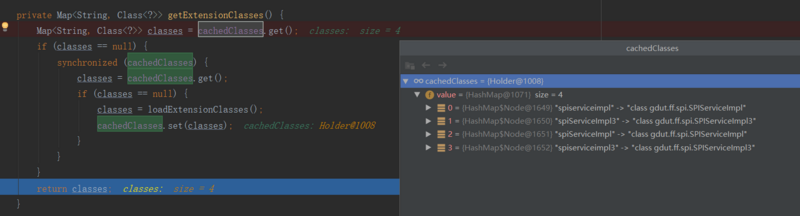

private Map<String, Class<?>> getExtensionClasses() {
   //从缓存类中查找
    Map<String, Class<?>> classes = cachedClasses.get();
    if (classes == null) {
        synchronized (cachedClasses) {
            classes = cachedClasses.get();
            if (classes == null) {
                classes = loadExtensionClasses();
                cachedClasses.set(classes);
            }
        }
    }
    return classes;
}

private Map<String, Class<?>> loadExtensionClasses() {
    //获取接口上的注解SPI
    final SPI defaultAnnotation = type.getAnnotation(SPI.class);
    if (defaultAnnotation != null) {
        //@SPI注解的value值
        String value = defaultAnnotation.value();
        if ((value = value.trim()).length() > 0) {
            String[] names = NAME_SEPARATOR.split(value);
            if (names.length > 1) {
                throw new IllegalStateException("more than 1 default extension name on extension " + type.getName()
                        + ": " + Arrays.toString(names));
            }
            if (names.length == 1) cachedDefaultName = names[0];
        }
    }

    Map<String, Class<?>> extensionClasses = new HashMap<String, Class<?>>();
    // META-INF/dubbo/internal/接口全路径名
    loadDirectory(extensionClasses, DUBBO_INTERNAL_DIRECTORY, type.getName());
    // META-INF/dubbo/internal/接口全路径名
    loadDirectory(extensionClasses, DUBBO_INTERNAL_DIRECTORY, type.getName().replace("org.apache", "com.alibaba"));
    // META-INF/dubbo/接口全路径名
    loadDirectory(extensionClasses, DUBBO_DIRECTORY, type.getName());
    // META-INF/dubbo/接口全路径名
    loadDirectory(extensionClasses, DUBBO_DIRECTORY, type.getName().replace("org.apache", "com.alibaba"));
    // META-INF/services/接口全路径名
    loadDirectory(extensionClasses, SERVICES_DIRECTORY, type.getName());
    // META-INF/services/接口全路径名
    loadDirectory(extensionClasses, SERVICES_DIRECTORY, type.getName().replace("org.apache", "com.alibaba"));
    return extensionClasses;
}

private void loadDirectory(Map<String, Class<?>> extensionClasses, String dir, String type) {
    String fileName = dir + type;
    try {
        Enumeration<java.net.URL> urls;
        ClassLoader classLoader = findClassLoader();
        if (classLoader != null) {
            urls = classLoader.getResources(fileName);
        } else {
            urls = ClassLoader.getSystemResources(fileName);
        }
        if (urls != null) {
            while (urls.hasMoreElements()) {
                java.net.URL resourceURL = urls.nextElement();
                loadResource(extensionClasses, classLoader, resourceURL);
            }
        }
    } catch (Throwable t) {
        logger.error("Exception when load extension class(interface: " +
                type + ", description file: " + fileName + ").", t);
    }
}

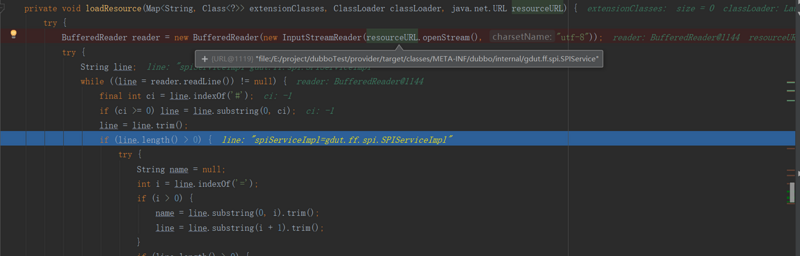

private void loadResource(Map<String, Class<?>> extensionClasses, ClassLoader classLoader, java.net.URL resourceURL) {
    try {
        //IO流读取META-INF文件夹的配置文件
        BufferedReader reader = new BufferedReader(new InputStreamReader(resourceURL.openStream(), "utf-8"));
        try {
            String line;
            while ((line = reader.readLine()) != null) {
                final int ci = line.indexOf('#');
                if (ci >= 0) line = line.substring(0, ci);
                line = line.trim();
                if (line.length() > 0) {
                    try {
                        String name = null;
                        int i = line.indexOf('=');
                        if (i > 0) {
                            name = line.substring(0, i).trim();
                            line = line.substring(i + 1).trim();
                        }
                        if (line.length() > 0) {
                            loadClass(extensionClasses, resourceURL, Class.forName(line, true, classLoader), name);
                        }
                    } catch (Throwable t) {
                        IllegalStateException e = new IllegalStateException("Failed to load extension class(interface: " + type + ", class line: " + line + ") in " + resourceURL + ", cause: " + t.getMessage(), t);
                        exceptions.put(line, e);
                    }
                }
            }
        } finally {
            reader.close();
        }
    } catch (Throwable t) {
        logger.error("Exception when load extension class(interface: " +
                type + ", class file: " + resourceURL + ") in " + resourceURL, t);
    }
}

private void loadClass(Map<String, Class<?>> extensionClasses, java.net.URL resourceURL, Class<?> clazz, String name) throws NoSuchMethodException {
    //判断clazz是否是type的子类
    if (!type.isAssignableFrom(clazz)) {
        throw new IllegalStateException("Error when load extension class(interface: " +
                type + ", class line: " + clazz.getName() + "), class "
                + clazz.getName() + "is not subtype of interface.");
    }
    //判断实现类clazz是否有@Adaptive注解
    if (clazz.isAnnotationPresent(Adaptive.class)) {
        if (cachedAdaptiveClass == null) {
            cachedAdaptiveClass = clazz;
        } else if (!cachedAdaptiveClass.equals(clazz)) {
            throw new IllegalStateException("More than 1 adaptive class found: "
                    + cachedAdaptiveClass.getClass().getName()
                    + ", " + clazz.getClass().getName());
        }
    //判断是否是包装拓展类，如果是，缓存起来
    } else if (isWrapperClass(clazz)) {
        Set<Class<?>> wrappers = cachedWrapperClasses;
        if (wrappers == null) {
            cachedWrapperClasses = new ConcurrentHashSet<Class<?>>();
            wrappers = cachedWrapperClasses;
        }
        wrappers.add(clazz);
    } else {
        clazz.getConstructor();
        if (name == null || name.length() == 0) {
            name = findAnnotationName(clazz);
            if (name.length() == 0) {
                throw new IllegalStateException("No such extension name for the class " + clazz.getName() + " in the config " + resourceURL);
            }
        }
        String[] names = NAME_SEPARATOR.split(name);
        if (names != null && names.length > 0) {
            //判断是否有@Activate注解，如果有，缓存起来
            Activate activate = clazz.getAnnotation(Activate.class);
            if (activate != null) {
                cachedActivates.put(names[0], activate);
            } else {
                // support com.alibaba.dubbo.common.extension.Activate
                com.alibaba.dubbo.common.extension.Activate oldActivate = clazz.getAnnotation(com.alibaba.dubbo.common.extension.Activate.class);
                if (oldActivate != null) {
                    cachedActivates.put(names[0], oldActivate);
                }
            }
            //普通拓展类，缓存起来
            for (String n : names) {
                if (!cachedNames.containsKey(clazz)) {
                    cachedNames.put(clazz, n);
                }
                Class<?> c = extensionClasses.get(n);
                if (c == null) {
                    extensionClasses.put(n, clazz);
                } else if (c != clazz) {
                    throw new IllegalStateException("Duplicate extension " + type.getName() + " name " + n + " on " + c.getName() + " and " + clazz.getName());
                }
            }
        }
    }
}

(2)getAdaptiveExtension

public T getAdaptiveExtension() {
    Object instance = cachedAdaptiveInstance.get();
    if (instance == null) {
        if (createAdaptiveInstanceError == null) {
            synchronized (cachedAdaptiveInstance) {
                instance = cachedAdaptiveInstance.get();
                if (instance == null) {
                    try {
                        instance = createAdaptiveExtension();
                        cachedAdaptiveInstance.set(instance);
                    } catch (Throwable t) {
                        createAdaptiveInstanceError = t;
                        throw new IllegalStateException("fail to create adaptive instance: " + t.toString(), t);
                    }
                }
            }
        } else {
            throw new IllegalStateException("fail to create adaptive instance: " + createAdaptiveInstanceError.toString(), createAdaptiveInstanceError);
        }
    }

    return (T) instance;
}

private T createAdaptiveExtension() {
    try {
        return injectExtension((T) getAdaptiveExtensionClass().newInstance());
    } catch (Exception e) {
        throw new IllegalStateException("Can not create adaptive extension " + type + ", cause: " + e.getMessage(), e);
    }
}

private Class<?> getAdaptiveExtensionClass() {
    getExtensionClasses();
    if (cachedAdaptiveClass != null) {
        return cachedAdaptiveClass;
    }
    return cachedAdaptiveClass = createAdaptiveExtensionClass();
}

ExtensionFactory

package org.apache.dubbo.common.extension;

@SPI
public interface ExtensionFactory {
    <T> T getExtension(Class<T> var1, String var2);
}

有三种实现：
(1)SpiExtensionFactory
(2)SpringExtensionFactory
(3)AdaptiveExtensionFactory

代码编译器

(1)JDK编译器JdkCompiler
(2)Javassist编译器JavassistCompiler
(3)Adaptive编译器AdaptiveCompiler

参考资料

《深入理解Apache Dubbo与实战》
Dubbo SPI之Adaptive详解

最后

以上就是冷静月饼为你收集整理的Dubbo拓展点加载机制的全部内容，希望文章能够帮你解决Dubbo拓展点加载机制所遇到的程序开发问题。

如果觉得靠谱客网站的内容还不错，欢迎将靠谱客网站推荐给程序员好友。

本图文内容来源于网友提供，作为学习参考使用，或来自网络收集整理，版权属于原作者所有。

本文分类：分布式(Dubbo/ZooKeeper/RPC)
浏览次数：77 次浏览
发布日期：2023-08-31 02:55:22
本文链接：https://www.kaopuke.com/article/k-p-k_14_uzo_14_f3_14_z_2_2.html

聊聊Dubbo - Dubbo可扩展机制源码解析ExtensionLoaderDubbo SPI高级用法之自动装配Dubbo SPI高级用法之AoP扩展点自适应

dubbo ExtensionLoader源码分析ExtensionLoader概述ExtensionLoader属性SPI机制adaptive extensionactivate extensionExtensionLoader wapper【装饰器】对象实例创建#属性注入【dubbo IOC】总结

Dubbo拓展点加载机制

概述

Java SPI(Service Provider Interface)

Dubbo SPI

Java SPI 和 Dubbo SPI 对比

拓展点注解 @SPI

拓展点自适应注解 @Adaptive

拓展点自适应激活注解 @Activate

ExtensionLoader工作原理

ExtensionFactory

代码编译器

参考资料

最后

评论列表共有 0 条评论

发表评论取消回复

Dubbo拓展点加载机制

概述

Java SPI(Service Provider Interface)

Dubbo SPI

Java SPI 和 Dubbo SPI 对比

拓展点注解 @SPI

拓展点自适应注解 @Adaptive

拓展点自适应激活注解 @Activate

ExtensionLoader工作原理

ExtensionFactory

代码编译器

参考资料

最后

相关文章

评论列表共有 0 条评论

发表评论 取消回复

发表评论取消回复
