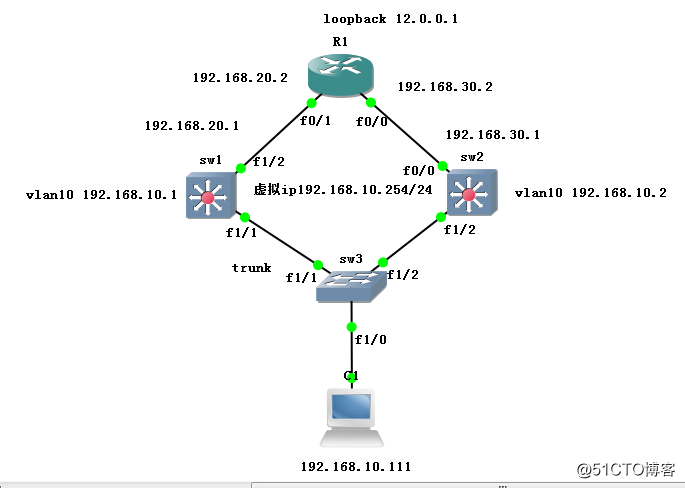

思科HSRP配置

1.配置设备基本信息
包括接口ip、vlan、trunk、路由等配置
·
2.配置HSRP
//SW1配置
sw1(config)#int vlan 10
sw1(config-if)#ip add 192.168.10.1 255.255.255.0
sw1(config-if)#standby 10 ip 192.168.10.254 ------------------//配置虚拟ip地址
sw1(config-if)#standby 10 priority 200------------------------//配置优先级
sw1(config-if)#standby 10 preempt------------------------//配置抢占权
sw1(config-if)#standby 10 track f1/1 100----------//配置端口跟踪和减去的优先级
·
//SW2配置
sw2(config)#int vlan 10
sw2(config-if)#ip add 192.168.10.2 255.255.255.0
sw2(config-if)#standby 10 ip 192.168.10.254
sw2(config-if)#standby 10 priority 150
sw2(config-if)#standby 10 preempt
·
3.验证HSRP
sw1#show standby brief
P indicates configured to preempt.
|

1
2
Interface   Grp       Pri     P    State     Active          Standby            Virtual IP
Vl10          10        200    P    Active    local           192.168.10.2    192.168.10.254

·

sw2#show standby brief
P indicates configured to preempt.
|

1
2
Interface   Grp      Pri    P   State          Active                Standby        Virtual IP
Vl10          10       150   P   Standby    192.168.10.1     local             192.168.10.254
