概述

简要介绍

heap2采用链表的方法管理内存堆。链表结构体的next指针指向下一个空闲内存块。并且链表连接的内存块按照从小到大的顺序排列。分配内存的时候，可以遍历查询。

申请内存时，查询到合适大小的内存后，如果内存有多，那么需要割下多余内存，重新插入到内存链表中，按照从小到大的顺序，在合适的位置插入。释放内存的时候，通过释放的地址找到该内存块的链表结构体，给出要释放的内存的大小，并插入到内存堆链表中，同样依照从小到大的顺序。

内存块分配预备内容

heap堆大小heap[]

在heap_2.c 中定义 static uint8_t ucHeap[ configTOTAL_HEAP_SIZE ];

内存堆为ucHeap[]，大小为 configTOTAL_HEAP_SIZE，由宏定义 #define configTOTAL_HEAP_SIZE ((size_t) (40 * 1024))，可以得到内存堆大小为40K字节。

字节对齐

"portmacro.h"
#define portBYTE_ALIGNMENT		8


"portable.h"
#if portBYTE_ALIGNMENT == 8
	#define portBYTE_ALIGNMENT_MASK ( 0x0007U )
#endif

void *pvPortMalloc( size_t xWantedSize ){

xWantedSize += ( portBYTE_ALIGNMENT - ( xWantedSize & portBYTE_ALIGNMENT_MASK ) );
}

static void prvHeapInit( void ){

pucAlignedHeap = ( uint8_t * ) ( ( ( portPOINTER_SIZE_TYPE ) &ucHeap[ portBYTE_ALIGNMENT ] ) & ( ( portPOINTER_SIZE_TYPE ) ~portBYTE_ALIGNMENT_MASK ) );
}

宏 portBYTE_ALIGNMENT 是需要对齐的字节数，默认为8，需进行8字节对齐也就是说xWantedSize 要为8的倍数，若不是就需要调整为8的倍数。如下：

xWantedSize += ( 8 - (xWantedSize & 0x07) )

eg1. xWantedSize = 30；

xWantedSize = 30 + （8 - （30 & 0x07））= 30 + （8 - 6）= 32

所以需要申请的内存大小应该为32个字节

pucAlignedHeap = ( uint8_t * )( ( uint32_t ) &ucHeap[8] ) & ( ( uint32_t ) ~0x07)

eg2. pucAlignedHeap = 0x200006C4；

pucAlignedHeap = 0x200006CC & 0xFFFFFFFFF8 = 0x200006C8

多以内存块的首地址应该是0x200006C8

内存块结构体BlockLink_t

typedef struct A_BLOCK_LINK
{
	struct A_BLOCK_LINK *pxNextFreeBlock;
	size_t xBlockSize;
} BlockLink_t;

为了实现内存释放，heap_2引入了内存块概念，每分出一段内存就是一个内存块，剩下的空闲内存也是一个内存块，内存块大小不定。

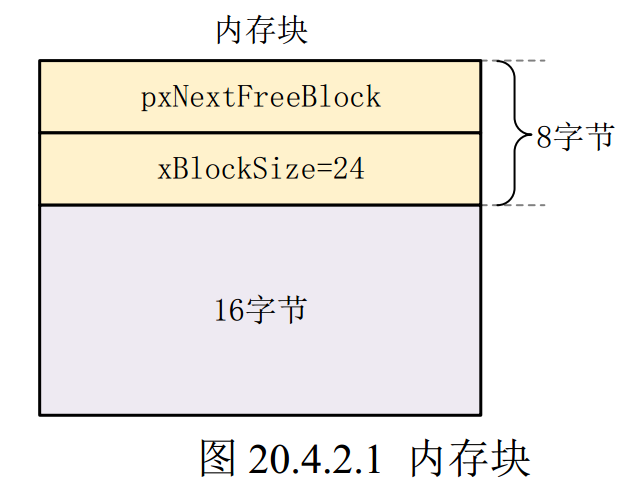

每个内存块前面都会有一个BlockLink_t类型的变量来描述此内存块，比如现在申请一个16个字节的内存块。那么就需要申请24个字节的内存块，16字节给申请的内存，另外8个字节来保存BlockLink_t类型结构体变量，xBlockSize记录的是整个内存块的大小。

内存管理函数详解

内存堆初始化函数

static void prvHeapInit( void )
{
BlockLink_t *pxFirstFreeBlock;
uint8_t *pucAlignedHeap;

	/* Ensure the heap starts on a correctly aligned boundary. */
	pucAlignedHeap = ( uint8_t * ) ( ( ( portPOINTER_SIZE_TYPE ) &ucHeap[ portBYTE_ALIGNMENT ] ) & ( ( portPOINTER_SIZE_TYPE ) ~portBYTE_ALIGNMENT_MASK ) );

	/* xStart is used to hold a pointer to the first item in the list of free
	blocks.  The void cast is used to prevent compiler warnings. */
	xStart.pxNextFreeBlock = ( void * ) pucAlignedHeap;
	xStart.xBlockSize = ( size_t ) 0;

	/* xEnd is used to mark the end of the list of free blocks. */
	xEnd.xBlockSize = configADJUSTED_HEAP_SIZE;
	xEnd.pxNextFreeBlock = NULL;

	/* To start with there is a single free block that is sized to take up the
	entire heap space. */
	pxFirstFreeBlock = ( void * ) pucAlignedHeap;
	pxFirstFreeBlock->xBlockSize = configADJUSTED_HEAP_SIZE;
	pxFirstFreeBlock->pxNextFreeBlock = &xEnd;
}

prvHeapInit（）

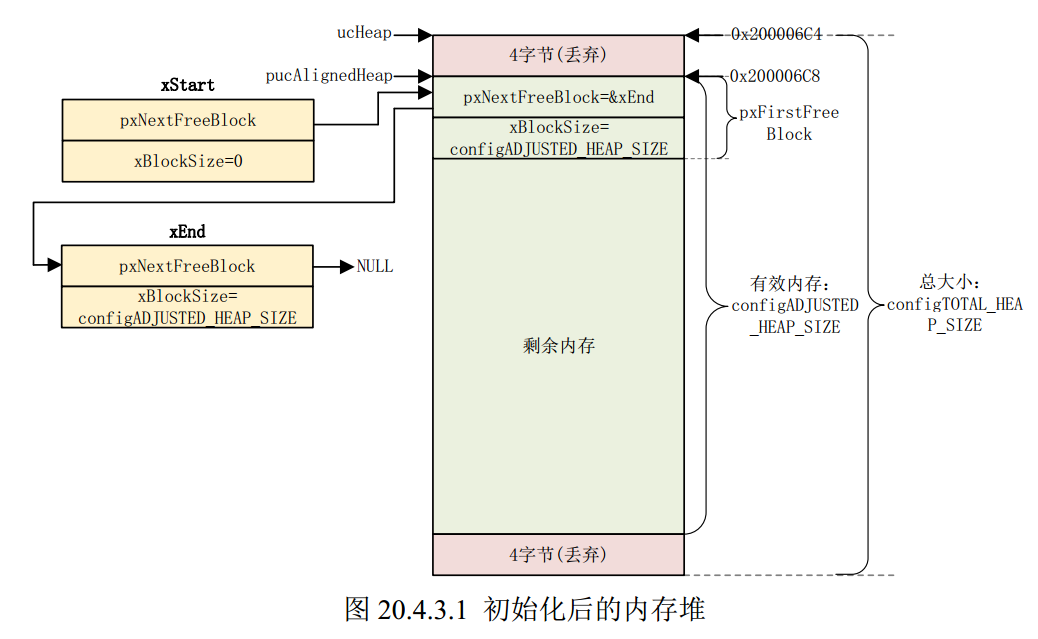

pucAlignedHeap 内存堆的初始地址，进行八字节地址对齐。
XStart的next指针指向内存堆首地址，大小设为0.
XEnd大小设为内存堆总大小configADJUSTED_HEAP_SIZE，next指针指向NULL。（在内存申请的判断中有用到）
初始化第一块内存pxFirstFreeBlock，地址为内存堆首地址，大小为内存堆总大小，next指针指向Xend。

内存块插入函数

#define prvInsertBlockIntoFreeList( pxBlockToInsert )
{
BlockLink_t *pxIterator;
size_t xBlockSize;

	xBlockSize = pxBlockToInsert->xBlockSize;

	/* Iterate through the list until a block is found that has a larger size */
	/* than the block we are inserting. */
	for( pxIterator = &xStart; pxIterator->pxNextFreeBlock->xBlockSize < xBlockSize; pxIterator = pxIterator->pxNextFreeBlock )
	{
		/* There is nothing to do here - just iterate to the correct position. */
	}

	/* Update the list to include the block being inserted in the correct */
	/* position. */
	pxBlockToInsert->pxNextFreeBlock = pxIterator->pxNextFreeBlock;
	pxIterator->pxNextFreeBlock = pxBlockToInsert;
}

prvInsertBlockIntoFreeList( pxBlockToInsert )宏定义

给出要插入的内存块的地址 pxBlockToInsert
在链表结构体内获取插入的内存块的大小xBlockSize，
从XStart开始不断遍历查找下一个空闲内存块，知道有内存块比pxBlockToInsert 大。当前内存块大小pxIterator->pxNextFreeBlock->xBlockSize 大于 xBlockSize

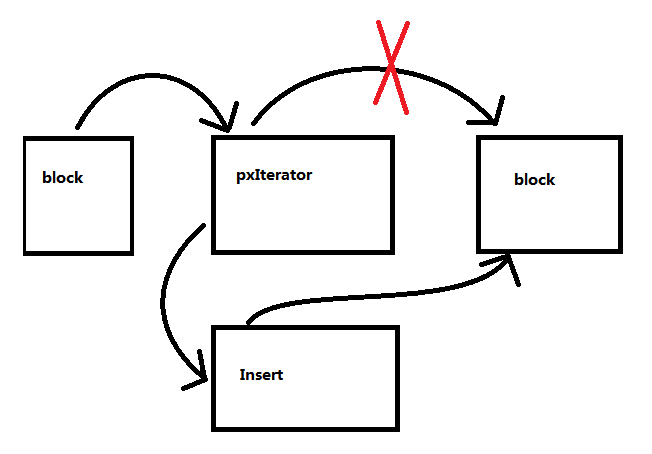

将Insert结构体的next指针指向pxIterator->pxNextFreeBlock , 而pxIterator的next指向插入的Insert结构体。因此Insert就插入到了链表中。

内存申请函数

void *pvPortMalloc( size_t xWantedSize )
{
BlockLink_t *pxBlock, *pxPreviousBlock, *pxNewBlockLink;
static BaseType_t xHeapHasBeenInitialised = pdFALSE;
void *pvReturn = NULL;

	vTaskSuspendAll();
	{
		/* If this is the first call to malloc then the heap will require
		initialisation to setup the list of free blocks. */
		if( xHeapHasBeenInitialised == pdFALSE )
		{
			prvHeapInit();
			xHeapHasBeenInitialised = pdTRUE;
		}

		/* The wanted size is increased so it can contain a BlockLink_t
		structure in addition to the requested amount of bytes. */
		if( xWantedSize > 0 )
		{
			xWantedSize += heapSTRUCT_SIZE;

			/* Ensure that blocks are always aligned to the required number of bytes. */
			if( ( xWantedSize & portBYTE_ALIGNMENT_MASK ) != 0 )
			{
				/* Byte alignment required. */
				xWantedSize += ( portBYTE_ALIGNMENT - ( xWantedSize & portBYTE_ALIGNMENT_MASK ) );
			}
		}

		if( ( xWantedSize > 0 ) && ( xWantedSize < configADJUSTED_HEAP_SIZE ) )
		{
			/* Blocks are stored in byte order - traverse the list from the start
			(smallest) block until one of adequate size is found. */
			pxPreviousBlock = &xStart;
			pxBlock = xStart.pxNextFreeBlock;
			while( ( pxBlock->xBlockSize < xWantedSize ) && ( pxBlock->pxNextFreeBlock != NULL ) )
			{
				pxPreviousBlock = pxBlock;
				pxBlock = pxBlock->pxNextFreeBlock;
			}

			/* If we found the end marker then a block of adequate size was not found. */
			if( pxBlock != &xEnd )
			{
				/* Return the memory space - jumping over the BlockLink_t structure
				at its start. */
				pvReturn = ( void * ) ( ( ( uint8_t * ) pxPreviousBlock->pxNextFreeBlock ) + heapSTRUCT_SIZE );

				/* This block is being returned for use so must be taken out of the
				list of free blocks. */
				pxPreviousBlock->pxNextFreeBlock = pxBlock->pxNextFreeBlock;

				/* If the block is larger than required it can be split into two. */
				if( ( pxBlock->xBlockSize - xWantedSize ) > heapMINIMUM_BLOCK_SIZE )
				{
					/* This block is to be split into two.  Create a new block
					following the number of bytes requested. The void cast is
					used to prevent byte alignment warnings from the compiler. */
					pxNewBlockLink = ( void * ) ( ( ( uint8_t * ) pxBlock ) + xWantedSize );

					/* Calculate the sizes of two blocks split from the single
					block. */
					pxNewBlockLink->xBlockSize = pxBlock->xBlockSize - xWantedSize;
					pxBlock->xBlockSize = xWantedSize;

					/* Insert the new block into the list of free blocks. */
					prvInsertBlockIntoFreeList( ( pxNewBlockLink ) );
				}

				xFreeBytesRemaining -= pxBlock->xBlockSize;
			}
		}

		traceMALLOC( pvReturn, xWantedSize );
	}
	( void ) xTaskResumeAll();

	#if( configUSE_MALLOC_FAILED_HOOK == 1 )
	{
		if( pvReturn == NULL )
		{
			extern void vApplicationMallocFailedHook( void );
			vApplicationMallocFailedHook();
		}
	}
	#endif

	return pvReturn;
}

void *pvPortMalloc( size_t xWantedSize )函数

判断内存堆是否初始化，若没有则调用prvHeapInit()进行初始化操作。
判断申请的内存xWantedSize大于0，将xWantedSize加上链表结构体的大小heapSTRUCT_SIZE。把xWantedSize进行8字节对齐。同时heapSTRUCT_SIZE也同样进行过八字节对齐。
从xStart结构体开始遍历，找到大小匹配的内存块pxBlock，得到pxPreviousBlock和pxBlock的地址。
判断pxBlock是否是XEnd的地址，如果是，那么表明没找到所需大小的内存块，可能是内存块太大，或者内存块用完。
给出返回指针pvReturn，找到的内存块，需要加上链表结构体大小heapSTRUCT_SIZE，过滤掉链表。（申请内存后链表不被操作，等下次回收内存后，依然保有内存块链表，能知道内存块的大小）
上一个内存块的next指针指向block的next内存块。把pxBlock移除内存块链表。
如果得到的内存块要比所需内存来的大，需要切割内存块，把剩余的内存大小插入到空闲内存块链表中。
xFreeBytesRemaining 减去被取出内内存块大小，调用xPortGetFreeHeapSize（）函数能获得xFreeBytesRemaining 的值，从而知晓剩余空闲内存块的大小。

内存块释放函数

void vPortFree( void *pv )
{
uint8_t *puc = ( uint8_t * ) pv;
BlockLink_t *pxLink;

	if( pv != NULL )
	{
		/* The memory being freed will have an BlockLink_t structure immediately
		before it. */
		puc -= heapSTRUCT_SIZE;

		/* This unexpected casting is to keep some compilers from issuing
		byte alignment warnings. */
		pxLink = ( void * ) puc;

		vTaskSuspendAll();
		{
			/* Add this block to the list of free blocks. */
			prvInsertBlockIntoFreeList( ( ( BlockLink_t * ) pxLink ) );
			xFreeBytesRemaining += pxLink->xBlockSize;
			traceFREE( pv, pxLink->xBlockSize );
		}
		( void ) xTaskResumeAll();
	}
}

vPortFree（）函数

获得索要释放的内存块首地址 uint8_t *puc = ( uint8_t * ) pv;
内存块首地址puc 减去链表结构体大小heapSTRUCT_SIZE，就是该内存块对应的链表结构体的地址。其中包括next指针和内存块大小。
调用内存块插入函数prvInsertBlockIntoFreeList（）把释放的内存块插入到内存块链表中去。
剩余空闲内存大小xFreeBytesRemaining 加。
