参考维基百科:

在模式识别领域中,最近邻居法KNN算法,又译K-近邻算法)是一种用于分类和回归的非参数统计方法。在这两种情况下,输入包含特征空间中的k个最接近的训练样本。

  • k-NN分类中,输出是一个分类族群。一个对象的分类是由其邻居的“多数表决”确定的,k个最近邻居(k为正整数,通常较小)中最常见的分类决定了赋予该对象的类别。若k = 1,则该对象的类别直接由最近的一个节点赋予。
  • k-NN回归中,输出是该对象的属性值。该值是其k个最近邻居的值的平均值。

最近邻居法采用向量空间模型来分类,概念为相同类别的案例,彼此的相似度高,而可以借由计算与已知类别案例之相似度,来评估未知类别案例可能的分类。

K-NN是一种基于实例的学习,或者是局部近似和将所有计算推迟到分类之后的惰性学习。k-近邻算法是所有的机器学习算法中最简单的之一。

无论是分类还是回归,衡量邻居的权重都非常有用,使较近邻居的权重比较远邻居的权重大。例如,一种常见的加权方案是给每个邻居权重赋值为1/ d,其中d是到邻居的距离。

邻居都取自一组已经正确分类(在回归的情况下,指属性值正确)的对象。虽然没要求明确的训练步骤,但这也可以当作是此算法的一个训练样本集。

k-近邻算法的缺点是对数据的局部结构非常敏感。本算法与K-平均算法(另一流行的机器学习技术)没有任何关系,请勿与之混淆。

算法:

训练样本是多维特征空间向量,其中每个训练样本带有一个类别标签。算法的训练阶段只包含存储的特征向量和训练样本的标签。

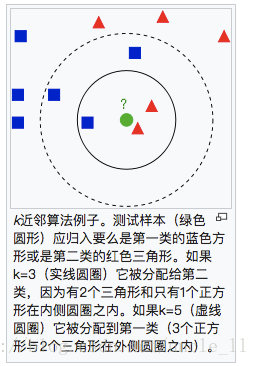

在分类阶段,k是一个用户定义的常数。一个没有类别标签的向量(查询或测试点)将被归类为最接近该点的k个样本点中最频繁使用的一类。

一般情况下,将欧氏距离作为距离度量,但是这是只适用于连续变量。在文本分类这种离散变量情况下,另一个度量——重叠度量(或海明距离)可以用来作为度量。例如对于基因表达微阵列数据,k-NN也与Pearson和Spearman相关系数结合起来使用。通常情况下,如果运用一些特殊的算法来计算度量的话,k近邻分类精度可显著提高,如运用大间隔最近邻居或者邻里成分分析法。

“多数表决”分类会在类别分布偏斜时出现缺陷。也就是说,出现频率较多的样本将会主导测试点的预测结果,因为他们比较大可能出现在测试点的K邻域而测试点的属性又是通过k邻域内的样本计算出来的。解决这个缺点的方法之一是在进行分类时将样本到k个近邻点的距离考虑进去。k近邻点中每一个的分类(对于回归问题来说,是数值)都乘以与测试点之间距离的成反比的权重。另一种克服偏斜的方式是通过数据表示形式的抽象。例如,在自组织映射(SOM)中,每个节点是相似的点的一个集群的代表(中心),而与它们在原始训练数据的密度无关。K-NN可以应用到SOM中。

参数选择:

如何选择一个最佳的K值取决于数据。一般情况下,在分类时较大的K值能够减小噪声的影响, 但会使类别之间的界限变得模糊。一个较好的K值能通过各种启发式技术(见超参数优化)来获取。

噪声和非相关性特征的存在,或特征尺度与它们的重要性不一致会使K近邻算法的准确性严重降低。对于选取和缩放特征来改善分类已经作了很多研究。一个普遍的做法是利用进化算法优化功能扩展,还有一种较普遍的方法是利用训练样本的互信息进行选择特征。

在二元(两类)分类问题中,选取k为奇数有助于避免两个分类平票的情形。在此问题下,选取最佳经验k值的方法是自助法。

总结:

KNN算法主要是选定参数K后,对待测样本进行最近邻对k个参考点进行距离计算,看K个参考点中哪一类占大多数,并将该待测样本划分为该类。

具体步骤:

1)计算测试数据与各个训练数据之间的距离;

2)按照距离的递增关系进行排序;

3)选取距离最小的K个点;

4)确定前K个点所在类别的出现频率;

5)返回前K个点中出现频率最高的类别作为测试数据的预测分类。



tensorflow实现:

以mnist数据集为例:

复制代码
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
import numpy as np import tensorflow as tf # Import MINST data from tensorflow.examples.tutorials.mnist import input_data mnist = input_data.read_data_sets("/tmp/data/", one_hot=True) Xtr, Ytr = mnist.train.next_batch(5000) #5000 for training (nn candidates) Xte, Yte = mnist.test.next_batch(200) #200 for testing # tf Graph Input xtr = tf.placeholder("float", [None, 784]) xte = tf.placeholder("float", [784]) # Nearest Neighbor calculation using L1 Distance # Calculate L1 Distance distance = tf.reduce_sum(tf.abs(tf.add(xtr, tf.negative(xte))), reduction_indices=1) # Prediction: Get min distance index (Nearest neighbor) pred = tf.argmin(distance, 0) accuracy = 0. # Initialize the variables (i.e. assign their default value) init = tf.global_variables_initializer() # Start training with tf.Session() as sess: sess.run(init) # loop over test data for i in range(len(Xte)): # Get nearest neighbor nn_index = sess.run(pred, feed_dict={xtr: Xtr, xte: Xte[i, :]}) # Get nearest neighbor class label and compare it to its true label print("Test", i, "Prediction:", np.argmax(Ytr[nn_index]), "True Class:", np.argmax(Yte[i])) # Calculate accuracy if np.argmax(Ytr[nn_index]) == np.argmax(Yte[i]): accuracy += 1./len(Xte) print("Done!") print("Accuracy:", accuracy)

结果输出:

复制代码
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140
141
142
143
144
145
146
147
148
149
150
151
152
153
154
155
156
157
158
159
160
161
162
163
164
165
166
167
168
169
170
171
172
173
174
175
176
177
178
179
180
181
182
183
184
185
186
187
188
189
190
191
192
193
194
195
196
197
198
199
200
201
202
Test 0 Prediction: 3 True Class: 3 Test 1 Prediction: 9 True Class: 4 Test 2 Prediction: 1 True Class: 1 Test 3 Prediction: 9 True Class: 9 Test 4 Prediction: 6 True Class: 6 Test 5 Prediction: 9 True Class: 9 Test 6 Prediction: 6 True Class: 6 Test 7 Prediction: 9 True Class: 9 Test 8 Prediction: 3 True Class: 3 Test 9 Prediction: 6 True Class: 6 Test 10 Prediction: 2 True Class: 2 Test 11 Prediction: 3 True Class: 3 Test 12 Prediction: 0 True Class: 0 Test 13 Prediction: 9 True Class: 9 Test 14 Prediction: 9 True Class: 9 Test 15 Prediction: 1 True Class: 1 Test 16 Prediction: 1 True Class: 1 Test 17 Prediction: 8 True Class: 8 Test 18 Prediction: 2 True Class: 2 Test 19 Prediction: 9 True Class: 9 Test 20 Prediction: 6 True Class: 6 Test 21 Prediction: 3 True Class: 3 Test 22 Prediction: 1 True Class: 1 Test 23 Prediction: 7 True Class: 7 Test 24 Prediction: 1 True Class: 1 Test 25 Prediction: 3 True Class: 3 Test 26 Prediction: 4 True Class: 4 Test 27 Prediction: 0 True Class: 0 Test 28 Prediction: 3 True Class: 3 Test 29 Prediction: 1 True Class: 1 Test 30 Prediction: 1 True Class: 1 Test 31 Prediction: 4 True Class: 4 Test 32 Prediction: 8 True Class: 8 Test 33 Prediction: 6 True Class: 6 Test 34 Prediction: 1 True Class: 1 Test 35 Prediction: 1 True Class: 1 Test 36 Prediction: 0 True Class: 0 Test 37 Prediction: 8 True Class: 8 Test 38 Prediction: 8 True Class: 4 Test 39 Prediction: 9 True Class: 9 Test 40 Prediction: 7 True Class: 7 Test 41 Prediction: 9 True Class: 7 Test 42 Prediction: 8 True Class: 8 Test 43 Prediction: 7 True Class: 7 Test 44 Prediction: 0 True Class: 0 Test 45 Prediction: 1 True Class: 1 Test 46 Prediction: 7 True Class: 7 Test 47 Prediction: 7 True Class: 2 Test 48 Prediction: 3 True Class: 3 Test 49 Prediction: 2 True Class: 2 Test 50 Prediction: 1 True Class: 1 Test 51 Prediction: 4 True Class: 4 Test 52 Prediction: 1 True Class: 1 Test 53 Prediction: 8 True Class: 8 Test 54 Prediction: 6 True Class: 6 Test 55 Prediction: 2 True Class: 2 Test 56 Prediction: 1 True Class: 1 Test 57 Prediction: 6 True Class: 6 Test 58 Prediction: 6 True Class: 6 Test 59 Prediction: 5 True Class: 5 Test 60 Prediction: 6 True Class: 6 Test 61 Prediction: 7 True Class: 2 Test 62 Prediction: 8 True Class: 8 Test 63 Prediction: 2 True Class: 2 Test 64 Prediction: 7 True Class: 7 Test 65 Prediction: 9 True Class: 9 Test 66 Prediction: 9 True Class: 9 Test 67 Prediction: 7 True Class: 7 Test 68 Prediction: 7 True Class: 0 Test 69 Prediction: 2 True Class: 2 Test 70 Prediction: 5 True Class: 5 Test 71 Prediction: 8 True Class: 8 Test 72 Prediction: 1 True Class: 1 Test 73 Prediction: 3 True Class: 8 Test 74 Prediction: 6 True Class: 6 Test 75 Prediction: 8 True Class: 8 Test 76 Prediction: 4 True Class: 4 Test 77 Prediction: 0 True Class: 0 Test 78 Prediction: 5 True Class: 5 Test 79 Prediction: 7 True Class: 7 Test 80 Prediction: 0 True Class: 0 Test 81 Prediction: 6 True Class: 6 Test 82 Prediction: 9 True Class: 9 Test 83 Prediction: 1 True Class: 1 Test 84 Prediction: 0 True Class: 0 Test 85 Prediction: 3 True Class: 3 Test 86 Prediction: 7 True Class: 7 Test 87 Prediction: 7 True Class: 7 Test 88 Prediction: 6 True Class: 6 Test 89 Prediction: 1 True Class: 1 Test 90 Prediction: 8 True Class: 8 Test 91 Prediction: 7 True Class: 7 Test 92 Prediction: 6 True Class: 6 Test 93 Prediction: 8 True Class: 8 Test 94 Prediction: 9 True Class: 9 Test 95 Prediction: 5 True Class: 5 Test 96 Prediction: 1 True Class: 1 Test 97 Prediction: 6 True Class: 6 Test 98 Prediction: 3 True Class: 3 Test 99 Prediction: 7 True Class: 7 Test 100 Prediction: 7 True Class: 7 Test 101 Prediction: 0 True Class: 0 Test 102 Prediction: 2 True Class: 2 Test 103 Prediction: 7 True Class: 7 Test 104 Prediction: 0 True Class: 0 Test 105 Prediction: 7 True Class: 7 Test 106 Prediction: 0 True Class: 0 Test 107 Prediction: 5 True Class: 3 Test 108 Prediction: 6 True Class: 6 Test 109 Prediction: 8 True Class: 8 Test 110 Prediction: 3 True Class: 3 Test 111 Prediction: 3 True Class: 3 Test 112 Prediction: 7 True Class: 7 Test 113 Prediction: 2 True Class: 2 Test 114 Prediction: 4 True Class: 4 Test 115 Prediction: 9 True Class: 9 Test 116 Prediction: 5 True Class: 5 Test 117 Prediction: 2 True Class: 2 Test 118 Prediction: 7 True Class: 7 Test 119 Prediction: 7 True Class: 7 Test 120 Prediction: 6 True Class: 6 Test 121 Prediction: 1 True Class: 1 Test 122 Prediction: 1 True Class: 1 Test 123 Prediction: 9 True Class: 9 Test 124 Prediction: 5 True Class: 5 Test 125 Prediction: 1 True Class: 1 Test 126 Prediction: 6 True Class: 6 Test 127 Prediction: 9 True Class: 9 Test 128 Prediction: 3 True Class: 3 Test 129 Prediction: 0 True Class: 0 Test 130 Prediction: 0 True Class: 0 Test 131 Prediction: 4 True Class: 4 Test 132 Prediction: 1 True Class: 1 Test 133 Prediction: 3 True Class: 3 Test 134 Prediction: 9 True Class: 9 Test 135 Prediction: 0 True Class: 0 Test 136 Prediction: 4 True Class: 4 Test 137 Prediction: 8 True Class: 8 Test 138 Prediction: 5 True Class: 5 Test 139 Prediction: 0 True Class: 0 Test 140 Prediction: 2 True Class: 2 Test 141 Prediction: 8 True Class: 8 Test 142 Prediction: 6 True Class: 6 Test 143 Prediction: 9 True Class: 9 Test 144 Prediction: 3 True Class: 3 Test 145 Prediction: 8 True Class: 8 Test 146 Prediction: 7 True Class: 7 Test 147 Prediction: 9 True Class: 9 Test 148 Prediction: 0 True Class: 0 Test 149 Prediction: 6 True Class: 6 Test 150 Prediction: 6 True Class: 6 Test 151 Prediction: 3 True Class: 3 Test 152 Prediction: 6 True Class: 6 Test 153 Prediction: 1 True Class: 1 Test 154 Prediction: 1 True Class: 1 Test 155 Prediction: 5 True Class: 5 Test 156 Prediction: 6 True Class: 6 Test 157 Prediction: 1 True Class: 1 Test 158 Prediction: 1 True Class: 1 Test 159 Prediction: 7 True Class: 7 Test 160 Prediction: 1 True Class: 1 Test 161 Prediction: 1 True Class: 1 Test 162 Prediction: 3 True Class: 2 Test 163 Prediction: 1 True Class: 1 Test 164 Prediction: 5 True Class: 5 Test 165 Prediction: 9 True Class: 9 Test 166 Prediction: 2 True Class: 2 Test 167 Prediction: 9 True Class: 9 Test 168 Prediction: 9 True Class: 4 Test 169 Prediction: 7 True Class: 7 Test 170 Prediction: 3 True Class: 3 Test 171 Prediction: 7 True Class: 7 Test 172 Prediction: 1 True Class: 1 Test 173 Prediction: 6 True Class: 6 Test 174 Prediction: 7 True Class: 7 Test 175 Prediction: 4 True Class: 4 Test 176 Prediction: 8 True Class: 8 Test 177 Prediction: 9 True Class: 9 Test 178 Prediction: 9 True Class: 4 Test 179 Prediction: 3 True Class: 3 Test 180 Prediction: 5 True Class: 8 Test 181 Prediction: 8 True Class: 8 Test 182 Prediction: 7 True Class: 7 Test 183 Prediction: 6 True Class: 6 Test 184 Prediction: 3 True Class: 3 Test 185 Prediction: 5 True Class: 5 Test 186 Prediction: 1 True Class: 3 Test 187 Prediction: 9 True Class: 9 Test 188 Prediction: 0 True Class: 0 Test 189 Prediction: 1 True Class: 1 Test 190 Prediction: 7 True Class: 7 Test 191 Prediction: 7 True Class: 7 Test 192 Prediction: 5 True Class: 5 Test 193 Prediction: 0 True Class: 0 Test 194 Prediction: 1 True Class: 1 Test 195 Prediction: 5 True Class: 5 Test 196 Prediction: 3 True Class: 3 Test 197 Prediction: 1 True Class: 1 Test 198 Prediction: 8 True Class: 8 Test 199 Prediction: 1 True Class: 6 Done! Accuracy: 0.9300000000000007
