qume 模拟NVMe zns 设备（Creating an Emulated Zoned Namespace）

1.升级qumu

QEMU 6.0 版开始支持对分区命名空间的模拟。如果主机 Linux 发行版不提供QEMU 6.0 或更高版本，则必须从源代码编译QEMU。

cd qemu-6.0.0
mkdir build
cd build
../configure  --prefix=/usr/  --sysconfdir=/etc
make clean
make -j 16
sudo make install

编译出错时删除

sudo ninja -C build uninstall

2. 准备网络

2.1 添加网桥

brctl addbr br0
brctl  addif br0 eno1

查看网络相关命令

brctl showstp br0
brctl show

2.2 更新主机host网络配置

网络配置如下：

# cat /etc/netplan/00-installer-config.yaml
# This is the network config written by 'subiquity'
network:
  ethernets:
    eno1:
      dhcp4: false
    eno2:
      dhcp4: false
    ens9f0:
      dhcp4: false
    ens9f1:
      dhcp4: false
  bridges:
      br0:
        interfaces: [eno1]
        dhcp4: false
        addresses: [172.20.148.124/24]
        gateway4: 172.20.148.1
        nameservers:
          addresses: [172.20.148.1,8.8.8.8]
  version: 2

3. 准备虚拟机系统盘文件和zns盘文件

cp /var/lib/libvirt/images/ubuntu.raw  /var/lib/libvirt/images/ubuntu20.02.qcow2
truncate -s 20G /var/lib/libvirt/images/zns01.raw
ls -l /var/lib/libvirt/images/zns01.raw

4.启动虚拟机

4.1 准备启动虚拟机的脚本

更新脚本中的网桥bridge，虚拟机系统盘文件vmimg，zns盘文件znsimg，vncNumber：vncNo

c# cat start-vm-0107.sh
#!/bin/sh

#
# Some variables
#
bridge="br0"
vmimg="/var/lib/libvirt/images/ubuntu20.02.qcow2"
znsimg="/var/lib/libvirt/images/zns01.raw"
vncNo="2"

nohup taskset -a 0xffff0  qemu-system-x86_64
-name guest=yhcubuntu20.02
-machine pc-q35-5.2,accel=kvm
-m 16384
-smp 8,sockets=8,cores=1,threads=1
-rtc base=utc,driftfix=slew
-nographic
-no-hpet
-global ICH9-LPC.disable_s3=1
-global ICH9-LPC.disable_s4=1
-boot strict=on
-audiodev none,id=noaudio
-object rng-random,id=objrng0,filename=/dev/urandom
-msg timestamp=on
-device pcie-root-port,port=0x10,chassis=1,id=pci.1,bus=pcie.0,multifunction=on,addr=0x2
-netdev bridge,id=hostnet0,br=${bridge}
-device virtio-net-pci,netdev=hostnet0,id=net0,mac=52:54:00:fa:2d:b9,bus=pci.1,addr=0x0
-device pcie-root-port,port=0x11,chassis=2,id=pci.2,bus=pcie.0,addr=0x2.0x1
-blockdev node-name="vmstorage",driver=qcow2,file.driver=file,file.filename="${vmimg}",file.node-name="vmstorage.qcow2",file.discard=unmap
-device virtio-blk-pci,bus=pci.2,addr=0x0,drive="vmstorage",id=virtio-disk0,bootindex=1
-device pcie-root-port,port=0x12,chassis=3,id=pci.3,bus=pcie.0,addr=0x2.0x2
-device virtio-balloon-pci,id=balloon0,bus=pci.3,addr=0x0
-device pcie-root-port,port=0x13,chassis=4,id=pci.4,bus=pcie.0,addr=0x2.0x3
-device virtio-rng-pci,rng=objrng0,id=rng0,bus=pci.4,addr=0x0
-device pcie-root-port,port=0x14,chassis=5,id=pci.5,bus=pcie.0,addr=0x2.0x4
-device nvme,id=nvme0,serial=deadbeef,zoned.zasl=5,bus=pci.5
-drive file=${znsimg},id=nvmezns0,format=raw,if=none
-device nvme-ns,drive=nvmezns0,bus=nvme0,nsid=1,logical_block_size=4096,physical_block_size=4096,zoned=true,zoned.zone_size=64M,zoned.zone_capacity=62M,zoned.max_open=16,zoned.max_active=32,uuid=5e40ec5f-eeb6-4317-bc5e-c919796a5f79
-vnc 0.0.0.0:${vncNo} &

4.2 通过vnc 进入虚拟机更改虚拟机IP

VNC 连接方式：{hostIP}:{vncNo}
如：172.20.148.124:5901

更新虚拟机IP ，执行“netplan apply”，示例如下：

# cat /etc/netplan/00-installer-config.yaml
# This is the network config written by 'subiquity'
network:
  ethernets:
    enp1s0:
      dhcp4: false
      addresses: [172.20.148.202/24]
      gateway4: 172.20.148.1
      nameservers:
        addresses: [172.20.148.1,8.8.8.8]
  version: 2

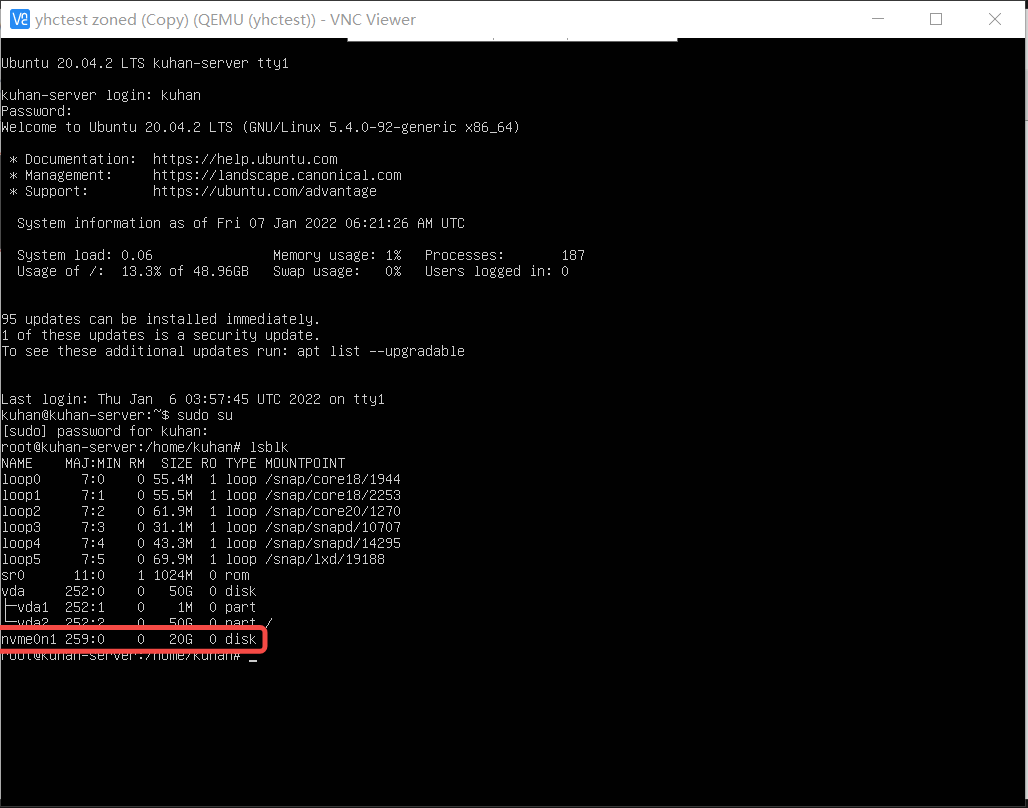

此时，就可以通过虚拟机的IP 连接到 NVMe zns 设备 的虚拟机啦。
