概述
ADC通道( channel)与引脚是一一对应的关系,即每个ADC通道都有固定的与之对应的引脚。
有内部通道和外部通道之分。
模拟传感器:

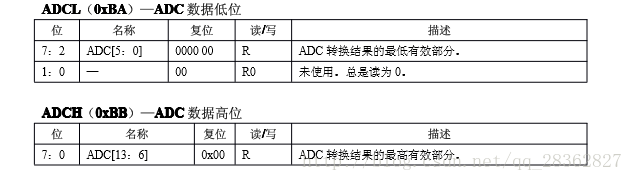

value = ADCL >> 2 ; //将采集到低6位赋值到7~2中(5-0),ADCH(13-6)
value |= ((uint16) ADCH) << 6 ; //得到整个寄存器的值,最高位是符号位
value <<= 1; //湮没符号位
value >>= 3; //将所得数值送到低八位,准备转
//CC253x采集电池电压(内部通道VDD/3):
#if defined (HAL_MCU_CC2430) || defined (HAL_MCU_CC2530)
uint16 value;
/* Clear ADC interrupt flag */
ADCIF = 0;
ADCCON3 = (HAL_ADC_REF_125V | HAL_ADC_DEC_128 | HAL_ADC_CHN_VDD3);
/* Wait for the conversion to finish */
while ( !ADCIF );
/* Get the result */
value = ADCL;
value |= ((uint16) ADCH) << 8;
/*
* value now contains measurement of Vdd/3
* 0 indicates 0V and 32767 indicates 1.25V
* voltage = (value*3*1.25)/32767 volts
* we will multiply by this by 10 to allow units of 0.1 volts
*/
value = value >> 6; // divide first by 2^6
value = (uint16)(value * 37.5);
value = value >> 9; // ...and later by 2^9...to prevent overflow during multiplication
return value;
#endif // CC2430 or CC2530
//MSP430采集电池电压:
#if defined HAL_MCU_MSP430
uint16 value;
/*
There are more than MSP430 board now. Idealy, ADC read should be called
*/
#if defined (HAL_BOARD_F5438)
value = HalAdcRead (HAL_ADC_CHANNEL_VDD, HAL_ADC_RESOLUTION_14);
value = value * 50;
value = value / 4096; //这种做法与CC3200类似
#else
ADC12CTL0 = ADC12ON+SHT0_2+REFON; // Turn on and set up ADC12
ADC12CTL1 = SHP; // Use sampling timer
ADC12MCTL0 = SREF_1+INCH_11; // Vr+=Vref+
ADC12CTL0 |= ENC | ADC12SC; // Start conversion
while ((ADC12IFG & BIT0)==0);
value = ADC12MEM0;
/*
* value now contains measurement of AVcc/2
* value is in range 0 to 4095 indicating voltage from 0 to 1.5V
* voltage = (value*2*1.5)/4095 volts
* we will multiply by this by 10 to allow units of 0.1 volts
*/
value = value >> 1; // value is now in range of 0 to 2048
value = value * 30;
value = value >> 11;
#endif
return ( value );
#endif // MSP430
//AVR采集电池电压:
#if defined HAL_MCU_AVR
// If platform doesnt support a battery sensor, just return random value
uint8 value;
value = 20 + ( osal_rand() & 0x000F ); //调用函数直接读取寄存器,与51单片机类似
return ( value );
#endif // AVR
//CC253x采集温度(内部通道TEMP):
#if defined (HAL_MCU_CC2430) || defined (HAL_MCU_CC2530)
uint16 value;
/* Clear ADC interrupt flag */
ADCIF = 0;
ADCCON3 = (HAL_ADC_REF_125V | HAL_ADC_DEC_512 | HAL_ADC_CHN_TEMP);
/* Wait for the conversion to finish */
while ( !ADCIF );
/* Get the result */
value = ADCL;
value |= ((uint16) ADCH) << 8;
/*
* value ranges from 0 to 0x8000 indicating 0V and 1.25V 值范围从0到0 x8000表示0 v,1.25 v
* VOLTAGE_AT_TEMP_ZERO = 0.743 V = 19477
* TEMP_COEFFICIENT = 0.0024 V/C = 62.9 /C
* These parameters are typical values and need to be calibrated 这些参数是典型值,需要校准
* See the datasheet for the appropriate chip for more details 看到合适的芯片的数据表为更多的细节
* also, the math below may not be very accurate
*/
#if defined (HAL_MCU_CC2430)
#define VOLTAGE_AT_TEMP_ZERO 19477 // 0.743 V
#define TEMP_COEFFICIENT 62.9 // 0.0024 V/C
#elif defined (HAL_MCU_CC2530)
/* Assume ADC = 5158 at 0C and ADC = 15/C */
#define VOLTAGE_AT_TEMP_ZERO 5158
#define TEMP_COEFFICIENT 14
#endif
// limit min temp to 0 C
if ( value < VOLTAGE_AT_TEMP_ZERO )
value = VOLTAGE_AT_TEMP_ZERO;
value = value - VOLTAGE_AT_TEMP_ZERO;
// limit max temp to 99 C
if ( value > TEMP_COEFFICIENT * 99 )
value = TEMP_COEFFICIENT * 99;
return ( (uint8)(value/TEMP_COEFFICIENT) );
#endif // CC2430 || CC2530
……
综上所述,ADC数据位与MCU、内部通道、外部通道有关。选择不同的MCU或通道,处理数据位略有不同,但目的都是将采集到的数据从相应的寄存器中提取出来。应用时参考数据手册和官方的例子即可。
