Spring Security and Angular JS

HTML5, rich browser-based features, and the "single page application" are extremely valuable tools for modern developers, but any meaningful interactions will involve a backend server, so as well as static content (HTML, CSS and JavaScript) we are going to need a backend server. The backend server can play any or all of a number of roles: serving static content, sometimes (but not so often these days) rendering dynamic HTML, authenticating users, securing access to protected resources, and (last but not least) interacting with JavaScript in the browser through HTTP and JSON (sometimes referred to as a REST API).

Spring has always been a popular technology for building the backend features (especially in the enterprise), and with the advent of Spring Boot things have never been easier. Let’s have a look at how to build a new single page application from nothing using Spring Boot, Angular JS and Twitter Bootstrap. There’s no particular reason to choose that specific stack, but it is quite popular, especially with the core Spring constituency in enterprise Java shops, so it’s a worthwhile starting point.

We are going to step through creating this application in some detail, so that anyone who isn’t completely au fait with Spring and Angular can follow what is happening. If you prefer to cut to the chase, you can skip to the end where the application is working, and see how it all fits together. There are various options for creating a new project:

The source code for the complete project we are going to build is in Github here, so you can just clone the project and work directly from there if you want. Then jump to the next section.

The core of a single page application is a static "index.html", so let’s go ahead and create one (in "src/main/resources/static" or "src/main/resources/public"):

It’s pretty short and sweet because it is just going to say "Hello World".

Entry-level tutorials on Angular and other front end technologies often just include the library assets directly from the internet (e.g. the Angular JS website itself recommends downloading from Google CDN). Instead of doing that we are going to generate the "angular-bootstrap.js" asset by concatenating several files from such libraries. This is not strictly necessary to get the application working, but it is best practice for a production application to consolidate scripts to avoid chatter between the browser and the server (or content delivery network). Since we aren’t modifying or customizing the CSS stylesheets it is also unecessary to generate the "angular-bootstrap.css", and we could just use static assets from Google CDN for that as well. However, in a real application we almost certainly would want to modify the stylesheets and we wouldn’t want to edit the CSS sources by hand, so we would use a higher level tool (e.g. Less or Sass), so we are going to use one too.

There are many different ways of doing this, but for the purposes of this section, we are going to use wro4j, which is a Java-based toolchain for preprocessing and packaging front end assets. It can be used as a JIT (Just in Time) Filter in any Servlet application, but it also has good support for build tools like Maven and Eclipse, and that is how we are going to use it. So we are going to build static resource files and bundle them in our application JAR.

To create static resources at build time we add some magic to the Maven pom.xml (it’s quite verbose, but boilerplate, so it could be extracted into a parent pom in Maven, or a shared task or plugin for Gradle):

You can copy that verbatim into your POM, or just scan it if you are following along from the source in Github. The main points are:

That’s all of the changes we are going to need to the POM. It remains to add the wro4j build files, which we have specified are going to live in "src/main/wro".

Let’s create the "hello" application (in "src/main/resources/static/js/hello.js" so that the <script/> at the bottom of our "index.html" finds it in the right place).

A minimal Angular JS application looks like this:

The name of the application is "hello" and it has an empty (and redundant) "config" and an empty "controller" called "home". The "home" controller will be called when we load the "index.html" because we have decorated the content <div> with ng-controller="home".

Notice that we injected a magic $scope into the controller function (Angular does dependency injection by naming convention, and recognises the names of your function parameters). The $scope is then used inside the function to set up content and behaviour for the UI elements that this controller is responsible for.

If you added that file under "src/main/resources/static/js" your app should now be secure and functional, and it will say "Hello World!". The greeting is rendered by Angular in the HTML using the handlebar placeholders, {{greeting.id}} and {{greeting.content}}.

Binding directly to $scope is a little bit too magic for us - in fact it is sort of a smell, and we want to flush it out now before we make any more changes. Angular provides us with a simple idiom to explicitly declare a namespace for the controller, and use the controller instance itself, not the implicit $scope when we bind in the UI. We need to make 2 simple changes, one to the HTML where we add the "as" keyword to the ng-controller and then refer back to it when we bind to the model:

and in the client we also need to bind the greeting to the controller instead of to $scope:

So far we have an application with a greeting that is hard coded. That’s useful for learning how things fit together, but really we expect content to come from a backend server, so let’s create an HTTP endpoint that we can use to grab a greeting. In your application class (in "src/main/java/demo"), add the @RestController annotation and define a new @RequestMapping:

Run that application and try to curl the "/resource" endpoint and you will find that it is secure by default:

The interactions between the browser and the backend can be seen in your browser if you use some developer tools (usually F12 opens this up, works in Chrome by default, may require a plugin in Firefox). Here’s a summary:

You might not see the 401 because the browser treats the home page load as a single interaction, and you might see 2 requests for "/resource" because there is a CORS negotiation.

Look more closely at the requests and you will see that all of them have an "Authorization" header, something like this:

The browser is sending the username and password with every request (so remember to use HTTPS exclusively in production). There’s nothing "Angular" about that, so it works with your JavaScript framework or non-framework of choice.

The core of a single page application is a static "index.html". We already had a really basic one, but for this application we need to offer some navigation features (login, logout, home), so let’s modify it (in "src/main/resources/static"):

It’s not much different than the original in fact. Salient features:

Let’s modify the "hello" application (in "src/main/resources/public/js/hello.js") to add some navigation features. We can start by adding some configuration for routes, so that the links in the home page actually do something. E.g.

We added a dependency on an Angular module called "ngRoute" and this allowed us to inject a magic $routeProvider into the config function (Angular does dependency injection by naming convention, and recognizes the names of your function parameters). The $routeProvider is then used inside the function to set up links to "/" (the "home" controller) and "/login" (the "login" controller). The "templateUrls" are relative paths from the root of the routes (i.e. "/") to "partial" views that will be used to render the model created by each controller.

The custom "X-Requested-With" is a conventional header sent by browser clients, and it used to be the default in Angular but they took it out in 1.3.0. Spring Security responds to it by not sending a "WWW-Authenticate" header in a 401 response, and thus the browser will not pop up an authentication dialog (which is desirable in our app since we want to control the authentication).

In order to use the "ngRoute" module, we need to add a line to the "wro.xml" configuration that builds the static assets (in "src/main/wro"):

To support the login form we just added we need to add some more features. On the client side these will be implemented in the "navigation" controller, and on the server it will be Spring Security configuration.

The application is almost finished functionally. The last thing we need to do is implement the logout feature that we sketched in the home page. Here’s a reminder what the navigation bar looks like:

If the user is authenticated then we show a "logout" link and hook it to a logout() function in the "navigation" controller. The implementation of the function is relatively simple:

It sends an HTTP POST to "/logout" which we now need to implement on the server. This is straightforward because it is added for us already by Spring Security (i.e. we don’t need to do anything for this simple use case). For more control over the behaviour of logout you could use the HttpSecurity callbacks in your WebSecurityAdapter to, for instance execute some business logic after logout.

The application is almost ready to use, and in fact if you run it you will find that everything we built so far actually works except the logout link. Try using it and look at the responses in the browser and you will see why:

That’s good because it means that Spring Security’s built-in CSRF protection has kicked in to prevent us from shooting ourselves in the foot. All it wants is a token sent to it in a header called "X-CSRF". The value of the CSRF token was available server side in the HttpRequest attributes from the initial request that loaded the home page. To get it to the client we could render it using a dynamic HTML page on the server, or expose it via a custom endpoint, or else we could send it as a cookie. The last choice is the best because Angular has built in support for CSRF (which it calls "XSRF") based on cookies.

So on the server we need a custom filter that will send the cookie. Angular wants the cookie name to be "XSRF-TOKEN" and Spring Security provides it as a request attribute by default, so we just need to transfer the value from a request attribute to a cookie. Fortunately, Spring Security (since 4.1.0) provides a special CsrfTokenRepository that does precisely this:

With those changes in place we don’t need to do anything on the client side and the login form is now working.

The interactions between the browser and the backend can be seen in your browser if you use some developer tools (usually F12 opens this up, works in Chrome by default, may require a plugin in Firefox). Here’s a summary:

The responses that are marked "ignored" above are HTML responses received by Angular in an XHR call, and since we aren’t processing that data the HTML is dropped on the floor. We do look for an authenticated user in the case of the "/user" resource, but since it isn’t there in the first call, that response is dropped.

Look more closely at the requests and you will see that they all have cookies. If you start with a clean browser (e.g. incognito in Chrome), the very first request has no cookies going off to the server, but the server sends back "Set-Cookie" for "JSESSIONID" (the regular HttpSession) and "X-XSRF-TOKEN" (the CRSF cookie that we set up above). Subsequent requests all have those cookies, and they are important: the application doesn’t work without them, and they are providing some really basic security features (authentication and CSRF protection). The values of the cookies change when the user authenticates (after the POST) and this is another important security feature (preventing session fixation attacks).

"But wait…" you are saying, "isn’t it Really Bad to use session state in a single-page application?" The answer to that question is going to have to be "mostly", because it very definitely is a Good Thing to use the session for authentication and CSRF protection. That state has to be stored somewhere, and if you take it out of the session, you are going to have to put it somewhere else and manage it manually yourself, on both the server and the client. That’s just more code and probably more maintenance, and generally re-inventing a perfectly good wheel.

"But, but…" you are going to respond, "how do I scale my application horizontally now?" This is the "real" question you were asking above, but it tends to get shortened to "session state is bad, I must be stateless". Don’t panic. The main point to take on board here is that security is stateful. You can’t have a secure, stateless application. So where are you going to store the state? That’s all there is to it. Rob Winch gave a very useful and insightful talk at Spring Exchange 2014 explaining the need for state (and the ubiquity of it - TCP and SSL are stateful, so your system is stateful whether you knew it or not), which is probably worth a look if you want to look into this topic in more depth.

The good news is you have a choice. The easiest choice is to store the session data in-memory, and rely on sticky sessions in your load balancer to route requests from the same session back to the same JVM (they all support that somehow). That’s good enough to get you off the ground and will work for a really large number of use cases. The other choice is to share the session data between instances of your application. As long as you are strict and only store the security data, it is small and changes infrequently (only when users log in and out, or their session times out), so there shouldn’t be any major infrastructure problems. It’s also really easy to do with Spring Session. We’ll be using Spring Session in the next section in this series, so there’s no need to go into any detail about how to set it up here, but it is literally a few lines of code and a Redis server, which is super fast.

If that was your response to the last section, then read it again because maybe you didn’t get it the first time. It’s probably not stateless if you stored the token somewhere, but even if you didn’t (e.g. you use JWT encoded tokens), how are you going to provide CSRF protection? It’s important. Here’s a rule of thumb (attributed to Rob Winch): if your application or API is going to be accessed by a browser, you need CSRF protection. It’s not that you can’t do it without sessions, it’s just that you’d have to write all that code yourself, and what would be the point because it’s already implemented and works perfectly well on top of HttpSession (which in turn is part of the container you are using and baked into specs since the very beginning)? Even if you decide you don’t need CSRF, and have a perfectly "stateless" (non-session based) token implementation, you still had to write extra code in the client to consume and use it, where you could have just delegated to the browser and server’s own built-in features: the browser always sends cookies, and the server always has a session (unless you switch it off). That code is not business logic, and it isn’t making you any money, it’s just an overhead, so even worse, it costs you money.

The application we have now is close to what a user might expect in a "real" application in a live environment, and it probably could be used as a template for building out into a more feature rich application with that architecture (single server with static content and JSON resources). We are using the HttpSession for storing security data, relying on our clients to respect and use the cookies we send them, and we are comfortable with that because it lets us concentrate on our own business domain. In the next section we expand the architecture to a separate authentication and UI server, plus a standalone resource server for the JSON. This is obviously easily generalised to multiple resource servers. We are also going to introduce Spring Session into the stack and show how that can be used to share authentication data.

The browser tries to negotiate with our resource server to find out if it is allowed to access it according to the Cross Origin Resource Sharing protocol. It’s not an Angular JS responsibility, so just like the cookie contract it will work like this with all JavaScript in the browser. The two servers do not declare that they have a common origin, so the browser declines to send the request and the UI is broken.

To fix that we need to support the CORS protocol which involves a "pre-flight" OPTIONS request and some headers to list the allowed behaviour of the caller. Spring 4.2 has some nice fine-grained CORS support, so we can just add an annotation to our controller mapping, for example:

Great! We have a working application with a new architecture. The only problem is that the resource server has no security.

The internet, and people’s Spring backend projects, are littered with custom token-based authentication solutions. Spring Security provides a barebones Filter implementation to get you started on your own (see for example AbstractPreAuthenticatedProcessingFilter and TokenService). There is no canonical implementation in Spring Security though, and one of the reasons why is probably that there’s an easier way.

Remember from Part II of this series that Spring Security uses the HttpSession to store authentication data by default. It doesn’t interact directly with the session though: there’s an abstraction layer (SecurityContextRepository) in between that you can use to change the storage backend. If we can point that repository, in our resource server, to a store with an authentication verified by our UI, then we have a way to share authentication between the two servers. The UI server already has such a store (the HttpSession), so if we can distribute that store and open it up to the resource server, we have most of a solution.

The only missing piece is the transport mechanism for the key to the data in the store. The key is the HttpSession ID, so if we can get hold of that key in the UI client, we can send it as a custom header to the resource server. So the "home" controller would need to change so that it sends the header as part of the HTTP request for the greeting resource. For example:

(A more elegant solution might be to grab the token as needed, and use an Angular interceptor to add the header to every request to the resource server. The interceptor definition could then be abstracted instead of doing it all in one place and cluttering up the business logic.)

Instead of going directly to "http://localhost:9000[http://localhost:9000]" we have wrapped that call in the success callback of a call to a new custom endpoint on the UI server at "/token". The implementation of that is trivial:

So the UI application is ready and will include the session ID in a header called "X-Auth-Token" for all calls to the backend.

There is one tiny change to the resource server for it to be able to accept the custom header. The CORS configuration has to nominate that header as an allowed one from remote clients, e.g.

The pre-flight check from the browser will now be handled by Spring MVC, but we need to tell Spring Security that it is allowed to let it through:

All that remains is to pick up the custom token in the resource server and use it to authenticate our user. This turns out to be pretty straightforward because all we need to do is tell Spring Security where the session repository is, and where to look for the token (session ID) in an incoming request. First we need to add the Spring Session and Redis dependencies, and then we can set up the Filter:

This Filter created is the mirror image of the one in the UI server, so it establishes Redis as the session store. The only difference is that it uses a custom HttpSessionStrategy that looks in the header ("X-Auth-Token" by default) instead of the default (cookie named "JSESSIONID"). We also need to prevent the browser from popping up a dialog in an unauthenticated client - the app is secure but sends a 401 with WWW-Authenticate: Basic by default, so the browser responds with a dialog for username and password. There is more than one way to achieve this, but we already made Angular send an "X-Requested-With" header, so Spring Security handles it for us by default.

There is one final change to the resource server to make it work with our new authentication scheme. Spring Boot default security is stateless, and we want this to store authentication in the session, so we need to be explicit in application.yml (or application.properties):

This says to Spring Security "never create a session, but use one if it is there" (it will already be there because of the authentication in the UI).

Re-launch the resource server and open the UI up in a new browser window.

We had to use a custom header and write code in the client to populate the header, which isn’t terribly complicated, but it seems to contradict the advice in Part II to use cookies and sessions wherever possible. The argument there was that not to do so introduces additional unecessary complexity, and for sure the implementation we have now is the most complex we have seen so far: the technical part of the solution far outweighs the business logic (which is admittedly tiny). This is definitely a fair criticism (and one we plan to address in the next section in this series), but let’s just briefly look at why it’s not as simple as just using cookies and sessions for everything.

At least we are still using the session, which makes sense because Spring Security and the Servlet container know how to do that with no effort on our part. But couldn’t we have continued to use cookies to transport the authentication token? It would have been nice, but there is a reason it wouldn’t work, and that is that the browser wouldn’t let us. You can just go poking around in the browser’s cookie store from a JavaScript client, but there are some restrictions, and for good reason. In particular you don’t have access to the cookies that were sent by the server as "HttpOnly" (which you will see is the case by default for session cookies). You also can’t set cookies in outgoing requests, so we couldn’t set a "SESSION" cookie (which is the Spring Session default cookie name), we had to use a custom "X-Session" header. Both these restrictions are for your own protection so malicious scripts cannot access your resources without proper authorization.

TL;DR the UI and resource servers do not have a common origin, so they cannot share cookies (even though we can use Spring Session to force them to share sessions).

We have duplicated the features of the application in Part II of this series: a home page with a greeting fetched from a remote backend, with login and logout links in a navigation bar. The difference is that the greeting comes from a resource server that is a standalone, instead of being embedded in the UI server. This added significant complexity to the implementation, but the good news is that we have a mostly configuration-based (and practically 100% declarative) solution. We could even make the solution 100% declarative by extracting all the new code into libraries (Spring configuration and Angular custom directives). We are going to defer that interesting task for after the next couple of installments. In the next section we are going to look at a different really great way to reduce all the complexity in the current implementation: the API Gateway Pattern (the client sends all its requests to one place and authentication is handled there).

An API Gateway is a single point of entry (and control) for front end clients, which could be browser based (like the examples in this section) or mobile. The client only has to know the URL of one server, and the backend can be refactored at will with no change, which is a significant advantage. There are other advantages in terms of centralization and control: rate limiting, authentication, auditing and logging. And implementing a simple reverse proxy is really simple with Spring Cloud.

If you were following along in the code, you will know that the application implementation at the end of the last section was a bit complicated, so it’s not a great place to iterate away from. There was, however, a halfway point which we could start from more easily, where the backend resource wasn’t yet secured with Spring Security. The source code for this is a separate project in Github so we are going to start from there. It has a UI server and a resource server and they are talking to each other. The resource server doesn’t have Spring Security yet so we can get the system working first and then add that layer.

You might remember in the intermediate state that we started from there is no security in place for the resource server.

Suppose that we decide we do need security at the software level (quite likely for a number of reasons). That’s not going to be a problem, because all we need to do is add Spring Security as a dependency (in the resource server POM):

That’s enough to get us a secure resource server, but it won’t get us a working application yet, for the same reason that it didn’t in Part III: there is no shared authentication state between the two servers.

We can use the same mechanism to share authentication (and CSRF) state as we did in the last, i.e. Spring Session. We add the dependency to both servers as before:

but this time the configuration is much simpler because we can just add the same Filter declaration to both. First the UI server, declaring explicitly that we want all headers to be forwarded (i.e. none are "sensitive"):

Then we can move on to the resource server. There are two small changes to make: one is to explicitly disable HTTP Basic in the resource server (to prevent the browser from popping up authentication dialogs):

and the other is to explicitly ask for a non-stateless session creation policy in application.properties:

As long as redis is still running in the background (use the docker-compose.yml if you like to start it) then the system will work. Load the homepage for the UI at http://localhost:8080 and login and you will see the message from the backend rendered on the homepage.

What is going on behind the scenes now? First we can look at the HTTP requests in the UI server (and API Gateway):

That’s identical to the sequence at the end of Part II except for the fact that the cookie names are slightly different ("SESSION" instead of "JSESSIONID") because we are using Spring Session. But the architecture is different and that last request to "/resource" is special because it was proxied to the resource server.

We can see the reverse proxy in action by looking at the "/trace" endpoint in the UI server (from Spring Boot Actuator, which we added with the Spring Cloud dependencies). Go to http://localhost:8080/trace in a new browser (if you don’t have one already get a JSON plugin for your browser to make it nice and readable). You will need to authenticate with HTTP Basic (browser popup), but the same credentials are valid as for your login form. At or near the start you should see a pair of requests something like this:

The second entry there is the request from the client to the gateway on "/resource" and you can see the cookies (added by the browser) and the CSRF header (added by Angular as discussed in Part II). The first entry has remote: true and that means it’s tracing the call to the resource server. You can see it went out to a uri path "/" and you can see that (crucially) the cookies and CSRF headers have been sent too. Without Spring Session these headers would be meaningless to the resource server, but the way we have set it up it can now use those headers to re-constitute a session with authentication and CSRF token data. So the request is permitted and we are in business!

We covered quite a lot in this section but we got to a really nice place where there is a minimal amount of boilerplate code in our two servers, they are both nicely secure and the user experience isn’t compromised. That alone would be a reason to use the API Gateway pattern, but really we have only scratched the surface of what that might be used for (Netflix uses it for a lot of things). Read up on Spring Cloud to find out more on how to make it easy to add more features to the gateway. The next section in this series will extend the application architecture a bit by extracting the authentication responsibilities to a separate server (the Single Sign On pattern).

Our first step is to create a new server to handle authentication and token management. Following the steps in Part I we can begin with Spring Boot Initializr. E.g. using curl on a UN*X like system:

You can then import that project (it’s a normal Maven Java project by default) into your favourite IDE, or just work with the files and "mvn" on the command line.

If we follow on from Part IV, our resource server is using Spring Session for authentication, so we can take that out and replace it with Spring OAuth. We also need to remove the Spring Session and Redis dependencies, so replace this:

with this:

and then remove the session Filter from the main application class, replacing it with the convenient @EnableResourceServer annotation (from Spring Security OAuth2):

With that one change the app is ready to challenge for an access token instead of HTTP Basic, but we need a config change to actually finish the process. We are going to add a small amount of external configuration (in "application.properties") to allow the resource server to decode the tokens it is given and authenticate a user:

This tells the server that it can use the token to access a "/user" endpoint and use that to derive authentication information (it’s a bit like the "/me" endpoint in the Facebook API). Effectively it provides a way for the resource server to decode the token, as expressed by the ResourceServerTokenServices interface in Spring OAuth2.

Run the application and hit the home page with a command line client:

and you will see a 401 with a "WWW-Authenticate" header indicating that it wants a bearer token.

On the authorization server we can easily add that endpoint

We added a @RequestMapping the same as the UI server in Part II, and also the @EnableResourceServer annotation from Spring OAuth, which by default secures everything in an authorization server except the "/oauth/*" endpoints.

With that endpoint in place we can test it and the greeting resource, since they both now accept bearer tokens that were created by the authorization server:

(substitute the value of the access token that you obtain from your own authorization server to get that working yourself).

The final piece of this application we need to complete is the UI server, extracting the authentication part and delegating to the authorization server. So, as with the resource server, we first need to remove the Spring Session and Redis dependencies and replace them with Spring OAuth2.

Once that is done we can remove the session filter and the "/user" endpoint as well, and set up the application to redirect to the authorization server (using the @EnableOAuth2Sso annotation):

Recall from Part IV that the UI server, by virtue of the @EnableZuulProxy, acts an API Gateway and we can declare the route mappings in YAML. So the "/user" endpoint can be proxied to the authorization server:

Lastly, we need to change the application to a WebSecurityConfigurerAdapter since now it is going to be used to modify the defaults in the SSO filter chain set up by @EnableOAuth2Sso:

The main changes (apart from the base class name) are that the matchers go into their own method, and there is no need for formLogin() any more.

There are also some mandatory external configuration properties for the @EnableOAuth2Sso annotation to be able to contact and authenticate with thr right authorization server. So we need this in application.yml:

The bulk of that is about the OAuth2 client ("acme") and the authorization server locations. There is also a userInfoUri (just like in the resource server) so that the user can be authenticated in the UI app itself.

Run all the servers together now, and visit the UI in a browser at http://localhost:8080. Click on the "login" link and you will be redirected to the authorization server to authenticate (HTTP Basic popup) and approve the token grant (whitelabel HTML), before being redirected to the home page in the UI with the greeting fetched from the OAuth2 resource server using the same token as we authenticated the UI with.

The interactions between the browser and the backend can be seen in your browser if you use some developer tools (usually F12 opens this up, works in Chrome by default, may require a plugin in Firefox). Here’s a summary:

The requests prefixed with (uaa) are to the authorization server. The responses that are marked "ignored" are responses received by Angular in an XHR call, and since we aren’t processing that data they are dropped on the floor. We do look for an authenticated user in the case of the "/user" resource, but since it isn’t there in the first call, that response is dropped.

In the "/trace" endpoint of the UI (scroll down to the bottom) you will see the proxied backend requests to "/user" and "/resource", with remote:true and the bearer token instead of the cookie (as it would have been in Part IV) being used for authentication. Spring Cloud Security has taken care of this for us: by recognising that we has @EnableOAuth2Sso and @EnableZuulProxy it has figured out that (by default) we want to relay the token to the proxied backends.

If you click on the "logout" link you will see that the home page changes (the greeting is no longer displayed) so the user is no longer authenticated with the UI server. Click back on "login" though and you actually don’t need to go back through the authentication and approval cycle in the authorization server (because you haven’t logged out of that). Opinions will be divided as to whether that is a desirable user experience, and it’s a notoriously tricky problem (Single Sign Out: Science Direct article and Shibboleth docs). The ideal user experience might not be technically feasible, and you also have to be suspicious sometimes that users really want what they say they want. "I want 'logout' to log me out" sounds simple enough, but the obvious response is, "Logged out of what? Do you want to be logged out of all the systems controlled by this SSO server, or just the one that you clicked the 'logout' link in?" We don’t have room to discuss this topic more broadly here but it does deserve more attention. If you are interested then there is some discussion of the principles and some (fairly unappetising) ideas about implementations in the Open ID Connect specification.

This is almost the end of our shallow tour through the Spring Security and Angular JS stack. We have a nice architecture now with clear responsibilities in three separate components, UI/API Gateway, resource server and authorization server/token granter. The amount of non-business code in all layers is now minimal, and it’s easy to see where to extend and improve the implementation with more business logic. The next steps will be to tidy up the UI in our authorization server, and probably add some more tests, including tests on the JavaScript client. Another interesting task is to extract all the boiler plate code and put it in a library (e.g. "spring-security-angular") containing Spring Security and Spring Session autoconfiguration and some webjars resources for the navigation controller in the Angular piece. Having read the sections in thir series, anyone who was hoping to learn the inner workings of either Angular JS or Spring Security will probably be disappointed, but if you wanted to see how they can work well together and how a little bit of configuration can go a long way, then hopefully you will have had a good experience. Spring Cloud is new and these samples required snapshots when they were written, but there are release candidates available and a GA release coming soon, so check it out and send some feedback via Github or gitter.im.

The next section in the series is about access decisions (beyond authentication) and employs multiple UI applications behind the same proxy.

You will find another version of this application in the source code in Github which has a pretty login page and user approval page implemented similarly to the way we did the login page in Part II. It also uses JWT to encode the tokens, so instead of using the "/user" endpoint, the resource server can pull enough information out of the token itself to do a simple authentication. The browser client still uses it, proxied through the UI server, so that it can determine if a user is authenticated (it doesn’t need to do that very often, compared to the likely number of calls to a resource server in a real application).

Here’s a picture of the basic system we are going to build to start with:

Like the other sample applications in this series it has a UI (HTML and JavaScript) and a Resource server. Like the sample in Part IV it has a Gateway, but here it is separate, not part of the UI. The UI effectively becomes part of the backend, giving us even more choice to re-configure and re-implement features, and also bringing other benefits as we will see.

The browser goes to the Gateway for everything and it doesn’t have to know about the architecture of the backend (fundamentally, it has no idea that there is a back end). One of the things the browser does in this Gateway is authentication, e.g. it sends a username and password like in Part II, and it gets a cookie in return. On subsequent requests it presents the cookie automatically and the Gateway passes it through to the backends. No code needs to be written on the client to enable the cookie passing. The backends use the cookie to authenticate and because all components share a session they share the same information about the user. Contrast this with Part V where the cookie had to be converted to an access token in the Gateway, and the access token then had to be independently decoded by all the backend components.

As in Part IV the Gateway simplifies the interaction between clients and servers, and it presents a small, well-defined surface on which to deal with security. For example, we don’t need to worry about Cross Origin Resource Sharing, which is a welcome relief since it is easy to get wrong.

The source code for the complete project we are going to build is in Github here, so you can just clone the project and work directly from there if you want. There is an extra component in the end state of this system ("double-admin") so ignore that for now.

In this architecture the backend is very similar to the "spring-session" sample we built in Part III, with the exception that it doesn’t actually need a login page. The easiest way to get to what we want here is probably to copy the "resource" server from Part III and take the UI from the "basic" sample in Part I. To get from the "basic" UI to the one we want here, we need only to add a couple of dependencies (like when we first used Spring Session in Part III):

Since this is now a UI there is no need for the "/resource" endpoint. When you have done that you will have a very simple Angular application (the same as in the "basic" sample), which simplifies testing and reasoning about its behaviour greatly.

Lastly, we want this server to run as a backend, so we’ll give it a non-default port to listen on (in application.properties):

If that’s the whole content application.properties then the application will be secure and accessible to a user called "user" with a password that is random, but printed on the console (at log level INFO) on startup. The "security.sessions" setting means that Spring Security will accept cookies as authentication tokens but won’t create them unless they already exist.

The Resource server is easy to generate from one of our existing samples. It is the same as the "spring-session" Resource server in Part III: just a "/resource" endpoint Spring Session to get the distributed session data. We want this server to have a non-default port to listen on, and we want to be able to look up authentication in the session so we need this (in application.properties):

We are going to be POSTing changes to our message resource, which is a new feature in this tutorial. It means that we are going to need CSRF protection in the backend, and we need to do the usual trick to make Spring Security play nicely with Angular:

The completed sample is here in github if you want to take a peek.

For an initial implementation of a Gateway (the simplest thing that could possibly work) we can just take an empty Spring Boot web application and add the @EnableZuulProxy annotation. As we saw in Part I there are several ways to do that, and one is to use the Spring Initializr to generate a skeleton project. Even easier, is to use the Spring Cloud Initializr which is the same thing, but for Spring Cloud applications. Using the same sequence of command line operations as in Part I:

You can then import that project (it’s a normal Maven Java project by default) into your favourite IDE, or just work with the files and "mvn" on the command line. There is a version in github if you want to go from there, but it has a few extra features that we don’t need yet.

Starting from the blank Initializr application, we add the Spring Session dependency (like in the UI above). The Gateway is ready to run, but it doesn’t yet know about our backend services, so let’s just set that up in its application.yml (renaming from application.properties if you did the curl thing above):

There are 2 routes in the proxy, one each for the UI and resource server, and we have set up a default password and a session persistence strategy (telling Spring Security to always create a session on authentication). This last bit is important because we want authentication and therefore sessions to be managed in the Gateway.

We now have three components, running on 3 ports. If you point the browser at http://localhost:8080/ui/ you should get an HTTP Basic challenge, and you can authenticate as "user/password" (your credentials in the Gateway), and once you do that you should see a greeting in the UI, via a backend call through the proxy to the Resource server.

The interactions between the browser and the backend can be seen in your browser if you use some developer tools (usually F12 opens this up, works in Chrome by default, may require a plugin in Firefox). Here’s a summary:

You might not see the 401 because the browser treats the home page load as a single interaction. All requests are proxied (there is no content in the Gateway yet, beyond the Actuator endpoints for management).

Hurrah, it works! You have two backend servers, one of which is a UI, each with independent capabilities and able to be tested in isolation, and they are connected together with a secure Gateway that you control and for which you have configured the authentication. If the backends are not accessible to the browser it doesn’t matter (in fact it’s probably an advantage because it gives you yet more control over physical security).

Just as in the "basic" sample in Part I we can now add a login form to the Gateway, e.g. by copying the code from Part II. When we do that we can also add some basic navigation elements in the Gateway, so the user doesn’t have to know the path to the UI backend in the proxy. So let’s first copy the static assets from the "single" UI into the Gateway, delete the message rendering and insert a login form into our home page (in the <body/> somewhere):

Instead of the message rendering we will have a nice big navigation button:

If you are looking at the sample in github, it also has a minimal navigation bar with a "Logout" button. Here’s the login form in a screenshot:

To support the login form we need some JavaScript with a "navigation" controller implementing the login() function we declared in the <form/>, and we need to set the authenticated flag so that the home page will render differently depending on whether or not the user is authenticated. For example:

where the implementation of the authenticate() function is similar to that in Part II:

We can use the self to store the authenticated flag because there is only one controller in this simple application.

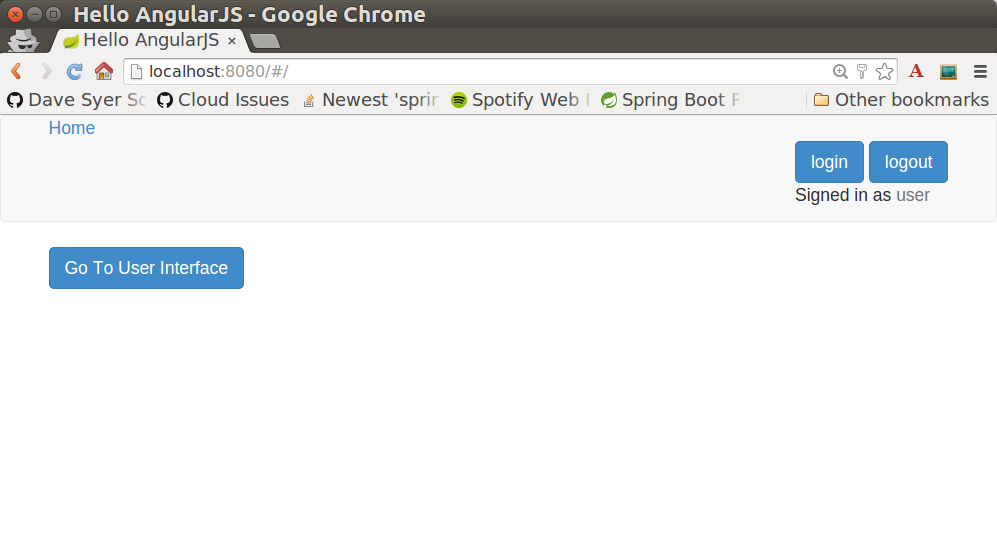

If we run this enhanced Gateway, instead of having to remember the URL for the UI we can just load the home page and follow links. Here’s the home page for an authenticated user:

Up to now our application is functionally very similar to the one in Part III or Part IV, but with an additional dedicated Gateway. The advantage of the extra layer may not be yet apparent, but we can emphasise it by expanding the system a bit. Suppose we want to use that Gateway to expose another backend UI, for users to "administrate" the content in the main UI, and that we want to restrict access to this feature to users with special roles. So we will add an "Admin" application behind the proxy, and the system will look like this:

There is a new component (Admin) and a new route in the Gateway in application.yml:

The fact that the existing UI is available to users in the "USER" role is indicated on the block diagram above in the Gateway box (green lettering), as is the fact that the "ADMIN" role is needed to go to the Admin application. The access decision for the "ADMIN" role could be applied in the Gateway, in which case it would appear in a WebSecurityConfigurerAdapter, or it could be applied in the Admin application itself (and we will see how to do that below).

In addition, suppose that within the Admin application we want to distinguish between "READER" and "WRITER" roles, so that we can permit (let’s say) users who are auditors to view the changes made by the main admin users. This is a granular access decision, where the rule is only known, and should only be known, in the backend application. In the Gateway we only need to ensure that our user accounts have the roles needed, and this information is available, but the Gateway doesn’t need to know how to interpret it. In the Gateway we create user accounts to keep the sample application self-contained:

where the "admin" user has been enhanced with 3 new roles ("ADMIN", "READER" and "WRITER") and we have also added an "audit" user with "ADMIN" access, but not "WRITER".

The access decisions go in the Admin application. For the "ADMIN" role (which is required globally for this backend) we do it in Spring Security:

For the "READER" and "WRITER" roles the application itself is split, and since the application is implemented in JavaScript, that is where we need to make the access decision. One way to do this is to have a home page with a computed view embedded in it:

Angular JS evaluates the "ng-include" attribute value as an expression, and then uses the result to load a template.

The template variable is initialized in our controller, first by defining a utility function:

then by using the utility function when the controller loads:

the first thing the application does is look at the usual (for this series) "/user" endpoint, then it extracts some data, sets the authenticated flag, and if the user is authenticated, computes the template by looking at the user data.

To support this function on the backend we need an endpoint, e.g. in our main application class:

We are going to use the roles to make access decisions in the Gateway as well (so we can conditionally display a link to the admin UI), so we should add the "roles" to the "/user" endpoint in the Gateway as well. Once that is in place we can add some JavaScript to set up a flag to indicate that the current user is an "ADMIN". In the authenticated() function:

and we also need to reset the admin flag to false when a user logs out:

and then in the HTML we can conditionally show a new link:

Run all the apps and go to http://localhost:8080 to see the result. Everything should be working fine, and the UI should change depending on the currently authenticated user.

Now we have a nice little system with 2 independent user interfaces and a backend Resource server, all protected by the same authentication in a Gateway. The fact that the Gateway acts as a micro-proxy makes the implementation of the backend security concerns extremely simple, and they are free to concentrate on their own business concerns. The use of Spring Session has (again) avoided a huge amount of hassle and potential errors.

A powerful feature is that the backends can independently have any kind of authentication they like (e.g. you can go directly to the UI if you know its physical address and a set of local credentials). The Gateway imposes a completely unrelated set of constraints, as long as it can authenticate users and assign metadata to them that satisfy the access rules in the backends. This is an excellent design for being able to independently develop and test the backend components. If we wanted to, we could go back to an external OAuth2 server (like in Part V, or even something completely different) for the authentication at the Gateway, and the backends would not need to be touched.

A bonus feature of this architecture (single Gateway controlling authentication, and shared session token across all components) is that "Single Logout", a feature we identified as difficult to implement in Part V, comes for free. To be more precise, one particular approach to the user experience of single logout is automatically available in our finished system: if a user logs out of any of the UIs (Gateway, UI backend or Admin backend), he is logged out of all the others, assuming that each individual UI implemented a "logout" feature the same way (invalidating the session).

The sample application that we worked with so far in this series was trivial enough that we could get away with a single JavaScript source file for the whole thing. No larger application will ever end up that way, even if it starts out life like this one, so to mimic real life in a sample we are going to break things up. A good starting point would be to take the "single" application from the second section and have a look at its structure in the source code. Here’s a directory listing for the static content (excluding the "application.yml" that belongs on the server):

There are a few problems with this. One is obvious: all the JavaScript is in a single file (hello.js). Another is more subtle: we have HTML "partials" for views inside our application ("login.html" and "home.html") but they are all in a flat structure and not associated with the controller code that uses them.

Let’s take a closer look at the JavaScript and we will see that Angular makes it easy for us to break it up into more manageable pieces:

There is some "config" and there are 2 controllers ("home" and "navigation"), and the controllers seem to map nicely to the partials ("home.html" and "login.html" respectively). So let’s break them out into those pieces (and using the more consistent name "login" instead of "navigation" for the controller that manages the menu bar):

The controller definitions have moved into their own modules, alongside the HTML that they need to operate - nice and modular. If we had needed images or custom stylesheets we would have done the same with those.

For example, here’s the home.js:

and here’s the new hello.js:

Notice how the "hello" module depends on the other two by listing them in the initial declaration along with ngRoute. To make that work you just need to load the module definitions in the right order in index.html:

This is the Angular JS dependency management system in action. Other frameworks have similar (and arguably superior) features. Also, in a larger application, you might use a build time step to bundle all the JavaScript together so it can be loaded efficiently by the browser, but that’s almost a matter of taste.

The Angular $routeProvider by default works with fragment locators in the URL path, e.g. the login page is specified as a route in hello.js as "/login" and this translates into "/#/login" in the actual URL (the one you see in the browser window). This is so that the JavaScript in the index.html, loaded via the root path "/", stays active on all routes. The fragment naming is a bit unfamiliar to users and it is sometimes more convenient to use "natural" routes, where the URL path is the same as the Angular route declarations, e.g. "/login" for "/login". You can’t do that if you have only static resources, because index.html can only be loaded one way, but if you have some active components in the stack (a proxy or some server-side logic) then you can arrange for it to work by loading index.html from all the Angular routes.

In this series you have Spring Boot, so of course you have server-side logic, and using a simple Spring MVC controller you can naturalize the routes in your application. All you need is a a way to enumerate the Angular routes in the server. Here we choose to do it by a naming convention: all paths that do not contain a period (and are not explicitly mapped already) are Angular routes, and should forward to the home page:

This method just needs to be in a @Controller (not a @RestController) somewhere in the Spring application. We use a "forward" (not a "redirect") so that the browser remembers the "real" route, and that’s what the user sees in the URL. It also means that any saved-request mechanisms around authentication in Spring Security would work out of the box, although we won’t be taking advantage of that in this application.

To complete the application with "natural" routes, you need to tell Angular about it. There are two steps. First, in hello.js you add a line to the config function setting the "HTML5 mode" in the $locationProvider:

Coupled with that you need an extra <base/> element in the header of the HTML in index.html, and you need to change the links in the menu bar to remove the fragments ("#"):

Angular uses the <base/> element to anchor the routes and write the URLs that show up in the browser. You are running in a Spring Boot application so the default setting is to serve from root path "/" (on port 8080). If you need to be able to serve from different root paths with the same application then you will need to render that path into the HTML using a server-side template (many people prefer to stick with static resources for a Single Page Application, so they are stuck with a static root path).

When you modularized the application above you should have found that the code worked just by splitting it into modules, but there is a small niggle there that we are still using $rootScope to share state between the controllers. There’s nothing horribly wrong with that for such a small application and it got us a decent prototype to play with quite quickly, so let’s not be too sad about it, but now we can take the opportunity to extract all the authentication concerns into a separate module. In Angular terms what you need is a "service", so create a new module ("auth") next to your "home" and "navigation" modules:

Before writing the auth.js code we can anticipate the changes in the other modules. First in navigation.js you should make the "navigation" module depend on the new "auth" module, and inject the "auth" service into the controller (and of course $rootScope is no longer needed):

It isn’t very different from the old controller (it still needs functions for user actions, login and logout, and an object to hold the credentials for login), but it has abstracted the implementation to the new "auth" service. The "auth" service will need an authenticate() function to support the login(), and a clear() function to support logout(). It also has a flag authenticated that replaces the $rootScope.authenticated from the old controller. We use the authenticated flag in a function with the same name attached the controller, so that Angular will keep checking its value and update the UI when the user logs in.

Suppose you want to make the "auth" module re-usable, so you don’t want any hard-coded paths in it. That’s not a problem, but you will need to initialize or configure the paths in the hello.js module. To do that you can add a run() function:
