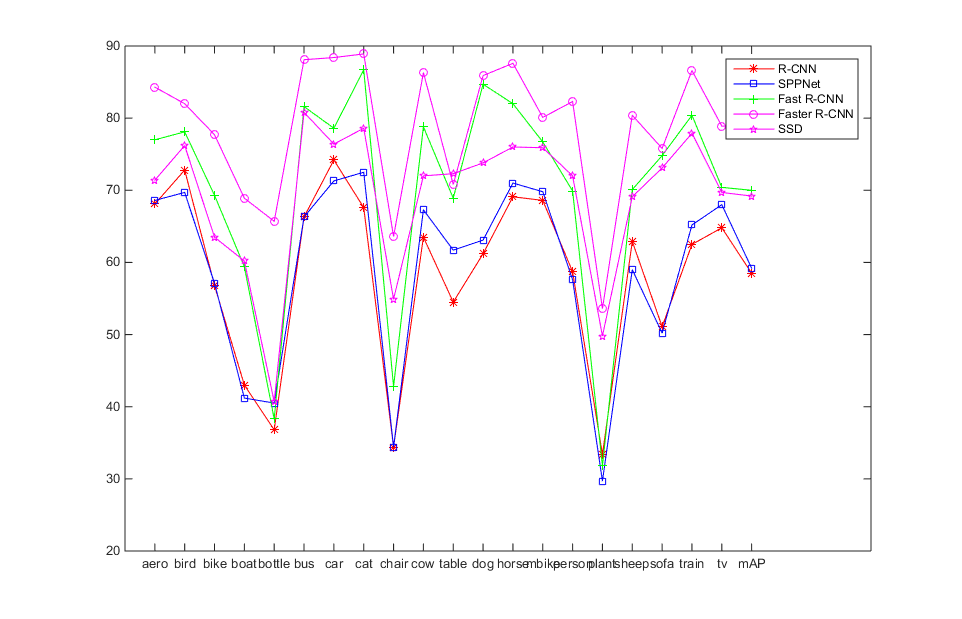

MATLAB读取Execl数据并绘制曲线图

87 阅读 0 评论 58 点赞

我是靠谱客的博主现实乐曲，这篇文章主要介绍MATLAB读取Execl数据并绘制曲线图，现在分享给大家，希望可以做个参考。

参考 MATLAB读取Execl数据并绘制曲线图 - 云+社区 - 腾讯云

复制代码

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
clc;
close all;
num = xlsread('D:paper1multiscalefigureintroductionclass_statistics.xlsx');
cls = [1,2,3,4,5,6,7,8,9,10,11,12,13,14,15,16,17,18,19,20,21];
R_CNN = num(1,:);
SPPNet = num(2,:);
Fast = num(3,:);
Faster = num(4,:);
SSD = num(5,:);
plot(cls,R_CNN,'r-*');
set(gca,'xtick',[1:1:21]);
set(gca,'XTickLabel',{'aero','bird','bike','boat','bottle','bus','car','cat','chair','cow','table','dog','horse','mbike','person','plant','sheep','sofa','train','tv','mAP'})
hold on
plot(cls,SPPNet,'b-s');
hold on
plot(cls,Fast,'g-+');
hold on
plot(cls,Faster,'m-o');
hold on
plot(cls,SSD,'m-p');
hold on;
h=legend('R-CNN','SPPNet','Fast R-CNN','Faster R-CNN','SSD');
