第三章 pro1 QPSK调制与解调

74 阅读 0 评论 49 点赞

我是靠谱客的博主体贴向日葵，这篇文章主要介绍第三章 pro1 QPSK调制与解调，现在分享给大家，希望可以做个参考。

Q：实际工程应用发射端调制容易理解，接收端解调一般采用LLR(对数似然比)软解调办法。

具体算法推导过程可参加网上资源，最后一般采用优化后LLR形式做代码实现。

仿真思路：

step1:生成随机bit作为待调制信号sig

step2:将sig经QPSK调制

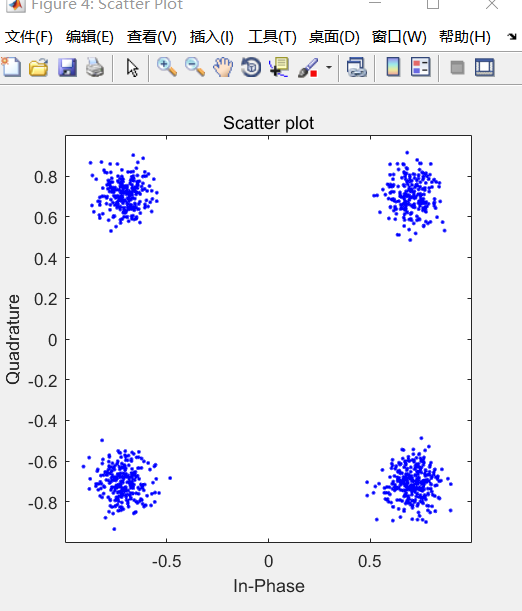

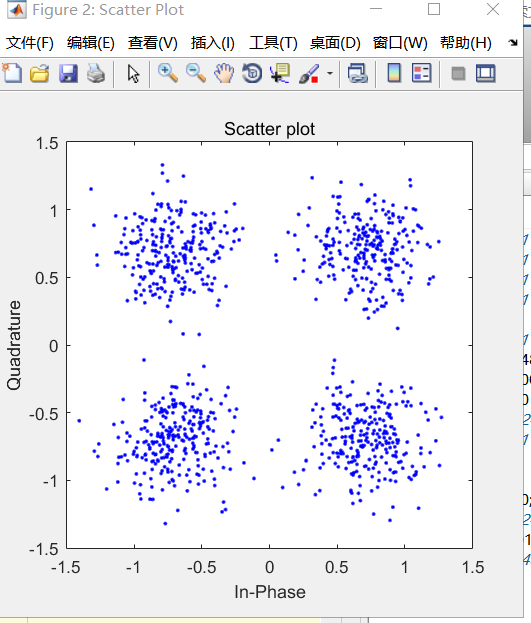

step3:调制后信号过awgn信道，改变snr，观察过信道后信号变化

step4:接收端QPSK解调，计算误码率

备注：源程序略做修改，只是观察中间信号变化

复制代码

%% Constants
FRM=2048;
MaxNumErrs=200;MaxNumBits=1e7;
EbNo_vector=0:10;BER_vector=zeros(size(EbNo_vector));
%% Initializations
Modulator      = comm.QPSKModulator('BitInput',true);
AWGN             = comm.AWGNChannel;
DeModulator =  comm.QPSKDemodulator('BitOutput',true);
BitError           = comm.ErrorRate;
%% Outer Loop computing Bit-error rate as a function of EbNo
for EbNo = EbNo_vector
    snr = EbNo + 10*log10(2);
    AWGN.EbNo=10;
    numErrs = 0; numBits = 0;results=zeros(3,1);
    %% Inner loop modeling transmitter, channel model and receiver for each EbNo
%     while ((numErrs < MaxNumErrs) && (numBits < MaxNumBits))
        % Transmitter
        u             = randi([0 1], FRM,1);                  % Generate random bits
        mod_sig = step(Modulator,   u);                % QPSK Modulator

scatterplot(mod_sig);
        % Channel
        rx_sig  = step(AWGN,        mod_sig);        % AWGN channel
%         rx_sig = awgn(mod_sig,20,'measured');
        % Receiver

scatterplot(rx_sig);
        y =       step(DeModulator, rx_sig);           % QPSK Demodulator
        results = step(BitError,    u, y);                  % Update BER
        numErrs = results(2);
        numBits = results(3);
%     end
    % Compute BER
    ber = results(1); bits= results(3);
    %% Clean up & collect results
    reset(BitError);
    BER_vector(EbNo+1)=ber;
end
%% Visualize results
EbNoLin = 10.^(EbNo_vector/10);
theoretical_results = 0.5*erfc(sqrt(EbNoLin));
semilogy(EbNo_vector, BER_vector)
grid;title('BER vs. EbNo - QPSK modulation');
xlabel('Eb/No (dB)');ylabel('BER');hold;
semilogy(EbNo_vector,theoretical_results,'dr');hold;
legend('Simulation','Theoretical');
