【 FPGA 】序列检测器的Mealy状态机实现

上篇博文讲了使用Moore状态机来设计一个序列检测器：序列检测器的Moore状态机实现

原理一致，这里只不过采用了Mealy状态机实现，快速给出：

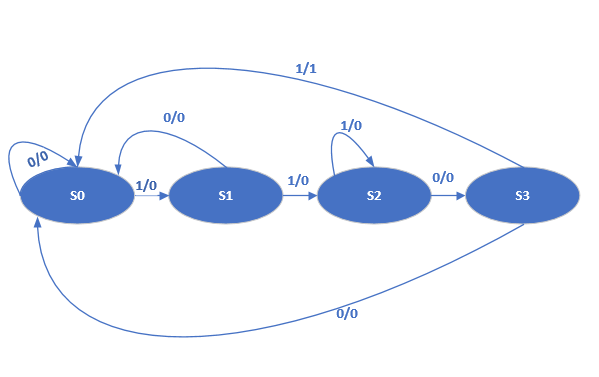

状态转移图如下：被检测序列为1101，也就是说，如果出现1101序列，则输出为1，否则输出为0。

Verilog HDL代码为：

`timescale 1ns / 1ps
//
// Company:
// Engineer:
//
// Create Date: 2019/01/04 20:34:06
// Design Name:
// Module Name: seq_det_mealy
// Project Name:
// Target Devices:
// Tool Versions:
// Description:
//
// Dependencies:
//
// Revision:
// Revision 0.01 - File Created
// Additional Comments:
//
//


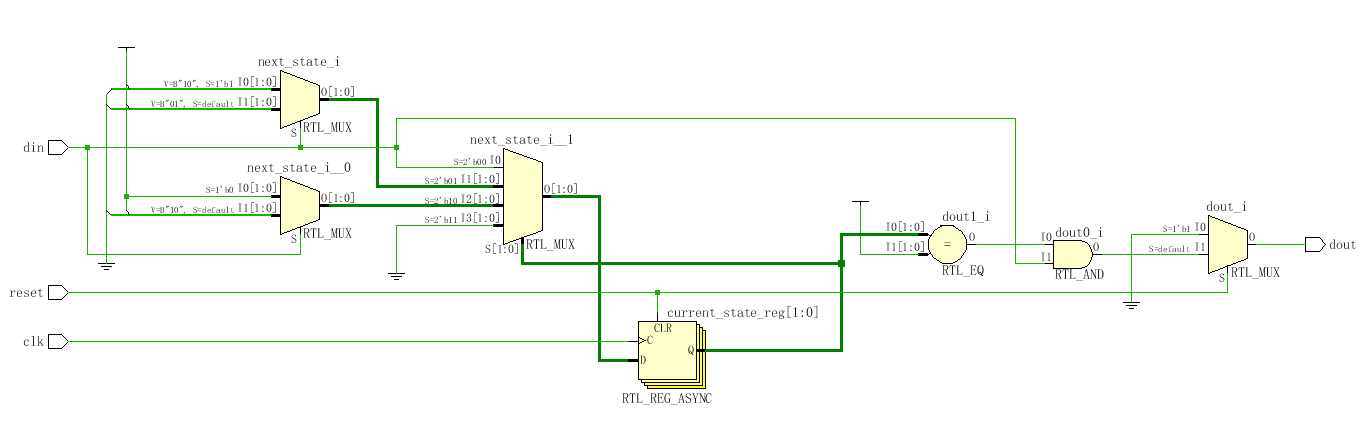

module seq_det_mealy(
    input clk,
    input reset,
    input din,
    output reg dout
    );

	localparam [1:0]
	s0 = 2'b00,
	s1 = 2'b01,
	s2 = 2'b10,
	s3 = 2'b11;

	reg [1:0] current_state,next_state;

	always @(posedge clk, posedge reset)
	begin
		if(reset)
			current_state <= s0;
		else
			current_state <= next_state;

	end

	always @ *
	begin
		case(current_state)
		s0:
			if(din == 1'b1) next_state = s1;
			else next_state = s0;
		s1:
			if(din == 1'b1) next_state = s2;
			else next_state = s1;
		s2:
			if(din == 1'b0) next_state = s3;
			else next_state = s2;
		s3: next_state = s0;
		default: next_state = s0;
		endcase

	end

	always @ *
	begin
		if(reset) dout = 1'b0;
		else if( (current_state == s3)&&(din == 1'b1) ) dout = 1'b1;
		else dout = 1'b0;

	end


endmodule

用上篇博文的测试代码：

`timescale 1ns / 1ps
//
// Company:
// Engineer:
//
// Create Date: 2019/01/04 15:24:59
// Design Name:
// Module Name: seq_det_moore_tb
// Project Name:
// Target Devices:
// Tool Versions:
// Description:
//
// Dependencies:
//
// Revision:
// Revision 0.01 - File Created
// Additional Comments:
//
//


module seq_det_mealy_tb;
	reg clk,reset;
	reg din;
	wire dout;
	reg [20:0] din_mid;
	integer i;

   // Note: CLK must be defined as a reg when using this method

   parameter PERIOD = 10;

   always begin
      clk = 1'b0;
      #(PERIOD/2) clk = 1'b1;
      #(PERIOD/2);
   end

	initial begin

	reset = 1'b1;
	din_mid = 21'b110111010110100101101;

	#  20
	reset = 1'b0;

    din = 1'b0;
	for(i = 0;i < 21;i = i + 1)
	begin
		#PERIOD
		din = din_mid[i];
	end

	end

	seq_det_mealy uu1(.clk(clk),.reset(reset),.din(din),.dout(dout));


endmodule

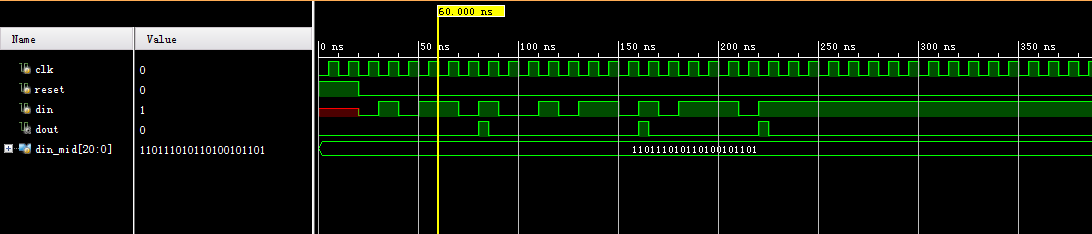

行为仿真波形图：

这篇博文是在上篇博文的基础上改的，相对而言， 意义就没有那篇博文有意义！
