使用AZ3166（MXChip IoT DevKit）开发
Quickstart: Connect an MXCHIP AZ3166 devkit to IoT Central
aka.ms/iot-devkit
从这里下载Cmake 和 ARM GCC，下一个实验会用到
快速入门：将 MXCHIP AZ3166 devkit 连接到 IoT 中心
https://docs.microsoft.com/zh-cn/azure/iot-develop/quickstart-devkit-mxchip-az3166-iot-hub
使用 Azure Functions 将 IoT 设备连接到认知服务
https://docs.microsoft.com/zh-cn/learn/modules/connecting-iot-devices-cognitive-services-azure-functions/?WT.mc_id=cloudskillschallenge_d3708c4d-1181-463d-b5fa-e4a195a58c9c
需要设备：
- 带 Micro-USB 电缆的 MXChip IoT DevKit 电路板
************************************************
** MXChip - Microsoft IoT Developer Kit **
************************************************
You can 1. press Button A and reset to enter configuration mode.
2. press Button B and reset to enter AP mode.
有几个需要注意的地方
创建 IoT 中心
可以使用S1，而不是F1免费层
复制代码
1az iot hub create --resource-group <resource-group-name> --name <iot-hub-name> --sku F1 --partition-count 2
安装工具
下载ARM GCC
https://developer.arm.com/tools-and-software/open-source-software/developer-tools/gnu-toolchain/gnu-rm/downloads
下载 DevKit 固件
实验中提供的固件下载地址
https://github.com/microsoft/devkit-sdk/releases/
可以使用该固件 devkit-getstarted-2.0.0.bin，可能会更好
https://github.com/microsoft/devkit-sdk/releases/download/2.0.0/devkit-getstarted-2.0.0.bin
配置 DevKit 以连接到 Wi-Fi

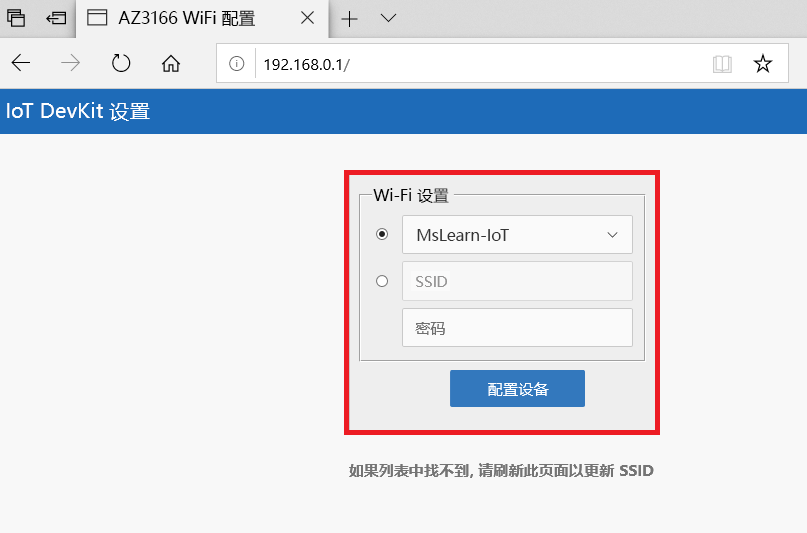

首次配置时，选图中“SSID”的框，下方让填写 "device connection string"，这样可以让设备连接到IoT hub。
否则可能会出现报错：“No IoT Hub”
为 Visual Studio Code 安装扩展
需要为 Visual Studio Code 安装一些扩展。
-
启动 Visual Studio Code，在扩展市场中搜索“Arduino”，然后安装它。 此扩展提供了在 Arduino 平台上进行开发的增强体验。
-
需要先安装Arduino IDE
arduino ide 1.8.5 https://www.arduino.cc/en/software
-
在扩展市场中搜索 Azure IoT Tools 并安装它。
Azure IoT Tools 扩展包包含 Azure IoT Device Workbench，其用于在各种 IoT devkit 设备上进行开发和调试。 Azure IoT Tools 扩展包中还包含 Azure IoT 中心扩展，它用于管理 Azure IoT 中心并与之交互。
-
在扩展市场中搜索“C#”，然后安装它。
在 Visual Studio Code 中，依次单击“文件”>“首选项”>“设置”。往下拉找到链接“Edit settings.json”。进入添加以下行，以根据你的平台配置 Arduino
settings.json部分配置
复制代码
1
2
3
4
5"arduino.path": "C:\Program Files (x86)\Arduino", "arduino.additionalUrls": "https://raw.githubusercontent.com/VSChina/azureiotdevkit_tools/master/package_azureboard_index.json", "IoTWorkbench.workbench": "C:\Users\Administrator\Documents\IoTWorkbenchProjects", "C_Cpp.intelliSenseEngine": "Tag Parser",
注意：第一个json链接中，前面的Arduino版本下载链接已经失效。2.0.0可以。
打开示例项目
首先，从登录你的 Azure 帐户开始。 单击 F1 打开命令面板，键入并选择“Azure:Sign in”
单击 F1 打开命令面板，键入并选择“Azure IoT Device Workbench:Open Examples...”。
注意：这个页面可能由于网络原因，会刷不出来。
然后选择“IoT DevKit”作为电路板。在“IoT Workbench 示例”页中，找到“DevKit Translator”，单击“打开示例”。 然后，选择默认路径来下载示例代码。
选择板

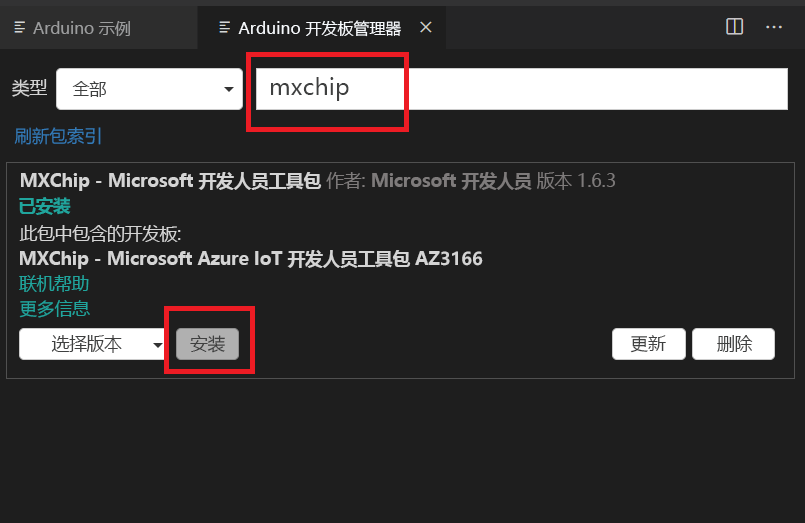

单击 F1 打开命令面板，键入并选择“Arduino:Board Manager”。 搜索“AZ3166”并安装。
注意：可能需要搜索“mxchip”而不是“AZ3166”，或者搜索了，由于xx原因，下面也不会出来内容。
安装串行端口：ST-Link 驱动程序
-
Windows： 从 STMicroelectronics 网站下载并安装 USB 驱动程序。
配置设备设置
在右下方的状态栏中，检查 MXCHIP AZ3166 是否显示为选定电路板，以及是否使用 STMicroelectronics 的串行端口。
注意：下面可能有两个需要选择
Select Board Type：点击后，右边出来下拉框，拉到最下方选择“AZ3166”。如果状态栏未更新，重启VS Code。
Select Serial Port：上方可能弹出来的是COM2 xx和 COM3 STMicroelectrinoics。

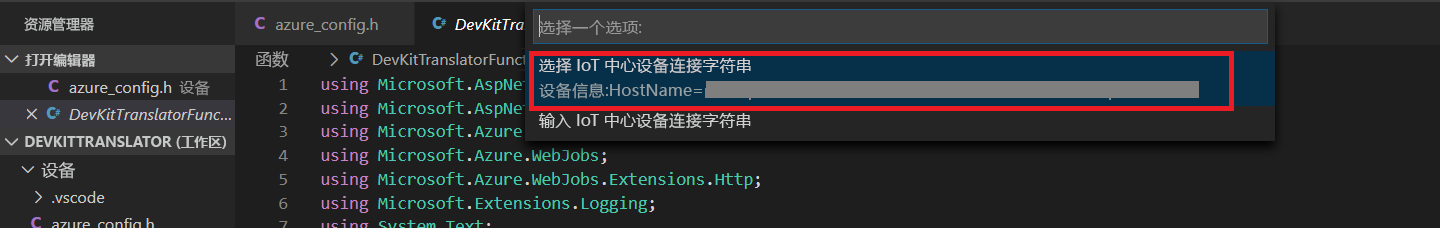

单击 F1，键入并选择“Azure IoT Device Workbench:Configure Device Settings...”>“Config Device Connection String”。 选择“IoT 中心设备连接字符串”以将其配置到 DevKit。
在 DevKit 上，按住按钮 A，按下并释放重置按钮，然后释放按钮 A。DevKit 进入配置模式并保存连接字符串。

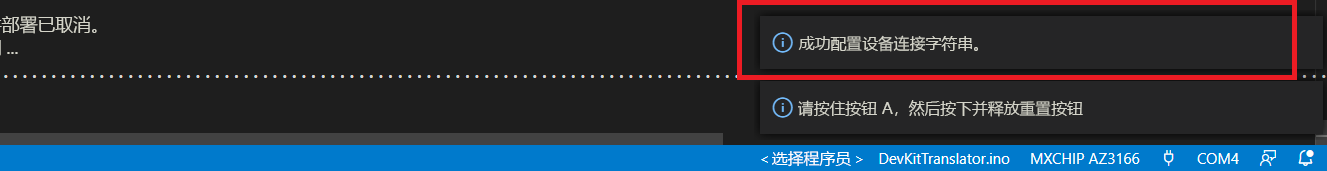

成功完成后，你将看到通知。//这个步骤现象没有看到，可以通过连接Wi-Fi时填写“Device Connection String”替代。
附件：
c_cpp_properties.json文件configurations配置起初如下
复制代码
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23{ "version": 4, "configurations": [ { "name": "Win32", "compilerPath": "D:\Program Files (x86)\gcc-arm-none-eabi-10.3-2021.07\bin\arm-none-eabi-gcc.exe", "compilerArgs": [], "intelliSenseMode": "clang-x64", "includePath": [ "${workspaceFolder}", "C:\Program Files (x86)\Arduino\tools\**", "C:\Program Files (x86)\Arduino\hardware\arduino\avr\**" ], "forcedInclude": [ "C:\Program Files (x86)\Arduino\hardware\arduino\avr\cores\arduino\Arduino.h" ], "cStandard": "c11", "cppStandard": "gnu++17", "defines": [ "ARDUINO=10800" ] },
后来编译又增加了
复制代码
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109{ "name": "Arduino", "compilerPath": "C:\Users\Administrator\AppData\Local\Arduino15\packages\AZ3166\tools\arm-none-eabi-gcc\5_4-2016q3\bin\arm-none-eabi-g++", "compilerArgs": [ "-std=gnu++11", "-Wno-unused-parameter", "-Wno-missing-field-initializers", "-fmessage-length=0", "-ffunction-sections", "-fdata-sections", "-nostdlib", "-fno-threadsafe-statics", "--param", "-fno-rtti", "-Wvla", "-include" ], "intelliSenseMode": "gcc-x64", "includePath": [ "C:\Users\Administrator\AppData\Local\Arduino15\packages\AZ3166\hardware\stm32f4\2.0.0\system", "C:\Users\Administrator\AppData\Local\Arduino15\packages\AZ3166\hardware\stm32f4\2.0.0\system\mbed-os", "C:\Users\Administrator\AppData\Local\Arduino15\packages\AZ3166\hardware\stm32f4\2.0.0\system\mbed-os\cmsis", "C:\Users\Administrator\AppData\Local\Arduino15\packages\AZ3166\hardware\stm32f4\2.0.0\system\mbed-os\drivers", "C:\Users\Administrator\AppData\Local\Arduino15\packages\AZ3166\hardware\stm32f4\2.0.0\system\mbed-os\events", "C:\Users\Administrator\AppData\Local\Arduino15\packages\AZ3166\hardware\stm32f4\2.0.0\system\mbed-os\events\equeue", "C:\Users\Administrator\AppData\Local\Arduino15\packages\AZ3166\hardware\stm32f4\2.0.0\system\mbed-os\features", "C:\Users\Administrator\AppData\Local\Arduino15\packages\AZ3166\hardware\stm32f4\2.0.0\system\mbed-os\features\filesystem", "C:\Users\Administrator\AppData\Local\Arduino15\packages\AZ3166\hardware\stm32f4\2.0.0\system\mbed-os\features\filesystem\bd", "C:\Users\Administrator\AppData\Local\Arduino15\packages\AZ3166\hardware\stm32f4\2.0.0\system\mbed-os\features\filesystem\fat", "C:\Users\Administrator\AppData\Local\Arduino15\packages\AZ3166\hardware\stm32f4\2.0.0\system\mbed-os\features\filesystem\fat\ChaN", "C:\Users\Administrator\AppData\Local\Arduino15\packages\AZ3166\hardware\stm32f4\2.0.0\system\mbed-os\features\frameworks\greentea-client\greentea-client", "C:\Users\Administrator\AppData\Local\Arduino15\packages\AZ3166\hardware\stm32f4\2.0.0\system\mbed-os\features\frameworks\unity\unity", "C:\Users\Administrator\AppData\Local\Arduino15\packages\AZ3166\hardware\stm32f4\2.0.0\system\mbed-os\features\mbedtls\inc", "C:\Users\Administrator\AppData\Local\Arduino15\packages\AZ3166\hardware\stm32f4\2.0.0\system\mbed-os\features\mbedtls", "C:\Users\Administrator\AppData\Local\Arduino15\packages\AZ3166\hardware\stm32f4\2.0.0\system\mbed-os\features\netsocket", "C:\Users\Administrator\AppData\Local\Arduino15\packages\AZ3166\hardware\stm32f4\2.0.0\system\mbed-os\hal", "C:\Users\Administrator\AppData\Local\Arduino15\packages\AZ3166\hardware\stm32f4\2.0.0\system\mbed-os\hal\storage_abstraction", "C:\Users\Administrator\AppData\Local\Arduino15\packages\AZ3166\hardware\stm32f4\2.0.0\system\mbed-os\platform", "C:\Users\Administrator\AppData\Local\Arduino15\packages\AZ3166\hardware\stm32f4\2.0.0\system\mbed-os\rtos", "C:\Users\Administrator\AppData\Local\Arduino15\packages\AZ3166\hardware\stm32f4\2.0.0\system\mbed-os\rtos\rtx\TARGET_CORTEX_M", "C:\Users\Administrator\AppData\Local\Arduino15\packages\AZ3166\hardware\stm32f4\2.0.0\system\mbed-os\targets\TARGET_MXCHIP", "C:\Users\Administrator\AppData\Local\Arduino15\packages\AZ3166\hardware\stm32f4\2.0.0\system\mbed-os\targets\TARGET_MXCHIP\TARGET_AZ3166", "C:\Users\Administrator\AppData\Local\Arduino15\packages\AZ3166\hardware\stm32f4\2.0.0\system\mbed-os\targets\TARGET_MXCHIP\TARGET_AZ3166\device", "C:\Users\Administrator\AppData\Local\Arduino15\packages\AZ3166\hardware\stm32f4\2.0.0\system\mbed-os\targets\TARGET_STM", "C:\Users\Administrator\AppData\Local\Arduino15\packages\AZ3166\hardware\stm32f4\2.0.0\system\mbed-os\targets\TARGET_STM\TARGET_STM32F4", "C:\Users\Administrator\AppData\Local\Arduino15\packages\AZ3166\hardware\stm32f4\2.0.0\system\mbed-os\targets\TARGET_STM\TARGET_STM32F4\device", "C:\Users\Administrator\AppData\Local\Arduino15\packages\AZ3166\hardware\stm32f4\2.0.0\system\az3166-driver", "C:\Users\Administrator\AppData\Local\Arduino15\packages\AZ3166\hardware\stm32f4\2.0.0\system\az3166-driver\libraries\drivers\display\VGM128064", "C:\Users\Administrator\AppData\Local\Arduino15\packages\AZ3166\hardware\stm32f4\2.0.0\system\az3166-driver\libraries\drivers\gpio_btn", "C:\Users\Administrator\AppData\Local\Arduino15\packages\AZ3166\hardware\stm32f4\2.0.0\system\az3166-driver\libraries\drivers\spi_flash", "C:\Users\Administrator\AppData\Local\Arduino15\packages\AZ3166\hardware\stm32f4\2.0.0\system\az3166-driver\libraries\utilities", "C:\Users\Administrator\AppData\Local\Arduino15\packages\AZ3166\hardware\stm32f4\2.0.0\system\az3166-driver\mico", "C:\Users\Administrator\AppData\Local\Arduino15\packages\AZ3166\hardware\stm32f4\2.0.0\system\az3166-driver\mico\include", "C:\Users\Administrator\AppData\Local\Arduino15\packages\AZ3166\hardware\stm32f4\2.0.0\system\az3166-driver\mico\include\mico_drivers", "C:\Users\Administrator\AppData\Local\Arduino15\packages\AZ3166\hardware\stm32f4\2.0.0\system\az3166-driver\mico\net\LwIP\lwip-sys", "C:\Users\Administrator\AppData\Local\Arduino15\packages\AZ3166\hardware\stm32f4\2.0.0\system\az3166-driver\mico\net\LwIP\lwip-sys\arch", "C:\Users\Administrator\AppData\Local\Arduino15\packages\AZ3166\hardware\stm32f4\2.0.0\system\az3166-driver\mico\net\LwIP\lwip-ver1.4.0.rc1\src\include", "C:\Users\Administrator\AppData\Local\Arduino15\packages\AZ3166\hardware\stm32f4\2.0.0\system\az3166-driver\mico\net\LwIP\lwip-ver1.4.0.rc1\src\include\lwip", "C:\Users\Administrator\AppData\Local\Arduino15\packages\AZ3166\hardware\stm32f4\2.0.0\system\az3166-driver\mico\net\LwIP\lwip-ver1.4.0.rc1\src\include\ipv4", "C:\Users\Administrator\AppData\Local\Arduino15\packages\AZ3166\hardware\stm32f4\2.0.0\system\az3166-driver\mico\platform", "C:\Users\Administrator\AppData\Local\Arduino15\packages\AZ3166\hardware\stm32f4\2.0.0\system\az3166-driver\mico\platform\include", "C:\Users\Administrator\AppData\Local\Arduino15\packages\AZ3166\hardware\stm32f4\2.0.0\system\az3166-driver\mico\platform\mbed", "C:\Users\Administrator\AppData\Local\Arduino15\packages\AZ3166\hardware\stm32f4\2.0.0\system\az3166-driver\mico\rtos", "C:\Users\Administrator\AppData\Local\Arduino15\packages\AZ3166\hardware\stm32f4\2.0.0\system\az3166-driver\mico\system", "C:\Users\Administrator\AppData\Local\Arduino15\packages\AZ3166\hardware\stm32f4\2.0.0\system\az3166-driver\mico\system\command_console", "C:\Users\Administrator\AppData\Local\Arduino15\packages\AZ3166\hardware\stm32f4\2.0.0\system\az3166-driver\TARGET_AZ3166", "C:\Users\Administrator\AppData\Local\Arduino15\packages\AZ3166\hardware\stm32f4\2.0.0\system\az3166-driver\TARGET_STM\peripherals", "C:\Users\Administrator\AppData\Local\Arduino15\packages\AZ3166\hardware\stm32f4\2.0.0\system\azure-iot-sdk-c\", "C:\Users\Administrator\AppData\Local\Arduino15\packages\AZ3166\hardware\stm32f4\2.0.0\system\azure-iot-sdk-c\c-utility\inc", "C:\Users\Administrator\AppData\Local\Arduino15\packages\AZ3166\hardware\stm32f4\2.0.0\system\azure-iot-sdk-c\c-utility\pal\mbed_os5", "C:\Users\Administrator\AppData\Local\Arduino15\packages\AZ3166\hardware\stm32f4\2.0.0\system\azure-iot-sdk-c\deps\parson", "C:\Users\Administrator\AppData\Local\Arduino15\packages\AZ3166\hardware\stm32f4\2.0.0\system\azure-iot-sdk-c\deps\uhttp\inc", "C:\Users\Administrator\AppData\Local\Arduino15\packages\AZ3166\hardware\stm32f4\2.0.0\system\azure-iot-sdk-c\deps\umock-c\inc", "C:\Users\Administrator\AppData\Local\Arduino15\packages\AZ3166\hardware\stm32f4\2.0.0\system\azure-iot-sdk-c\deps\azure-macro-utils-c\inc", "C:\Users\Administrator\AppData\Local\Arduino15\packages\AZ3166\hardware\stm32f4\2.0.0\system\azure-iot-sdk-c\iothub_client\inc", "C:\Users\Administrator\AppData\Local\Arduino15\packages\AZ3166\hardware\stm32f4\2.0.0\system\azure-iot-sdk-c\iothub_client\inc\internal", "C:\Users\Administrator\AppData\Local\Arduino15\packages\AZ3166\hardware\stm32f4\2.0.0\system\azure-iot-sdk-c\provisioning_client\inc", "C:\Users\Administrator\AppData\Local\Arduino15\packages\AZ3166\hardware\stm32f4\2.0.0\system\azure-iot-sdk-c\provisioning_client\adapters", "C:\Users\Administrator\AppData\Local\Arduino15\packages\AZ3166\hardware\stm32f4\2.0.0\system\azure-iot-sdk-c\provisioning_client\deps\RIoT\Reference\DICE", "C:\Users\Administrator\AppData\Local\Arduino15\packages\AZ3166\hardware\stm32f4\2.0.0\system\azure-iot-sdk-c\provisioning_client\deps\RIoT\Reference\RIoT", "C:\Users\Administrator\AppData\Local\Arduino15\packages\AZ3166\hardware\stm32f4\2.0.0\system\azure-iot-sdk-c\provisioning_client\deps\RIoT\Reference\RIoT\Core\", "C:\Users\Administrator\AppData\Local\Arduino15\packages\AZ3166\hardware\stm32f4\2.0.0\system\azure-iot-sdk-c\provisioning_client\deps\RIoT\Reference\RIoT\Core\RIoTCrypt\include", "C:\Users\Administrator\AppData\Local\Arduino15\packages\AZ3166\hardware\stm32f4\2.0.0\system\azure-iot-sdk-c\umqtt\inc", "C:\Users\Administrator\AppData\Local\Arduino15\packages\AZ3166\hardware\stm32f4\2.0.0\cores\arduino", "C:\Users\Administrator\AppData\Local\Arduino15\packages\AZ3166\hardware\stm32f4\2.0.0\cores\arduino\cli", "C:\Users\Administrator\AppData\Local\Arduino15\packages\AZ3166\hardware\stm32f4\2.0.0\cores\arduino\httpclient", "C:\Users\Administrator\AppData\Local\Arduino15\packages\AZ3166\hardware\stm32f4\2.0.0\cores\arduino\httpclient\http_parser", "C:\Users\Administrator\AppData\Local\Arduino15\packages\AZ3166\hardware\stm32f4\2.0.0\cores\arduino\httpserver", "C:\Users\Administrator\AppData\Local\Arduino15\packages\AZ3166\hardware\stm32f4\2.0.0\cores\arduino\NTPClient", "C:\Users\Administrator\AppData\Local\Arduino15\packages\AZ3166\hardware\stm32f4\2.0.0\cores\arduino\system", "C:\Users\Administrator\AppData\Local\Arduino15\packages\AZ3166\hardware\stm32f4\2.0.0\cores\arduino\Telemetry", "C:\Users\Administrator\AppData\Local\Arduino15\packages\AZ3166\hardware\stm32f4\2.0.0\cores\arduino", "C:\Users\Administrator\AppData\Local\Arduino15\packages\AZ3166\hardware\stm32f4\2.0.0\variants\MXChip_AZ3166", "C:\Users\Administrator\AppData\Local\Arduino15\packages\AZ3166\hardware\stm32f4\2.0.0\libraries\Audio\src", "C:\Users\Administrator\AppData\Local\Arduino15\packages\AZ3166\hardware\stm32f4\2.0.0\libraries\WiFi\src", "C:\Users\Administrator\AppData\Local\Arduino15\packages\AZ3166\hardware\stm32f4\2.0.0\libraries\AzureIoT\src", "c:\users\administrator\appdata\local\arduino15\packages\az3166\tools\arm-none-eabi-gcc\5_4-2016q3\arm-none-eabi\include\c++\5.4.1", "c:\users\administrator\appdata\local\arduino15\packages\az3166\tools\arm-none-eabi-gcc\5_4-2016q3\arm-none-eabi\include\c++\5.4.1\arm-none-eabi", "c:\users\administrator\appdata\local\arduino15\packages\az3166\tools\arm-none-eabi-gcc\5_4-2016q3\arm-none-eabi\include\c++\5.4.1\backward", "c:\users\administrator\appdata\local\arduino15\packages\az3166\tools\arm-none-eabi-gcc\5_4-2016q3\lib\gcc\arm-none-eabi\5.4.1\include", "c:\users\administrator\appdata\local\arduino15\packages\az3166\tools\arm-none-eabi-gcc\5_4-2016q3\lib\gcc\arm-none-eabi\5.4.1\include-fixed", "c:\users\administrator\appdata\local\arduino15\packages\az3166\tools\arm-none-eabi-gcc\5_4-2016q3\arm-none-eabi\include" ], "forcedInclude": [ "C:\Users\Administrator\AppData\Local\Arduino15\packages\AZ3166\hardware\stm32f4\2.0.0\cores\arduino\Arduino.h" ], "cStandard": "c11", "cppStandard": "c++11",
上传设备代码
再次单击 F1，键入并选择“Azure IoT Device Workbench:Upload Device Code”。 它会开始编译代码并将代码上传到 DevKit。
复制代码
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61[Starting] Uploading sketch 'DevKitTranslator.ino' Please see the build logs in output path: c:UsersAdministratorDocumentsIoTWorkbenchProjectsexamplesdevkit_translatorDevice.build 正在加载配置... 正在初始化包... 正在准备开发板... 正在验证... c:/users/administrator/appdata/local/arduino15/packages/az3166/tools/arm-none-eabi-gcc/5_4-2016q3/bin/../lib/gcc/arm-none-eabi/5.4.1/../../../../arm-none-eabi/bin/ld.exe: warning: changing start of section .data by 4 bytes c:/users/administrator/appdata/local/arduino15/packages/az3166/tools/arm-none-eabi-gcc/5_4-2016q3/bin/../lib/gcc/arm-none-eabi/5.4.1/../../../../arm-none-eabi/bin/ld.exe: warning: changing start of section .bss by 4 bytes c:/users/administrator/appdata/local/arduino15/packages/az3166/tools/arm-none-eabi-gcc/5_4-2016q3/bin/../lib/gcc/arm-none-eabi/5.4.1/../../../../arm-none-eabi/bin/ld.exe: warning: changing start of section .data by 4 bytes c:/users/administrator/appdata/local/arduino15/packages/az3166/tools/arm-none-eabi-gcc/5_4-2016q3/bin/../lib/gcc/arm-none-eabi/5.4.1/../../../../arm-none-eabi/bin/ld.exe: warning: changing start of section .bss by 4 bytes c:/users/administrator/appdata/local/arduino15/packages/az3166/tools/arm-none-eabi-gcc/5_4-2016q3/bin/../lib/gcc/arm-none-eabi/5.4.1/../../../../arm-none-eabi/bin/ld.exe: warning: changing start of section .data by 4 bytes c:/users/administrator/appdata/local/arduino15/packages/az3166/tools/arm-none-eabi-gcc/5_4-2016q3/bin/../lib/gcc/arm-none-eabi/5.4.1/../../../../arm-none-eabi/bin/ld.exe: warning: changing start of section .bss by 4 bytes 上传... GNU ARM Eclipse 32-bits Open On-Chip Debugger 0.10.0-00114-g8419536 (2017-04-18-22:14) Licensed under GNU GPL v2 For bug reports, read http://openocd.org/doc/doxygen/bugs.html hla_swd Info : The selected transport took over low-level target control. The results might differ compared to plain JTAG/SWD adapter speed: 2000 kHz adapter_nsrst_delay: 100 none separate Info : Unable to match requested speed 2000 kHz, using 1800 kHz Info : Unable to match requested speed 2000 kHz, using 1800 kHz Info : clock speed 1800 kHz Error: libusb_open() failed with LIBUSB_ERROR_NOT_SUPPORTED Info : STLINK v2 JTAG v28 API v2 SWIM v17 VID 0x0483 PID 0x374B Info : using stlink api v2 Info : Target voltage: 3.325068 Info : stm32f4x.cpu: hardware has 6 breakpoints, 4 watchpoints Info : Unable to match requested speed 2000 kHz, using 1800 kHz Info : Unable to match requested speed 2000 kHz, using 1800 kHz adapter speed: 1800 kHz target halted due to debug-request, current mode: Thread xPSR: 0x01000000 pc: 0x08000034 msp: 0x2000d650 Info : Unable to match requested speed 8000 kHz, using 4000 kHz Info : Unable to match requested speed 8000 kHz, using 4000 kHz adapter speed: 4000 kHz ** Programming Started ** auto erase enabled Info : device id = 0x30006441 Info : flash size = 1024kbytes target halted due to breakpoint, current mode: Thread xPSR: 0x61000000 pc: 0x20000046 msp: 0x2000d650 wrote 606208 bytes from file c:UsersAdministratorDocumentsIoTWorkbenchProjectsexamplesdevkit_translatorDevice.build/DevKitTranslator.ino.bin in 13.341527s (44.373 KiB/ s) ** Programming Finished ** ** Verify Started ** target halted due to breakpoint, current mode: Thread xPSR: 0x61000000 pc: 0x2000002e msp: 0x2000d650 verified 524892 bytes in 0.975601s (525.409 KiB/s) ** Verified OK ** ** Resetting Target ** Info : Unable to match requested speed 2000 kHz, using 1800 kHz Info : Unable to match requested speed 2000 kHz, using 1800 kHz adapter speed: 1800 kHz shutdown command invoked IntelliSense configuration already up to date. To manually rebuild your IntelliSense configuration run "Ctrl+Alt+I" [Done] Uploading sketch 'DevKitTranslator.ino'
测试项目
在应用初始化后，请按照 DevKit 屏幕上的说明进行操作。 默认源语言为“Chinese”。
若要选择另一种语言进行翻译，请执行以下操作：
- 按下按钮 A 以进入设置模式。
- 按下按钮 B 滚动浏览所有受支持的源语言。
- 按下按钮 A 确认你选择的源语言。
- 在说话时按住按钮 B，然后释放按钮 B 以启动翻译。
- 屏幕上以英文显示翻译后的文本。
在翻译结果屏幕上，你可以：
- 按下按钮 A 和 B 以滚动查看并选择源语言。
- 按下 B 按钮说话。 若要发送声音并获取翻译文本，请释放按钮 B。
