USRP_B210的FPGA代码分析之：B210顶层接口分析

接下来我要研究USRP B210的FPGA驱动，用来移植到自己的软件无线电产品上。看顶层接口代码：

/***********************************************************
* B200 Module Declaration
**********************************************************/
module b200 (
// SPI Interfaces
output
cat_ce,
input
cat_miso,
output
cat_mosi,
output
cat_sclk,
input
fx3_ce,
output
fx3_miso,
input
fx3_mosi,
input
fx3_sclk,
output
pll_ce,
output
pll_mosi,
output
pll_sclk,
// UART
// By default these provide an FX3 UART console output. Under compile time control they can alternatively
// provide 2 (1.8V) GPIO pins which are logically bits [9:8] of the fp_gpio bus.
// Used as a UART RXD is an input and TXD an output electrically.
// input
FPGA_RXD0, // These pins goto 3 pin 0.1" header on B2x0 and
// output
FPGA_TXD0, // carry FX3 UART.
inout
FPGA_RXD0, // These pins goto 3 pin 0.1" header J400 on B2x0 and
inout
FPGA_TXD0, // carry FX3 UART.
// Catalina Controls
output
codec_enable,
output
codec_en_agc,
output
codec_reset,
output
codec_sync,
output
codec_txrx,
output [3:0]
codec_ctrl_in, // These should be outputs
input [7:0]
codec_ctrl_out, // MUST BE INPUT
// Catalina Data
input
codec_data_clk_p, // Clock from CAT (RX)
output
codec_fb_clk_p, // Clock to CAT (TX)
input [11:0]
rx_codec_d,
output [11:0] tx_codec_d,
input
rx_frame_p,
output
tx_frame_p,
input
cat_clkout_fpga,
//always on 40MHz clock
input
codec_main_clk_p,
input
codec_main_clk_n,
// Debug Bus
//
output [31:0] debug,
// output [1:0]
debug_clk,
// GPIF, FX3 Slave FIFO
output
IFCLK, // pclk
input
FX3_EXTINT,
output
GPIF_CTL0, // n_slcs
output
GPIF_CTL1, // n_slwr
output
GPIF_CTL2, // n_sloe
output
GPIF_CTL3, // n_slrd
output
GPIF_CTL7, // n_pktend
input
GPIF_CTL4, // slfifo_flags[0]
input
GPIF_CTL5, // slfifo_flags[1]
input
GPIF_CTL6, // Serial settings bus from FX3. SDA
input
GPIF_CTL8, // Serial settings bus from FX3. SCL
output
GPIF_CTL11, // slfifo_addr[1]
output
GPIF_CTL12, // slfifo_addr[0]
inout [31:0]
GPIF_D,
input
GPIF_CTL9, // global_reset
// GPS
//input
gps_lock,
output
gps_rxd,
input
gps_txd, // FPGA has pullup for unpopulated GPS
//input
gps_txd_nmea, // FPGA has pullup for unpopulated GPS
// LEDS
output
LED_RX1,
output
LED_RX2,
output
LED_TXRX1_RX,
output
LED_TXRX1_TX,
output
LED_TXRX2_RX,
output
LED_TXRX2_TX,
// GPIO Header J504
- 10 pin 0.1" 3.3V.
// Only present on Rev6 and later boards...these pins unused on Rev5 and earlier.
// NOTE: These pins are allocated from complimentry pairs and could potentially be used
// as differential style I/O.
`ifdef TARGET_B210
inout [7:0]
fp_gpio,
`endif
// Misc Hardware Control
output
ref_sel,
input
pll_lock,
input
FPGA_CFG_CS, // Driven by FX3 gpio.
input
AUX_PWR_ON, // Driven by FX3 gpio.
// PPS
input
PPS_IN_EXT,
input
PPS_IN_INT,
// RF Hardware Control
output
SFDX1_RX,
output
SFDX1_TX,
output
SFDX2_RX,
output
SFDX2_TX,
output
SRX1_RX,
output
SRX1_TX,
output
SRX2_RX,
output
SRX2_TX,
output
tx_bandsel_a,
output
tx_bandsel_b,
output
tx_enable1,
output
tx_enable2,
output
rx_bandsel_a,
output
rx_bandsel_b,
output
rx_bandsel_c
);

我们一点点的品一下：

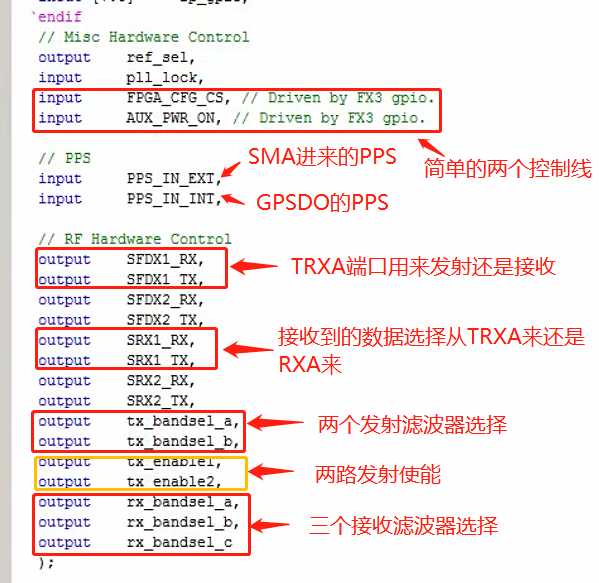

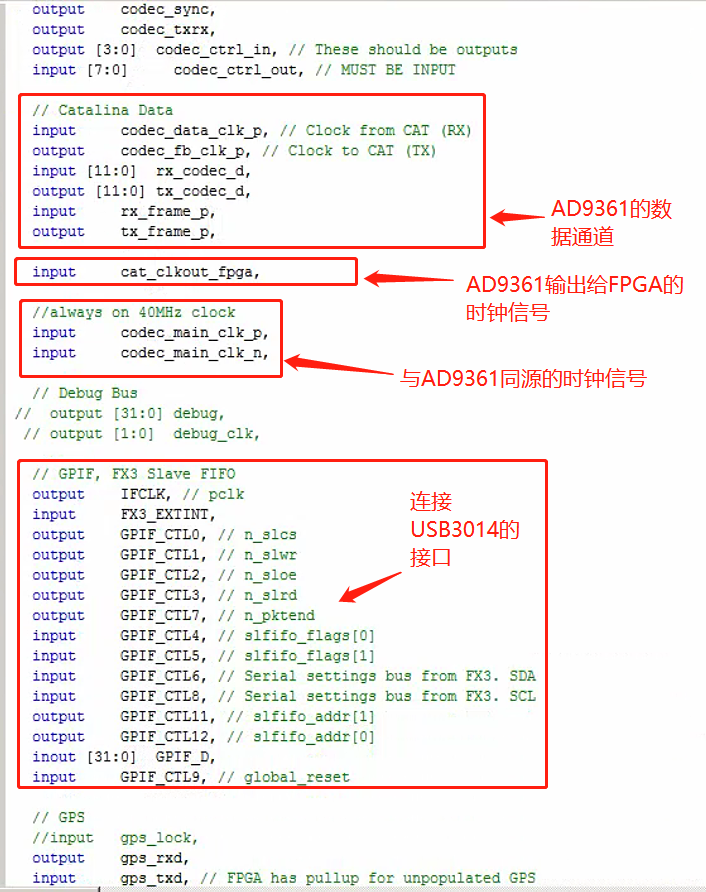

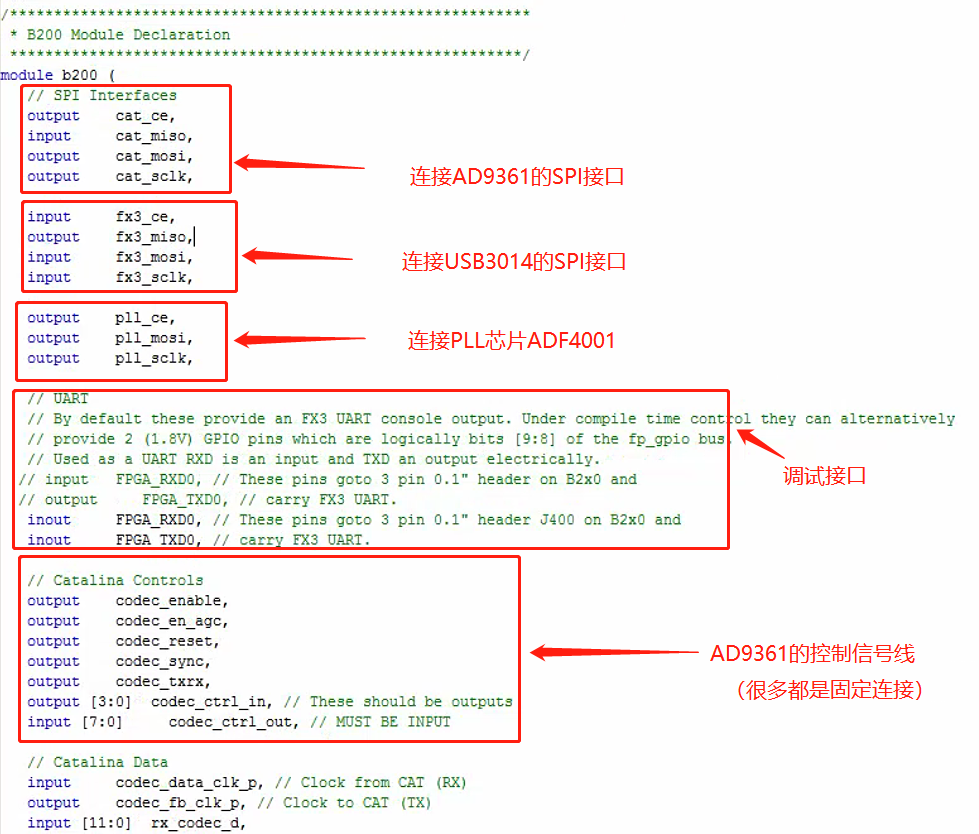

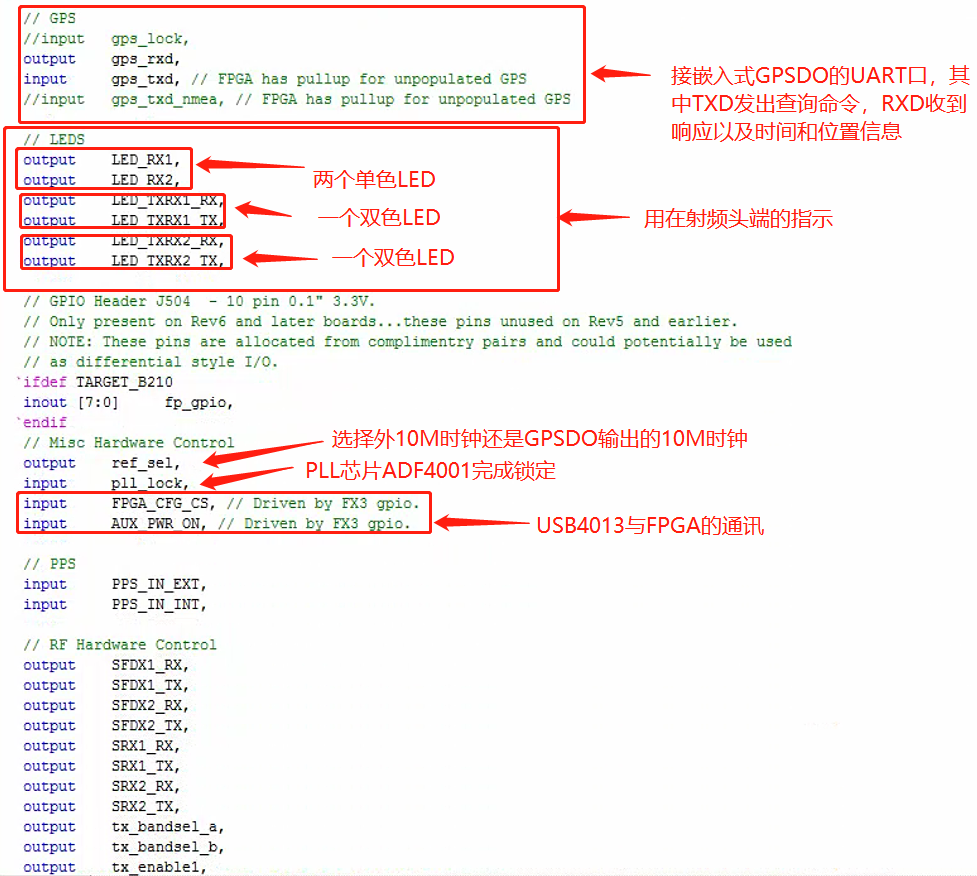

对于适当了解USRP B210硬件的，能很容易对应起来上述的接口和实际芯片的连接。内部的各个模块以及连接和各自之间的逻辑我们接下来再分析。
