数字信号仿真实验——实验二离散时间信号与系统的频域分析

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
Problem1_1,2
clear
x1=[];m=0:7;x2=[];
for n=0:3;
    xa=n+1;
    xb=4-n;
    x1=[x1 xa];
    x2=[x2 xb];
end
for n=4:7;
    xa=8-n;
    xb=n-3;
    x1=[x1 xa];
    x2=[x2 xb];
end

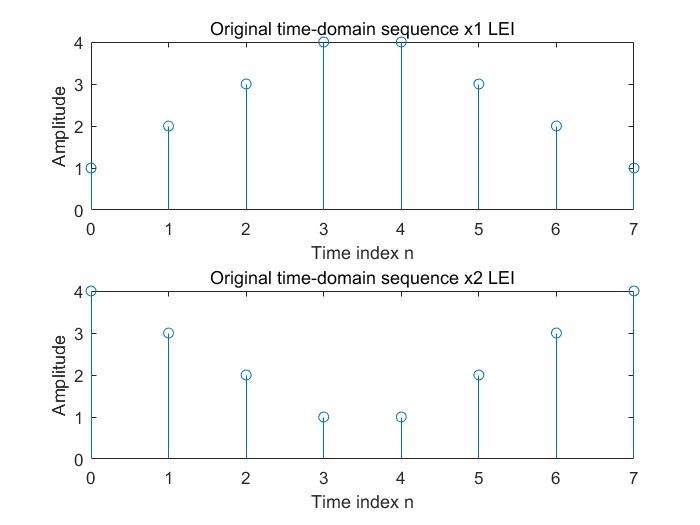

figure(1)
subplot(211)
stem(m,x1);%%绘制火柴梗，产生离散信号
xlabel('Time index n');
ylabel('Amplitude');
title('Original time-domain sequence x1 LEI');
subplot(212)
stem(m,x2);%%绘制火柴梗，产生离散信号
xlabel('Time index n');
ylabel('Amplitude');
title('Original time-domain sequence x2 LEI');
%DFT
N=input('N=');
k=0:N-1;
X1=fft(x1,N);%%傅里叶变换
X2=fft(x2,N);%%傅里叶变换

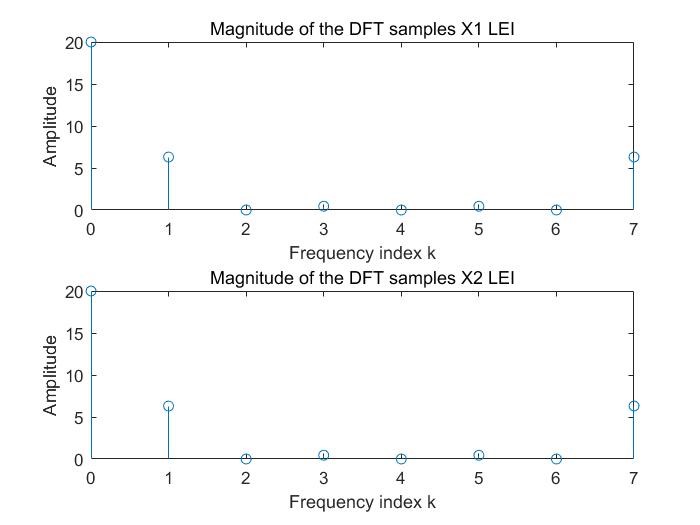

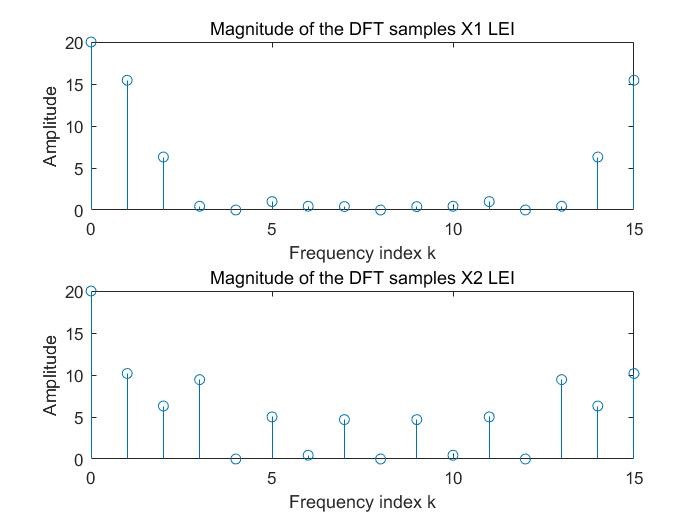

figure(2)
subplot(211)
stem(k,abs(X1));%%绘制火柴梗，产生离散信号
xlabel('Frequency index k');
ylabel('Amplitude');
title('Magnitude of the DFT samples X1 LEI');
subplot(212)
stem(k,abs(X2));%%绘制火柴梗，产生离散信号
xlabel('Frequency index k');
ylabel('Amplitude');
title('Magnitude of the DFT samples X2 LEI');

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
Problem1_3,4
clear
N=input('N=');
n=0:N-1;
x3=cos(pi*n/4);
x4=sin(pi*n/4);

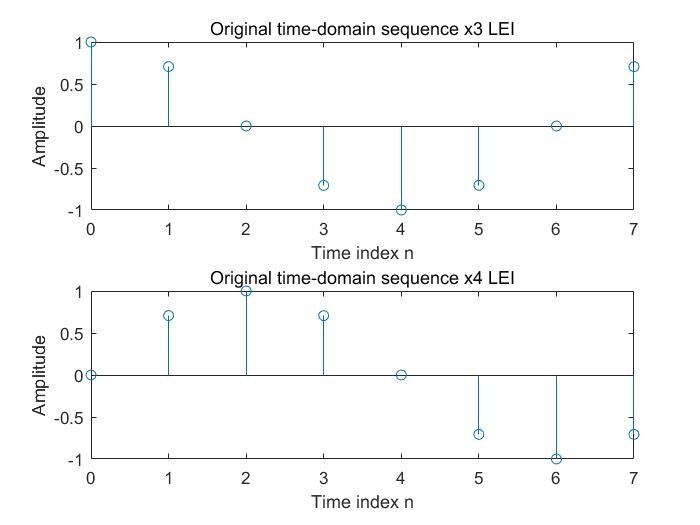

figure(1)
subplot(211)
stem(n,x3);%%绘制火柴梗，产生离散信号
xlabel('Time index n');
ylabel('Amplitude');
title('Original time-domain sequence x3 LEI');
subplot(212)
stem(n,x4);%%绘制火柴梗，产生离散信号
xlabel('Time index n');
ylabel('Amplitude');
title('Original time-domain sequence x4 LEI');

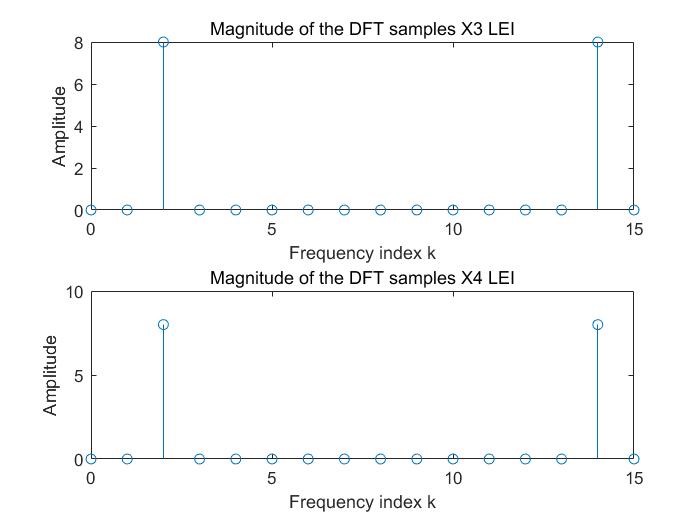

%DFT
X3=fft(x3,N);%%傅里叶变换
X4=fft(x4,N);%%傅里叶变换
k=0:N-1;

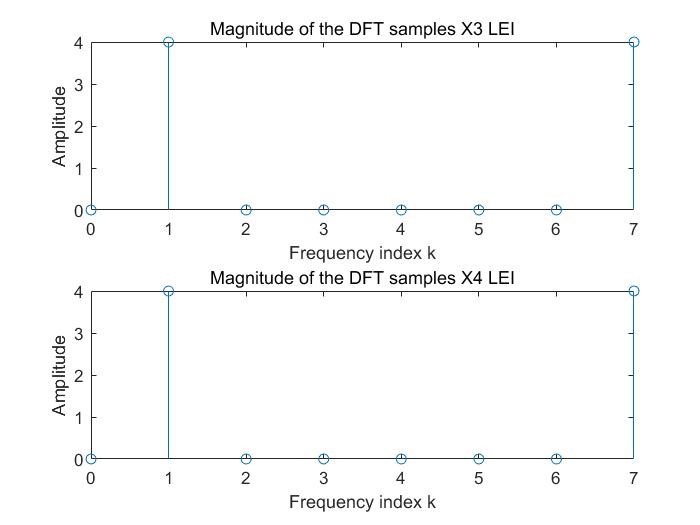

figure(2)
subplot(211)
stem(k,abs(X3));%%绘制火柴梗，产生离散信号
xlabel('Frequency index k');
ylabel('Amplitude');
title('Magnitude of the DFT samples X3 LEI');
subplot(212)
stem(k,abs(X4));%%绘制火柴梗，产生离散信号
xlabel('Frequency index k');
ylabel('Amplitude');
title('Magnitude of the DFT samples X4 LEI');

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
Problem3
clear
N=input('N=');
n=0:N-1;
k=0:N-1;
x3=cos(pi*n/4);
x4=sin(pi*n/4);
x=x3+x4;
X=fft(x,N);%%傅里叶变换
X31=real(X);%%复数的实部
X41=imag(X);%%复数的虚部
figure(1)
subplot(211)
stem(k,abs(X31));%%绘制火柴梗，产生离散信号
xlabel('Time index k');
ylabel('Amplitude');
title('Original time-domain sequence X31 LEI');
subplot(212)
stem(k,abs(X41));%%绘制火柴梗，产生离散信号
xlabel('Time index k');
ylabel('Amplitude');
title('Original time-domain sequence X41 LEI');

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
Problem4
clear
N=input('N=');
n=0:N-1;
k=0:N-1;
x3=cos(pi*n/4);
x4=sin(pi*n/4);
xa=x3+i*x4;
xb=x3-i*x4;
Xa=fft(xa,N);%%傅里叶变换
Xb=fft(xb,N);%%傅里叶变换
X32=0.5*(Xa+Xb);
X42=0.5*(Xa-Xb);

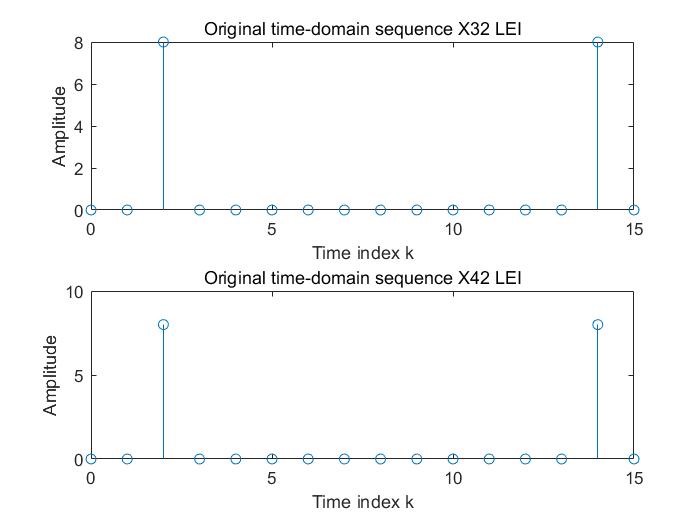

figure(1)
subplot(211)
stem(k,abs(X32));%%绘制火柴梗，产生离散信号
xlabel('Time index k');
ylabel('Amplitude');
title('Original time-domain sequence X32 LEI');
subplot(212)
stem(k,abs(X42));%%绘制火柴梗，产生离散信号
xlabel('Time index k');
ylabel('Amplitude');
title('Original time-domain sequence X42 LEI');

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
Problem5_ac
clear
k=256;
num=[0.9 -0.45 0.35 0.002];
den=[1 0.71 -0.46 -0.62];
w=0:pi/(k-1):pi;
h=freqz(num,den,w);%%计算频率响应

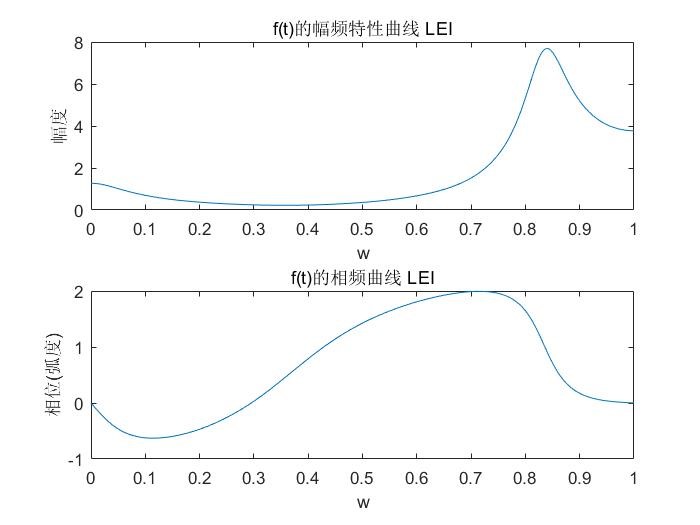

figure(1)
subplot(211)
plot(w/pi,abs(h));%%幅频特性曲线
title('f(t)的幅频特性曲线 LEI');
xlabel('w');
ylabel('幅度');
subplot(212)
plot(w/pi,angle(h));%%相频特性曲线
title('f(t)的相频曲线 LEI');
xlabel('w');
ylabel('相位(弧度)');

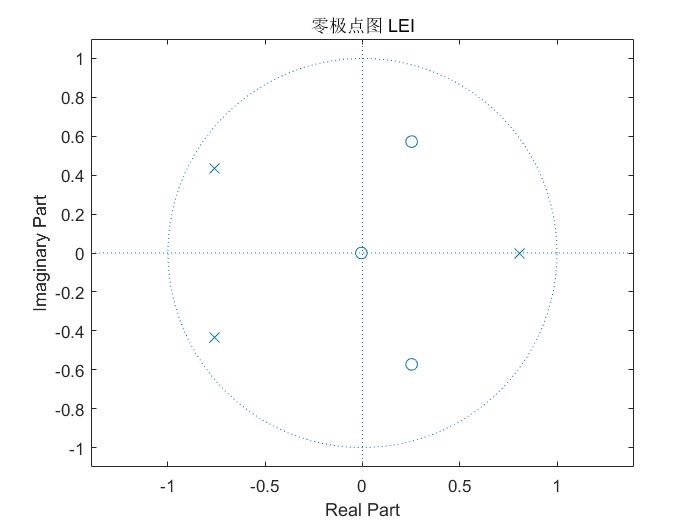

figure(2)
[z,p,k]=tf2zp(num,den);%%求得有理分式形式的系统转移函数的零、极点
zplane(num,den);%%绘制零极点
title('零极点图 LEI');

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
Problem5_b
clear
n=40;
k=0:1:n-1;
num=[0.9 -0.45 0.35 0.002];
den=[1 0.71 -0.46 -0.62];
y1=impz(num,den,n);%%系统冲激响应
x1=[1 2 0 -0.5];
y=conv(y1,x1);%%计算卷积
subplot(211)
stem(y)
title('线性卷积 LEI');
l=length(x1)+length(y1)-1;
X=fft(x1,1);%%傅里叶变换
H=fft(y1',1);
Y=X.*H;
yy=real(ifft(Y,1));%%FFT逆变换
subplot(212)
stem(yy)
xlabel('n');
ylabel('y(n)');
title('Made by LEI');
