一、Machine 简介

   Machine 是指某一款机器，可以是某款设备，某款开发板，又或者是某款智能手机，由此可以看出Machine几乎是不可重用的，每个Machine上的硬件实现可能都不一样，CPU不一样，Codec不一样，音频的输入、输出设备也不一样，Machine为CPU、Codec、输入输出设备提供了一个载体，用于描述一块电路板, 它指明此块电路板上用的是哪个Platform和哪个Codec, 由电路板商负责编写此部分代码。绑定platform driver和codec driver

ASoC的一切都从Machine驱动开始，包括声卡的注册，绑定Platform和Codec驱动等等

二、Machine以及声卡驱动的注册

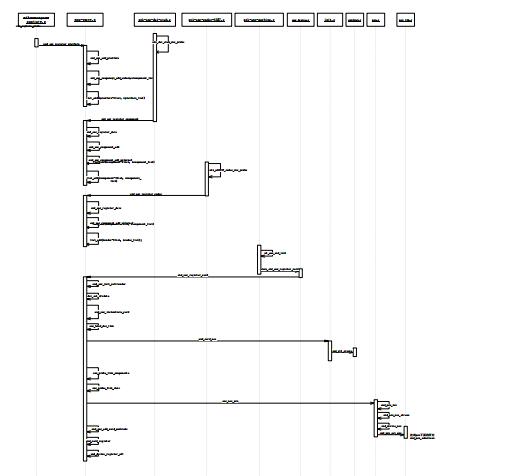

   2.1 machine驱动注册的时序图

    machine 驱动注册从mt_soc_snd_init 调用 devm_snd_soc_register_card ，而devm_snd_soc_register_card 会调用snd_soc_register_card 。声卡驱动的起始是在soc-core.c  soc_probe函数的调用  soc_probe函数最终也会调用snd_soc_register_card。因此后续在讲解声卡驱动的注册，我们就从snd_soc_register_card 函数开始。

下面的图像不够清晰可以下载这个pdf文档查看：https://download.csdn.net/download/Bill_xiao/12239033

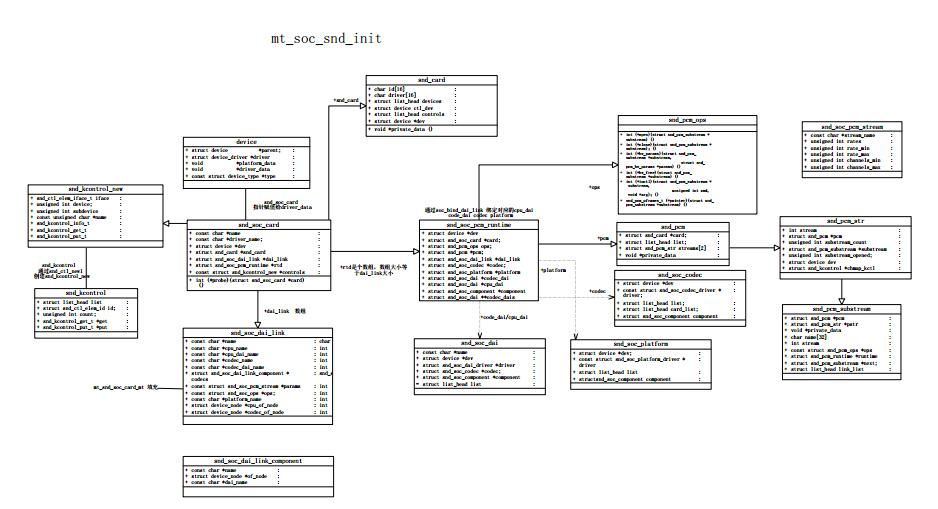

2.2 mt_soc_snd_init 函数相关的结构体图

   下面的图形不够清晰可以查看这个pdf：https://download.csdn.net/download/Bill_xiao/12239047

 2.3 mt_soc_snd_init   主要做了以下两件事：

1.     通过函数platform_set_drvdata，device->driver_data = card ,把card的数据挂载到platform_device->device->driver_data，这个由platform_set_drvdata保存的数据会被soc_probe  函数被调用 struct snd_soc_card *card = platform_get_drvdata(pdev)。
2.    注册声卡驱动devm_snd_soc_register_card  最终会调用snd_soc_register_card

static int mt_soc_snd_init(struct platform_device *pdev)
{
	struct snd_soc_card *card = &mt_snd_soc_card_mt;
	int ret;
	int daiLinkNum = 0;

	ret = mtk_spk_update_dai_link(mt_soc_extspk_dai, pdev);
	if (ret) {
		dev_err(&pdev->dev, "%s(), mtk_spk_update_dai_link errorn",
			__func__);
		return -EINVAL;
	}

	get_ext_dai_codec_name();
	pr_debug("mt_soc_snd_init dai_link = %pn", mt_snd_soc_card_mt.dai_link);

	/* DEAL WITH DAI LINK */
	memcpy(mt_soc_dai_component, mt_soc_dai_common, sizeof(mt_soc_dai_common));
	daiLinkNum += ARRAY_SIZE(mt_soc_dai_common);
	memcpy(mt_soc_dai_component + daiLinkNum,
	mt_soc_exthp_dai, sizeof(mt_soc_exthp_dai));
	daiLinkNum += ARRAY_SIZE(mt_soc_exthp_dai);

	memcpy(mt_soc_dai_component + daiLinkNum,
	mt_soc_extspk_dai, sizeof(mt_soc_extspk_dai));
	daiLinkNum += ARRAY_SIZE(mt_soc_extspk_dai);
    //对dai_link重新赋值
	mt_snd_soc_card_mt.dai_link = mt_soc_dai_component;
	mt_snd_soc_card_mt.num_links = daiLinkNum;

	card->dev = &pdev->dev;
	//device->driver_data = card ,把card的数据挂载到platform_device->device->driver_data
	platform_set_drvdata(pdev, card);

	ret = devm_snd_soc_register_card(&pdev->dev, card);//注册声卡驱动
	if (ret)
		dev_err(&pdev->dev, "%s snd_soc_register_card fail %dn",
			__func__, ret);

	/* create debug file */
	mt_sco_audio_debugfs = debugfs_create_file(DEBUG_FS_NAME,
	   S_IFREG | S_IRUGO, NULL, (void *) DEBUG_FS_NAME, &mtaudio_debug_ops);

	/* create analog debug file */
	mt_sco_audio_debugfs = debugfs_create_file(DEBUG_ANA_FS_NAME,
	   S_IFREG | S_IRUGO, NULL, (void *) DEBUG_ANA_FS_NAME, &mtaudio_ana_debug_ops);

	return ret;
}

static int soc_probe(struct platform_device *pdev)
{
snd_soc_card的结构体是在mtk-soc-machine.c 由函数platform_set_drvdata(pdev, card)来设置的
	struct snd_soc_card *card = platform_get_drvdata(pdev);

	/*
	 * no card, so machine driver should be registering card
	 * we should not be here in that case so ret error
	 */
	if (!card)
		return -EINVAL;

	dev_warn(&pdev->dev,
		 "ASoC: machine %s should use snd_soc_register_card()n",
		 card->name);

	/* Bodge while we unpick instantiation */
	card->dev = &pdev->dev;

	return snd_soc_register_card(card);
}

• mt_soc_dai_common   是对platform  、cpu_dai 、  code 、code_dai 的配置。他们之间的联系通过 name的方式来关联   cpu_dai_name  platform_name  codec_dai_name  codec_name

static struct snd_soc_dai_link mt_soc_dai_common[] = {
	/* FrontEnd DAI Links */
	{
		.name = "MultiMedia1",
		.stream_name = MT_SOC_DL1_STREAM_NAME,
		.cpu_dai_name   = MT_SOC_DL1DAI_NAME,
		.platform_name  = MT_SOC_DL1_PCM,
		.codec_dai_name = MT_SOC_CODEC_TXDAI_NAME,
		.codec_name = MT_SOC_CODEC_NAME,
	},
	{
		.name = "MultiMedia2",
		.stream_name = MT_SOC_UL1_STREAM_NAME,
		.cpu_dai_name   = MT_SOC_UL1DAI_NAME,
		.platform_name  = MT_SOC_UL1_PCM,
		.codec_dai_name = MT_SOC_CODEC_RXDAI_NAME,
		.codec_name = MT_SOC_CODEC_NAME,
	},
	{
		.name = "Voice_MD1",
		.stream_name = MT_SOC_VOICE_MD1_STREAM_NAME,
		.cpu_dai_name   = MT_SOC_VOICE_MD1_NAME,
		.platform_name  = MT_SOC_VOICE_MD1,
		.codec_dai_name = MT_SOC_CODEC_VOICE_MD1DAI_NAME,
		.codec_name = MT_SOC_CODEC_NAME,
	},
............

2.4 snd_soc_register_card的作用：

1. 检查 mt_soc_dai_common  数组里面的成员的合法性
2. 调用 snd_soc_instantiate_card

int snd_soc_register_card(struct snd_soc_card *card)
{
	int i, j, ret;

	if (!card->name || !card->dev)
		return -EINVAL;

	for (i = 0; i < card->num_links; i++) {
		struct snd_soc_dai_link *link = &card->dai_link[i];
       //dai_link->codec_name,dai_link->codec_of_node,dai_link->codec_dai_name 赋值到snd_soc_dai_link_component *codecs
		ret = snd_soc_init_multicodec(card, link);
		if (ret) {
			dev_err(card->dev, "ASoC: failed to init multicodecn");
			return ret;
		}
       //num_codecs=1
		for (j = 0; j < link->num_codecs; j++) {
			/*
			 * Codec must be specified by 1 of name or OF node,
			 * not both or neither.
			 */
			 //name字段与of_node不能同时赋值
			if (!!link->codecs[j].name ==
			    !!link->codecs[j].of_node) {
				dev_err(card->dev, "ASoC: Neither/both codec name/of_node are set for %sn",
					link->name);
				return -EINVAL;
			}
			/* Codec DAI name must be specified */
			if (!link->codecs[j].dai_name) {
				dev_err(card->dev, "ASoC: codec_dai_name not set for %sn",
					link->name);
				return -EINVAL;
			}
		}

		/*
		 * Platform may be specified by either name or OF node, but
		 * can be left unspecified, and a dummy platform will be used.
		 */
		 //如果platform_name和platform_of_node已经存在就返回
		if (link->platform_name && link->platform_of_node) {
			dev_err(card->dev,
				"ASoC: Both platform name/of_node are set for %sn",
				link->name);
			return -EINVAL;
		}

		/*
		 * CPU device may be specified by either name or OF node, but
		 * can be left unspecified, and will be matched based on DAI
		 * name alone..
		 */
		if (link->cpu_name && link->cpu_of_node) {
			dev_err(card->dev,
				"ASoC: Neither/both cpu name/of_node are set for %sn",
				link->name);
			return -EINVAL;
		}
		/*
		 * At least one of CPU DAI name or CPU device name/node must be
		 * specified
		 */
		if (!link->cpu_dai_name &&
		    !(link->cpu_name || link->cpu_of_node)) {
			dev_err(card->dev,
				"ASoC: Neither cpu_dai_name nor cpu_name/of_node are set for %sn",
				link->name);
			return -EINVAL;
		}
	}

	dev_set_drvdata(card->dev, card);//把card赋值到device->driver_data

	snd_soc_initialize_card_lists(card);

	card->rtd = devm_kzalloc(card->dev,
				 sizeof(struct snd_soc_pcm_runtime) *
				 (card->num_links + card->num_aux_devs),
				 GFP_KERNEL);
	if (card->rtd == NULL)
		return -ENOMEM;
	card->num_rtd = 0;
	card->rtd_aux = &card->rtd[card->num_links];
   //初始化card->rtd数组的值
	for (i = 0; i < card->num_links; i++) {
		card->rtd[i].card = card;
		card->rtd[i].dai_link = &card->dai_link[i];
		card->rtd[i].codec_dais = devm_kzalloc(card->dev,
					sizeof(struct snd_soc_dai *) *
					(card->rtd[i].dai_link->num_codecs),
					GFP_KERNEL);
		if (card->rtd[i].codec_dais == NULL)
			return -ENOMEM;
	}

	for (i = 0; i < card->num_aux_devs; i++)
		card->rtd_aux[i].card = card;

	INIT_LIST_HEAD(&card->dapm_dirty);
	INIT_LIST_HEAD(&card->dobj_list);
	card->instantiated = 0;
	mutex_init(&card->mutex);
	mutex_init(&card->dapm_mutex);

	ret = snd_soc_instantiate_card(card);
	if (ret != 0)
		return ret;

	/* deactivate pins to sleep state */
	for (i = 0; i < card->num_rtd; i++) {
		struct snd_soc_pcm_runtime *rtd = &card->rtd[i];
		struct snd_soc_dai *cpu_dai = rtd->cpu_dai;
		int j;

		for (j = 0; j < rtd->num_codecs; j++) {
			struct snd_soc_dai *codec_dai = rtd->codec_dais[j];
			if (!codec_dai->active)
				pinctrl_pm_select_sleep_state(codec_dai->dev);//codec_dai->dev->pins->sleep_state 这个状态更新
		}

		if (!cpu_dai->active)
			pinctrl_pm_select_sleep_state(cpu_dai->dev);
	}

	return ret;
}

2.5 snd_soc_instantiate_card 工作比较重，有以下作用：

1. 绑定cpu_dai   、codec_dai  platform 到rtd中，具体是由soc_bind_dai_link函数实现，到现在我们之前分析代码都关联一起了
2. 创建声卡结构体 创建control设备
3. 创建一些文件系统
4. 执行cpu_dai probe ,codes     probe 以及platform   probe 函数
5. 创建pcm设备
6. 声卡注册

static int snd_soc_instantiate_card(struct snd_soc_card *card)
{
	struct snd_soc_codec *codec;
	int ret, i, order;

	mutex_lock(&client_mutex);
	mutex_lock_nested(&card->mutex, SND_SOC_CARD_CLASS_INIT);

	/* bind DAIs */
	//绑定cpu_dai   、codec_dai  platform 到rtd中
	for (i = 0; i < card->num_links; i++) {
		ret = soc_bind_dai_link(card, i);
		if (ret != 0)
			goto base_error;
	}

	/* bind aux_devs too */
	//绑定rtd_aux
	for (i = 0; i < card->num_aux_devs; i++) {
		ret = soc_bind_aux_dev(card, i);
		if (ret != 0)
			goto base_error;
	}

	/* initialize the register cache for each available codec */
	//初始化 codec->reg_cache     codec_list 由snd_soc_register_codec注册得来的

	list_for_each_entry(codec, &codec_list, list) {
		if (codec->cache_init)
			continue;
		ret = snd_soc_init_codec_cache(codec);
		if (ret < 0)
			goto base_error;
	}

	/* card bind complete so register a sound card */
	//创建声卡结构体 创建control设备
	ret = snd_card_new(card->dev, SNDRV_DEFAULT_IDX1, SNDRV_DEFAULT_STR1,
			card->owner, 0, &card->snd_card);
	if (ret < 0) {
		dev_err(card->dev,
			"ASoC: can't create sound card for card %s: %dn",
			card->name, ret);
		goto base_error;
	}

	soc_init_card_debugfs(card);//创建文件系统
   //card->dapm.list添加到dapm_list
	card->dapm.bias_level = SND_SOC_BIAS_OFF;
	card->dapm.dev = card->dev;
	card->dapm.card = card;
	list_add(&card->dapm.list, &card->dapm_list);

#ifdef CONFIG_DEBUG_FS
	snd_soc_dapm_debugfs_init(&card->dapm, card->debugfs_card_root);
#endif

#ifdef CONFIG_PM_SLEEP
	/* deferred resume work */
	INIT_WORK(&card->deferred_resume_work, soc_resume_deferred);
#endif

	if (card->dapm_widgets)
		snd_soc_dapm_new_controls(&card->dapm, card->dapm_widgets,
					  card->num_dapm_widgets);

	if (card->of_dapm_widgets)
		snd_soc_dapm_new_controls(&card->dapm, card->of_dapm_widgets,
					  card->num_of_dapm_widgets);

	/* initialise the sound card only once */
	//初始化card->probe函数
	if (card->probe) {
		ret = card->probe(card);
		if (ret < 0)
			goto card_probe_error;
	}

	/* probe all components used by DAI links on this card */
	//执行cpu   dai probe ,codes 	probe 以及platform   probe 函数
	for (order = SND_SOC_COMP_ORDER_FIRST; order <= SND_SOC_COMP_ORDER_LAST;
			order++) {
		for (i = 0; i < card->num_links; i++) {
			ret = soc_probe_link_components(card, i, order);
			if (ret < 0) {
				dev_err(card->dev,
					"ASoC: failed to instantiate card %dn",
					ret);
				goto probe_dai_err;
			}
		}
	}

	/* probe all DAI links on this card */

	//card->num_links=23，所以for循环会执行23次soc_probe_link_dais函数
	//ret = cpu_dai->driver->probe(cpu_dai);//Null，没有提供probe函数调用
	//ret = codec_dai->driver->probe(codec_dai);//Null，没有提供probe函数调用
	//创建pcm设备
	for (order = SND_SOC_COMP_ORDER_FIRST; order <= SND_SOC_COMP_ORDER_LAST;
			order++) {
		for (i = 0; i < card->num_links; i++) {
			ret = soc_probe_link_dais(card, i, order);
			if (ret < 0) {
				dev_err(card->dev,
					"ASoC: failed to instantiate card %dn",
					ret);
				goto probe_dai_err;
			}
		}
	}

	for (i = 0; i < card->num_aux_devs; i++) {
		ret = soc_probe_aux_dev(card, i);
		if (ret < 0) {
			dev_err(card->dev,
				"ASoC: failed to add auxiliary devices %dn",
				ret);
			goto probe_aux_dev_err;
		}
	}

	snd_soc_dapm_link_dai_widgets(card);
	snd_soc_dapm_connect_dai_link_widgets(card);

	if (card->controls)
		snd_soc_add_card_controls(card, card->controls, card->num_controls);

	if (card->dapm_routes)
		snd_soc_dapm_add_routes(&card->dapm, card->dapm_routes,
					card->num_dapm_routes);

	if (card->of_dapm_routes)
		snd_soc_dapm_add_routes(&card->dapm, card->of_dapm_routes,
					card->num_of_dapm_routes);

	snprintf(card->snd_card->shortname, sizeof(card->snd_card->shortname),
		 "%s", card->name);
	snprintf(card->snd_card->longname, sizeof(card->snd_card->longname),
		 "%s", card->long_name ? card->long_name : card->name);
	snprintf(card->snd_card->driver, sizeof(card->snd_card->driver),
		 "%s", card->driver_name ? card->driver_name : card->name);
	for (i = 0; i < ARRAY_SIZE(card->snd_card->driver); i++) {
		switch (card->snd_card->driver[i]) {
		case '_':
		case '-':
		case '':
			break;
		default:
			if (!isalnum(card->snd_card->driver[i]))
				card->snd_card->driver[i] = '_';
			break;
		}
	}

	if (card->late_probe) {
		ret = card->late_probe(card);
		if (ret < 0) {
			dev_err(card->dev, "ASoC: %s late_probe() failed: %dn",
				card->name, ret);
			goto probe_aux_dev_err;
		}
	}

	snd_soc_dapm_new_widgets(card);

	ret = snd_card_register(card->snd_card);//声卡注册
	if (ret < 0) {
		dev_err(card->dev, "ASoC: failed to register soundcard %dn",
				ret);
		goto probe_aux_dev_err;
	}

	card->instantiated = 1;//初始化完，改变状态
	snd_soc_dapm_sync(&card->dapm);
	mutex_unlock(&card->mutex);
	mutex_unlock(&client_mutex);

	return 0;

probe_aux_dev_err:
	for (i = 0; i < card->num_aux_devs; i++)
		soc_remove_aux_dev(card, i);

probe_dai_err:
	soc_remove_dai_links(card);

card_probe_error:
	if (card->remove)
		card->remove(card);

	snd_soc_dapm_free(&card->dapm);
	soc_cleanup_card_debugfs(card);
	snd_card_free(card->snd_card);

base_error:
	mutex_unlock(&card->mutex);
	mutex_unlock(&client_mutex);

	return ret;
}

2.5.1 soc_bind_dai_link:绑定cpu_dai   、codec_dai 、codec和 platform 到rtd中

static int soc_bind_dai_link(struct snd_soc_card *card, int num)
{
	struct snd_soc_dai_link *dai_link = &card->dai_link[num];
	struct snd_soc_pcm_runtime *rtd = &card->rtd[num];
	struct snd_soc_dai_link_component *codecs = dai_link->codecs;//codec dai
	struct snd_soc_dai_link_component cpu_dai_component;
	struct snd_soc_dai **codec_dais = rtd->codec_dais;//codec_dai
	struct snd_soc_platform *platform;
	const char *platform_name;
	int i;

	dev_dbg(card->dev, "ASoC: binding %s at idx %dn", dai_link->name, num);

	cpu_dai_component.name = dai_link->cpu_name;
	cpu_dai_component.of_node = dai_link->cpu_of_node;
	cpu_dai_component.dai_name = dai_link->cpu_dai_name;
	rtd->cpu_dai = snd_soc_find_dai(&cpu_dai_component);   //component_list 中找到component 再从component中获取snd_soc_dai :cpu dai
	if (!rtd->cpu_dai) {
		dev_err(card->dev, "ASoC: CPU DAI %s not registeredn",
			dai_link->cpu_dai_name);
		return -EPROBE_DEFER;
	}

	rtd->num_codecs = dai_link->num_codecs;

	/* Find CODEC from registered CODECs */

	for (i = 0; i < rtd->num_codecs; i++) {
		codec_dais[i] = snd_soc_find_dai(&codecs[i]);//component_list 中找到component 再从component中获取snd_soc_dai :codec dai
		if (!codec_dais[i]) {
			dev_err(card->dev, "ASoC: CODEC DAI %s not registeredn",
				codecs[i].dai_name);
			return -EPROBE_DEFER;
		}
	}

	/* Single codec links expect codec and codec_dai in runtime data */
	//把codec和codec_dai赋值到rtd。填充codec_dais数组
	rtd->codec_dai = codec_dais[0];
	rtd->codec = rtd->codec_dai->codec;

	/* if there's no platform we match on the empty platform */
	platform_name = dai_link->platform_name;
	if (!platform_name && !dai_link->platform_of_node)
		platform_name = "snd-soc-dummy";

	/* find one from the set of registered platforms */
	//通过对platform_of_node ，从platform_list 取出snd_soc_platform platform 赋值到rtd->platform
	//  platform_list 是由snd_soc_register_platform 注册所得
	list_for_each_entry(platform, &platform_list, list) {
		if (dai_link->platform_of_node) {
			if (platform->dev->of_node !=
			    dai_link->platform_of_node)
				continue;
		} else {
			if (strcmp(platform->component.name, platform_name))
				continue;
		}

		rtd->platform = platform;
	}
	if (!rtd->platform) {
		dev_err(card->dev, "ASoC: platform %s not registeredn",
			dai_link->platform_name);
		return -EPROBE_DEFER;
	}

	card->num_rtd++;

	return 0;
}

    2.5.2 snd_card_new  创建声卡结构体 创建control设备。也就是说control设备的创建是跟声卡一起的。通过代码追踪我们不难发现control设备的创建是通过snd_device_ops.dev_register =    snd_ctl_dev_register来实现的。

int snd_card_new(struct device *parent, int idx, const char *xid,
		    struct module *module, int extra_size,
		    struct snd_card **card_ret)
{
	struct snd_card *card;
	int err;
//card_ret 的错误的可能预估的概率性
	if (snd_BUG_ON(!card_ret))
		return -EINVAL;
	*card_ret = NULL;

	if (extra_size < 0)
		extra_size = 0;
	card = kzalloc(sizeof(*card) + extra_size, GFP_KERNEL);//申请内存
	if (!card)
		return -ENOMEM;
	if (extra_size > 0)
		card->private_data = (char *)card + sizeof(struct snd_card);//结构体指针
		//设置声卡ID
	if (xid)
		strlcpy(card->id, xid, sizeof(card->id));
	err = 0;
	mutex_lock(&snd_card_mutex);
	if (idx < 0) /* first check the matching module-name slot */
		idx = get_slot_from_bitmask(idx, module_slot_match, module);
	if (idx < 0) /* if not matched, assign an empty slot */
		idx = get_slot_from_bitmask(idx, check_empty_slot, module);
	if (idx < 0)
		err = -ENODEV;
	else if (idx < snd_ecards_limit) {//snd_ecards_limit = cards_limit; cards_limit=1
		if (test_bit(idx, snd_cards_lock))
			err = -EBUSY;	/* invalid */
	} else if (idx >= SNDRV_CARDS)
		err = -ENODEV;
	if (err < 0) {
		mutex_unlock(&snd_card_mutex);
		dev_err(parent, "cannot find the slot for index %d (range 0-%i), error: %dn",
			 idx, snd_ecards_limit - 1, err);
		kfree(card);
		return err;
	}
	set_bit(idx, snd_cards_lock);		/* lock it */
	if (idx >= snd_ecards_limit)
		snd_ecards_limit = idx + 1; /* increase the limit */
	mutex_unlock(&snd_card_mutex);
	//初始化赋值
	card->dev = parent;
	card->number = idx;
	card->module = module;
	INIT_LIST_HEAD(&card->devices);
	init_rwsem(&card->controls_rwsem);
	rwlock_init(&card->ctl_files_rwlock);
	mutex_init(&card->user_ctl_lock);
	INIT_LIST_HEAD(&card->controls);
	INIT_LIST_HEAD(&card->ctl_files);
	spin_lock_init(&card->files_lock);
	INIT_LIST_HEAD(&card->files_list);
#ifdef CONFIG_PM
	mutex_init(&card->power_lock);
	init_waitqueue_head(&card->power_sleep);
#endif

	device_initialize(&card->card_dev);//结构体device 初始化
	card->card_dev.parent = parent;
	card->card_dev.class = sound_class;
	card->card_dev.release = release_card_device;
	card->card_dev.groups = card->dev_groups;
	card->dev_groups[0] = &card_dev_attr_group;
	err = kobject_set_name(&card->card_dev.kobj, "card%d", idx);
	if (err < 0)
		goto __error;

	/* the control interface cannot be accessed from the user space until */
	/* snd_cards_bitmask and snd_cards are set with snd_card_register */
	//control设备创建注册
	err = snd_ctl_create(card);
	if (err < 0) {
		dev_err(parent, "unable to register control minorsn");
		goto __error;
	}
	err = snd_info_card_create(card);//信息的初始化,在proc文件夹下面创建asound/card0
	if (err < 0) {
		dev_err(parent, "unable to create card infon");
		goto __error_ctl;
	}
	*card_ret = card;
	return 0;

      __error_ctl:
	snd_device_free_all(card);
      __error:
	put_device(&card->card_dev);
  	return err;
}

int snd_ctl_create(struct snd_card *card)
{
	static struct snd_device_ops ops = {
		.dev_free = snd_ctl_dev_free,
		.dev_register =	snd_ctl_dev_register,//注册声卡 control设备
		.dev_disconnect = snd_ctl_dev_disconnect,
	};
	int err;

	if (snd_BUG_ON(!card))
		return -ENXIO;
	if (snd_BUG_ON(card->number < 0 || card->number >= SNDRV_CARDS))
		return -ENXIO;

	snd_device_initialize(&card->ctl_dev, card);
	dev_set_name(&card->ctl_dev, "controlC%d", card->number);//设置controlC的值

	err = snd_device_new(card, SNDRV_DEV_CONTROL, card, &ops);//snd_device 添加到snd_card下面去
	if (err < 0)
		put_device(&card->ctl_dev);
	return err;
}

2.5.3 soc_probe_link_components  执行cpu   dai probe ,codes     probe 以及platform   probe 函数

static int soc_probe_link_components(struct snd_soc_card *card, int num,
				     int order)
{
	struct snd_soc_pcm_runtime *rtd = &card->rtd[num];
	struct snd_soc_platform *platform = rtd->platform;
	struct snd_soc_component *component;
	int i, ret;

	/* probe the CPU-side component, if it is a CODEC */
	//执行cpu   dai   probe 函数
	component = rtd->cpu_dai->component;
	if (component->driver->probe_order == order) {
		ret = soc_probe_component(card, component);
		if (ret < 0)
			return ret;
	}

	/* probe the CODEC-side components */
	//执行codes probe 函数
	for (i = 0; i < rtd->num_codecs; i++) {
		component = rtd->codec_dais[i]->component;
		if (component->driver->probe_order == order) {
			ret = soc_probe_component(card, component);
			if (ret < 0)
				return ret;
		}
	}

	/* probe the platform */
	//执行platform   probe 函数
	if (platform->component.driver->probe_order == order) {
		ret = soc_probe_component(card, &platform->component);
		if (ret < 0)
			return ret;
	}

	return 0;
}

2.5.4 soc_probe_link_dais 的作用：

1. card->num_links=23，所以for循环会执行23次soc_probe_link_dais函数
2.  ret = cpu_dai->driver->probe(cpu_dai);//Null，没有提供probe函数调用
3. ret = codec_dai->driver->probe(codec_dai);//Null，没有提供probe函数调用
4. 创建pcm设备

static int soc_probe_link_dais(struct snd_soc_card *card, int num, int order)
{
	struct snd_soc_dai_link *dai_link = &card->dai_link[num];
	struct snd_soc_pcm_runtime *rtd = &card->rtd[num];
	struct snd_soc_dai *cpu_dai = rtd->cpu_dai;
	int i, ret;

	dev_dbg(card->dev, "ASoC: probe %s dai link %d late %dn",
			card->name, num, order);

	/* set default power off timeout */
	rtd->pmdown_time = pmdown_time;
   //dai->driver->probe
	ret = soc_probe_dai(cpu_dai, order);
	if (ret)
		return ret;

	/* probe the CODEC DAI */
	for (i = 0; i < rtd->num_codecs; i++) {
		ret = soc_probe_dai(rtd->codec_dais[i], order);
		if (ret)
			return ret;
	}

	/* complete DAI probe during last probe */
	if (order != SND_SOC_COMP_ORDER_LAST)
		return 0;

	/* do machine specific initialization */
	if (dai_link->init) {
		ret = dai_link->init(rtd);
		if (ret < 0) {
			dev_err(card->dev, "ASoC: failed to init %s: %dn",
				dai_link->name, ret);
			return ret;
		}
	}

	if (dai_link->dai_fmt)
		snd_soc_runtime_set_dai_fmt(rtd, dai_link->dai_fmt);

	ret = soc_post_component_init(rtd, dai_link->name);
	if (ret)
		return ret;

#ifdef CONFIG_DEBUG_FS
	/* add DPCM sysfs entries */
	if (dai_link->dynamic)
		soc_dpcm_debugfs_add(rtd);
#endif

	if (cpu_dai->driver->compress_new) {
		/*create compress_device"*/
		ret = cpu_dai->driver->compress_new(rtd, num);
		if (ret < 0) {
			dev_err(card->dev, "ASoC: can't create compress %sn",
					 dai_link->stream_name);
			return ret;
		}
	} else {

		if (!dai_link->params) {
			/* create the pcm */
		//创建pcm 设备
			ret = soc_new_pcm(rtd, num);
			if (ret < 0) {
				dev_err(card->dev, "ASoC: can't create pcm %s :%dn",
				       dai_link->stream_name, ret);
				return ret;
			}
		} else {
			INIT_DELAYED_WORK(&rtd->delayed_work,
						codec2codec_close_delayed_work);

			/* link the DAI widgets */
			ret = soc_link_dai_widgets(card, dai_link, rtd);
			if (ret)
				return ret;
		}
	}

	return 0;
}

2.5.5 soc_new_pcm

1. 确认rtd下面是否有playback和  capture，有的rtd有capture而没有playback
2. 对rtd->ops进行赋值 open       close等这些赋值的意义在于上层对pcm设备的操作比如pcm_open
3. 创建substream 并且通过substream->next挂载到pcm下面
4. 此处pcm设备创建完成

int soc_new_pcm(struct snd_soc_pcm_runtime *rtd, int num)
{
	struct snd_soc_platform *platform = rtd->platform;
	struct snd_soc_dai *codec_dai;
	struct snd_soc_dai *cpu_dai = rtd->cpu_dai;
	struct snd_pcm *pcm;
	char new_name[64];
	int ret = 0, playback = 0, capture = 0;
	int i;
   //确认rtd下面是否有playback和  capture
	if (rtd->dai_link->dynamic || rtd->dai_link->no_pcm) {
		playback = rtd->dai_link->dpcm_playback;
		capture = rtd->dai_link->dpcm_capture;
	} else {
		for (i = 0; i < rtd->num_codecs; i++) {
			codec_dai = rtd->codec_dais[i];
			if (codec_dai->driver->playback.channels_min)
				playback = 1;
			if (codec_dai->driver->capture.channels_min)
				capture = 1;
		}

		capture = capture && cpu_dai->driver->capture.channels_min;
		playback = playback && cpu_dai->driver->playback.channels_min;
	}

	if (rtd->dai_link->playback_only) {
		playback = 1;
		capture = 0;
	}

	if (rtd->dai_link->capture_only) {
		playback = 0;
		capture = 1;
	}

	/* create the PCM */
	if (rtd->dai_link->no_pcm) {
		snprintf(new_name, sizeof(new_name), "(%s)",
			rtd->dai_link->stream_name);

		ret = snd_pcm_new_internal(rtd->card->snd_card, new_name, num,
				playback, capture, &pcm);
	} else {
		if (rtd->dai_link->dynamic)
			snprintf(new_name, sizeof(new_name), "%s (*)",
				rtd->dai_link->stream_name);
		else
			snprintf(new_name, sizeof(new_name), "%s %s-%d",
				rtd->dai_link->stream_name,
				(rtd->num_codecs > 1) ?
				"multicodec" : rtd->codec_dai->name, num);
       //创建pcm以及pcm下面挂载的substream
		ret = snd_pcm_new(rtd->card->snd_card, new_name, num, playback,
			capture, &pcm);
	}
	if (ret < 0) {
		dev_err(rtd->card->dev, "ASoC: can't create pcm for %sn",
			rtd->dai_link->name);
		return ret;
	}
	dev_dbg(rtd->card->dev, "ASoC: registered pcm #%d %sn",num, new_name);

	/* DAPM dai link stream work */
	INIT_DELAYED_WORK(&rtd->delayed_work, close_delayed_work);

	pcm->nonatomic = rtd->dai_link->nonatomic;
	rtd->pcm = pcm;
	pcm->private_data = rtd;

	if (rtd->dai_link->no_pcm) {
		if (playback)
			pcm->streams[SNDRV_PCM_STREAM_PLAYBACK].substream->private_data = rtd;
		if (capture)
			pcm->streams[SNDRV_PCM_STREAM_CAPTURE].substream->private_data = rtd;
		goto out;
	}

	/* ASoC PCM operations */
//对rtd->ops进行赋值 open       close等这些赋值的意义在于上层对pcm设备的操作比如pcm_open
	if (rtd->dai_link->dynamic) {
		rtd->ops.open		= dpcm_fe_dai_open;
		rtd->ops.hw_params	= dpcm_fe_dai_hw_params;
		rtd->ops.prepare	= dpcm_fe_dai_prepare;
		rtd->ops.trigger	= dpcm_fe_dai_trigger;
		rtd->ops.hw_free	= dpcm_fe_dai_hw_free;
		rtd->ops.close		= dpcm_fe_dai_close;
		rtd->ops.pointer	= soc_pcm_pointer;
		rtd->ops.ioctl		= soc_pcm_ioctl;
	} else {
		rtd->ops.open		= soc_pcm_open;
		rtd->ops.hw_params	= soc_pcm_hw_params;
		rtd->ops.prepare	= soc_pcm_prepare;
		rtd->ops.trigger	= soc_pcm_trigger;
		rtd->ops.hw_free	= soc_pcm_hw_free;
		rtd->ops.close		= soc_pcm_close;
		rtd->ops.pointer	= soc_pcm_pointer;
		rtd->ops.ioctl		= soc_pcm_ioctl;
	}

	if (platform->driver->ops) {
		rtd->ops.ack		= platform->driver->ops->ack;
		rtd->ops.copy		= platform->driver->ops->copy;
		rtd->ops.silence	= platform->driver->ops->silence;
		rtd->ops.page		= platform->driver->ops->page;
		rtd->ops.mmap		= platform->driver->ops->mmap;
	}

	if (playback)
		snd_pcm_set_ops(pcm, SNDRV_PCM_STREAM_PLAYBACK, &rtd->ops);//通过substream->next，挂载pcm下面的所有substream

	if (capture)
		snd_pcm_set_ops(pcm, SNDRV_PCM_STREAM_CAPTURE, &rtd->ops);//通过substream->next，挂载pcm下面的所有substream

	if (platform->driver->pcm_new) {
		ret = platform->driver->pcm_new(rtd);
		if (ret < 0) {
			dev_err(platform->dev,
				"ASoC: pcm constructor failed: %dn",
				ret);
			return ret;
		}
	}

	pcm->private_free = platform->driver->pcm_free;
out:
	dev_info(rtd->card->dev, "%s <-> %s mapping okn",
		 (rtd->num_codecs > 1) ? "multicodec" : rtd->codec_dai->name,
		 cpu_dai->name);
	return ret;
}

static int _snd_pcm_new(struct snd_card *card, const char *id, int device,
		int playback_count, int capture_count, bool internal,
		struct snd_pcm **rpcm)
{
	struct snd_pcm *pcm;
	int err;
	static struct snd_device_ops ops = {
		.dev_free = snd_pcm_dev_free,
		.dev_register =	snd_pcm_dev_register,
		.dev_disconnect = snd_pcm_dev_disconnect,
	};

	if (snd_BUG_ON(!card))
		return -ENXIO;
	if (rpcm)
		*rpcm = NULL;
	pcm = kzalloc(sizeof(*pcm), GFP_KERNEL);
	if (!pcm)
		return -ENOMEM;
	pcm->card = card;
	pcm->device = device;
	pcm->internal = internal;
	mutex_init(&pcm->open_mutex);
	init_waitqueue_head(&pcm->open_wait);
	INIT_LIST_HEAD(&pcm->list);
	if (id)
		strlcpy(pcm->id, id, sizeof(pcm->id));
	//新建playback
	if ((err = snd_pcm_new_stream(pcm, SNDRV_PCM_STREAM_PLAYBACK, playback_count)) < 0) {
		snd_pcm_free(pcm);
		return err;
	}
	//新建capture
	if ((err = snd_pcm_new_stream(pcm, SNDRV_PCM_STREAM_CAPTURE, capture_count)) < 0) {
		snd_pcm_free(pcm);
		return err;
	}
	//创建snd_device  挂载到snd_card上面
	if ((err = snd_device_new(card, SNDRV_DEV_PCM, pcm, &ops)) < 0) {
		snd_pcm_free(pcm);
		return err;
	}
	if (rpcm)
		*rpcm = pcm;
	return 0;
}

2.5.6 snd_card_register 会调用snd_device_register_all来对pcm设备和control 设备的注册

int snd_card_register(struct snd_card *card)
{
	int err;

	if (snd_BUG_ON(!card))
		return -EINVAL;
    //card是否已经注册过
	if (!card->registered) {
		err = device_add(&card->card_dev);
		if (err < 0)
			return err;
		card->registered = true;
	}
   //pcm 和control 设备的注册，通过snd_device_ops ops..dev_register  的方式注册
	if ((err = snd_device_register_all(card)) < 0)
		return err;
	mutex_lock(&snd_card_mutex);
	if (snd_cards[card->number]) {
		/* already registered */
		mutex_unlock(&snd_card_mutex);
		return snd_info_card_register(card); /* register pending info *///注册系统文件的信息
	}
	if (*card->id) {
		/* make a unique id name from the given string */
		char tmpid[sizeof(card->id)];
		memcpy(tmpid, card->id, sizeof(card->id));
		snd_card_set_id_no_lock(card, tmpid, tmpid);
	} else {
		/* create an id from either shortname or longname */
		const char *src;
		src = *card->shortname ? card->shortname : card->longname;
		snd_card_set_id_no_lock(card, src,
					retrieve_id_from_card_name(src));
	}
	snd_cards[card->number] = card;
	mutex_unlock(&snd_card_mutex);
	init_info_for_card(card);
#if IS_ENABLED(CONFIG_SND_MIXER_OSS)
	if (snd_mixer_oss_notify_callback)
		snd_mixer_oss_notify_callback(card, SND_MIXER_OSS_NOTIFY_REGISTER);
#endif
	return 0;
}

最后

以上就是留胡子小馒头为你收集整理的Linux ALSA声卡驱动之五：Machine 以及ALSA声卡的注册 的全部内容，希望文章能够帮你解决Linux ALSA声卡驱动之五：Machine 以及ALSA声卡的注册 所遇到的程序开发问题。

如果觉得靠谱客网站的内容还不错，欢迎将靠谱客网站推荐给程序员好友。
