windows C++ 通过UDP广播获取网络中所有设备ip地址

83 阅读 0 评论 55 点赞

我是靠谱客的博主内向舞蹈，最近开发中收集的这篇文章主要介绍windows C++ 通过UDP广播获取网络中所有设备ip地址，觉得挺不错的，现在分享给大家，希望可以做个参考。

概述

说明：

源码下载地址：http://download.csdn.net/detail/dxzysk/9756896

源码使用说明，先在需要获取IP地址的主机上运行server端程序，然后在需要搜索主机的Pc上运行client端程序

本文是windows版，VC++，在VS2010环境下调试成功。有时候需要搜索网络中的设备，机器，服务器等，这就要要用到UDP广播的方式，发送广播命令，广播给网络中的每一个主机，该主机或设备接收到广播命令后，立刻发送给请求端自己的设备信息，这里以IP信息为例子。

思路

在每一个设备中部署sever端程序进行监控，client端发送广播命令，每一个server收到命令后，返回给client自己的ip地址信息，给出代码如下，其中，有部分，比如获取ip地址参考来自网络，尊重原创，乐于分享。

server端(windows控制台程序)

server端监听广播命令”GetIPAddr”，收到命令后就相应


#include <WinSock2.h>
#include <stdio.h>
#include <iostream>
using namespace std;

#pragma comment(lib, "ws2_32.lib")

#define GET_HOST_COMMAND "GetIPAddr"
const int MAX_BUF_LEN = 255;
#define SERVER_PORT 12811

//只返回一个ip地址
bool GetLocalIP(char* ip)
{
    //1.初始化wsa
    WSADATA wsaData;
    int ret=WSAStartup(MAKEWORD(2,2),&wsaData);
    if (ret!=0)
    {
        return false;
    }
    //2.获取主机名
    char hostname[256];
    ret=gethostname(hostname,sizeof(hostname));
    if (ret==SOCKET_ERROR)
    {
        return false;
    }
    //3.获取主机ip
    HOSTENT* host=gethostbyname(hostname);
    if (host==NULL)
    {
        return false;
    }
    //4.转化为char*并拷贝返回
    strcpy(ip,inet_ntoa(*(in_addr*)*host->h_addr_list));
    return true;
}

bool doServer(){
    int m_nPort = SERVER_PORT;

    SOCKET sClient;
    sockaddr_in clientAddr,bindAddr;
    WSADATA wsdata;

    //启动SOCKET库，版本为2.0
    WORD    wVer=MAKEWORD(2,0);
    if( 0 != WSAStartup(wVer,&wsdata) )
    {
        //AfxMessageBox(L"Not Support Socket2.0");
        return false;
    }

    //用UDP初始化套接字
    sClient=socket(AF_INET,SOCK_DGRAM,0);
    //设置该套接字为广播类型，
    BOOL optval=TRUE;
    bindAddr.sin_family=AF_INET;
    bindAddr.sin_addr.s_addr=htonl(INADDR_ANY);
    bindAddr.sin_port=htons(m_nPort);
    setsockopt(sClient,SOL_SOCKET,SO_BROADCAST,(char FAR *)&optval,sizeof(optval));
    bind(sClient,(sockaddr *)&bindAddr,sizeof(sockaddr_in));

    int nAddrLen = sizeof(SOCKADDR);
    char buf[256] = {0};
    int fromlength=sizeof(SOCKADDR);

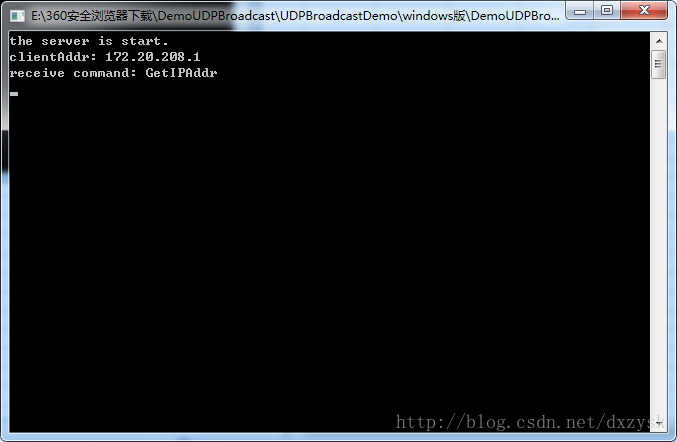

    printf("the server is start.n");

    char ipaddr[30] = {0};

    char buff[MAX_BUF_LEN] = "";
    if (GetLocalIP(ipaddr))
    {
        sprintf(buff, "my ip is:%s", ipaddr);
    }
    else
    {
        sprintf(buff, "%s", "my ip is:******");
    }

    //有多个ip地址的时候，这样调用
    //IPInfo ips[10];
    //int len1 = 0;
    //GetLocalIPs(ips, 10,&len1);

    while(true)
    {
        int nRet = recvfrom(sClient,buf,256,0,(struct sockaddr FAR *)&clientAddr,(int FAR *)&fromlength);
        if( SOCKET_ERROR != nRet )
        {
            char    *pIPAddr = inet_ntoa(clientAddr.sin_addr);
            if( NULL != pIPAddr )
            {
                WCHAR    wzIPBuffer[32] = {0};
                printf("clientAddr: %sn", pIPAddr);
                printf("receive command: %sn", buf);
            }
            if (strcmp(buf,GET_HOST_COMMAND) != 0)
            {
                printf("the command not valid and was ignored.n", buf);
                continue;
            }
            // 发送数据
            int nSendSize = sendto(sClient, buff, strlen(buff), 0, (SOCKADDR*)&clientAddr, nAddrLen);
            if(SOCKET_ERROR == nSendSize)
            {
                int err = WSAGetLastError();
                printf(""sendto" error!, error code is %dn", err);
                return false;
            }

        }
        else
        {
            //AfxMessageBox(L"Recv UDP Failed");
        }

        Sleep(1000);
    }

    closesocket(sClient);
    return true;
}

int main()
{
    if (!doServer())
    {
        printf("sever returned an error");
        return -1;
    }
    return 0;
}

注意上面是只有一个Ip地址的情况，有的机器可能会有多个IP地址，不同的网络，有线网，无线wifi等，需要获取多个ip地址的方法：

//结构体记录ip信息
typedef struct tagIPInfo
{
    char ip[30];
}IPInfo;

//获取多个ip地址信息列表
bool GetLocalIPs(IPInfo* ips,int maxCnt,int* cnt)
{
    //1.初始化wsa
    WSADATA wsaData;
    int ret=WSAStartup(MAKEWORD(2,2),&wsaData);
    if (ret!=0)
    {
        return false;
    }
    //2.获取主机名
    char hostname[256];
    ret=gethostname(hostname,sizeof(hostname));
    if (ret==SOCKET_ERROR)
    {
        return false;
    }
    //3.获取主机ip
    HOSTENT* host=gethostbyname(hostname);
    if (host==NULL)
    {
        return false;
    }
    //4.逐个转化为char*并拷贝返回
    *cnt=host->h_length<maxCnt?host->h_length:maxCnt;
    for (int i=0;i<*cnt;i++)
    {
        in_addr* addr=(in_addr*)*host->h_addr_list;
        strcpy(ips[i].ip,inet_ntoa(addr[i]));
    }
    return true;
}

client端（windows控制台程序）

client端发送”GetIPAddr”命令，并及时接收client端发过来的信息


//#include "stdafx.h"
#include <WinSock2.h>
#include <stdio.h>

#pragma comment(lib, "ws2_32.lib")

const int MAX_BUF_LEN = 255;

#define GET_HOST_COMMAND "GetIPAddr"
#define CLIENT_PORT 11121
#define SERVER_PORT 12811

int main()
{
    int nPort = SERVER_PORT;
    WORD wVersionRequested;
    WSADATA wsaData;
    int err;

    // 启动socket api
    wVersionRequested = MAKEWORD( 2, 2 );
    err = WSAStartup( wVersionRequested, &wsaData );
    if ( err != 0 )
    {
        return -1;
    }

    if ( LOBYTE( wsaData.wVersion ) != 2 || HIBYTE( wsaData.wVersion ) != 2 )
    {
            WSACleanup( );
            return -1;
    }

    // 创建socket
    SOCKET connect_socket;
    connect_socket = socket(AF_INET, SOCK_DGRAM, IPPROTO_UDP);
    if(INVALID_SOCKET == connect_socket)
    {
        err = WSAGetLastError();
        printf(""socket" error! error code is %dn", err);
        return -1;
    }

    // 用来绑定套接字
    SOCKADDR_IN sin;
    sin.sin_family = AF_INET;
    sin.sin_port = htons(CLIENT_PORT);
    sin.sin_addr.s_addr = 0;

    // 用来从网络上的广播地址接收数据
    SOCKADDR_IN sin_from;
    sin_from.sin_family = AF_INET;
    sin_from.sin_port = htons(nPort);
    sin_from.sin_addr.s_addr = INADDR_BROADCAST;

    //设置该套接字为广播类型，
    bool bOpt = true;
    setsockopt(connect_socket, SOL_SOCKET, SO_BROADCAST, (char*)&bOpt, sizeof(bOpt));

    // 绑定套接字
    err = bind(connect_socket, (SOCKADDR*)&sin, sizeof(SOCKADDR));
    if(SOCKET_ERROR == err)
    {
        err = WSAGetLastError();
        printf(""bind" error! error code is %dn", err);
        return -1;
    }

    printf("the client is start.n");
    int nAddrLen = sizeof(SOCKADDR);
    char buff[MAX_BUF_LEN] = "";
    int nLoop = 0;

    char    szMsg[]=GET_HOST_COMMAND;
    int nLen=sizeof(sin_from);
    if( SOCKET_ERROR==sendto(connect_socket, szMsg, strlen(szMsg), 0, (sockaddr*)&sin_from, nLen) )
    {
       // AfxMessageBox(L"Send UDP Failed");
        return -1;
    }

    printf("send broadcast data:%sn", GET_HOST_COMMAND);

    while(true)
    {
        // 接收数据
        int nSendSize = recvfrom(connect_socket, buff, MAX_BUF_LEN, 0, (SOCKADDR*)&sin_from, &nAddrLen);
        if(SOCKET_ERROR == nSendSize)
        {
            err = WSAGetLastError();
            printf(""recvfrom" error! error code is %dn", err);
            return -1;
        }
        buff[nSendSize] = '';
        printf("received ip: %sn", buff);
    }

    return 0;
}
