ESP8266-4-云平台下发指令控制LED

103 阅读 0 评论 68 点赞

我是靠谱客的博主潇洒泥猴桃，这篇文章主要介绍ESP8266-4-云平台下发指令控制LED，现在分享给大家，希望可以做个参考。

平台建立和

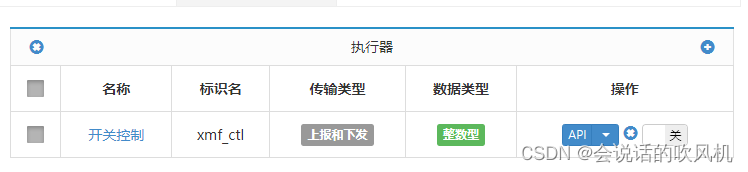

esp8266-3-连接物联网云平台上传数据是相同的，我们只需要建立一个执行器即可
在这里插入图片描述
由于esp8266接收数据一直是阻态（卡在这里，一直等待数据），但云服务器90内无通信就会踢掉esp8266，所以我们使用超时异常来定时发送心跳包给云平台。

复制代码

import socket,time
import json,onewire
from machine import ADC,Pin

ip='121.37.241.174'
port=8600
my_device = "esp8266_wang"
my_key = "44f0d2ac207b44eea5ebb6d5799d45ee"

s = socket.socket(socket.AF_INET,socket.SOCK_STREAM)
s.connect((ip,port))
time.sleep(1)

login_dict ={"t":1,"device":"esp8266_wang","key":"44f0d2ac207b44eea5ebb6d5799d45ee","ver":"v0.0.0.0"}
login_dict['device']=my_device
login_dict['key']=my_key

login_json = json.dumps(login_dict)
s.send(login_json.encode('utf-8'))

msg = s.recv(256)
print(msg.decode('utf-8'))
print('WIFI成功登录新大陆云平台')

led=Pin(16,Pin.OUT,value=1)

while True:
    try:
        s.settimeout(10)
        recv_bytes=s.recv(256)
        recv_str=recv_bytes.decode('utf-8')
        recv_dict=json.loads(recv_str)

        if recv_dict['t']==5:
            print("云平台下发的控制命令")
            print(recv_str)
            if recv_dict['apitag'] == 'xmf_ctl':
                if recv_dict['data']==1:
                    led.value(0)

                    print("灯亮")
                if recv_dict['data']==0:
                    led.value(1)
                    print("灯灭")
    except:#超时异常
        s.send(b'$OK##')#发送的心跳包
        msg=s.recv(256)
        print(msg.decode('utf-8'))

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
import socket,time
import json,onewire
from machine import ADC,Pin

ip='121.37.241.174'
port=8600
my_device = "esp8266_wang"
my_key = "44f0d2ac207b44eea5ebb6d5799d45ee"



s = socket.socket(socket.AF_INET,socket.SOCK_STREAM)
s.connect((ip,port))
time.sleep(1)

login_dict ={"t":1,"device":"esp8266_wang","key":"44f0d2ac207b44eea5ebb6d5799d45ee","ver":"v0.0.0.0"}
login_dict['device']=my_device
login_dict['key']=my_key

login_json = json.dumps(login_dict)
s.send(login_json.encode('utf-8'))

msg = s.recv(256)
print(msg.decode('utf-8'))
print('WIFI成功登录新大陆云平台')

led=Pin(16,Pin.OUT,value=1)

while True:
    try:
        s.settimeout(10)
        recv_bytes=s.recv(256)
        recv_str=recv_bytes.decode('utf-8')
        recv_dict=json.loads(recv_str)

        if recv_dict['t']==5:
            print("云平台下发的控制命令")
            print(recv_str)
            if recv_dict['apitag'] == 'xmf_ctl':
                if recv_dict['data']==1:
                    led.value(0)

                    print("灯亮")
                if recv_dict['data']==0:
                    led.value(1)
                    print("灯灭")
    except:#超时异常
        s.send(b'$OK##')#发送的心跳包
        msg=s.recv(256)
        print(msg.decode('utf-8'))

连接以后可以看见控制esp8266的开关了
在这里插入图片描述
下面是读取数据和LED控制集合在一起的代码

复制代码

import socket,time
import json,onewire
from machine import ADC,Pin

ip='121.37.241.174'
port=8600
my_device = "esp8266_wang"
my_key = "44f0d2ac207b44eea5ebb6d5799d45ee"

s = socket.socket(socket.AF_INET,socket.SOCK_STREAM)
s.connect((ip,port))
time.sleep(1)

login_dict ={"t":1,"device":"esp8266_wang","key":"44f0d2ac207b44eea5ebb6d5799d45ee","ver":"v0.0.0.0"}
login_dict['device']=my_device
login_dict['key']=my_key

login_json = json.dumps(login_dict)
s.send(login_json.encode('utf-8'))

msg = s.recv(256)
print(msg.decode('utf-8'))
print('WIFI成功登录新大陆云平台')

led=Pin(16,Pin.OUT,value=1)

adc=ADC(0)
ow=onewire.OneWire(Pin(12))

data_dict = {"t":3,"datatype":1,"datas":{"xmf_guang":367,"xmf_temp":26.77},"msgid":001}
m=0

while True:
    try:
        s.settimeout(2)
        recv_bytes=s.recv(256)
        recv_str=recv_bytes.decode('utf-8')
        recv_dict=json.loads(recv_str)

        if recv_dict['t']==4:
            print("云平返回")

        if recv_dict['t']==5:
            print("云平台下发的控制命令")
            print(recv_str)
            if recv_dict['apitag'] == 'xmf_ctl':
                if recv_dict['data']==1:
                    led.value(0)

                    print("灯亮")
                if recv_dict['data']==0:
                    led.value(1)
                    print("灯灭")
    except:#超时异常，完成数据上报
        m=m+1
        adc_value=adc.read()
        adc_volt=adc_value*(1000/1023)
        data_dict['datas']['xmf_guang']=adc_volt
        data_dict['datas']['xmf_temp']=25.5

data_json = json.dumps(data_dict)
        s.send(data_json.encode('utf-8'))

        msg=s.recv(256)
        str = '上报数据成功，第 %d 个数据'%m
        print(str)
        print(msg.decode('utf-8'))

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
import socket,time
import json,onewire
from machine import ADC,Pin

ip='121.37.241.174'
port=8600
my_device = "esp8266_wang"
my_key = "44f0d2ac207b44eea5ebb6d5799d45ee"



s = socket.socket(socket.AF_INET,socket.SOCK_STREAM)
s.connect((ip,port))
time.sleep(1)

login_dict ={"t":1,"device":"esp8266_wang","key":"44f0d2ac207b44eea5ebb6d5799d45ee","ver":"v0.0.0.0"}
login_dict['device']=my_device
login_dict['key']=my_key

login_json = json.dumps(login_dict)
s.send(login_json.encode('utf-8'))

msg = s.recv(256)
print(msg.decode('utf-8'))
print('WIFI成功登录新大陆云平台')

led=Pin(16,Pin.OUT,value=1)

adc=ADC(0)
ow=onewire.OneWire(Pin(12))

data_dict = {"t":3,"datatype":1,"datas":{"xmf_guang":367,"xmf_temp":26.77},"msgid":001}
m=0

while True:
    try:
        s.settimeout(2)
        recv_bytes=s.recv(256)
        recv_str=recv_bytes.decode('utf-8')
        recv_dict=json.loads(recv_str)

        if recv_dict['t']==4:
            print("云平返回")

        if recv_dict['t']==5:
            print("云平台下发的控制命令")
            print(recv_str)
            if recv_dict['apitag'] == 'xmf_ctl':
                if recv_dict['data']==1:
                    led.value(0)

                    print("灯亮")
                if recv_dict['data']==0:
                    led.value(1)
                    print("灯灭")
    except:#超时异常，完成数据上报
        m=m+1
        adc_value=adc.read()
        adc_volt=adc_value*(1000/1023)
        data_dict['datas']['xmf_guang']=adc_volt
        data_dict['datas']['xmf_temp']=25.5

        data_json = json.dumps(data_dict)
        s.send(data_json.encode('utf-8'))

        msg=s.recv(256)
        str = '上报数据成功，第 %d 个数据'%m
        print(str)
        print(msg.decode('utf-8'))
