概述

本文实例为大家分享了OpenCV实现直线检测并消除的具体代码，供大家参考，具体内容如下

很简单，代码如下

#include<iostream>
#include<opencv.hpp>

using namespace cv;
using namespace std;

int main()
{
 Mat img, dst, img_gary, img_bin, temp, r_line, c_line, kernel;
 char INPUT[] = "input";
 char OUTPUT[] = "output";
 char GRAY_IMG[] = "gary image";
 char BIN_IMG[] = "binary image";
 char DST_IMG[] = "final image";

 img = imread("D:\OpenCV\images\demo_test_2.jpg");
 if (img.empty())
 {
  cout << "image loading failed..." << endl;
  return -1;
 }
 namedWindow(INPUT, WINDOW_AUTOSIZE);
 imshow(INPUT, img);


 cvtColor(img, img_gary, COLOR_BGR2GRAY);
 imshow(GRAY_IMG, img_gary);

 adaptiveThreshold(~img_gary, img_bin, 255, ADAPTIVE_THRESH_MEAN_C, THRESH_BINARY, 15, -2);
 imshow(BIN_IMG, img_bin);

 //水平结构元素
 r_line = getStructuringElement(MORPH_RECT, Size(img.cols / 16, 1), Point(-1, -1));
 //垂直结构元素
 c_line = getStructuringElement(MORPH_RECT, Size(1, img.rows / 16), Point(-1, -1));

 kernel = getStructuringElement(MORPH_RECT, Size(4, 4), Point(-1, -1));
 erode(img_bin, temp, kernel);
 dilate(temp, dst, kernel);

 //erode(img_bin, temp, r_line);
 //dilate(temp, dst, r_line);
 //morphologyEx(img_bin, dst, MORPH_OPEN, c_line);

 bitwise_not(dst, dst);
 //blur(dst, dst, Size(3, 3), Point(-1, -1));
 imshow(DST_IMG, dst);

 waitKey(0);
 return 0;
}

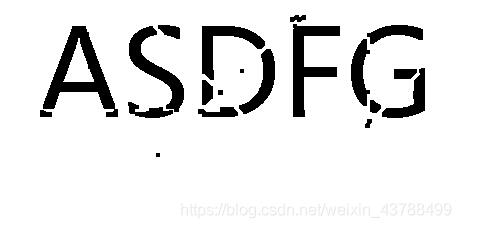

放几张效果图
