iOS实现图片六边形阴影效果

133 阅读 0 评论 88 点赞

我是靠谱客的博主闪闪口红，这篇文章主要介绍iOS实现图片六边形阴影效果，现在分享给大家，希望可以做个参考。

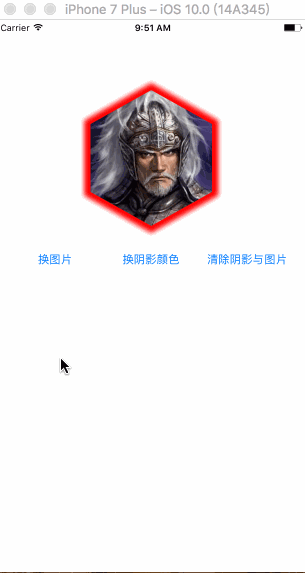

先来看看效果图

这个效果写起来挺简单，主要运用下面几个知识点

layer 的mask : 图层蒙版

layer 的shadowPath ：绘制自定义形状阴影

UIBezierPath ：绘制六边形路线

说完知识点下面上代码了

绘制六边形的路线

复制代码

1
2
3
4
5
6
7
8
9
10
11
12
13
-(CGPathRef)getCGPath:(CGFloat)viewWidth{
 UIBezierPath * path = [UIBezierPath bezierPath];
 path.lineWidth = 2;
 [[UIColor whiteColor] setStroke];
 [path moveToPoint:CGPointMake((sin(M_1_PI / 180 * 60)) * (viewWidth / 2), (viewWidth / 4))];
 [path addLineToPoint:CGPointMake((viewWidth / 2), 0)];
 [path addLineToPoint:CGPointMake(viewWidth - ((sin(M_1_PI / 180 * 60)) * (viewWidth / 2)), (viewWidth / 4))];
 [path addLineToPoint:CGPointMake(viewWidth - ((sin(M_1_PI / 180 * 60)) * (viewWidth / 2)), (viewWidth / 2) + (viewWidth / 4))];
 [path addLineToPoint:CGPointMake((viewWidth / 2), viewWidth)];
 [path addLineToPoint:CGPointMake((sin(M_1_PI / 180 * 60)) * (viewWidth / 2), (viewWidth / 2) + (viewWidth / 4))];
 [path closePath];
 return path.CGPath;
}

绘制一个六边形的layer，并把image 赋值到contents 上

复制代码

1
2
3
4
5
6
7
8
9
10
CGRect hexagnoRect = self.bounds;
 //绘制一个六边形的layer，并复制一个image给他的contents
 CALayer *hexagonLayer = [CALayer layer];
 hexagonLayer.frame = hexagnoRect;
 CAShapeLayer * shapLayer = [CAShapeLayer layer];
 shapLayer.lineWidth = 1;
 shapLayer.strokeColor = [UIColor whiteColor].CGColor;
 shapLayer.path = [self getCGPath:hexagnoRect.size.width-20];
 hexagonLayer.mask = shapLayer;
 hexagonLayer.contents = (__bridge id _Nullable)(self.image.CGImage);

创建一个CALayer，将六边形layer 添加到CALayer上,并绘制模糊阴影

复制代码

1
2
3
4
5
6
7
8
9
CALayer *completeLayer = [CALayer layer];
 completeLayer.frame = CGRectMake(10, 10, self.bounds.size.width-10, self.bounds.size.height-10);
 [completeLayer addSublayer:hexagonLayer];
 completeLayer.shadowOpacity = 1.0f;
 completeLayer.shadowPath = [self getCGPath:hexagnoRect.size.width];
 completeLayer.shadowOffset = CGSizeMake(-10, -10);

 completeLayer.shadowColor = self.hg_shadowColor.CGColor;
 [self.layer addSublayer:completeLayer];

总结

好了，以上就是在iOS中实现图片六边形的全部内容了，希望本文能对大家开发iOS有所帮助，如果有疑问大家可以留言交流。
