空域滤波算法对比分析（超级全面哒）——Python代码

125 阅读 0 评论 83 点赞

我是靠谱客的博主满意康乃馨，这篇文章主要介绍空域滤波算法对比分析（超级全面哒）——Python代码，现在分享给大家，希望可以做个参考。

代码包括椒盐噪声，高斯噪声，均值滤波，中值滤波，高斯滤波，Sobel滤波，Laplace滤波和对应的系统函数以及三种常用的参数分析，MSE，PSNR，SSIM。

太久没写博客了，懒得把知识点都写下来，有缘人看到需要报告的移步传送门去下载报告，报告上写的很详细。

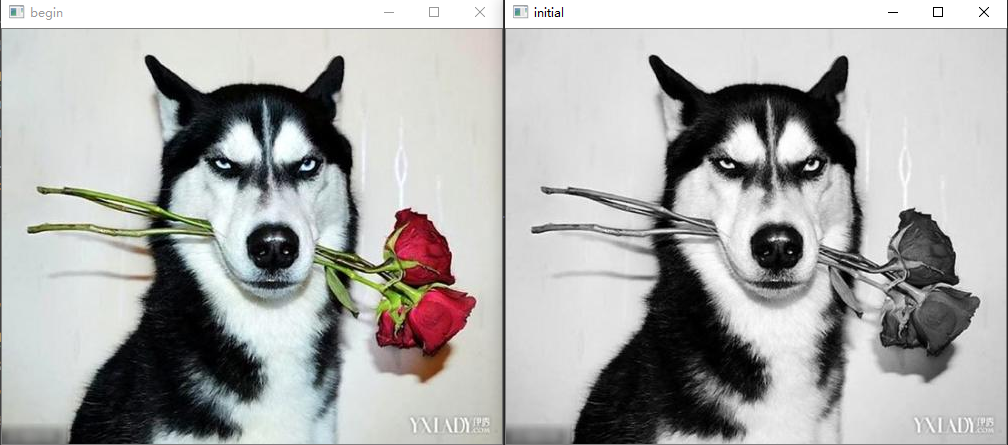

图5 原图与取灰度值后的图片

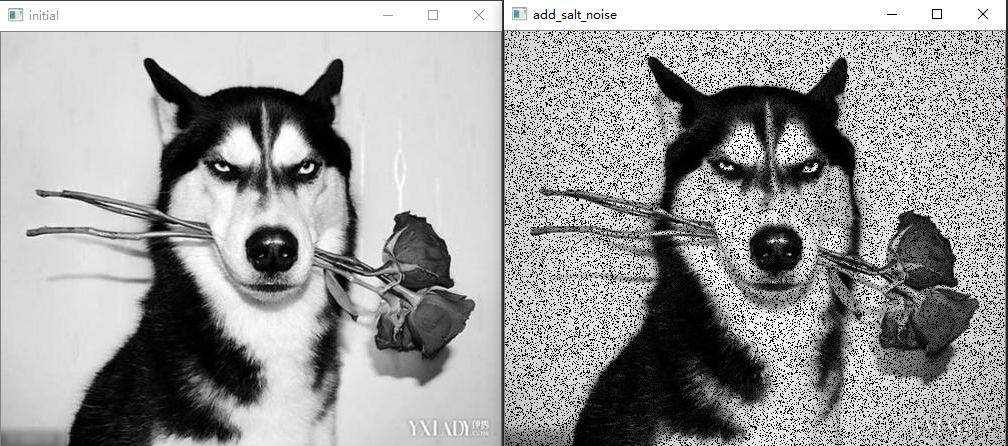

图6 原图加信噪比0.2的椒盐噪声

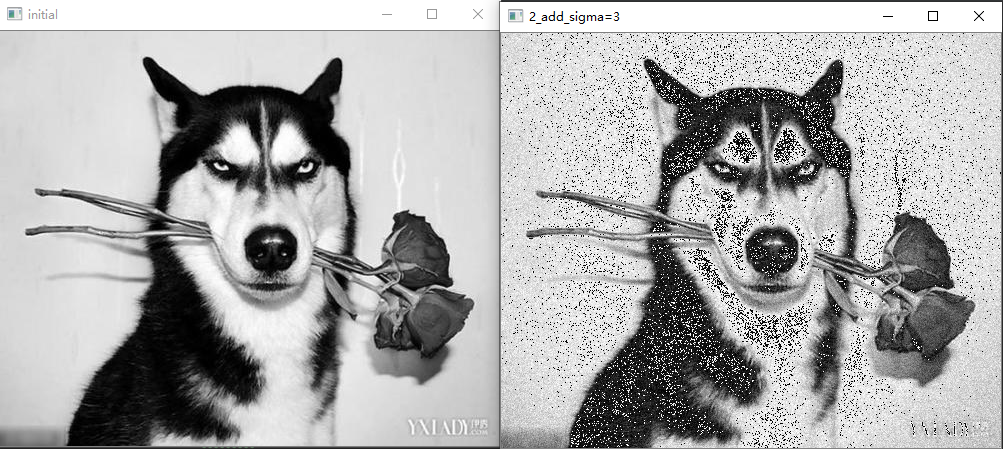

图7原图加sigma=3的高斯噪声

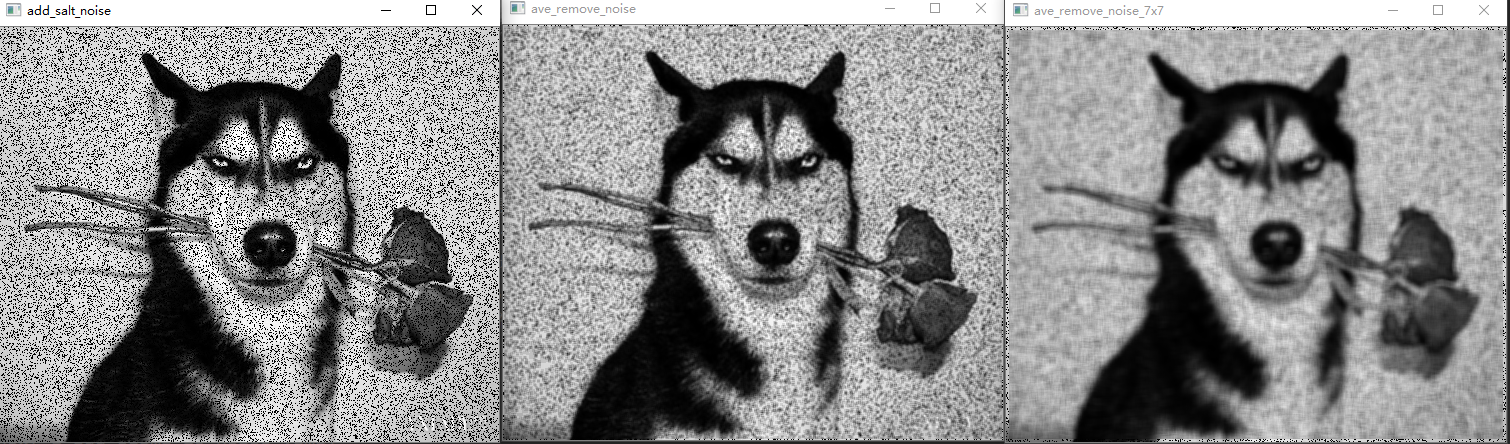

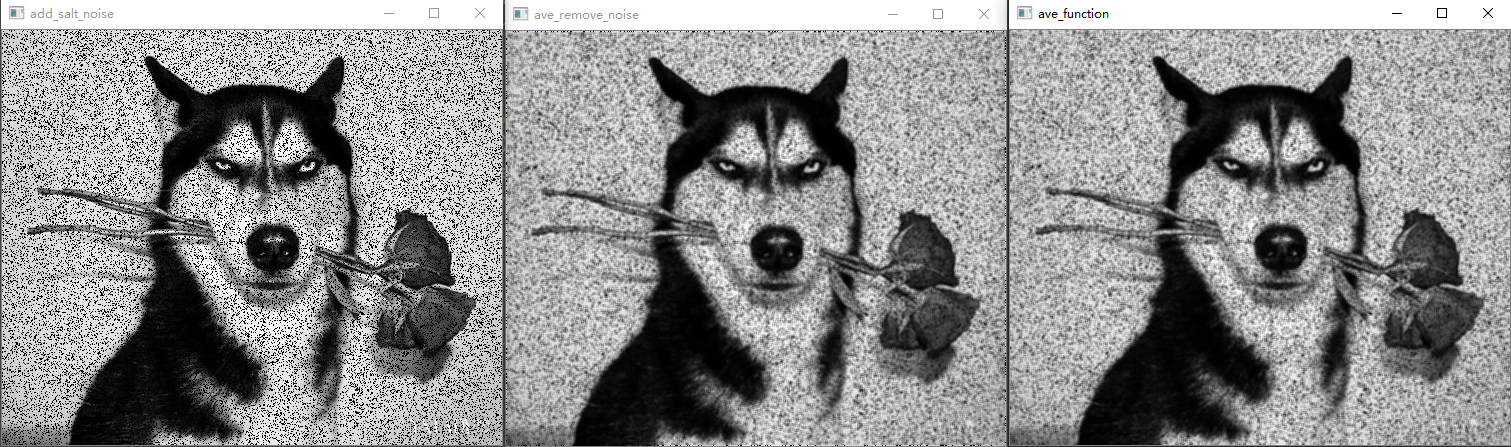

图8 椒盐噪声，3*3均值滤波，系统3*3均值滤波

图9椒盐噪声，3*3均值滤波，7*7均值滤波

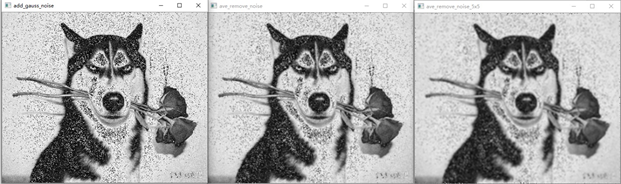

图10 高斯噪声，3*3均值滤波，5*5均值滤波

高斯滤波（加权均值滤波）：

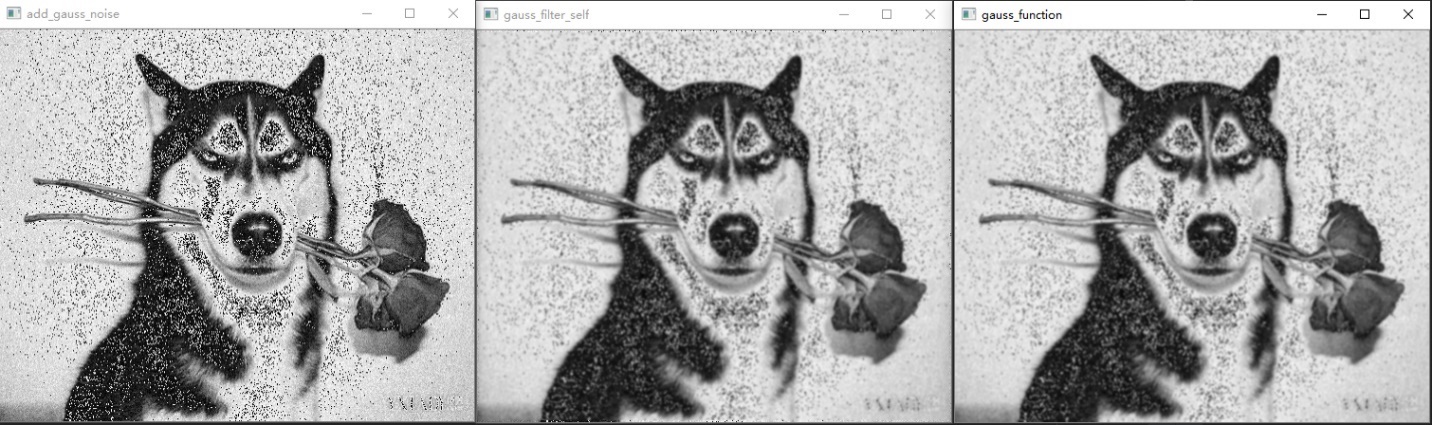

图11 高斯噪声，5*5高斯滤波，5*5系统高斯滤波

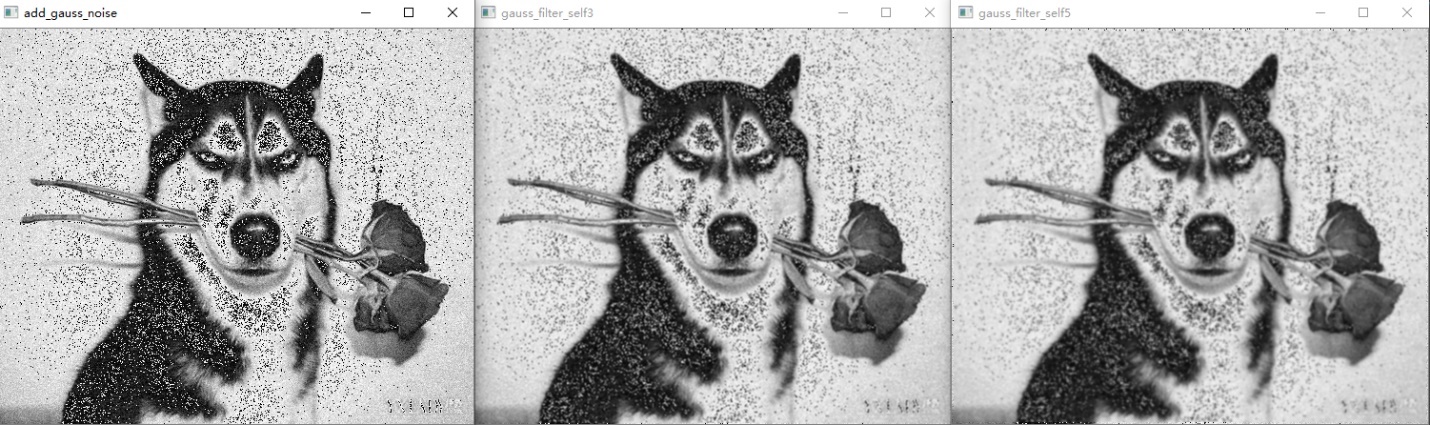

图12 高斯噪声，3*3高斯滤波，5*5高斯滤波

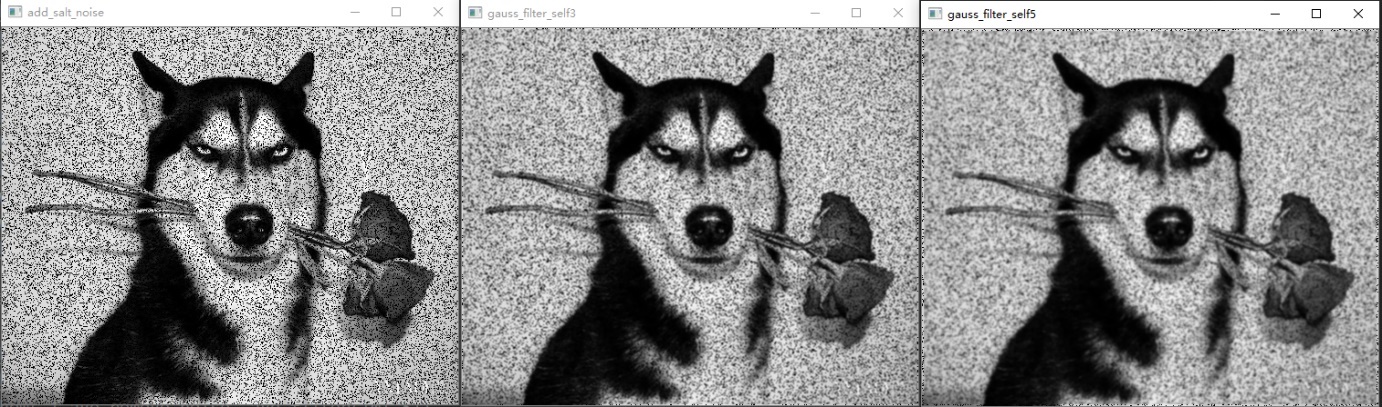

图13 椒盐噪声，3*3高斯滤波，5*5高斯滤波

中值滤波：

图15 椒盐噪声，3*3中值滤波，3*3系统中值滤波

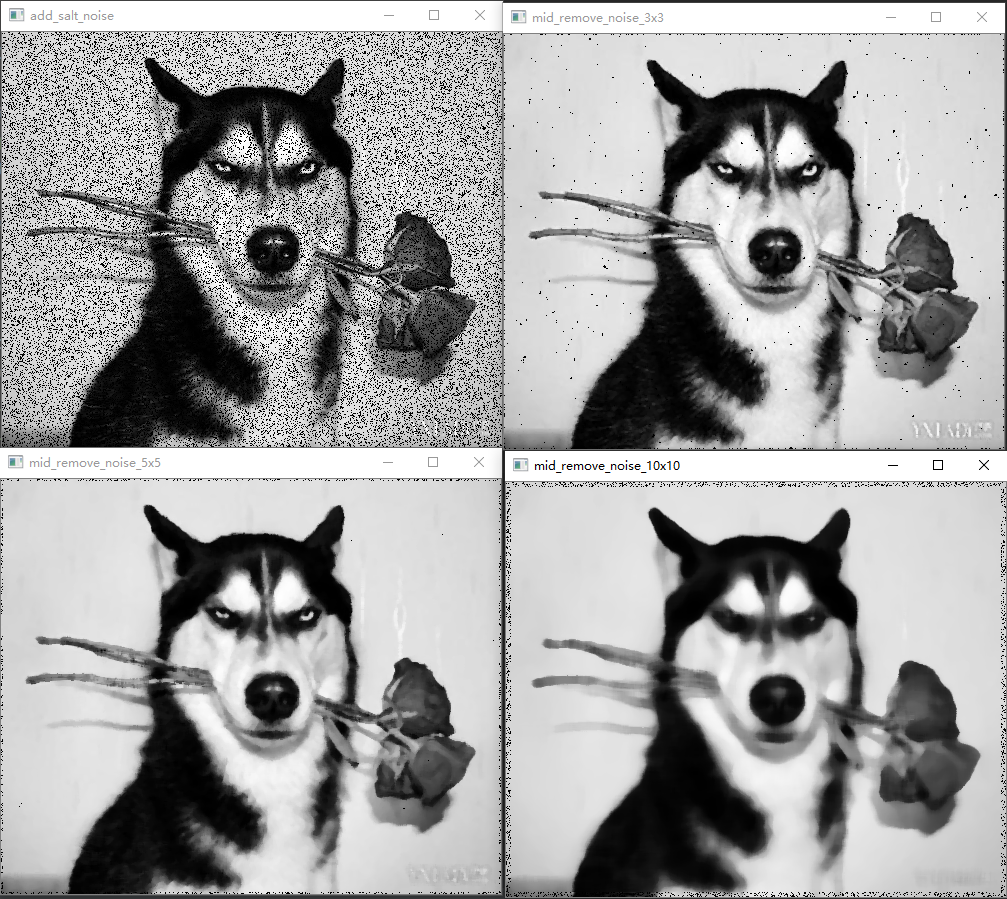

16 椒盐噪声，3*3中值滤波，5*5中值滤波 10*10中值滤波

Sobel算子滤波：

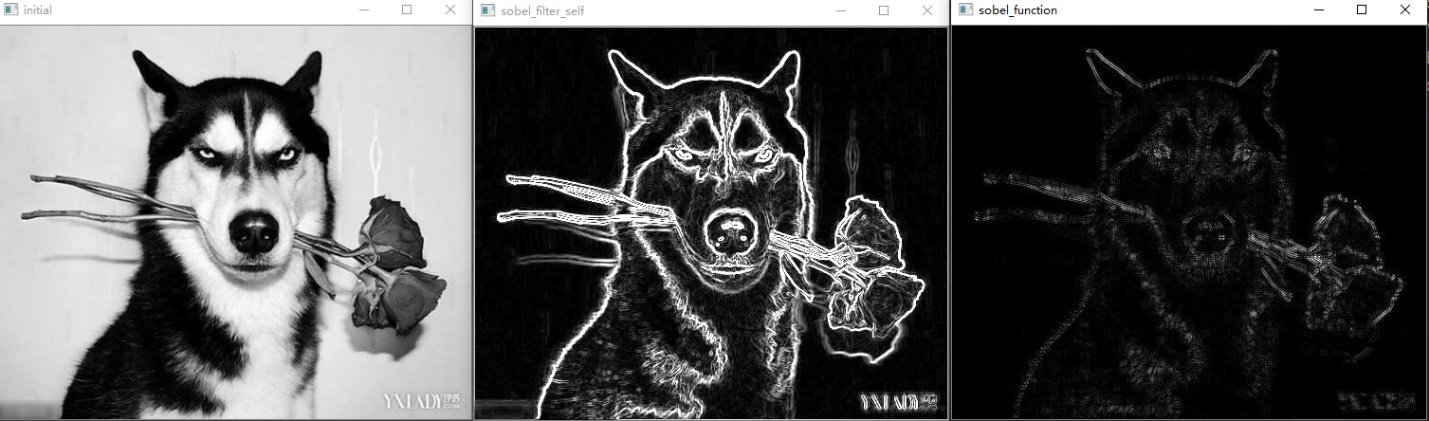

图17 原图，Sobel滤波，系统Sobel滤波

Laplace滤波：

图18 原图，Laplace滤波，系统Laplace滤波

复制代码

#########所有函数###################
Mse 两个图片均方差
Psnr 两个图片峰值信噪比
Ssim 两个图片相似度
matrix_convolve 两矩阵卷积
add_salt_noise 加椒盐噪声
add_gauss_noise	加高斯噪声
get_mid	取矩阵均值
get_ave 取矩阵中位数
mid_filter 中值滤波
mid_function 系统中值滤波函数
ave_filter 均值滤波
ave_function 系统均值滤波函数
gauss_filter_self 高斯滤波
gauss_function 系统高斯滤波函数
sobel_filter_self
Sobel算子锐化
sobel_function
系统Sobel算子锐化
laplacian_filter_self 拉普拉斯算子锐化
laplacian_function 系统拉普拉斯算子锐化
#######################################
import cv2 as cv
import numpy as np
import random
import math
import copy
###########均方误差(MSE)###########
def mse(pc1,pc2):
mse=np.mean((pc1-pc2)**2)
return float(mse)
###########峰值信噪比(PSNR)##########
# PSNR高于40dB说明图像质量极好（即非常接近原始图像）
# 在30—40dB通常表示图像质量是好的（即失真可以察觉但可以接受）
# 在20—30dB说明图像质量差
# 最后 PSNR低于20dB图像不可接受
def psnr(img1, img2):
mse = np.mean( (img1 - img2) ** 2 )
if mse == 0:
return 100
plxel_max = 255.0
return 20 * math.log10(plxel_max / math.sqrt(mse))
###########结构相似度(SSIM):range~[-1:1]##########
#-1表示完全不相似,1表示完全相似
def ssim(y_true, y_pred):
u_true = np.mean(y_true)
u_pred = np.mean(y_pred)
var_true = np.var(y_true)
var_pred = np.var(y_pred)
std_true = np.sqrt(var_true)
std_pred = np.sqrt(var_pred)
c1 = np.square(0.01 * 7)
c2 = np.square(0.03 * 7)
ssim = (2 * u_true * u_pred + c1) * (2 * std_pred * std_true + c2)
denom = (u_true ** 2 + u_pred ** 2 + c1) * (var_pred + var_true + c2)
return ssim / denom
###############矩阵卷积##############
def matrix_convolve(pc,mode):
n,m=pc.shape
c=np.zeros((n,m),dtype=np.float)
step=mode.shape[0]
mode=mode/mode.sum()
# 除于加权平均
for i in range(n):
for j in range(m):
if i-int(step/2)<0 or i+int(step/2)>=n:
c[i][j]=pc[i][j]
elif j-int(step/2)<0 or j+int(step/2)>= m:
c[i][j]=pc[i][j]
else:
x=int(step/2)
c[i][j]=np.sum(pc[i-x:i-x+step,j-x:j-x+step]*mode)
c=c.clip(0,255)
c=cv.convertScaleAbs(c) #将结果转化为8位int
return c
###############加椒盐噪声################
def add_salt_noise(pc,maybe):#图片,噪声比
n,m=pc.shape
for i in range(n):
for j in range(m):
if np.random.random(1)>maybe:
continue
else:
pc[i,j]=0
###############加高斯噪声################
def add_gauss_noise(pc,mu,sigma,k,maybe=1):#means 均值 sigma 方差
n,m=pc.shape
for i in range(n):
for j in range(m):
if np.random.random(1)<=maybe:
pc[i][j]+=k*random.gauss(mu,sigma)
pc[i][j]=min(pc[i][j],255)
pc[i][j]=max(pc[i][j],0)
##############求中值##############
def get_mid(pc,x,y,cnt):
ans=[]
for i in range(x-int(cnt/2),x+int(cnt/2)+1):
for j in range(y-int(cnt/2),y+int(cnt/2)+1):
ans.append(pc[i][j])
ans.sort()
return ans[int(len(ans)/2)+1]
##############求均值##############
def get_ave(pc,x,y,cnt):
ans=0
for i in range(x-int(cnt/2),x+int(cnt/2)+1):
for j in range(y-int(cnt/2),y+int(cnt/2)+1):
ans+=pc[i][j]
return int(ans/cnt/cnt)
############中值滤波#############
def mid_filter(pc,step): #图片,几位滤波
n,m=pc.shape
c=np.zeros((n,m),dtype="uint8")
for i in range(0,n):
for j in range(0,m):
if i-int(step/2)<0 or i+int(step/2)>=n:
c[i][j]=pc[i][j]
elif j-int(step/2)<0 or j+int(step/2)>=m:
c[i][j]=pc[i][j]
else:
c[i][j]=get_mid(pc,i,j,step)
return c
def mid_function(pc,step):
c=cv.medianBlur(pc,step)
return c
############均值滤波#############
def ave_filter(pc,step):
n,m=pc.shape
c = np.zeros((n, m), dtype="uint8")
for i in range(n):
for j in range(m):
if i - int(step / 2) < 0 or i + int(step / 2) >= n:
c[i][j] = pc[i][j]
elif j - int(step / 2) < 0 or j + int(step / 2) >= m:
c[i][j] = pc[i][j]
else:
c[i][j] = get_ave(pc,i,j,step)
return c
def ave_function(pc,step):
c=cv.blur(pc,(step,step))
return c
###########高斯平滑#############
def gauss_filter_self(pc,step):
if step==3:
mode=np.array([[1,2,1],[2,4,2],[1,2,1]])
if step==5:
mode=np.array([[1,4,7,4,1],[4,16,26,16,4],[7,26,41,26,7],[4,16,26,16,4],[1,4,7,4,1]])
return matrix_convolve(pc,mode)
def gauss_function(pc,step):
c=cv.GaussianBlur(pc,(step,step),0)
return c
###########Sobel###############
#sobel算子
# Gx =-1 0 1
Gy =1 2 1
#
-2 0 2
0 0 0
#
-1 0 1
-1-2-1
def sobel_filter_self(pc):
c=copy.deepcopy(pc)
n,m=pc.shape
for i in range(1,n-1):
for j in range(1,m-1):
x=int(pc[i+1,j+1])-int(pc[i-1,j+1])+int(pc[i+1,j-1])-int(pc[i-1,j-1])+int(2*pc[i+1,j])-int(2*pc[i-1,j])
y=int(pc[i+1,j+1])-int(pc[i+1,j-1])+int(pc[i-1,j+1])-int(pc[i-1,j-1])+int(2*pc[i,j+1])-int(2*pc[i,j-1])
c[i,j]=min(255,int(math.sqrt(x*x+y*y)))
c=cv.convertScaleAbs(c)
return c
def sobel_function(pc):
edges=cv.Sobel(pc,cv.CV_16S,1,1)
edgesh=cv.convertScaleAbs(edges)
return edgesh
###########Laplacian###############
#Laplacian算子
# 0
1
0
# 1 -4
1
# 0
1
0
def laplacian_filter_self(pc):
c=copy.deepcopy(pc)
n,m=pc.shape
for i in range(1,n-1):
for j in range(1,m-1):
c[i,j]=abs(int(pc[i+1,j])+int(pc[i-1,j])+int(pc[i,j-1])+int(pc[i,j+1])-int(4*pc[i,j]))
c[i,j]=min(255,c[i,j])
c=cv.convertScaleAbs(c)
return c
def laplacian_function(pc):
edges=cv.Laplacian(pc,-1)
return edges
################################
begin=cv.imread('E:/PC/4.jpg')
im=cv.imread('E:/PC/4.jpg',0) #读取图片并取灰度值
cv.imshow("begin",begin)
a=copy.deepcopy(im)
b=copy.deepcopy(im)
cv.imshow("initial",im) #输入图片
add_salt_noise(im,0.2) #椒盐噪声
add_gauss_noise(im,3,10,3) #高斯噪声
cv.imshow("add_noise",im)
add_gauss_noise(b,3,5,3)
cv.imshow("add_gauss_noise",b)
ima=ave_filter(im,3) #3位均值滤波
imb=ave_function(im,3) #3位系统均值滤波
imc=ave_filter(im,5) #5位均值滤波
imd=gauss_filter_self(im,5) #5位高斯滤波
ime=gauss_function(im,3) #3位系统高斯滤波
imf=mid_filter(im,3)
#3位中值滤波
img=mid_function(im,3) #3位系统中值滤波
imh=mid_filter(im,5) #5位中值滤波
cv.imshow("ave_self_3*3",ima)
cv.imshow("ave_function_3*3",imb)
cv.imshow("ave_self_5*5",imc)
cv.imshow("gauss_self_3*3",imd)
cv.imshow("gauss_function_3*3",ime)
cv.imshow("mid_self_3*3",imf)
cv.imshow("mid_function_3*3",img)
cv.imshow("mid_self_5*5",imh)
im1=sobel_filter_self(im)#Sobel算子
im2=sobel_function(im)#系统Sobel算子
im3=laplacian_filter_self(im)#laplace算子
im4=laplacian_function(im)#系统laplace算子
cv.imshow("sobel_filter_self",im1)
cv.imshow("sobel_function",im2)
cv.imshow("laplacian_filter_self",im3)
cv.imshow("laplacian_function",im4)
print("init:MSE=%.2f PSNR=%.2f SSIM=%.2f"%(mse(a,a),psnr(a,a),ssim(a,a)))
print("add_salt:MSE=%.2f PSNR=%.2f SSIM=%.2f"%(mse(im,a),psnr(im,a),ssim(im,a)))
print("a:MSE=%.2f PSNR=%.2f SSIM=%.2f"%(mse(ima,a),psnr(ima,a),ssim(ima,a)))
print("b:MSE=%.2f PSNR=%.2f SSIM=%.2f"%(mse(imb,a),psnr(imb,a),ssim(imb,a)))
print("c:MSE=%.2f PSNR=%.2f SSIM=%.2f"%(mse(imc,a),psnr(imc,a),ssim(imc,a)))
print("d:MSE=%.2f PSNR=%.2f SSIM=%.2f"%(mse(imd,a),psnr(imd,a),ssim(imd,a)))
print("e:MSE=%.2f PSNR=%.2f SSIM=%.2f"%(mse(ime,a),psnr(ime,a),ssim(ime,a)))
print("f:MSE=%.2f PSNR=%.2f SSIM=%.2f"%(mse(imf,a),psnr(imf,a),ssim(imf,a)))
print("g:MSE=%.2f PSNR=%.2f SSIM=%.2f"%(mse(img,a),psnr(img,a),ssim(img,a)))
print("h:MSE=%.2f PSNR=%.2f SSIM=%.2f"%(mse(imh,a),psnr(imh,a),ssim(imh,a)))
print("im1:MSE=%.2f PSNR=%.2f SSIM=%.2f"%(mse(im1,a),psnr(im1,a),ssim(im1,a)))
print("im2:MSE=%.2f PSNR=%.2f SSIM=%.2f"%(mse(im2,a),psnr(im2,a),ssim(im2,a)))
print("im3:MSE=%.2f PSNR=%.2f SSIM=%.2f"%(mse(im3,a),psnr(im3,a),ssim(im3,a)))
print("im4:MSE=%.2f PSNR=%.2f SSIM=%.2f"%(mse(im4,a),psnr(im4,a),ssim(im4,a)))
cv.waitKey(0)

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140
141
142
143
144
145
146
147
148
149
150
151
152
153
154
155
156
157
158
159
160
161
162
163
164
165
166
167
168
169
170
171
172
173
174
175
176
177
178
179
180
181
182
183
184
185
186
187
188
189
190
191
192
193
194
195
196
197
198
199
200
201
202
203
204
205
206
207
208
209
210
211
212
213
214
215
216
217
218
219
220
221
222
223
224
225
226
227
228
229
230
231
232
233
234
235
236
237
238
239
240
241
242
243
244
245
246
247
248
249
#########所有函数###################
Mse 两个图片均方差
Psnr 两个图片峰值信噪比
Ssim 两个图片相似度
matrix_convolve 两矩阵卷积
add_salt_noise 加椒盐噪声
add_gauss_noise	加高斯噪声
get_mid	取矩阵均值
get_ave 取矩阵中位数
mid_filter 中值滤波
mid_function 系统中值滤波函数
ave_filter 均值滤波
ave_function 系统均值滤波函数
gauss_filter_self 高斯滤波
gauss_function 系统高斯滤波函数
sobel_filter_self
Sobel算子锐化
sobel_function
系统Sobel算子锐化
laplacian_filter_self 拉普拉斯算子锐化
laplacian_function 系统拉普拉斯算子锐化
#######################################
import cv2 as cv
import numpy as np
import random
import math
import copy
###########均方误差(MSE)###########
def mse(pc1,pc2):
mse=np.mean((pc1-pc2)**2)
return float(mse)
###########峰值信噪比(PSNR)##########
# PSNR高于40dB说明图像质量极好（即非常接近原始图像）
# 在30—40dB通常表示图像质量是好的（即失真可以察觉但可以接受）
# 在20—30dB说明图像质量差
# 最后 PSNR低于20dB图像不可接受
def psnr(img1, img2):
mse = np.mean( (img1 - img2) ** 2 )
if mse == 0:
return 100
plxel_max = 255.0
return 20 * math.log10(plxel_max / math.sqrt(mse))
###########结构相似度(SSIM):range~[-1:1]##########
#-1表示完全不相似,1表示完全相似
def ssim(y_true, y_pred):
u_true = np.mean(y_true)
u_pred = np.mean(y_pred)
var_true = np.var(y_true)
var_pred = np.var(y_pred)
std_true = np.sqrt(var_true)
std_pred = np.sqrt(var_pred)
c1 = np.square(0.01 * 7)
c2 = np.square(0.03 * 7)
ssim = (2 * u_true * u_pred + c1) * (2 * std_pred * std_true + c2)
denom = (u_true ** 2 + u_pred ** 2 + c1) * (var_pred + var_true + c2)
return ssim / denom
###############矩阵卷积##############
def matrix_convolve(pc,mode):
n,m=pc.shape
c=np.zeros((n,m),dtype=np.float)
step=mode.shape[0]
mode=mode/mode.sum()
# 除于加权平均
for i in range(n):
for j in range(m):
if i-int(step/2)<0 or i+int(step/2)>=n:
c[i][j]=pc[i][j]
elif j-int(step/2)<0 or j+int(step/2)>= m:
c[i][j]=pc[i][j]
else:
x=int(step/2)
c[i][j]=np.sum(pc[i-x:i-x+step,j-x:j-x+step]*mode)
c=c.clip(0,255)
c=cv.convertScaleAbs(c) #将结果转化为8位int
return c
###############加椒盐噪声################
def add_salt_noise(pc,maybe):#图片,噪声比
n,m=pc.shape
for i in range(n):
for j in range(m):
if np.random.random(1)>maybe:
continue
else:
pc[i,j]=0
###############加高斯噪声################
def add_gauss_noise(pc,mu,sigma,k,maybe=1):#means 均值 sigma 方差
n,m=pc.shape
for i in range(n):
for j in range(m):
if np.random.random(1)<=maybe:
pc[i][j]+=k*random.gauss(mu,sigma)
pc[i][j]=min(pc[i][j],255)
pc[i][j]=max(pc[i][j],0)
##############求中值##############
def get_mid(pc,x,y,cnt):
ans=[]
for i in range(x-int(cnt/2),x+int(cnt/2)+1):
for j in range(y-int(cnt/2),y+int(cnt/2)+1):
ans.append(pc[i][j])
ans.sort()
return ans[int(len(ans)/2)+1]
##############求均值##############
def get_ave(pc,x,y,cnt):
ans=0
for i in range(x-int(cnt/2),x+int(cnt/2)+1):
for j in range(y-int(cnt/2),y+int(cnt/2)+1):
ans+=pc[i][j]
return int(ans/cnt/cnt)
############中值滤波#############
def mid_filter(pc,step): #图片,几位滤波
n,m=pc.shape
c=np.zeros((n,m),dtype="uint8")
for i in range(0,n):
for j in range(0,m):
if i-int(step/2)<0 or i+int(step/2)>=n:
c[i][j]=pc[i][j]
elif j-int(step/2)<0 or j+int(step/2)>=m:
c[i][j]=pc[i][j]
else:
c[i][j]=get_mid(pc,i,j,step)
return c
def mid_function(pc,step):
c=cv.medianBlur(pc,step)
return c
############均值滤波#############
def ave_filter(pc,step):
n,m=pc.shape
c = np.zeros((n, m), dtype="uint8")
for i in range(n):
for j in range(m):
if i - int(step / 2) < 0 or i + int(step / 2) >= n:
c[i][j] = pc[i][j]
elif j - int(step / 2) < 0 or j + int(step / 2) >= m:
c[i][j] = pc[i][j]
else:
c[i][j] = get_ave(pc,i,j,step)
return c
def ave_function(pc,step):
c=cv.blur(pc,(step,step))
return c
###########高斯平滑#############
def gauss_filter_self(pc,step):
if step==3:
mode=np.array([[1,2,1],[2,4,2],[1,2,1]])
if step==5:
mode=np.array([[1,4,7,4,1],[4,16,26,16,4],[7,26,41,26,7],[4,16,26,16,4],[1,4,7,4,1]])
return matrix_convolve(pc,mode)
def gauss_function(pc,step):
c=cv.GaussianBlur(pc,(step,step),0)
return c
###########Sobel###############
#sobel算子
# Gx =-1 0 1
Gy =1 2 1
#
-2 0 2
0 0 0
#
-1 0 1
-1-2-1
def sobel_filter_self(pc):
c=copy.deepcopy(pc)
n,m=pc.shape
for i in range(1,n-1):
for j in range(1,m-1):
x=int(pc[i+1,j+1])-int(pc[i-1,j+1])+int(pc[i+1,j-1])-int(pc[i-1,j-1])+int(2*pc[i+1,j])-int(2*pc[i-1,j])
y=int(pc[i+1,j+1])-int(pc[i+1,j-1])+int(pc[i-1,j+1])-int(pc[i-1,j-1])+int(2*pc[i,j+1])-int(2*pc[i,j-1])
c[i,j]=min(255,int(math.sqrt(x*x+y*y)))
c=cv.convertScaleAbs(c)
return c
def sobel_function(pc):
edges=cv.Sobel(pc,cv.CV_16S,1,1)
edgesh=cv.convertScaleAbs(edges)
return edgesh
###########Laplacian###############
#Laplacian算子
# 0
1
0
# 1 -4
1
# 0
1
0
def laplacian_filter_self(pc):
c=copy.deepcopy(pc)
n,m=pc.shape
for i in range(1,n-1):
for j in range(1,m-1):
c[i,j]=abs(int(pc[i+1,j])+int(pc[i-1,j])+int(pc[i,j-1])+int(pc[i,j+1])-int(4*pc[i,j]))
c[i,j]=min(255,c[i,j])
c=cv.convertScaleAbs(c)
return c
def laplacian_function(pc):
edges=cv.Laplacian(pc,-1)
return edges
################################
begin=cv.imread('E:/PC/4.jpg')
im=cv.imread('E:/PC/4.jpg',0) #读取图片并取灰度值
cv.imshow("begin",begin)
a=copy.deepcopy(im)
b=copy.deepcopy(im)
cv.imshow("initial",im) #输入图片
add_salt_noise(im,0.2) #椒盐噪声
add_gauss_noise(im,3,10,3) #高斯噪声
cv.imshow("add_noise",im)
add_gauss_noise(b,3,5,3)
cv.imshow("add_gauss_noise",b)
ima=ave_filter(im,3) #3位均值滤波
imb=ave_function(im,3) #3位系统均值滤波
imc=ave_filter(im,5) #5位均值滤波
imd=gauss_filter_self(im,5) #5位高斯滤波
ime=gauss_function(im,3) #3位系统高斯滤波
imf=mid_filter(im,3)
#3位中值滤波
img=mid_function(im,3) #3位系统中值滤波
imh=mid_filter(im,5) #5位中值滤波
cv.imshow("ave_self_3*3",ima)
cv.imshow("ave_function_3*3",imb)
cv.imshow("ave_self_5*5",imc)
cv.imshow("gauss_self_3*3",imd)
cv.imshow("gauss_function_3*3",ime)
cv.imshow("mid_self_3*3",imf)
cv.imshow("mid_function_3*3",img)
cv.imshow("mid_self_5*5",imh)
im1=sobel_filter_self(im)#Sobel算子
im2=sobel_function(im)#系统Sobel算子
im3=laplacian_filter_self(im)#laplace算子
im4=laplacian_function(im)#系统laplace算子
cv.imshow("sobel_filter_self",im1)
cv.imshow("sobel_function",im2)
cv.imshow("laplacian_filter_self",im3)
cv.imshow("laplacian_function",im4)
print("init:MSE=%.2f PSNR=%.2f SSIM=%.2f"%(mse(a,a),psnr(a,a),ssim(a,a)))
print("add_salt:MSE=%.2f PSNR=%.2f SSIM=%.2f"%(mse(im,a),psnr(im,a),ssim(im,a)))
print("a:MSE=%.2f PSNR=%.2f SSIM=%.2f"%(mse(ima,a),psnr(ima,a),ssim(ima,a)))
print("b:MSE=%.2f PSNR=%.2f SSIM=%.2f"%(mse(imb,a),psnr(imb,a),ssim(imb,a)))
print("c:MSE=%.2f PSNR=%.2f SSIM=%.2f"%(mse(imc,a),psnr(imc,a),ssim(imc,a)))
print("d:MSE=%.2f PSNR=%.2f SSIM=%.2f"%(mse(imd,a),psnr(imd,a),ssim(imd,a)))
print("e:MSE=%.2f PSNR=%.2f SSIM=%.2f"%(mse(ime,a),psnr(ime,a),ssim(ime,a)))
print("f:MSE=%.2f PSNR=%.2f SSIM=%.2f"%(mse(imf,a),psnr(imf,a),ssim(imf,a)))
print("g:MSE=%.2f PSNR=%.2f SSIM=%.2f"%(mse(img,a),psnr(img,a),ssim(img,a)))
print("h:MSE=%.2f PSNR=%.2f SSIM=%.2f"%(mse(imh,a),psnr(imh,a),ssim(imh,a)))
print("im1:MSE=%.2f PSNR=%.2f SSIM=%.2f"%(mse(im1,a),psnr(im1,a),ssim(im1,a)))
print("im2:MSE=%.2f PSNR=%.2f SSIM=%.2f"%(mse(im2,a),psnr(im2,a),ssim(im2,a)))
print("im3:MSE=%.2f PSNR=%.2f SSIM=%.2f"%(mse(im3,a),psnr(im3,a),ssim(im3,a)))
print("im4:MSE=%.2f PSNR=%.2f SSIM=%.2f"%(mse(im4,a),psnr(im4,a),ssim(im4,a)))
cv.waitKey(0)
