Opencv实现绿幕视频背景替换功能

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
#include<opencv2opencv.hpp>
using namespace cv;
Mat replace_and_blend(Mat &frame, Mat&mask);
Mat background,frame, hsv, mask,result;
int main(int arc, char** argv) {
 background = imread("2.jpg");
 namedWindow("input", CV_WINDOW_AUTOSIZE);
 imshow("src", background);

 VideoCapture capture;
 capture.open("1.mp4");

    CvSize size = cvSize(capture.get(CV_CAP_PROP_FRAME_WIDTH), capture.get(CV_CAP_PROP_FRAME_HEIGHT));
 VideoWriter writer("qq.avi", VideoWriter::fourcc('M', 'J', 'P', 'G'),12.0, size, true);

 while (capture.read(frame)) {
 imshow("input", frame);
 cvtColor(frame, hsv, CV_BGR2HSV);
 inRange(hsv, Scalar(35, 43, 46), Scalar(77, 255, 255), mask);//颜色过滤，得到mask绿色部分为1，其它部分都为0

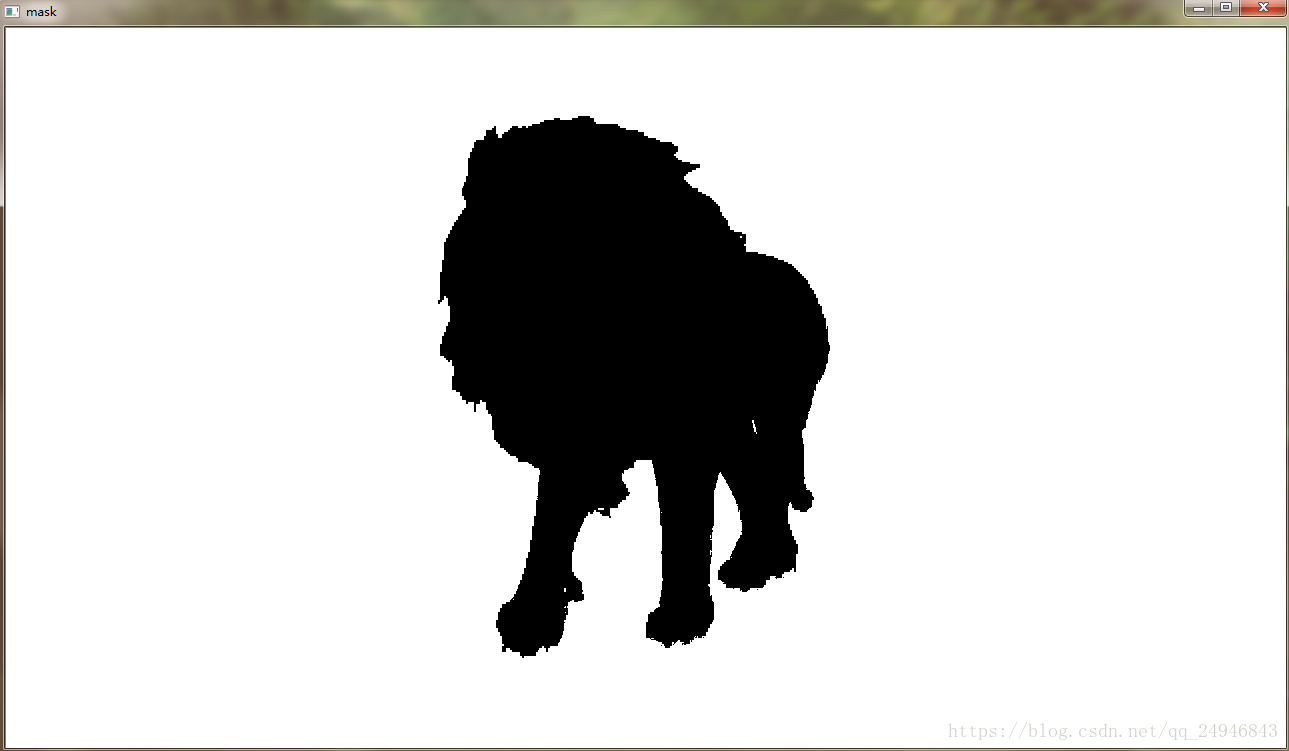

 imshow("mask", mask);
 Mat kernel = getStructuringElement(MORPH_RECT,Size(3,3));
 morphologyEx(mask, mask, MORPH_DILATE, kernel);
 GaussianBlur(mask, mask, Size(3, 3), 0, 0);//0,0会根据Size自动算的

 result = replace_and_blend(frame, mask);
        writer.write(result);
 char c = waitKey(1);
 if (c == 27) {
  break;
 }
 imshow("input", frame);
 imshow("result", result);
 }
 waitKey(0);
 return 0;
}

//通过颜色过滤得到的掩码为单通道图像
Mat replace_and_blend(Mat &frame, Mat &mask)
{
 int rows = frame.rows;
 int cols = frame.cols;
 result = Mat::zeros(frame.size(), frame.type());
 for (int i = 0; i < rows; i++)
 {
 uchar *pf = frame.ptr(i);//人物前景
 uchar *pm = mask.ptr(i);//掩码
 uchar *pb = background.ptr(i);//背景
 uchar *pr = result.ptr(i);//结果

 for (int j = 0; j < cols; j++)
 {
  pm++;
  if (*pm == 255)//背景
  {
  pr[3 * j] = pb[3 * j];
  pr[3 * j + 1] = pb[3 * j + 1];
  pr[3 * j + 2] = pb[3 * j + 2];
  }
  else if (*pm == 0)//前景
  {
  pr[3 * j] = pf[3 * j];
  pr[3 * j + 1] = pf[3 * j + 1];
  pr[3 * j + 2] = pf[3 * j + 2];
  }
  else //融合部分
  {
  int m = *pm;
  double w = m / 255.0;
  pr[3 * j] = w *pb[3 * j] + (1-w) * pf[3 * j];
  pr[3 * j + 1] = w * pb[3 * j + 1] + (1-w) * pf[3 * j + 1];
  pr[3 * j + 2] = w * pb[3 * j + 2] + (1-w) * pf[3 * j + 2];
                //或者取前景和背景的平均值
  /*pr[3 * j] = (pb[3 * j] + pf[3 * j])/2;
  pr[3 * j + 1] = (pb[3 * j + 1] + pf[3 * j + 1])/2;
  pr[3 * j + 2] = (pb[3 * j + 2] + pf[3 * j + 2])/2;*/
  }
 }
 }
 return result;
}


/*
Mat replace_and_blend(Mat &frame, Mat&mask) {
 result = Mat::zeros(frame.size(), frame.type());
 int h = frame.rows;
 int w = frame.cols;
 int dims = frame.channels();
 int m ;
 double wt ;
 int b , g, r;
 int b1, g1, r1;
 int b2 , g2, r2 ;
 //指针操作速度最快，直接访问地址
 for (int row = 0; row < h; row++) {
 uchar* current = frame.ptr<uchar>(row);
 uchar* bgrow = background.ptr<uchar>(row);
 uchar* maskrow = mask.ptr<uchar>(row);
 uchar* targetrow = result.ptr<uchar>(row);
 for (int col = 0; col < w; col++) {
  m = *maskrow++;
  if (m == 255) {//背景
  *targetrow++ = *bgrow++;
  *targetrow++ = *bgrow++;
  *targetrow++ = *bgrow++;
  current += 3;
  }
  else if (m == 0) {//前景
  *targetrow++ = *current++;
  *targetrow++ = *current++;
  *targetrow++ = *current++;
  bgrow += 3;
  }
  else {
  b1 = *bgrow++;
  g1 = *bgrow++;
  r1 = *bgrow++;
  b2 = *current++;
  g2 = *current++;
  r2 = *current++;
  wt = m/ 255.0;
  b = wt*b1 + (1 - wt)*b2;
  g = wt*g1 + (1 - wt)*g2;
  r = wt*r1 + (1 - wt)*r2;
  *targetrow++ = b;
  *targetrow++ = g;
  *targetrow++ = r;
  }
 }
 }
 return result;
}
*/
