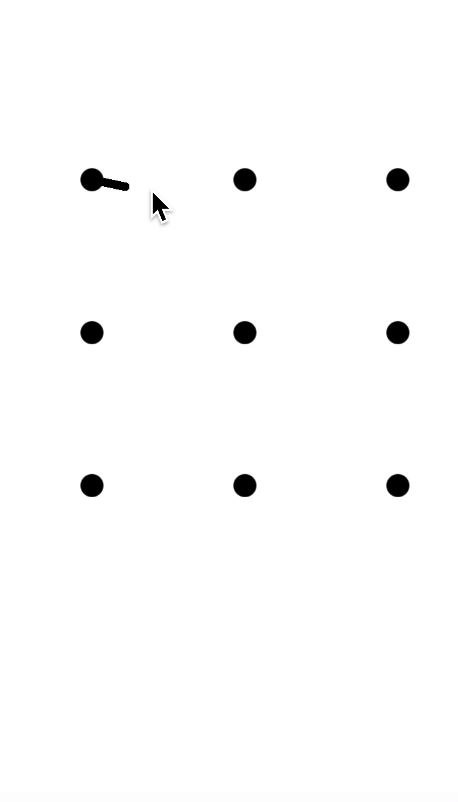

Unity实现移动端手势解锁功能

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140
141
142
143
144
145
146
147
148
149
150
151
152
153
154
155
156
157
158
159
160
161
162
163
164
165
166
167
168
169
170
171
172
173
174
175
176
177
178
179
180
181
182
183
184
185
186
187
188
189
190
191
192
193
194
195
196
197
198
199
200
201
202
203
204
205
206
207
208
209
210
211
212
213
214
215
216
217
218
219
220
221
222
223
224
225
226
227
228
229
230
231
232
233
234
235
236
237
238
239
using UnityEngine;
using System.Collections.Generic;
using UnityEngine.EventSystems;

public class GestureUnlock : MonoBehaviour, IBeginDragHandler, IEndDragHandler, IDragHandler
{
 private List<GameObject> lrList = new List<GameObject>();//存储每个LineRenderer的列表
 private List<GameObject> passwordButtonList = new List<GameObject>();//存储每个密码按钮的列表

 private Vector3 startPos;//鼠标开始的位置

 //线的参数
 public Color startColor = Color.black;//线开始的颜色
 public Color endColor = Color.black;//线结束的颜色
 public float width = 0.1f;//线宽度
 public int vertices = 90;//顶点数

 public string password;//密码
 private string inputPassword;//输入的密码

 /// <summary>
 /// 刷新线段(拖拽过程中一直刷新)
 /// </summary>
 private void RefreshLine()
 {
 if (passwordButtonList.Count == 0)
 {
 return;
 }

 LineRenderer uncompleteLR = SpawnLineRenderer(false);
 InitLine(uncompleteLR);
 DrawLine(uncompleteLR, startPos, ScreenToWorld(Input.mousePosition));
 ClearLine(false);
 }

 /// <summary>
 /// 绘制已经连线完成的线段
 /// </summary>
 private void DrawCompleteLine(Vector3 endPos)
 {
 LineRenderer completeLR = SpawnLineRenderer(true);
 InitLine(completeLR);
 DrawLine(completeLR, startPos, endPos);
 }

 /// <summary>
 /// 记录密码
 /// </summary>
 /// <param name="_passwordBlock">密码块物体</param>
 private void RecordPassword(GameObject _passwordButton)
 {
 passwordButtonList.Add(_passwordButton);
 inputPassword += _passwordButton.name;

 startPos = _passwordButton.transform.position;//记录起始位置
 }

 /// <summary>
 /// 删除密码
 /// </summary>
 private void DeletePassword()
 {
 passwordButtonList.Clear();
 inputPassword = "";
 }

 public void OnBeginDrag(PointerEventData eventData)
 {
 ClearLine(true);//每次开始拖拽时清空所有线段

 GameObject go = eventData.pointerEnter;
 if (go != null && go.tag == "PasswordButton" && IsExistInPasswordBlockList(go) == false)
 {
 RecordPassword(go);//记录密码
 }
 }

 public void OnEndDrag(PointerEventData eventData)
 {
 ClearUnCompleteLine();//清除未完成的线段
 }

 public void OnDrag(PointerEventData eventData)
 {
 RefreshLine();//刷新线段(拖拽过程中一直刷新)

 GameObject go = eventData.pointerEnter;
 if (passwordButtonList.Count != 0 && go != null && go.tag == "PasswordButton" && IsExistInPasswordBlockList(go) == false)
 {
 DrawCompleteLine(go.transform.position);//绘制已经连线完成的线段

 RecordPassword(go);//记录密码
 }
 }

 #region 线段相关操作

 /// <summary>
 /// 生成LineRenderer
 /// </summary>
 private LineRenderer SpawnLineRenderer(bool isCompleteLine)
 {
 LineRenderer uncompleteLR = new GameObject().AddComponent<LineRenderer>();
 uncompleteLR.material = new Material(Shader.Find("Sprites/Default"));
 lrList.Add(uncompleteLR.gameObject);
 if (isCompleteLine)
 {
 uncompleteLR.gameObject.name = "CompleteLine";
 }
 else
 {
 uncompleteLR.gameObject.name = "UncompleteLine";
 }
 return uncompleteLR;
 }

 /// <summary>
 /// 初始化线
 /// </summary>
 private void InitLine(LineRenderer _uncompleteLR)
 {
 _uncompleteLR.startColor = startColor;
 _uncompleteLR.endColor = endColor;
 _uncompleteLR.startWidth = width;
 _uncompleteLR.endWidth = width;
 _uncompleteLR.numCapVertices = vertices;
 _uncompleteLR.numCornerVertices = vertices;
 }

 /// <summary>
 /// 两点绘制一条直线
 /// </summary>
 /// <param name="_uncompleteLR">线段</param>
 /// <param name="startPos">起始位置</param>
 /// <param name="endPos">结束位置</param>
 private void DrawLine(LineRenderer _uncompleteLR, Vector3 startPos, Vector3 endPos)
 {
 _uncompleteLR.positionCount = 2;
 startPos.z = 0;
 endPos.z = 0;
 _uncompleteLR.SetPosition(0, startPos);
 _uncompleteLR.SetPosition(1, endPos);
 }

 /// <summary>
 /// 清除线段
 /// </summary>
 /// <param name="clearAll">是否清除全部线段</param>
 private void ClearLine(bool clearAll)
 {
 if (lrList.Count == 0)
 {
 return;
 }

 for (int i = lrList.Count - 1; i >= 0; i--)
 {
 GameObject go = lrList[i];
 if (clearAll)
 {
 Destroy(go);
 lrList.Remove(go);
 }
 else
 {
 if (go.name != "CompleteLine" && i != lrList.Count - 1)
 {
  Destroy(go);
  lrList.Remove(go);
 }
 }
 }

 if (clearAll)
 {
 DeletePassword();
 }
 }

 /// <summary>
 /// 清除未完成的线段(每次拖拽结束时清除)
 /// </summary>
 private void ClearUnCompleteLine()
 {
 if (lrList.Count == 0)
 {
 return;
 }

 GameObject go = lrList[lrList.Count - 1];
 Destroy(go);
 lrList.Remove(go);
 }

 #endregion

 #region 工具方法

 /// <summary>
 /// 当前密码块是否存在于密码块列表中
 /// </summary>
 /// <param name="_passwordBlock">密码块</param>
 private bool IsExistInPasswordBlockList(GameObject _passwordButton)
 {
 if (passwordButtonList.Count == 0)
 {
 return false;
 }

 if (passwordButtonList.Contains(_passwordButton))
 {
 return true;
 }
 else
 {
 return false;
 }
 }

 /// <summary>
 /// 屏幕坐标转世界坐标
 /// </summary>
 /// <param name="screenPos">屏幕坐标位置</param>
 /// <param name="camera">相机</param>
 /// <returns>转换后的世界坐标</returns>
 private Vector3 ScreenToWorld(Vector3 screenPos, Camera camera = null)
 {
 if (camera == null)
 {
 camera = Camera.main;
 }
 Vector3 _screenPos = new Vector3(screenPos.x, screenPos.y, -camera.transform.position.z);
 Vector3 v = camera.ScreenToWorldPoint(_screenPos);
 return v;
 }

 #endregion
}
