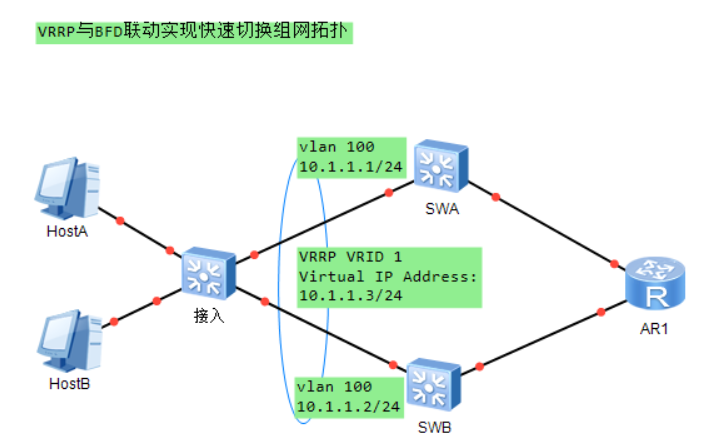

VRRP与BFD联动实现快速切换组网拓扑与配置

 接入:
u t m
sys
vlan 100
quit
int g0/0/1
port link hybrid
port hybrid pvid vlan 100
port hybrid untagged vlan 100
stp dis
int g0/0/2
port link hybrid
port hybrid pvid vlan 100
port hybrid untagged vlan 100
stp dis
quit
quit
save
y
--------------------------------------------------------------------------
SWA:
u t m
sys
vlan 100
quit
int vlan 100
ip add 10.1.1.1 24
int g0/0/1
port link hybrid
port hybrid pvid vlan 100
port hybrid untagged vlan 100
stp dis
quit
ospf 1
area 0
net 10.1.1.0 0.0.0.255
quit
quit
int vlan 100
vrrp vrid 1 virtual-ip 10.1.1.3
vrrp vrid 1 priorirty 120
vrrp vrid 1 preempt-mode timer delay 10
qyut
bfd
quit
bfd atob peer-ip 10.1.1.2 int vlan 100
discriminator local 1
discriminator remote 2
min-rx-interval 100
min-tx-interval 100
commit
quit
quit
save
y
----------------------------------------------------------------------
SWB:
u t m
sys
vlan 100
quit
int vlan 100
ip add 10.1.1.2 24
int g0/0/1
port link hybrid
port hybrid pvid vlan 100
port hybrid untagged vlan 100
stp dis
quit
ospf 1
area 0
net 10.1.1.0 0.0.0.255
quit
int vlan 100
vrrp vrid 1 virtual-ip 10.1.1.3
quit
bfd
quit
bfd btoa bind peer-ip 10.1.1.1 int vlan 100
discriminator local 2
discriminator remote 1
min-rx-interval 100
min-tx-interval 100
commit
quit
int vlan 100
vrrp vrid 1 track bfd-session 2 increased 40
quit
quit
save
y
--------------------------------------------------------------------
dis vrrp //查看vrrp配置信息
dis bfd session all //查看bfd状态信息
