概述

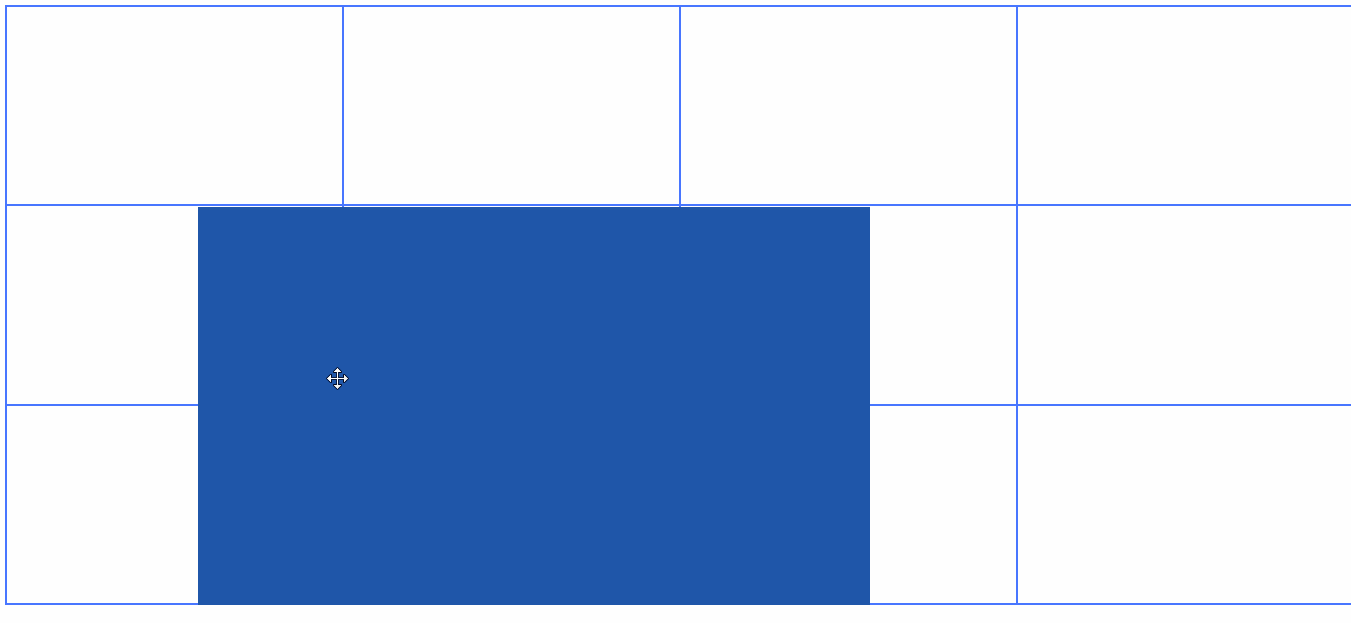

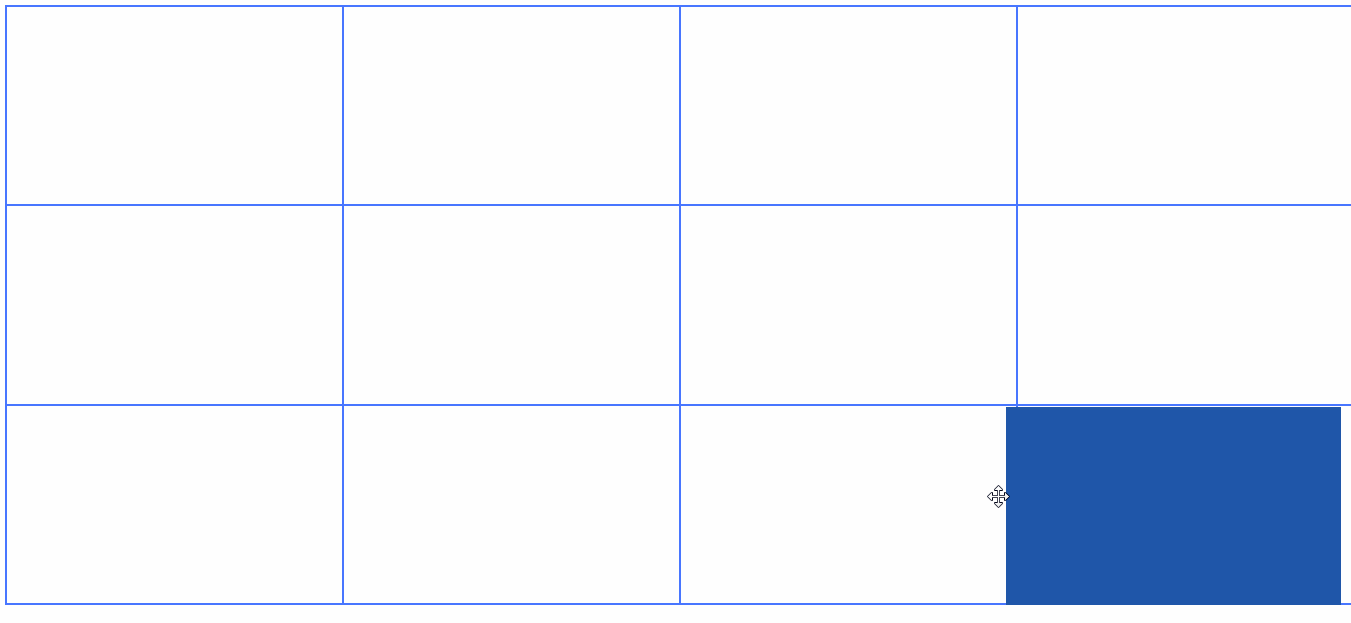

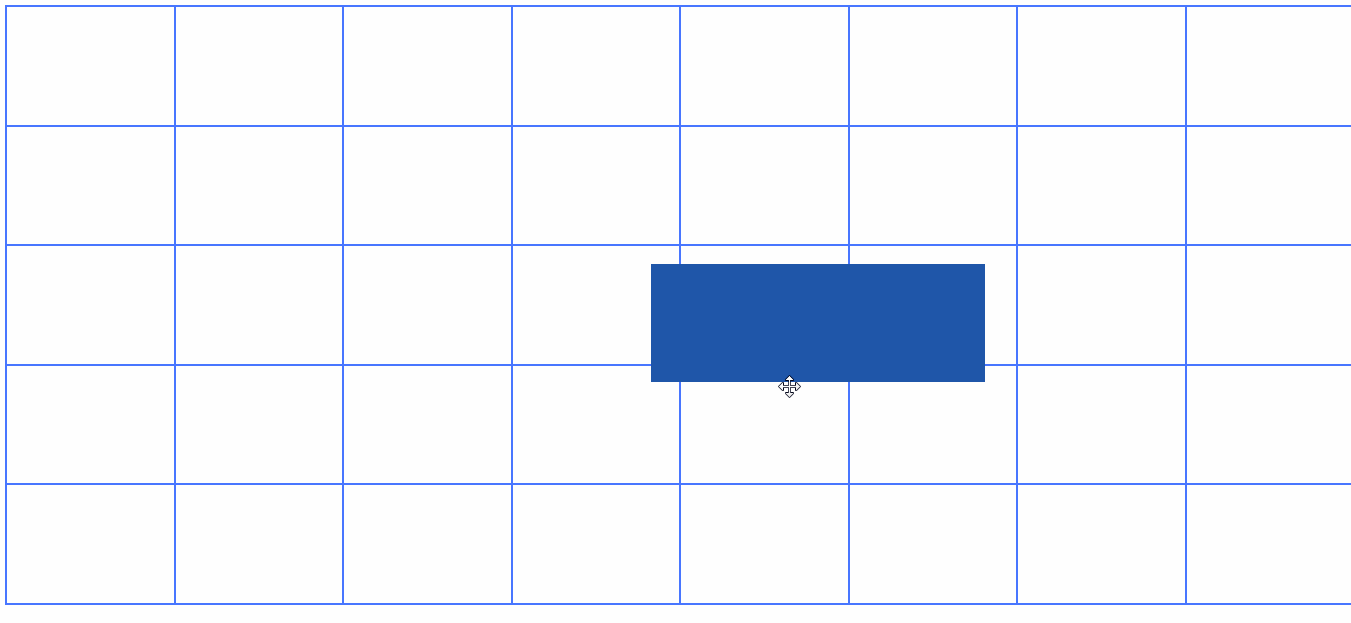

一、需求： 将页面动态等分为m*n块单元，可添加、删除单元面板，单元面板可自由拖动

二、参数说明：

$.fn.moduleConfig

参数	说明	是否必填
moveArea	面板移动区域	是
x	行数	是
y	列数	是
callbackSingleSize	回调（返回单元面板的宽高）	否
onMouseup	回调（保存单元面板拖动后的位置信息）	否

$.fn.moduleAdd

参数	说明	是否必填
id	面板id	是
databaseId	数据库存储id	否
positionX	面板行位置（二维数组）	是
positionY	面板列位置（二维数组）	是
size	面板大小（占用行数,占用列数）	是
html	面板html内容	否
callback	回调（保存面板添加后的位置信息）	否

$.fn.moduleDelete

参数	说明	是否必填
id	面板id	是
callback	回调（携带databaseId供数据库删除使用）	否

三、代码文件
index.html

<!DOCTYPE html>
<html>
	<head>
		<meta charset="utf-8" />
		<title></title>
		<script type="text/javascript" src="js/jquery.min.js" ></script>
		<script type="text/javascript" src="js/jquery.module-config.js" ></script>
	</head>
	<body>
		<div id="content" style="margin:0px;position:relative;width:100%;height:600px;"></div>
		<script>
			$.fn.moduleConfig({
				moveArea : $("#content"),
				x : 3,
				y : 4,
				callbackSingleSize : function(_singleWidth,_singleHeight){
				},
				onMouseup : function(obj){
				}
			});
			$.fn.moduleAdd({
				id : 'module1',
				databaseId : '',
				positionX : 0,
				positionY : 0,
				size : '1,1',
				html : '',
				callback : function(obj,initModuleKey){

				}
			});
		</script>
	</body>
</html>

jquery.module-config.js

(function($){
	$.fn.moduleConfig = function(method) {
        if (methods[method]) {
            return methods[method].apply(this, Array.prototype.slice.call(
                    arguments, 1));
        } else if (typeof method === 'object' || !method) {
            return methods.init.apply(this, arguments);
        } else {
            $.error('Method ' + method + ' does not exist on jQuery.moduleConfig');
        }
    };
    $.fn.moduleAdd = function(method) {
        if (methods[method]) {
            return methods[method].apply(this, Array.prototype.slice.call(
                    arguments, 1));
        } else if (typeof method === 'object' || !method) {
            return methods.initModuleAdd.apply(this, arguments);
        } else {
            $.error('Method ' + method + ' does not exist on jQuery.moduleAdd');
        }
    };
    $.fn.moduleDelete = function(method) {
    	if (methods[method]) {
    		return methods[method].apply(this, Array.prototype.slice.call(
    				arguments, 1));
    	} else if (typeof method === 'object' || !method) {
    		return methods.initModuleDelete.apply(this, arguments);
    	} else {
    		$.error('Method ' + method + ' does not exist on jQuery.moduleDelete');
    	}
    };
    $.fn.moduleConfig._default = {

	};
    $.fn.moduleAdd._default = {

    };
	var methods = {
		_options : null,
		_targetDom : null,
		_moveArea : null,
		_areaWidth : null,
		_areaHeight : null,
		_singleWidth : null,
		_singleHeight : null,
		_xLen : null,
		_yLen : null,
		_default_zIndex : 8,
		_containerArr : [],
		init : function(_options){
			_options = $.extend($.fn.moduleConfig._default,_options);
	    	methodsDefault._options = _options;
	    	methodsDefault._initMoveArea();
		},
		initModuleAdd : function(_addOptions){
			_addOptions = $.extend($.fn.moduleAdd._default,_addOptions);
	    	var _xLen = _addOptions.size.split(",")[0];
	    	var _yLen = _addOptions.size.split(",")[1];
	    	if(!_addOptions.positionX){
	    		_addOptions.positionX = 0;
	    	}
	    	if(!_addOptions.positionY){
	    		_addOptions.positionY = 0;
	    	}
	    	var _positionTop = methodsDefault._singleHeight*_addOptions.positionX;
	    	var _positionLeft = methodsDefault._singleWidth*_addOptions.positionY;
	    	var html = '<div module-target="module" id="'+_addOptions.id+'" module-key="'+_addOptions.databaseId+'" module-size="'+_addOptions.size+'" style="cursor:move;position:absolute;top:'+_positionTop+'px;left:'+_positionLeft+'px;width:'+methodsDefault._singleWidth*_yLen+'px;height:'+methodsDefault._singleHeight*_xLen+'px;z-index:'+(methodsDefault._default_zInde+1)+';">';
	    	html += _addOptions.html;
	    	html += '</div>';
	    	methodsDefault._moveArea.append(html);
	    	methodsDefault._targetDom = $("div[module-target='module']");
	    	methodsDefault._initMoveDivCss();
			methodsDefault._initTargetDivMoveEvent();
			//methodsDefault._resetModuleContainer();
			if(_addOptions.callback){
				_addOptions.callback(_addOptions,function(moduleKey){
					$("#"+_addOptions.id).attr("module-key",moduleKey);
				});
			}
		},
		initModuleDelete : function(_delOptions){
			var _deleteDiv = $("#"+_delOptions.id);
			var moduleKey = _deleteDiv.attr("module-key");
			var _positionX = _deleteDiv.position().top;
            var _positionY = _deleteDiv.position().left;
            var _containerX = Math.round(_positionX/methodsDefault._singleHeight);
            var _containerY = Math.round(_positionY/methodsDefault._singleWidth);
			$("#"+_delOptions.id).remove();
			//methodsDefault._resetModuleContainer();
			if(_delOptions.callback){
				_delOptions.callback(moduleKey);
			}
		},
		_initMoveArea : function(){
			var _options = methodsDefault._options;
			methodsDefault._moveArea = _options.moveArea;
			methodsDefault._areaWidth = methodsDefault._moveArea.width();
			methodsDefault._areaHeight = methodsDefault._moveArea.height();
			methodsDefault._xLen = _options.x*1;
			methodsDefault._yLen = _options.y*1;
			methodsDefault._singleWidth = Math.floor(methodsDefault._areaWidth/methodsDefault._yLen);
			methodsDefault._singleHeight = Math.floor(methodsDefault._areaHeight/methodsDefault._xLen);
			methodsDefault._initContainerArr();
			methodsDefault._initModuleGridLines();
			if(_options.callbackSingleSize){
				_options.callbackSingleSize(methodsDefault._singleWidth,methodsDefault._singleHeight);
			}
		},
		_initMoveDivCss : function(){
			var _targetDom = methodsDefault._targetDom;
			methodsDefault._targetDom.each(function(){
				var size = $(this).attr("module-size");
				$(this).width(size.split(",")[1]*1*methodsDefault._singleWidth-2).height(size.split(",")[0]*1*methodsDefault._singleHeight-2);
			});
		},
		_initTargetDivMoveEvent : function(){
			var _origionX = "";
			var _origionY = "";
			methodsDefault._targetDom.each(function(){
				var _moveDiv = $(this);
				var mouseMoveFlag = false;
				_moveDiv.unbind('mousedown').bind('mousedown',function(event) {
					 if(event.target.tagName!="INPUT"){//input标签会使元素失去mouseup事件
						 _origionX = _moveDiv.position().left;
			             _origionY = _moveDiv.position().top;
			             var e = event || window.event;
			             _moveDiv.css({"cursor":"move","z-index":"20"});
			             var x = e.pageX - _moveDiv.position().left;
			             var y = e.pageY - _moveDiv.position().top;
			             methodsDefault._moveArea.unbind('mousemove').bind('mousemove', function(event) {
			            	 mouseMoveFlag = true;
			            	 _moveDiv.css({"cursor":"move","z-index":"30"});
			                 var ev = event || window.event;
			                 $("div[module-target='grid-line']").show();
			                 var abs_x = ev.pageX - x;
			                 var abs_y = ev.pageY - y;
			                 if(abs_x < 0){
			                 	abs_x = 0;
			                 }else if(abs_x > methodsDefault._moveArea.width()- _moveDiv.width()){
			                 	abs_x = methodsDefault._moveArea.width()- _moveDiv.width();
			                 }
			                 if(abs_y < 0){
			                 	abs_y = 0;
			                 }else if(abs_y > methodsDefault._moveArea.height() - _moveDiv.height()){
			                 	abs_y = methodsDefault._moveArea.height() - _moveDiv.height();
			                 }
			                 _moveDiv.css({'left': abs_x, 'top': abs_y});
			              })
						}
		         });
				_moveDiv.unbind('mouseup').bind('mouseup',function(event) {
					if(!mouseMoveFlag){  //防止浏览器f12调试查看元素时触发mouseup事件
						methodsDefault._moveArea.unbind('mousemove');
						return;
					}
					var e = event || window.event;
					var _positionX = _moveDiv.position().top;
					var _positionY = _moveDiv.position().left;
					var _containerX = Math.round(_positionX/methodsDefault._singleHeight);
					var _containerY = Math.round(_positionY/methodsDefault._singleWidth);
					_moveDiv.css({'left': _containerY*methodsDefault._singleWidth+2,'top': _containerX*methodsDefault._singleHeight+2});
					_moveDiv.css({'z-index':'8'});
					methodsDefault._moveArea.unbind('mousemove');
					$("div[module-target='grid-line']").hide();
					//_moveDiv.css("z-index",methodsDefault._default_zIndex + methodsDefault._containerArr[_containerX][_containerY]);
					//methodsDefault._resetModuleContainer();
					if(methodsDefault._options.onMouseup){
						var mouseUpObj = {
								divName : _moveDiv.attr("id"),
								id : _moveDiv.attr("module-key"),
								x : _containerX,
								y : _containerY,
								divSize : _moveDiv.attr("module-size")
						};
						methodsDefault._options.onMouseup(mouseUpObj);
					}
				});
			});
		},
		_resetModuleContainer : function(){
			methodsDefault._initContainerArr();
			methodsDefault._targetDom.each(function(){
				var _moveDiv = $(this);
				var _moveDivSize = _moveDiv.attr("module-size");
				var _sizeX = _moveDivSize.split(",")[0];
				var _sizeY = _moveDivSize.split(",")[1];
				var _positionX = _moveDiv.position().top;
                var _positionY = _moveDiv.position().left;
                var _containerX = Math.round(_positionX/methodsDefault._singleHeight);
                var _containerY = Math.round(_positionY/methodsDefault._singleWidth);
				for(var i=0;i<_sizeX;i++){
					for(var j=0;j<_sizeY;j++){
						if(methodsDefault._containerArr[_containerX+i][_containerY+j] > 0){
							methodsDefault._containerArr[_containerX][_containerY]++;
						}else{
							methodsDefault._containerArr[_containerX+i][_containerY+j] = 1;
						}
					}
				}
			})
		},
		_initModuleGridLines : function(){
			var color = "#4876FF";
        	var html  = '<div module-target="grid-line" style="background: rgb(31, 86, 169);display:none;position:absolute;top:0;margin:0px;border-top:2px solid '+color+';border-left:2px solid '+color+';z-index:5;">';
        	    html += '     <ul style="width:'+(methodsDefault._areaWidth-2)+'px;height:'+(methodsDefault._areaHeight-2)+'px;margin:0px;padding:0px;list-style: none;">';
        	    for(var i=0;i<methodsDefault._xLen*methodsDefault._yLen;i++){
        	    	html += '     <li style="width:'+((methodsDefault._areaWidth-2)/methodsDefault._yLen-2)+'px;height:'+((methodsDefault._areaHeight-2)/methodsDefault._xLen-2)+'px;float:left;border-right:2px solid '+color+';border-bottom:2px solid '+color+';"></li>';
        	    }
        	    html += '     </ul>';
        	    html += '</div>';
        	if($("div[module-target='grid-line']").length==0){
        		methodsDefault._moveArea.append(html);
        	}
		},
		_initContainerArr : function(){
	        for(var i=0;i<methodsDefault._xLen;i++){
	        	methodsDefault._containerArr[i] = new Array();
	        	for(var j=0;j<methodsDefault._yLen;j++){
	        		methodsDefault._containerArr[i][j] = 0;
	        	}
	        }
		}
	};
	var methodsDefault = methods;
})(jQuery)
