尚硅谷2020最新版SpringCloud(H版&alibaba)框架开发教程学习一 基础篇(1):父工程及支付模块创建一. 基础篇-父工程项目的创建步骤二. 基础篇-支付模块payment创建流程

尚硅谷周阳老师的课程,还是挺不错的,这是视频地址,https://www.bilibili.com/video/BV18E411x7eT,可以跟着学习,此为个人学习笔记,备后期查看.

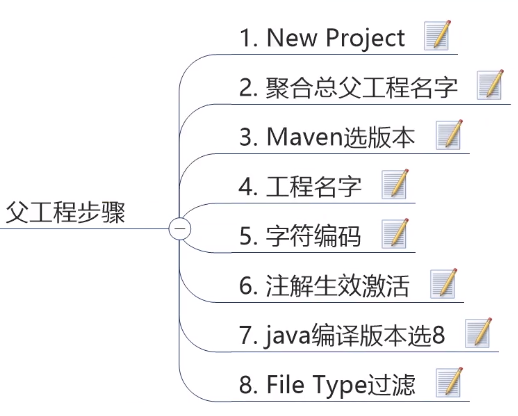

一. 基础篇-父工程项目的创建步骤

1. 选择maven工程创建

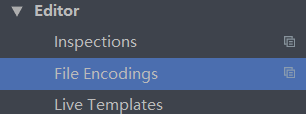

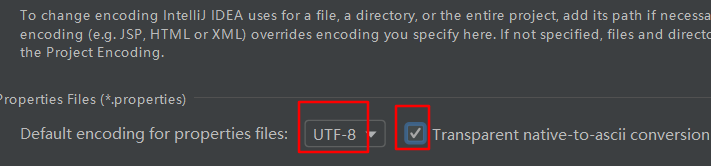

2. 字符编码环境修改

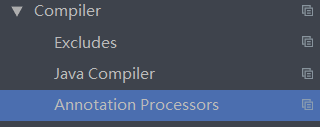

3. 注解支持

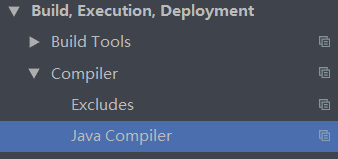

4.java编译版本选择8

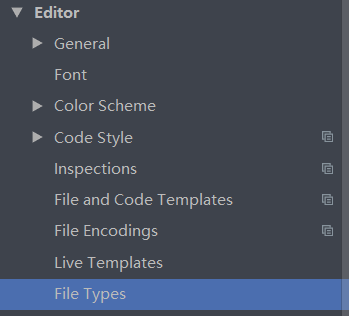

5. FileType过滤

6. 父工程POM文件的设置

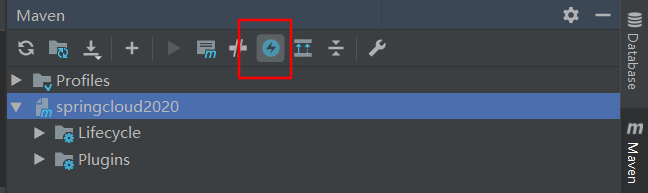

跳过单元测试设置

<!--统一管理jar包版本-->
<properties>
    <project.build.sourceEncoding>UTF-8</project.build.sourceEncoding>
    <maven.compiler.source>1.8</maven.compiler.source>
    <maven.compiler.target>1.8</maven.compiler.target>
    <junit.version>4.12</junit.version>
    <log4j.version>1.2.17</log4j.version>
    <lombok.version>1.16.18</lombok.version>
    <mysql.version>5.1.47</mysql.version>
    <druid.version>1.1.16</druid.version>
    <mybatis.spring.boot.version>1.3.2</mybatis.spring.boot.version>
  </properties>
<!-- 子模块继承之后，提供作用：锁定版本+子模块不用写groupId和version  -->
  <dependencyManagement>
    <dependencies>
        <!--  springboot 2.2.2    -->
      <dependency>
        <groupId>org.springframework.boot</groupId>
        <artifactId>spring-boot-dependencies</artifactId>
        <version>2.2.2.RELEASE</version>
        <type>pom</type>
        <scope>import</scope>
      </dependency>
        <!--  springcloud cloud Hoxton.SR1   -->
      <dependency>
        <groupId>org.springframework.cloud</groupId>
        <artifactId>spring-cloud-dependencies</artifactId>
        <version>Hoxton.SR1</version>
        <type>pom</type>
        <scope>import</scope>
      </dependency>
      <!--  springcloud cloud alibaba 2.1.0.RELEASE    -->
      <dependency>
        <groupId>com.alibaba.cloud</groupId>
        <artifactId>spring-cloud-alibaba-dependencies</artifactId>
        <version>2.1.0.RELEASE</version>
        <type>pom</type>
        <scope>import</scope>
      </dependency>
      <dependency>
        <groupId>mysql</groupId>
        <artifactId>mysql-connector-java</artifactId>
        <version>${mysql.version}</version>
      </dependency>
      <dependency>
        <groupId>com.alibaba</groupId>
        <artifactId>druid</artifactId>
        <version>${druid.version}</version>
      </dependency>
      <dependency>
        <groupId>org.mybatis.spring.boot</groupId>
        <artifactId>mybatis-spring-boot-starter</artifactId>
        <version>${mybatis.spring.boot.version}</version>
      </dependency>
      <dependency>
        <groupId>log4j</groupId>
        <artifactId>log4j</artifactId>
        <version>${log4j.version}</version>
      </dependency>
      <dependency>
        <groupId>junit</groupId>
        <artifactId>junit</artifactId>
        <version>${junit.version}</version>
      </dependency>
      <dependency>
        <groupId>org.projectlombok</groupId>
        <artifactId>lombok</artifactId>
        <version>${lombok.version}</version>
        <optional>true</optional>
      </dependency>
    </dependencies>
  </dependencyManagement>

二. 基础篇-支付模块payment创建流程

1. 新建module

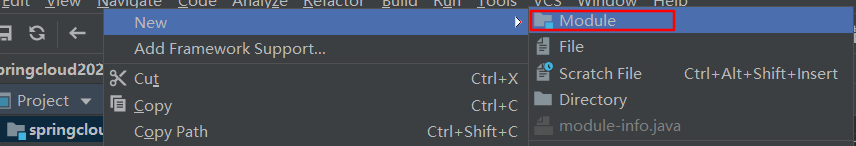

父工程项目上右键单击新建module


下一步之后注意重新修改为cloud-provide-paymen8001

2. 修改pom文件,添加相关依赖

<dependencies>
        <dependency>
            <groupId>org.springframework.cloud</groupId>
            <artifactId>spring-cloud-starter-zipkin</artifactId>
        </dependency>
        <dependency>
            <groupId>com.sc2020</groupId>
            <artifactId>cloud-api-commons</artifactId>
            <version>1.0-SNAPSHOT</version>
        </dependency>
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-web</artifactId>
        </dependency>
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-actuator</artifactId>
        </dependency>
        <dependency>
            <groupId>org.mybatis.spring.boot</groupId>
            <artifactId>mybatis-spring-boot-starter</artifactId>
        </dependency>
        <dependency>
            <groupId>com.alibaba</groupId>
            <artifactId>druid-spring-boot-starter</artifactId>
            <version>1.1.10</version>
        </dependency>
        <dependency>
            <groupId>mysql</groupId>
            <artifactId>mysql-connector-java</artifactId>
        </dependency>
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-jdbc</artifactId>
        </dependency>
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-test</artifactId>
            <scope>test</scope>
        </dependency>
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-devtools</artifactId>
            <scope>runtime</scope>
            <optional>true</optional>
        </dependency>
        <!--   引入eureka客户端     -->
        <dependency>
            <groupId>org.springframework.cloud</groupId>
            <artifactId>spring-cloud-starter-netflix-eureka-client</artifactId>
        </dependency>
    </dependencies>

3. application.yml配置

server:
  port: 8001
spring:
  application:
    name: cloud-payment-service
  datasource:
    type: com.alibaba.druid.pool.DruidDataSource
    driver-class-name: org.gjt.mm.mysql.Driver
    url: jdbc:mysql://192.168.1.9:3306/springboot2020?useUnicode=true&characterEncoding=utf-8&useSSL=false
    username: root
    password: 123456
mybatis:
  mapper-locations: classpath:mapper/*.xml
  type-aliases-package: com.iyoker.springcloud.entities #所有Entity别名类所在包

4. 创建主启动类

@SpringBootApplication
public class PaymentMain8001 {
     public static void main(String[] args) {
             SpringApplication.run(PaymentMain8001.class, args);
         }
}

5. 业务类的创建流程

1. 建表SQL

CREATE TABLE `payment`(
    `id` bigint(20) NOT NULL AUTO_INCREMENT COMMENT 'ID',
    `serial` varchar(200) DEFAULT '',
    PRIMARY KEY (`id`)
) ENGING=InnoDB AUTO_INCREMENT=1 DEFAULT CHARSET=utf8

2. entities

1.创建Payment.java类

@Data
@AllArgsConstructor
@NoArgsConstructor
public class Payment implements Serializable {
  private Long id;
  private String serial;
}

2. 创建CommonResult.java->返回前端的方法类

@Data
@AllArgsConstructor
@NoArgsConstructor
public class CommonResult<T> {
    private  Integer code;
    private String message;
    private  T data;
    public CommonResult(Integer code, String message) {
        this(code ,message,null);
    }
}

3. dao层

1. 创建PaymentDao.java

推荐使用@Mapper这个注解

@Mapper
public interface PaymentDao {
    int create(Payment payment);
    Payment getPaymentById(@Param("id")long id);
}

2.创建PaymentMapper.xml文件

<?xml version="1.0" encoding="UTF-8" ?>
<!DOCTYPE mapper
        PUBLIC "-//mybatis.org//DTD Mapper 3.0//EN"
        "http://mybatis.org/dtd/mybatis-3-mapper.dtd">
<mapper namespace="com.iyoker.springcloud.dao.PaymentDao">
    <insert id="create" parameterType="Payment" useGeneratedKeys="true" keyProperty="id">
        insert into payment(serial) values (#{serial});
    </insert>
    <resultMap id="BaseResultMap" type="com.iyoker.springcloud.entities.Payment">
        <id column="id" property="id" jdbcType="BIGINT"/>
        <id column="serial" property="serial" jdbcType="VARCHAR"/>
    </resultMap>
    <select id="getPaymentById" parameterType="Long" resultMap="BaseResultMap">
        select * from payment where  id=#{id};
    </select>
</mapper>

4.Service层

public interface PaymentService {
    int create(Payment payment);
    Payment getPaymentById(@Param("id")Long id);
}

注意添加@Service注解

@Service
public class PaymentServiceImpl  implements PaymentService {
    @Resource
    private PaymentDao paymentDao;
    @Override
    public int create(Payment payment) {
        return paymentDao.create(payment);
    }
    @Override
    public Payment getPaymentById(Long id) {
        return paymentDao.getPaymentById(id);
    }
}

5. Controller层

注意添加@RestController注解
返回前端用CommonResult类
注意注解为@PostMapping的方法上,相关参数要加@RequestBody,如create( )方法
否则插入数据为Null

@RestController
@Slf4j
public class PaymentController {
    @Resource
    private PaymentService paymentService;
    @PostMapping(value = "/payment/create")
    public CommonResult create(@RequestBody Payment payment) {
        int result = paymentService.create(payment);
        log.info("***插入结果:{}", result);
        if (result > 0) {
            return new CommonResult(200, "插入数据库成功", result);
        } else {
            return new CommonResult(444, "插入数据库失败");
        }
    }
    @GetMapping(value = "/payment/get/{id}")
    public CommonResult getPaymentById(@PathVariable("id") Long id) {
        Payment payment = paymentService.getPaymentById(id);
        log.info("***查询结果:{}", payment.toString());
        if (payment != null) {
            return new CommonResult(200, "查询成功", payment);
        } else {
            return new CommonResult(555, "查询失败,没有对应记录,查询id为:" + id);
        }
    }
}

最后
