概述

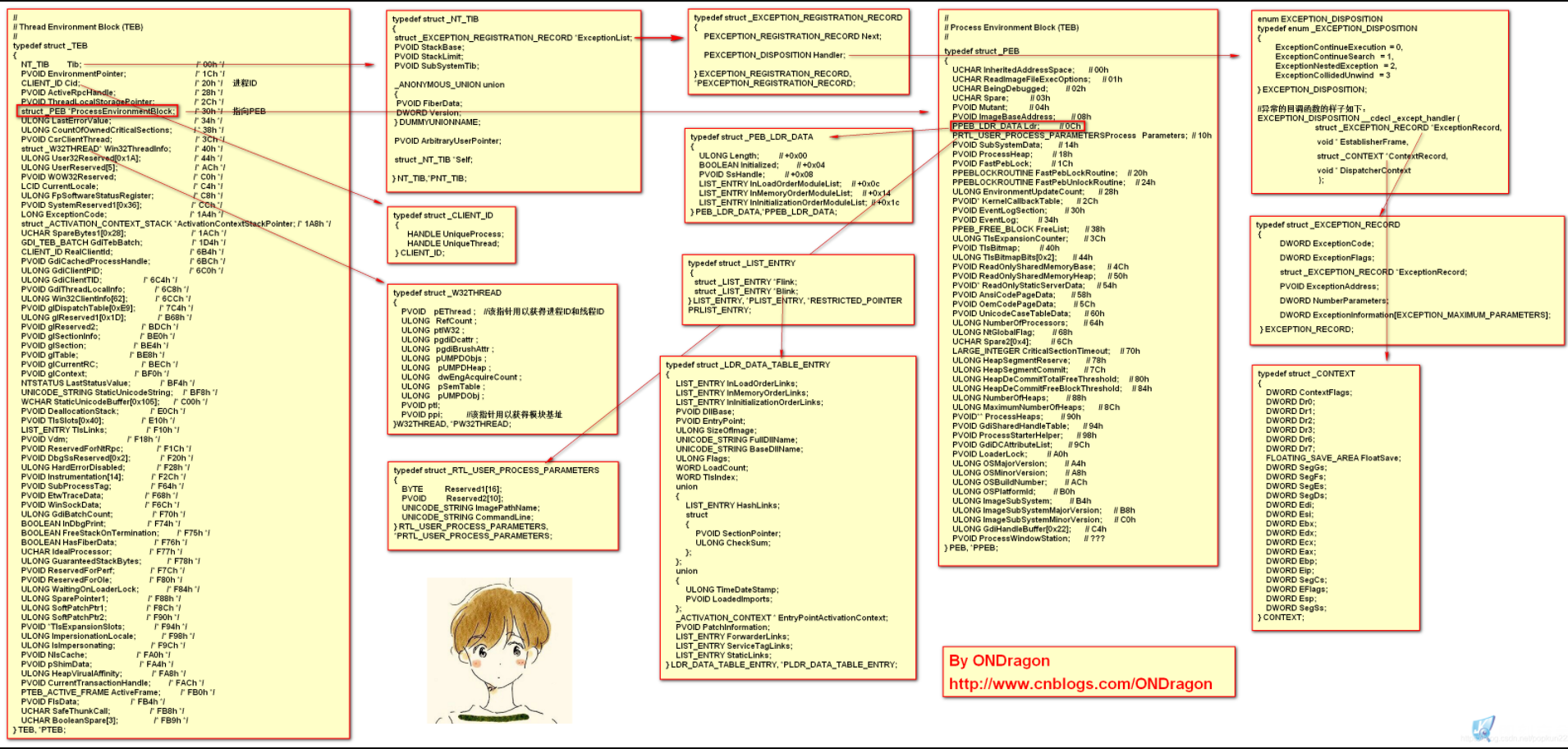

1.Windows通过TEB封装信息,TEB中包含PEB表,如图:
(站在看雪大佬巨人的肩膀上才能看得更远)
具体过程是从teb->peb->ldr->InInitializationOrderModuleList->dll模块基址,经过一系列的结构体偏移得到模块初始化装载顺序.
2.dt _TEB 可以看到PEB表偏移
kd> dt _TEB
nt!_TEB
+0x000 NtTib : _NT_TIB
+0x038 EnvironmentPointer : Ptr64 Void
+0x040 ClientId : _CLIENT_ID
+0x050 ActiveRpcHandle : Ptr64 Void
+0x058 ThreadLocalStoragePointer : Ptr64 Void
+0x060 ProcessEnvironmentBlock : Ptr64 _PEB
+0x068 LastErrorValue : Uint4B
+0x06c CountOfOwnedCriticalSections : Uint4B
+0x070 CsrClientThread : Ptr64 Void
+0x078 Win32ThreadInfo : Ptr64 Void
+0x080 User32Reserved : [26] Uint4B
+0x0e8 UserReserved : [5] Uint4B
+0x100 WOW32Reserved : Ptr64 Void
+0x108 CurrentLocale : Uint4B
+0x10c FpSoftwareStatusRegister : Uint4B
+0x110 ReservedForDebuggerInstrumentation : [16] Ptr64 Void
+0x190 SystemReserved1 : [30] Ptr64 Void
+0x280 PlaceholderCompatibilityMode : Char
+0x281 PlaceholderHydrationAlwaysExplicit : UChar
+0x282 PlaceholderReserved : [10] Char
+0x28c ProxiedProcessId : Uint4B
+0x290 _ActivationStack : _ACTIVATION_CONTEXT_STACK
+0x2b8 WorkingOnBehalfTicket : [8] UChar
+0x2c0 ExceptionCode : Int4B
+0x2c4 Padding0 : [4] UChar
+0x2c8 ActivationContextStackPointer : Ptr64 _ACTIVATION_CONTEXT_STACK
+0x2d0 InstrumentationCallbackSp : Uint8B
+0x2d8 InstrumentationCallbackPreviousPc : Uint8B
+0x2e0 InstrumentationCallbackPreviousSp : Uint8B
+0x2e8 TxFsContext : Uint4B
+0x2ec InstrumentationCallbackDisabled : UChar
+0x2ed UnalignedLoadStoreExceptions : UChar
+0x2ee Padding1 : [2] UChar
+0x2f0 GdiTebBatch : _GDI_TEB_BATCH
+0x7d8 RealClientId : _CLIENT_ID
+0x7e8 GdiCachedProcessHandle : Ptr64 Void
+0x7f0 GdiClientPID : Uint4B
+0x7f4 GdiClientTID : Uint4B
+0x7f8 GdiThreadLocalInfo : Ptr64 Void
+0x800 Win32ClientInfo : [62] Uint8B
+0x9f0 glDispatchTable : [233] Ptr64 Void
+0x1138 glReserved1 : [29] Uint8B
+0x1220 glReserved2 : Ptr64 Void
+0x1228 glSectionInfo : Ptr64 Void
+0x1230 glSection : Ptr64 Void
+0x1238 glTable : Ptr64 Void
+0x1240 glCurrentRC : Ptr64 Void
+0x1248 glContext : Ptr64 Void
+0x1250 LastStatusValue : Uint4B
+0x1254 Padding2 : [4] UChar
+0x1258 StaticUnicodeString : _UNICODE_STRING
+0x1268 StaticUnicodeBuffer : [261] Wchar
+0x1472 Padding3 : [6] UChar
+0x1478 DeallocationStack : Ptr64 Void
+0x1480 TlsSlots : [64] Ptr64 Void
+0x1680 TlsLinks : _LIST_ENTRY
+0x1690 Vdm : Ptr64 Void
+0x1698 ReservedForNtRpc : Ptr64 Void
+0x16a0 DbgSsReserved : [2] Ptr64 Void
+0x16b0 HardErrorMode : Uint4B
+0x16b4 Padding4 : [4] UChar
+0x16b8 Instrumentation : [11] Ptr64 Void
+0x1710 ActivityId : _GUID
+0x1720 SubProcessTag : Ptr64 Void
+0x1728 PerflibData : Ptr64 Void
+0x1730 EtwTraceData : Ptr64 Void
+0x1738 WinSockData : Ptr64 Void
+0x1740 GdiBatchCount : Uint4B
+0x1744 CurrentIdealProcessor : _PROCESSOR_NUMBER
+0x1744 IdealProcessorValue : Uint4B
+0x1744 ReservedPad0 : UChar
+0x1745 ReservedPad1 : UChar
+0x1746 ReservedPad2 : UChar
+0x1747 IdealProcessor : UChar
+0x1748 GuaranteedStackBytes : Uint4B
+0x174c Padding5 : [4] UChar
+0x1750 ReservedForPerf : Ptr64 Void
+0x1758 ReservedForOle : Ptr64 Void
+0x1760 WaitingOnLoaderLock : Uint4B
+0x1764 Padding6 : [4] UChar
+0x1768 SavedPriorityState : Ptr64 Void
+0x1770 ReservedForCodeCoverage : Uint8B
+0x1778 ThreadPoolData : Ptr64 Void
+0x1780 TlsExpansionSlots : Ptr64 Ptr64 Void
+0x1788 DeallocationBStore : Ptr64 Void
+0x1790 BStoreLimit : Ptr64 Void
+0x1798 MuiGeneration : Uint4B
+0x179c IsImpersonating : Uint4B
+0x17a0 NlsCache : Ptr64 Void
+0x17a8 pShimData : Ptr64 Void
+0x17b0 HeapData : Uint4B
+0x17b4 Padding7 : [4] UChar
+0x17b8 CurrentTransactionHandle : Ptr64 Void
+0x17c0 ActiveFrame : Ptr64 _TEB_ACTIVE_FRAME
+0x17c8 FlsData : Ptr64 Void
+0x17d0 PreferredLanguages : Ptr64 Void
+0x17d8 UserPrefLanguages : Ptr64 Void
+0x17e0 MergedPrefLanguages : Ptr64 Void
+0x17e8 MuiImpersonation : Uint4B
+0x17ec CrossTebFlags : Uint2B
+0x17ec SpareCrossTebBits : Pos 0, 16 Bits
+0x17ee SameTebFlags : Uint2B
+0x17ee SafeThunkCall : Pos 0, 1 Bit
+0x17ee InDebugPrint : Pos 1, 1 Bit
+0x17ee HasFiberData : Pos 2, 1 Bit
+0x17ee SkipThreadAttach : Pos 3, 1 Bit
+0x17ee WerInShipAssertCode : Pos 4, 1 Bit
+0x17ee RanProcessInit : Pos 5, 1 Bit
+0x17ee ClonedThread : Pos 6, 1 Bit
+0x17ee SuppressDebugMsg : Pos 7, 1 Bit
+0x17ee DisableUserStackWalk : Pos 8, 1 Bit
+0x17ee RtlExceptionAttached : Pos 9, 1 Bit
+0x17ee InitialThread : Pos 10, 1 Bit
+0x17ee SessionAware : Pos 11, 1 Bit
+0x17ee LoadOwner : Pos 12, 1 Bit
+0x17ee LoaderWorker : Pos 13, 1 Bit
+0x17ee SkipLoaderInit : Pos 14, 1 Bit
+0x17ee SpareSameTebBits : Pos 15, 1 Bit
+0x17f0 TxnScopeEnterCallback : Ptr64 Void
+0x17f8 TxnScopeExitCallback : Ptr64 Void
+0x1800 TxnScopeContext : Ptr64 Void
+0x1808 LockCount : Uint4B
+0x180c WowTebOffset : Int4B
+0x1810 ResourceRetValue : Ptr64 Void
+0x1818 ReservedForWdf : Ptr64 Void
+0x1820 ReservedForCrt : Uint8B
+0x1828 EffectiveContainerId : _GUID
3.dt _PEB 得到LDR链的地址偏移
kd> dt _PEB
nt!_PEB
+0x000 InheritedAddressSpace : UChar
+0x001 ReadImageFileExecOptions : UChar
+0x002 BeingDebugged : UChar
+0x003 BitField : UChar
+0x003 ImageUsesLargePages : Pos 0, 1 Bit
+0x003 IsProtectedProcess : Pos 1, 1 Bit
+0x003 IsImageDynamicallyRelocated : Pos 2, 1 Bit
+0x003 SkipPatchingUser32Forwarders : Pos 3, 1 Bit
+0x003 IsPackagedProcess : Pos 4, 1 Bit
+0x003 IsAppContainer : Pos 5, 1 Bit
+0x003 IsProtectedProcessLight : Pos 6, 1 Bit
+0x003 IsLongPathAwareProcess : Pos 7, 1 Bit
+0x004 Padding0 : [4] UChar
+0x008 Mutant : Ptr64 Void
+0x010 ImageBaseAddress : Ptr64 Void
+0x018 Ldr : Ptr64 _PEB_LDR_DATA
+0x020 ProcessParameters : Ptr64 _RTL_USER_PROCESS_PARAMETERS
+0x028 SubSystemData : Ptr64 Void
+0x030 ProcessHeap : Ptr64 Void
+0x038 FastPebLock : Ptr64 _RTL_CRITICAL_SECTION
+0x040 AtlThunkSListPtr : Ptr64 _SLIST_HEADER
+0x048 IFEOKey : Ptr64 Void
+0x050 CrossProcessFlags : Uint4B
+0x050 ProcessInJob : Pos 0, 1 Bit
+0x050 ProcessInitializing : Pos 1, 1 Bit
+0x050 ProcessUsingVEH : Pos 2, 1 Bit
+0x050 ProcessUsingVCH : Pos 3, 1 Bit
+0x050 ProcessUsingFTH : Pos 4, 1 Bit
+0x050 ProcessPreviouslyThrottled : Pos 5, 1 Bit
+0x050 ProcessCurrentlyThrottled : Pos 6, 1 Bit
+0x050 ProcessImagesHotPatched : Pos 7, 1 Bit
+0x050 ReservedBits0 : Pos 8, 24 Bits
+0x054 Padding1 : [4] UChar
+0x058 KernelCallbackTable : Ptr64 Void
+0x058 UserSharedInfoPtr : Ptr64 Void
+0x060 SystemReserved : Uint4B
+0x064 AtlThunkSListPtr32 : Uint4B
+0x068 ApiSetMap : Ptr64 Void
+0x070 TlsExpansionCounter : Uint4B
+0x074 Padding2 : [4] UChar
+0x078 TlsBitmap : Ptr64 Void
+0x080 TlsBitmapBits : [2] Uint4B
+0x088 ReadOnlySharedMemoryBase : Ptr64 Void
+0x090 SharedData : Ptr64 Void
+0x098 ReadOnlyStaticServerData : Ptr64 Ptr64 Void
+0x0a0 AnsiCodePageData : Ptr64 Void
+0x0a8 OemCodePageData : Ptr64 Void
+0x0b0 UnicodeCaseTableData : Ptr64 Void
+0x0b8 NumberOfProcessors : Uint4B
+0x0bc NtGlobalFlag : Uint4B
+0x0c0 CriticalSectionTimeout : _LARGE_INTEGER
+0x0c8 HeapSegmentReserve : Uint8B
+0x0d0 HeapSegmentCommit : Uint8B
+0x0d8 HeapDeCommitTotalFreeThreshold : Uint8B
+0x0e0 HeapDeCommitFreeBlockThreshold : Uint8B
+0x0e8 NumberOfHeaps : Uint4B
+0x0ec MaximumNumberOfHeaps : Uint4B
+0x0f0 ProcessHeaps : Ptr64 Ptr64 Void
+0x0f8 GdiSharedHandleTable : Ptr64 Void
+0x100 ProcessStarterHelper : Ptr64 Void
+0x108 GdiDCAttributeList : Uint4B
+0x10c Padding3 : [4] UChar
+0x110 LoaderLock : Ptr64 _RTL_CRITICAL_SECTION
+0x118 OSMajorVersion : Uint4B
+0x11c OSMinorVersion : Uint4B
+0x120 OSBuildNumber : Uint2B
+0x122 OSCSDVersion : Uint2B
+0x124 OSPlatformId : Uint4B
+0x128 ImageSubsystem : Uint4B
+0x12c ImageSubsystemMajorVersion : Uint4B
+0x130 ImageSubsystemMinorVersion : Uint4B
+0x134 Padding4 : [4] UChar
+0x138 ActiveProcessAffinityMask : Uint8B
+0x140 GdiHandleBuffer : [60] Uint4B
+0x230 PostProcessInitRoutine : Ptr64 void
+0x238 TlsExpansionBitmap : Ptr64 Void
+0x240 TlsExpansionBitmapBits : [32] Uint4B
+0x2c0 SessionId : Uint4B
+0x2c4 Padding5 : [4] UChar
+0x2c8 AppCompatFlags : _ULARGE_INTEGER
+0x2d0 AppCompatFlagsUser : _ULARGE_INTEGER
+0x2d8 pShimData : Ptr64 Void
+0x2e0 AppCompatInfo : Ptr64 Void
+0x2e8 CSDVersion : _UNICODE_STRING
+0x2f8 ActivationContextData : Ptr64 _ACTIVATION_CONTEXT_DATA
+0x300 ProcessAssemblyStorageMap : Ptr64 _ASSEMBLY_STORAGE_MAP
+0x308 SystemDefaultActivationContextData : Ptr64 _ACTIVATION_CONTEXT_DATA
+0x310 SystemAssemblyStorageMap : Ptr64 _ASSEMBLY_STORAGE_MAP
+0x318 MinimumStackCommit : Uint8B
+0x320 FlsCallback : Ptr64 _FLS_CALLBACK_INFO
+0x328 FlsListHead : _LIST_ENTRY
+0x338 FlsBitmap : Ptr64 Void
+0x340 FlsBitmapBits : [4] Uint4B
+0x350 FlsHighIndex : Uint4B
+0x358 WerRegistrationData : Ptr64 Void
+0x360 WerShipAssertPtr : Ptr64 Void
+0x368 pUnused : Ptr64 Void
+0x370 pImageHeaderHash : Ptr64 Void
+0x378 TracingFlags : Uint4B
+0x378 HeapTracingEnabled : Pos 0, 1 Bit
+0x378 CritSecTracingEnabled : Pos 1, 1 Bit
+0x378 LibLoaderTracingEnabled : Pos 2, 1 Bit
+0x378 SpareTracingBits : Pos 3, 29 Bits
+0x37c Padding6 : [4] UChar
+0x380 CsrServerReadOnlySharedMemoryBase : Uint8B
+0x388 TppWorkerpListLock : Uint8B
+0x390 TppWorkerpList : _LIST_ENTRY
+0x3a0 WaitOnAddressHashTable : [128] Ptr64 Void
+0x7a0 TelemetryCoverageHeader : Ptr64 Void
+0x7a8 CloudFileFlags : Uint4B
+0x7ac CloudFileDiagFlags : Uint4B
+0x7b0 PlaceholderCompatibilityMode : Char
+0x7b1 PlaceholderCompatibilityModeReserved : [7] Char
+0x7b8 LeapSecondData : Ptr64 _LEAP_SECOND_DATA
+0x7c0 LeapSecondFlags : Uint4B
+0x7c0 SixtySecondEnabled : Pos 0, 1 Bit
+0x7c0 Reserved : Pos 1, 31 Bits
+0x7c4 NtGlobalFlag2 : Uint4B
4.dt _PEB_LDR_DATA
kd> dt _PEB_LDR_DATA
nt!_PEB_LDR_DATA
+0x000 Length : Uint4B
+0x004 Initialized : UChar
+0x008 SsHandle : Ptr64 Void
+0x010 InLoadOrderModuleList : _LIST_ENTRY
+0x020 InMemoryOrderModuleList : _LIST_ENTRY
+0x030 InInitializationOrderModuleList : _LIST_ENTRY
+0x040 EntryInProgress : Ptr64 Void
+0x048 ShutdownInProgress : UChar
+0x050 ShutdownThreadId : Ptr64 Void
InLoadOrderModuleList 模块加载顺序
InMemoryOrderModuleList 模块在内存中的顺序
InInitializationOrderModuleList 模块初始化装载顺序
从模块初始化装载顺序的链表已经是模块加载起始位置,而第一个加载的是ntdll.dll
5.dt _LDR_DATA_TABLE_ENTRY 查看DllBase偏移
kd> dt _LDR_DATA_TABLE_ENTRY
nt!_LDR_DATA_TABLE_ENTRY
+0x000 InLoadOrderLinks : _LIST_ENTRY
+0x010 InMemoryOrderLinks : _LIST_ENTRY
+0x020 InInitializationOrderLinks : _LIST_ENTRY
+0x030 DllBase : Ptr64 Void
+0x038 EntryPoint : Ptr64 Void
+0x040 SizeOfImage : Uint4B
+0x048 FullDllName : _UNICODE_STRING
+0x058 BaseDllName : _UNICODE_STRING
+0x068 FlagGroup : [4] UChar
+0x068 Flags : Uint4B
+0x068 PackagedBinary : Pos 0, 1 Bit
+0x068 MarkedForRemoval : Pos 1, 1 Bit
+0x068 ImageDll : Pos 2, 1 Bit
+0x068 LoadNotificationsSent : Pos 3, 1 Bit
+0x068 TelemetryEntryProcessed : Pos 4, 1 Bit
+0x068 ProcessStaticImport : Pos 5, 1 Bit
+0x068 InLegacyLists : Pos 6, 1 Bit
+0x068 InIndexes : Pos 7, 1 Bit
+0x068 ShimDll : Pos 8, 1 Bit
+0x068 InExceptionTable : Pos 9, 1 Bit
+0x068 ReservedFlags1 : Pos 10, 2 Bits
+0x068 LoadInProgress : Pos 12, 1 Bit
+0x068 LoadConfigProcessed : Pos 13, 1 Bit
+0x068 EntryProcessed : Pos 14, 1 Bit
+0x068 ProtectDelayLoad : Pos 15, 1 Bit
+0x068 ReservedFlags3 : Pos 16, 2 Bits
+0x068 DontCallForThreads : Pos 18, 1 Bit
+0x068 ProcessAttachCalled : Pos 19, 1 Bit
+0x068 ProcessAttachFailed : Pos 20, 1 Bit
+0x068 CorDeferredValidate : Pos 21, 1 Bit
+0x068 CorImage : Pos 22, 1 Bit
+0x068 DontRelocate : Pos 23, 1 Bit
+0x068 CorILOnly : Pos 24, 1 Bit
+0x068 ChpeImage : Pos 25, 1 Bit
+0x068 ReservedFlags5 : Pos 26, 2 Bits
+0x068 Redirected : Pos 28, 1 Bit
+0x068 ReservedFlags6 : Pos 29, 2 Bits
+0x068 CompatDatabaseProcessed : Pos 31, 1 Bit
+0x06c ObsoleteLoadCount : Uint2B
+0x06e TlsIndex : Uint2B
+0x070 HashLinks : _LIST_ENTRY
+0x080 TimeDateStamp : Uint4B
+0x088 EntryPointActivationContext : Ptr64 _ACTIVATION_CONTEXT
+0x090 Lock : Ptr64 Void
+0x098 DdagNode : Ptr64 _LDR_DDAG_NODE
+0x0a0 NodeModuleLink : _LIST_ENTRY
+0x0b0 LoadContext : Ptr64 _LDRP_LOAD_CONTEXT
+0x0b8 ParentDllBase : Ptr64 Void
+0x0c0 SwitchBackContext : Ptr64 Void
+0x0c8 BaseAddressIndexNode : _RTL_BALANCED_NODE
+0x0e0 MappingInfoIndexNode : _RTL_BALANCED_NODE
+0x0f8 OriginalBase : Uint8B
+0x100 LoadTime : _LARGE_INTEGER
+0x108 BaseNameHashValue : Uint4B
+0x10c LoadReason : _LDR_DLL_LOAD_REASON
+0x110 ImplicitPathOptions : Uint4B
+0x114 ReferenceCount : Uint4B
+0x118 DependentLoadFlags : Uint4B
+0x11c SigningLevel : UChar
可以从FullDllName特征遍历所有模块基址.
6.因此代码如下
.CODE
asm1 PROC
;mov rax,60h ;TEB
mov rax, gs:[60h] ;PEB
mov rax, [rax+18h] ;LDR
mov rax, [rax+30h] ;InInitializationOrderModuleList or ntdll.dll
;mov rax,[rax] ;_LDR_MODULE.InLoadOrderModuleList].Blink kernelbase.dll
;mov rax,[rax] ;_LDR_MODULE.InLoadOrderModuleList].Blink kernel32.dll
;mov rax,[rax]
;mov rax,[rax]
mov rax,[rax+10h] ;DllBase
RET
asm1 ENDP
END所以加载的模块经过遍历链表就可以找到相应dll的基址.

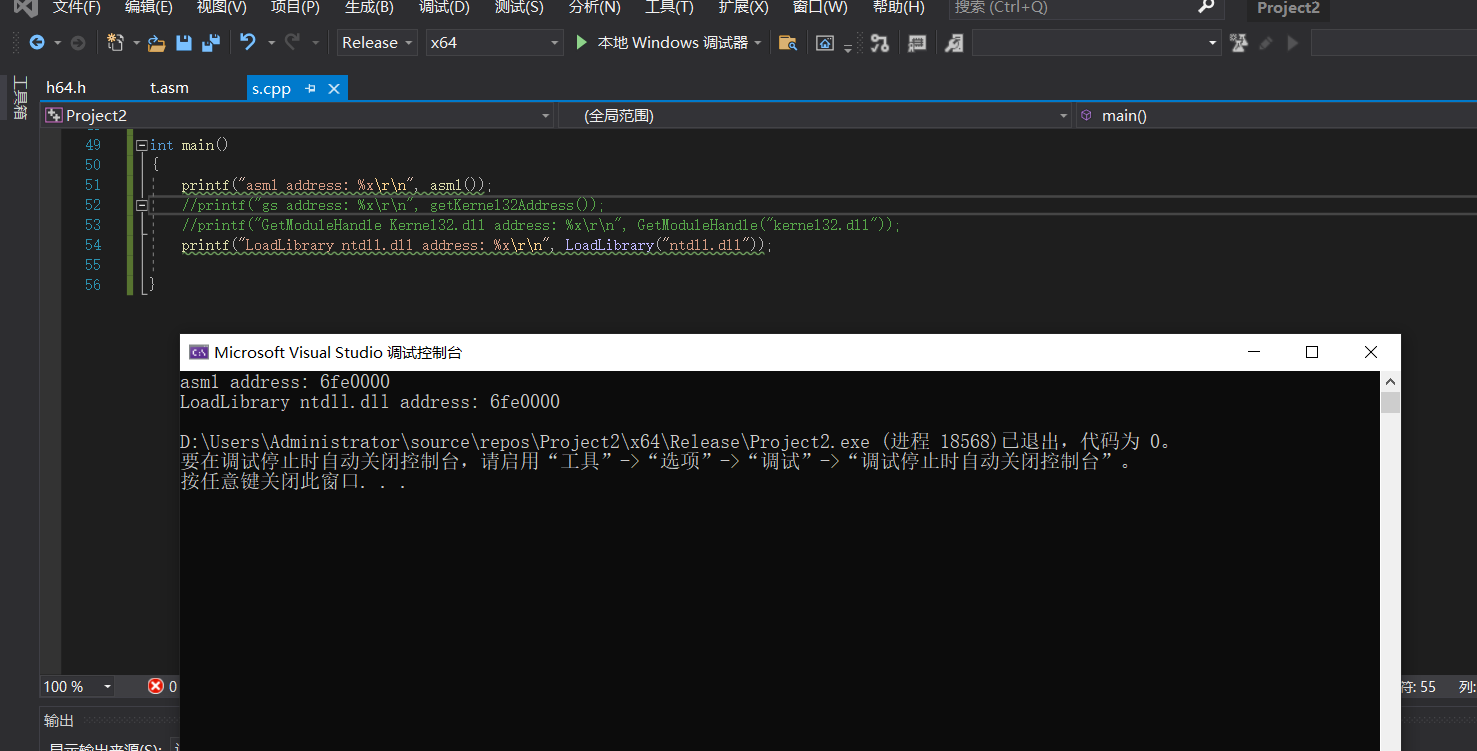

7.实现如下
最后
以上就是甜蜜薯片为你收集整理的Windows10 x64 获取PEB表，并获取ntdll基址的全部内容，希望文章能够帮你解决Windows10 x64 获取PEB表，并获取ntdll基址所遇到的程序开发问题。
如果觉得靠谱客网站的内容还不错，欢迎将靠谱客网站推荐给程序员好友。
本图文内容来源于网友提供，作为学习参考使用，或来自网络收集整理，版权属于原作者所有。
发表评论 取消回复
