用Glide去实现图片的缓存和瀑布流

54 阅读 0 评论 36 点赞

我是靠谱客的博主忧郁万宝路，最近开发中收集的这篇文章主要介绍用Glide去实现图片的缓存和瀑布流，觉得挺不错的，现在分享给大家，希望可以做个参考。

概述

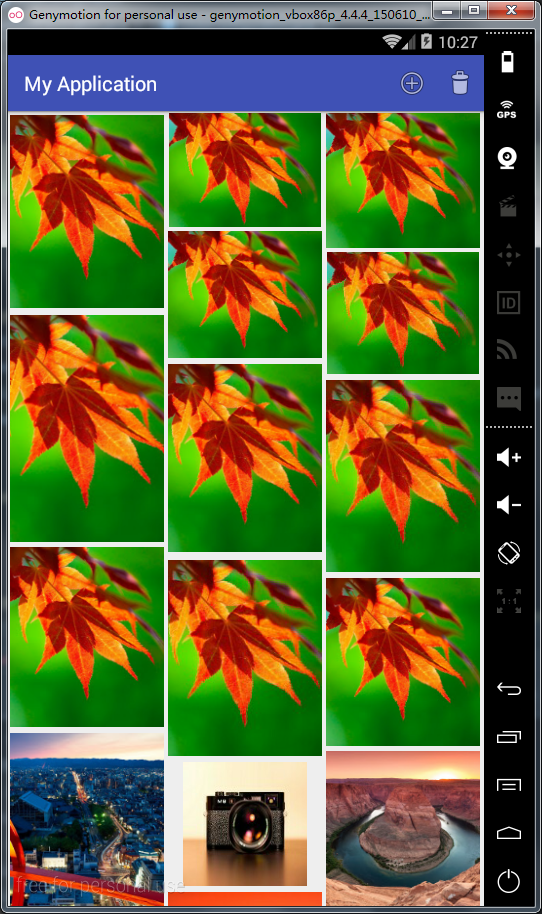

效果图：
这里写图片描述
上面的加号和回收箱能实现加载一个图片和删除一个图片，结合上一篇实现的图片的加载用Glide实现图片的缓存，这次我们用RecyclerView来做，下面直接上代码，有问题留言大家一起探讨…

MainActivity代码：

public class MainActivity extends AppCompatActivity {
    private List<String> mDatas;
    private RecyclerView recyclerView;
    private MyAdaper adapter;

    @Override
    protected void onCreate(Bundle savedInstanceState) {
        super.onCreate(savedInstanceState);
        setContentView(R.layout.activity_main);
        initDatas();
        initView();
    }


    private void initDatas() {
        //这里用list代替数组集合,方便添加和删除图片
        mDatas = new ArrayList<String>();
        for (int i = 0; i < Images.imageThumbUrls.length; i++) {
            mDatas.add(Images.imageThumbUrls[i]);
        }
    }

    @Override
    public boolean onCreateOptionsMenu(Menu menu) {
        getMenuInflater().inflate(R.menu.main_staggered, menu);
        return super.onCreateOptionsMenu(menu);
    }

    @Override
    public boolean onOptionsItemSelected(MenuItem item) {
        if (item.getItemId() == R.id.id_action_add) {
            adapter.addItemView(0);
            adapter.notifyDataSetChanged();
        }

        if (item.getItemId() == R.id.id_action_delete) {
            adapter.removeItemView(0);
            adapter.notifyDataSetChanged();
        }
        return super.onOptionsItemSelected(item);
    }

    private void initView() {
        recyclerView = (RecyclerView) findViewById(R.id.recyclerview);
        recyclerView.setLayoutManager(new StaggeredGridLayoutManager(3,
                StaggeredGridLayoutManager.VERTICAL));
        recyclerView.setItemAnimator(new DefaultItemAnimator());
        adapter = new MyAdaper(this, mDatas);
        recyclerView.setAdapter(adapter);
        //给Adapter设置监听
        adapter.setOnItemClickListener(new MyAdaper.OnRecyclerViewItemClickListener() {
            @Override
            public void onItemClick(View view, int position) {
                Toast.makeText(MainActivity.this, "点击了第" + (position + 1) + "个", Toast.LENGTH_SHORT).show();
            }
        });
    }


}

MyAdapter代码：

public class MyAdaper extends RecyclerView.Adapter<MyAdaper.ViewHolder> implements View.OnClickListener {
    private Context mContext;
    private List<String> mDatas;
    private static int SCREE_WIDTH = 0;
    private OnRecyclerViewItemClickListener mOnItemClickListener = null;

    public MyAdaper(Context context, List<String> datas) {
        this.mContext = context;
        this.mDatas = datas;
        SCREE_WIDTH = mContext.getResources().getDisplayMetrics().widthPixels;
    }

    @Override
    public void onClick(View v) {
        if (mOnItemClickListener != null) {
            //当点击事件发生时,对应着去执行,我们自己写的cycleview的方法
            mOnItemClickListener.onItemClick(v, (Integer) v.getTag());
        }
    }

    //定义一个recycleview的监听器
    public static interface OnRecyclerViewItemClickListener {
        void onItemClick(View view, int position);
    }

    public void setOnItemClickListener(OnRecyclerViewItemClickListener listener) {
        this.mOnItemClickListener = listener;
    }

    @Override
    public ViewHolder onCreateViewHolder(ViewGroup viewGroup, int i) {
        View view = LayoutInflater.from(viewGroup.getContext()).inflate(R.layout.recycle_item, viewGroup, false);
        ImageView imageView = (ImageView) view.findViewById(R.id.id_num);
        //给imageview的高度设置动态高度,实现瀑布流,也可以用其它方法去动态的设置它的高度
        imageView.getLayoutParams().height = (int) (new Random().nextInt(150) + 100);
        imageView.getLayoutParams().width = SCREE_WIDTH / 3;
        ViewHolder holder = new ViewHolder(view);
        view.setOnClickListener(this);
        return holder;
    }

    @Override
    public void onBindViewHolder(ViewHolder viewHolder, int i) {
        //用Glide去加载图片
        Glide.with(mContext).load(mDatas.get(i)).centerCrop().placeholder(R.drawable.empty_photo).into(viewHolder.image);
        viewHolder.itemView.setTag(i);
    }

    @Override
    public int getItemCount() {
        return mDatas.size();
    }

    public static class ViewHolder extends RecyclerView.ViewHolder {
        ImageView image;

        public ViewHolder(View itemView) {
            super(itemView);
            image = (ImageView) itemView.findViewById(R.id.id_num);
        }
    }

    //给recyclerview 动态添加一个itemView

    protected void addItemView(int position) {
        mDatas.add(position, Images.imageThumbUrls[position]);
        //和notifyDatasetChange进行区别
        notifyItemInserted(position);

    }

    //给recyclerview 动态删除一个itemView
    protected void removeItemView(int position) {
        mDatas.remove(Images.imageThumbUrls[position]);
        notifyItemRemoved(position);

    }
}

图片资源Images代码：

package user.example.com.myapplication;

public class Images {

    public final static String[] imageThumbUrls = new String[] {
        "https://img-my.csdn.net/uploads/201407/26/1406383299_1976.jpg",
        "https://img-my.csdn.net/uploads/201407/26/1406383291_6518.jpg",
        "https://img-my.csdn.net/uploads/201407/26/1406383291_8239.jpg",
        "https://img-my.csdn.net/uploads/201407/26/1406383290_9329.jpg",
        "https://img-my.csdn.net/uploads/201407/26/1406383290_1042.jpg",
        "https://img-my.csdn.net/uploads/201407/26/1406383275_3977.jpg",
        "https://img-my.csdn.net/uploads/201407/26/1406383265_8550.jpg",
        "https://img-my.csdn.net/uploads/201407/26/1406383264_3954.jpg",
        "https://img-my.csdn.net/uploads/201407/26/1406383264_4787.jpg",
        "https://img-my.csdn.net/uploads/201407/26/1406383264_8243.jpg",
        "https://img-my.csdn.net/uploads/201407/26/1406383248_3693.jpg",
        "https://img-my.csdn.net/uploads/201407/26/1406383243_5120.jpg",
        "https://img-my.csdn.net/uploads/201407/26/1406383242_3127.jpg",
        "https://img-my.csdn.net/uploads/201407/26/1406383242_9576.jpg",
        "https://img-my.csdn.net/uploads/201407/26/1406383242_1721.jpg",
        "https://img-my.csdn.net/uploads/201407/26/1406383219_5806.jpg",
        "https://img-my.csdn.net/uploads/201407/26/1406383214_7794.jpg",
        "https://img-my.csdn.net/uploads/201407/26/1406383213_4418.jpg",
        "https://img-my.csdn.net/uploads/201407/26/1406383213_3557.jpg",
        "https://img-my.csdn.net/uploads/201407/26/1406383210_8779.jpg",
        "https://img-my.csdn.net/uploads/201407/26/1406383172_4577.jpg",
        "https://img-my.csdn.net/uploads/201407/26/1406383166_3407.jpg",
        "https://img-my.csdn.net/uploads/201407/26/1406383166_2224.jpg",
        "https://img-my.csdn.net/uploads/201407/26/1406383166_7301.jpg",
        "https://img-my.csdn.net/uploads/201407/26/1406383165_7197.jpg",
        "https://img-my.csdn.net/uploads/201407/26/1406383150_8410.jpg",
        "https://img-my.csdn.net/uploads/201407/26/1406383131_3736.jpg",
        "https://img-my.csdn.net/uploads/201407/26/1406383130_5094.jpg",
        "https://img-my.csdn.net/uploads/201407/26/1406383130_7393.jpg",
        "https://img-my.csdn.net/uploads/201407/26/1406383129_8813.jpg",
        "https://img-my.csdn.net/uploads/201407/26/1406383100_3554.jpg",
        "https://img-my.csdn.net/uploads/201407/26/1406383093_7894.jpg",
        "https://img-my.csdn.net/uploads/201407/26/1406383092_2432.jpg",
        "https://img-my.csdn.net/uploads/201407/26/1406383092_3071.jpg",
        "https://img-my.csdn.net/uploads/201407/26/1406383091_3119.jpg",
        "https://img-my.csdn.net/uploads/201407/26/1406383059_6589.jpg",
        "https://img-my.csdn.net/uploads/201407/26/1406383059_8814.jpg",
        "https://img-my.csdn.net/uploads/201407/26/1406383059_2237.jpg",
        "https://img-my.csdn.net/uploads/201407/26/1406383058_4330.jpg",
        "https://img-my.csdn.net/uploads/201407/26/1406383038_3602.jpg",
        "https://img-my.csdn.net/uploads/201407/26/1406382942_3079.jpg",
        "https://img-my.csdn.net/uploads/201407/26/1406382942_8125.jpg",
        "https://img-my.csdn.net/uploads/201407/26/1406382942_4881.jpg",
        "https://img-my.csdn.net/uploads/201407/26/1406382941_4559.jpg",
        "https://img-my.csdn.net/uploads/201407/26/1406382941_3845.jpg",
        "https://img-my.csdn.net/uploads/201407/26/1406382924_8955.jpg",
        "https://img-my.csdn.net/uploads/201407/26/1406382923_2141.jpg",
        "https://img-my.csdn.net/uploads/201407/26/1406382923_8437.jpg",
        "https://img-my.csdn.net/uploads/201407/26/1406382922_6166.jpg",
        "https://img-my.csdn.net/uploads/201407/26/1406382922_4843.jpg",
        "https://img-my.csdn.net/uploads/201407/26/1406382905_5804.jpg",
        "https://img-my.csdn.net/uploads/201407/26/1406382904_3362.jpg",
        "https://img-my.csdn.net/uploads/201407/26/1406382904_2312.jpg",
        "https://img-my.csdn.net/uploads/201407/26/1406382904_4960.jpg",
        "https://img-my.csdn.net/uploads/201407/26/1406382900_2418.jpg",
        "https://img-my.csdn.net/uploads/201407/26/1406382881_4490.jpg",
        "https://img-my.csdn.net/uploads/201407/26/1406382881_5935.jpg",
        "https://img-my.csdn.net/uploads/201407/26/1406382880_3865.jpg",
        "https://img-my.csdn.net/uploads/201407/26/1406382880_4662.jpg",
        "https://img-my.csdn.net/uploads/201407/26/1406382879_2553.jpg",
        "https://img-my.csdn.net/uploads/201407/26/1406382862_5375.jpg",
        "https://img-my.csdn.net/uploads/201407/26/1406382862_1748.jpg",
        "https://img-my.csdn.net/uploads/201407/26/1406382861_7618.jpg",
        "https://img-my.csdn.net/uploads/201407/26/1406382861_8606.jpg",
        "https://img-my.csdn.net/uploads/201407/26/1406382861_8949.jpg",
        "https://img-my.csdn.net/uploads/201407/26/1406382841_9821.jpg",
        "https://img-my.csdn.net/uploads/201407/26/1406382840_6603.jpg",
        "https://img-my.csdn.net/uploads/201407/26/1406382840_2405.jpg",
        "https://img-my.csdn.net/uploads/201407/26/1406382840_6354.jpg",
        "https://img-my.csdn.net/uploads/201407/26/1406382839_5779.jpg",
        "https://img-my.csdn.net/uploads/201407/26/1406382810_7578.jpg",
        "https://img-my.csdn.net/uploads/201407/26/1406382810_2436.jpg",
        "https://img-my.csdn.net/uploads/201407/26/1406382809_3883.jpg",
        "https://img-my.csdn.net/uploads/201407/26/1406382809_6269.jpg",
        "https://img-my.csdn.net/uploads/201407/26/1406382808_4179.jpg",
        "https://img-my.csdn.net/uploads/201407/26/1406382790_8326.jpg",
        "https://img-my.csdn.net/uploads/201407/26/1406382789_7174.jpg",
        "https://img-my.csdn.net/uploads/201407/26/1406382789_5170.jpg",
        "https://img-my.csdn.net/uploads/201407/26/1406382789_4118.jpg",
        "https://img-my.csdn.net/uploads/201407/26/1406382788_9532.jpg",
        "https://img-my.csdn.net/uploads/201407/26/1406382767_3184.jpg",
        "https://img-my.csdn.net/uploads/201407/26/1406382767_4772.jpg",
        "https://img-my.csdn.net/uploads/201407/26/1406382766_4924.jpg",
        "https://img-my.csdn.net/uploads/201407/26/1406382766_5762.jpg",
        "https://img-my.csdn.net/uploads/201407/26/1406382765_7341.jpg",
        "https://img-my.csdn.net/uploads/201308/31/1377949442_4562.jpg"
    };
}

Glide使用缓存和设置图片显示样式的代码：

package user.example.com.myapplication;

import android.content.Context;
import com.bumptech.glide.Glide;
import com.bumptech.glide.GlideBuilder;
import com.bumptech.glide.load.DecodeFormat;
import com.bumptech.glide.load.engine.cache.InternalCacheDiskCacheFactory;
import com.bumptech.glide.load.engine.cache.LruResourceCache;
import com.bumptech.glide.module.GlideModule;

import java.io.File;

/**
 * Created by user on 2016/4/27.
 */
public class GlideConfiguration implements GlideModule {
    private Context mContext;

    @Override
    public void applyOptions(Context context, GlideBuilder builder) {
        mContext = context;
        builder.setDecodeFormat(DecodeFormat.PREFER_ARGB_8888);
        //这里也能使用SD卡存储,换成相应的路径即可
        //builder.setDiskCache(new ExternalCacheDiskCacheFactory(context, getFileString(), 10 * 1024 * 1024));
        builder.setDiskCache(new InternalCacheDiskCacheFactory(context, getFileString(), 10 * 1024 * 1024));
        builder.setMemoryCache(new LruResourceCache(getUseAbleSize()));
    }

    @Override
    public void registerComponents(Context context, Glide glide) {

    }

    private String getFileString() {
        File dirFile = new File(mContext.getCacheDir().getAbsolutePath().toString() + "GlideBitampCache");
        File tempFile = new File(dirFile, "bitmaps");
        if (!tempFile.getParentFile().exists()) {
            tempFile.getParentFile().mkdirs();
        }
        return tempFile.getAbsolutePath().toString();
    }

    private int getUseAbleSize() {
        int result = (int) (Runtime.getRuntime().maxMemory() / 8);
        return result;
    }
}

下面看布局文件：

主布局文件activity_main:

<?xml version="1.0" encoding="utf-8"?>
<RelativeLayout xmlns:android="http://schemas.android.com/apk/res/android"
    xmlns:tools="http://schemas.android.com/tools"
    android:layout_width="match_parent"
    android:layout_height="match_parent"
    tools:context="user.example.com.myapplication.MainActivity">

    <android.support.v7.widget.RecyclerView
        android:id="@+id/recyclerview"
        android:layout_width="match_parent"
        android:layout_height="match_parent"
        android:scrollbars="vertical"/>
</RelativeLayout>

布局recycle_item：

<?xml version="1.0" encoding="utf-8"?>
<LinearLayout xmlns:android="http://schemas.android.com/apk/res/android"
    android:orientation="vertical" android:layout_width="match_parent"
    android:layout_height="match_parent">
    <ImageView
        android:id="@+id/id_num"
        android:layout_width="100dp"
        android:layout_gravity="center"
        android:layout_height="100dp"
        android:gravity="center"
        android:padding="2dp"
        android:src="@drawable/empty_photo"
        android:text="1" />

</LinearLayout>

最后配置文件Manifests加入：

<meta-data
            android:name="user.example.com.myapplication.GlideConfiguration"
            android:value="GlideModule"
            />

权限：

 <uses-permission android:name="android.permission.INTERNET"/>

详情请点击代码下载（里面多余的类，可以删除）
参考：鸿洋大神的 Android RecyclerView 使用完全解析体验艺术般的控件
参考：RecyclerView使用介绍

最后

以上就是忧郁万宝路为你收集整理的用Glide去实现图片的缓存和瀑布流的全部内容，希望文章能够帮你解决用Glide去实现图片的缓存和瀑布流所遇到的程序开发问题。

如果觉得靠谱客网站的内容还不错，欢迎将靠谱客网站推荐给程序员好友。

本图文内容来源于网友提供，作为学习参考使用，或来自网络收集整理，版权属于原作者所有。

本文分类：android开发
浏览次数：54 次浏览
发布日期：2024-08-29 09:50:01
本文链接：https://www.kaopuke.com/article/k-p-k_13_u_7_o_14_f0_13_jg5.html

用Glide去实现图片的缓存和瀑布流

概述

最后

评论列表共有 0 条评论

发表评论取消回复

用Glide去实现图片的缓存和瀑布流

概述

最后

相关文章

评论列表共有 0 条评论

发表评论 取消回复

发表评论取消回复
